GLASS/WINDOWS/MIRRORS

09–12–27

09–12

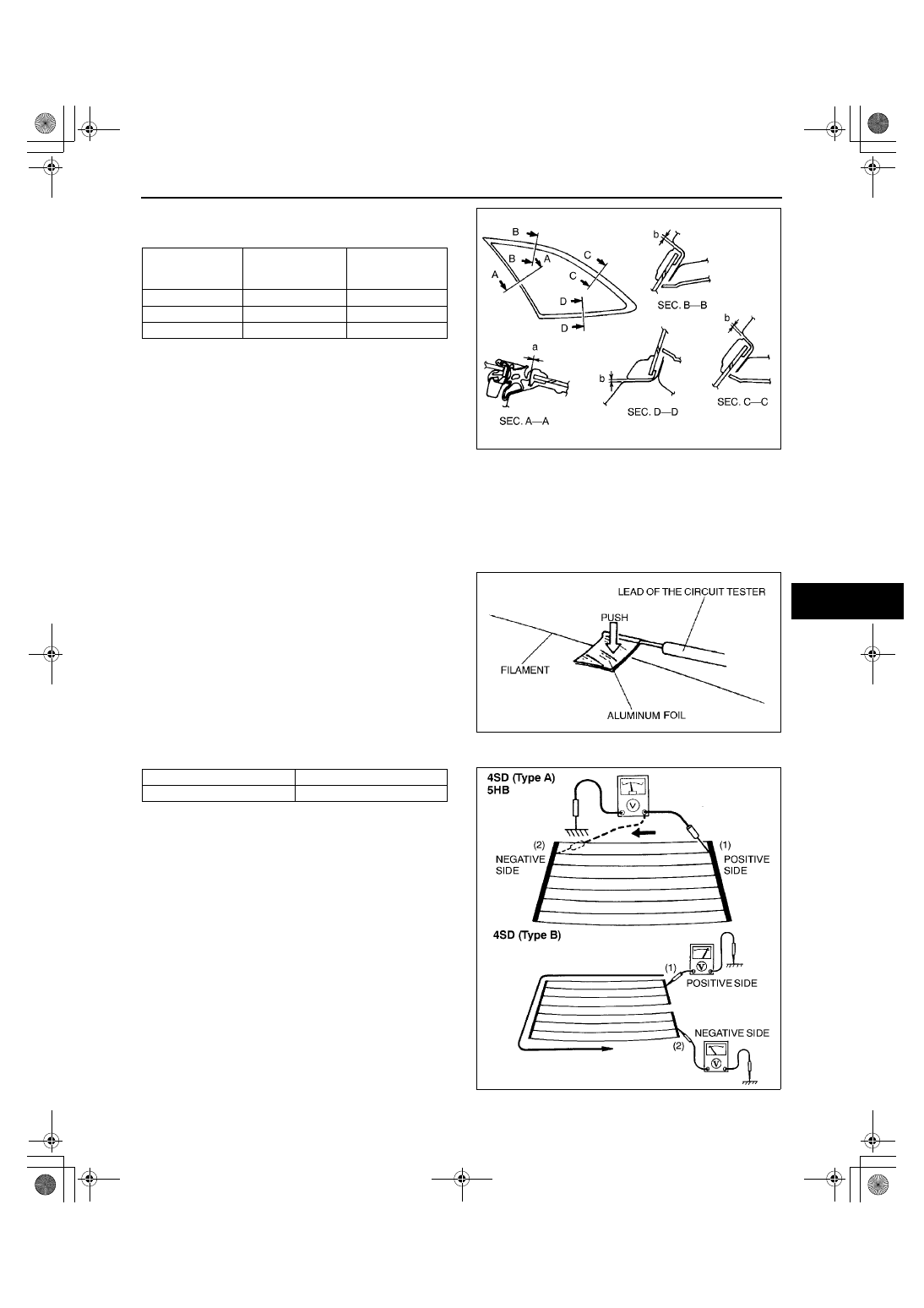

7. Press firmly inward on the glass to compress the

sealant.

Hardening time of sealant

8. Check for water leaks. If a leak is found, wipe the

water off well and repeat the installation.

9. Install the C-pillar trim. (See 09–17–11 C-PILLAR

TRIM REMOVAL/INSTALLATION.)

End Of Sie

FILAMENT INSPECTION

A3U091263931W03

1. Turn the ignition switch to ON position.
2. Turn the rear window defroster switch to ON.
3. Connect the positive (+) lead of the voltmeter to the positive side of each filament and the negative (

−

) lead to

ground.

Caution

••••

Directly touching the rear window
defroster filament with the lead of the
circuit tester will damage it. Wrap
aluminum foil around the end of the lead
and test the filament by touching it with
the foil.

4. Gradually, slide the positive (+) lead from the

positive side to the negative side and measure
the voltage. Verify that the voltage decreases
accordingly.

•

If the voltage is not as specified or it changes
rapidly, the filament is faulty. Repair the
filament.

End Of Sie

Temperature

Surface

hardening time

Time required

until car can be
put into service

5

°

C {41

°

F}

Approx. 1.5 h

Approx. 12 h

20

°

C {68

°

F}

Approx. 1 h

Approx. 4 h

35

°

C {95

°

F}

Approx. 10 min.

Approx. 2 h

A3U0912W008

Measurement place

Voltage (Reference value)

(1)

→

(2)

Approx. 12 V

→

 Approx. 0 V

X3U912WA1

A3U0912W021

1712-1U-01G(09-12).fm  27 ページ  ２００１年６月２９日 金曜日 午前１０時３０分

GLASS/WINDOWS/MIRRORS

09–12–28

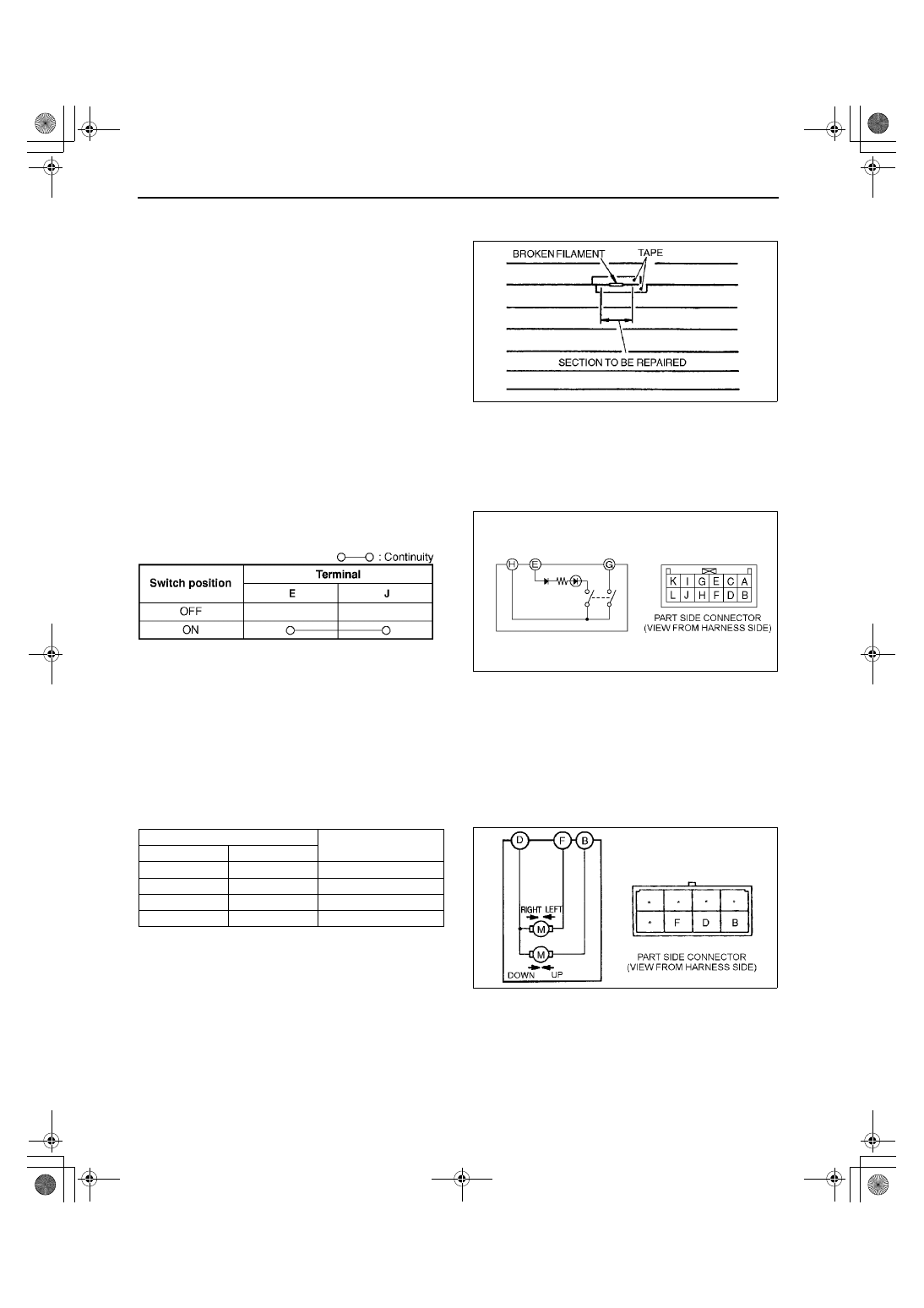

FILAMENT REPAIR

A3U091263931W04

1. Use isopropyl alcohol to clean around the damaged section of the filament.
2. Attach tape above and below the damaged

section of the filament.

3. Using a small brush or marking pen, repair the

filament with silver paint or equivalent.

4. After approximately 2—3 minutes, carefully

remove the tape without disturbing the repaired
area.

5. Use a hot air blower heated to 150

°°°°

C {302

°°°°

F} for

30 minutes or let the paint set for 24 hours at
25

°°°°

C {77

°°°°

F} to allow it to dry completely.

Caution

••••

Do not use the rear window defroster
until the paint is completely dry. It may
cause other malfunctions if it is used before the paint is dry.

End Of Sie

REAR WINDOW DEFROSTER SWITCH INSPECTION

A3U091266460W01

1. Remove the climate control unit. (See 07–40–9 CLIMATE CONTROL UNIT REMOVAL.)
2. Inspect for continuity between the rear window

defroster switch terminals using an ohmmeter.

3. Connect battery positive voltage to terminal L and

ground to terminal E.

4. Turn the rear window defroster switch to ON.
5. Verify that the LED illuminates.

•

If not as specified, replace the climate control unit.

End Of Sie

POWER OUTSIDE MIRROR INSPECTION

A3U091269110W01

1. Disconnect the power outside mirror connector. (See 09–12–28 POWER OUTSIDE MIRROR REMOVAL/

INSTALLATION.)

2. Apply battery positive voltage to the power outside mirror and inspect the operation of the power outside mirror.

•

If not as specified, replace the power outside mirror.

End Of Sie

POWER OUTSIDE MIRROR REMOVAL/INSTALLATION

A3U091269110W02

1. Disconnect the negative battery cable.
2. Remove the front door trim. (See 09–17–9 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
3. Partially peel off the door screen.
4. Disconnect the connector.

X3U912WA4

Z3U0912W018

Z3U0912W019

Terminal

Mirror operation

B+

GND

B

D

Up

D

B

Down

F

D

Left

D

F

Right

Z3U0912W001

1712-1U-01G(09-12).fm  28 ページ  ２００１年６月２９日 金曜日 午前１０時３０分

GLASS/WINDOWS/MIRRORS

09–12–29

09–12

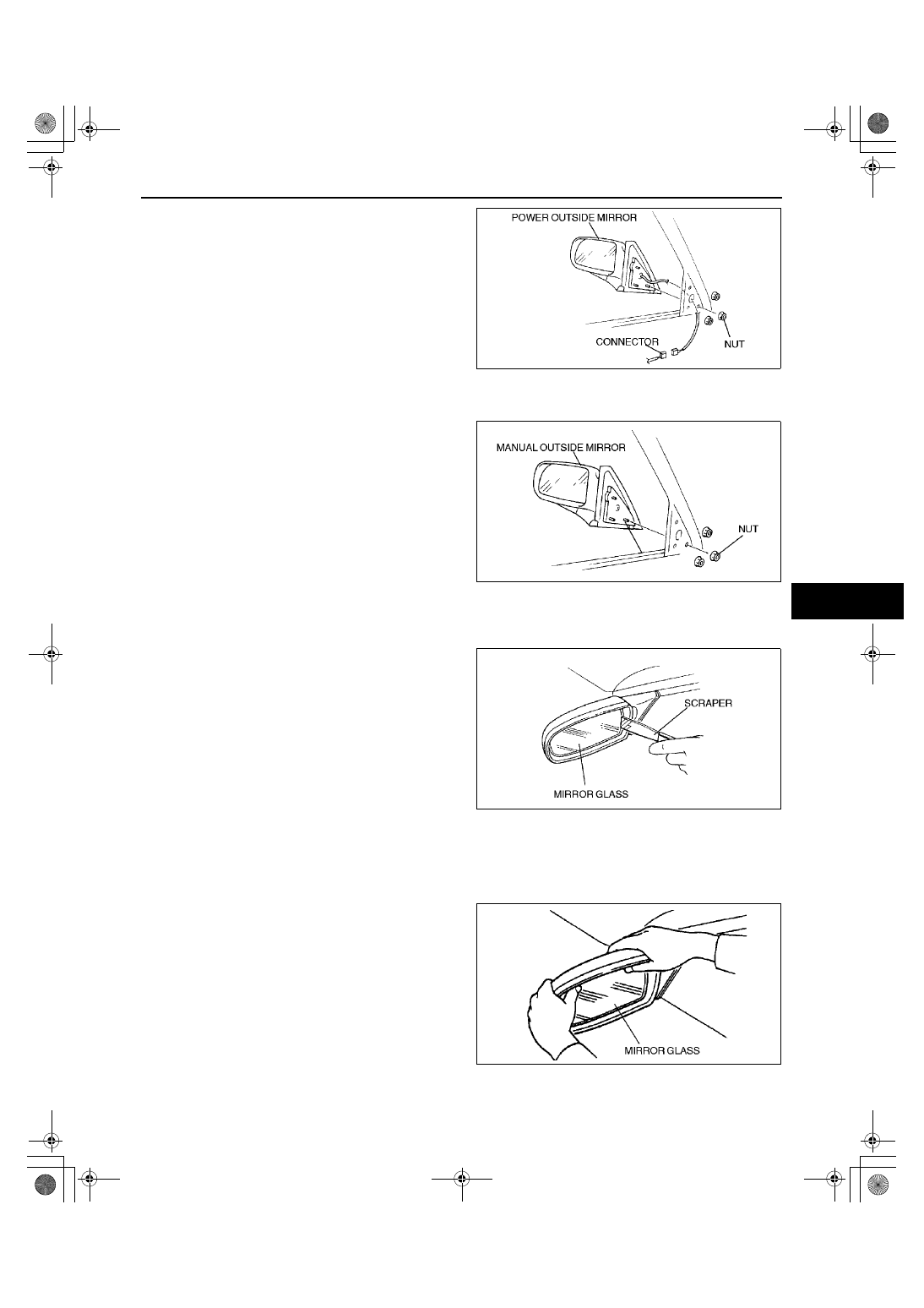

5. Remove the nuts, and then remove the power

outside mirror.

6. Install in the reverse order of removal.

End Of Sie

MANUAL OUTSIDE MIRROR REMOVAL/INSTALLATION

A3U091269100W01

1. Remove the inner garnish.
2. Remove the nuts, and then remove the manual

outside mirror.

3. Install in the reverse order of removal.

End Of Sie

OUTSIDE MIRROR GLASS REMOVAL

A3U091269111W01

1. Warm the frame and the mirror glass to approximately 70

°°°°

C {158

°°°°

F} for 3 minutes using a hot air blower.

2. Put on gloves and protective eye wear.
3. Insert a tape-wrapped scraper between the mirror

glass and the frame, and pry the glass loose.

End Of Sie

OUTSIDE MIRROR GLASS INSTALLATION

A3U091269111W02

1. Clean and degrease the adhesion surface of the mirror glass.
2. Stick double-sided adhesive tape onto the back of the mirror glass.
3. Warm up the frame using a hot air blower.
4. Remove the paper backing from the double-sided adhesive tape on the back of the mirror glass.
5. Insert the mirror glass into the frame, then press

lightly on the glass to secure it.

End Of Sie

X3U912WD8

X3U912WD7

X3U912WD9

X3U912WE0

1712-1U-01G(09-12).fm  29 ページ  ２００１年６月２９日 金曜日 午前１０時３０分

GLASS/WINDOWS/MIRRORS

09–12–30

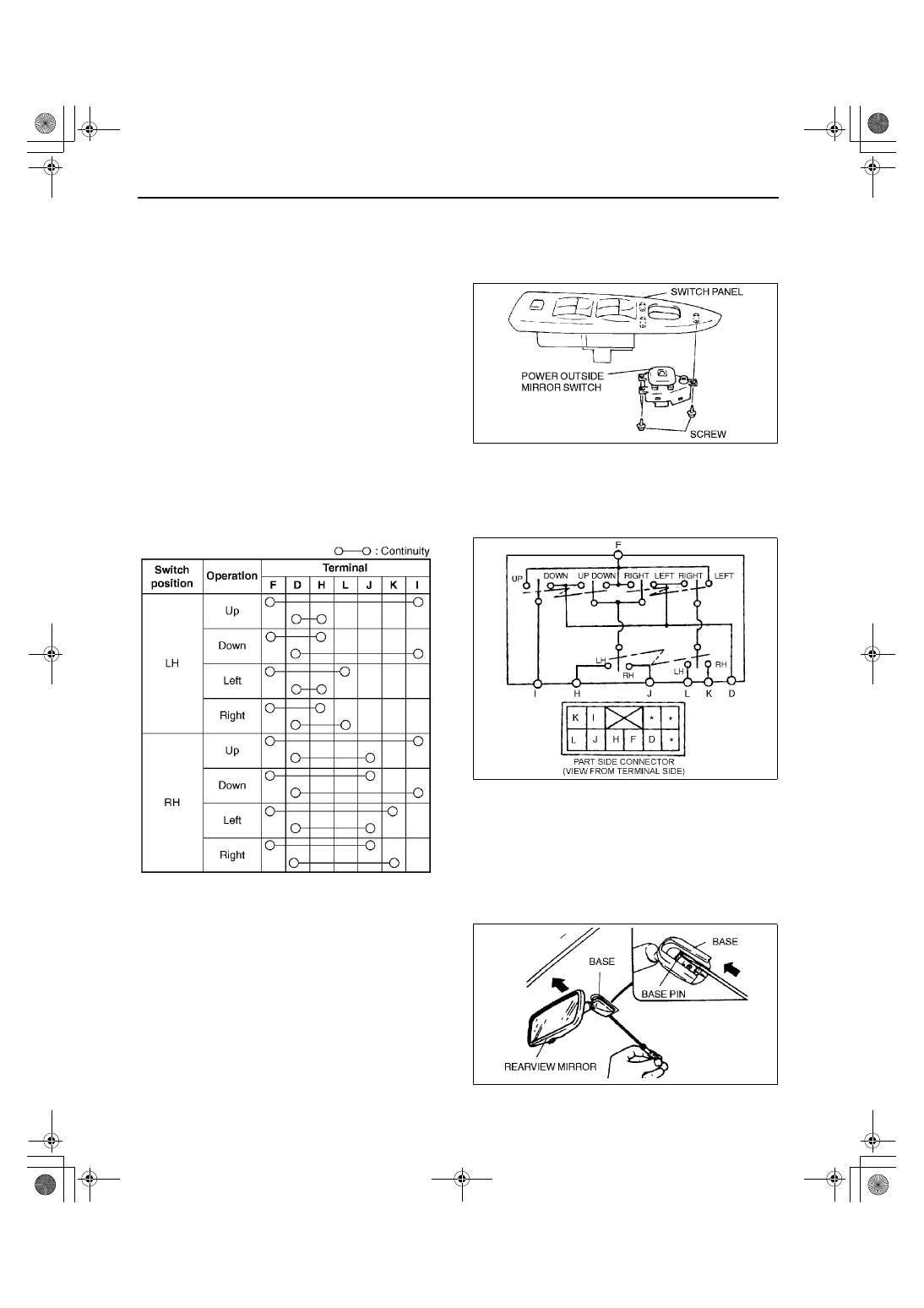

POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION

A3U091266600W01

1. Disconnect the negative battery cable.
2. Remove the driver-side front door trim. (See 09–17–9 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
3. Push the clip from the reverse side of the trim to remove the switch panel.
4. Disconnect the connector.
5. Remove the screws, and then remove the power

outside mirror switch.

6. Install in the reverse order of removal.

End Of Sie

POWER OUTSIDE MIRROR SWITCH INSPECTION

A3U091266600W02

1. Remove the power outside mirror switch. (See 09–12–30 POWER OUTSIDE MIRROR SWITCH REMOVAL/

INSTALLATION.)

2. Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.

•

If not as specified, replace the power outside mirror switch.

End Of Sie

REARVIEW MIRROR REMOVAL

A3U091269220W01

1. Insert a flathead screwdriver between the mirror

and the base.

2. Push the base pin down to remove the rearview

mirror.

End Of Sie

X3U912WE2

Z3U0912W014

X3U912WE3

X3U912WE5
