SEAT BELT

08–11–2

REAR SEAT BELT REMOVAL/INSTALLATION

A3U081157730W01

Caution

••••

The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be
rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the
retractor.

4SD

1. Remove the rear package trim.
2. Remove the bolts, then remove the rear seat belt.
3. Install in the reverse order of removal.

5HB

1. Remove the trunk side trim.
2. Remove the bolts, then remove the rear seat belt.
3. Install in the reverse order of removal.

End Of Sie

Z3U0811W004

A3U0811W001

1712-1U-01G(08-11).fm  2 ページ  ２００１年６月２９日 金曜日 午前１０時２５分

SEAT BELT

08–11–3

08–11

REAR CENTER SEAT BELT REMOVAL/INSTALLATION

A3U081157730W02

Caution

••••

The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be
rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the
retractor.

4SD

1. Remove the rear package trim.
2. Remove the bolt, then remove the rear center

seat belt.

3. Install in the reverse order of removal.

5HB

1. Remove the trunk side trim.
2. Remove the bolts, then remove the rear center

seat belt.

3. Install in the reverse order of removal.

End Of Sie

FRONT BUCKLE REMOVAL/INSTALLATION

A3U081157620W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

Z3U0811W002

A3U0811W002

1

Connector

2

Front buckle

X3U811WA3

1712-1U-01G(08-11).fm  3 ページ  ２００１年６月２９日 金曜日 午前１０時２５分

SEAT BELT

08–11–4

REAR BUCKLE REMOVAL/INSTALLATION

A3U081157720W01

1. For 4SD, remove the rear seat cushion. For 5HB, lift up the rear seat cushion.
2. Remove the bolt, then remove the rear buckle.
3. Install in the reverse order of removal.

End Of Sie

SEAT BELT INSPECTION

A3U081157630W02

Belt

1. Confirm that the seat belt is installed correctly.
2. Inspect the seat belt for damage and deformation of metal parts.

•

If any damage is found, replace as necessary.

3. Replace the seat belt if there is any faulty area.

ELR

1. Verify that the belt can be pulled out smoothly,

and that it moves smoothly when wound.

•

If not as specified, replace the seat belt.

2. Verify that the retractor locks when the belt is

pulled quickly.

•

If not as specified, replace the seat belt.

3. Remove the retractor. (See 08–11–1 FRONT

SEAT BELT REMOVAL/INSTALLATION.) (See
08–11–2 REAR SEAT BELT REMOVAL/
INSTALLATION.) (See 08–11–3 REAR CENTER
SEAT BELT REMOVAL/INSTALLATION.)

4. Hold the retractor as it would be installed.
5. Slowly incline the retractor while pulling out the

belt.

6. Verify that the retractor lks at approximately 30

°



inclination.

•

If not as specified, replace the seat belt.

ALR

1. Pull the belt out fully and the lock mode changes from ELR to ALR.
2. Verify that retractor makes a clicking sound as the belt slowly retracts.

•

If no sound is heard, the lock mode has not changed to ALR. If necessary, repeat the above Step 1.

•

If not as specified, replace the seat belt.

3. Verify that the belt locks when pulled.

•

If not as specified, replace the seat belt.

4. Verify that the lock mode changes to ELR when the belt fully retracts.

•

If not as specified, replace the seat belt.

End Of Sie

Z3U0811W001

X3U811WA5

X3U811WA6

1712-1U-01G(08-11).fm  4 ページ  ２００１年６月２９日 金曜日 午前１０時２５分

SEAT BELT

08–11–5

08–11

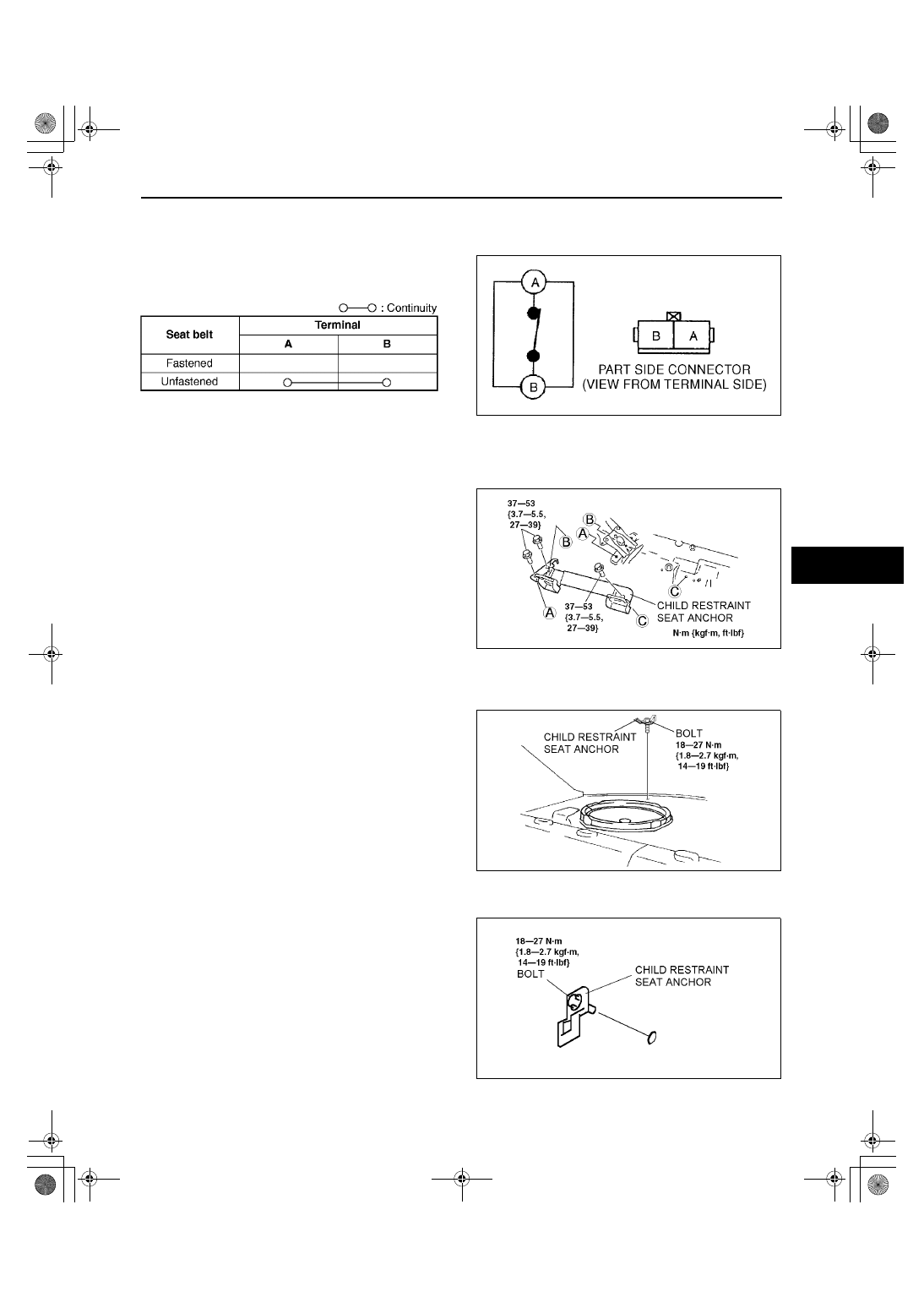

BUCKLE SWITCH INSPECTION

A3U081157620W02

1. Disconnect the negative battery cable.
2. Disconnect the buckle switch connector.
3. Inspect for continuity between the buckle switch

terminals using an ohmmeter.

•

If not as specified, replace the front buckle.

End Of Sie

CHILD RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

A3U081157770W01

ISOFIX Anchor

1. Fold down the rear seat back.
2. Remove the tire house trim.
3. Remove the child restraint seat anchor.
4. Install in the reverse order of removal.

Tether Anchor
4SD

1. Remove the rear package trim.
2. Remove the bolt, then child restraint seat anchor.
3. Install in the reverse order of removal.

5HB

1. Remove the trunk end trim.
2. Remove the bolt, then child restraint seat anchor.
3. Install in the reverse order of removal.

End Of Sie

Y3U811WA0

X3U811WA7

Z3U0811W003

A3U0811W004

A3U0811W005
