AUTOMATIC TRANSAXLE

05–17–37

05–17

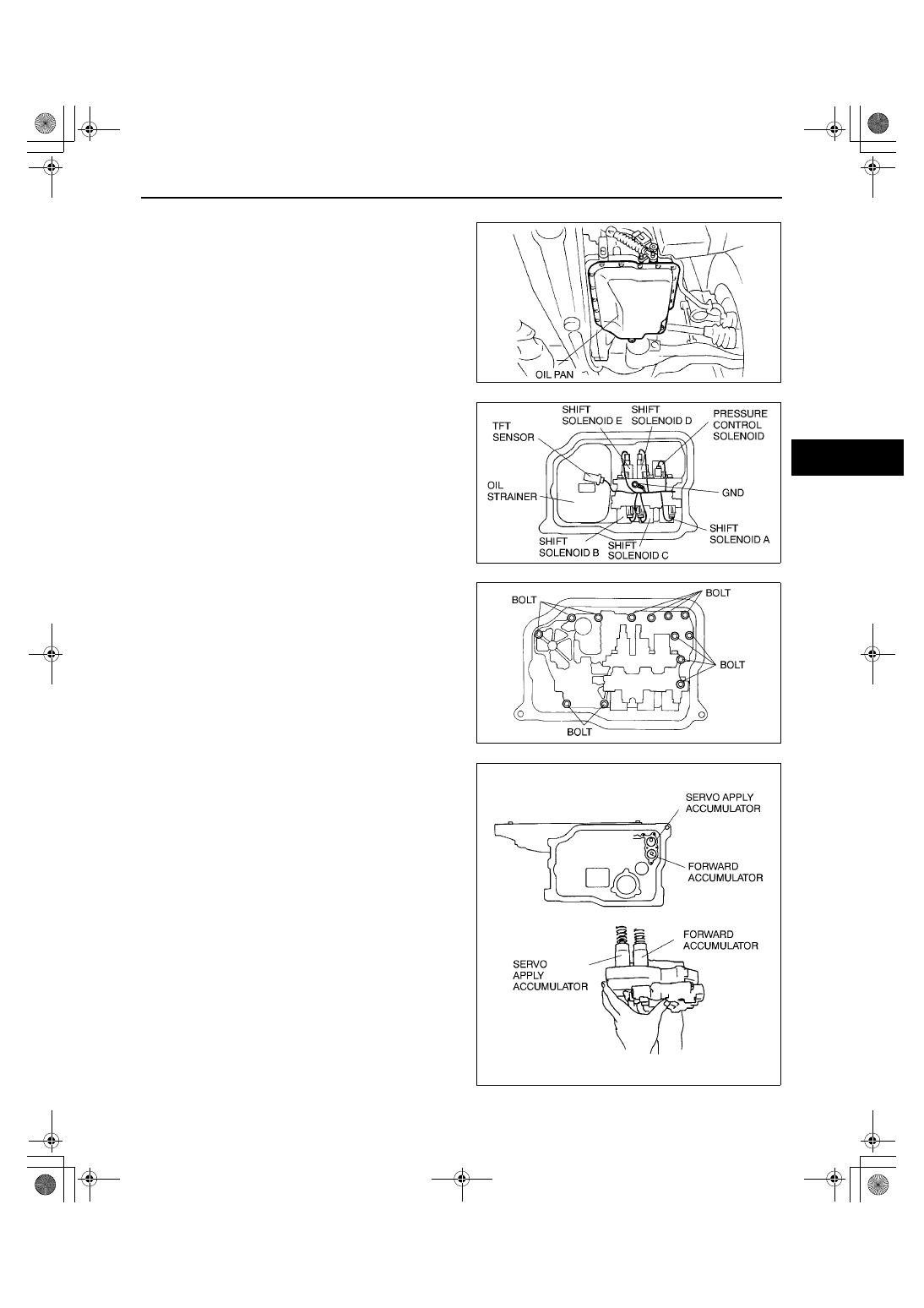

3. Remove the splash shield.
4. Remove the oil pan.
5. Disconnect the solenoid connectors and TFT

sensor connector and GND.

6. Remove the oil strainer.

7. Remove the control valve body component as

shown.

8. Remove the accumulators and accumulator

springs.

X3U517WBP

X3U517WBQ

X3U517WBR

X3U517WCU

1712-1U-01G(05-17).fm  37 ページ  ２００１年６月２９日 金曜日 午前１０時１２分

AUTOMATIC TRANSAXLE

05–17–38

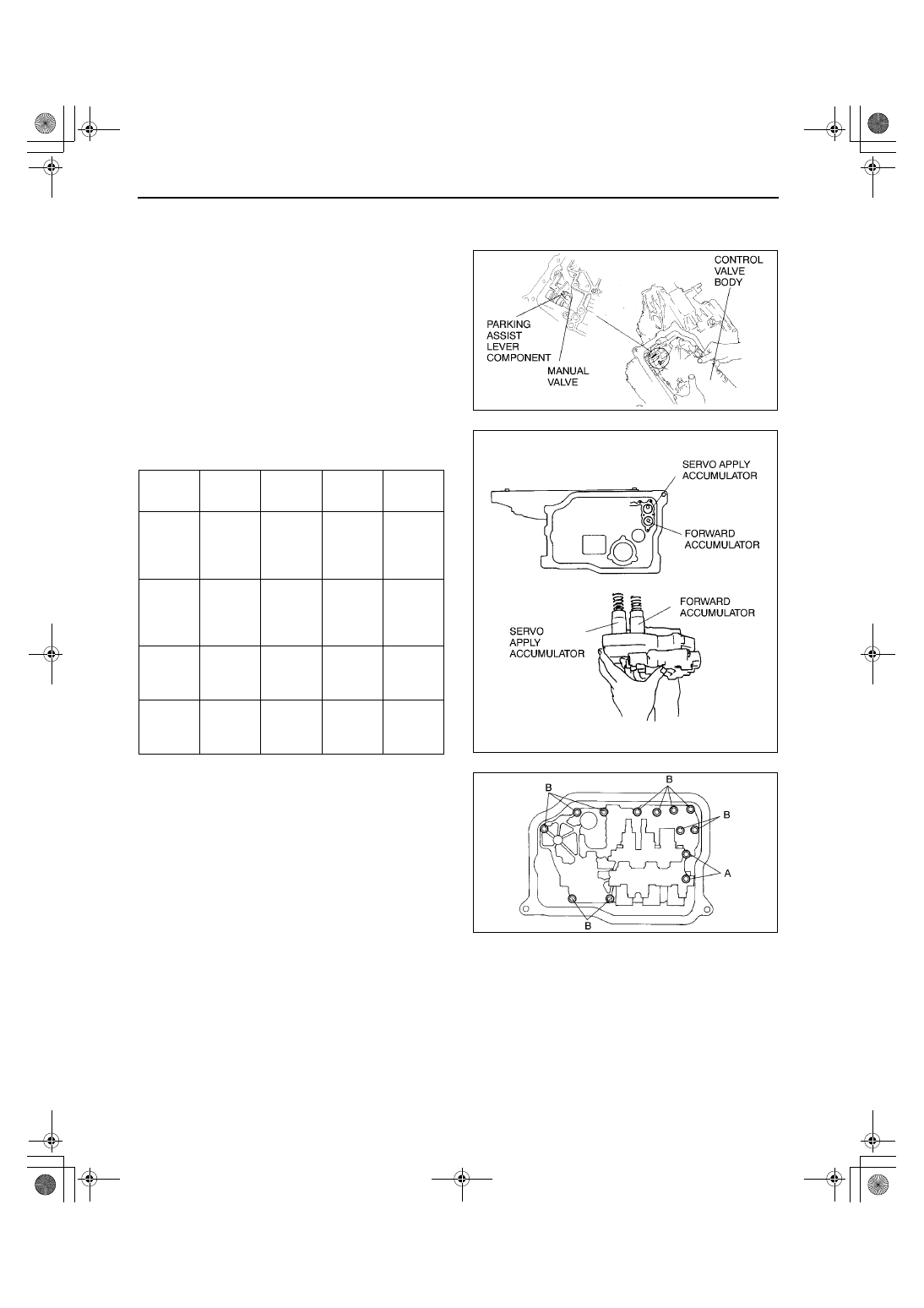

On-vehicle Installation

Caution

••••

Be sure to align the parking rod and the
manual valve.

1. Install the accumulator springs and accumulator

into the transaxle case.

Accumulator springs specification

2. Install the control valve body component.

Tightening torque

7.9—10.7 N·m {80—110 kgf·cm, 69.5—95.4

in·lbf}

Bolt length (measured from below the head)

A: 70 mm {2.8 in}
B: 40 mm {1.6 in}

3. Install the oil strainer.

Spring

Outer

diameter

(mm {in})

Free

length

(mm {in})

No. of

coils

Wire

diameter

(mm {in})

Servo
apply
accumulat
or large
spring

21.0

{0.827}

67.8

{2.67}

10.3

3.5

{0.14}

Servo
apply
accumulat
or small
spring

13.0

{0.512}

67.8

{2.67}

17.1

2.2

{0.087}

Forward
accumulat
or large
spring

21.0

{0.827}

75.0

{2.95}

10.7

2.3

{0.091}

Forward
accumulat
or small
spring

15.6

{0.614}

55.0

{2.17}

12.9

2.4

{0.094}

X3U517WBS

X3U517WBT

X3U517WBU

1712-1U-01G(05-17).fm  38 ページ  ２００１年６月２９日 金曜日 午前１０時１２分

AUTOMATIC TRANSAXLE

05–17–39

05–17

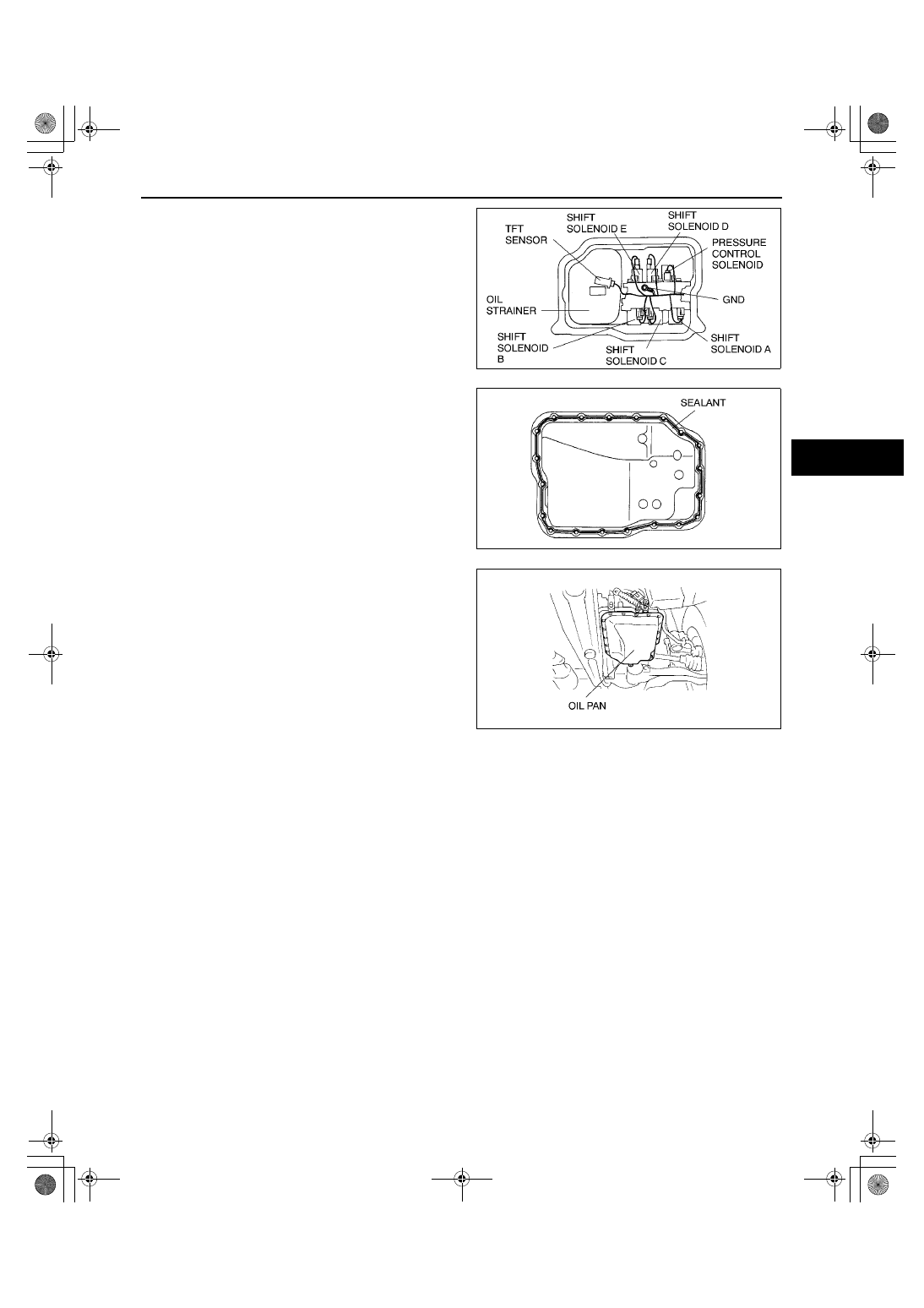

4. Match the harness colors, then connect the

solenoid connectors and TFT sensor connector.

5. Apply a light coat of silicon sealant to the contact

surfaces of the oil pan and transaxle case.

6. Install the oil pan.

Tightening torque

7.9—10.7 N·m {80—110 kgf·cm, 69.5—95.4

in·lbf}

7. Install the splash shield.
8. Connect the negative battery cable.
9. Add ATF, and with the engine idling, inspect the

ATF level. (See 05–17–18 AUTOMATIC
TRANSAXLE FLUID (ATF) REPLACEMENT.)
(See 05–17–18 Automatic Transaxle Fluid (ATF)
Level Inspection.)

10. Carry out the mechanical system test. (See 05–

17–11 MECHANICAL SYSTEM TEST.)

11. Carry out the road test. (See 05–17–14 ROAD

TEST.)

End Of Sie

X3U517WBV

X3U517WBW

X3U517WBX

1712-1U-01G(05-17).fm  39 ページ  ２００１年６月２９日 金曜日 午前１０時１２分

AUTOMATIC TRANSAXLE

05–17–40

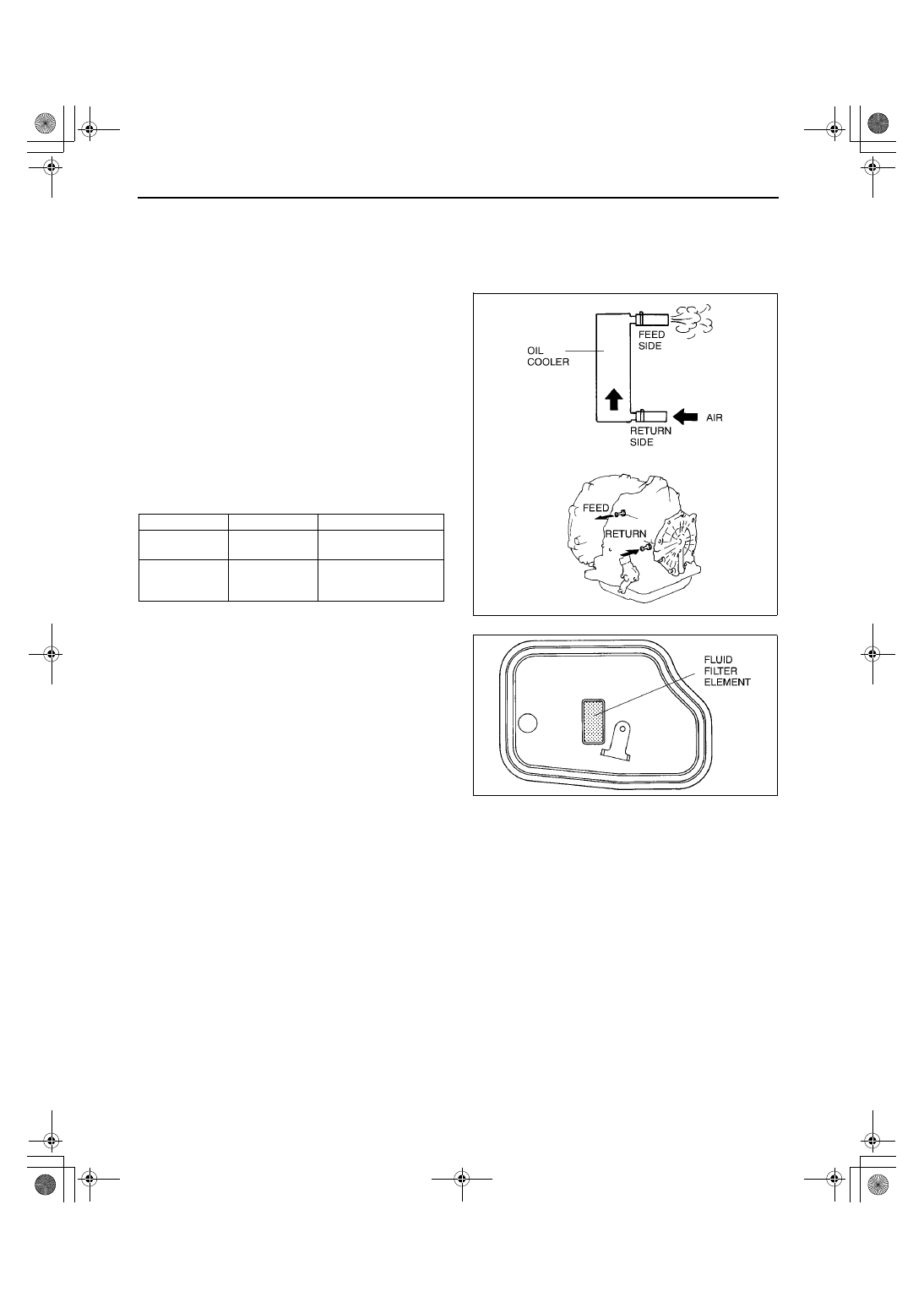

OIL COOLER FLUSHING

A3U051719900W01

Note

•

The contaminated cooler line (oil pipes and hoses) and auxiliary cooler (if equipped) must be flushed
completely when ATX is overhauled or replaced.

1. Remove the two oil cooler line hoses and apply

air pressure of 200 kPa {2.0 kgf/cm

2

, 28 psi}

from the return hose (pipe) side.

•

If there is no ventilation, flush the oil cooler
lines using the power-flushing tool. (See 05–
17–40 Power Flushing)

•

If there is ventilation, go to next step.

Caution

••••

Power flushing should be performed very
carefully when removing the
accumulated debris from the fluid baffle,
otherwise the debris cannot be removed
or the problem becomes even worse.

Recommended Power-flushing Manufacturer

2. Carry out the followings steps.

(1) Remove the oil pan and inspect the fluid filter

element from the front filter.

•

If the element is covered with too much
debris or particles and cannot be seen,
replace the oil cooler. (See 05–17–41 OIL
COOLER REMOVAL/INSTALLATION.)

•

If the element can be seen, flush the oil
cooler lines using the power-flushing tool.

Note

•

Performing back and reverse power flushing
2 times each does not work because debris
or particles flow out from the feed pipe side
of ATX.

Power Flushing
Repair procedure

1. Before power flushing, inspect the hoses/lines and clamps. Power flushing must begin with back flushing

followed by forward flushing to quickly dislodge the restriction.

•

If back flushing is not performed before forward flushing, the restriction could further reduce the ATF flow
through the internal mesh type baffle of the cooler and flushing will not be effective or possible.

Inspecting oil lines & clamps

1. Be sure to Inspect the lines (hoses/pipes) for cuts, crimps (pinched), cracks or any other damage before

reusing them.

•

If any problems exist, replace hoses and/or pipes.

Caution

••••

Always use new clamps when replacing hoses.

Manufacturer

Part number

Description

Kent Moore

J35944-AMAZ

Flushing kit or
equivalent

OTC

60081

Portable torque
converter, oil cooler
cleaner or equivalent

X3U517WBY

X3U517WBZ
