INTAKE-AIR SYSTEM [FS]

01–13B–14

VARIABLE TUMBLE CONTROL SYSTEM (VTCS) SHUTTER VALVE ACTUATOR INSPECTION [FS]

A3U011320153W02

Operating Inspection

Note

Perform the following test only as directed.

1. Carry out the “VTCS Operation Inspection”. (See 01–03B–57 Variable Tumble Control System (VTCS)

Inspection.)

If not as specified, perform the further inspection for the VTCS shutter valve actuator inspection.

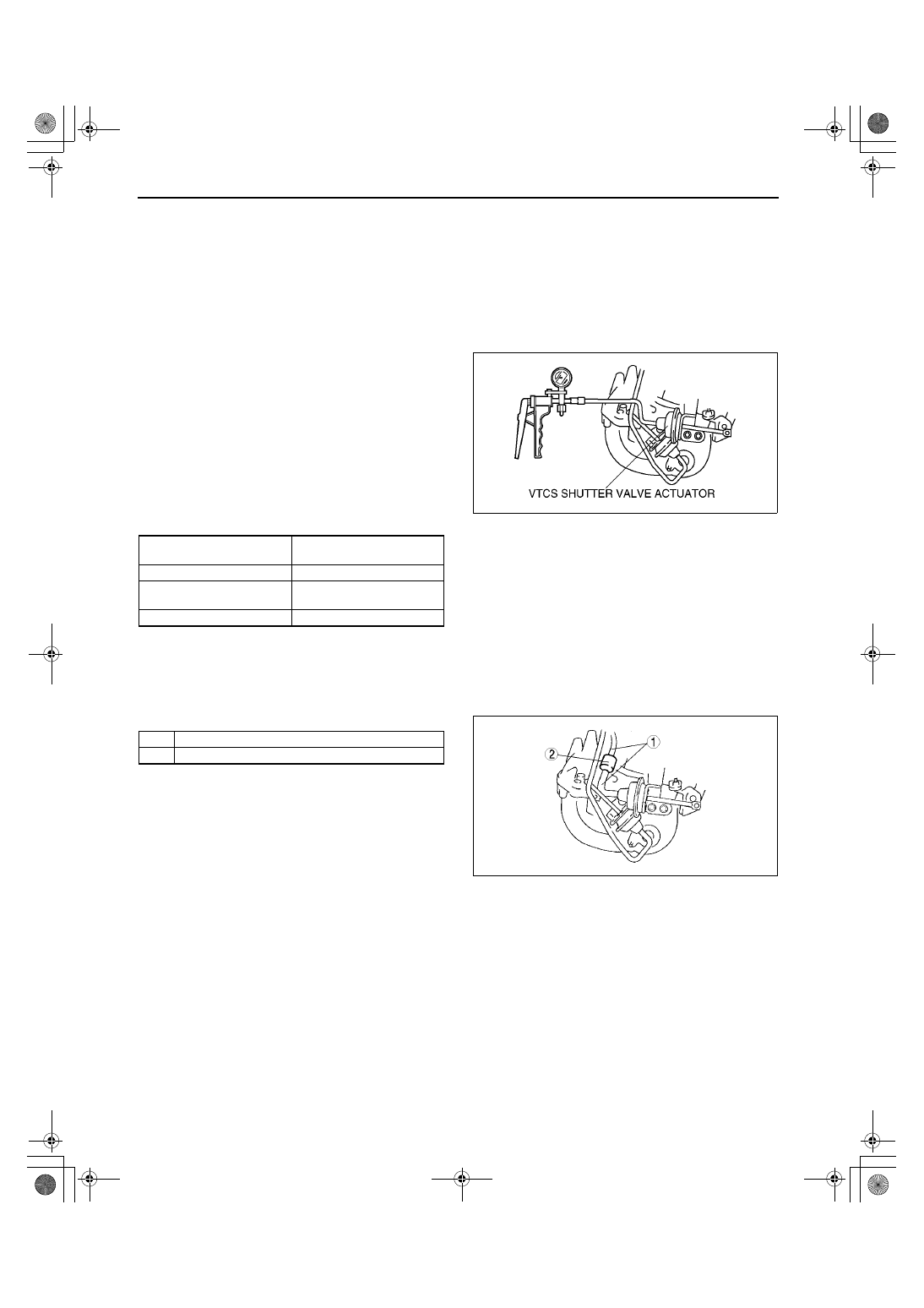

2. Disconnect the vacuum hose from the VTCS shutter valve actuator.
3. Connect a vacuum pump to the VTCS shutter

valve actuator.

4. Apply pressure slowly and inspect the rod

movement of the VTCS shutter valve actuator
under the following condition.

If not as specified, replace the VTCS shutter
valve actuator. (See 01–13B–13 VARIABLE
TUMBLE CONTROL SYSTEM (VTCS)
SHUTTER VALVE ACTUATOR REMOVAL/
INSTALLATION [FS].)

If as specified, but “VTCS Operation
Inspection” is failed, inspect the vacuum
hoses for improper routing, kinks or leakage.

5. Disconnect the vacuum pump from the VTCS shutter valve actuator.
6. Reconnect the vacuum hose to the VTCS shutter valve actuator.

End Of Sie

VARIABLE TUMBLE CONTROL SYSTEM (VTCS) DELAY VALVE REMOVAL/INSTALLATION [FS]

A3U011318800W01

1. Disconnect the battery negative cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

Pressure (kPa {mmHg,

inHg})

Rod movement

Above –2.7 {–2.0, –0.80}

Not pulled

–8.0— –35.3

{–61— –264, –2.4— –10.4}

Starts to move

Below –35.3 {–26.5, –10.4}

Fully pulled

Z3U0113W014

1

Vacuum hose

2

VTCS delay valve

Z3U0113W016

1712-1U-01G(01-13B).fm  14 ページ  2001年6月29日 金曜日 午前9時42分

INTAKE-AIR SYSTEM [FS]

01–13B–15

01–13B

VARIABLE TUMBLE CONTROL SYSTEM (VTCS) DELAY VALVE INSPECTION [FS]

A3U011318800W02

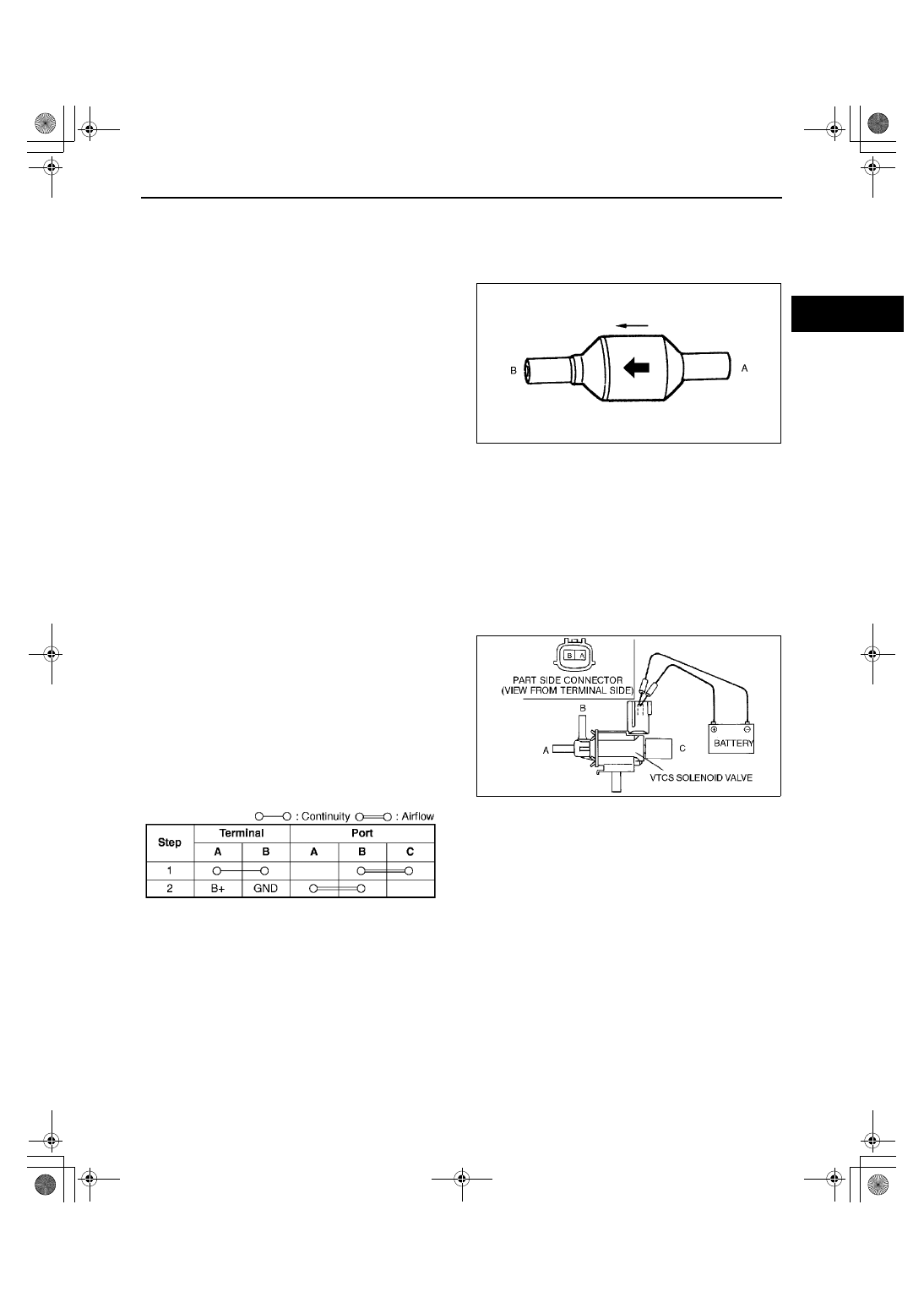

1. Remove the VTCS delay valve. (See 01–13B–14 VARIABLE TUMBLE CONTROL SYSTEM (VTCS) DELAY

VALVE REMOVAL/INSTALLATION [FS].)

2. Blow through port A and verify that the air flows from port B.

If not as specified, replace the VTCS delay valve.

3. Blow through port B and verify that the air does

not flow from port A.

If not as specified, replace the VTCS delay
valve.

End Of Sie

VARIABLE TUMBLE CONTROL SYSTEM (VTCS) SOLENOID VALVE INSPECTION [FS]

A3U011318745W01

Simulation Test

1. Carry out the “VTCS Operation Inspection”. (See 01–03B–57 Variable Tumble Control System (VTCS)

Inspection.)

If not as specified, perform the further inspection for the VTCS solenoid valve.

Airflow Inspection

Note

Perform the following test only as directed.

1. Remove the VTCS solenoid valve.
2. Inspect for airflow each port under the following

condition.

If as specified, replace the VTCS solenoid
valve.

If as specified but the “VTCS Operation
Inspection” is failed, inspect evaporative
hoses for improper routing, kinks or leakage,
and inspect “Circuit Open/Short Inspection”.
— If there is an open or short circuit, repair

or replace wiring harnesses.

— If the above open or short circuit is okay,

replace VTCS solenoid valve.

X3U113WAA

Y3U113WA4

X3U113WAI

1712-1U-01G(01-13B).fm  15 ページ  2001年6月29日 金曜日 午前9時42分

INTAKE-AIR SYSTEM [FS]

01–13B–16

Circuit Open/Short Inspection

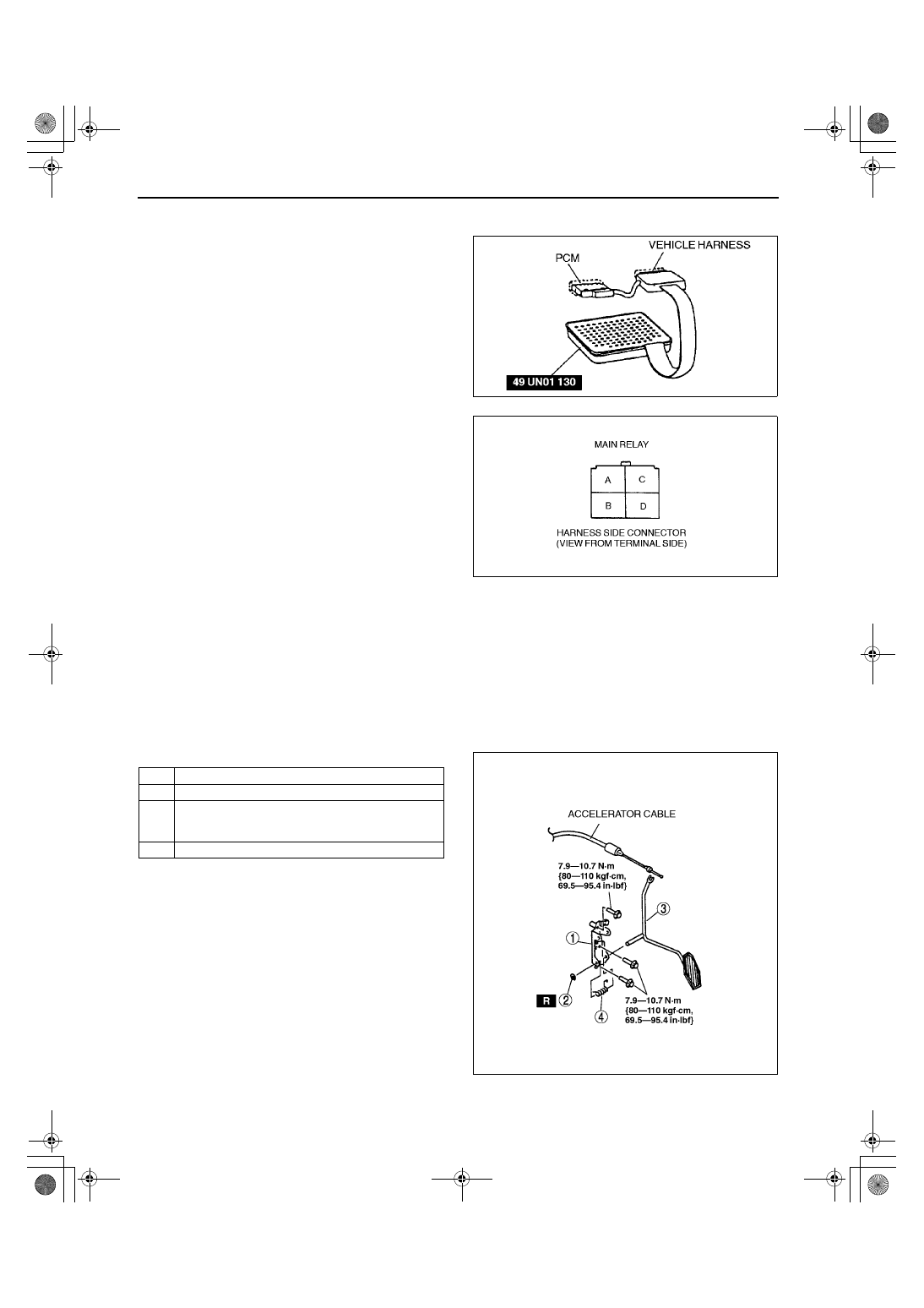

1. Disconnect the PCM connector.
2. Connect the SST (104 Pin Breakout Box) to the

PCM as shown.

3. Tighten the connector attaching screw.

Tightening torque

7.9—10.7 N·m {80—110 kgf·cm, 69.5—95.4

in·lbf}

4. Inspect for an open or short circuit in the following

wiring harnesses by probing the applicable
sensor and SST (104 Pin Breakout Box) terminals
with ohmmeter leads.
Open circuit

Power circuit (VTCS solenoid valve connector
terminal A and main relay connector terminal
D)

Control circuit (VTCS solenoid valve
connector terminal B and PCM connector
terminal 19)

Short circuit

Power circuit (VTCS solenoid valve connector
terminal A and main relay connector terminal
D to GND)

Control circuit (VTCS solenoid valve connector terminal B and PCM connector terminal 19 to GND)

5. Reconnect the VTCS solenoid valve connector.
6. Reconnect the battery negative cable.

End Of Sie

ACCELERATOR CABLE REMOVAL/INSTALLATION [FS]

A3U011341660W01

Note

Accelerator removal and installation on cruise control system–equipped vehicles is not possible.

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

X3U113WAC

Z3U0113W998

1

Retainer

2

E  ring

3

Accelerator pedal
(See 01–13B–17 Accelerator Pedal Installation
Note)

4

Return spring

X3U113WDC

1712-1U-01G(01-13B).fm  16 ページ  2001年6月29日 金曜日 午前9時42分

INTAKE-AIR SYSTEM [FS]

01–13B–17

01–13B

Accelerator Pedal Installation Note

1. Set the accelerator pedal securely, be sure not to bend the accelerator cable.

End Of Sie

ACCELERATOR CABLE INSPECTION [FS]

A3U011341660W02

1. Verify that the throttle valve is fully closed.

Note

To measure cable free play, push the cable into the housing and put a white mark on the cable at the end
of the housing, then pull it out and measure distance from the white mark to the end of the cable housing.

2. Measure the free play of accelerator cable.

If not as specified, adjust the accelerator cable. (See 01–13B–17 ACCELERATOR CABLE ADJUSTMENT
[FS].)

Free Play

1—3 mm {0.04—0.11 in}

End Of Sie

ACCELERATOR CABLE ADJUSTMENT [FS]

A3U011341660W03

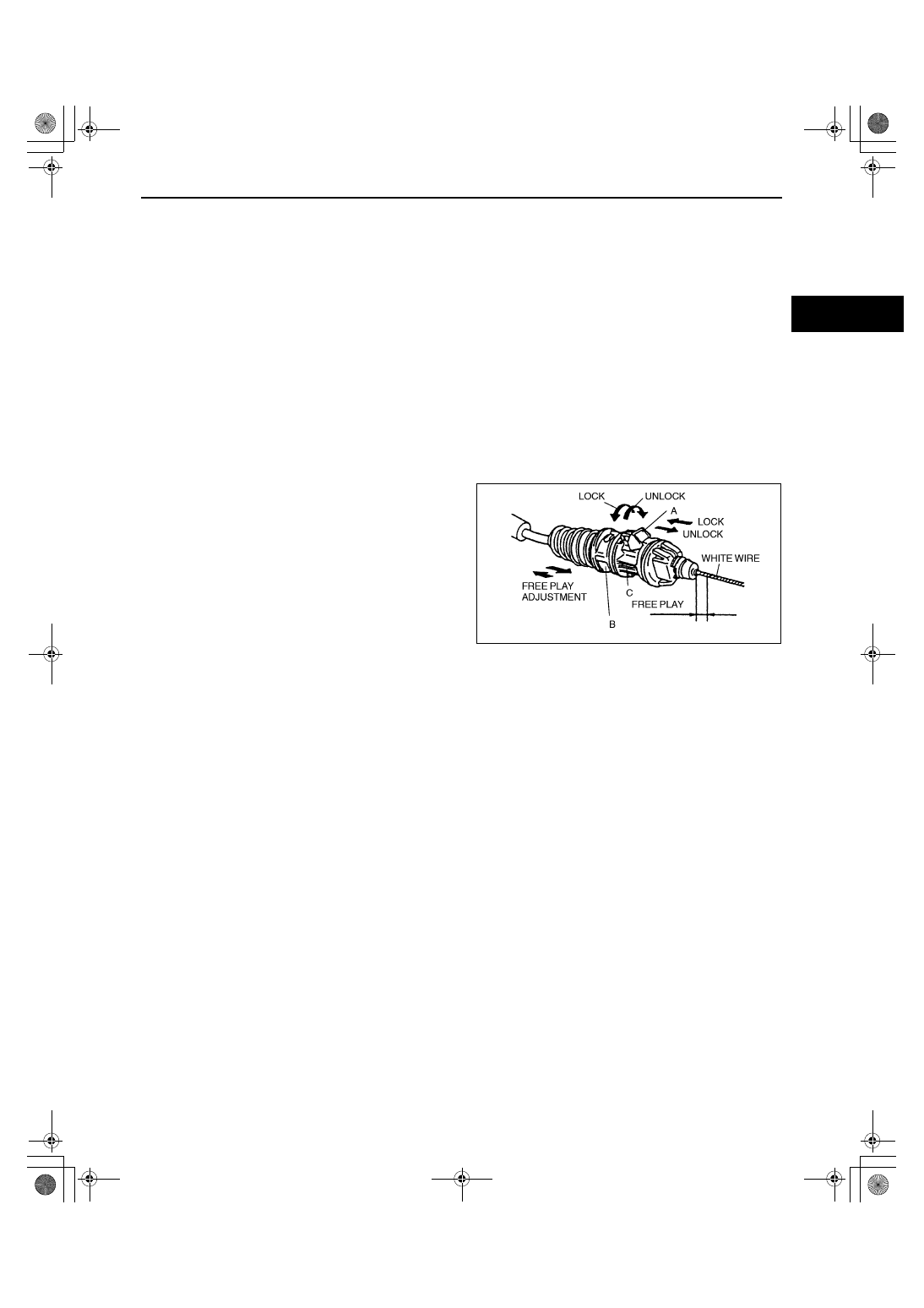

1. Move the white locking tab A to the unlock

position.

2. Turn stopper B to the unlock position.

Note

If the stopper B will not be unlocked, it may
be necessary to carefully bend the tab C out
using a suitable tool.

3. To adjust the free play, push or pull the

accelerator cable housing directly behind the
spring.

4. Turn the stopper B to the lock position.

Free Play

1—3 mm {0.04—0.11 in}

5. Measure the throttle cable free play, making sure that it is within the specification.
6. Move the white locking tab A to the lock position.
7. Verify correct accelerator operation.

End Of Sie

X3U113WDD

1712-1U-01G(01-13B).fm  17 ページ  2001年6月29日 金曜日 午前9時42分
