LUBRICATION

01–11–16

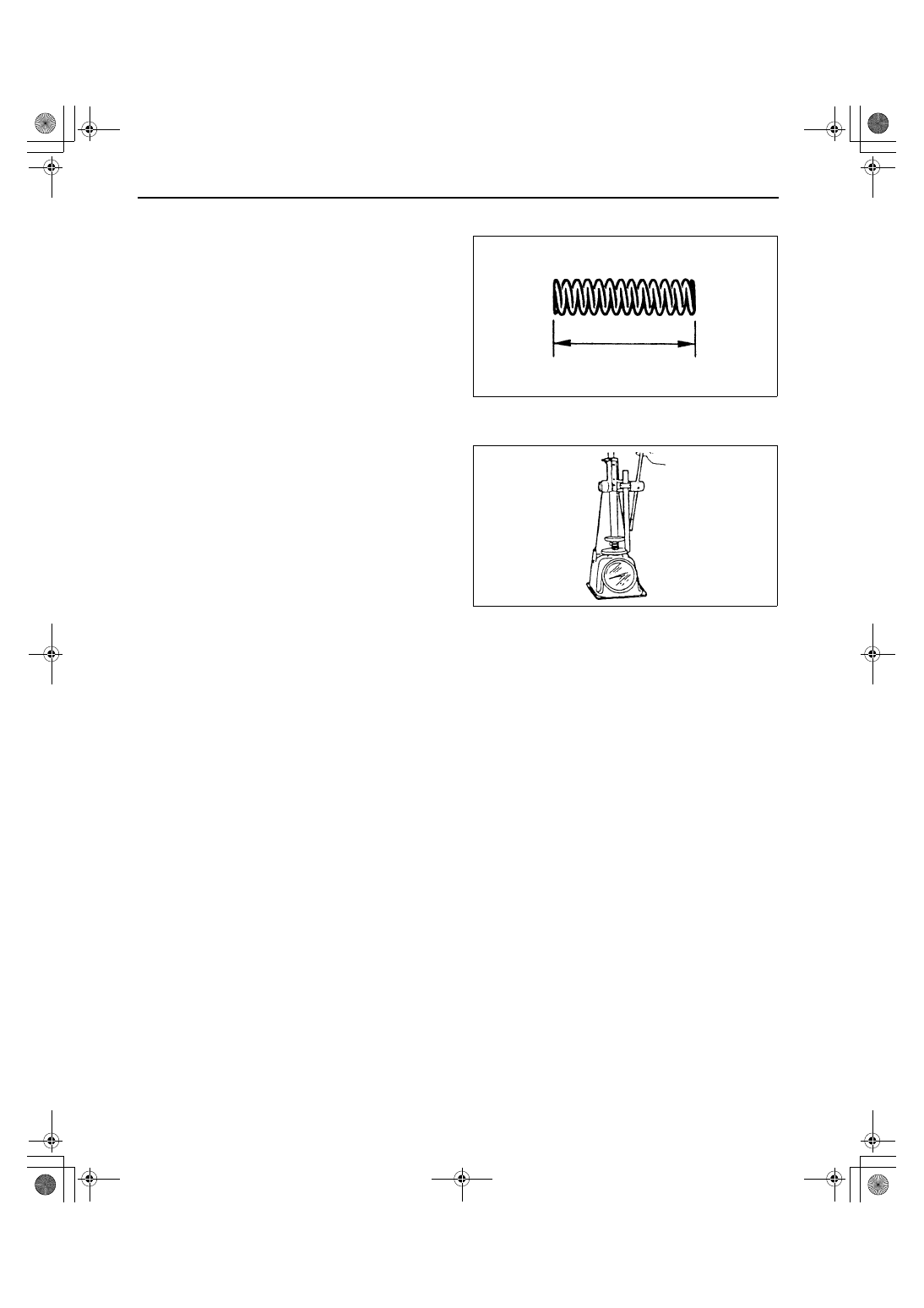

Pressure Spring Inspection
ZM

1. Measure the free length of the pressure spring.

Replace the pressure spring if necessary.

Free length

45.94 mm {1.809 in}

FS

1. Apply pressing force to the pressure spring and

check the spring height.

Replace the plunger spring if necessary.

Pressing force

97.7—107.4 N {9.96—10.96 kgf, 21.92—24.11

lbf}

Standard height

33.50 mm {1.319 in}

End Of Sie

Y3U111WAK

Y3U111WAL

1712-1U-01G(01-11).fm  16 ページ  2001年6月29日 金曜日 午前9時40分

COOLING SYSTEM

01–12–1

01–12

01–12

COOLING SYSTEM

COOLING SYSTEM LOCATION INDEX.  01–12–1
COOLING SYSTEM SERVICE

WARNINGS . . . . . . . . . . . . . . . . . . . . . .  01–12–2

ENGINE COOLANT LEVEL

INSPECTION . . . . . . . . . . . . . . . . . . . . .  01–12–2

ENGINE COOLANT PROTECTION

INSPECTION . . . . . . . . . . . . . . . . . . . . .  01–12–2

ENGINE COOLANT REPLACEMENT  . .  01–12–3
ENGINE COOLANT LEAKAGE

INSPECTION . . . . . . . . . . . . . . . . . . . . .  01–12–4

RADIATOR CAP INSPECTION. . . . . . . .  01–12–4
RADIATOR REMOVAL/INSTALLATION  01–12–4

THERMOSTAT REMOVAL/

INSTALLATION  . . . . . . . . . . . . . . . . . . . 01–12–5

Thermostat Installation Note . . . . . . . . . 01–12–6
Thermostat Cover Gasket Installation

Note. . . . . . . . . . . . . . . . . . . . . . . . . . . 01–12–7

THERMOSTAT INSPECTION  . . . . . . . . . 01–12–7
WATER PUMP REMOVAL/

INSTALLATION  . . . . . . . . . . . . . . . . . . . 01–12–8

Water Pump Installation Note . . . . . . . . 01–12–9

COOLING FAN MOTOR INSPECTION . . 01–12–9
COOLING FAN MOTOR REMOVAL/

INSTALLATION  . . . . . . . . . . . . . . . . . . . 01–12–9

End of Toc

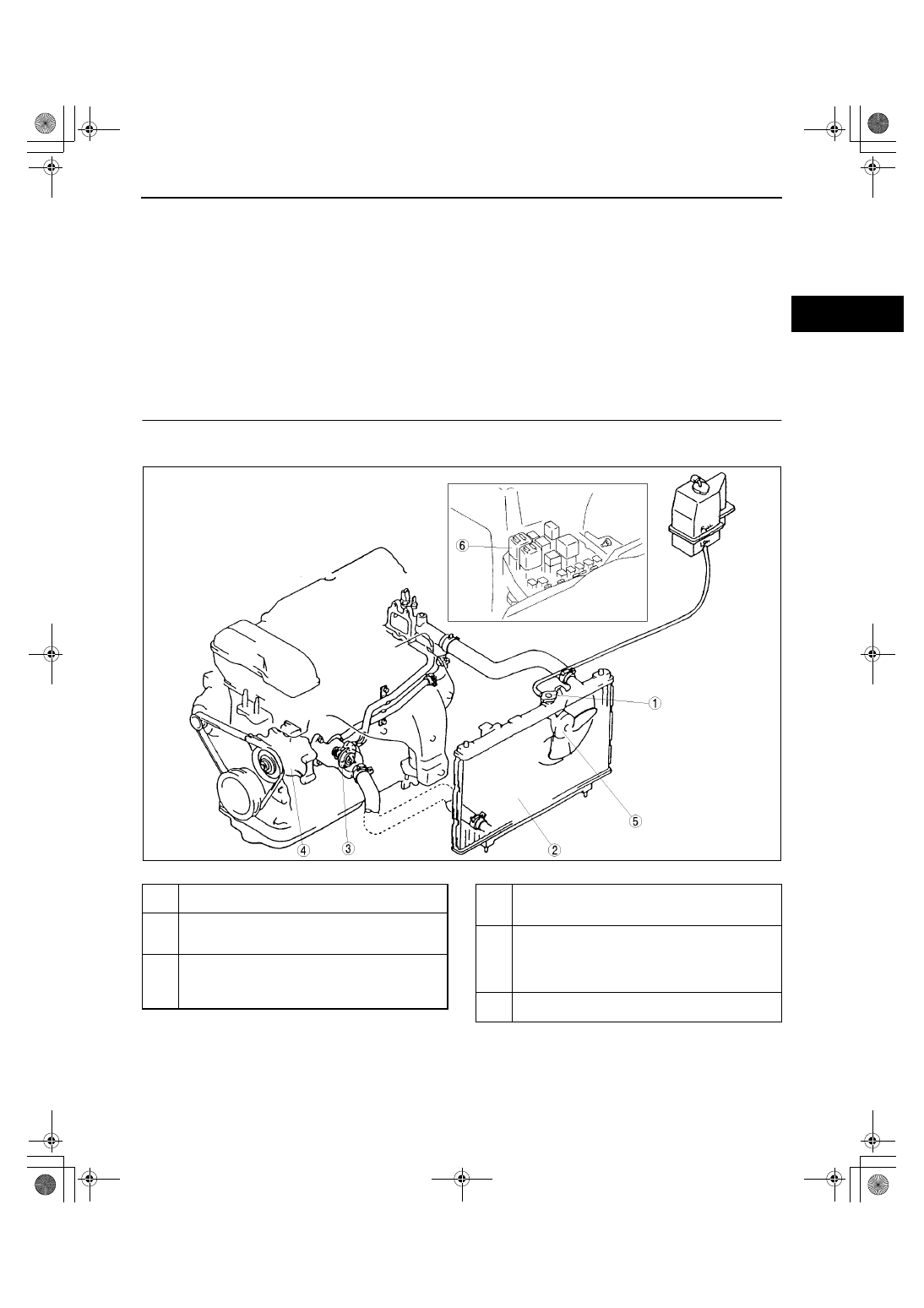

COOLING SYSTEM LOCATION INDEX

A3U011201004W01

.

End Of Sie

Z3U0112W100

1

Radiator cap
(See 01–12–4 RADIATOR CAP INSPECTION)

2

Radiator
(See 01–12–4 RADIATOR REMOVAL/
INSTALLATION)

3

Thermostat
(See 01–12–5 THERMOSTAT REMOVAL/
INSTALLATION)
(See 01–12–7 THERMOSTAT INSPECTION)

4

Water pump
(See 01–12–8 WATER PUMP REMOVAL/
INSTALLATION)

5

Cooling fan motor
(See 01–12–9 COOLING FAN MOTOR
INSPECTION)
(See 01–12–9 COOLING FAN MOTOR REMOVAL/
INSTALLATION)

6

Cooling fan relay
(See 09–21–5 RELAY INSPECTION)

1712-1U-01G(01-12).fm  1 ページ  2001年6月29日 金曜日 午前9時41分

COOLING SYSTEM

01–12–2

COOLING SYSTEM SERVICE WARNINGS

A3U011201004W02

Warning

••••

Never remove the radiator cap or the coolant filler cap. Do not loosen the radiator drain plug while
the engine is running, or when the engine and radiator are hot. Scalding coolant and steam may
shoot out and cause serious injury. It may also damage the engine and cooling system.

••••

Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap.
Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while
the pressure escapes.

••••

When you are sure all the pressure is gone, press down on the cap while still using the cloth, turn
it, and remove it.

••••

Hot engines and engine coolant can cause severe burns. Turn off the engine and wait until it and
the coolant are cool before draining the engine coolant.

End Of Sie

ENGINE COOLANT LEVEL INSPECTION

A3U011215001W01

1. Remove the radiator cap.
2. Verify that the coolant level is near the radiator filler neck.
3. Verify that the coolant level in the coolant reservoir is between the FULL and LOW marks.

Add coolant if necessary.

End Of Sie

ENGINE COOLANT PROTECTION INSPECTION

A3U011215001W02

1. Measure the coolant temperature and specific gravity with a thermometer and a hydrometer.

Caution

••••

The engine has aluminum parts that can be damaged by alcohol or methanol antifreeze. Do not
use alcohol or methanol in the cooling system. Use only ethylene-glycol-based coolant.

••••

Use only soft (demineralized) water in the coolant mixture. Water that contains minerals will cut
down on the coolant's effectiveness.

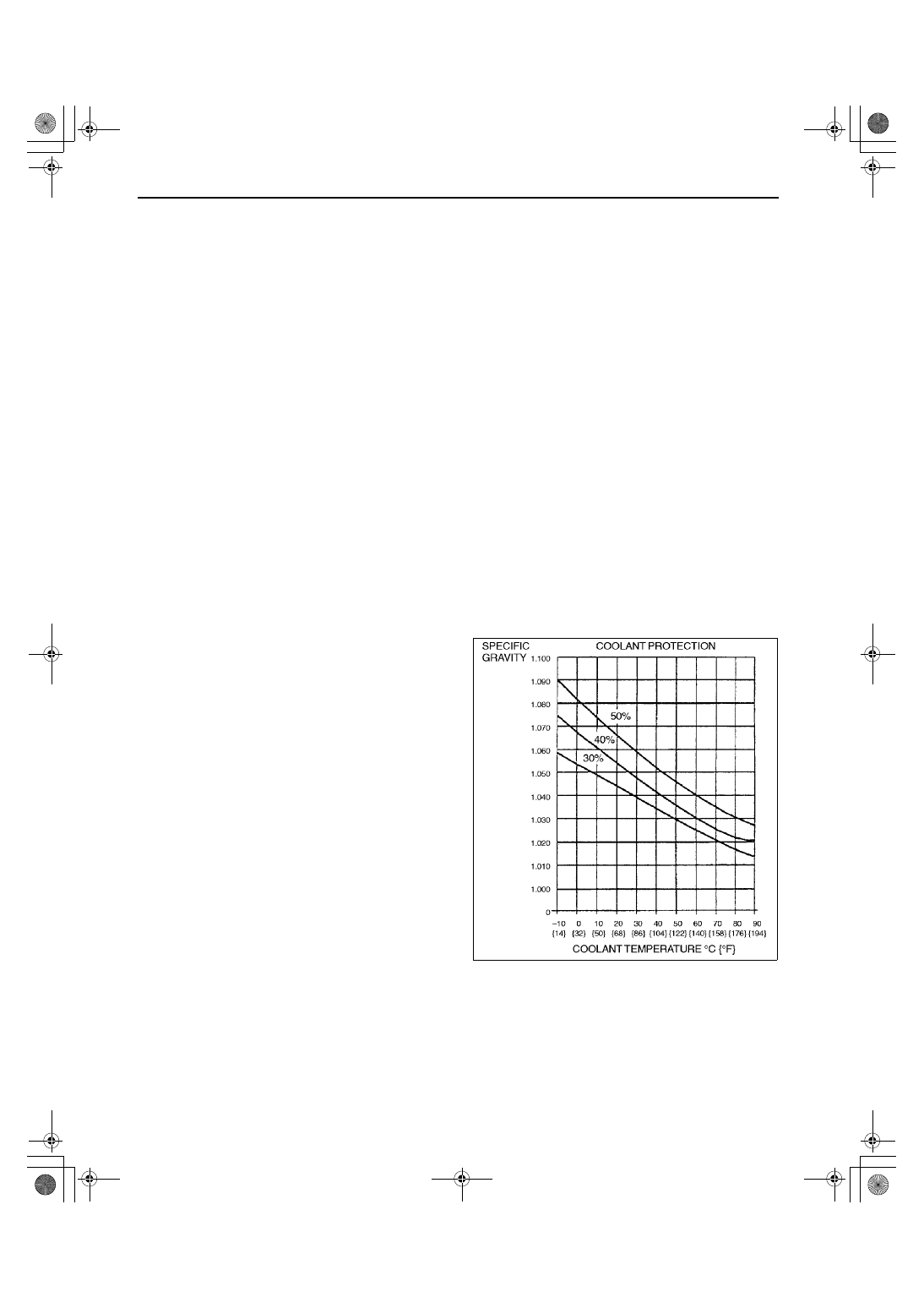

2. Determine the coolant protection by referring to

the graph shown.

If the coolant protection is not correct, add
water or coolant.

End Of Sie

X3U112WA2

1712-1U-01G(01-12).fm  2 ページ  2001年6月29日 金曜日 午前9時41分

COOLING SYSTEM

01–12–3

01–12

ENGINE COOLANT REPLACEMENT

A3U011215001W03

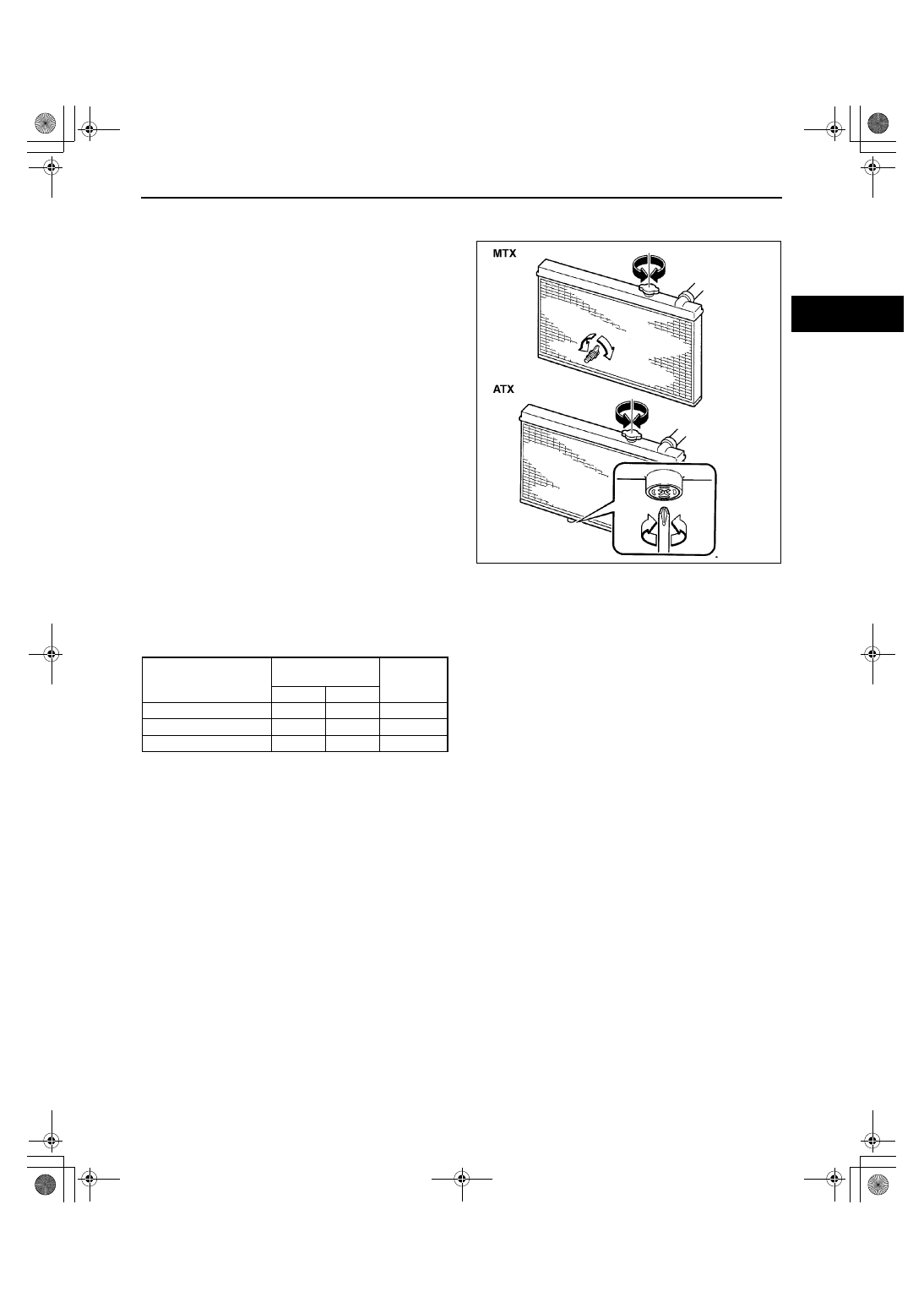

1. Drain the coolant in the coolant reservoir.
2. Remove the radiator cap and loosen the radiator

drain plug.

3. Drain the coolant into a container.
4. Flush the cooling system with water until all

traces of color are gone.

5. Let the system drain completely.
6. Tighten the radiator drain plug.

Caution

••••

The engine has aluminum parts that can
be damaged by alcohol or methanol
antifreeze. Do not use alcohol or
methanol in the cooling system. Use only
ethylene-glycol-based coolant.

••••

Use only soft (demineralized) water in the
coolant mixture. Water that contains
minerals will cut down on the coolant's
effectiveness.

••••

Engine coolant will damage paint. Rinse
it off quickly.

7. Referring to the following chart, select proper

volume percentage of the water and coolant.
Slowly pour the coolant into the radiator up to the
coolant filler port.

Filling pace

1.0 L {1.1 US qt, 0.9 Imp qt}/min. [max]

Antifreeze solution mixture percentage

8. Pour coolant into the reservoir up to the FULL mark on the coolant reservoir.
9. Fully install the radiator cap.

Caution

••••

If the coolant temperature becomes too high, stop the engine to prevent it from overheating.

10. Start the engine and let it idle for approx. 10 min.
11. After engine warms up, perform the following steps:

(1) Run the engine at 2,500 rpm for 5 min.
(2) Run the engine at 3,000 rpm for 5 s: then return to idling. Repeat this several times.

12. Stop the engine and wait until it is cool.
13. Inspect the coolant level. If it is low, repeat Step 7—12.
14. Verify there is no leakage.

End Of Sie

Coolant protection

Volume

percentage

Gravity at

20

°°°°

C {68

°°°°

F}

Water

Coolant

Above –16

°

C {4

°

F}

65

35

1.054

Above –26

°

C {–15

°

F}

55

45

1.066

Above –40

°

C {–40

°

F}

45

55

1.078

X3U112WA1

1712-1U-01G(01-12).fm  3 ページ  2001年6月29日 金曜日 午前9時41分
