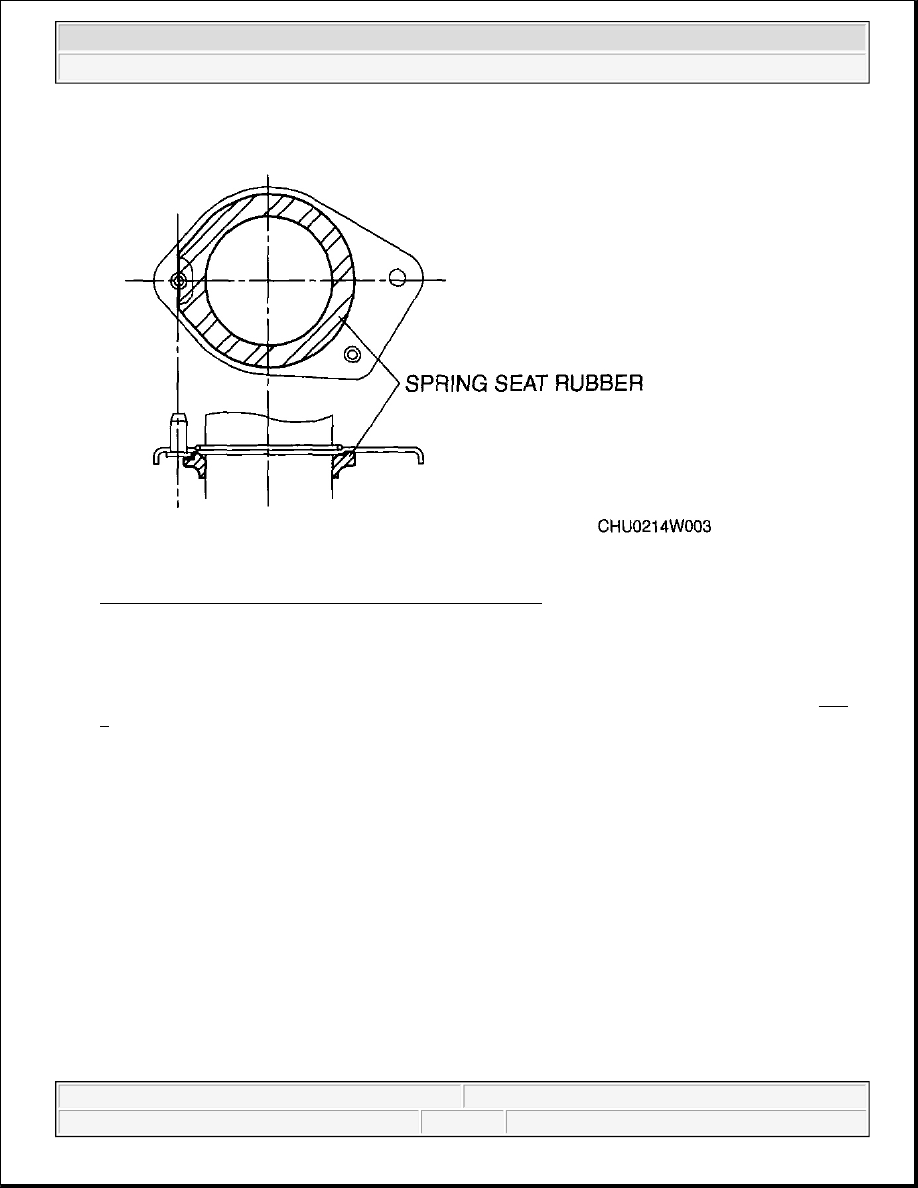

Fig. 7: View Of Spring Seat Rubber & Upper Spring Seat
Courtesy of MAZDA MOTORS CORP.

UPPER SPRING SEAT INSTALLATION NOTE

1. Install the coil spring with the lead lower end of the lower spring seat facing the direction shown in Fig.

8 .



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata

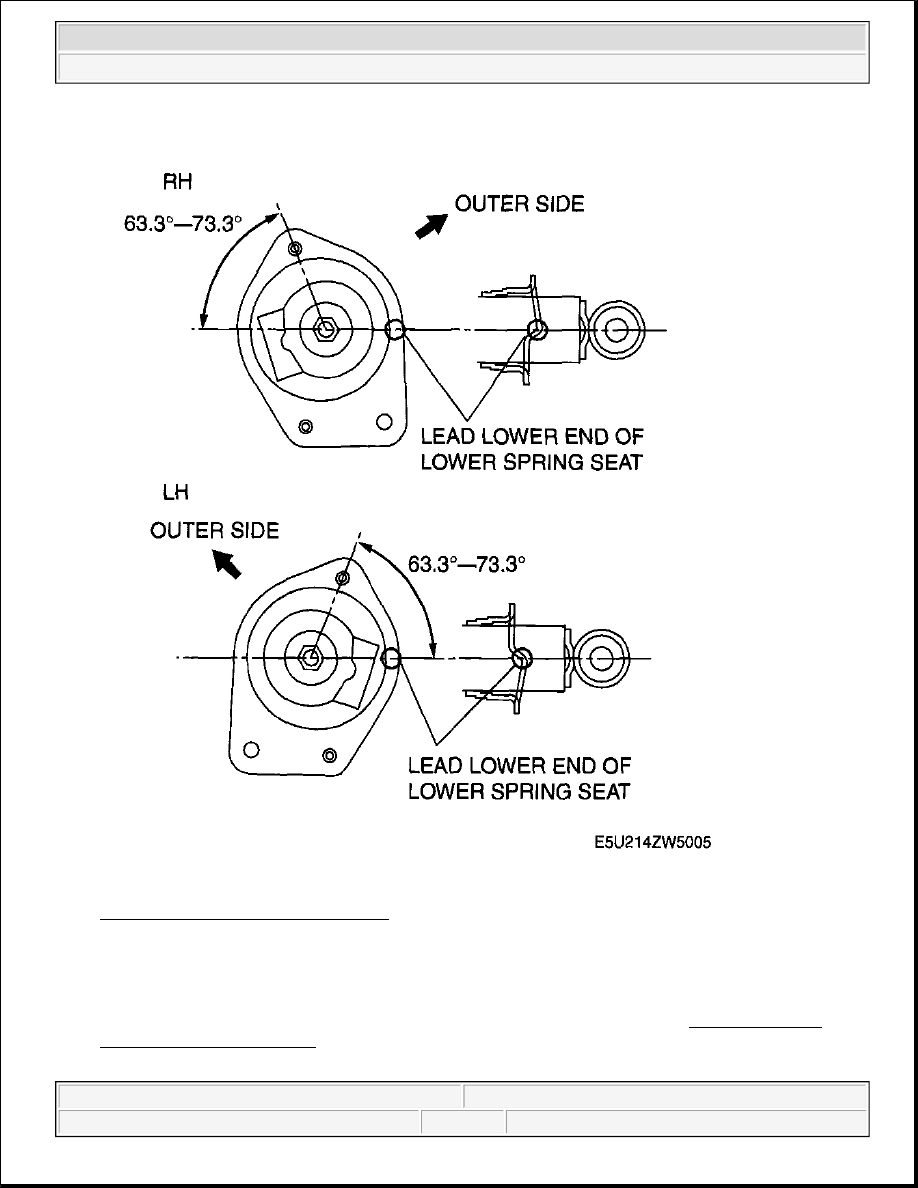

Fig. 8: Identifying Spring Seat Facing
Courtesy of MAZDA MOTORS CORP.

REAR SHOCK ABSORBER INSPECTION

1. Inspect the rear shock absorber in the same way as the front shock absorber. (See FRONT SHOCK

ABSORBER INSPECTION .)



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata



REAR SHOCK ABSORBER DISPOSAL

1. Dispose of the rear shock absorber in the same way as the front shock absorber. (See FRONT SHOCK

ABSORBER DISPOSAL )

REAR LATERAL LINK (UPPER) REMOVAL/INSTALLATION

1. Remove in the order indicated in Fig. 9 .

2. Install in the reverse order of removal.

3. Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT .)

CAUTION:



Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the wiring
harness if it is pulled by mistake. Before operations, remove the ABS
wheel-speed sensor (axle side) and move the sensor away from the
harnesses.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata

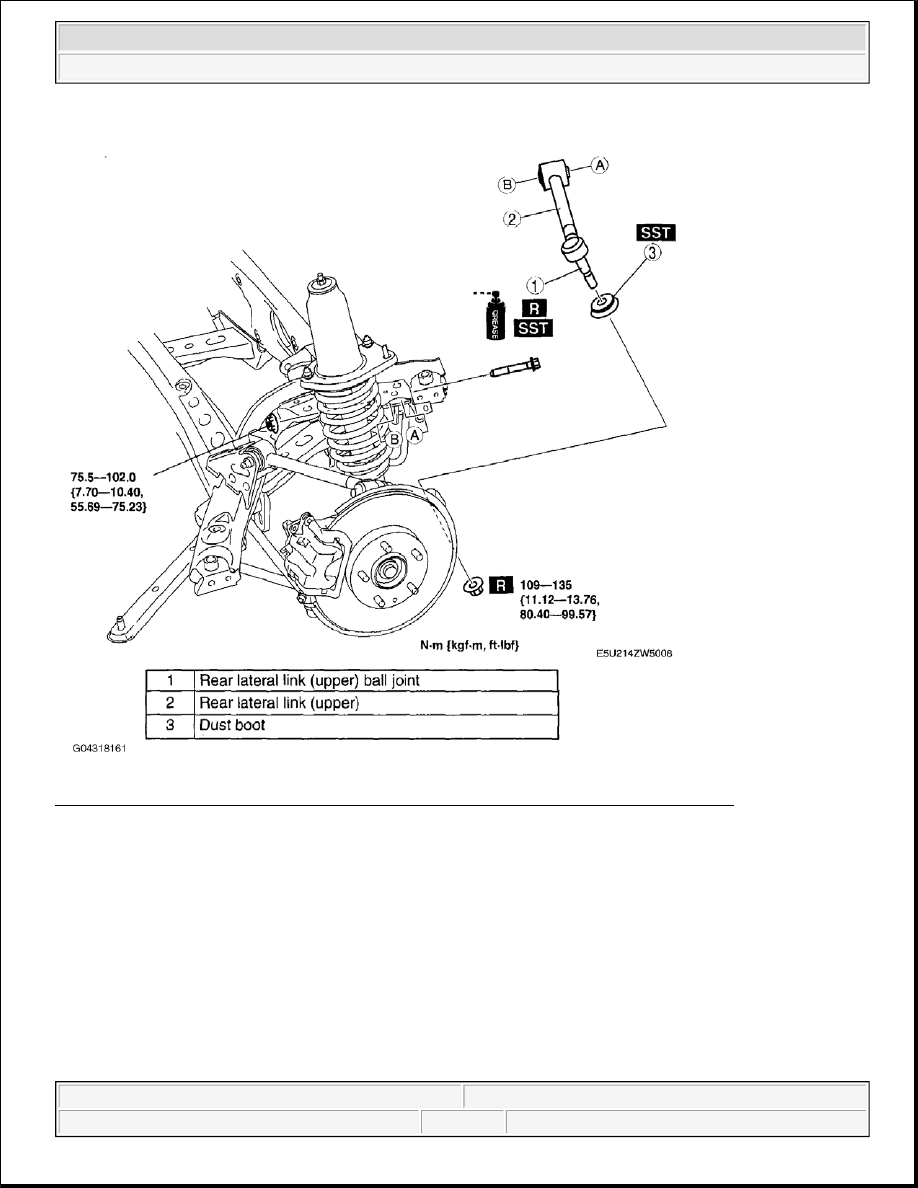

Fig. 9: Identifying Rear Lateral Link (Upper) Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

REAR LATERAL LINK (UPPER) BALL JOINT REMOVAL NOTE

1. Using the SST , disconnect the rear lateral link (upper) ball joint.

NOTE:



When removing the rear lateral link (upper) ball joint, the rear knuckle
bushing may also come off. If it comes off, replace the rear knuckle.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata
