Fig. 51: Installing Cam Ring In Front Pump Body
Courtesy of MAZDA MOTORS CORP.

REAR PUMP BODY ASSEMBLY NOTE

1. After installing the rear body, manually turn the shaft to verify that it rotates smoothly.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata



2008 DRIVELINE/AXLES

Rear Axle - MX-5 Miata

REAR AXLE LOCATION INDEX

Fig. 1: Identifying Rear Axle Assembly
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB COMPONENT INSPECTION

WHEEL BEARING LOOSENESS INSPECTION

1. Install the magnetic vase and dial gauge as shown in Fig. 2 , and inspect the wheel bearing for axial

looseness.



If it exceeds the maximum specification, replace the wheel hub component.

Maximum rear wheel bearing play

0.05 mm {0.002 in}



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata



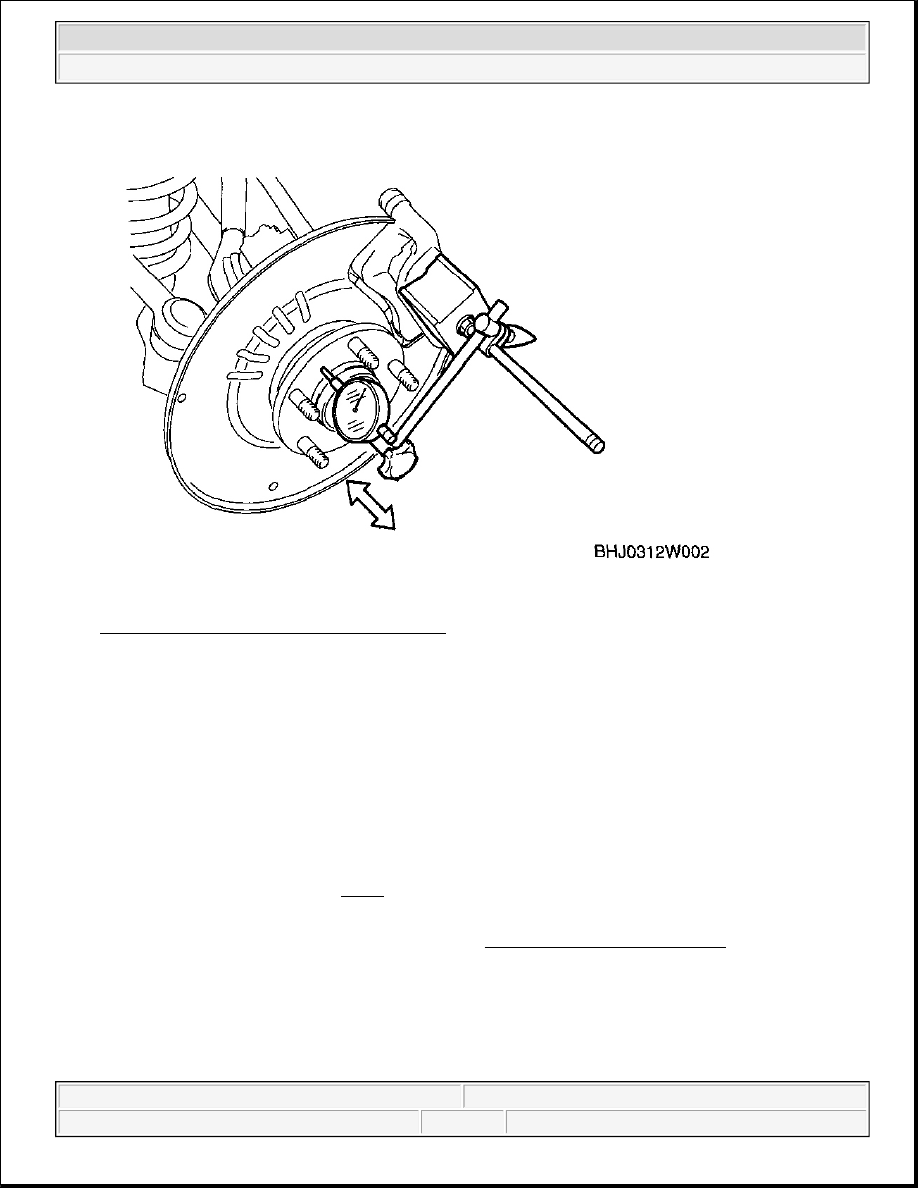

Fig. 2: View Of Magnetic Vase & Dial Gauge
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB COMPONENT REMOVAL/INSTALLATION

1. Remove in the order indicated in Fig. 3 .

2. Install in the reverse order of removal.

3. After installation, inspect rear wheel alignment. (See REAR WHEEL ALIGNMENT .)

CAUTION:



Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the wiring
harness if it is pulled by mistake. Before performing the following
procedures, remove the ABS wheel-speed sensor (axle side) and fix
it to an appropriate place where the sensor will not be pulled by
mistake while servicing the vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata



Fig. 3: Identifying Wheel Hub Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

LOCKNUT REMOVAL NOTE

1. Lock the disc plate by applying the brakes.

2. Knock the crimped portion of the locknut outward using a chisel and a hammer.

3. Remove the locknut.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Rear Axle - MX-5 Miata
