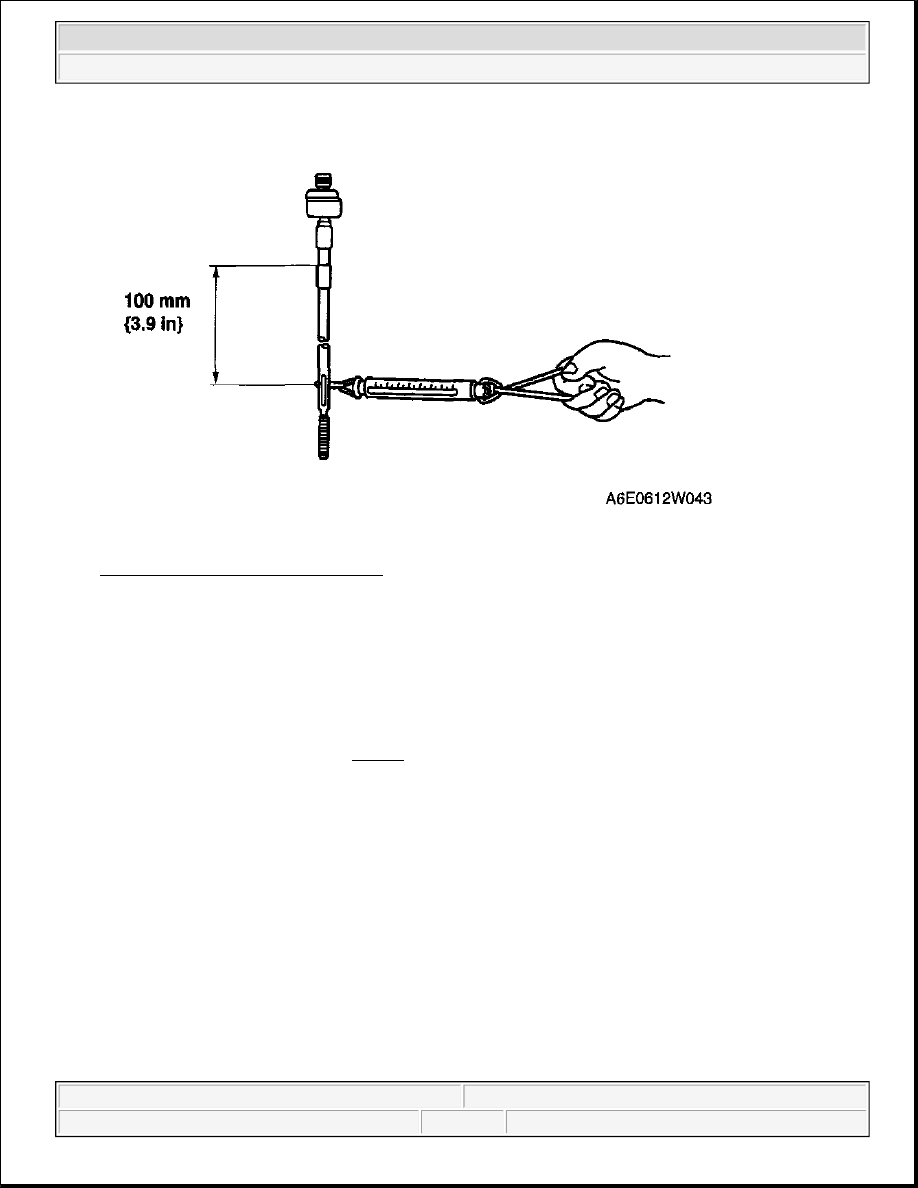

Fig. 31: Measuring Swinging Torque
Courtesy of MAZDA MOTORS CORP.

STEERING GEAR AND LINKAGE ASSEMBLY

1. Assemble in the order indicated in Fig. 32 .

CAUTION:



Place copper plates, rag, or similar material in a vise, when securing
the mounting bracket portion of the steering gear.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata



Fig. 32: View Of Steering Gear & Linkage Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

MOUNTING RUBBER ASSEMBLY NOTE

1. Install the mounting rubber so that two notches of mounting rubber are aligned to the steering rack.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata



2. Apply soapy water to the rubber part of the mounting rubber.

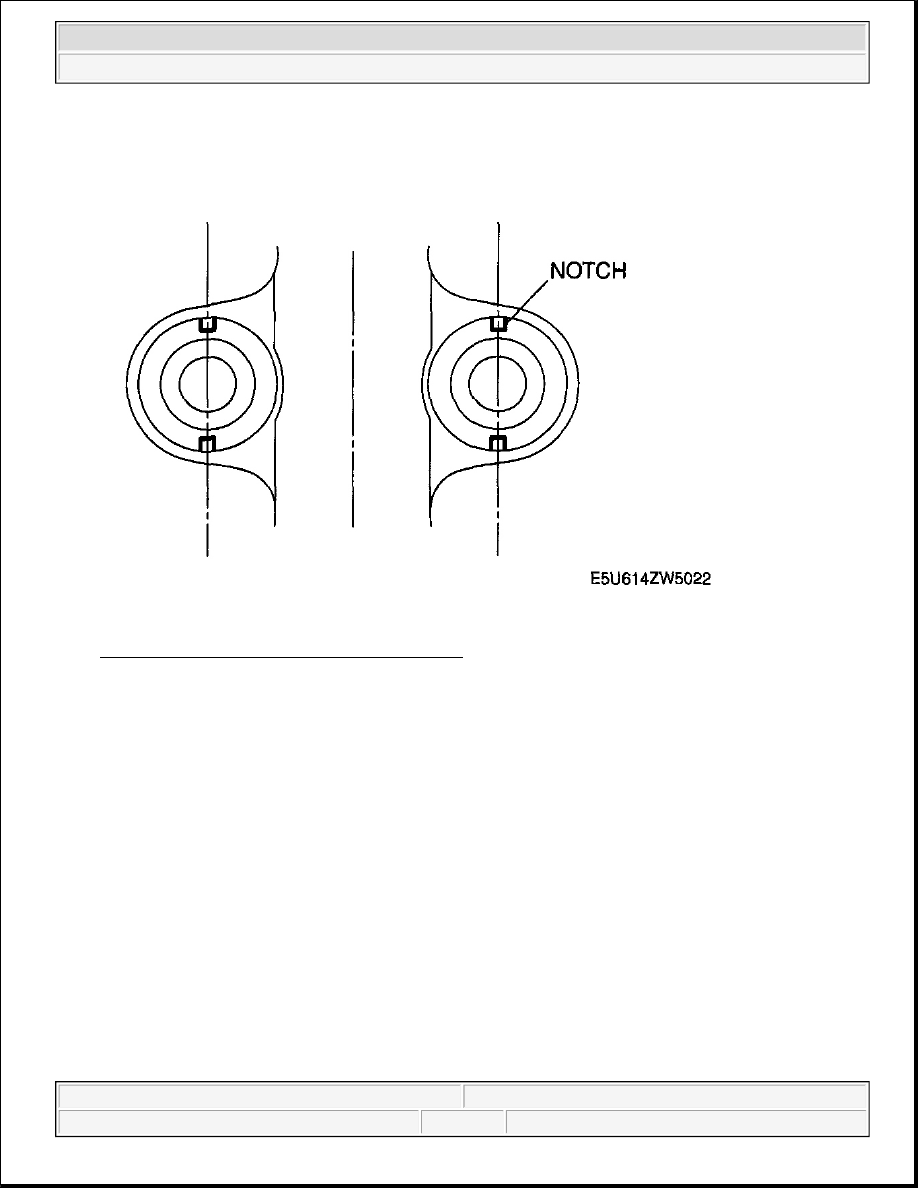

Fig. 33: Aligning Notches Of Mounting Rubber
Courtesy of MAZDA MOTORS CORP.

3. Press the mounting rubber until the mounting rubber end comes out completely from the gear housing

using the SSTs and a press.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata



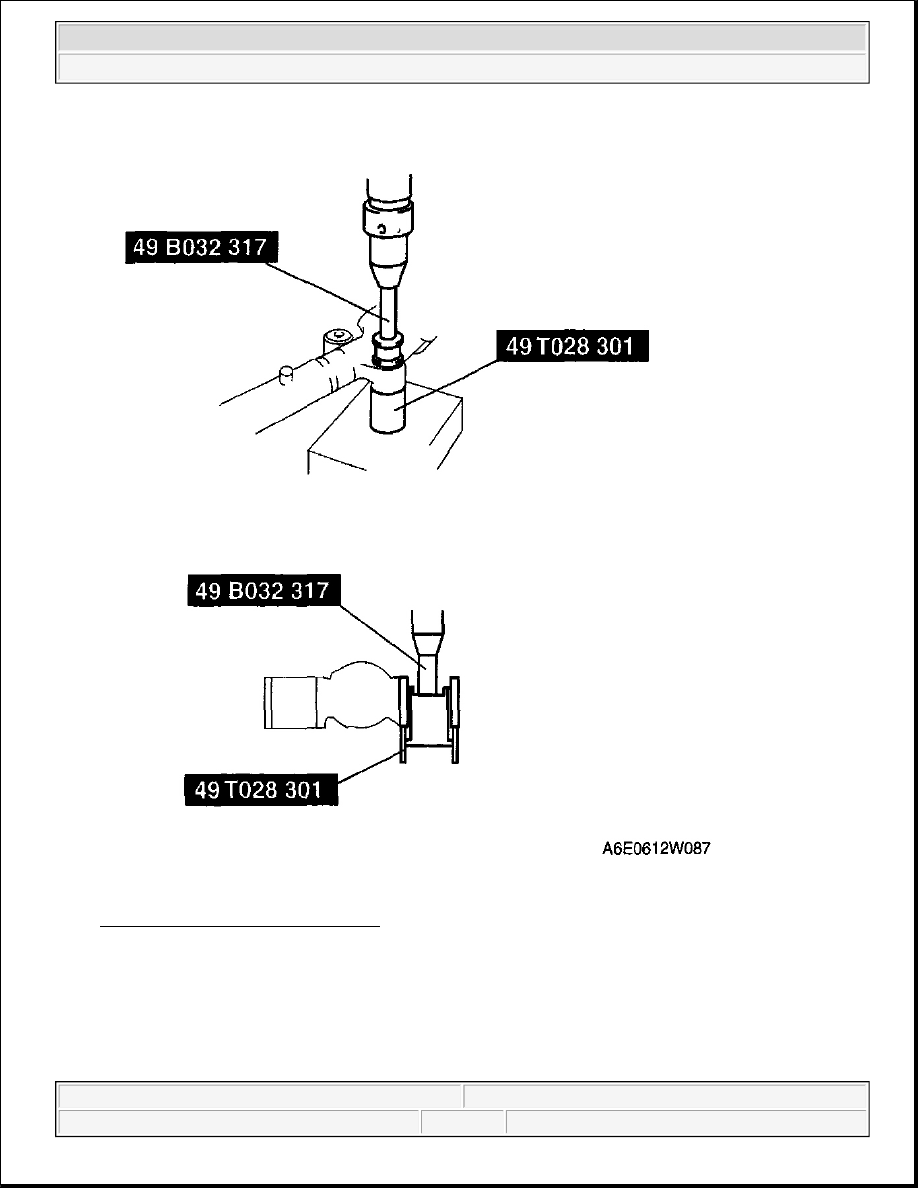

Fig. 34: Installing Mounting Rubber
Courtesy of MAZDA MOTORS CORP.

4. Reverse the gear housing, then press the mounting rubber until the mounting rubber end comes out

completely from the other side. At this time, the mounting rubber end and steel pipe are aligned.
