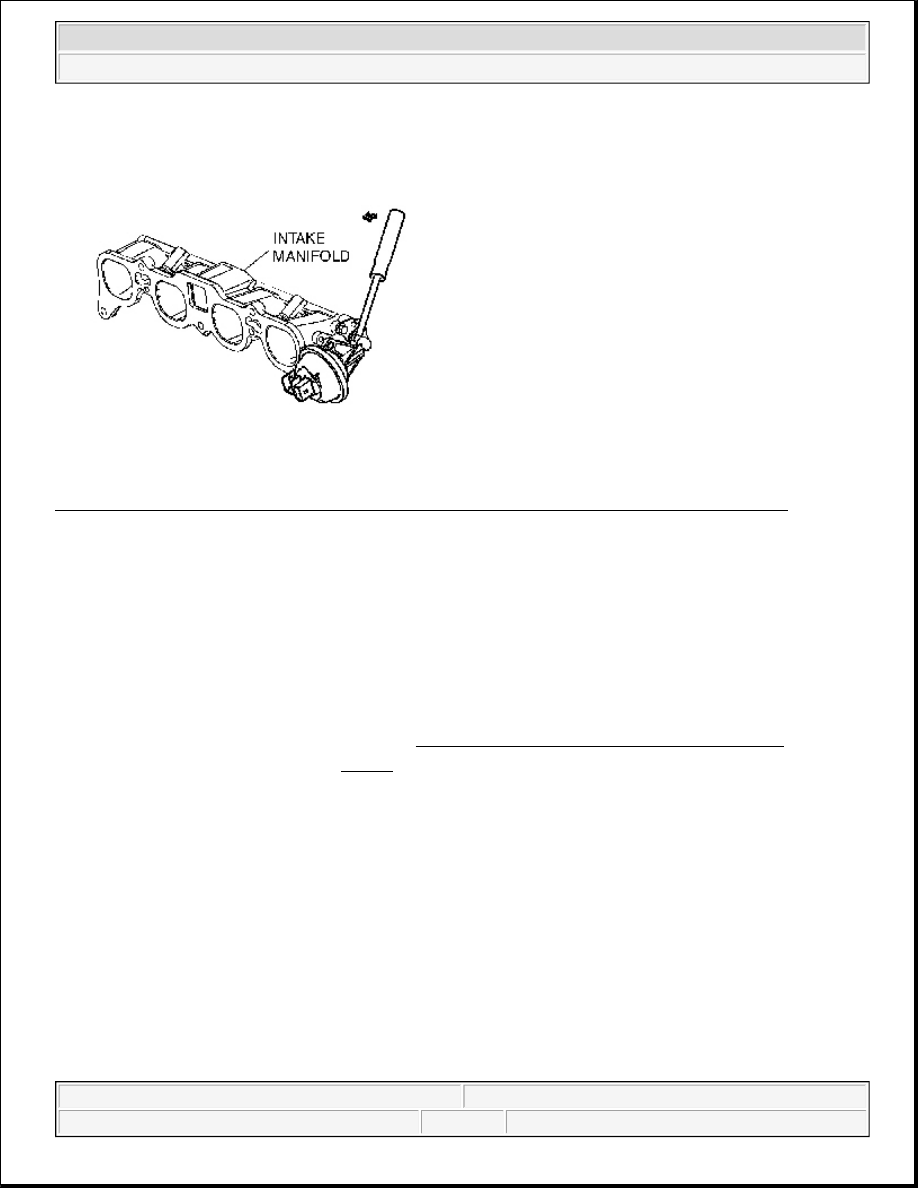

Fig. 24: Disengaging Variable Intake Air Shutter Valve Actuator Rod From Dynamic Chamber
Courtesy of MAZDA MOTORS CORP.

VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSTALLATION NOTE

1. Press the variable tumble shutter valve actuator rod into the dynamic chamber on the opposite side until a

click is heard, and install it.

ACCELERATOR PEDAL REMOVAL/INSTALLATION [LF]

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)

3. Remove in the order indicated in Fig. 25 .



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata



Fig. 25: Identifying Removal Order Of Accelerator Pedal (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata



2008 BRAKES

Parking Brake System - MX-5 Miata

PARKING BRAKE SYSTEM LOCATION INDEX

Fig. 1: Identifying Parking Brake System Components
Courtesy of MAZDA MOTORS CORP.

PARKING BRAKE LEVER INSPECTION

STROKE INSPECTION

1. Depress the brake pedal several times.

2. Pull the parking brake lever 2-3 times.

3. Inspect the parking brake stroke by slowly pulling at point A 50 mm {1.97 in} from the end of the

parking brake lever with a force of 98 N {10 kgf, 22 lbf} and counting the number of notches (clicking
sound).



If not within the specification, adjust the parking brake lever.

Parking brake lever stroke when pulled at 98 N {10 kgf, 22 lbf}

1-3 notches



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Parking Brake System - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Parking Brake System - MX-5 Miata



Fig. 2: Inspecting Parking Brake Stroke
Courtesy of MAZDA MOTORS CORP.

PARKING BRAKE LEVER ADJUSTMENT

1. Depress the brake pedal several times.

2. Remove the parking brake lever boot.

3. Turn the adjusting nut and adjust the parking brake lever.

4. After adjustment, pull the parking brake lever one notch and verify that the parking brake warning light

illuminates.

5. Verify that the rear brakes do not drag.
