Mazda MX-5 Miata / Grand Touring. Manual - part 134





INTAKE AIR SYSTEM DIAGRAM [LF]

Fig. 2: Intake Air System Diagram
Courtesy of MAZDA MOTORS CORP.

INTAKE AIR SYSTEM HOSE ROUTING DIAGRAM [LF]

6

Variable tumble solenoid valve (AT)

7

Variable tumble shutter valve actuator (AT)

8

Throttle body

9

Dynamic chamber

10

Intake manifold

11

Accelerator pedal



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata



Fig. 3: Intake Air System Hose Routing Diagram
Courtesy of MAZDA MOTORS CORP.

INTAKE MANIFOLD VACUUM INSPECTION [LF]

1. Verify that the intake air hoses are installed securely.

2. Disconnect the vacuum hose connecting the intake manifold and the purge solenoid valve (purge solenoid

valve side) and install the vacuum gauge.

3. Warm up the engine.

4. Measure the intake manifold vacuum while idling (no load) using the vacuum gauge.

If not within the specification, perform the following inspections.

Compression pressure (See COMPRESSION INSPECTION [LF] .)

Air intake

Each hose installation part

Throttle body installation part



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata



Fuel injector installation part

PCV valve installation part

Dynamic chamber installation port

Intake manifold installation part

Standard

-60 kPa {-450 mmHg, -17.7 inHg} or more

INTAKE AIR SYSTEM REMOVAL/INSTALLATION [LF]

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

WARNING:

A hot engine and intake air system can cause severe burns. Turn off
the engine and wait until they are cool before removing the intake-air
system.

Fuel line spills and leakage from the pressurized fuel system are
dangerous. Fuel can ignite and cause serious injury or death and
damage. Fuel can also irritate skin and eyes. To prevent this, always
complete the "Fuel Line Safety Procedure", while referring to the
"BEFORE SERVICE PRECAUTION [LF] ".



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata

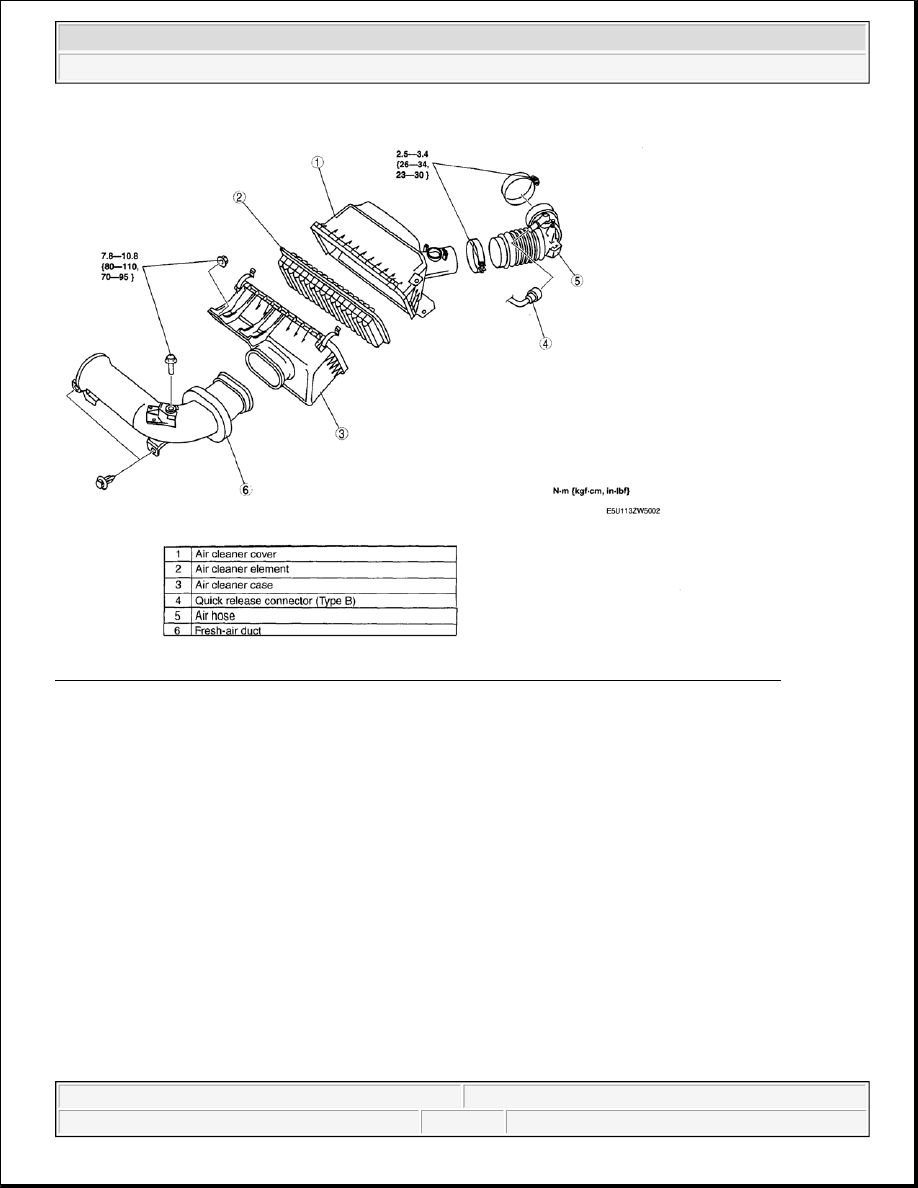

Fig. 4: Identifying Removal Order Of Intake-Air System (Step 1) (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Intake Air System - MX-5 Miata
