Fig. 35: Identifying Transverse Member And Under Cover (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

TRANSVERSE MEMBER REMOVAL NOTE

1. Support the crossmember using a jack.

2. Remove the transverse member.

UNDER COVER INSTALLATION NOTE

1. Align projection A with the transverse member opening to temporarily support the under cover.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



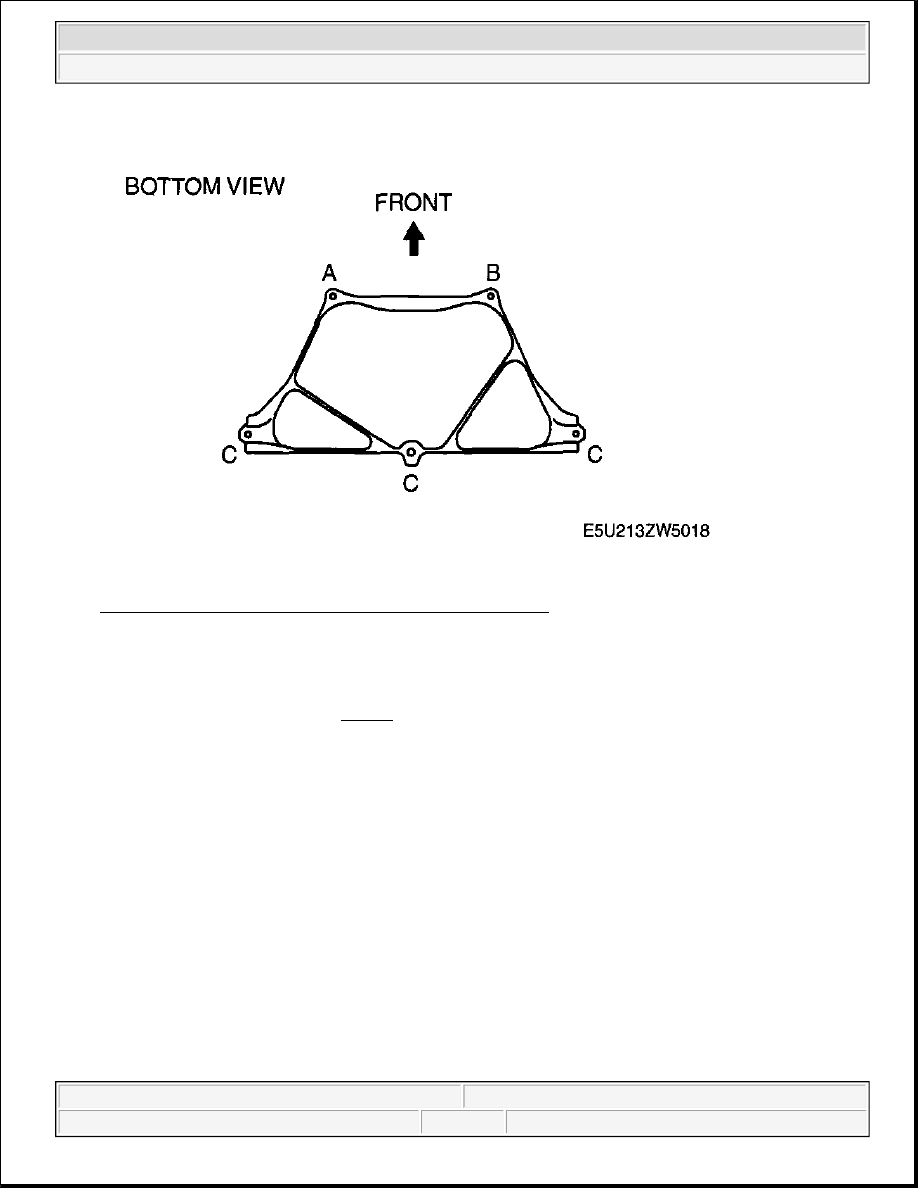

Fig. 36: Aligning Projection A With Transverse Member
Courtesy of MAZDA MOTORS CORP.

2. Tighten the bolts in the order of A, B and C.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



Fig. 37: Tightening Transverse Member Bolts In Sequence
Courtesy of MAZDA MOTORS CORP.

FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION

1. Remove in the order indicated in Fig. 38 .

2. Install in the reverse order of removal.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata

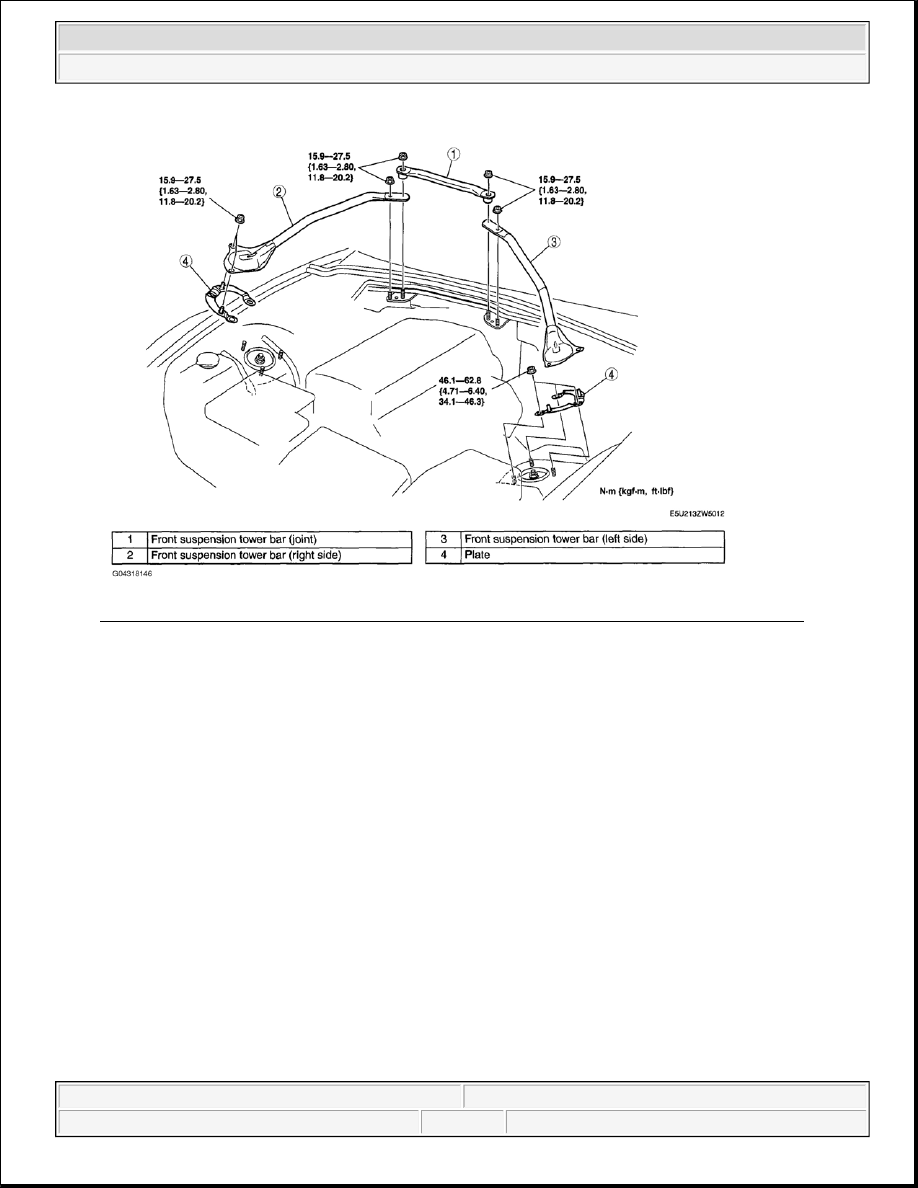

Fig. 38: Identifying Front Suspension Tower Bar Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

PLATE INSTALLATION NOTE

1. Install the plates with the identification marks facing upward.
