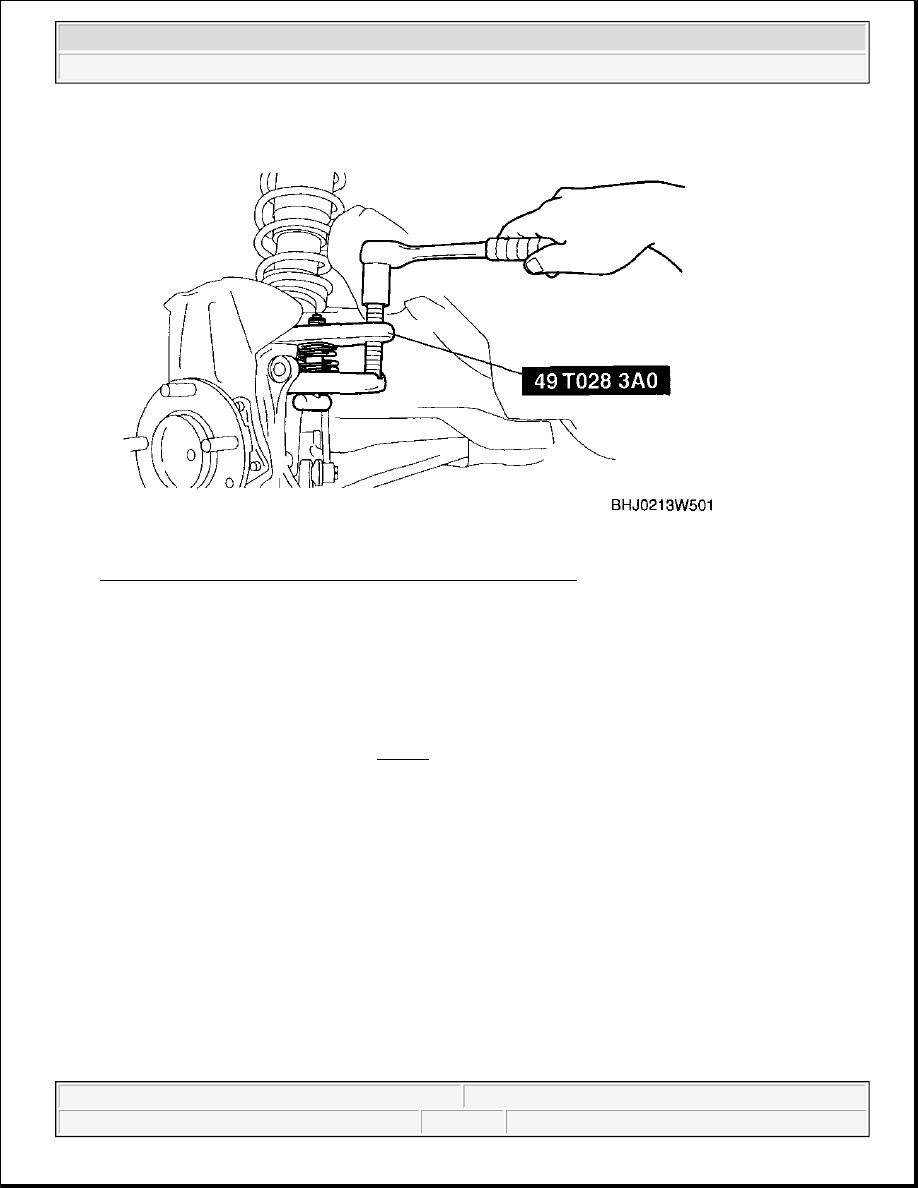

Fig. 10: Disconnecting Front Lower Arm Ball Joint From Steering Knuckle Using SST
Courtesy of MAZDA MOTORS CORP.

FRONT UPPER ARM BALL JOINT REMOVAL NOTE

1. Loosen the bolts on the vehicle side.

2. Disconnect the upper arm ball joint using the SST .

bushing may also come off. If it comes off, replace the steering
knuckle.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



Fig. 11: Disconnecting Front Upper Arm Ball Joint Using SST
Courtesy of MAZDA MOTORS CORP.

BUSHING (REAR SIDE) REMOVAL NOTE

1. Mark the front upper arm as shown in Fig. 12 .

CAUTION:



Be careful not to damage the front lower arm. If it is damaged,
replace it.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



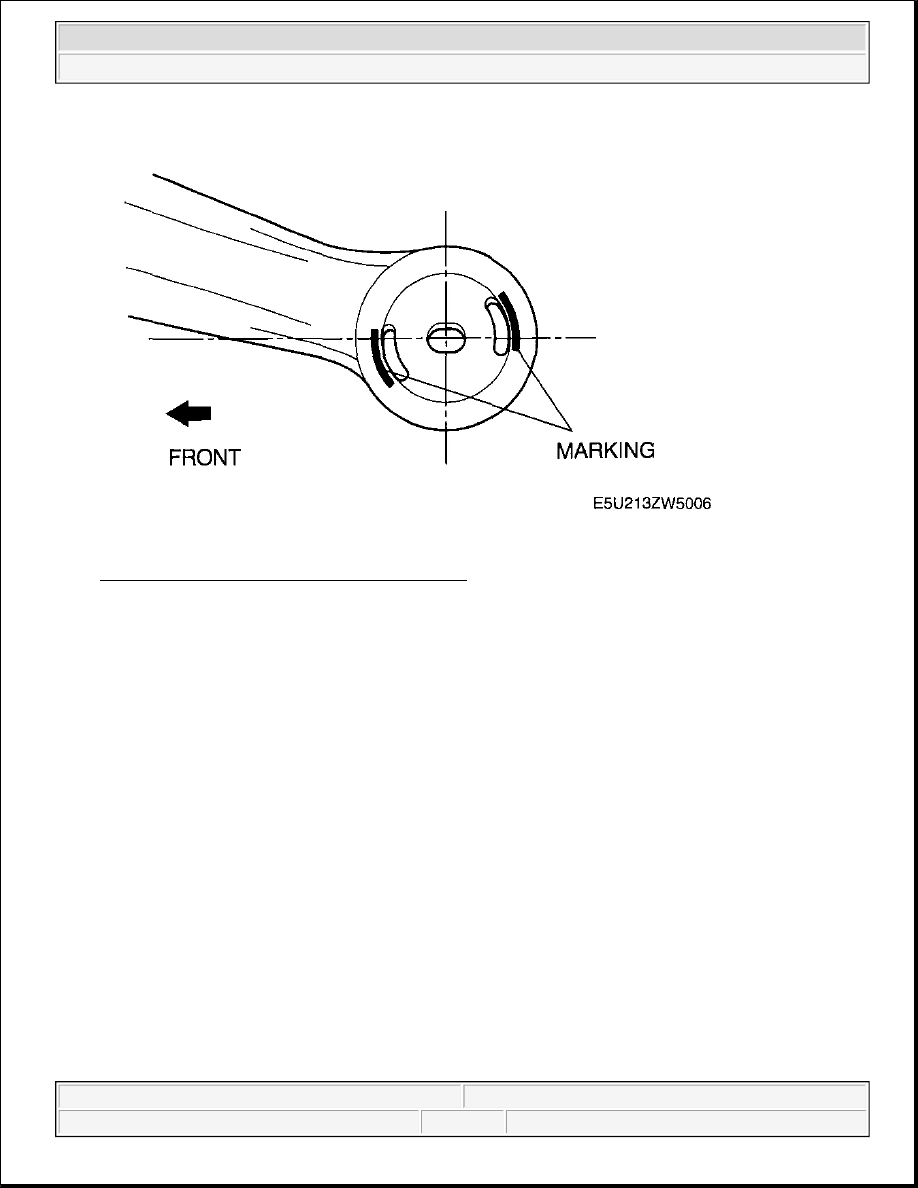

Fig. 12: Identifying Mark On Front Upper Arm
Courtesy of MAZDA MOTORS CORP.

2. Remove the bushing using the SSTs .



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Front Suspension - MX-5 Miata



Fig. 13: Removing Bushing Using SST's
Courtesy of MAZDA MOTORS CORP.

BUSHING (FRONT SIDE) REMOVAL NOTE

1. Cut off the stopper plate rubber using a razor.

CAUTION:



Be careful not to damage the front lower arm. If it is damaged,
replace it.
