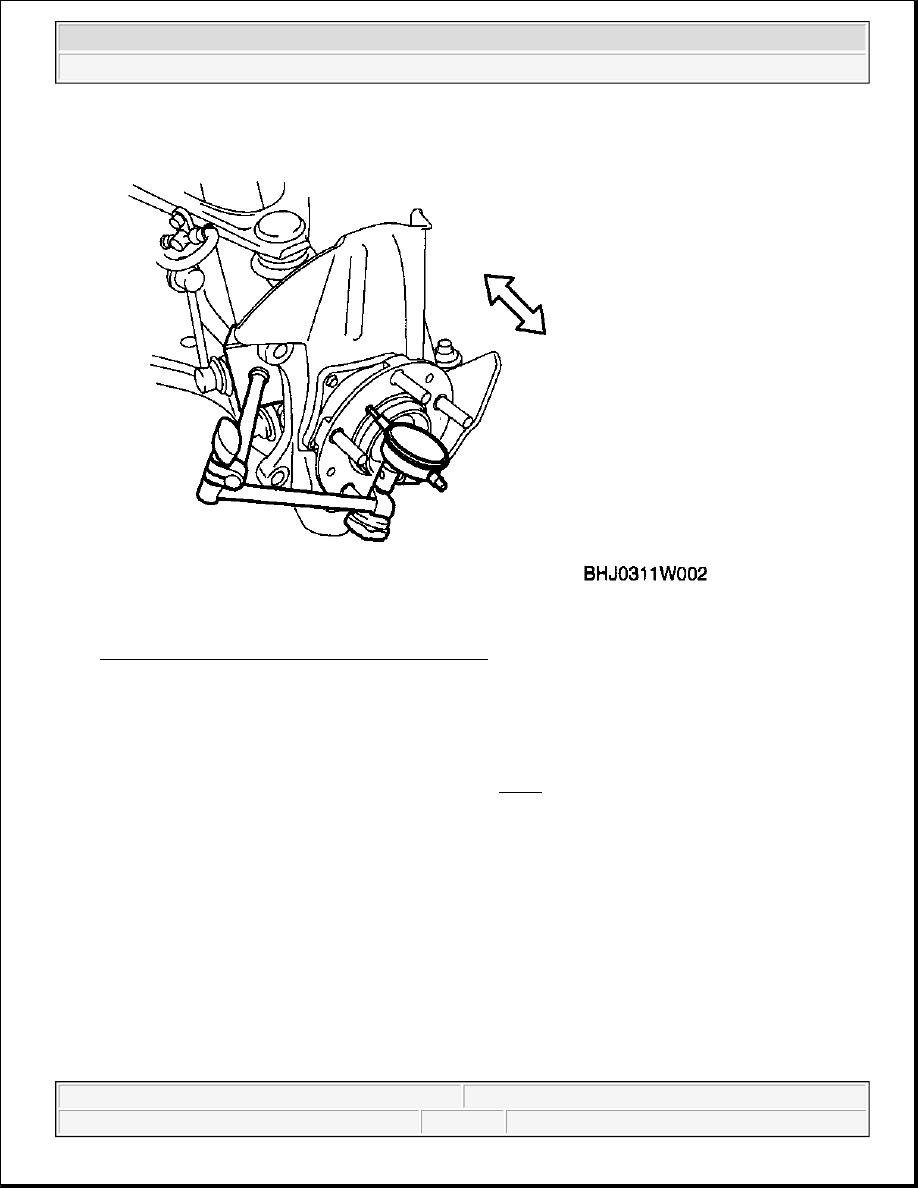

Fig. 2: Inspect Wheel Bearing For Axial Looseness
Courtesy of MAZDA MOTORS CORP.

FRONT WHEEL HUB BOLT REPLACEMENT

1. Remove the brake caliper component and disc plate.

2. Remove the wheel hub bolt using the SST as shown in Fig. 3 .



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Front Axle - MX-5 Miata



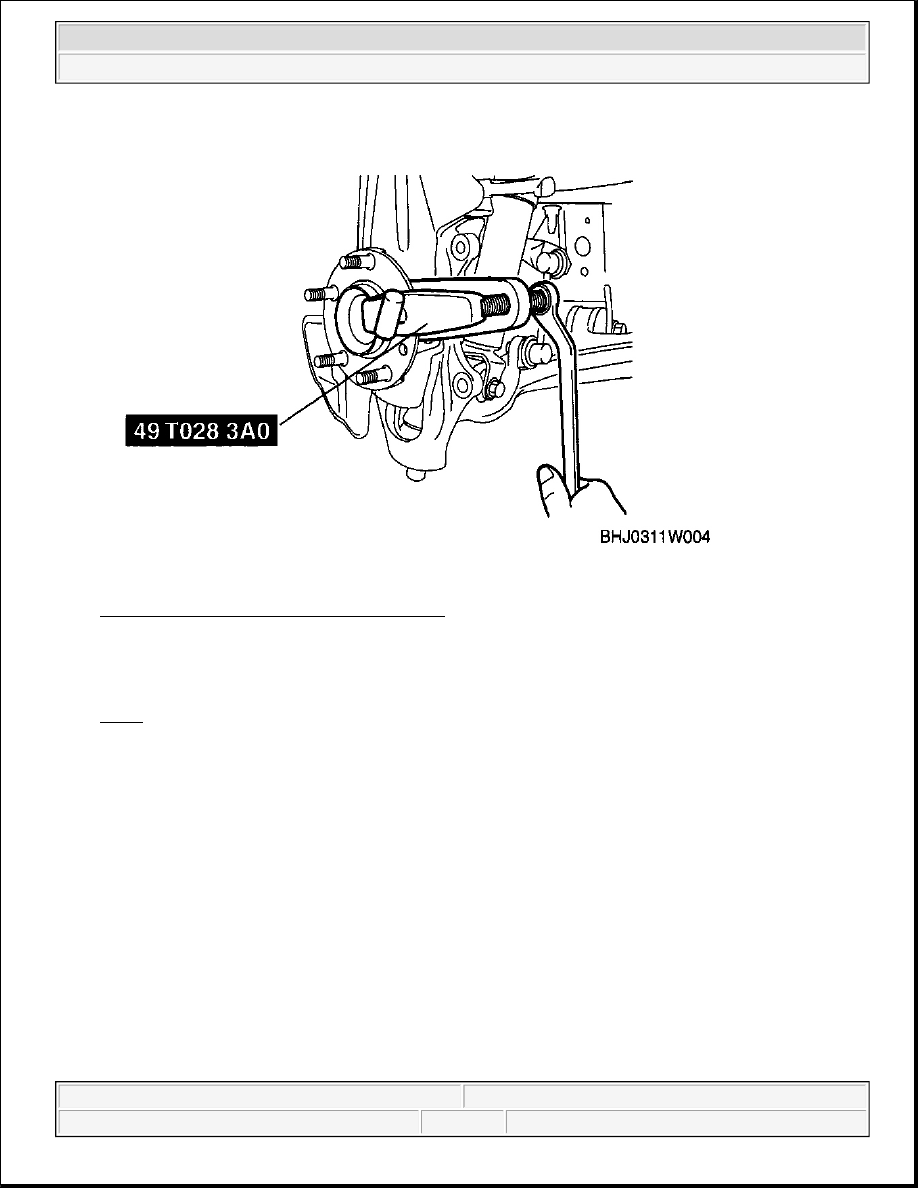

Fig. 3: Removing Wheel Hub Bolt Using SST
Courtesy of MAZDA MOTORS CORP.

3. Place a new wheel hub bolt in the wheel hub.

4. Install the wheel hub bolt by placing a proper sized washer on the hub, and tightening the nut as shown in

Fig. 4 .



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Front Axle - MX-5 Miata



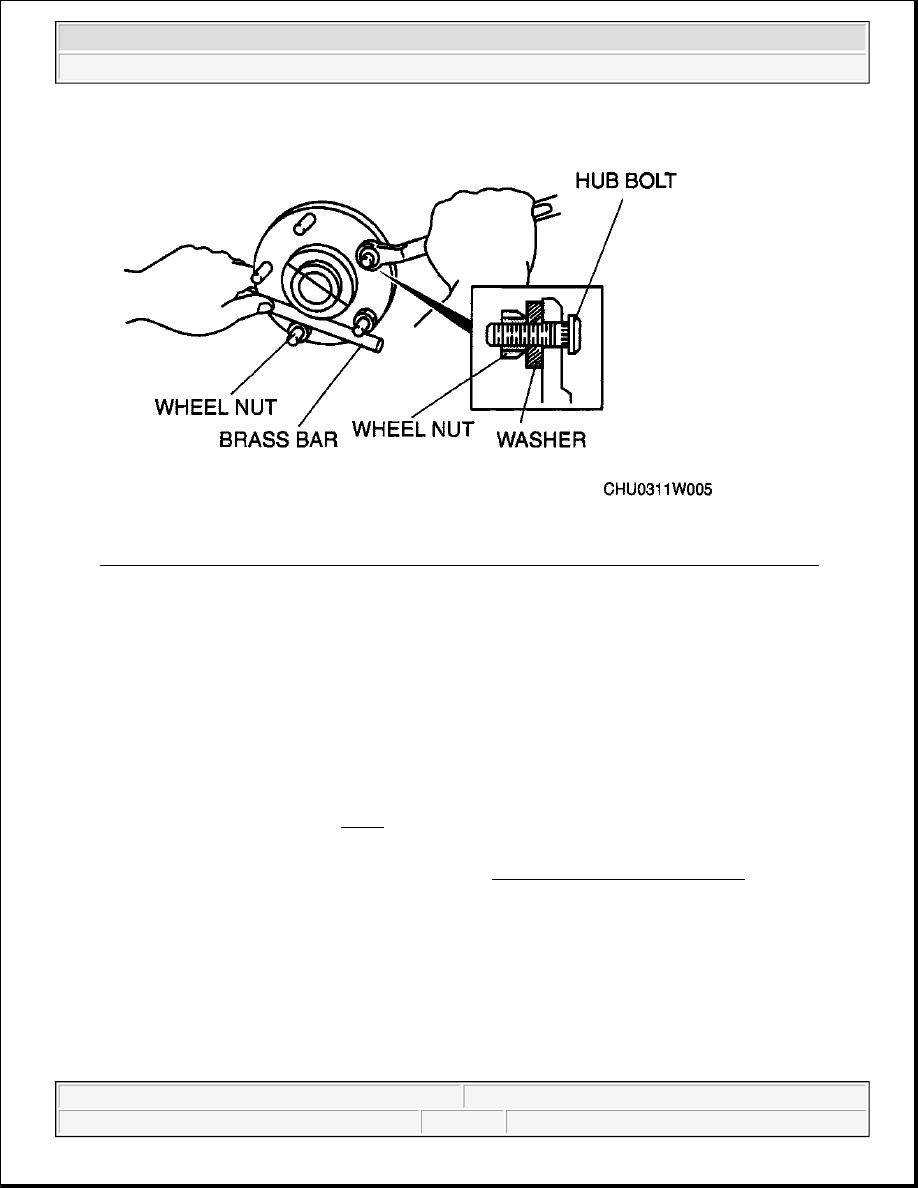

Fig. 4: Installing Wheel Hub Bolt By Placing Proper Sized Washer On Hub & Tightening Nut
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION

1. Remove in the order indicated in Fig. 5 .

2. Install in the reverse order of removal.

3. After installation, inspect front wheel alignment. (See FRONT WHEEL ALIGNMENT .)

CAUTION:



Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the wiring
harness if it is pulled by mistake. Before performing the following
procedures, disconnect the ABS wheel-speed sensor harness
connector (axle side) and fix it to an appropriate place where the
sensor will not be pulled by mistake while servicing the vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Front Axle - MX-5 Miata



Fig. 5: Identifying Wheel Hub, Steering Knuckle Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

BRAKE CALIPER COMPONENT REMOVAL NOTE

1. Suspend the brake caliper component using a cable or equivalent.
