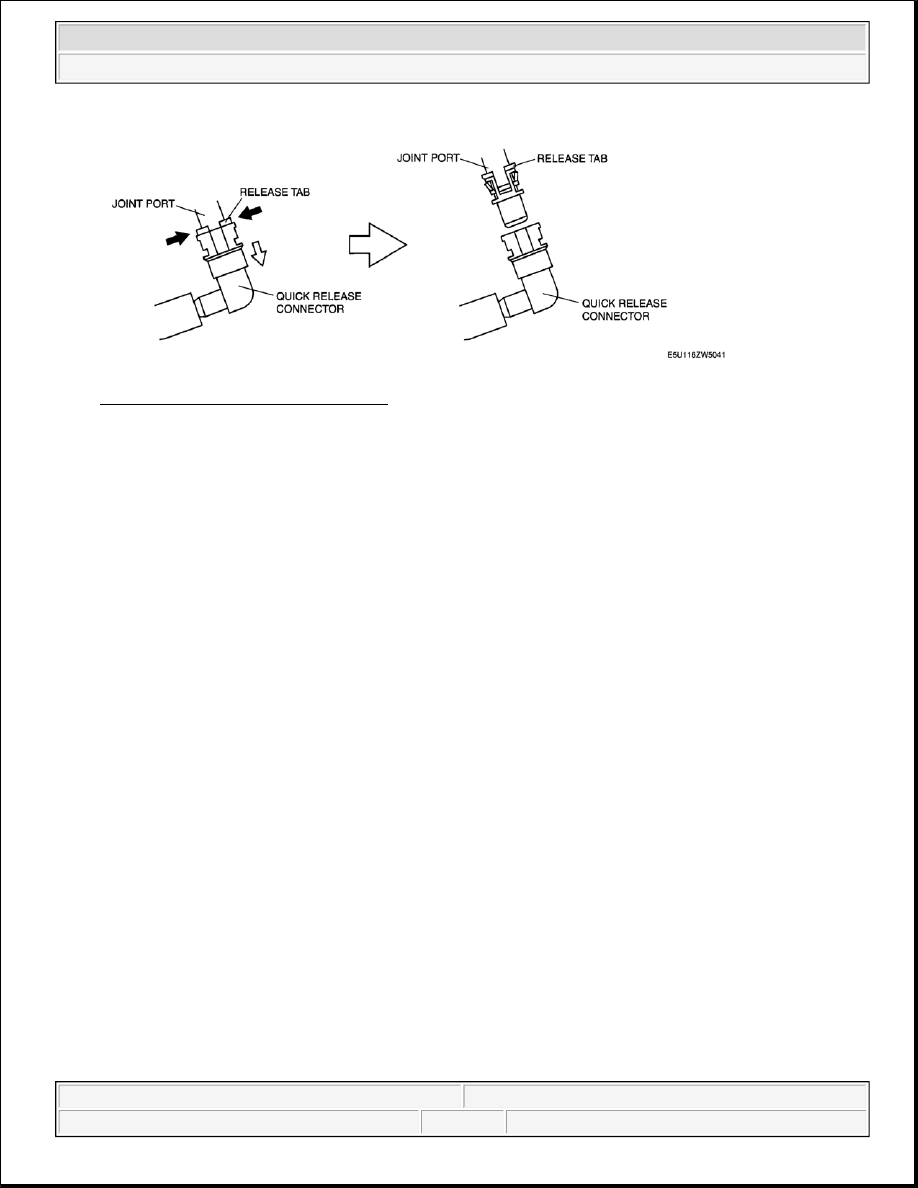

Fig. 42: View Of Type B Components
Courtesy of MAZDA MOTORS CORP.

3. Cover the disconnected quick release connector and joint port with vinyl sheeting or a similar material to

prevent it from becoming scratched or dirty.

TYPE C REMOVAL

1. Follow "BEFORE SERVICE PRECAUTION" and remove dirt from the connecting surfaces before

performing any work operations.

2. Set the SST parallel to the quick release connector.

CAUTION:



Be careful not to damage the pipe when unlocking the retainer.

NOTE:



If the quick release connector is removed, replace the retainer with a new
one.

NOTE:



The retainer is attached to the pipe even after the connector is
disconnected.

NOTE:



The quick release connector can be removed by pushing the center
of the retainer tabs.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Emission System - MX-5 Miata



Fig. 43: Disconnecting Quick Release Connector
Courtesy of MAZDA MOTORS CORP.

3. Hold the center of the retainer tabs with the SST ends and press the retainer.

4. Pull the connector side and disconnect the quick release connector.

5. Raise a retainer tab using the SST and remove the retainer.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Emission System - MX-5 Miata



Fig. 44: Raising Retainer Tab Using SST
Courtesy of MAZDA MOTORS CORP.

6. Cover the disconnected quick release connector and joint port with vinyl sheeting or a similar material to

prevent it from becoming scratched or dirty.

TYPE D REMOVAL

1. Release the locks between the retainer and joint port by pressing each retainer lock one by one using a

flathead screwdriver or a similar tool.

CAUTION:



When releasing the retainer locks, take extreme care not to damage
the evaporative hose.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE PERFORMANCE Emission System - MX-5 Miata

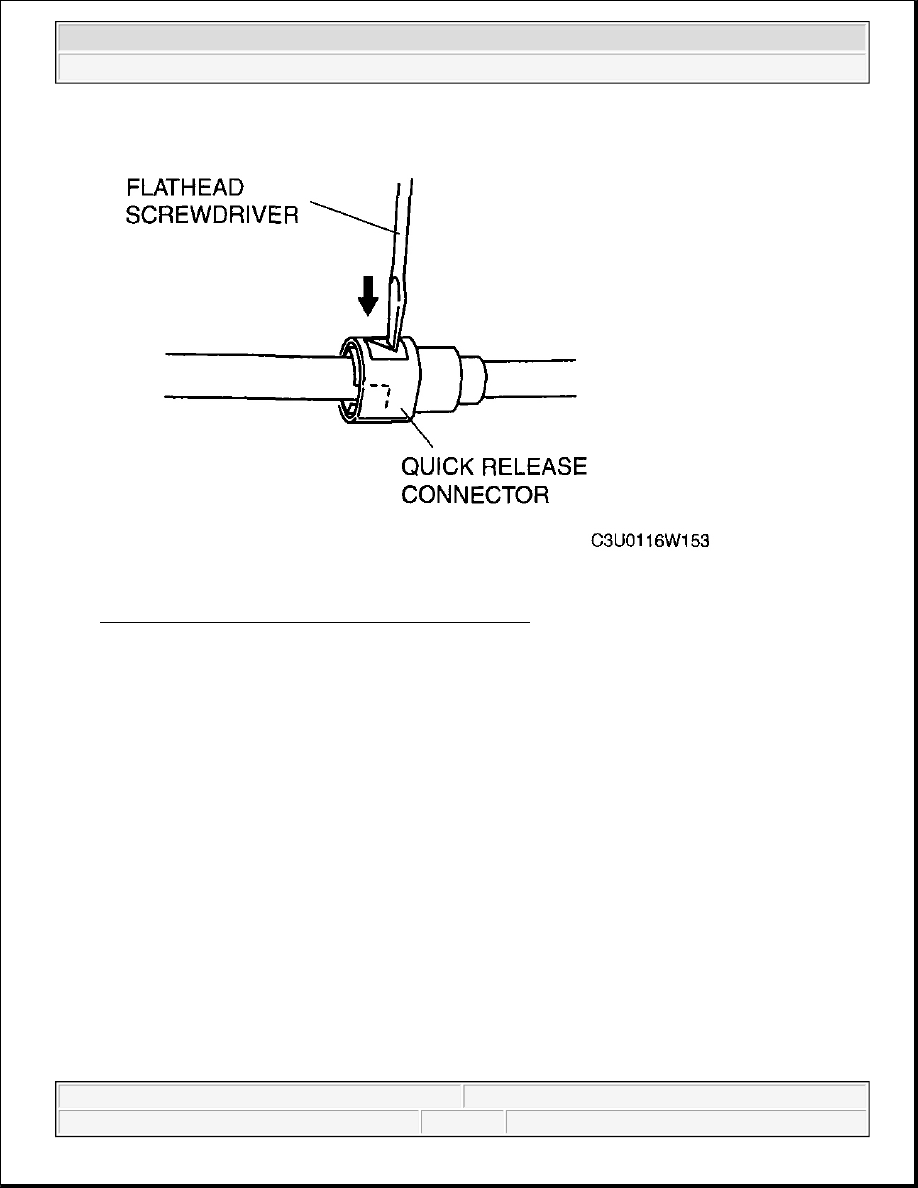

Fig. 45: Releasing Locks Between Retainer & Joint Port
Courtesy of MAZDA MOTORS CORP.

2. Pull out the hose straight from the joint port and disconnect it.

3. Cover the disconnected quick release connector and joint port with vinyl sheeting or a similar material to

prevent it from becoming scratched or dirty.

TYPE A INSTALLATION

NOTE:



The retainer is attached to the pipe even after the connector is
disconnected.

NOTE:



If the quick release connector O-ring is damaged or has slipped, replace
the evaporative hose.



A checker tab is integrated with the quick release connector for new
evaporative hoses. Remove the checker tab from the quick release
connector after the connector is completely engaged with the joint port.
