Fig. 7: Inspecting Play & Rotation Of Joint By Turning Universal Joint In Direction
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Propeller Shaft - MX-5 Miata



2008 BRAKES

Dynamic Stability Control - MX-5 Miata

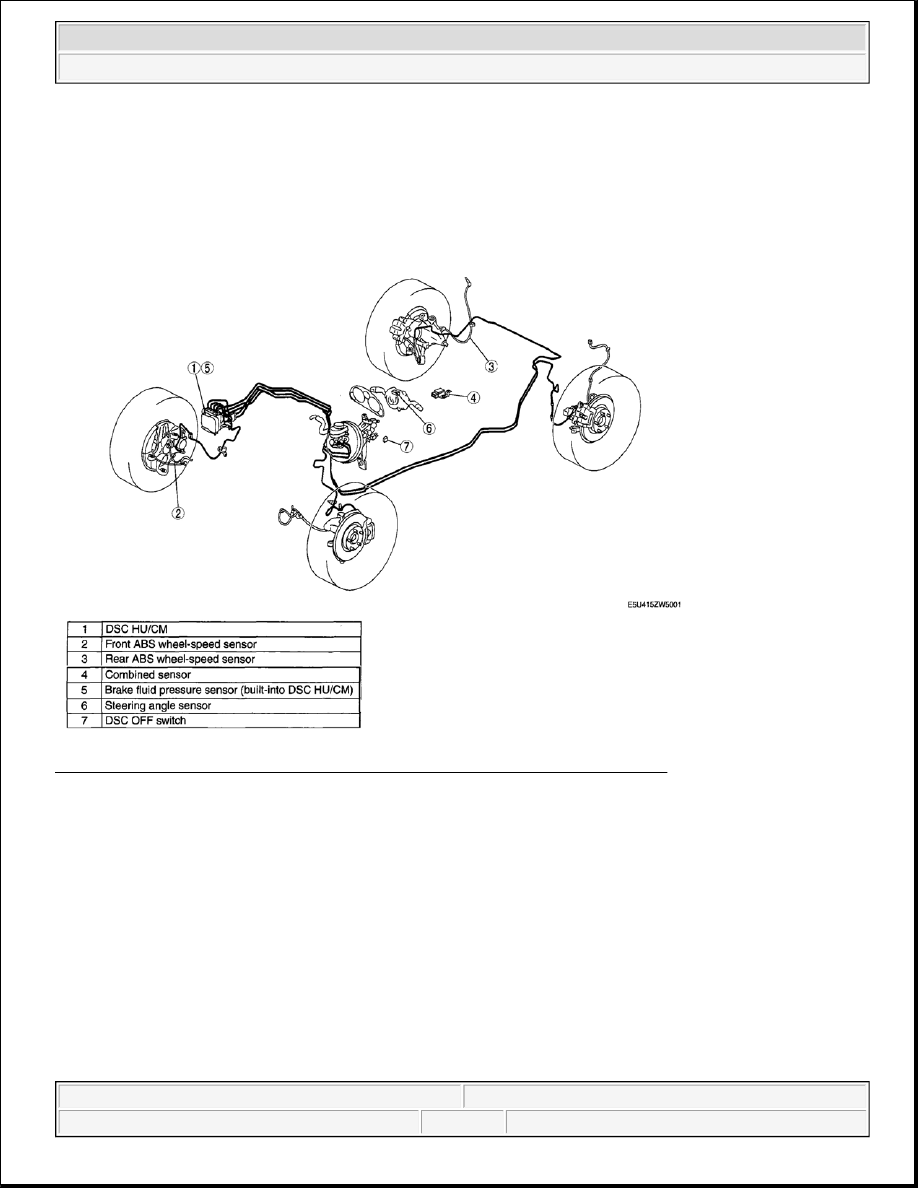

DYNAMIC STABILITY CONTROL LOCATION INDEX

Fig. 1: Identifying Location Of Dynamic Stability Control Connector Terminals
Courtesy of MAZDA MOTORS CORP.

DSC SYSTEM WIRING DIAGRAM



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Dynamic Stability Control - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Dynamic Stability Control - MX-5 Miata



Fig. 2: DSC System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.

DSC SYSTEM INSPECTION

PREPARATION

1. Verify that battery is fully charged.

2. Turn the ignition switch to the ON position, and verify that the ABS warning light goes out after approx.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Dynamic Stability Control - MX-5 Miata



3 s .

3. Turn the ignition switch off.

4. Jack up the vehicle and support it evenly on safety stands.

5. Shift to the N position.

6. Verify that all four wheels rotate.

7. Rotate the inspected wheels by hand, and verify there is no brake drag.



If there is any brake drag, perform regular brake inspection.



If there is no brake drag, perform DSC HU/CM operation inspection.

ABS CONTROL INSPECTION

1. Perform "Preparation".

2. Connect the M-MDS to the DLC-2.

3. Set up an active command mode inspection according to the combination of commands below.

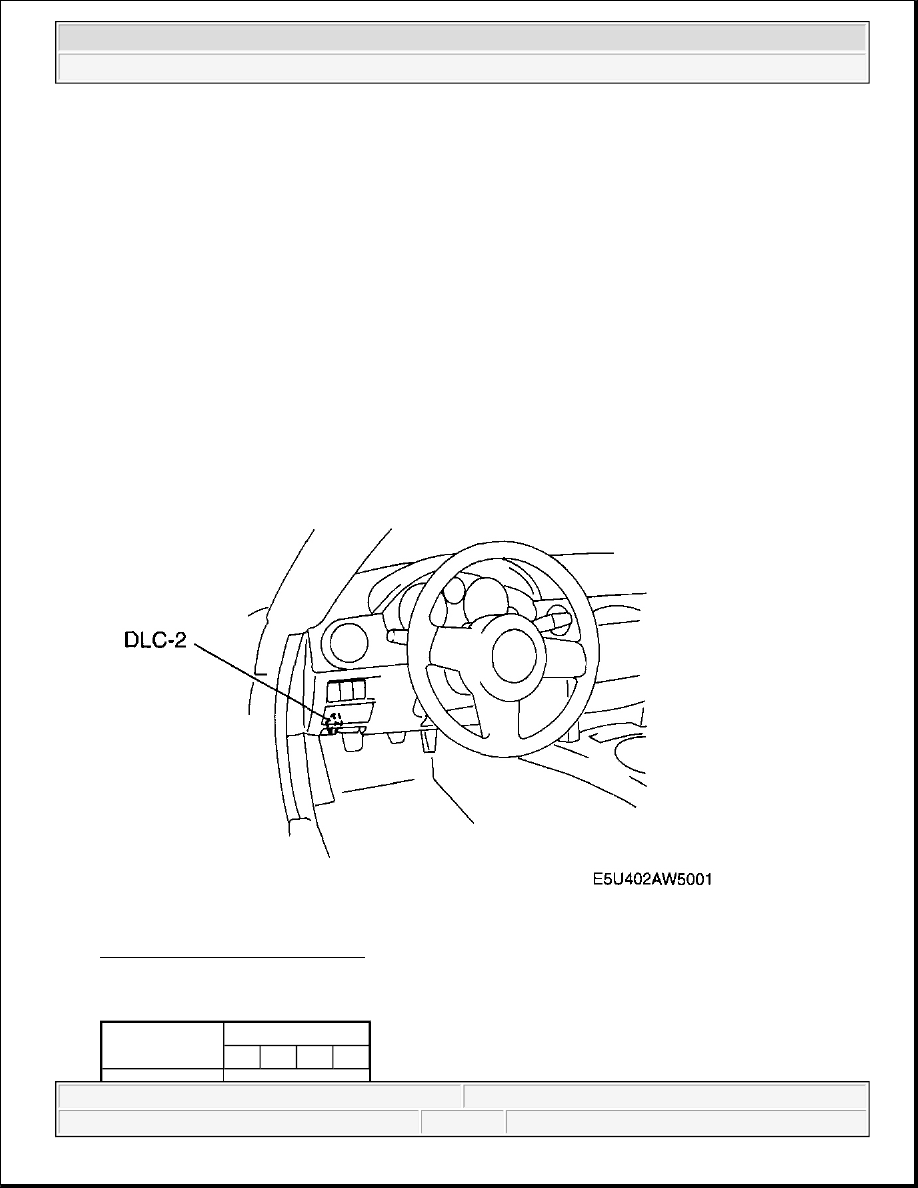

Fig. 3: Locating DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.

BRAKE PRESSURE RETENTION

Command name

Inspected wheels

LF RF LR RR
