Mazda MX-5 Miata / Grand Touring. Manual - part 61





Fig. 10: Removing Boot Band Using End Clamp Pliers
Courtesy of MAZDA MOTORS CORP.

BOOT BAND (DIFFERENTIAL SIDE) DISASSEMBLY NOTE

1. Remove the crimp of the clip using a flathead screwdriver.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - MX-5 Miata

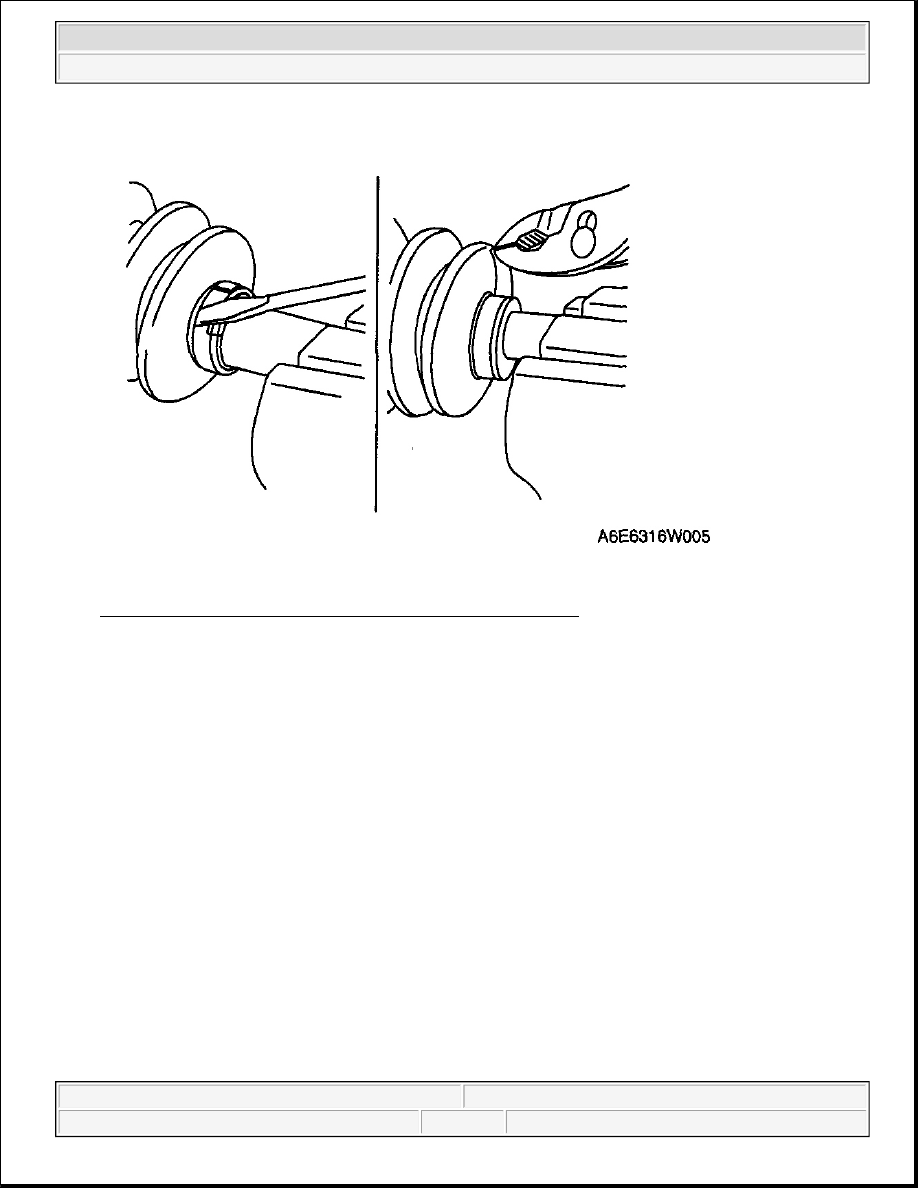

Fig. 11: Removing Crimp Of Clip Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.

TRIPOD JOINT SOCKET DISASSEMBLY NOTE

1. Place an alignment mark on the drive shaft and the outer ring.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - MX-5 Miata

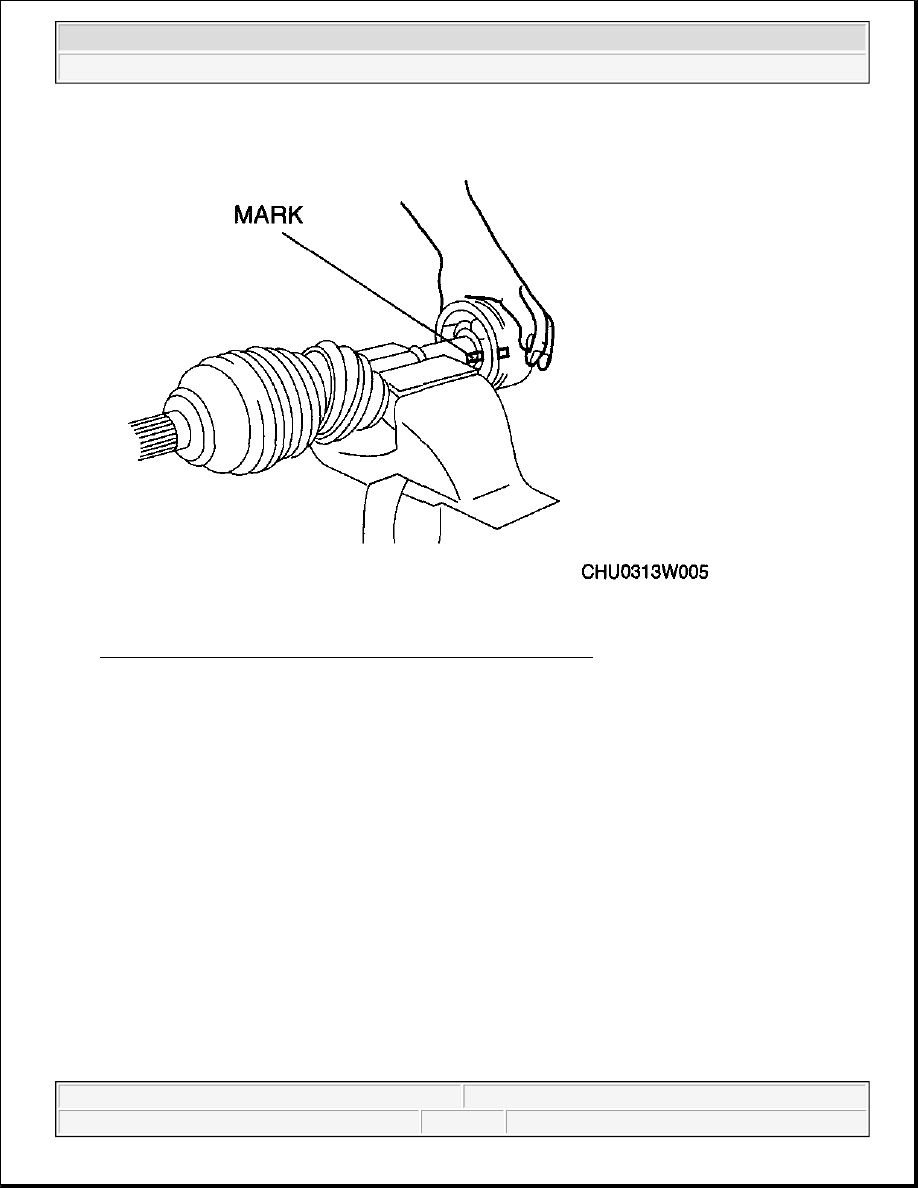

Fig. 12: View Of Alignment Mark On Drive Shaft & Outer Ring
Courtesy of MAZDA MOTORS CORP.

2. Remove the outer ring.

SNAP RING, TRIPOD JOINT DISASSEMBLY NOTE

1. Place an alignment mark on the shaft and tripod joint.

2. Remove the snap ring using a snap ring plier.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - MX-5 Miata

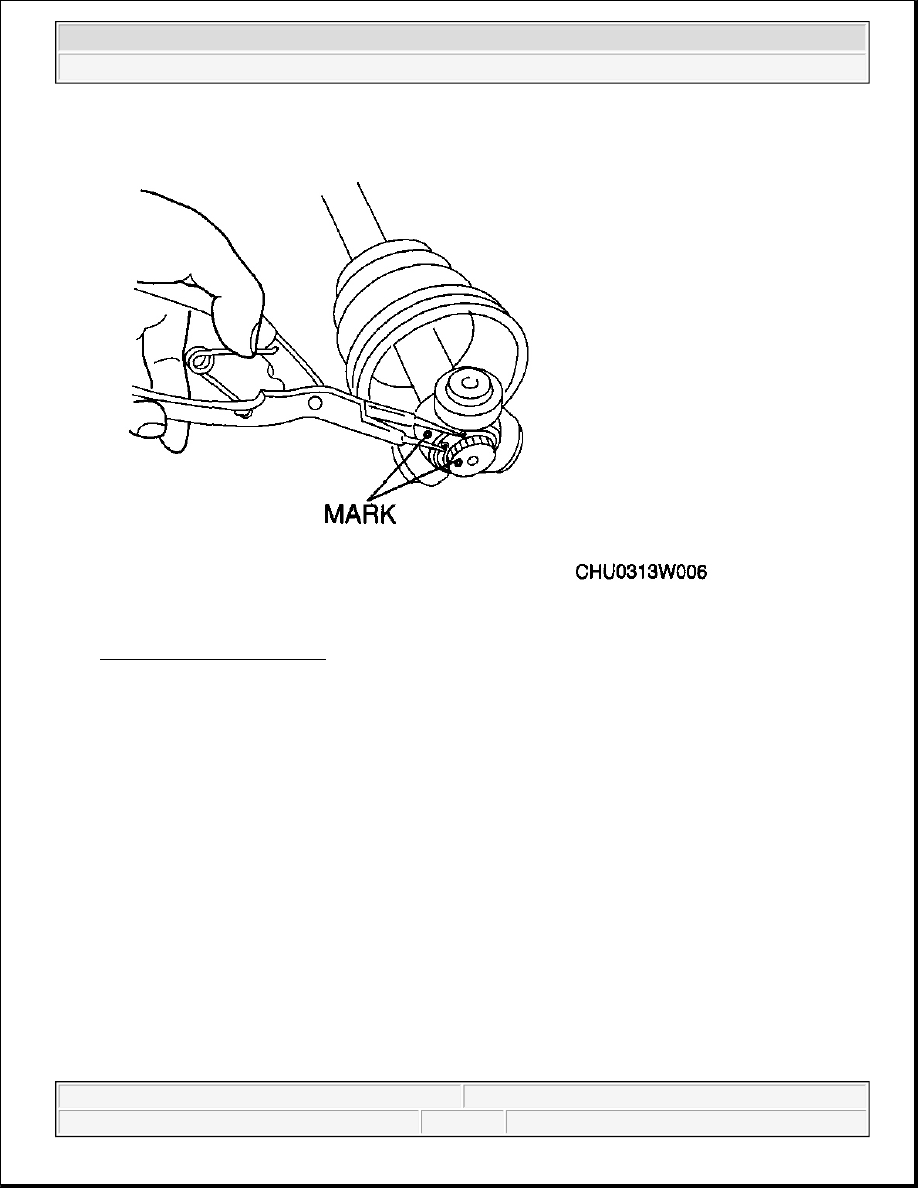

Fig. 13: Removing Snap Ring
Courtesy of MAZDA MOTORS CORP.

3. Remove the tripod joint from the shaft.

BOOT DISASSEMBLY NOTE

1. Wrap the shaft spline with vinyl tape.

CAUTION:

To prevent damage to the component, do not use a hammer
when removing it.

NOTE:

Remove the axle side boot only if there is an abnormality.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - MX-5 Miata
