Fig. 18: Removing Side Bearing Using SST
Courtesy of MAZDA MOTORS CORP.

ROLL PIN DISASSEMBLY NOTE

1. Tap the roll pin out from the direction shown in Fig. 19 using a pin punch.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



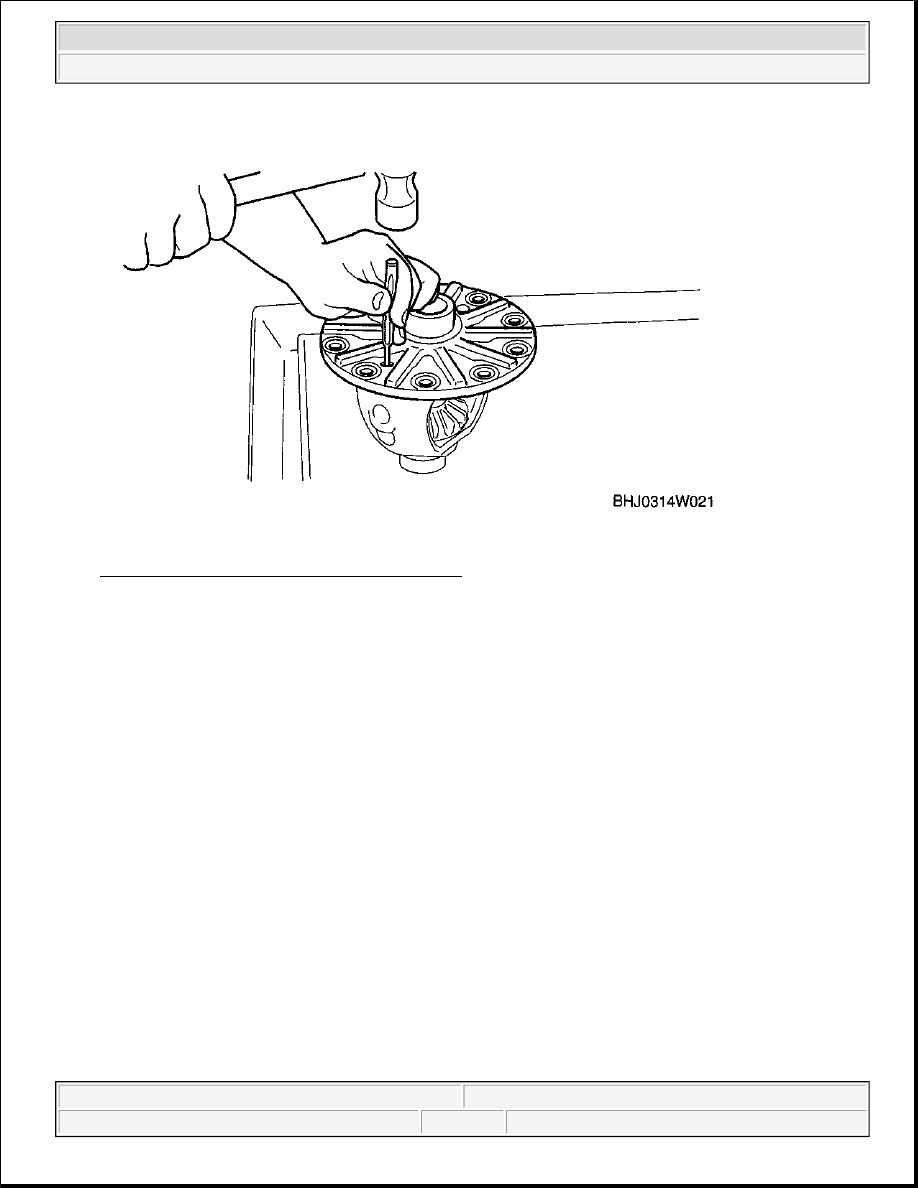

Fig. 19: Tapping Roll Pin Out Using Pin Punch
Courtesy of MAZDA MOTORS CORP.

LOCKNUT DISASSEMBLY NOTE

1. Remove the locknut while fixing the companion flange using the SST .



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



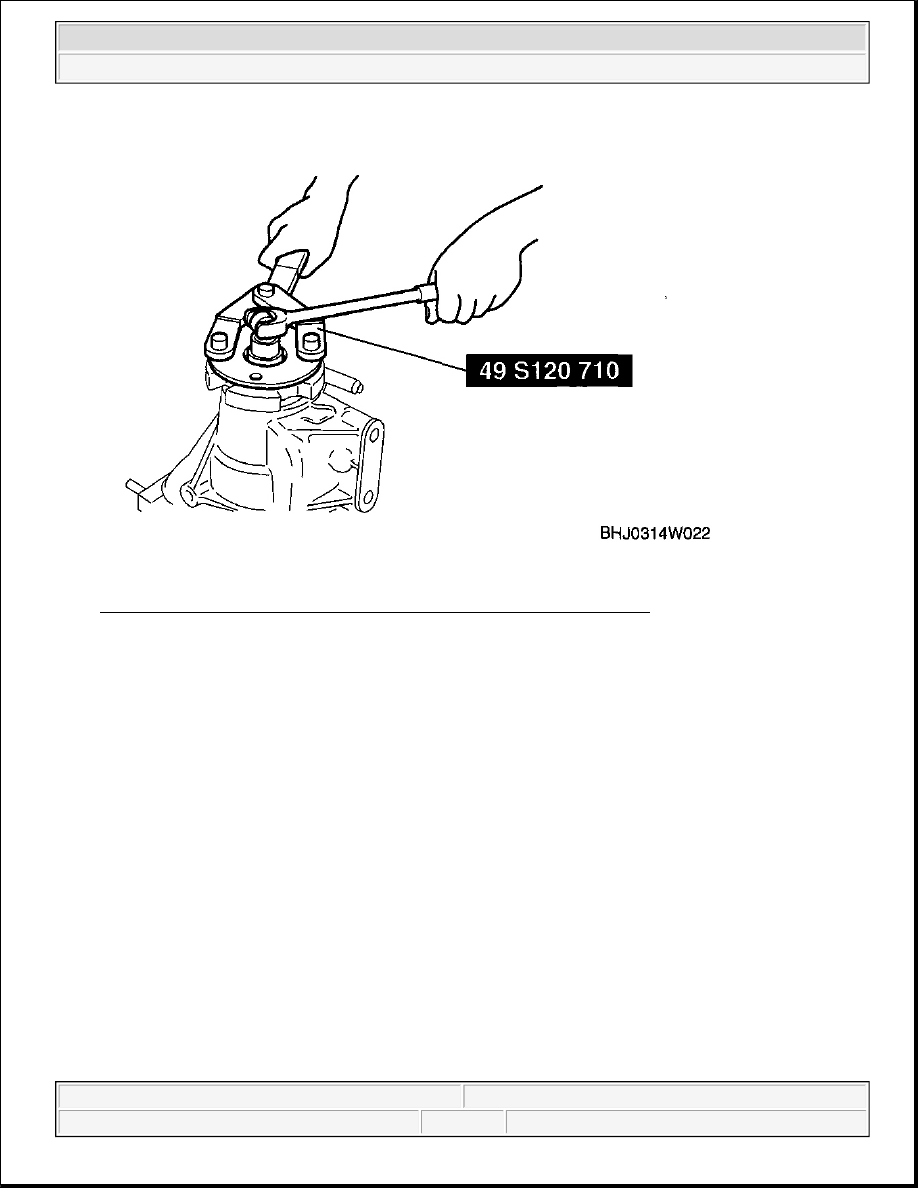

Fig. 20: Removing Locknut While Fixing Companion Flange Using SST
Courtesy of MAZDA MOTORS CORP.

COMPANION FLANGE DISASSEMBLY NOTE

1. Remove the companion flange using the SST .



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



Fig. 21: Removing Companion Flange Using SST
Courtesy of MAZDA MOTORS CORP.

DRIVE PINION COMPONENT DISASSEMBLY NOTE

1. Install the removed locknut to the drive pinion top to prevent damage to the thread.

2. Remove the drive pinion component by tapping the locknut lightly using a plastic hammer.

3. Remove the locknut installed in Step 1.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata
