1. Turn the ignition switch to the LOCK position.

2. Remove the battery cover.

3. Disconnect the negative battery cable and wait for 1 min or more . (See BATTERY

REMOVAL/INSTALLATION [LF] .)

4. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

5. Remove in the order indicated in Fig. 12 .

system service warnings and cautions before handling the air bag
module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR
BAG SYSTEM SERVICE CAUTIONS .)



If the passenger-side air bag module is installed with debris in the
module, it may be scattered when the air bag module operates
(deploys), causing injury. Verify that there is no debris in the
passenger-side air bag module before installation.



If a damaged passenger-side air bag module is installed, the vehicle
may be damaged or the passenger may be injured when the air bag
module operates (deploys). Verify that the passenger-side air bag
has no damage before installation.



Due to the adoption of 2-step deployment control in the passenger-
side air bag module, depending on the impact force, it is possible
that inflator No.2 might not deploy. In such cases, before disposing
of the air bag module, make sure to follow the inflator deployment
procedures and verify complete deployment of inflators No.1 and 2.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



Fig. 12: View Of Passenger-Side Air Bag Module & Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

6. Install in the reverse order of removal.

7. Turn the ignition switch to the ON position.

8. Verify that the air bag system warning light illuminates for approx. 6 s and goes out.



If the air bag system warning light does not operate, refer to RESTRAINTS -- ON-BOARD
DIAGNOSTIC system (air bag system) and perform inspection of the system.

PASSENGER-SIDE AIR BAG MODULE REMOVAL NOTE

1. Remove the passenger-side air bag module in the order indicated below.

1. Disengage the tab locks by sliding the passenger-side air bag module upward.

2. Slide the passenger-side air bag module rearward.

3. Remove the passenger-side air bag module by pulling it from the backside and then down.

Fig. 13: View Of Passenger-Side Air Bag Module
Courtesy of MAZDA MOTORS CORP.

CONNECTOR REMOVAL NOTE

1. Using a flathead screwdriver, pry out the connector stopper plate.



2008 Mazda MX-5 Miata Grand Touring

2008 RESTRAINTS Air Bag System - MX-5 Miata



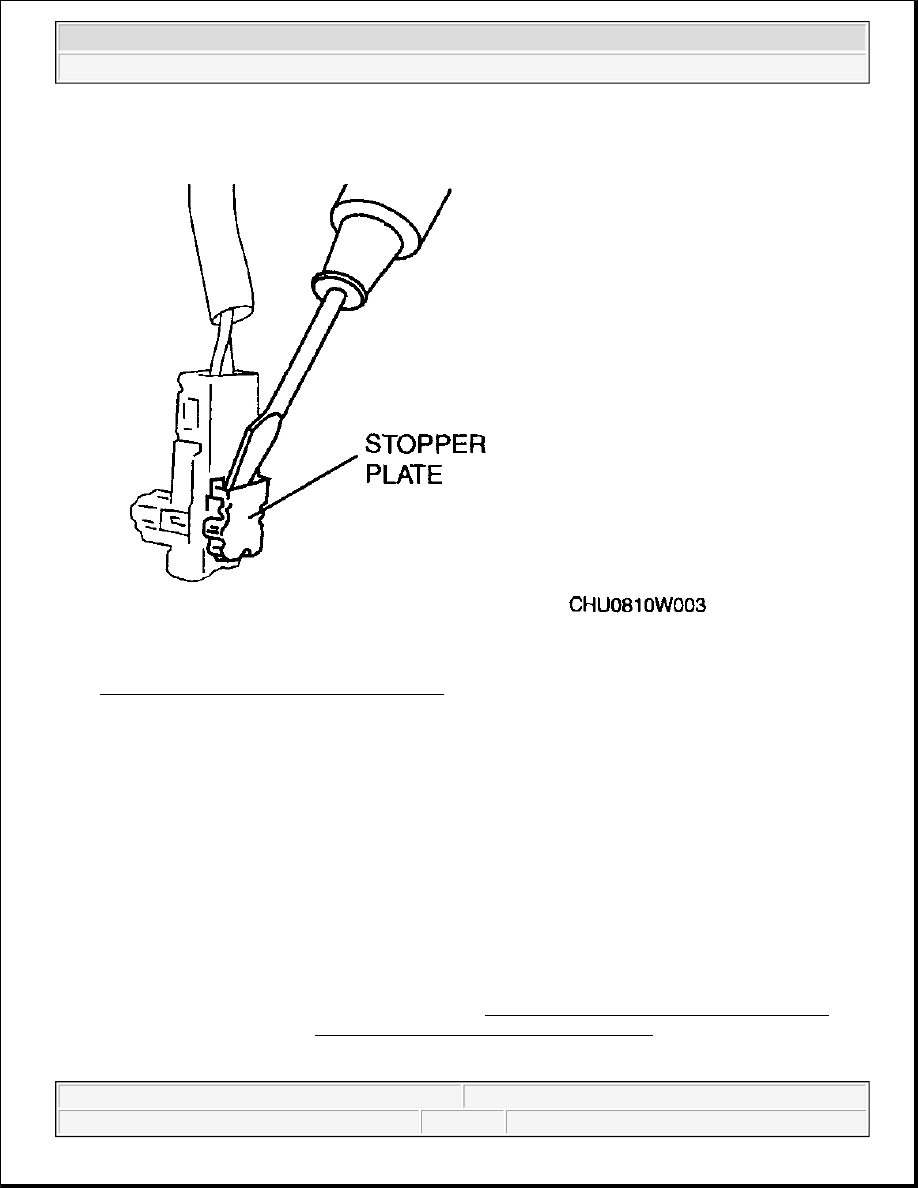

Fig. 14: Prying Out Connector Stopper Plate
Courtesy of MAZDA MOTORS CORP.

2. Disconnect the connector.

CAP INSTALLATION NOTE

1. The cap cannot be reused. Replace the cap with a new one when the cap or the passenger-side air bag

module has been removed.

SIDE AIR BAG MODULE REMOVAL/INSTALLATION

WARNING:



Handling the air bag module improperly can accidentally operate
(deploy) the air bag module, which may seriously injure you. Read
the air bag system service warnings and cautions before handling
the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .)
(See AIR BAG SYSTEM SERVICE CAUTIONS .)



If the side air bag module is installed with debris in the seat back,
