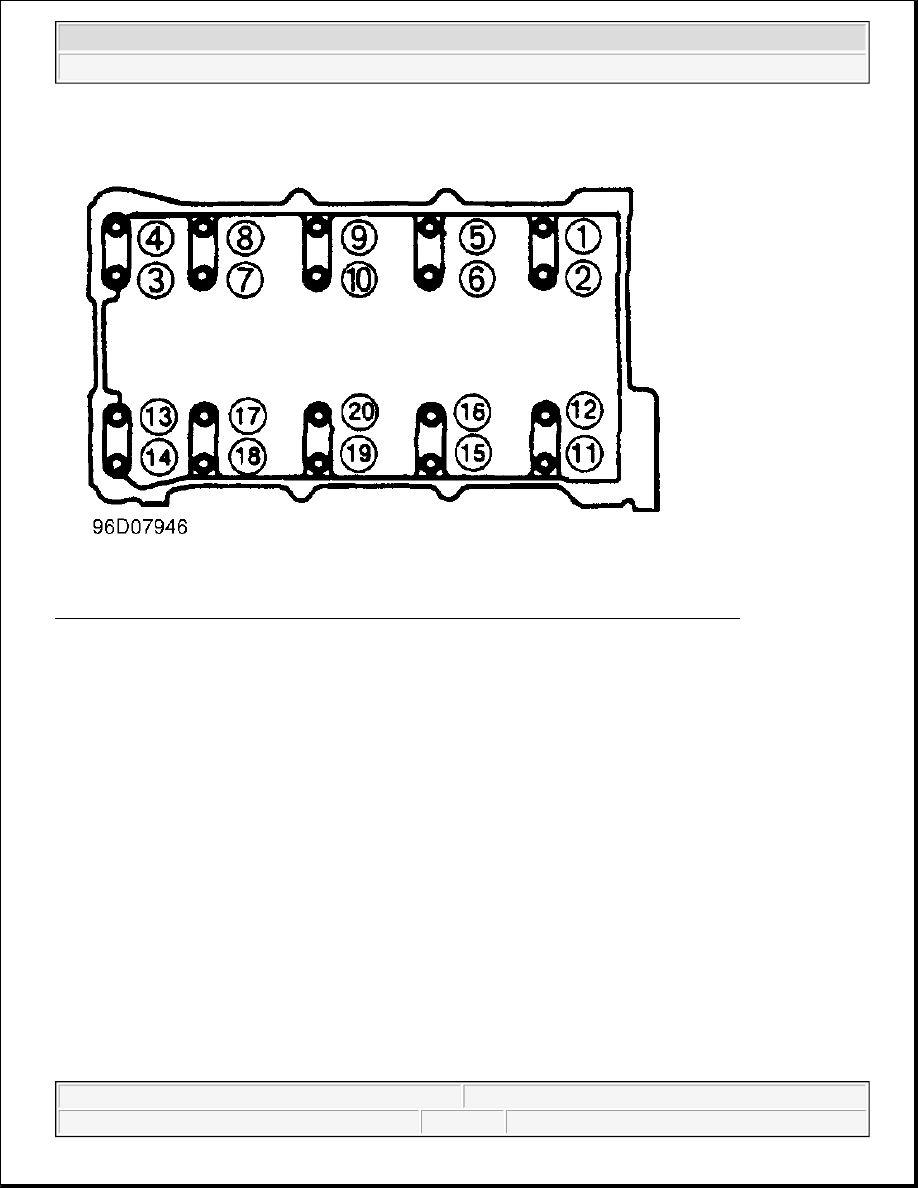

Fig. 12: Camshaft Bearing Cap Bolt Removal & Installation Sequence (Protege) Removal
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

1997-98 ENGINES 1.8L 4-Cylinder

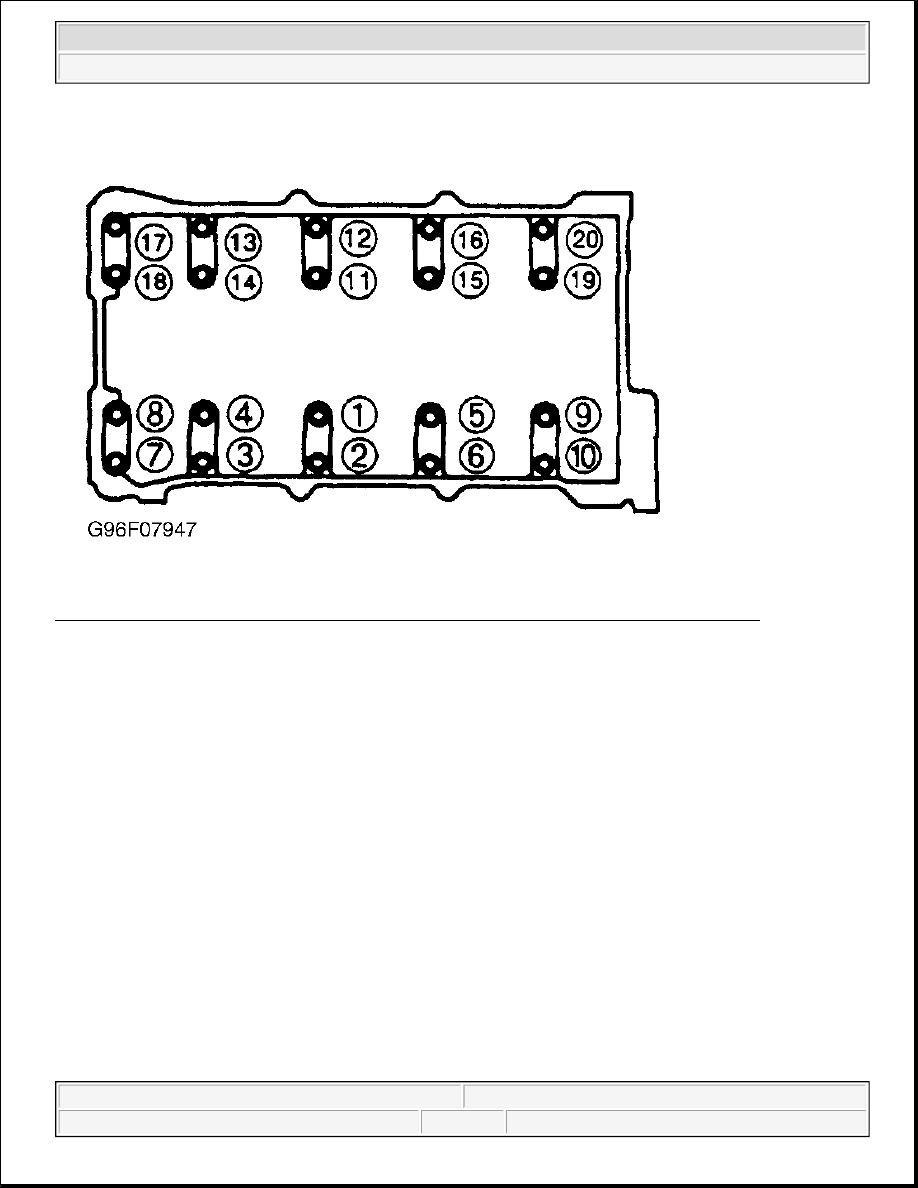

Fig. 13: Camshaft Bearing Cap Bolt Removal & Installation Sequence (Protege) Installation
Courtesy of MAZDA MOTORS CORP.

CRANKSHAFT REAR OIL SEAL

Removal & Installation

1. Disconnect negative battery cable. Remove transmission/transaxle and flywheel. For automatic

transmission removal procedure, see REMOVAL & INSTALLATION article in TRANSMISSION
SERVICING. For manual transmission removal procedure, see appropriate article in CLUTCHES. On all
models, pry out rear oil seal.

2. To install, apply light coat of oil to seal lip and push seal over crankshaft. Tap seal into rear cover until it

is flush with edge of rear cover. DO NOT bottom seal in cover.

3. Completely remove used sealant from flywheel bolts. Apply lock-type sealant to bolts and install

flywheel to crankshaft. Tighten bolts to 71-76 ft. lbs. (96-103 N.m) in a star-pattern sequence. Install
clutch assembly (if equipped) and tighten cover bolts to 13-20 ft. lbs. (18-26 N.m) in a star-pattern
sequence. Install transmission/transaxle. See appropriate article in TRANSMISSION SERVICING or
CLUTCHES.

WATER PUMP

Removal & Installation



1997 Mazda MX-5 Miata

1997-98 ENGINES 1.8L 4-Cylinder



1. Drain engine coolant. Disconnect battery cable. Position No. 1 cylinder at TDC of compression stroke.

On Protege, remove right side cover and undercover.

2. On Miata, remove air cleaner intake duct from between throttle body and air cleaner/filter assembly. On

all models, remove upper radiator hose and by-pass hoses from thermostat housing.

3. Remove drive belts and water pump pulley. Remove power steering pump with hoses attached and secure

pump away from engine (if necessary). Remove timing belt, tensioner and idler. See TIMING BELT.

4. Unbolt water inlet pipe from water pump. Water pump inlet pipe has lower radiator hose and by-pass pipe

attached to it. Remove bolts from water pump. To install, reverse removal procedure. Tighten bolt to
specification. See

TORQUE SPECIFICATIONS

 .

OIL PAN

Removal & Installation (Miata)

1. Disconnect negative battery cable. Drain engine oil. Remove dipstick, tube and "O" ring. Raise vehicle on

hoist. Remove engine undercover. Disconnect steering column shaft at steering rack coupling. See Fig.
14 . Remove engine mount nuts. Lift and support engine using jack.

2. Support crossmember using transmission jack and remove crossmember bolts. Slowly and carefully lower

crossmember until clearance between oil pan and steering rack is about 4 inches. Remove oil pan bolts
from engine block and transmission.

3. DO NOT damage sealant contact surfaces. Remove oil pan by prying between oil pan and transmission

support. Remove oil pan baffle by prying it from engine. See Fig. 14 . DO NOT deform oil pan baffle.
Replace oil pan baffle if deformed. Clean sealant from oil pan, bolts, engine block and both sides of oil
pan baffle.

4. To install, apply oil resistant sealant to engine block and oil pan. Install oil pan baffle and oil pan within 5

minutes of applying sealant. To complete installation, reverse removal procedure. Tighten bolts to
specification. See TORQUE SPECIFICATIONS . Fill engine with oil to specification. See ENGINE
LUBRICATION SYSTEM under ENGINE OILING.

NOTE:

For further information on cooling systems, see SPECIFICATIONS & ELECTRIC
COOLING FANS article in ENGINE COOLING.

NOTE:

On Miata, engine must be supported in order to remove oil pan.



1997 Mazda MX-5 Miata

1997-98 ENGINES 1.8L 4-Cylinder

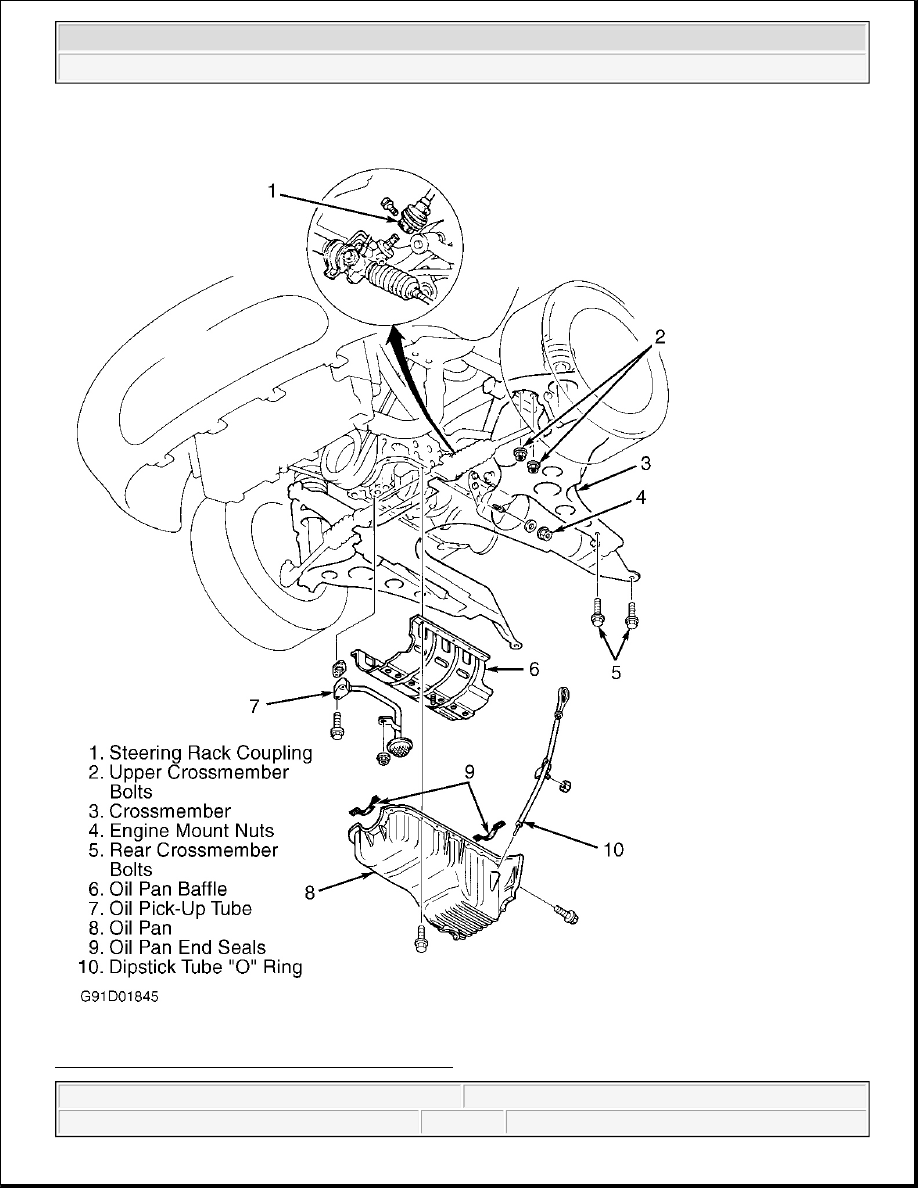

Fig. 14: Removing Crossmember & Oil Pan (Miata)
