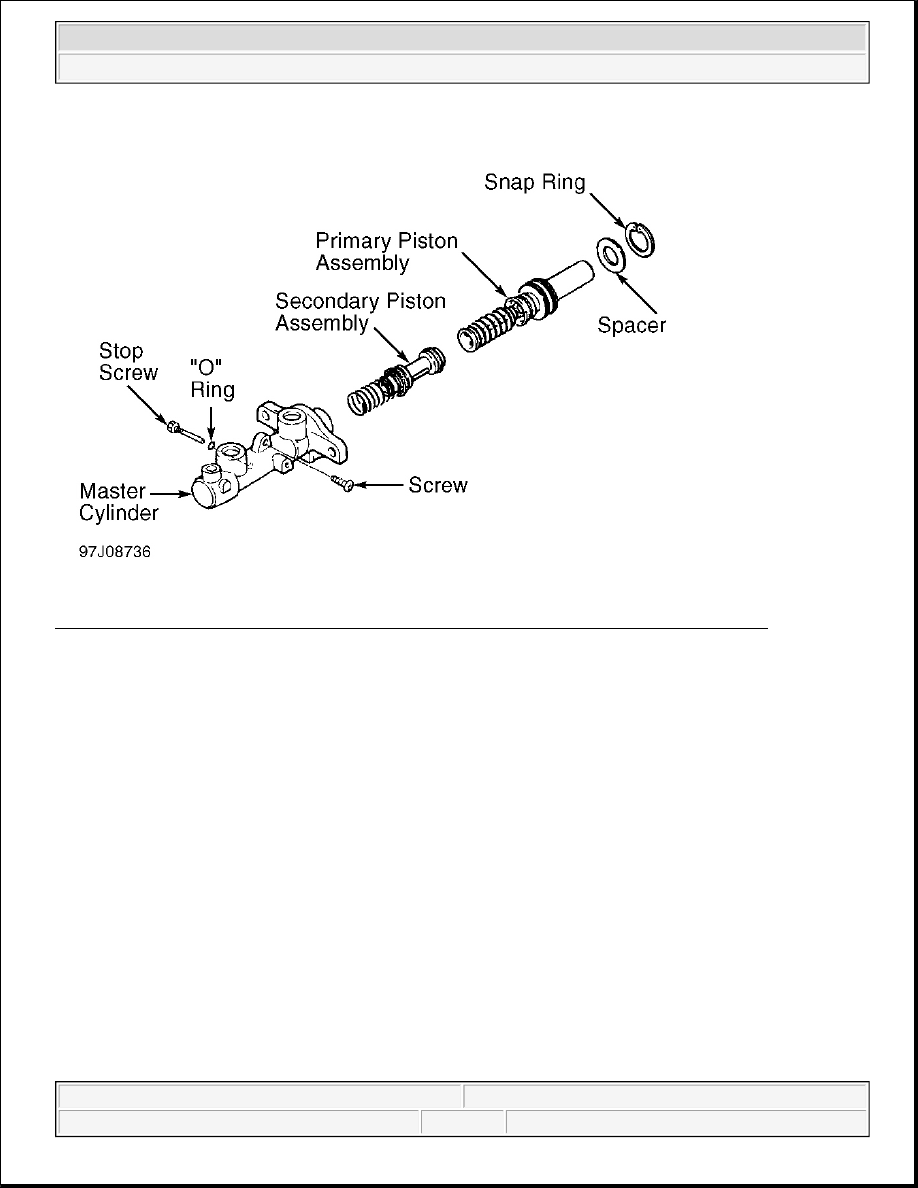

Fig. 26: Exploded View Of Master Cylinder (Miata Without ABS, MPV, MX-3 Without ABS, MX-6 M/T
Without ABS & 626 M/T Without ABS)
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

BRAKE SYSTEM 1995-97 BRAKES Mazda - Disc & Drum

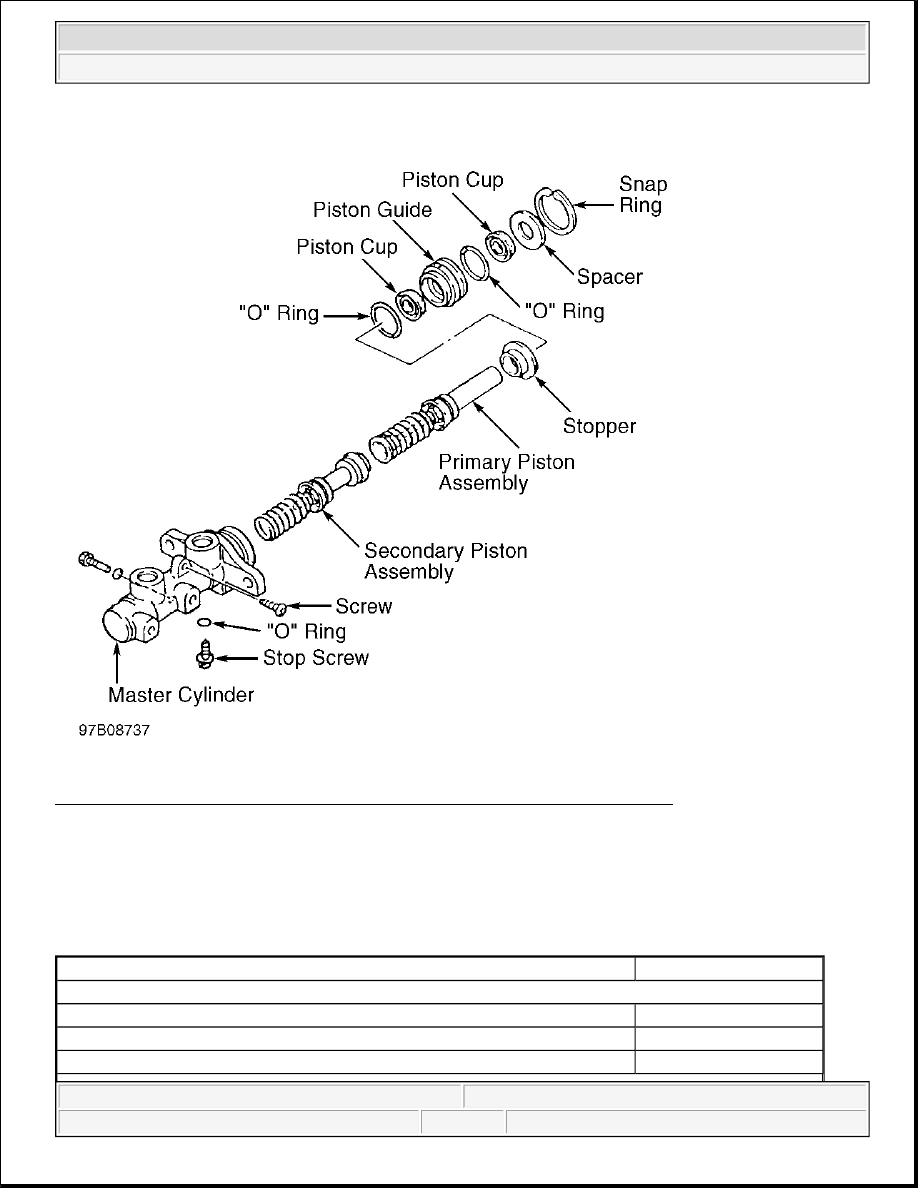

Fig. 27: Exploded View Of Master Cylinder (Miata With ABS, MX-3 With ABS, RX7 & 929)
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

BRAKE SYSTEM 1995-97 BRAKES Mazda - Disc & Drum

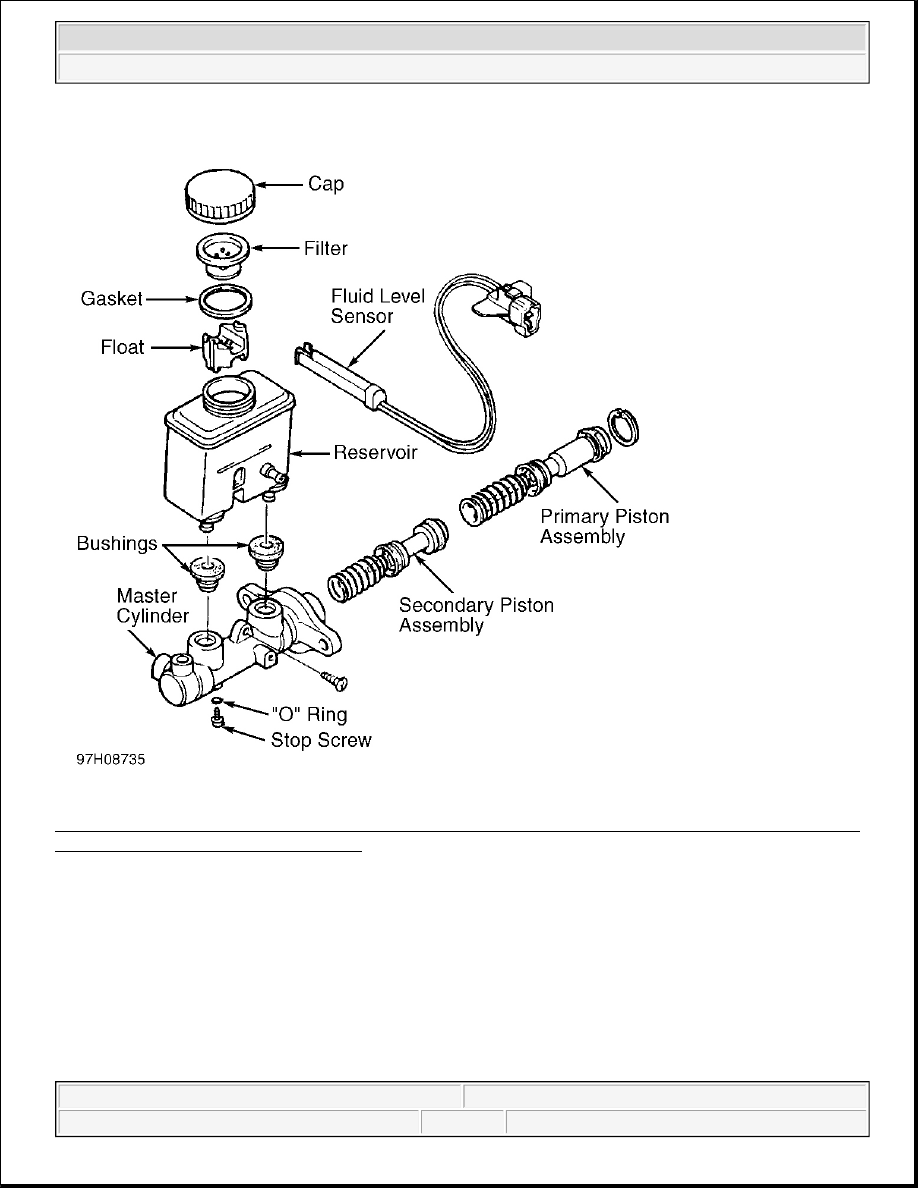

Fig. 28: Exploded View Of Master Cylinder (Millenia)
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

BRAKE SYSTEM 1995-97 BRAKES Mazda - Disc & Drum

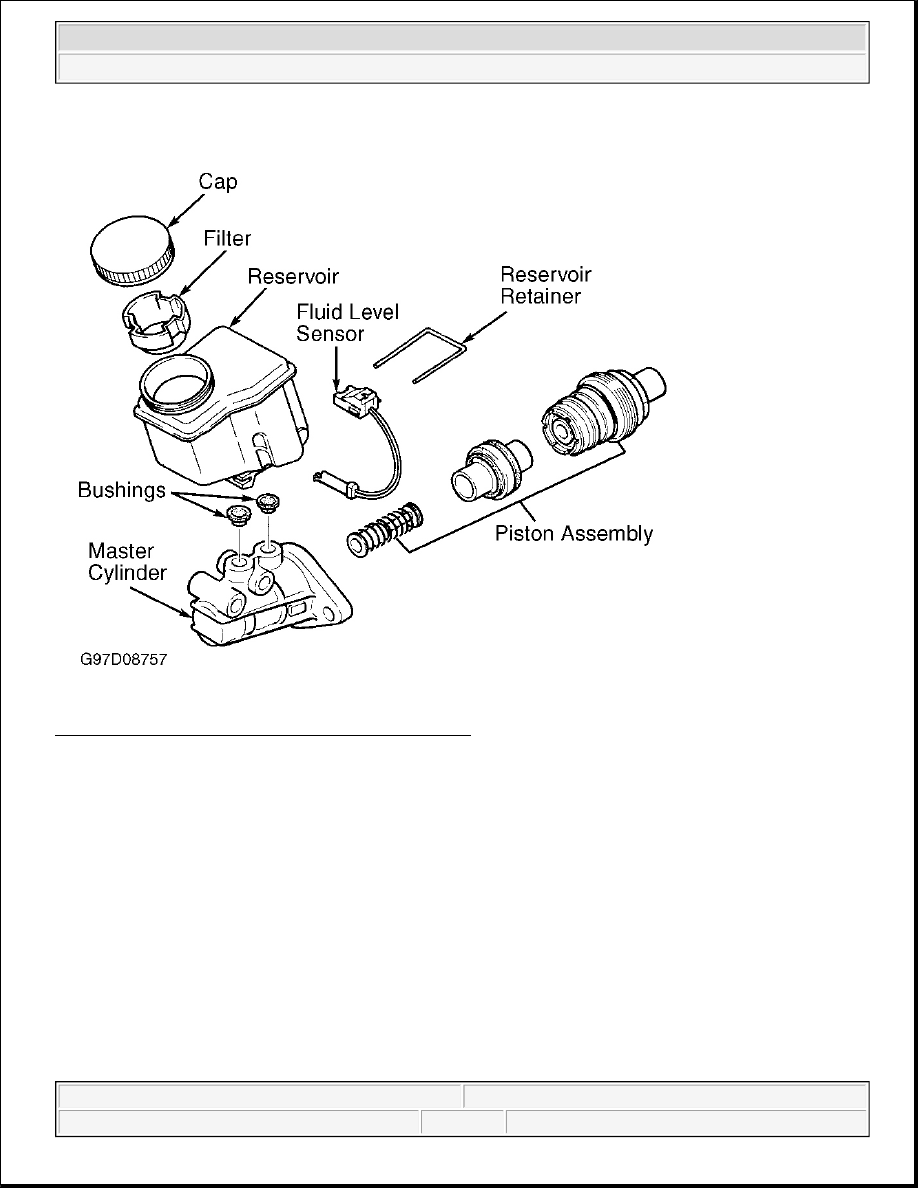

Fig. 29: Exploded View Of Master Cylinder (MX-6 & 626; With ABS &/Or A/T)
Courtesy of MAZDA MOTORS CORP.

SPECIFICATIONS

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Backing Plate Bolts (Rear)

B2300, B3000 & B4000

25-35 (34-47)

MX-3 & Protege

33-43 (45-58)

MX-6 & 626

37-50 (50-68)
