MINIMUM PAD LINING SPECIFICATIONS (FRONT)

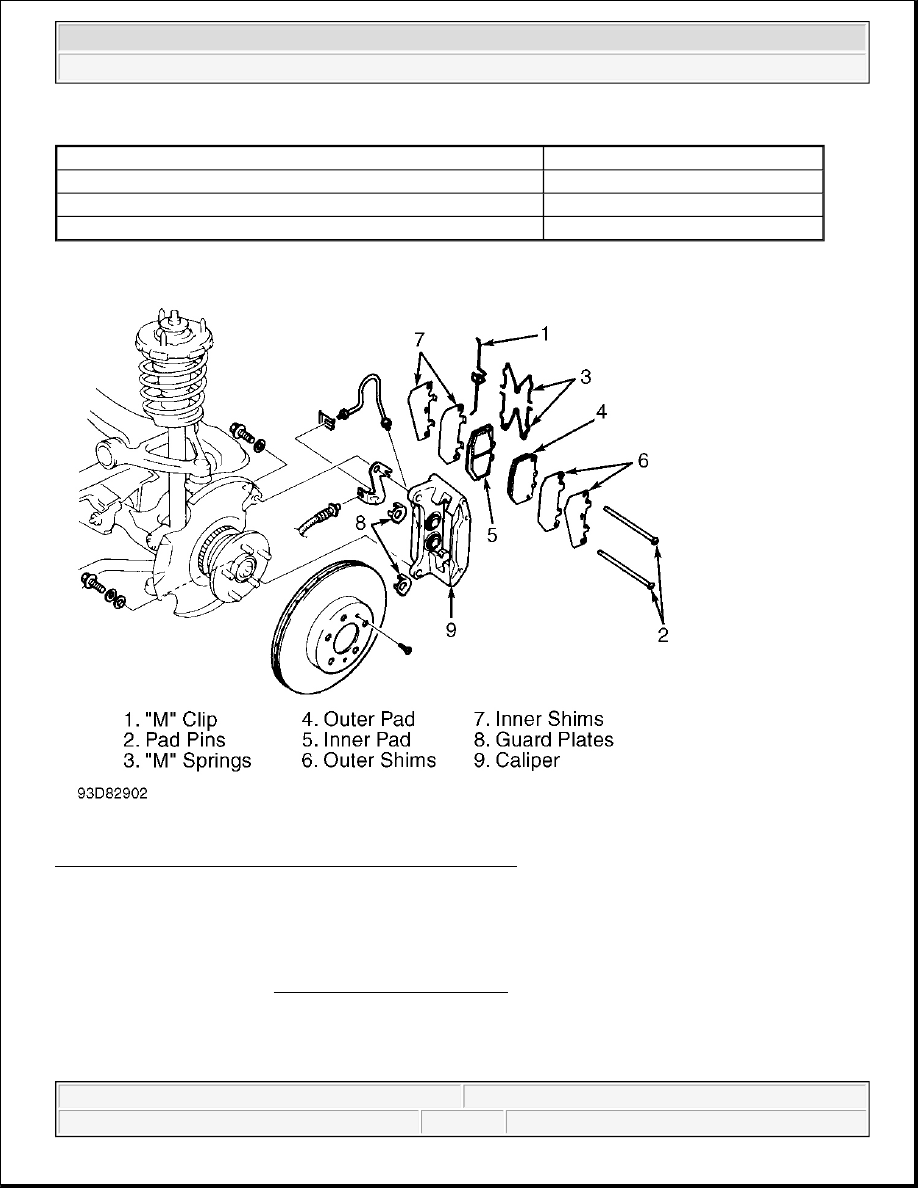

Fig. 8: Exploded View Of Front Disc Brake Assembly (RX7)
Courtesy of MAZDA MOTORS CORP.

FRONT DISC BRAKE CALIPER

Removal & Installation (Except B2300, B3000 & B4000)

Raise and support front of vehicle. Remove front wheel assemblies and disconnect brake hose. Plug all

Application

Thickness In. (mm)

B2300, B3000 & B4000

.12 (3.0)

Miata, MX-6, Protege, RX7, 626 & 929

.04 (1.0)

Millenia, MPV & MX-3

.08 (2.0)

NOTE:

For removal and installation of front disc brake caliper for B2300, B3000 &
B4000, see FRONT DISC BRAKE PADS .



1997 Mazda MX-5 Miata

BRAKE SYSTEM 1995-97 BRAKES Mazda - Disc & Drum



openings. Remove front disc brake pads. See FRONT DISC BRAKE PADS . Remove remaining mounting
bolt(s). Remove caliper from vehicle. To install, reverse removal procedure. Bleed air from system.

FRONT BRAKE ROTOR

Removal & Installation (B2300, B3000 & B4000 2WD)

1. Raise and support vehicle. Remove front wheel assemblies and brake caliper. See FRONT DISC

BRAKE PADS . Remove grease cap, cotter pin, retainer, adjusting nut, washer and outer bearing.
Carefully remove hub and rotor assembly. Remove inner bearing and seal.

2. To install, reverse removal procedure. Adjust front wheel bearings. While rotating rotor, tighten adjusting

nut 17-25 ft. lbs. (23-34 N.m) to seat bearings. Back off adjusting nut 1/2 turn. Tighten adjusting nut to
18-20 INCH lbs. (2.0-2.3 N.m). Install bearing retainer and NEW cotter pin. DO NOT turn adjusting nut
to align cotter pin.

Removal (B2300, B3000 & B4000 4WD With Automatic Locking Hubs)

1. Raise and support vehicle. Remove front wheel assemblies and caliper. See FRONT DISC BRAKE

PADS . Remove retainer washers from lug nut studs. Remove automatic locking hub assembly from
spindle.

2. Remove snap ring from end of spindle shaft. Remove axle spacers. See Fig. 9 . Carefully pull cam

assembly off wheel bearing adjusting nut. If necessary, rotate adjusting nut slightly to relieve pressure on
locking key.

3. Using a magnet, remove locking key. Using 2 3/8" Hex Lock Nut Wrench (49-UN01-037), remove wheel

bearing adjusting nut. Remove outer wheel bearing and rotor.

Installation

When installing rotor, outer bearing and adjusting nut, tighten adjusting nut to 35 ft. lbs (47 N.m) to seat
bearings. Spin rotor, and back off adjusting nut 1/4 turn. Tighten adjusting nut to 16 INCH lbs. (1.8 N.m). To
install remaining components, reverse removal procedure. See Fig. 7 . After assembly is complete, wheel to
spindle end play should be .000-.003" (.00-.08 mm).

CAUTION: Extreme caution must be used when aligning adjusting nut lug with

spindle locking key slot to prevent damage to locking key.



1997 Mazda MX-5 Miata

BRAKE SYSTEM 1995-97 BRAKES Mazda - Disc & Drum



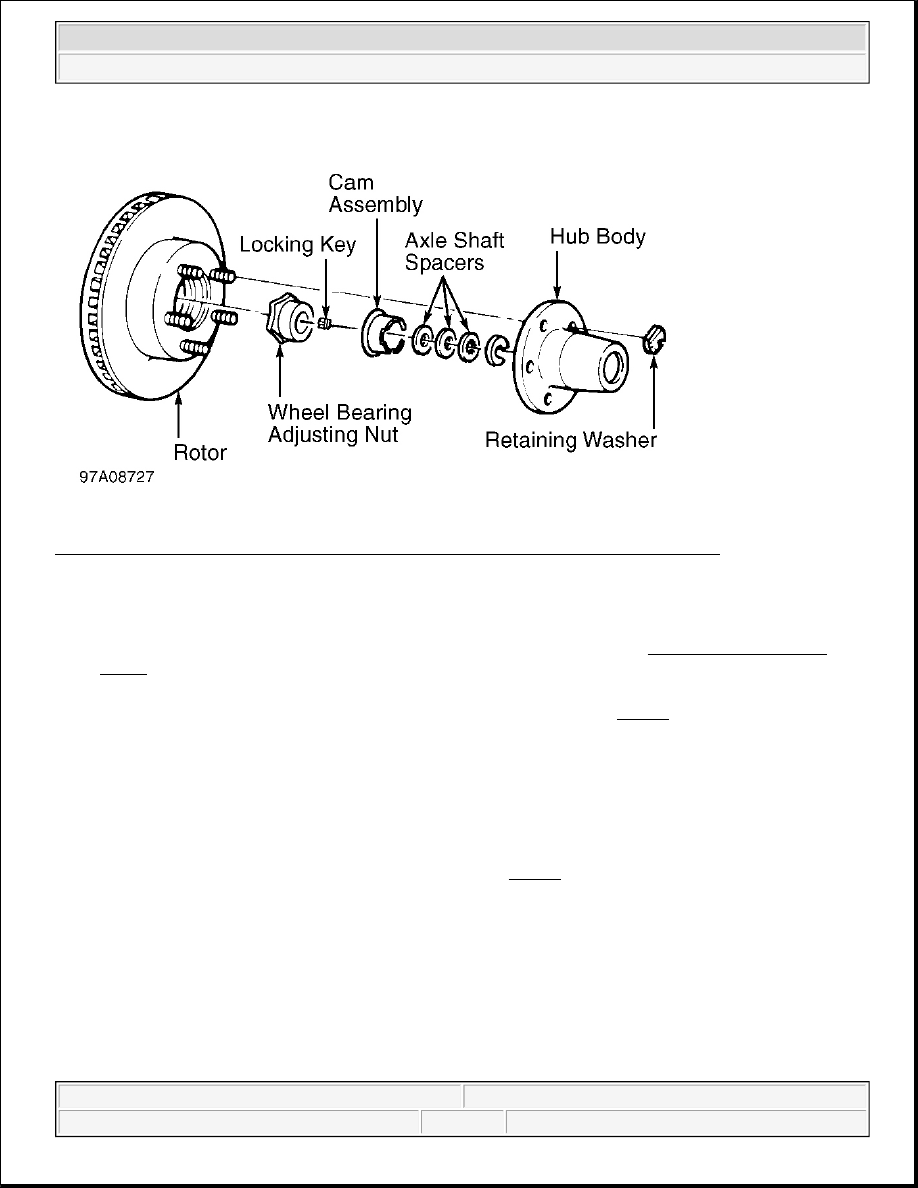

Fig. 9: Removing Front Rotor (B2300, B3000 & B4000 With Automatic Locking Hubs)
Courtesy of FORD MOTOR CO.

Removal (B2300, B3000 & B4000 4WD With Manual Locking Hubs)

1. Raise and support vehicle. Remove front wheel assemblies and caliper. See FRONT DISC BRAKE

PADS . Remove retainer washers from lug nut studs. Remove manual locking hub assembly from
spindle.

2. Remove snap ring from end of spindle shaft. Remove axle spacers. See Fig. 10 . Using Lock Nut Wrench

(49-UN01-042), remove outer wheel bearing lock nut. Remove lock washer. Using lock nut wrench,
remove inner wheel bearing lock nut. Remove outer wheel bearing, cup and rotor.

Installation

When installing rotor, outer bearing and inner lock nut, tighten inner lock nut to 35 ft. lbs. (47 N.m) to seat
bearings. Spin rotor, and back off inner lock nut 1/4 turn. Tighten inner lock nut to 16 INCH lbs. (1.8 N.m). To
install remaining components, reverse removal procedure. See Fig. 10 . After assembly is complete, wheel to
spindle end play should be .000-.003" (.00-.08 mm).



1997 Mazda MX-5 Miata

BRAKE SYSTEM 1995-97 BRAKES Mazda - Disc & Drum



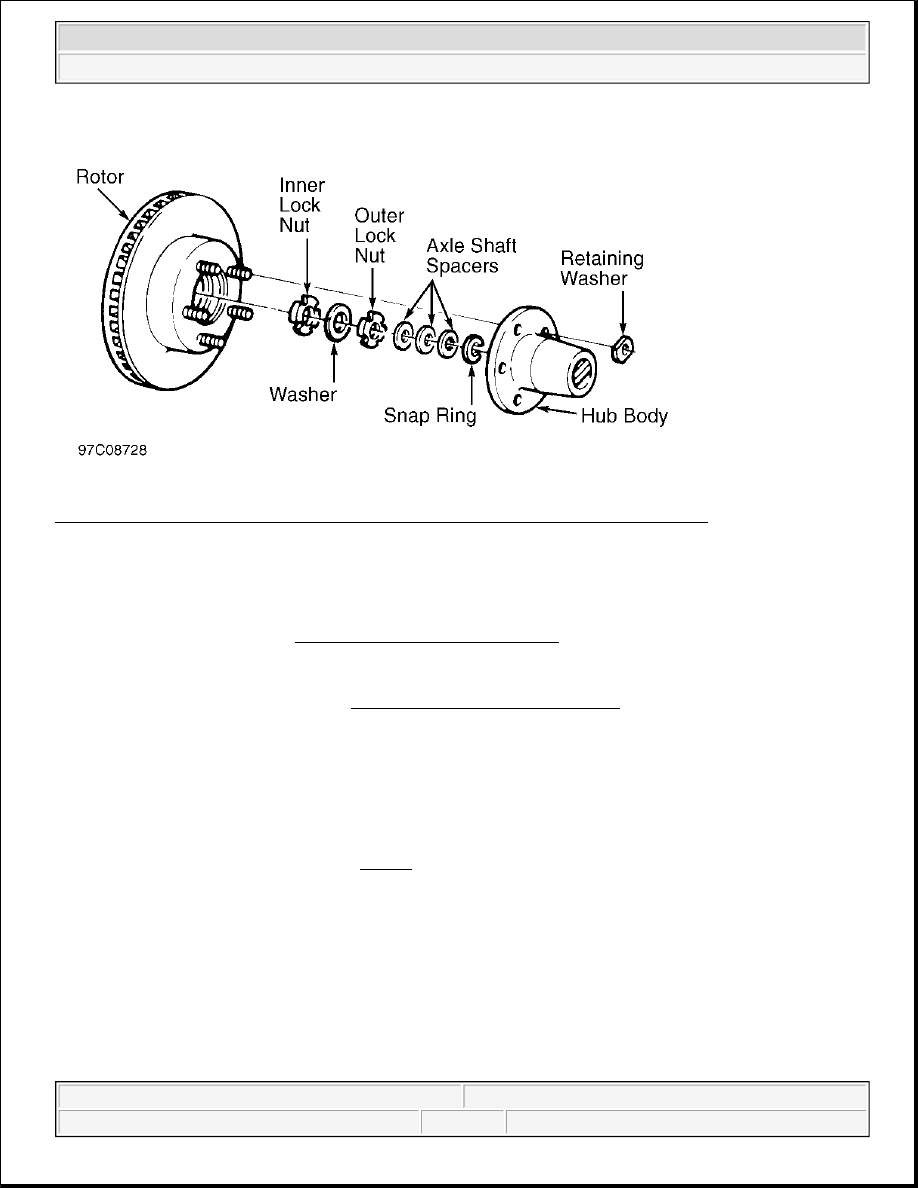

Fig. 10: Removing Front Rotor (B2300, B3000 & B4000 With Manual Locking Hubs)
Courtesy of FORD MOTOR CO.

Removal & Installation (Except B2300, B3000 & B4000)

1. Raise and support front of vehicle. Remove front wheel assemblies. Remove front disc brake caliper with

brake hose connected. See FRONT DISC BRAKE CALIPER . Wire caliper aside. Remove rotor-to-hub
screws (if equipped). Remove rotor.

2. Machine rotor if lateral runout exceeds specification. Replace rotor if measured thickness is less than

specified minimum thickness. See DISC BRAKE SPECIFICATIONS . To install, reverse removal
procedure.

REAR DISC BRAKE PADS

Removal & Installation (Miata & Protege)

1. Raise and support rear of vehicle. Remove rear wheel assemblies. Remove manual adjustment gear

concealment plug from caliper. See Fig. 11 . Insert an appropriate size Allen wrench through hole and
turn manual adjustment gear counterclockwise to retract caliper piston.

2. Remove lower guide bolt from caliper. Rotate caliper upward and wire side. Remove "M" spring.

Remove pads, shims and guide plates. Replace pad if lining thickness is less than .04" (1.0 mm). To
install, reverse removal procedure. Turn manual adjustment gear clockwise until brake pads slightly touch
rotor. Turn manual adjustment gear back 1/3 turn.
