Mazda MX-5 Miata (1997+). Manual - part 2

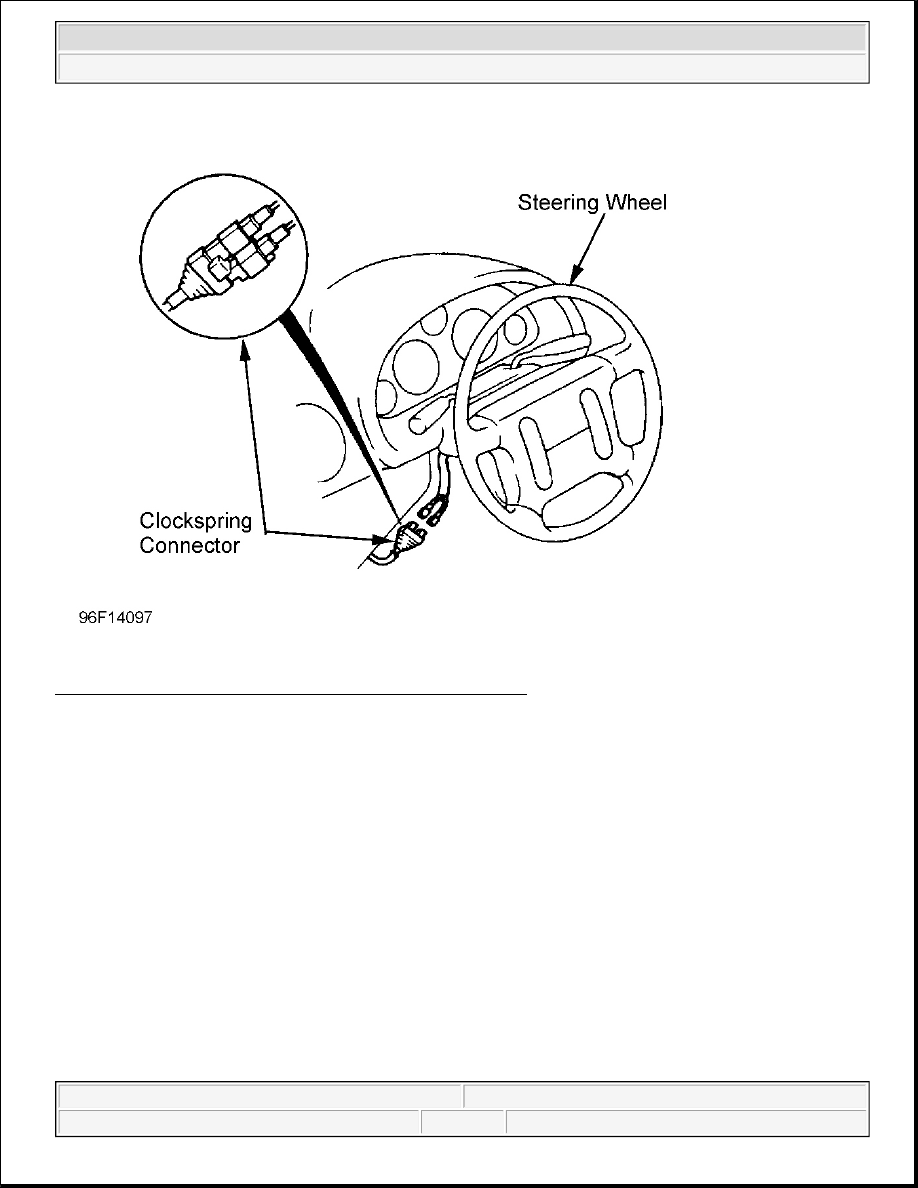

Fig. 3: Locating Driver-Side Air Bag Clockspring Connectors
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

AIR BAG RESTRAINT SYSTEM 1997 ACCESSORIES/SAFETY EQUIPMENT Mazda - Air Bag Restraint System

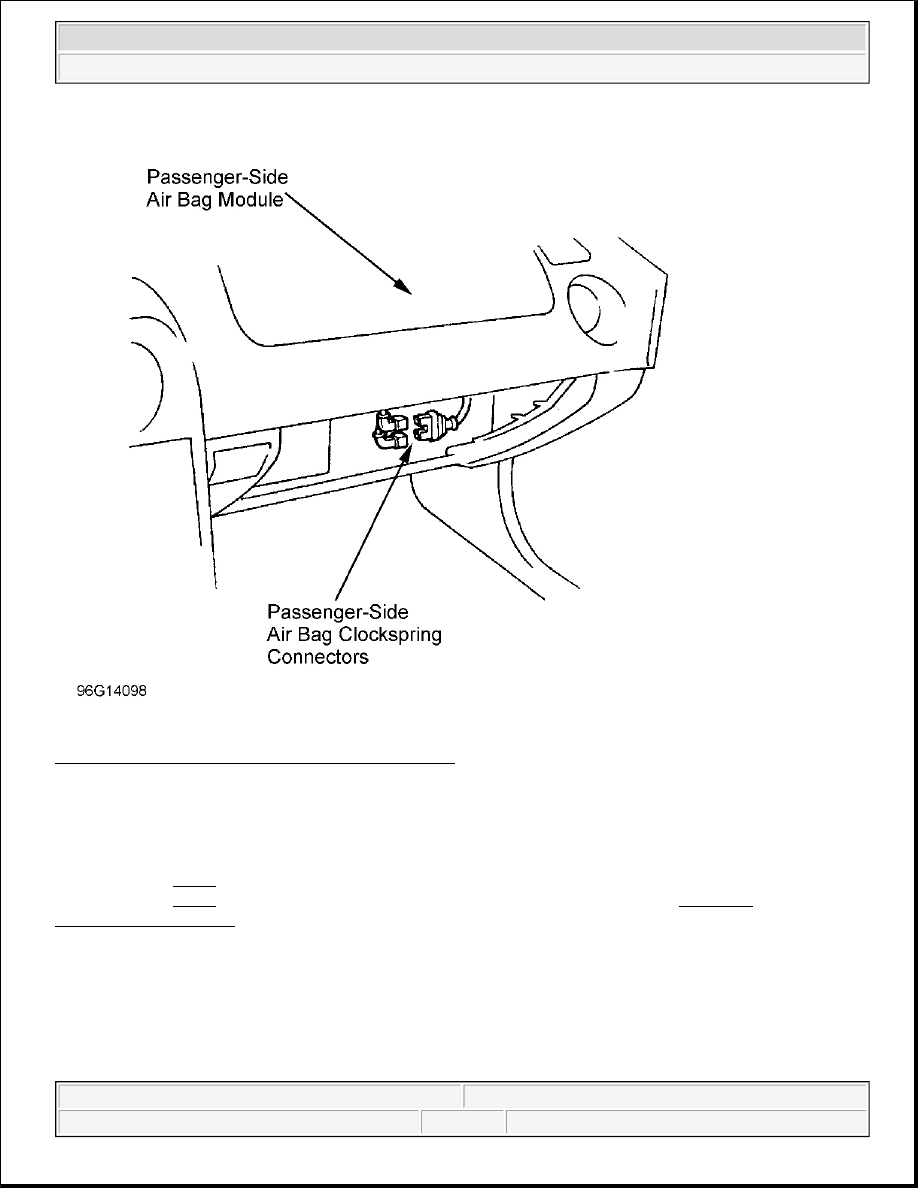

Fig. 4: Locating Passenger-Side Air Bag Connectors
Courtesy of MAZDA MOTORS CORP.

ACTIVATING SYSTEM

Ensure negative battery cable is disconnected. Connect Orange and Blue passenger-side air bag module
connectors. See Fig. 4 . Install glove compartment. Connect driver-side air bag Orange and Blue clockspring
connectors. See Fig. 3 . Install lower cover panel. Connect negative battery cable. See SYSTEM
OPERATION CHECK
 .

DISPOSAL PROCEDURES

DEPLOYED AIR BAG

Wrap deployed air bag module in a plastic bag and dispose of as you would any other part. Wear gloves and
safety glasses when handling air bag module.



1997 Mazda MX-5 Miata

AIR BAG RESTRAINT SYSTEM 1997 ACCESSORIES/SAFETY EQUIPMENT Mazda - Air Bag Restraint System



SCRAPPED VEHICLE

INSPECTING DEPLOYMENT TOOL

1. Connect Red deployment tool clip to battery positive terminal. Connect Black deployment tool clip to

battery negative terminal. Observe deployment tool lights. Green light should be on with Red light off.

2. Connect deployment tool connector "A" to connector "B". See Fig. 5 . Green light should be off with Red

light on. Press deployment tool activation switch. Green light should be on with Red light off.

3. If deployment tool lights function as described, it is safe to use deployment tool to activate air bag. If

deployment tool lights do not function as described, DO NOT use deployment tool. Replace deployment
tool with another unit and repeat procedure.

Driver-Side Air Bag

1. Before deploying air bag, inspect operating condition of Deployment Tool (49 H066 002). See

INSPECTING DEPLOYMENT TOOL under DISPOSAL PROCEDURES. Ensure vehicle is in an
open space and away from other vehicles and people. Open doors. Open convertible top (if equipped).
Disconnect negative battery cable.

2. Remove lower center panel. Disconnect clockspring connectors from driver-side air bag. See Fig. 3 .

3. Connect deployment tool (49 H066 002) to clockspring connector. See Fig. 5 . Connect Red deployment

tool clip to battery positive terminal. Connect Black deployment tool clip to battery negative terminal.
Verify deployment tool Red light is on.

4. Ensure all persons are at least 20 feet from vehicle. Press deployment tool activation switch to deploy air

bag. Because of heat generated from air bag deployment, wait at least 15 minutes before handling
deployed air bag module.

NOTE:

When scrapping vehicles with an undeployed air bag(s), air bag(s) must be
deployed inside vehicle.

NOTE:

Deployment tool should always be inspected for proper operation before
deploying air bag.



1997 Mazda MX-5 Miata

AIR BAG RESTRAINT SYSTEM 1997 ACCESSORIES/SAFETY EQUIPMENT Mazda - Air Bag Restraint System

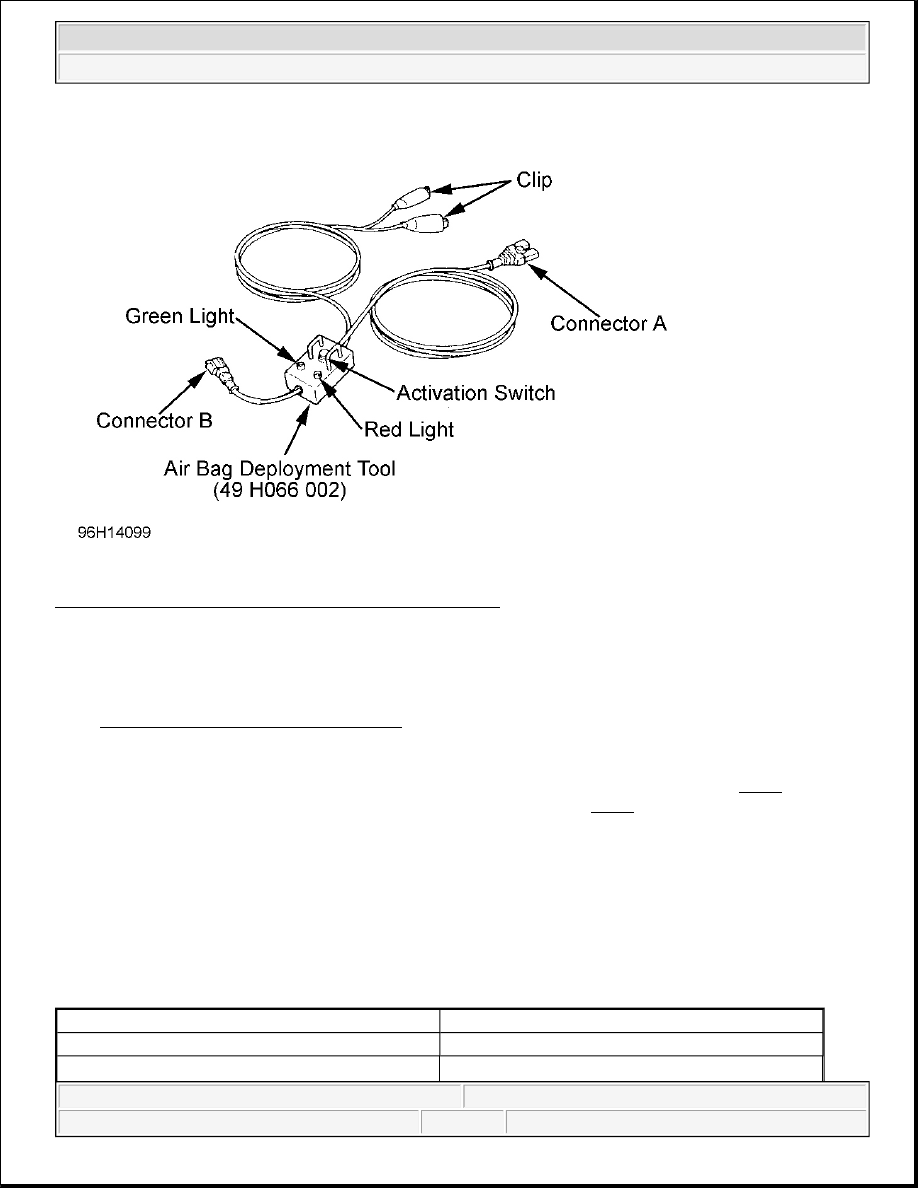

Fig. 5: Air Bag Deployment Tool Connector Identification
Courtesy of MAZDA MOTORS CORP.

Passenger-Side Air Bag

1. Before deploying air bag, inspect operating condition of Deployment Tool (49 H066 002). See

INSPECTING DEPLOYMENT TOOL under DISPOSAL PROCEDURES. Ensure vehicle is in an
open space and away from other vehicles and people. Open doors. Open convertible top (if equipped).
Disconnect negative battery cable.

2. Remove glove compartment. Disconnect passenger-side air bag module connectors. See Fig. 4 . Connect

deployment tool connector to passenger-side air bag connector. See Fig. 5 . Connect Red deployment tool
clip to battery positive terminal. Connect Black deployment tool clip to battery negative terminal. Verify
deployment tool Red light is on.

3. Ensure all persons are at least 20 feet from vehicle. Press deployment tool activation switch to deploy air

bag. Because of heat generated from air bag deployment, wait at least 15 minutes before handling
deployed air bag module.

POST-COLLISION INSPECTION

POST-COLLISION AIR BAG SAFETY INSPECTION

Action

Components

Replace After Deployment

Air Bag Module(s), Air Bag Sensor Unit

Inspect & If Damaged, Replace Component (Even

Clockspring, Impact Sensors & Sensor Mountings,



1997 Mazda MX-5 Miata

AIR BAG RESTRAINT SYSTEM 1997 ACCESSORIES/SAFETY EQUIPMENT Mazda - Air Bag Restraint System
