BODY STRUCTURE [PANEL REPLACEMENT]

09–80B–15

09

End Of Sie

WHEEL APRON COMPONENT REMOVAL

DPE098053210B03

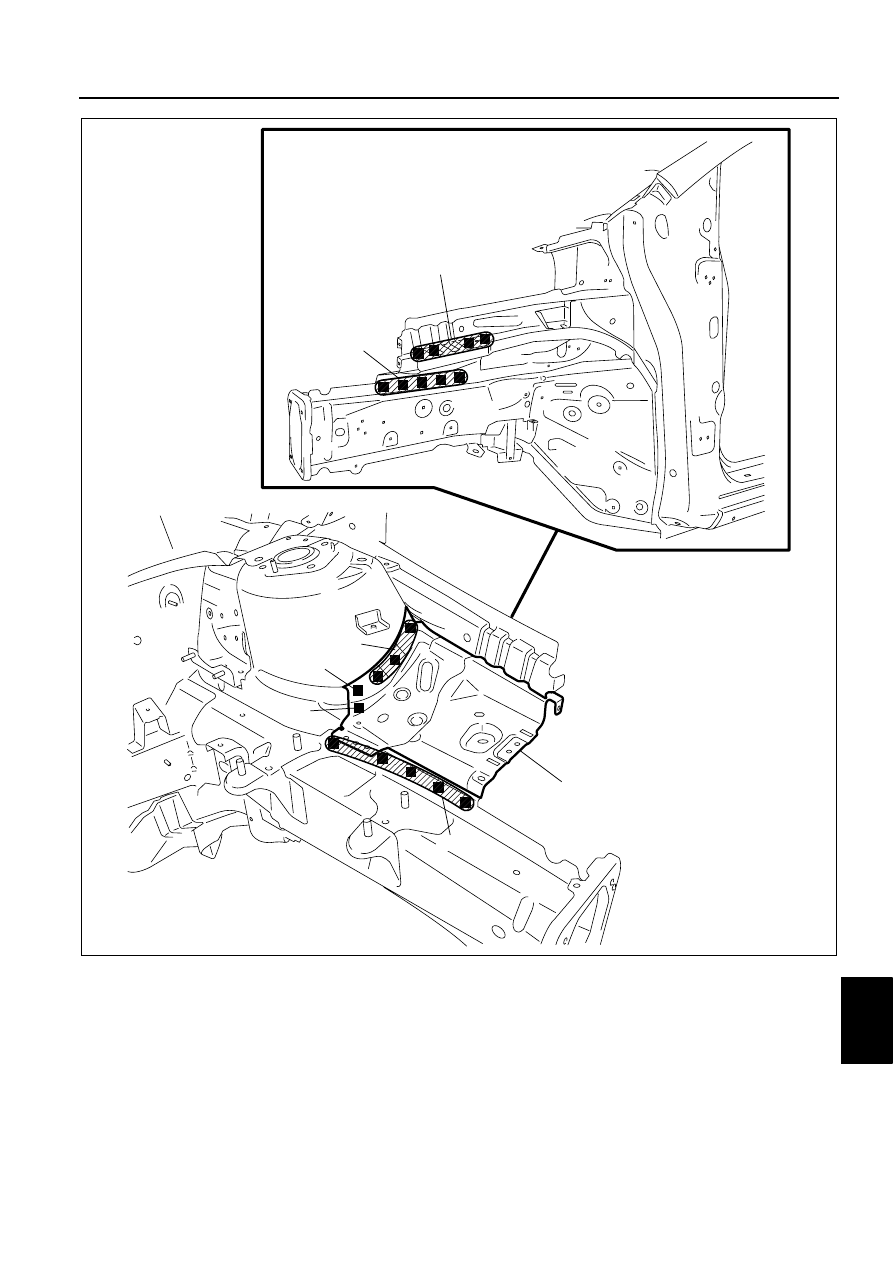

1. When removing the wheel apron component, the frame reinforcement may interfere and make removal difficult.

Therefore, drill 10 locations indicated by (A), then remove the frame reinforcement.

Note

• If the frame reinforcement is not damaged, do not dispose of it, as it can be reinstalled. If it is damaged

considerably, replace it with a new one.

6

1

1

3

4

6

WHEEL APRON PANEL (FRONT)

DPE0980B059

09–80B–16

BODY STRUCTURE [PANEL REPLACEMENT]

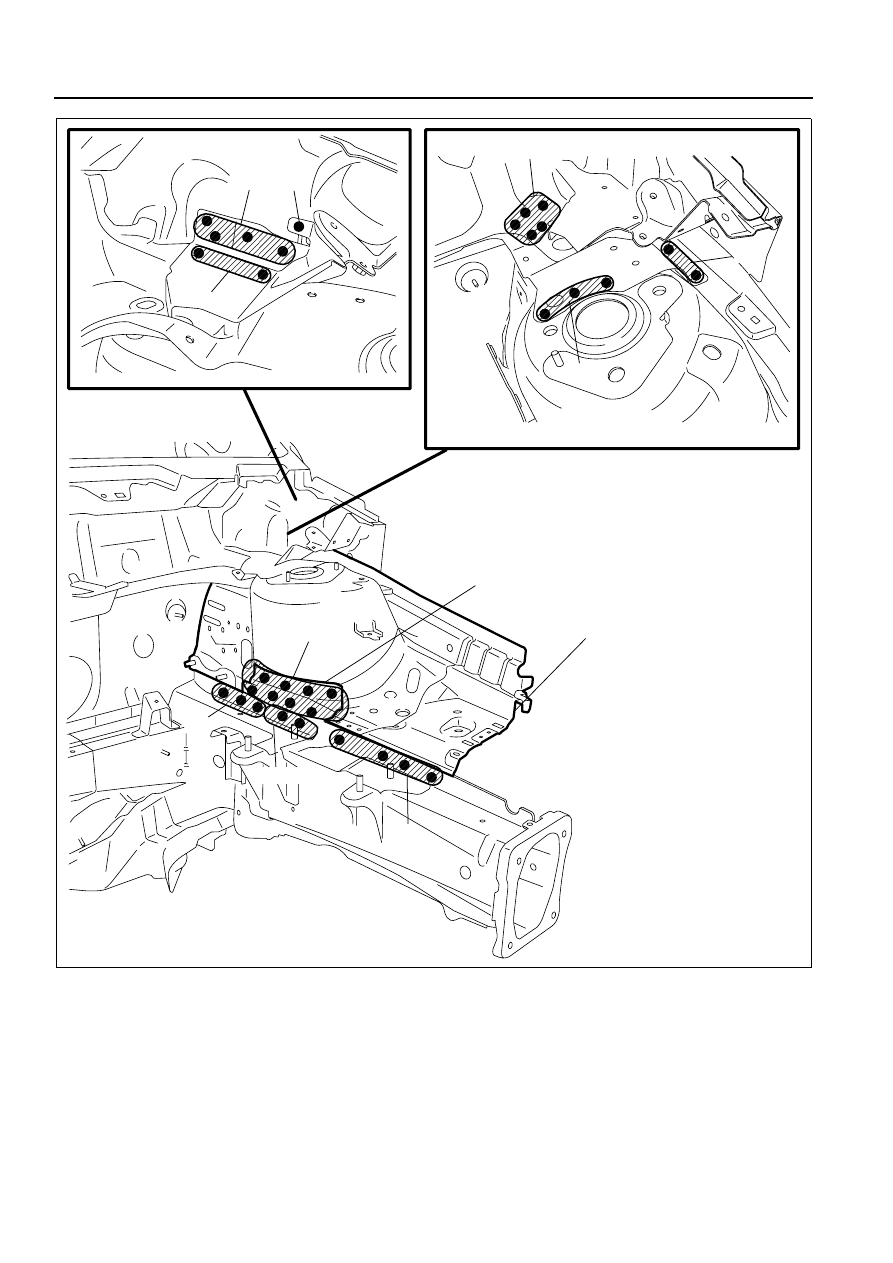

2. Grind the 2 locations indicated by (B) using a belt grinder from the inner side of the inner wheel housing.
3. Drill the remaining locations, then remove the wheel apron component.

2

3

5

1

4

(A)8

(A)2

3

6

2

FRAME REINFORCEMENT

WHEEL APRON COMPONENT

DPE0980B066

BODY STRUCTURE [PANEL REPLACEMENT]

09–80B–17

09

End Of Sie

WHEEL APRON COMPONENT INSTALLATION

DPE098053210B04

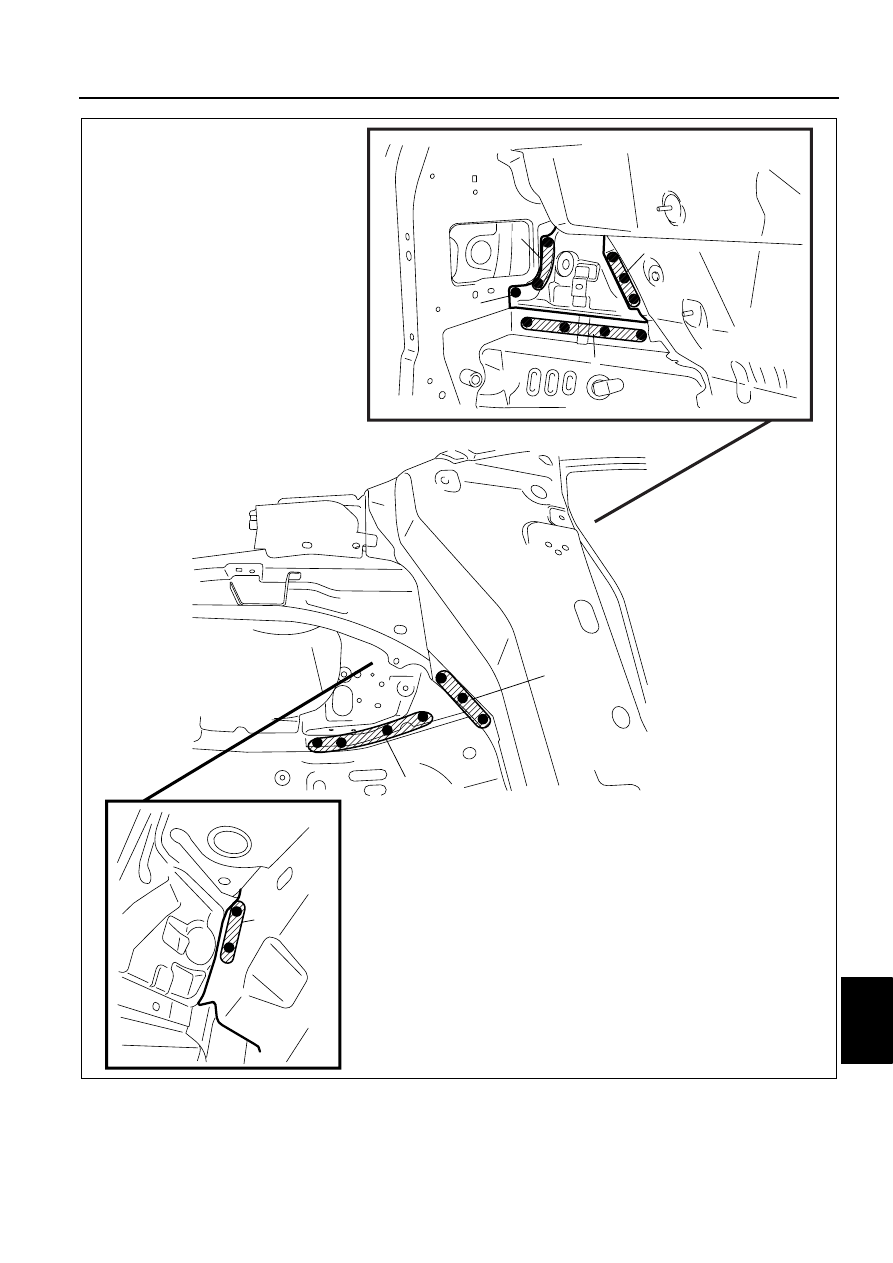

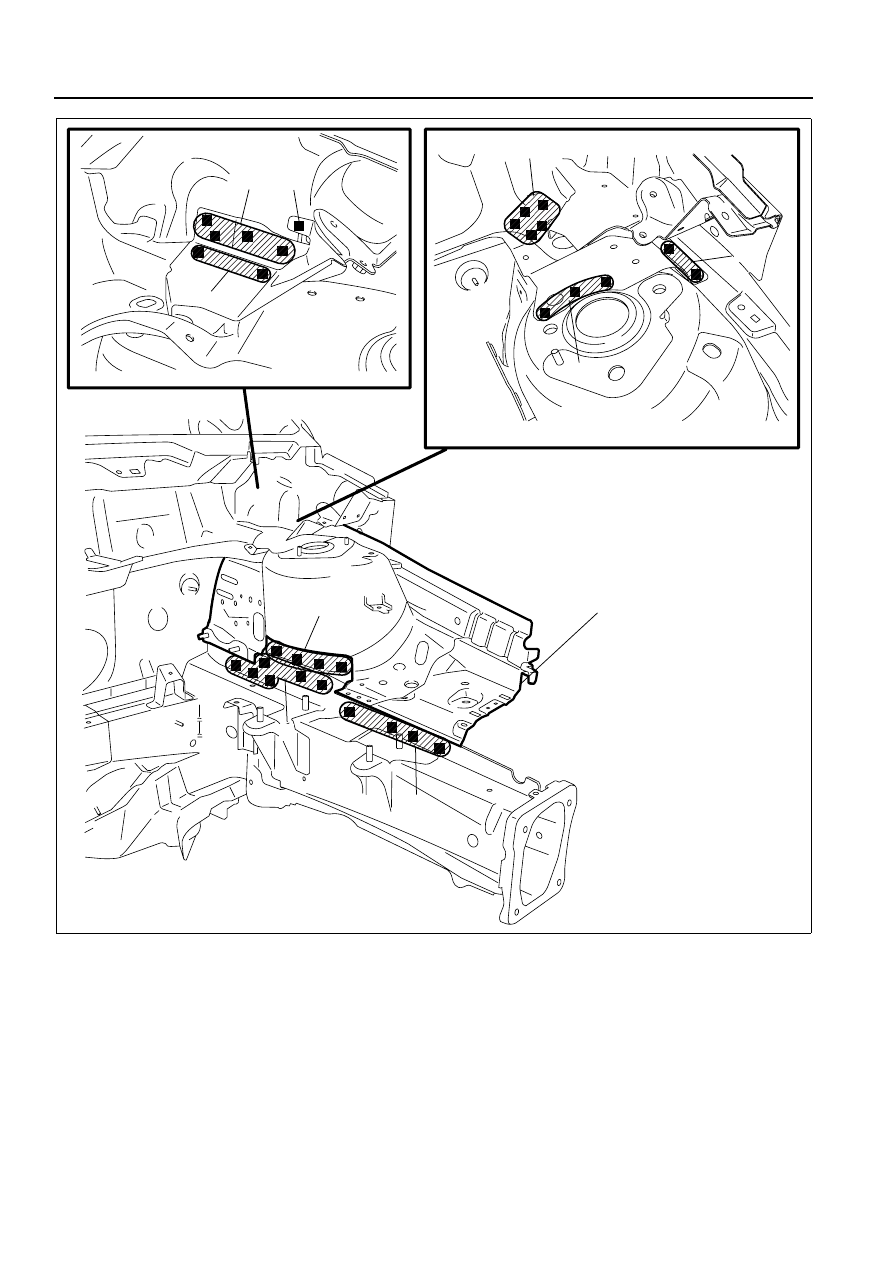

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

2

1

4

3

5

3

(B)2

DPE0980B068

09–80B–18

BODY STRUCTURE [PANEL REPLACEMENT]

2

3

5

1

4

4

6

6

2

WHEEL APRON COMPONENT

DPE0980B067
