WIPER/WASHER SYSTEM

09–19–3

09–19

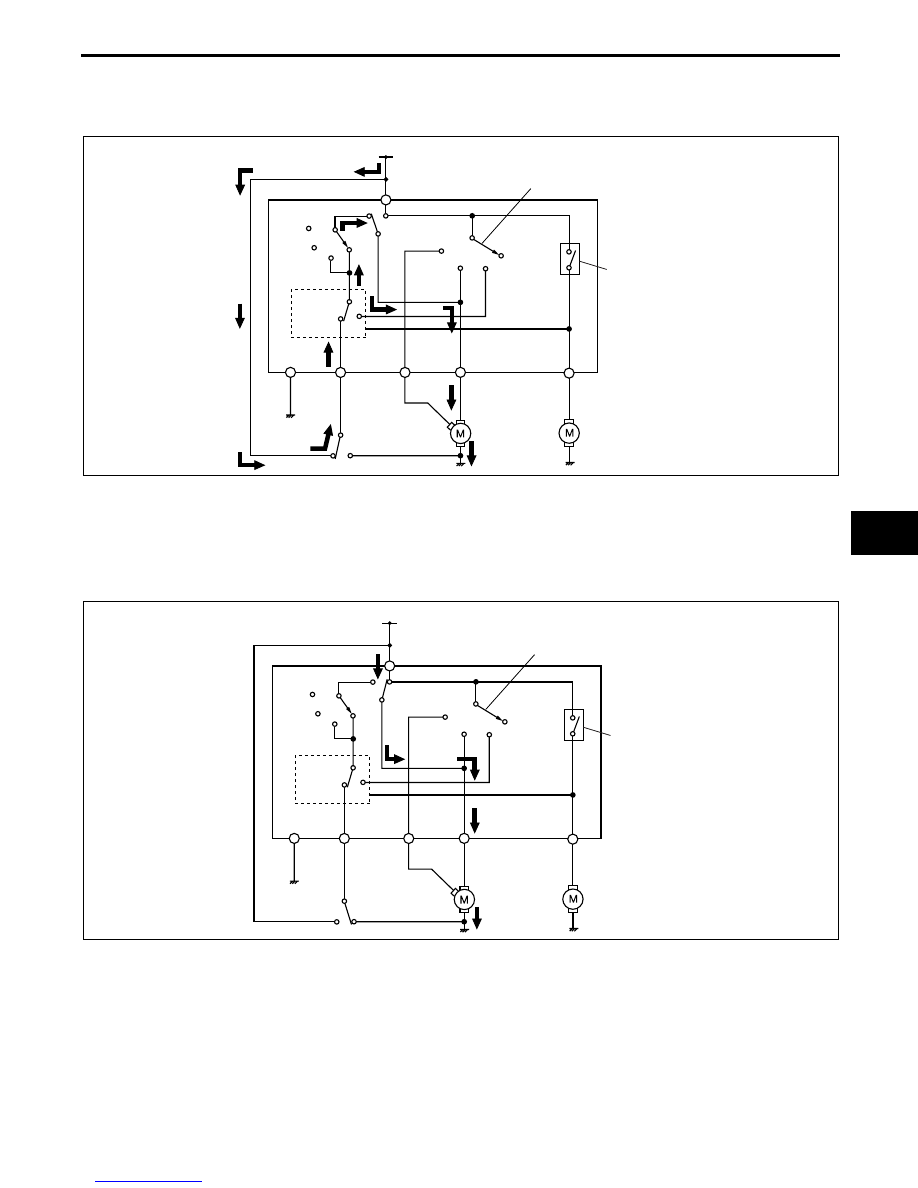

Autostop Function

• While the wipers are operating, the autostop switch remains on except when the wipers are in the park position.

Current flows through the INT relay to the wiper switch, wiper motor, then to ground. Thus, the wipers continue
to operate until they reach the park position even if the wiper switch moves to the OFF position.

One-touch Wiper Operation

• When the wiper lever is pushed up, the one-touch switch turns on, and current flows through the one-touch

switch to the wiper motor, then to ground. The wipers operate at low speed for one cycle.

• While the wiper lever is pushed up and held, the wipers operate continuously at low speed. When the wiper

lever is released, the autostop function activates and the wipers stop at the park position.

IG1

INT
RELAY

AUTOSTOP
SWITCH

INT

INT

OFF

OFF

1

1

2

2

WASHER
SWITCH

WIPER SWITCH

WIPER
MOTOR

WASHER
MOTOR

ONE-TOUCH
SWITCH

E5U919ZS5004

IG1

INT
RELAY

AUTOSTOP
SWITCH

INT

INT

OFF

OFF

1

1

2

2

WASHER
SWITCH

WIPER SWITCH

WIPER
MOTOR

WASHER
MOTOR

ONE-TOUCH
SWITCH

E5U919ZS5005

WIPER/WASHER SYSTEM

09–19–4

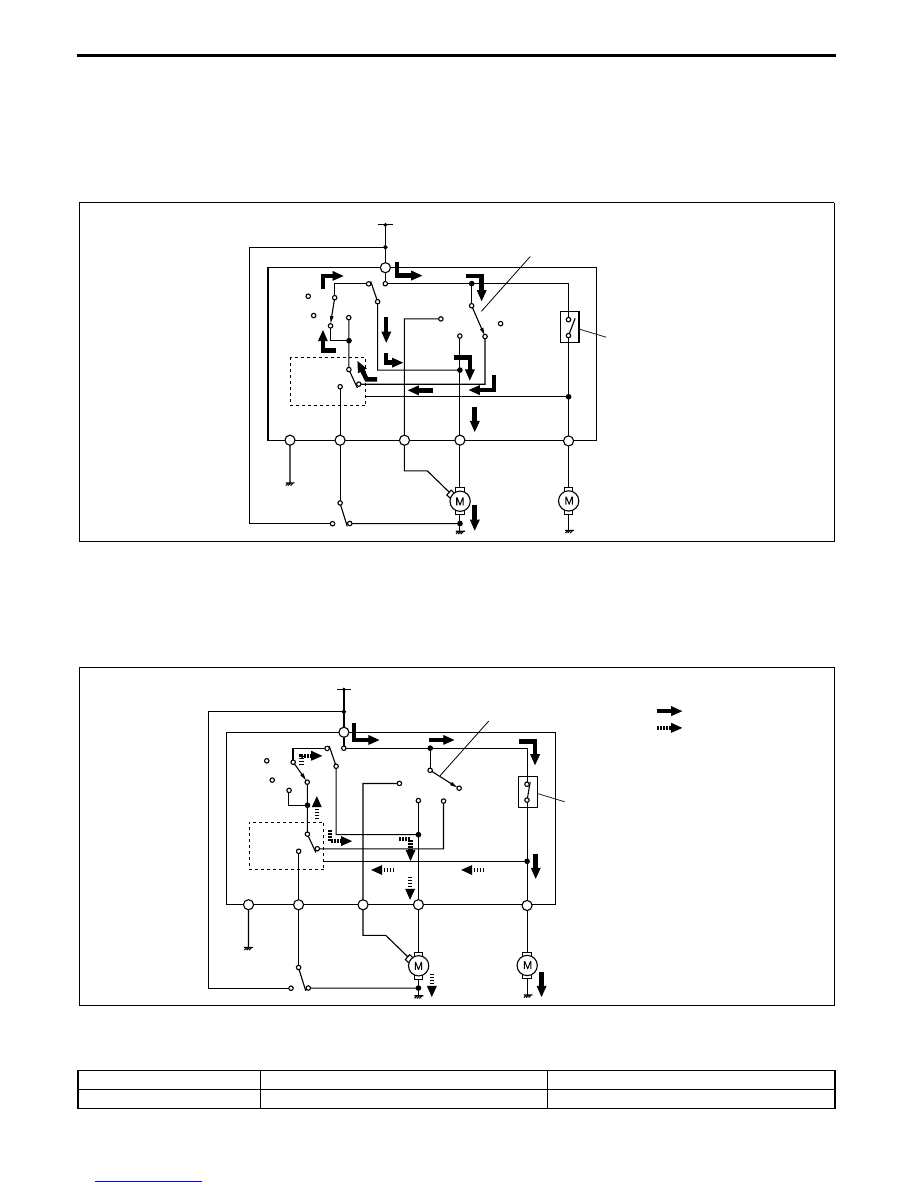

Intermittent Wiper Operation

• When the wiper switch moves to the INT position, the intermittent wiper (INT) relay turns on, and current flows

through the INT relay to the wiper switch, wiper motor, then to ground. The wipers operate at low speed.

• When the preset period of time has passed, the INT relay turns off. The current stops flowing through the wiper

motor. The autostop function activates, and the wipers stop at the park position. Cycling through this sequence
of operations, the wipers operate at specified intervals.

• The INT volume provides optional settings of the wiper sweep interval (timing that the INT relay turns from off to

on).

Synchronized Washer And Wiper Operation

• When the wiper lever is pulled toward the driver, the washer switch turns on and current (1) flows through the

washer switch to the washer motor, then to ground. The washer motor activates and washer fluid is sprayed.

• At the same time, the INT relay turns on, and current (2) flows through the INT relay to the wiper switch, the

wiper motor, then to ground. The wipers operate at low speed.

End Of Sie

WASHER TANK SPECIFICATION

E5U091967480N01

End Of Sie

IG1

INT
RELAY

AUTOSTOP
SWITCH

INT

INT

OFF

OFF

1

1

2

2

WASHER
SWITCH

WIPER SWITCH

WIPER
MOTOR

WASHER
MOTOR

ONE-TOUCH
SWITCH

E5U919ZS5006

IG1

INT
RELAY

AUTOSTOP
SWITCH

INT

INT

OFF

OFF

1

1

2

2

WASHER
SWITCH

WIPER SWITCH

WIPER
MOTOR

WASHER
MOTOR

ONE-TOUCH
SWITCH

(2)

(1)

E5U919ZS5007

Item

Standard type

Large type

Washer tank capacity

1.2 L {1.3 US qt, 1.1 Imp qt}

4.5 L {4.8 US qt, 4.0 Imp qt}

ENTERTAINMENT

09–20–1

09–20

09–20

ENTERTAINMENT

ENTERTAINMENT OUTLINE  . . . . . . . . .  09–20–1
AUDIO SYSTEM SPECIFICATIONS . . . .  09–20–2

Audio Unit. . . . . . . . . . . . . . . . . . . . . . .  09–20–2
Speaker . . . . . . . . . . . . . . . . . . . . . . . .  09–20–2

AUDIO SYSTEM

STRUCTURAL VIEW  . . . . . . . . . . . . . .  09–20–3

AUDIO SYSTEM BLOCK DIAGRAM  . . .  09–20–4
CENTER PANEL UNIT OUTLINE . . . . . .  09–20–5
CENTER PANEL UNIT

CONSTRUCTION  . . . . . . . . . . . . . . . . .  09–20–5

Structural View . . . . . . . . . . . . . . . . . . .  09–20–5
Terminal Layout and Signal . . . . . . . . .  09–20–6
Button and switch Location  . . . . . . . . .  09–20–7

AUTO LEVEL CONTROL (ALC)

FUNCTION [WITHOUT BOSE] . . . . . . .  09–20–8

AUTO LEVEL CONTROL (ALC)

OPERATION [WITHOUT BOSE]. . . . . .  09–20–8

AUDIOPILOT OUTLINE

[WITH BOSE]  . . . . . . . . . . . . . . . . . . . .  09–20–9

AUDIOPILOT

CONSTRUCTION/OPERATION
[WITH BOSE]  . . . . . . . . . . . . . . . . . . . .  09–20–9

ON-BOARD DIAGNOSTIC SYSTEM

OUTLINE . . . . . . . . . . . . . . . . . . . . . . . .  09–20–9

ON-BOARD DIAGNOSTIC SYSTEM

FUNCTION . . . . . . . . . . . . . . . . . . . . . . . 09–20–10

Self-diagnostic Function . . . . . . . . . . . . 09–20–10
Diagnostic Assist Function  . . . . . . . . . . 09–20–11

AUDIO AMPLIFIER

CONSTRUCTION . . . . . . . . . . . . . . . . . . 09–20–13

Terminal Layout and Signal . . . . . . . . . . 09–20–13

DOOR SPEAKER CONSTRUCTION . . . . 09–20–13
REAR SPEAKER CONSTRUCTION . . . . 09–20–13
CENTER SPEAKER

CONSTRUCTION . . . . . . . . . . . . . . . . . . 09–20–13

TWEETER CONSTRUCTION. . . . . . . . . . 09–20–14
DOOR UPPER SPEAKER

CONSTRUCTION . . . . . . . . . . . . . . . . . . 09–20–14

MANUAL ANTENNA

CONSTRUCTION . . . . . . . . . . . . . . . . . . 09–20–14

AUDIO CONTROL SWITCH

OUTLINE  . . . . . . . . . . . . . . . . . . . . . . . . 09–20–14

AUDIO CONTROL SWITCH

CONSTRUCTION/OPERATION . . . . . . . 09–20–14

Construction  . . . . . . . . . . . . . . . . . . . . . 09–20–14
Operation  . . . . . . . . . . . . . . . . . . . . . . . 09–20–14

ACCESSORY SOCKET

CONSTRUCTION . . . . . . . . . . . . . . . . . . 09–20–14

End of Toc

ENTERTAINMENT OUTLINE

E5U092000001N01

• A center panel unit, composed of the installed audio unit and the audio switches built into the center panel, has

been adopted.

• Module availability depends on vehicle grade.

• An audio control switch is equipped on the steering wheel for audio operation.

• A manual antenna has been adopted.

• The following speakers have been adopted for vehicles with standard audio system:

— Door speaker (2)

— Rear speaker (2)*1

— Tweeter (2)*1

• The following speakers have been adopted for vehicles with BOSE (7 speakers):

— Door speaker (2)

— Rear speaker (2)

— Door upper speaker (2)

— Center speaker (1)

• The auto level control (ALC) function has been adopted. (vehicles with standard audio system)

• The noise-response sound compensation system (AudioPilot*2) has been adopted. (vehicles with BOSE)

• A condenser has been installed on the rear window defroster for improved noise reduction.

• All information related to the audio system is displayed on the information display.

*1 : May or may not be equipped, depending on the vehicle.

*2 : “AudioPilot” is a registered trademark of Bose Corporation.

End Of Sie

ENTERTAINMENT

09–20–2

AUDIO SYSTEM SPECIFICATIONS

E5U092000001N05

Audio Unit

Speaker

End Of Sie

Item

Specification

BOSE

Standard

Rated voltage

(V)

12

Frequency
band

AM

 (kHz)

Type A : 530—1710, Type B : 522—1629

FM

(MHz)

Type A : 87.7—107.9, Type B : 87.5—108

Audio amplifier maximum
output power

(W)

External type audio amplifier

Door speaker : 74

× 2

Rear speaker : 18.5

× 2

Center speaker : 18.5

40

× 4

Output impedance

(ohm)

Door speaker : 1

× 2

Rear speaker : 4

× 2

Center speaker : 4

4

Item

Specification

Door speaker

Rear speaker

Tweeter /

Door upper speaker

Center

speaker

Standard

BOSE

Standard

BOSE

Standard

BOSE

Maximum input

 (W)

25

74

25

18.5

25

18.5

18.5

Impedance

(ohm)

4

1

8

3.6

4

3.6

3.6

Size

5.5

×7.5 in

8 in

70 mm

80 mm

30 mm

80 mm

80 mm
