09–00–1

09

BODY & ACCESSORIES

SECTION

09–00

Toc of SCT

OUTLINE . . . . . . . . . . . . . . . . . . 09-00
BODY PANELS . . . . . . . . . . . . . 09-10
DOORS AND LIFTGATE. . . . . . 09-11
GLASS/WINDOWS/

MIRRORS . . . . . . . . . . . . . . . . 09-12

SEATS . . . . . . . . . . . . . . . . . . . . 09-13
SECURITY AND LOCKS

[ADVANCED KEYLESS
SYSTEM]. . . . . . . . . . . . . . . . . 09-14A

SECURITY AND LOCKS

 [KEYLESS

ENTRY

 SYSTEM (RETRACTABLE

KEY TYPE)]. . . . . . . . . . . . . . .09-14B

EXTERIOR TRIM . . . . . . . . . . .  09-16
INTERIOR TRIM . . . . . . . . . . . .  09-17
LIGHTING SYSTEMS. . . . . . . .  09-18
WIPER/WASHER SYSTEM . . .  09-19
ENTERTAINMENT . . . . . . . . . .  09-20
POWER SYSTEMS  . . . . . . . . .  09-21
INSTRUMENTATION/

DRIVER INFO. . . . . . . . . . . . .  09-22

CONTROL SYSTEM  . . . . . . . .  09-40

Toc of SCT

09–00

OUTLINE

BODY AND ACCESSORIES

ABBREVIATIONS. . . . . . . . . . . . . . . . . . 09–00–1

BODY AND ACCESSORIES

NEW FEATURES . . . . . . . . . . . . . . . . . .  09–00–2

End of Toc

BODY AND ACCESSORIES ABBREVIATIONS

E5U090000000N01

End Of Sie

A/C

Air Conditioner

ACC

Accessories

ALC

Auto Level Control

AT

Automatic Transmission

CAN

Controller Area Network

CM

Control Module

CPU

Central Processing Unit

CTR

Center

DLC

Data Link Connector

DRL

Daytime Running Light

DTC

Diagnostic Trouble Code

GND

Ground

HI

High

IG

Ignition

INT

Intermittent

LCD

Liquid Crystal Display

LED

Light Emitting Diode

LH

Left Hand

LO

Low

M

Motor

MT

Manual Transmission

OFF

Switch Off

ON

Switch On

PCM

Powertrain Control Module

PID

Parameter Identification

PTC

Positive Temperature Coefficient

P/W CM

Power Window Control Module

RH

Right Hand

SW

Switch

TNS

Tail Number Side Lights

WDS

Worldwide Diagnostic System

OUTLINE

09–00–2

BODY AND ACCESSORIES NEW FEATURES

E5U090000000N02

End Of Sie

Improved marketability

• Power window system adopted

• Power door lock system adopted

• Advanced keyless entry and start system adopted

Improved convenience

• A center panel unit, composed of the installed audio unit and the audio switches built into

the center panel, has been adopted

Improved safety

• Daytime running light (DRL) system adopted

Improved security

• Immobilizer system adopted

• Theft-deterrent system adopted

Wiring harness simplification

• Controller area network (CAN) system adopted

BODY PANELS

09–10–1

09–10

09–10

BODY PANELS

BODY PANEL OUTLINE . . . . . . . . . . . . .  09–10–1
CRUSH ZONE CONSTRUCTION . . . . . .  09–10–1

CABIN CONSTRUCTION . . . . . . . . . . . . . 09–10–2
HOOD CONSTRUCTION . . . . . . . . . . . . . 09–10–2

End of Toc

BODY PANEL OUTLINE

E5U091056100N01

• Aluminum hood with a shock-absorbing cone structure has been adopted.

End Of Sie

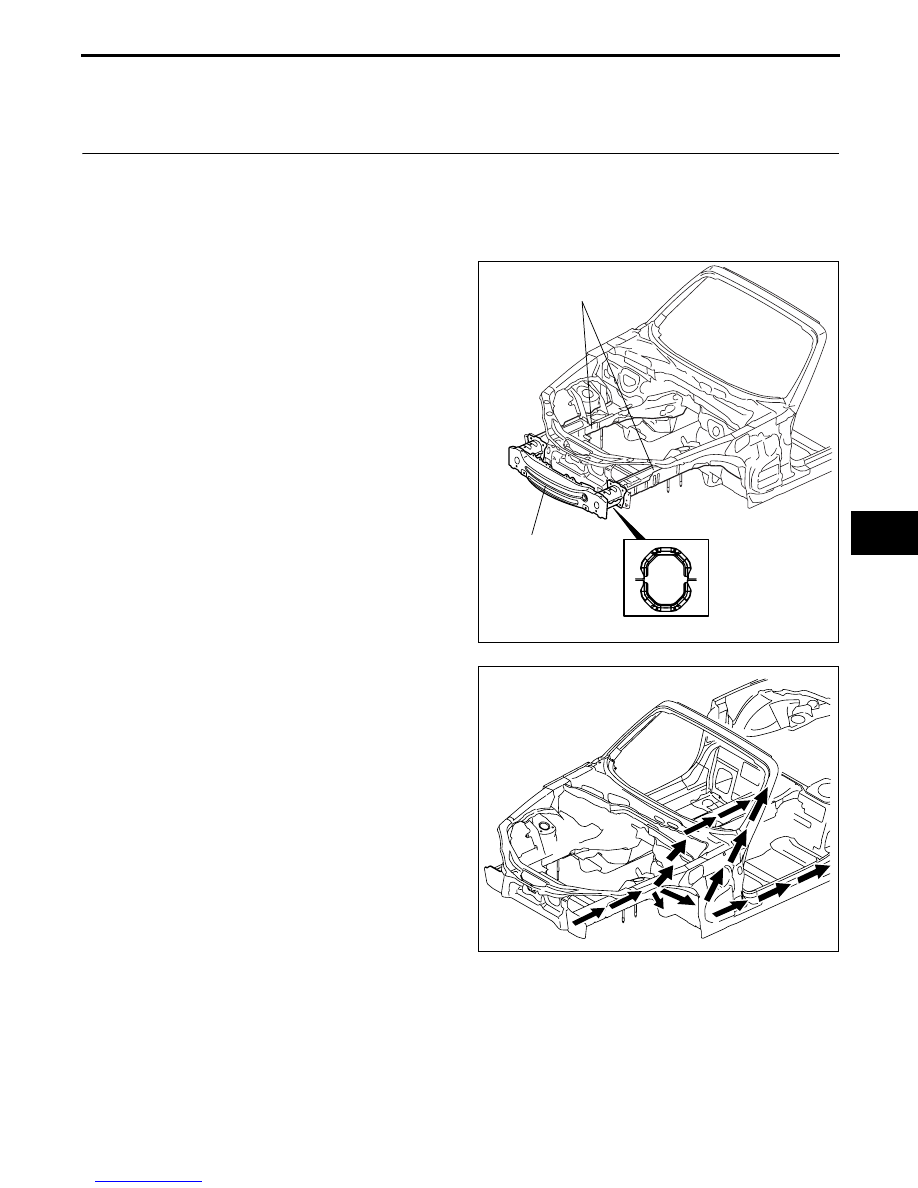

CRUSH ZONE CONSTRUCTION

E5U091056100N02

• High-tensile-strength plates with an octagonal

profile are used for the front bumper
reinforcement and front side frames have been
placed to absorb the impact force of a frontal
collision.

• A three-pronged structure, capable of dispersing

impact force received by the front side frame in
three directions, has been adopted. It also
suppresses cabin deformation in offset frontal
collisions.

End Of Sie

FRONT SIDE FRAME



OCTAGONAL PROFILE

FRONT BUMPER
REINFORCEMENT

E5U910ZS1004

E5U910ZS1001

BODY PANELS

09–10–2

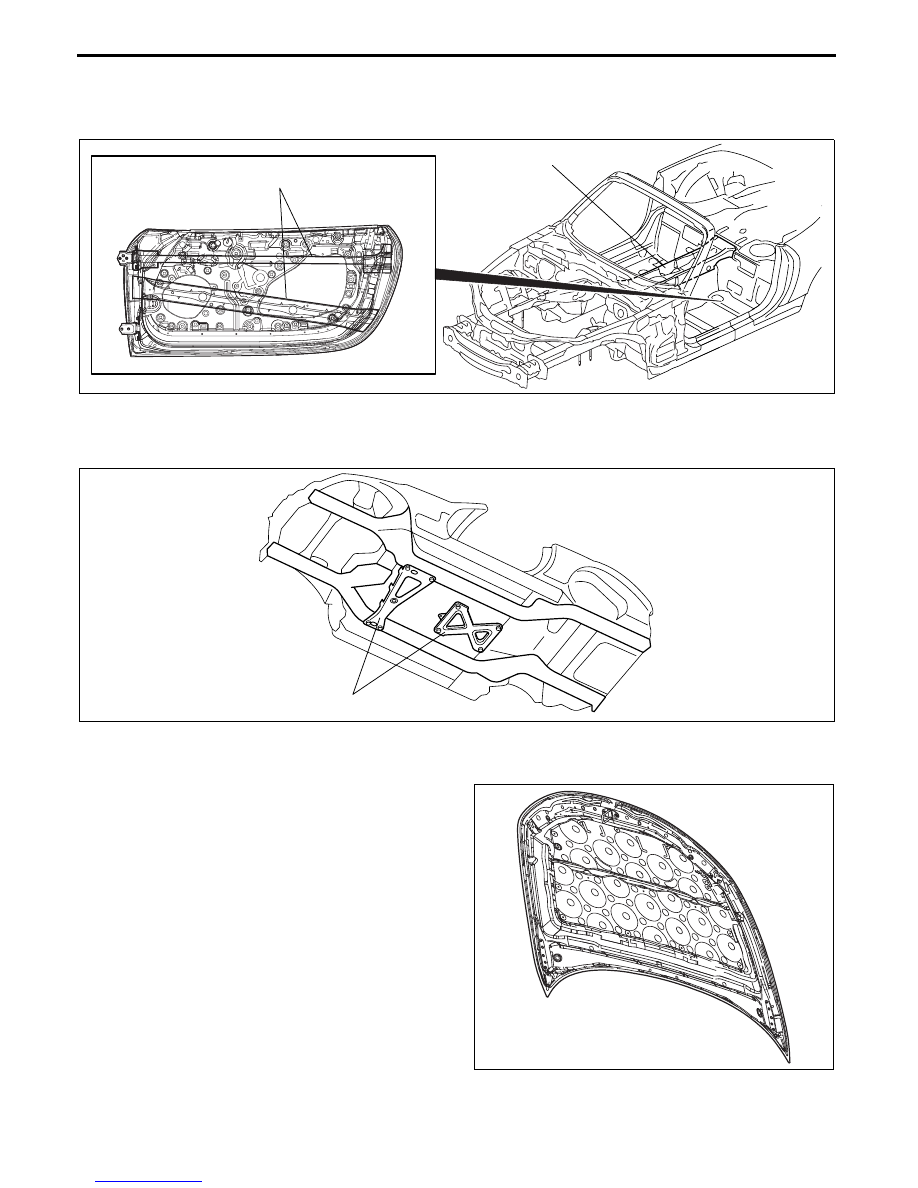

CABIN CONSTRUCTION

E5U091056100N03

• The side impact bar inside the front door is positioned to effectively disperse an impact throughout the body.

• Body rigidity has been improved due to the highly rigid, closed-section high-mount backbone frame located

along the upper part of the transmission tunnel.

• Cabin distortion when driving has been suppressed due to the crossmembers, attached on each side of and

crossing over the transmission tunnel. These also heighten the rigidity of the front seat supports and improve
handling.

End Of Sie

HOOD CONSTRUCTION

E5U091056601N01

• An shock-absorbing cone structure has been

adopted that consists of numerous dimples in the
hood inner panel, reducing thickness while
maintaining the energy absorption rate.

End Of Sie

HIGH-MOUNT BACKBONE FRAME

SIDE IMPACT BAR

E5U910ZS1002

CROSSMEMBER



E5U910ZS1005

E5U910ZS1003
