AIR BAG SYSTEM

08–10–1

08–10

08–10

AIR BAG SYSTEM

AIR BAG SYSTEM OUTLINE . . . . . . . . .  08–10–2
AIR BAG SYSTEM STRUCTURAL

VIEW  . . . . . . . . . . . . . . . . . . . . . . . . . . .  08–10–3

AIR BAG SYSTEM WIRING

DIAGRAM  . . . . . . . . . . . . . . . . . . . . . . .  08–10–4

SAS CONTROL MODULE

FUNCTION  . . . . . . . . . . . . . . . . . . . . . .  08–10–5

Outline . . . . . . . . . . . . . . . . . . . . . . . . .  08–10–5

SAS CONTROL MODULE

CONSTRUCTION/OPERATION  . . . . . .  08–10–5

Front Air Bag System (Two-Step

Deployment Control)  . . . . . . . . . . . . .  08–10–5

Seat Position Matching Deployment

Control . . . . . . . . . . . . . . . . . . . . . . . .  08–10–6

Seat Belt Buckled/Unbuckled Condition

Matching (Deployment) Control . . . . .  08–10–7

Passenger Detection System Operation

(Deployment) Control . . . . . . . . . . . . .  08–10–7

Passenger Air Bag Deactivation (PAD)

Switch Operation (Deployment)
Control . . . . . . . . . . . . . . . . . . . . . . . .  08–10–7

SEAT TRACK POSITION SENSOR

FUNCTION  . . . . . . . . . . . . . . . . . . . . . .  08–10–8

SEAT TRACK POSITION SENSOR

CONSTRUCTION/OPERATION  . . . . . .  08–10–8

PASSENGER SENSING SYSTEM

OUTLINE . . . . . . . . . . . . . . . . . . . . . . . .  08–10–8

Outline . . . . . . . . . . . . . . . . . . . . . . . . .  08–10–8

PASSENGER SENSING SYSTEM

CONSTRUCTION  . . . . . . . . . . . . . . . . .  08–10–8

PASSENGER SENSING SYSTEM

OPERATION  . . . . . . . . . . . . . . . . . . . . .  08–10–9

PASSENGER AIR BAG DEACTIVATION

(PAD) SYSTEM FUNCTION . . . . . . . . . . 08–10–11

PASSENGER AIR BAG DEACTIVATION

(PAD) SYSTEM STRUCTURAL
VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08–10–11

PASSENGER AIR BAG DEACTIVATION

(PAD) SYSTEM
CONSTRUCTION/OPERATION . . . . . . . 08–10–11

DRIVER-SIDE AIR BAG MODULE

FUNCTION . . . . . . . . . . . . . . . . . . . . . . . 08–10–12

Outline. . . . . . . . . . . . . . . . . . . . . . . . . . 08–10–12

DRIVER-SIDE AIR BAG MODULE

CONSTRUCTION/OPERATION . . . . . . . 08–10–12

Inflator Operation  . . . . . . . . . . . . . . . . . 08–10–12

PASSENGER-SIDE AIR BAG MODULE

FUNCTION . . . . . . . . . . . . . . . . . . . . . . . 08–10–13

Outline. . . . . . . . . . . . . . . . . . . . . . . . . . 08–10–13

PASSENGER-SIDE AIR BAG MODULE

CONSTRUCTION/OPERATION . . . . . . . 08–10–14

Inflator Operation  . . . . . . . . . . . . . . . . . 08–10–14

SIDE AIR BAG MODULE

FUNCTION . . . . . . . . . . . . . . . . . . . . . . . 08–10–14

SIDE AIR BAG MODULE

CONSTRUCTION/OPERATION . . . . . . . 08–10–15

Construction  . . . . . . . . . . . . . . . . . . . . . 08–10–15

PRE-TENSIONER SEAT BELT

FUNCTION . . . . . . . . . . . . . . . . . . . . . . . 08–10–15

PRE-TENSIONER SEAT BELT

CONSTRUCTION/OPERATION . . . . . . . 08–10–16

Construction  . . . . . . . . . . . . . . . . . . . . . 08–10–16
Operation  . . . . . . . . . . . . . . . . . . . . . . . 08–10–16

End of Toc

AIR BAG SYSTEM

08–10–2

AIR BAG SYSTEM OUTLINE

E5U081000000N01

• The air bag system is a device that supplements the passenger restraint function of the seat belts. The air bag

system will not have the designed effect if the seat belts are not worn properly.

• The air bag system is composed of the following parts:

End Of Sie

Item

Outline

SAS control module

• Two-step deployment control has been added to the front air

bag system (driver and passenger-side) deployment control.

• Recognizes actually equipped air bag module or pre-

tensioner seat belt based on module configuration.

Crash zone sensor

• Detects degree of impact, converts to an electrical signal, and

sends the signal to the SAS control module. For operation,
refer to SAS control module, Air Bag Module and Pre-
tensioner Buckle Deployment Operation. (See 08–10–5 SAS
CONTROL MODULE CONSTRUCTION/OPERATION)

Side air bag sensor

Driver-side air bag module

• Dual inflators, inflator 1 and inflator 2, have been adopted in

accordance with the front air bag system two-step
deployment control.

Passenger-side air bag module

Side air bag module

• The side air bag module with a head-protection function has

been adopted to soften the impact during a collision to the
side of the vehicle.

Pre-tensioner seat belt

• Piston-type pre-tensioner seat belt has been adopted.

Seat track position sensor

• Detects the seat track position of the driver’s seat, and sends

a corresponding signal to the SAS control module.

PAD switch

• PAD switch has been adopted enabling optional deactivation

of passenger-side air bag module, passenger-side side air
bag module, and passenger-side pre-tensioner seat belt.

PAD indicator

• PAD indicator has been adopted to inform driver and

passenger of the deployment standby status of the
passenger-side air bag module, passenger-side side air bag
module, and passenger-side pre-tensioner seat belt.

Air bag system warning light

• LED has been adopted.

Seat belt warning light

Seat weight sensor

• Measures the compression weight of the load applied to the

passenger-side seat by the distortion amount using two seat
weight sensor and sends an electrical signal corresponding to
the distortion amount to the seat weight sensor control
module.

Seat weight sensor control module

• Based on the electrical signal sent from the seat weight

sensor corresponding to the distortion amount, calculates the
total seated weight to determine the passenger, and sends
the determination result to the SAS control module.

AIR BAG SYSTEM

08–10–3

08–10

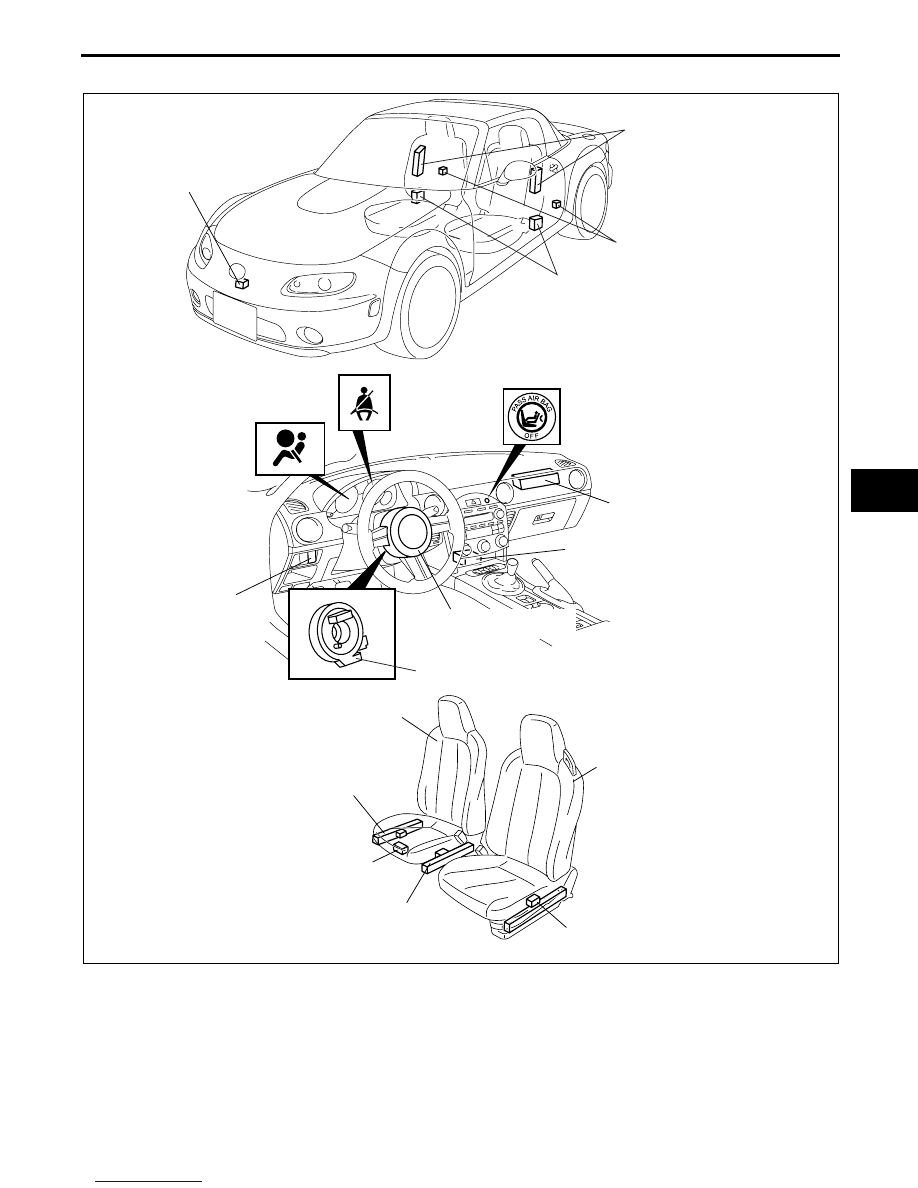

AIR BAG SYSTEM STRUCTURAL VIEW

E5U081000000N02

End Of Sie

AIR BAG SYSTEM
WARNING LIGHT

SEAT BELT
WARNING LIGHT

PAD
INDICATOR

DRIVER-SIDE AIR BAG
MODULE

CLOCK SPRING

PAD SWITCH

PASSENGER-SIDE
AIR BAG MODULE

SAS CONTROL
MODULE

SIDE AIR BAG MODULE

SIDE AIR BAG SENSOR

PRE-TENSIONER SEAT BELT

SEAT WEIGHT
SENSOR CONTROL
MODULE

SEAT WEIGHT
SENSOR (LH)

SEAT WEIGHT
SENSOR (RH)

PASSENGER'S SEAT

DRIVER'S SEAT

SEAT TRACK
POSITION SENSOR

CRASH ZONE
SENSOR

E5U810ZS5201

AIR BAG SYSTEM

08–10–4

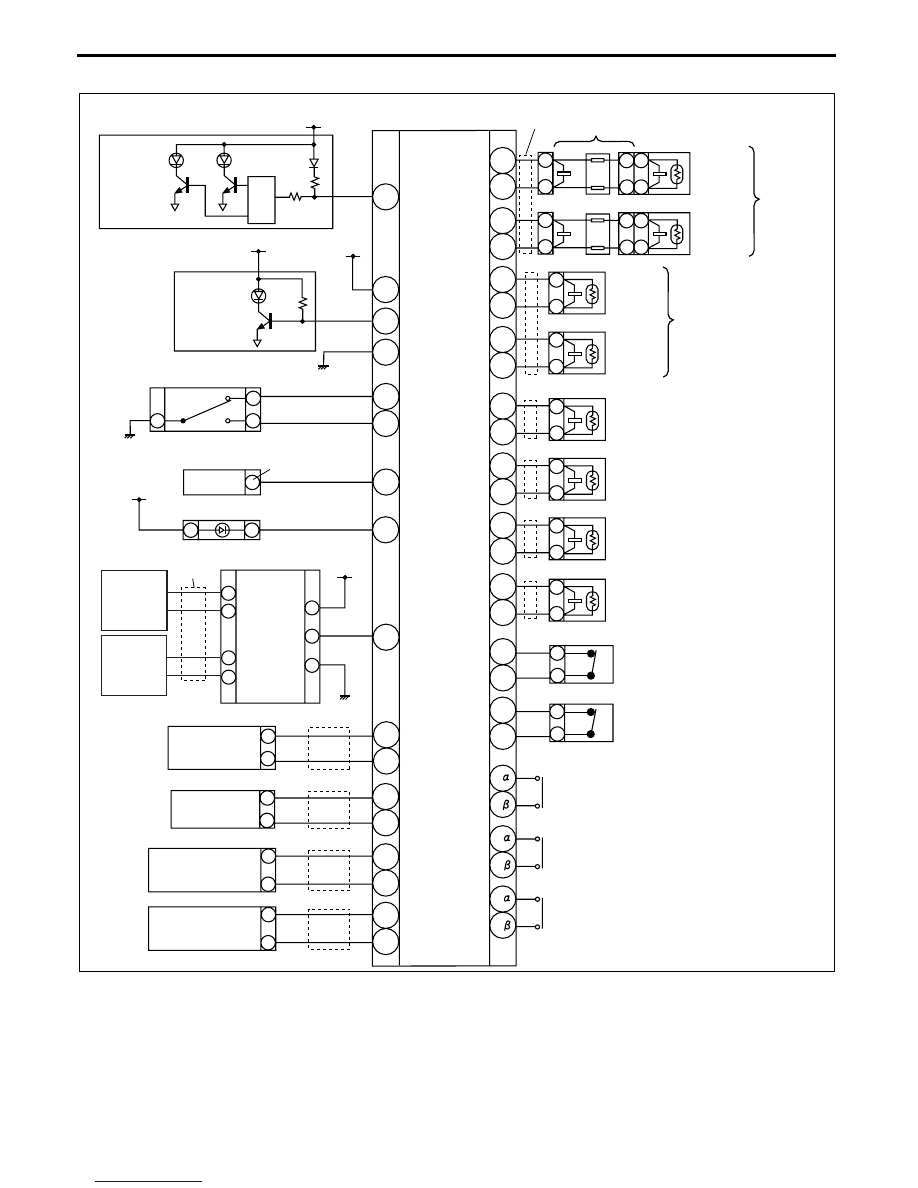

AIR BAG SYSTEM WIRING DIAGRAM

E5U081000000N03

End Of Sie

IG1

IG1

1W

1R

1I

1T

A

B

A

B

A

B

A

B

1E

1B

2A

2D

2J

2G

2V

2Y

2P

2S

A

B

1U

B

A

IG1

SAS
CONTROL
MODULE

CRASH ZONE
SENSOR

PAD INDICATOR

DRIVER-SIDE PRE-
TENSIONER SEAT
BELT

DRIVER-SIDE SIDE
AIR BAG MODULE

PASSENGER-SIDE
PRE-TENSIONER
SEAT BELT

PASSENGER-SIDE SIDE
AIR BAG MODULE

AIR BAG
SYSTEM
WARING
LIGHT

INSTRUMENT
CLUSTER

DLC-2

KLN

2

2

POOR CONNECTION
DETECTOR BAR

3

3

POOR CONNECTION
DETECTOR BAR

1

1

POOR CONNECTION
DETECTOR BAR

2C

2F

2AA

2X

DRIVER-SIDE
SIDE AIR BAG
SENSOR

PASSENGER-SIDE
SIDE AIR BAG
SENSOR

A

A

B

B

1L

1J

1H

1F

3A

3B

4A

4B

1A

1B

2A

2B

1D

1A

1G

1J

CLOCK SPRING

DRIVER-
SIDE
AIR BAG
MODULE

INFLATOR
NO. 1

INFLATOR
NO. 2

TWISTED
PAIR

1A

1B

2A

2B

1S

1V

1P

1M

PASSENGER-
SIDE AIR BAG
MODULE

INFLATOR
NO. 1

INFLATOR
NO. 2

IG1

3D

A

C

3M

3P

3B

3A

3B

1A

1B

2A

2B

S

EAT

WEIGHT
SENSOR
(LH)

S

EAT

WEIGHT
SENSOR
(RH)

S

EAT

WEIGHT
SENSOR

CONTROL
MODULE

SEAT TRACK
POSITION
SENSOR

TWISTED
PAIR

TWISTED PAIR

IG1

1X

SEAT BELT
WARNING
LIGHT

INSTRUMENT CLUSTER

A

B

A

B

3A

3D

3J

3G

DRIVER-SIDE
BUCKLE SWITCH

PASSENGER-SIDE
BUCKLE SWITCH

1H

D

C

E

1Q

PAD SWITCH

PASS
AIRBAG ON

PASS AIRBAG
OFF

E5U810ZS5002
