AUTOMATIC TRANSMISSION [SJ6A-EL]
05–13–15
05–13

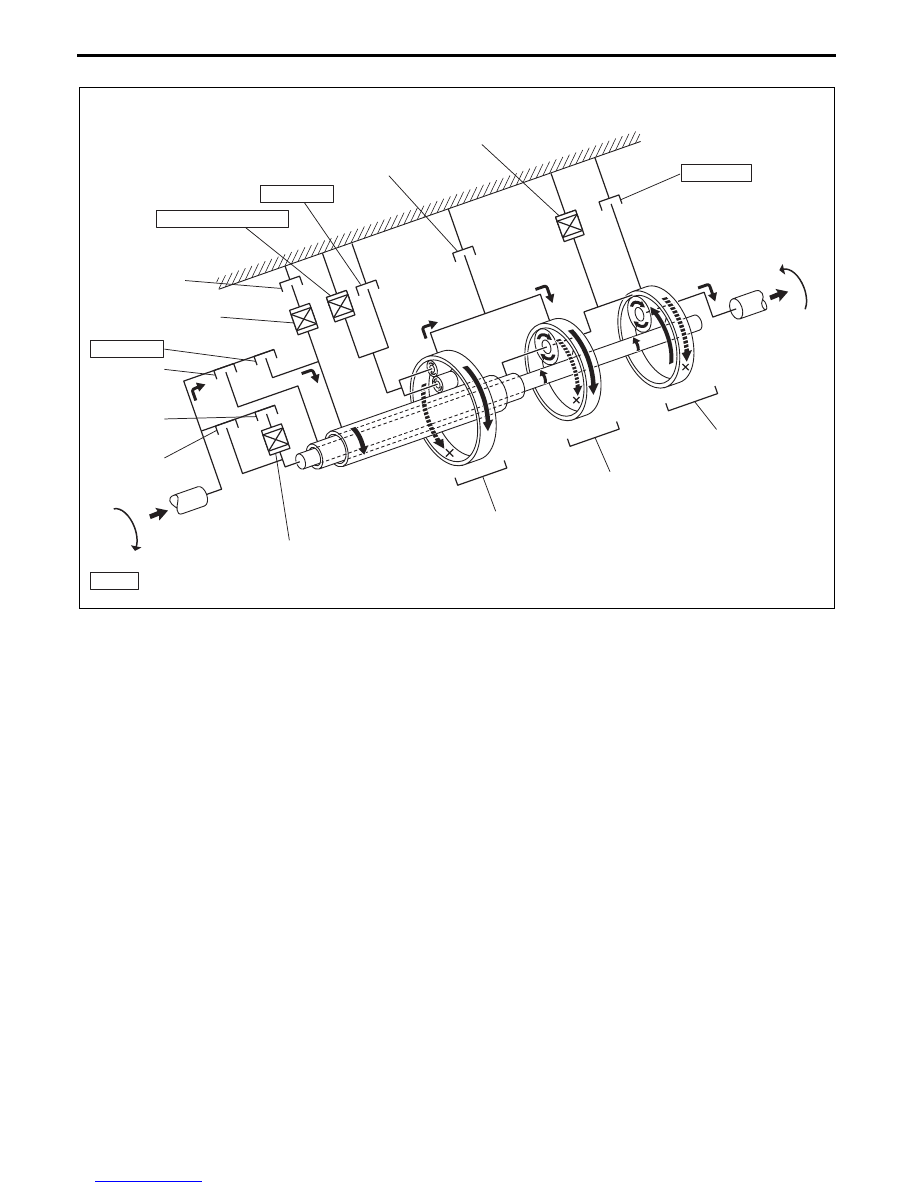

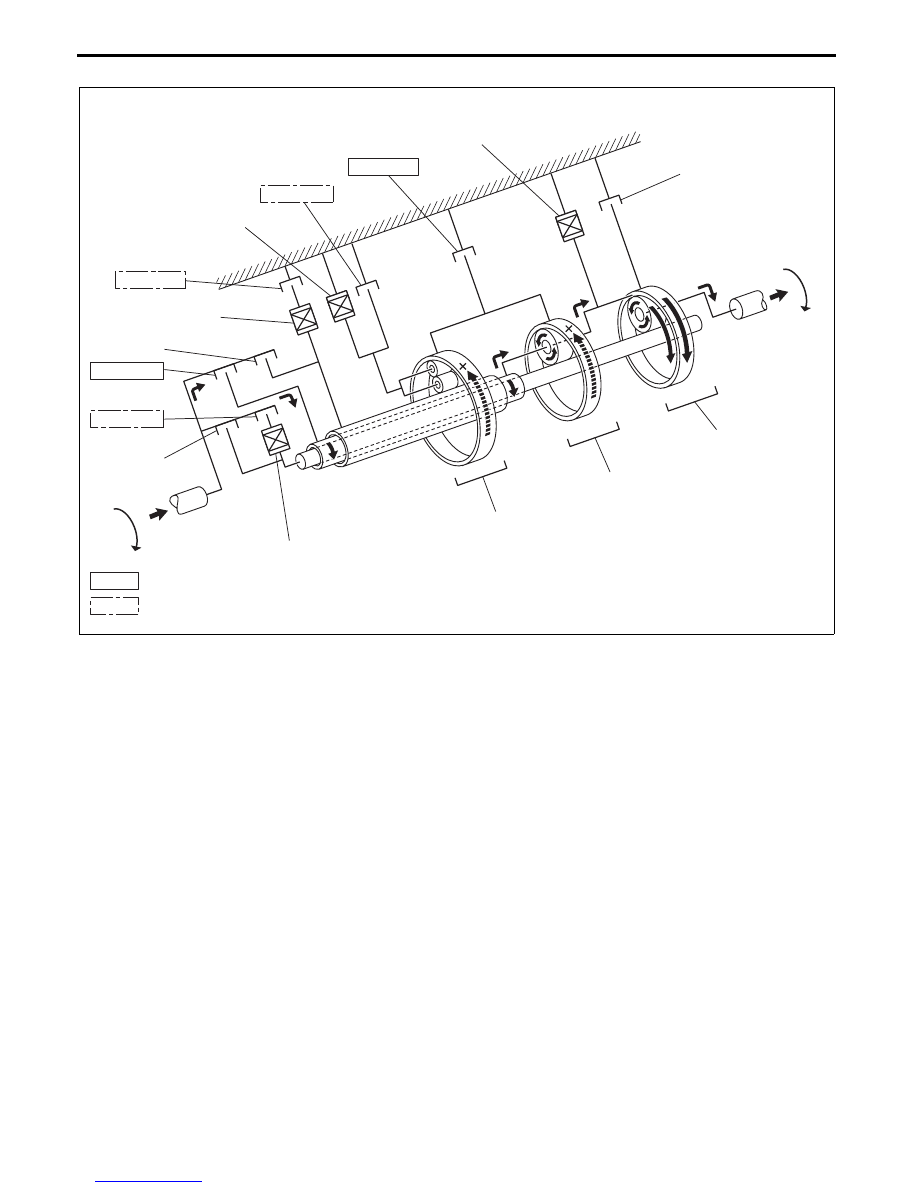

INPUT SHAFT ROTATES CLOCKWISE.
1
C3 CLUTCH OPERATES.
FRONT SUN GEAR ROTATES CLOCKWISE.
2
MIDDLE PLANETARY CARRIER ROTATES
CLOCKWISE.
6
B1 BRAKE OPERATES (LOCKS
ROTATION OF FRONT
PLANETARY CARRIER).
FRONT RING GEAR ROTATES CLOCKWISE.
5
MIDDLE RING GEAR ROTATES CLOCKWISE.
6
THE MIDDLE PLANETARY PINION GEARS ROTATE COUNTERCLOCKWISE
DUE TO THE DIFFERENCE IN ROTATION OF THE MIDDLE RING GEAR AND
MIDDLE PLANETARY CARRIER.
7
C2 CLUTCH OPERATES.
FRONT INNER PLANETARY PINION GEAR
ROTATE COUNTERCLOCKWISE.
3
REAR PLANETARY CARRIER ROTATES CLOCKWISE.
10
OUTPUT SHAFT ROTATES CLOCKWISE.
11
FRONT OUTER PLANETARY PINION GEAR
ROTATES CLOCKWISE.
4
MIDDLE SUN GEAR ROTATES CLOCKWISE.
8
REAR SUN GEAR ROTATES CLOCKWISE.
9
REAR RING GEAR ROTATES CLOCKWISE.
9
E5U513ZS5020
