primer manufacturer.

 Don’t touch the bo

②

dy and old adhesive surfaces to adhere and connect with the glass.

(3) Install the new strip on the glass. For convenience, heat the strip at the temperature of 35



℃

one and a half hours.

(4) Clean the glass surface to adhere and connect to the body with the clean cloth. If the cleaning

agent has been used, dry at least 10 minutes.

(5) Coat the glass surface to adhere and connect to the body with the enough primer at the

thickness of 15mm with new brushes.

Note:

①

②

①

②

③

④

⑤

⑥

⑦

①





or close the door in a correct way.

 If the strip

④

 does not completely glue, press it with the adhesive tape until all the adhesive parts

installed closely.

 Every adhesive has its own solidifying time.

⑤

Do not forget to refer to the Instruction Manual of

the manufacturer, check the solidifying time of the adhesive used and observe the necessary

measures taken before the complete adherence of the adhesive parts.

 Before complete adherence of the adhesive parts, forbid to drive so as to guarantee the

⑥

complete and full solidifying.

(10) Install the windshield wiper.

325

III. Rear windshield

1. Rear windshield removal:

(1) Clear the inner and outer surfaces and surrounding parts of the glass.

(2) Disconnect the interface connected to the rear windshield.

Note: When disconnecting the interface, don’t pull the cable wire but loosen the lock card of the

interface first, and then hold the interface and loosen the interface.

(3) Remove the coping side sealing strip.

(4) Cover the body around the glass with the adhesive tape so as to protect the body.

(5) Remove (or cut off) the sealing strip around the rear windshield until the brim of the rear

①

②



℃

Note:

The correct operation and drying time shall be practiced as per the Instruction Manual of the

①

manufacturer.

 Don’t touch the

②

primer coating surface.

(6) Coat the rear windshield with the adhesive.

Note:

 Start from the hemline of the glass.

①



 Don’t ru

②

in the primer.

 After coating, press the glass on the body as soon as possible.

③



326

 After coating, use the

④

rubber adhesive disc to install and convey the glass.

 Complete the step 6 and 7 within 10 minutes to guarantee the agglutinate strength.

⑤



The corre

⑥

ct operation and drying time shall be practiced as per the Instruction Manual of the

manufacturer.

(7) Hold the rubber adhesive disc, press the glass on the body and clap the glass surface and

surrounding areas of the strip so as to glue the glass on the body completely.

Note: Don’t damage the glass surface or body.

(8) Install the coping side sealing strip.

(9) After the solidifying of the adhesive, check whether the window leaks or not through splashing

①

②

③

④

⑤

⑥



















327

Section III  Safety Belt



Note:

(1) The fasteners removed must be reinstalled in the original position. If any fasteners need

renewing, the ones with the same part No. are required. However, if there is no such fastener with

the same part No., the ones with the same dimension and intensity (or higher intensity) are

acceptable. The non-recyclable fasteners and the ones need locking by the screw thread, shall be

eliminated from the car. If reinstalling fasteners with designated tightening torques, fasten them to





(1) Disconnect the cathode cable from the battery.

(2) Deactivate the air bag system.

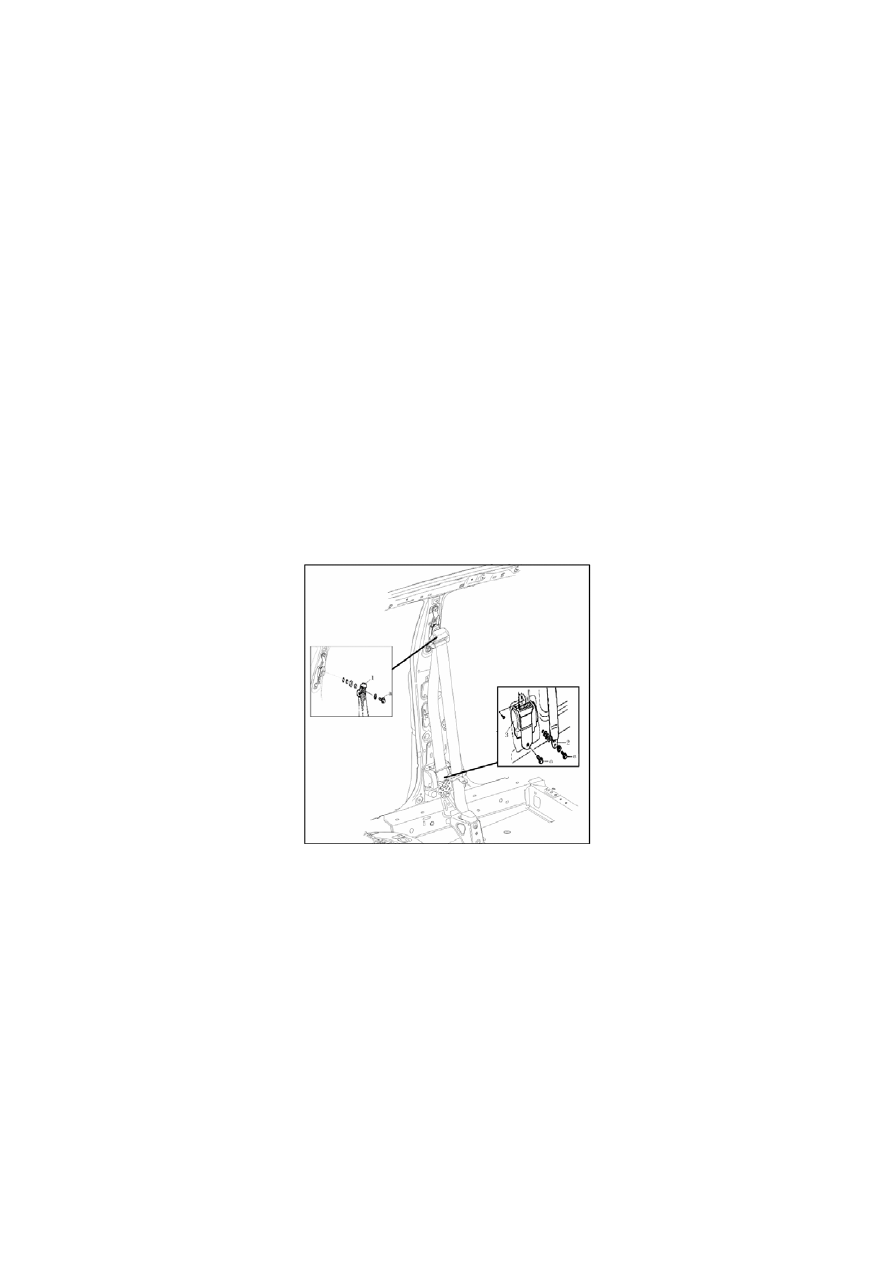

(3) Remove the B pillar guard panel assembly.

(4) Remove the safety belt assembly from the vehicle body.

2. Installation: The process of installation is opposite with that of removal; however, the following

points must be taken into consideration:

(1) The bolt for fixing the safety belt ring shall be the British system fine screw thread

(7/16-20UNF). The screw thread with different dimension or metric screw thread will be never

328
