Lifan 620. Manual - part 76

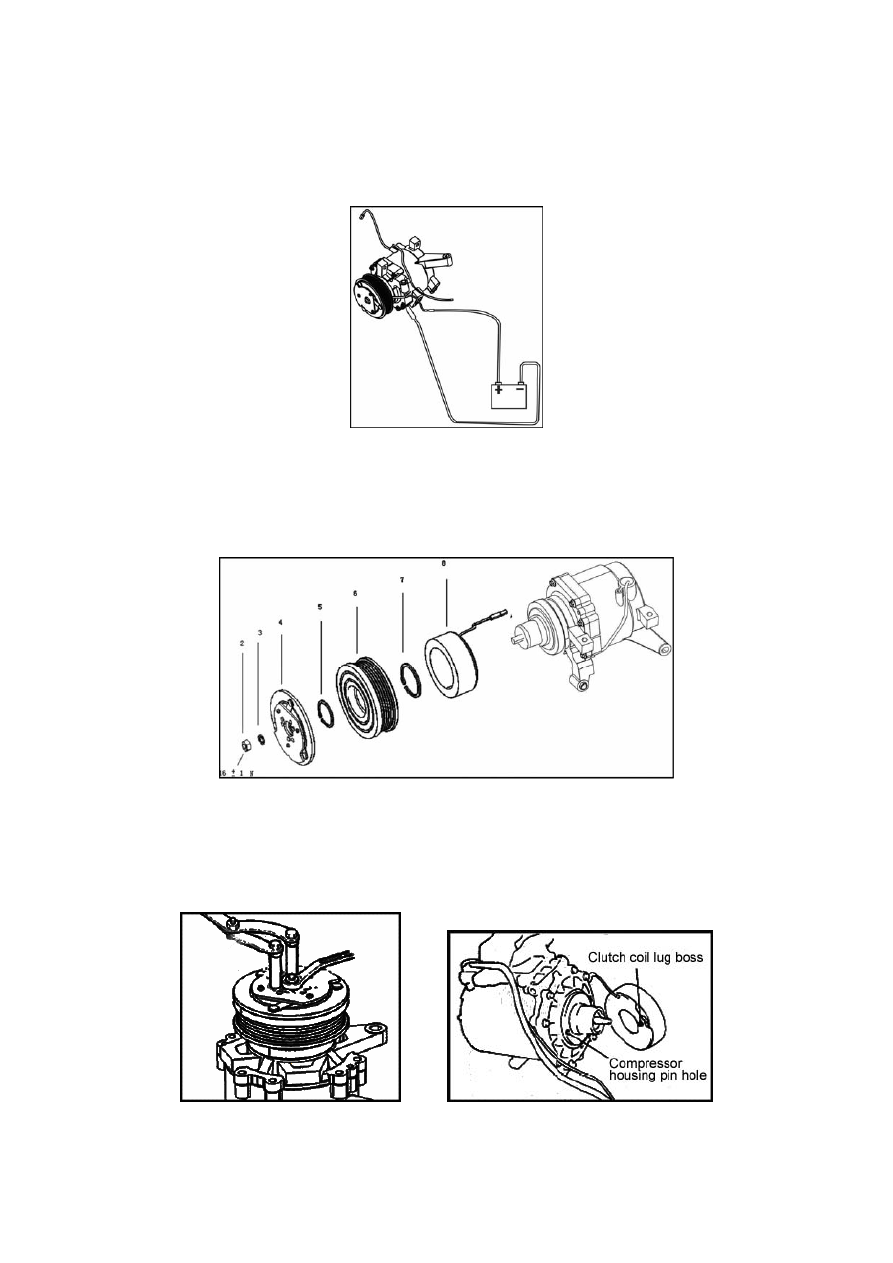

Connect battery positive to the connector clip of electromagnetic clutch directly, negative to the
body of compressor. If the electromagnetic clutch is normal, you will hear a rattle. If the belt pulley
does not touch the armature (no rattle), fault exists, Figure 6-27.


Figure 6-29                         Figure 6-30

305

When installing clutch coil to compressor housing, aim the compressor housing pin hole to the
clutch coil lug boss.

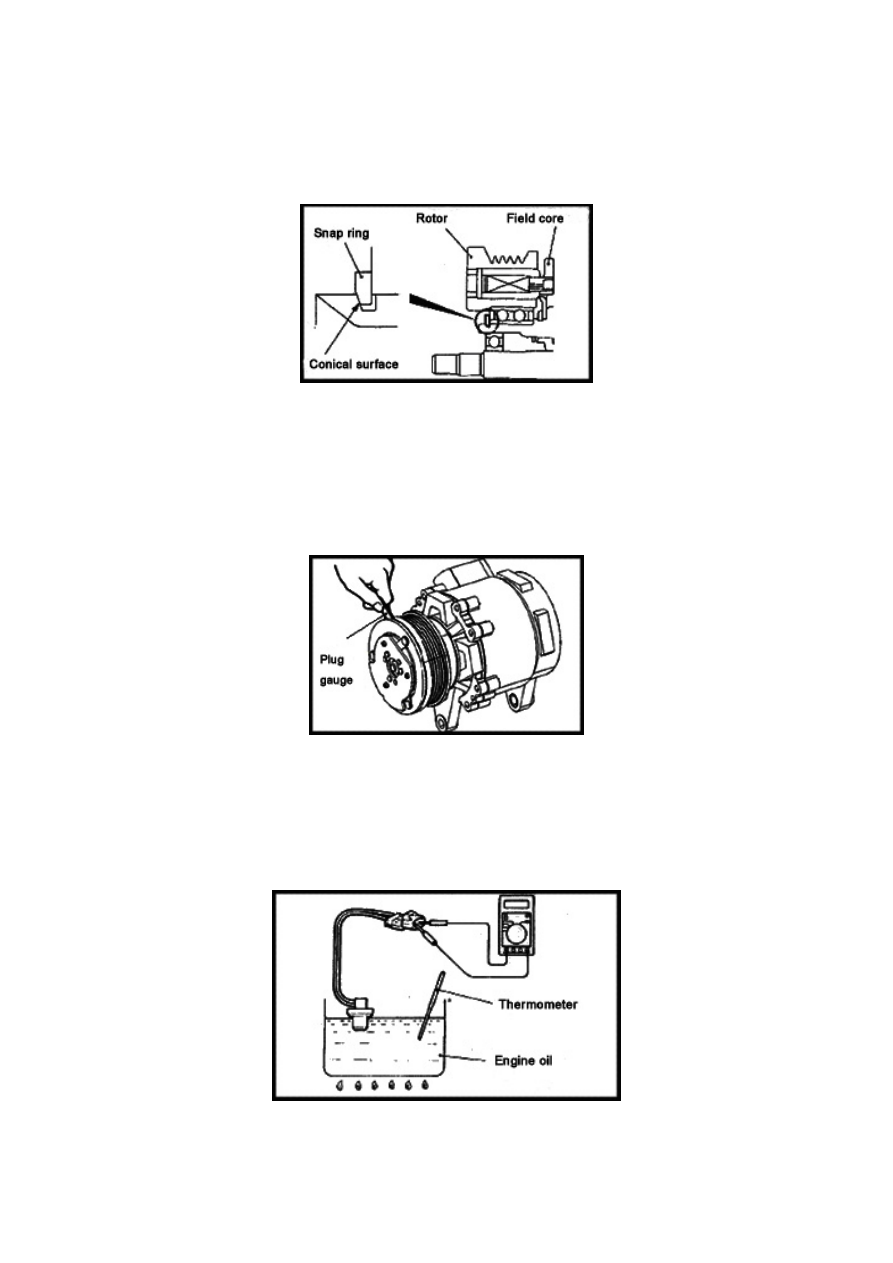

Assembly of snap ring; see Figure 6-31.


Figure 6-33

306

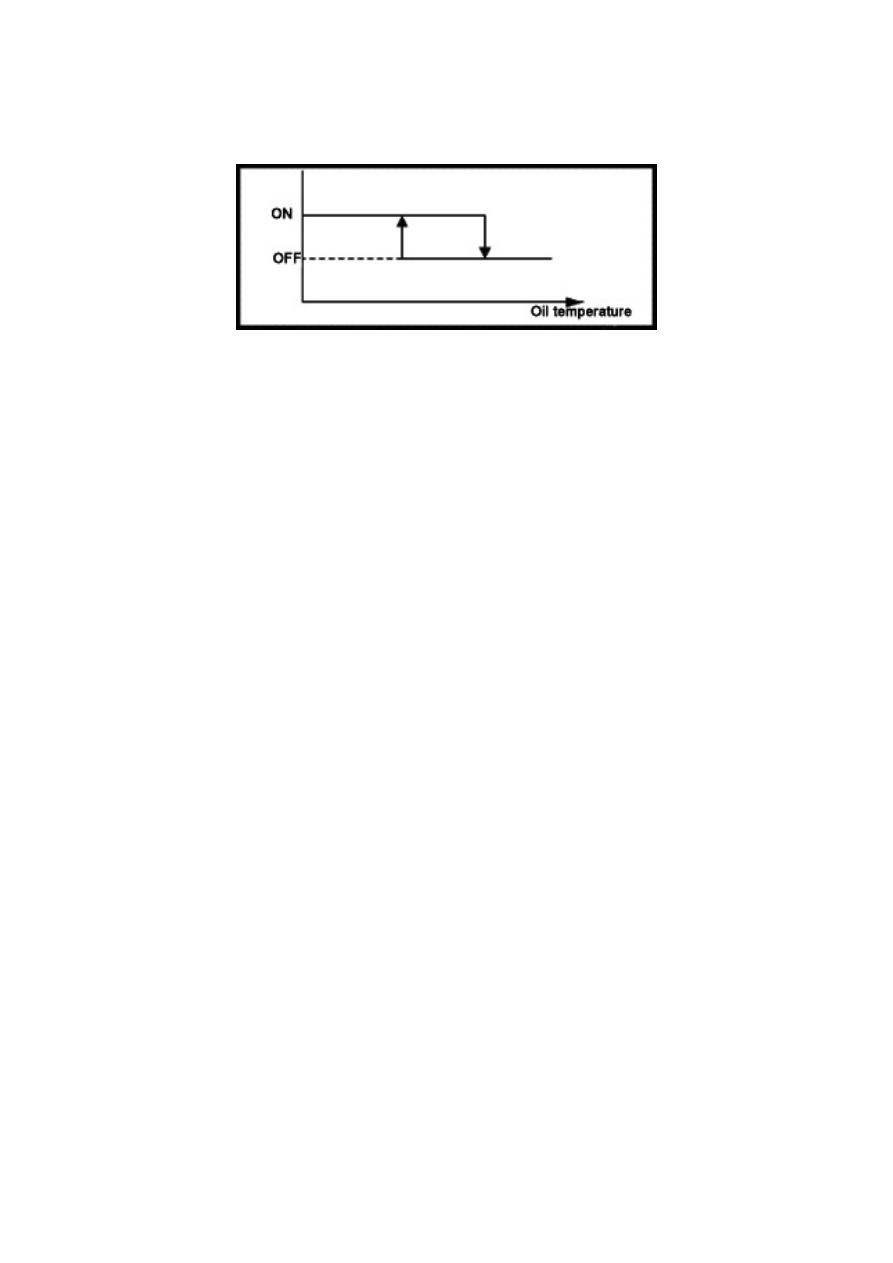

Put the metal part of engine overheating protection switch into engine oil, heat with gas stove until
reaching standard temperature, check whether switch terminals are on, as shown in Figure 6-34.

307

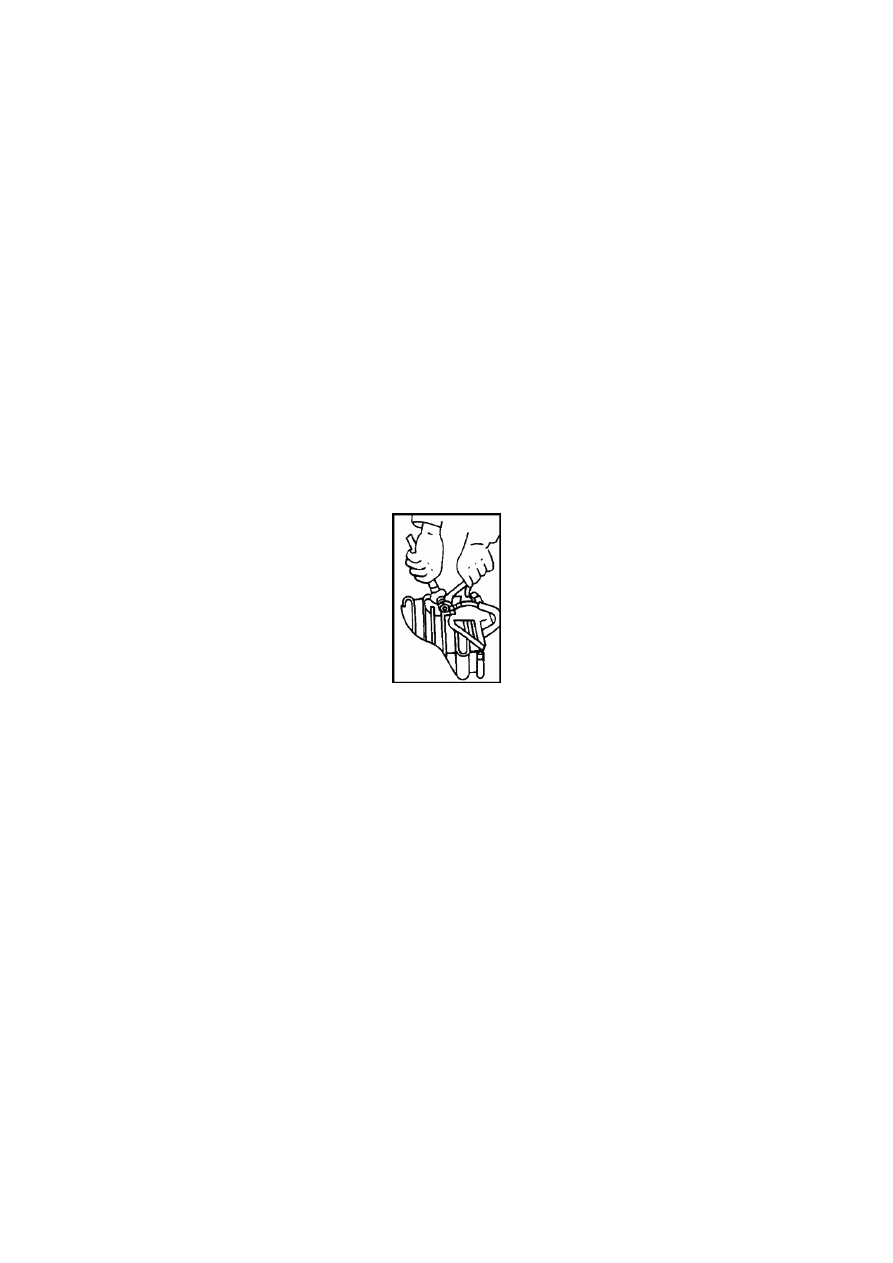

VII. Replacement of air conditioner amplifier assembly

1. Disassembly
(1) Disassemble auxiliary dashboard assembly
(2) Disassemble air conditioner amplifier assembly
1) Disconnect the connector
2) Remove air conditioner amplifier assembly
2. Installation
To install, reverse the removal procedure.


308
