V. Component check

1. Switch check, check items as mentioned before, if the conductivity is unqualified, change the
side mirror switch.
2. Mirror check, check items as mentioned before, if corresponding requirement is not met, change
the side mirror motor, wire connector of side mirror motor  .

③

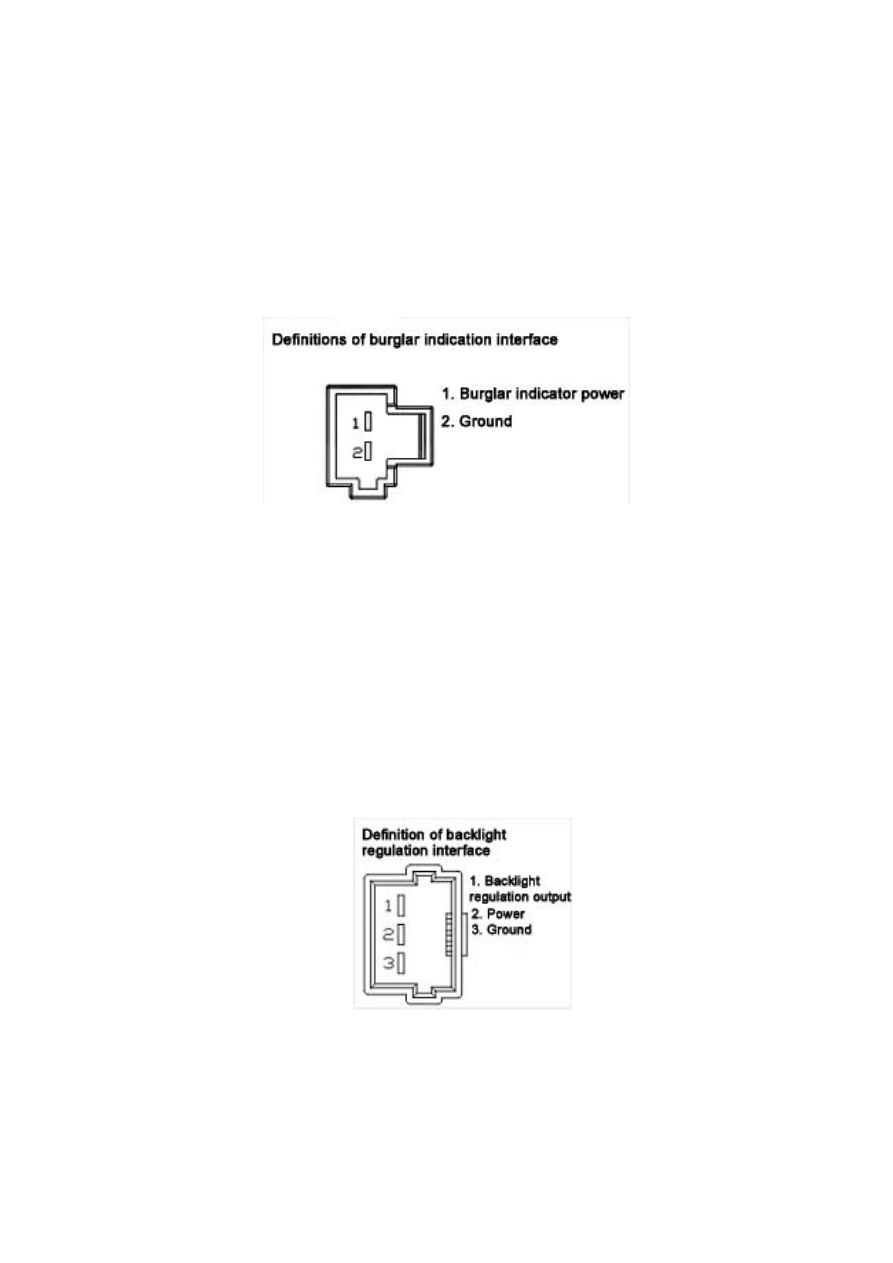

VI. Burglar indicator

Check if the burglar indicator is at fault:




Fig. 4-59





233

Section V  Illumination System



I. Overview

License plate lamp

W5W

12V5W

High-mounted brake lamp

LED

12V0.5W

Rear roof light

(Q)-12V5W

12V5W

Luggage boot lamp

W5W

12V5W

Door lamp

LED

12V0.24W

234

II. Placement

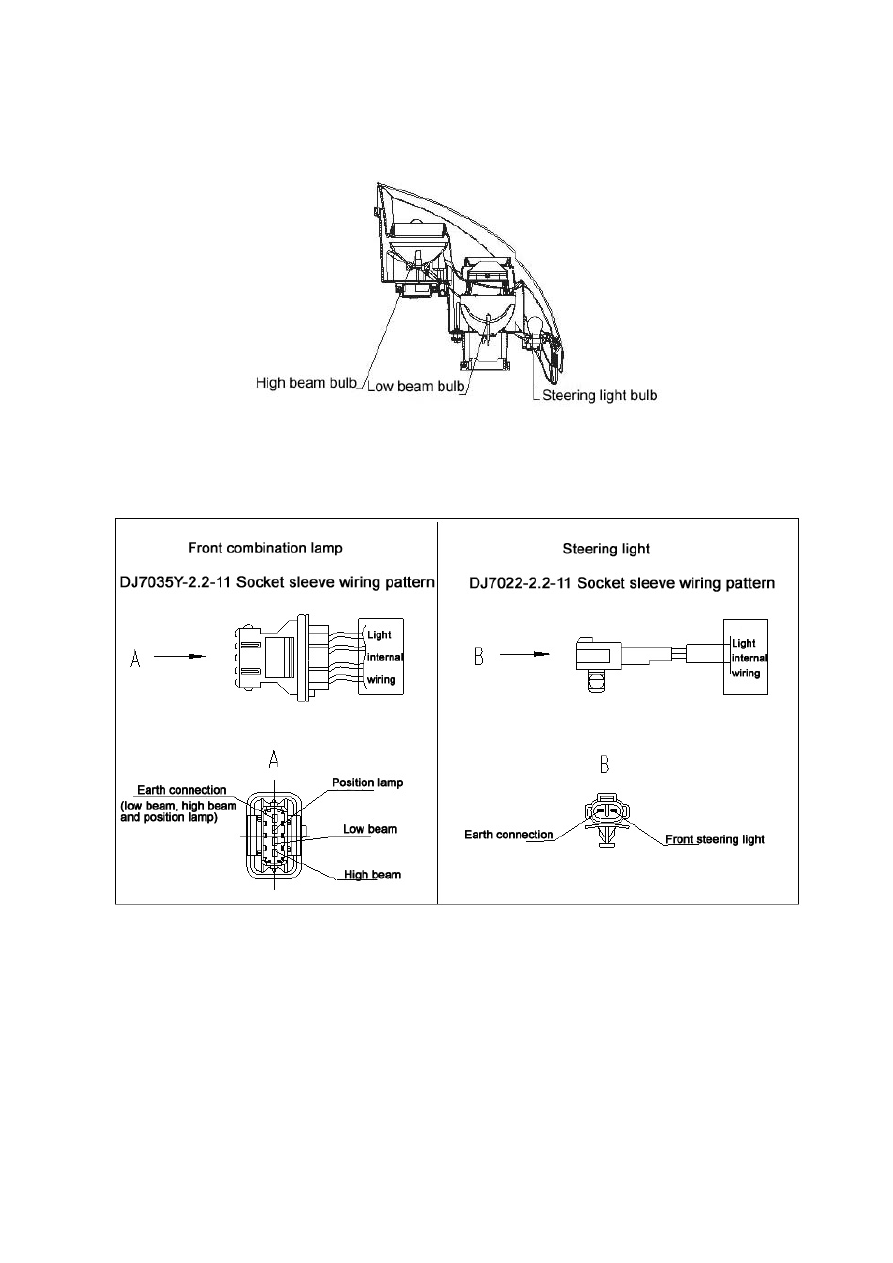

1. Headlight assembly (Fig. 4-60)





Fig. 4-61










235

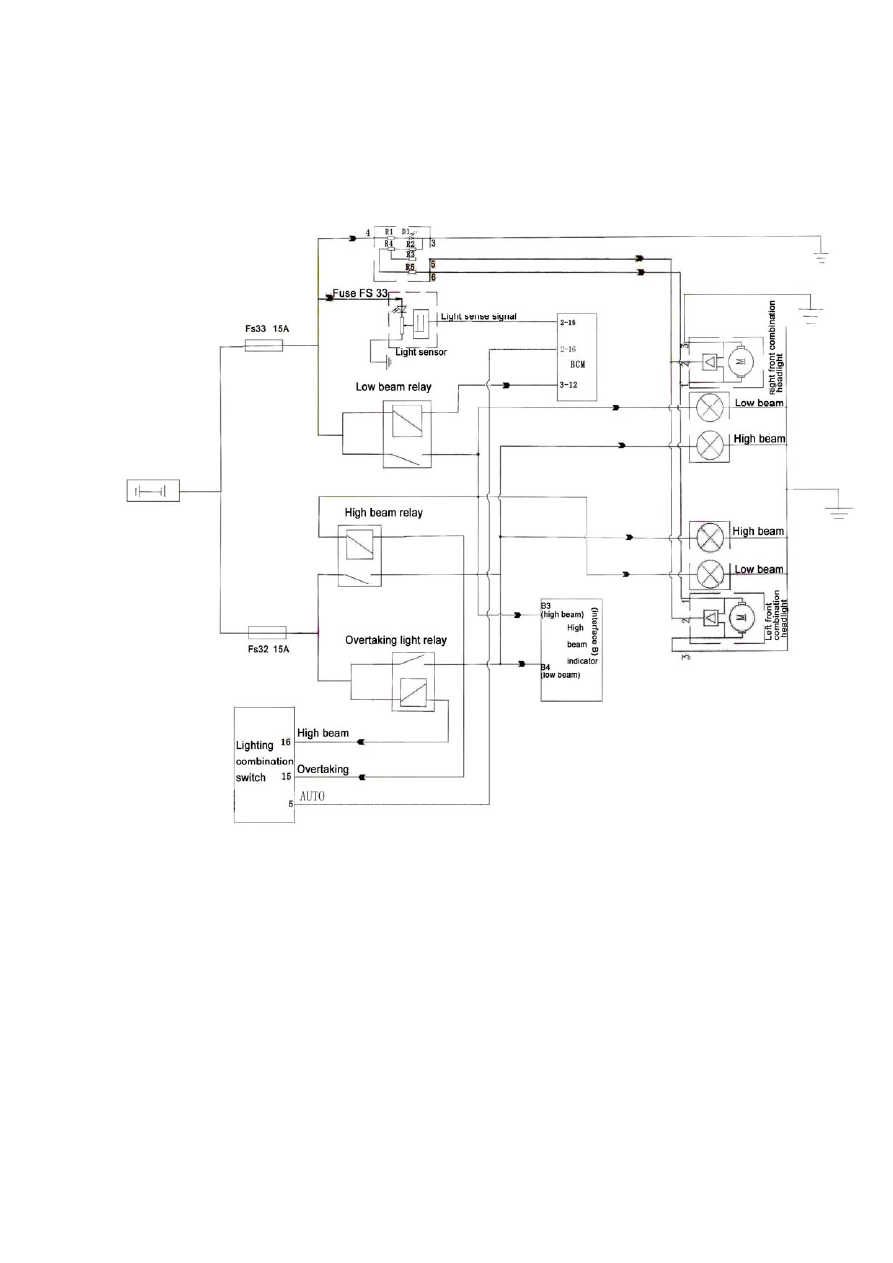

1.2 Headlight checking circuit (Fig. 4-62)








236
