Lifan 620. Manual - part 54

217

simultaneously, the steering light flashes for once and annunciator sounds for once.
(4) Locking through inserting door lock key
Insert door lock key into door lockhole, turn it counterclockwise, locking of four doors will act
simultaneously.
(5) Locking by door locking button
Door locking button may display the status of door lock, i.e. red mark outward means unlocking;
red mark inward means locking. Move the door locking button inside the car, only the
corresponding door will lock, and the rest doors will not lock.

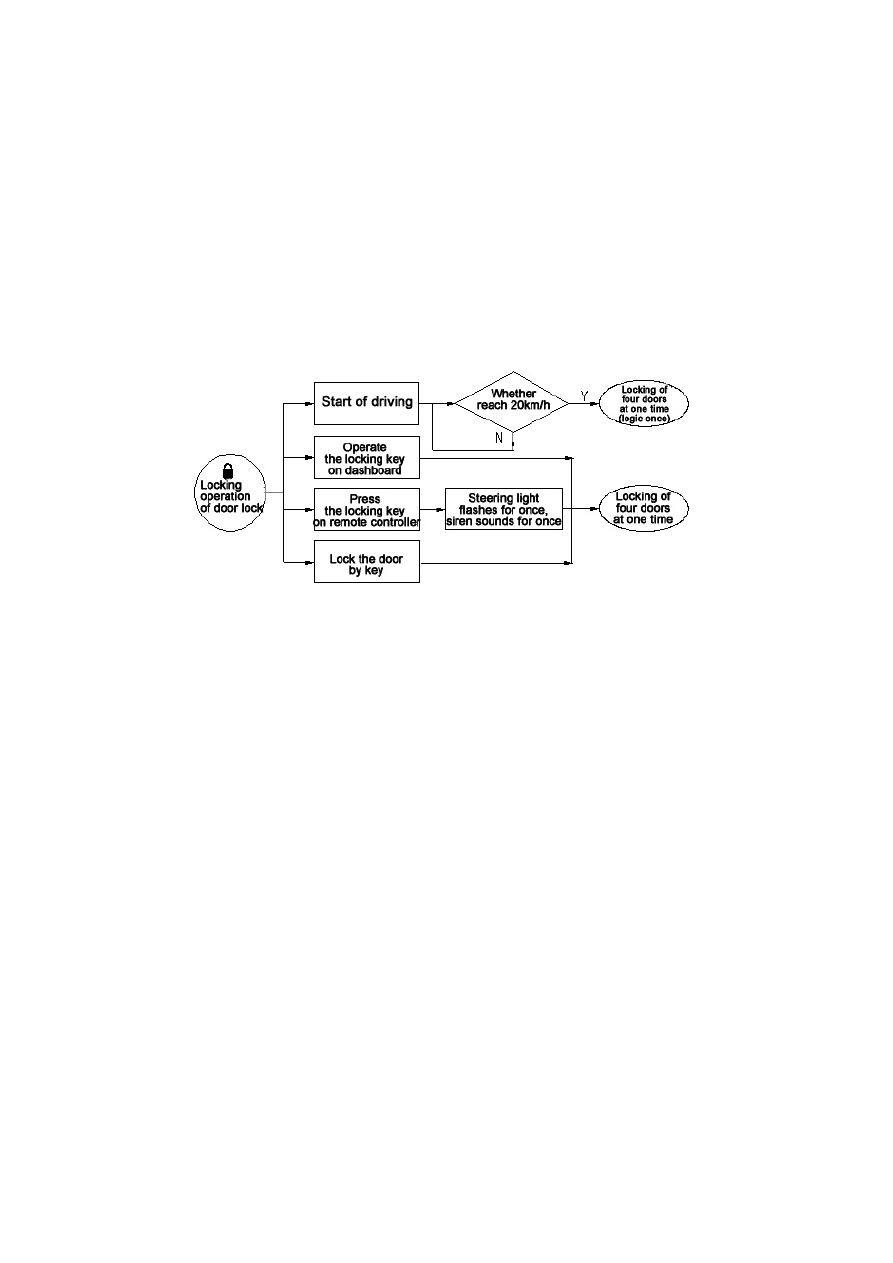

(6) Logical flow of door locking operation
As shown in Fig. 4-40.


218

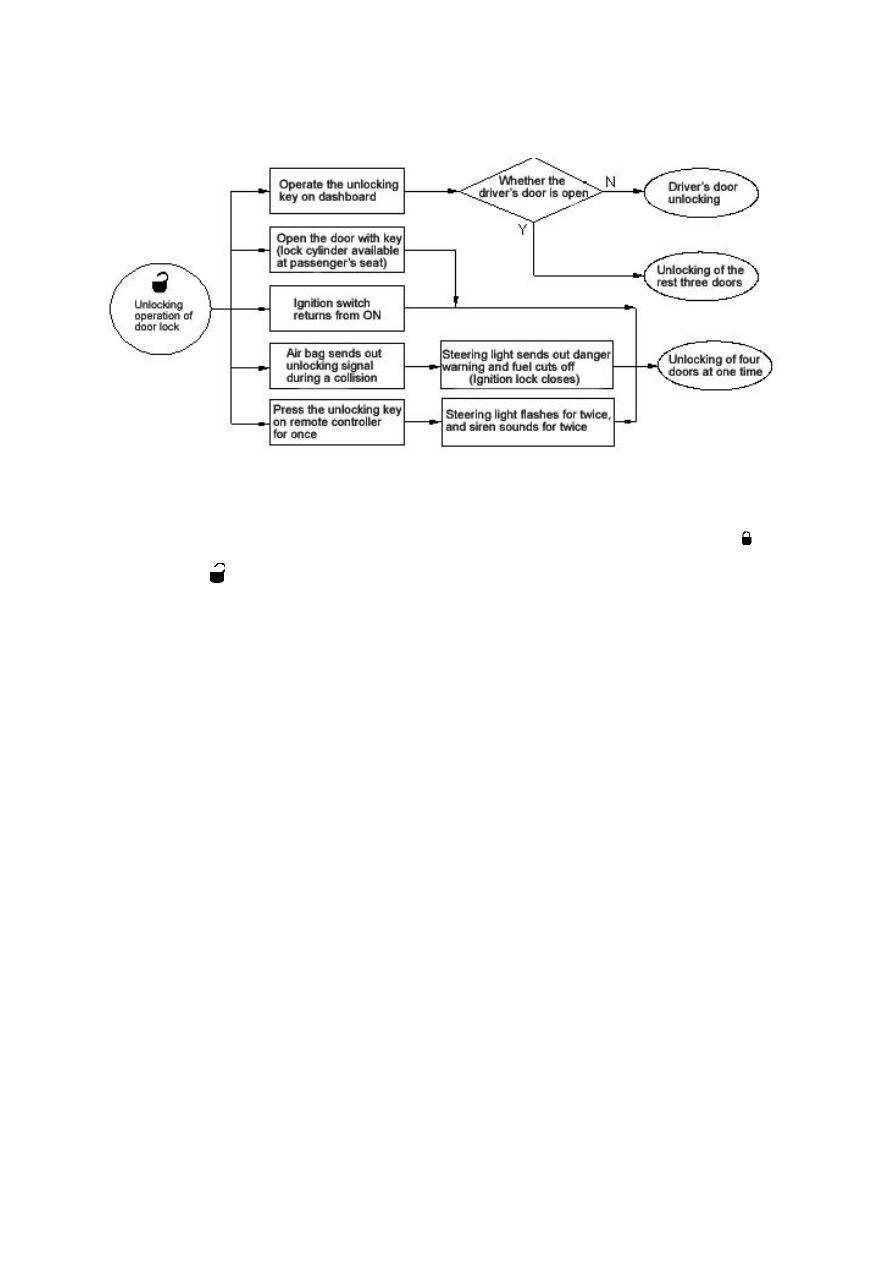

As shown in Fig. 4-41.








①

 If any of the doors is not opened within 30 seconds, the four doors lock, burglar indicator

②
flashes, together with fuel cut-off and brake to indicate state of alert.

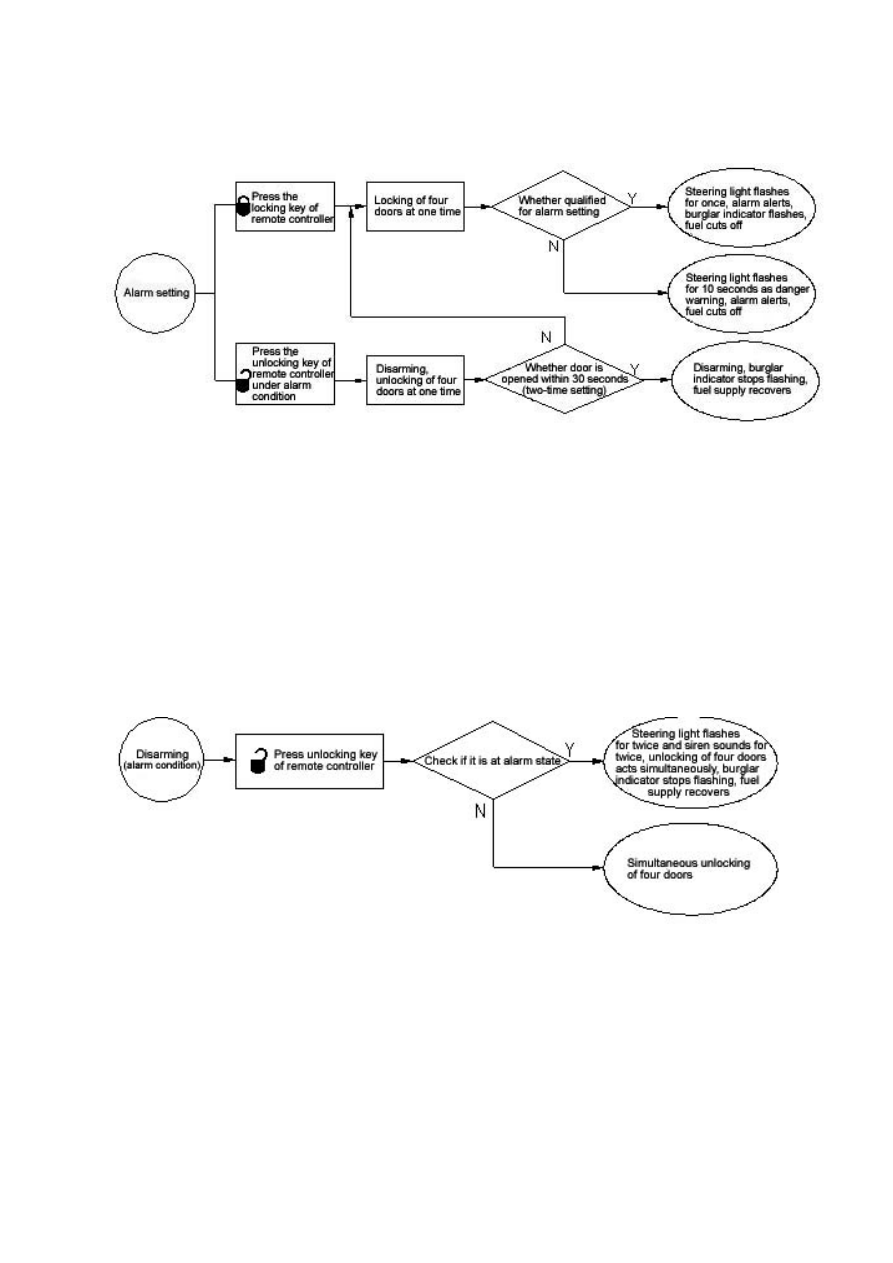

(3) Logical flow of alarm setting






219

As shown in Fig. 4-42.






Fig. 4-43



5. Locking indication
If the car is unlocked with alarm setting when it is not used, the system will determine the situation
and offer an indication.
(1) Locking alarm setting indication
1) When the ignition switch is connected, ignition key is pulled out, four doors and luggage boot
are closed, if the locking key of remote controller is pressed for alarm setting within ten seconds,
alarm setting will be implemented.

220
