6. After fixing the wire clip, make sure that it does not interfere with other movable components.
7. Keep the harness away from exhaust pipes and other heating components, edge components,
and screws or bolt mounting positions.

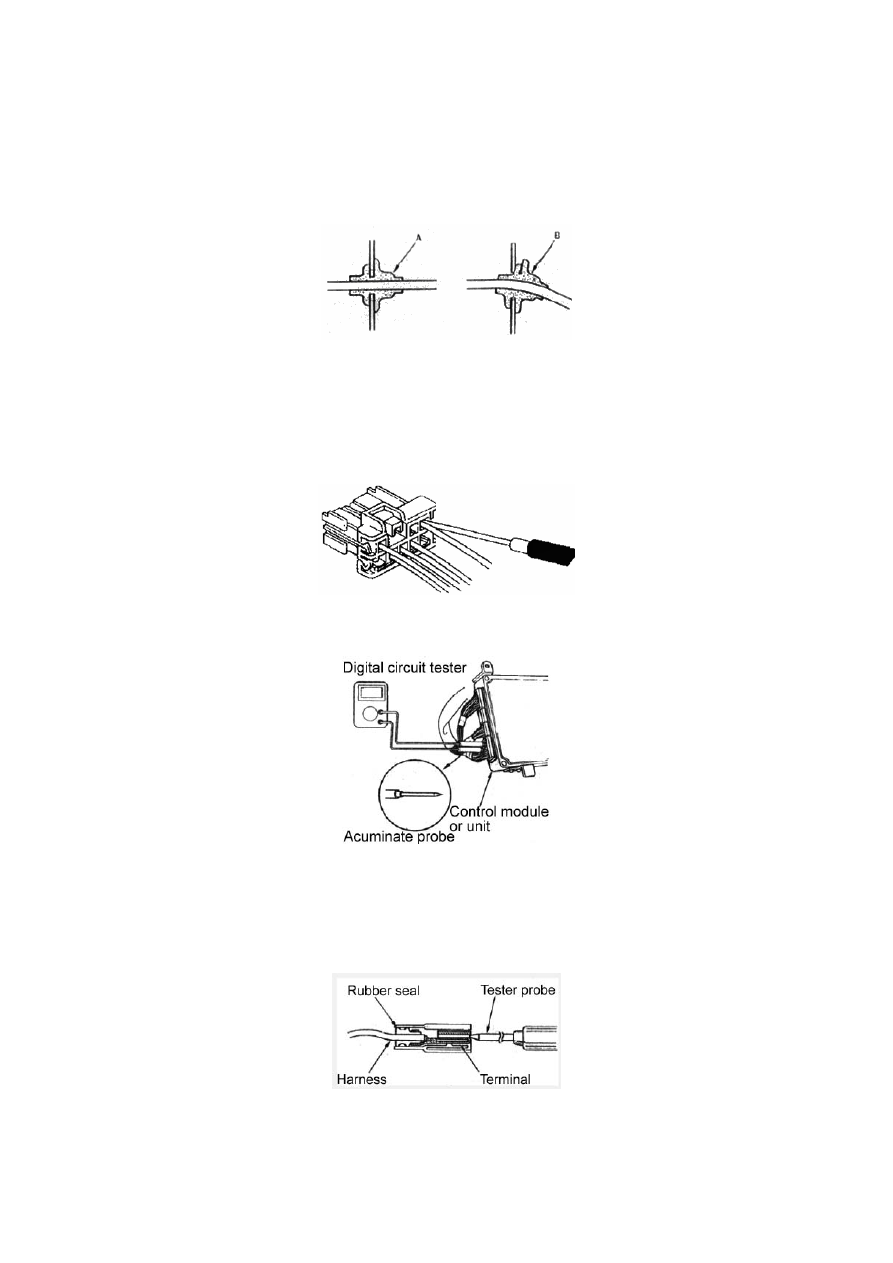

8. Locate the gum cover right into the groove of corresponding mounting hole, and be aware not to
distort the gum cover (B). (Fig. 4-8)



Fig. 4-11

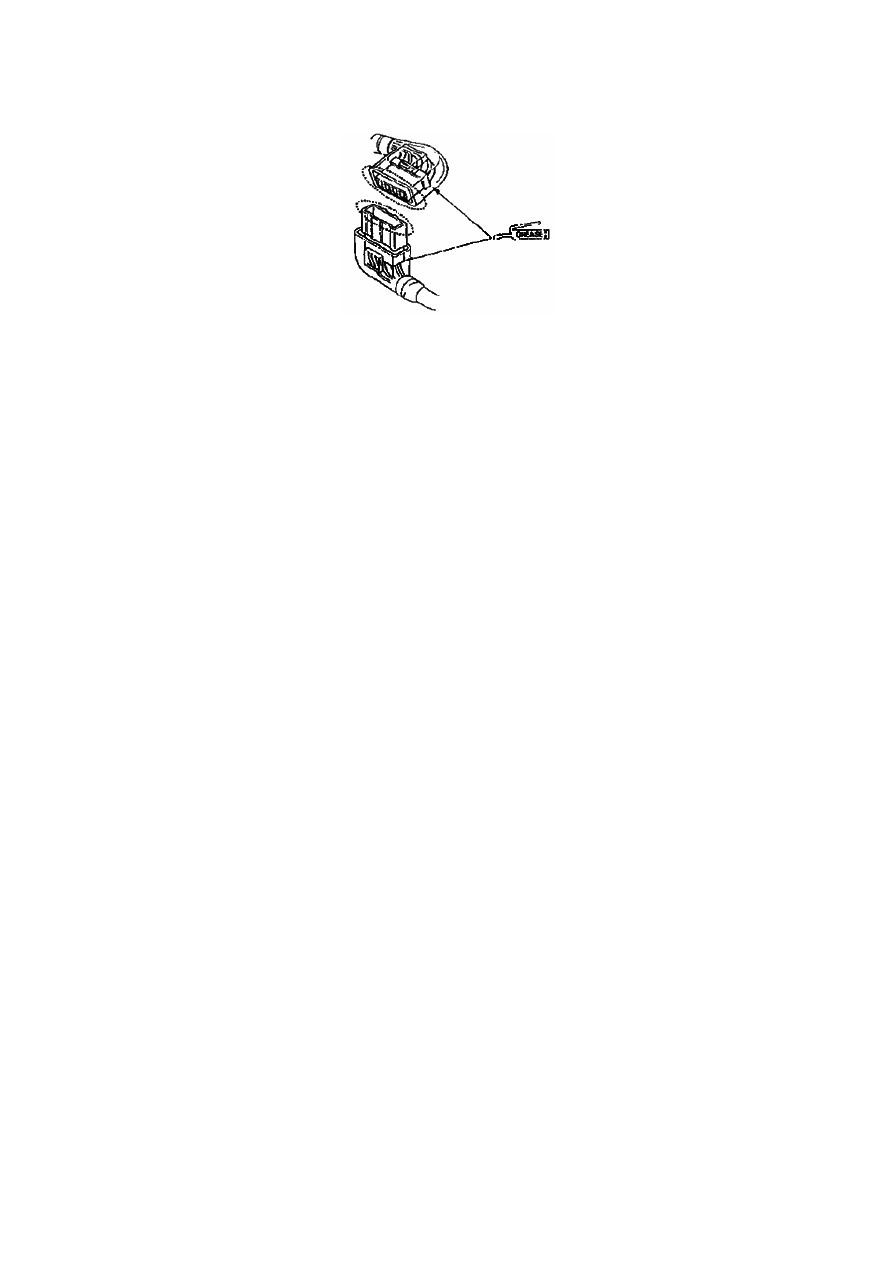

15. Some interfaces have back filled with grease, make refill when necessary, if the grease is

193

contaminated, change it. Refer to Fig. 4-12.



Fig. 4-12

①

②

 Make a record

③

of current environment

2. Trouble record and analysis
Make an inquiry on trouble details, like the status and environment when the trouble occurs.
3. Symptom verification and DTC inspection



①

Check the battery voltage during engine flameout



②

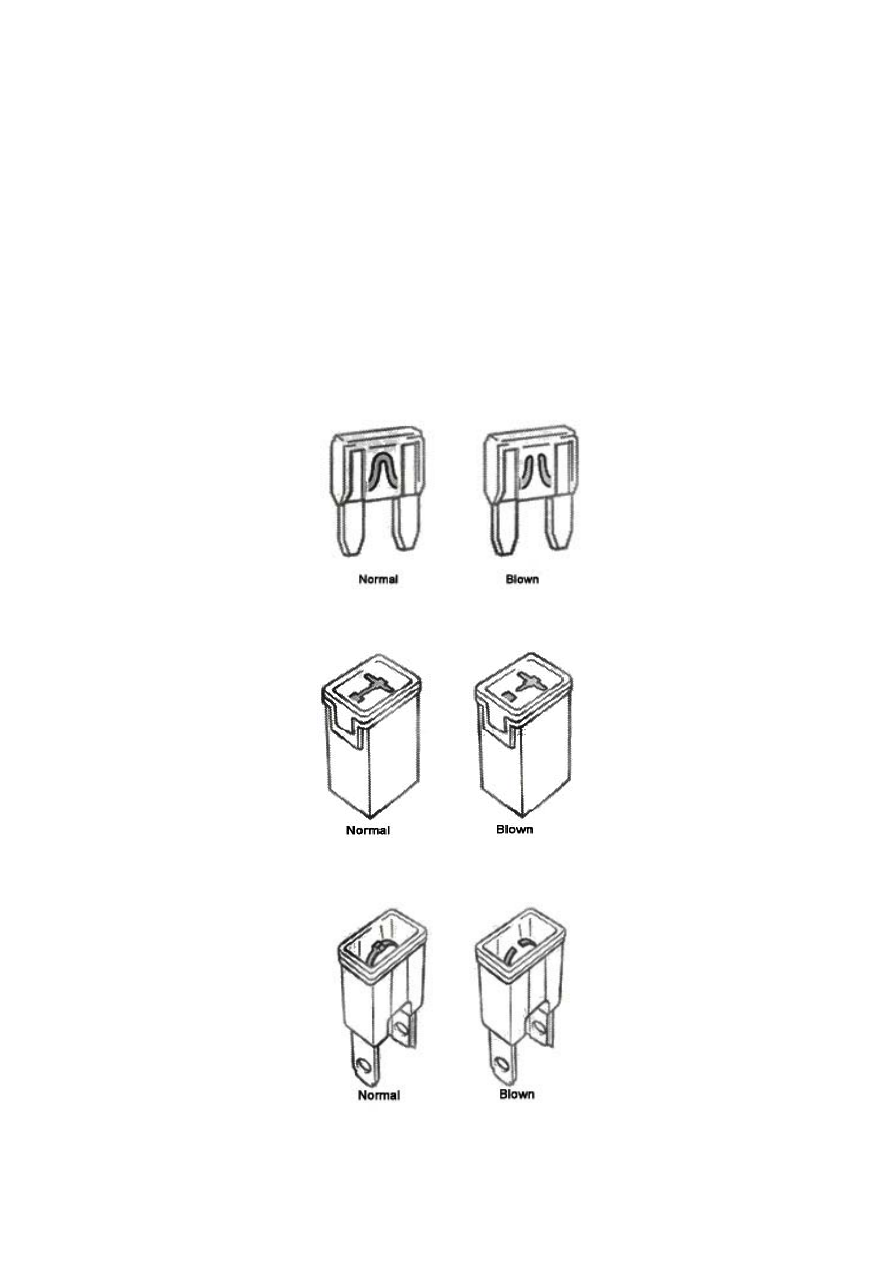

Check the harness, connector, and fuse



③

Run the engine at normal operating conditions, verify symptoms and conditions, make DTC

inspection according to the DTC attached.
4. Use of DTC or trouble symptom table

194

Work out investigational procedures and scope of systems and components concerned with the
help of DTC or trouble symptom table based on DTC data or symptoms.
5. Electrical check
Locate and figure out further causes of trouble in this way.
6. Repair
Repair damaged systems and components.
7. Validation test
Make sure if the fault is eliminated under identical environment or conditions.
8. Maintenance record
Record and file off for treatment.



Fig. 4-15

195

Section I  Instrument Cluster


I. Overview

29. Rear fog light indication                                                            30. Steering light indication, R

31. Luggage boot ajar indication                          32. Rear defroster indication

33. Trouble indication beyond engine OBD


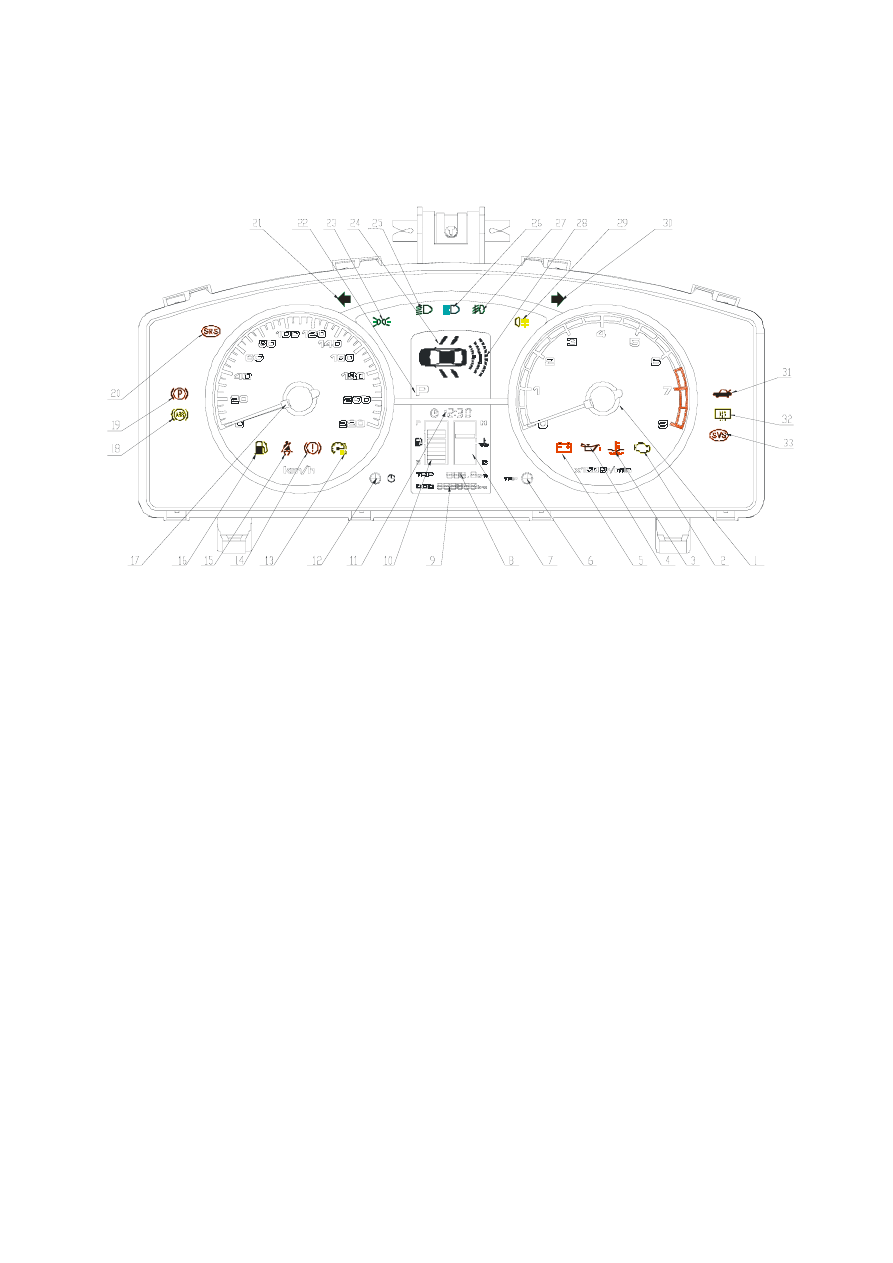

The instrument cluster as shown in Fig. 4-16 falls into electromechanical equipment, locating right
ahead of the driver, above the steering column, composed of installation parts, electrical
connections and so on. All circuits of the instrument cluster combine to form a single harness,
which is connected by interfaces at the back of cluster housing. All instruments and indicators are
under good protection behind a transparent plastic sheet, obviously seen in front of gauge cover.
