7-2. Steps to take in an emergency

When trouble

 ar

ises

6

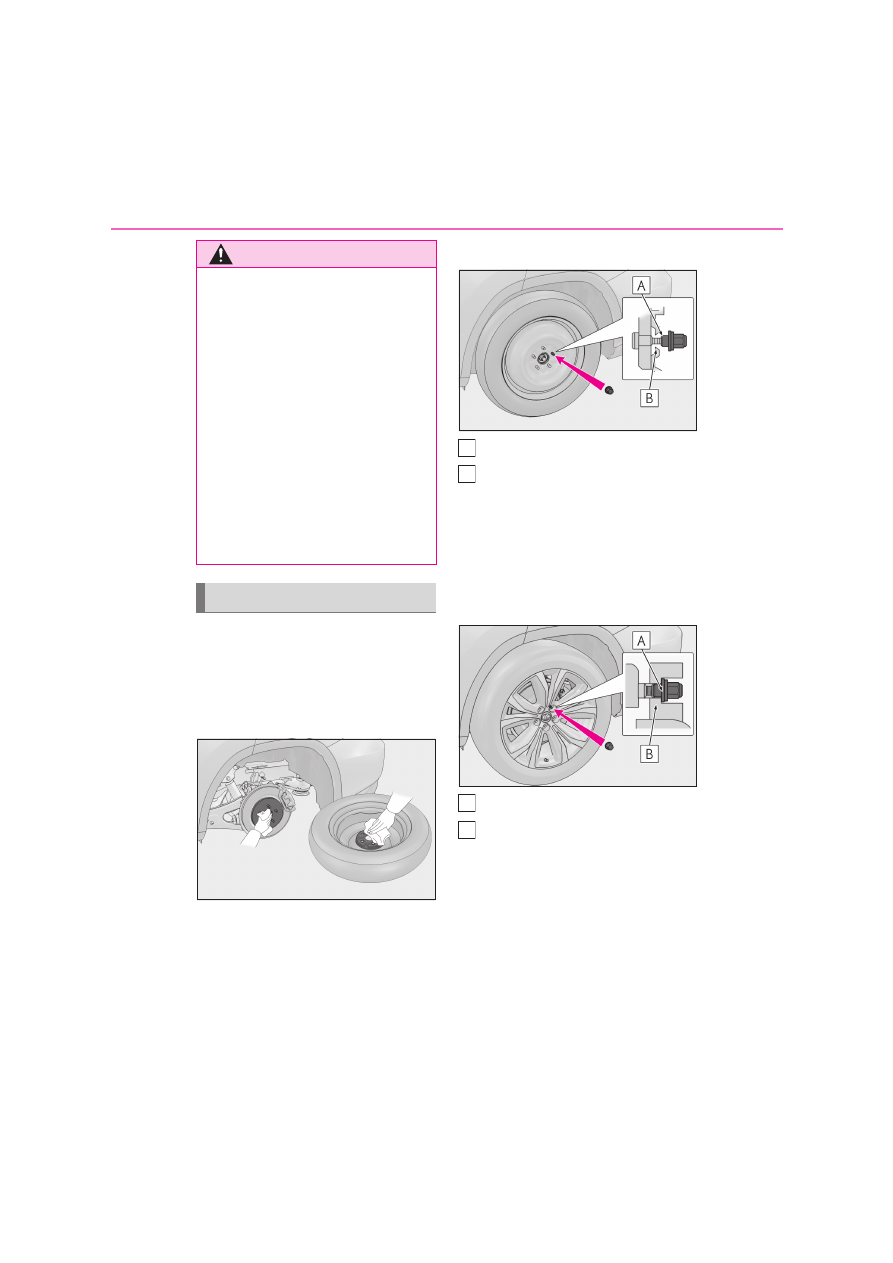

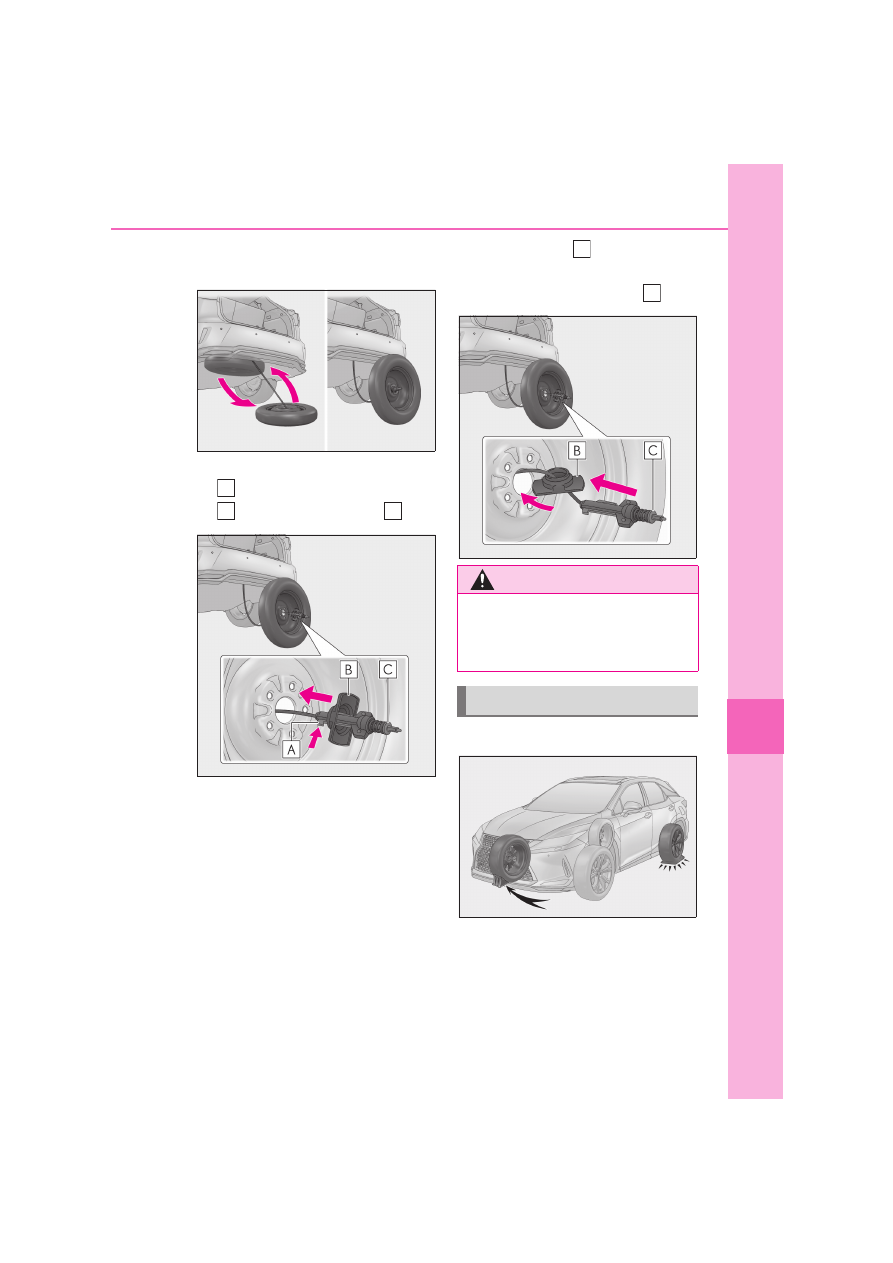

Pull out the spare tire and stand it
against the bumper.

7

Fully depress the secondary latch

 and remove the holding bracket
 from the hoist assembly  .

8

Tilt the bracket   and pass it
through the wheel opening. Then
remove the hoist assembly  .

1

Chock the tires.

A
B

C

WARNING

When storing the spare tire

Be careful not to catch fingers or other

body parts between the spare tire and

the body of the vehicle.

Replacing a flat tire

B

C

558

7-2. Steps to take in an emergency

2

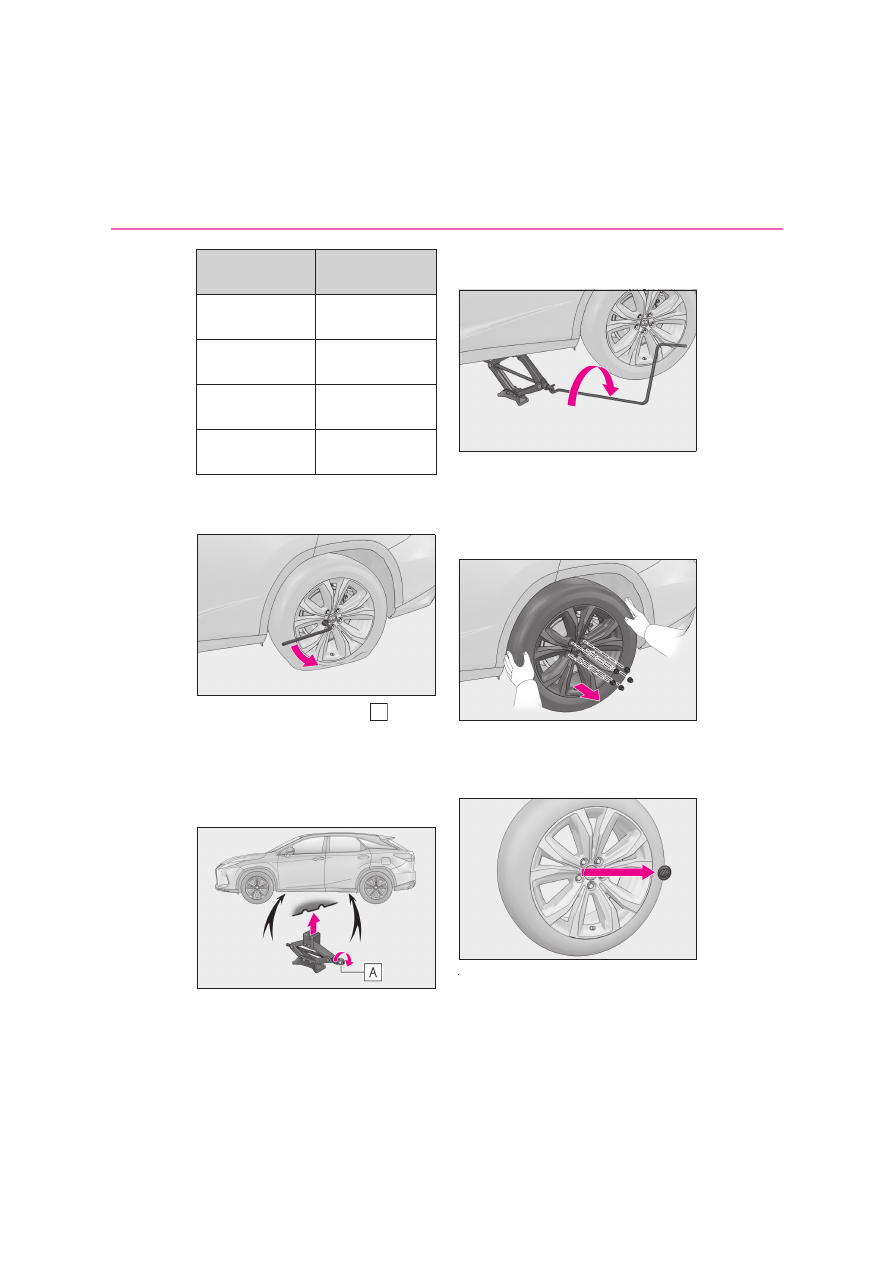

Slightly loosen the wheel nuts (one
turn).

3

Turn the tire jack portion   by
hand until the notch of the jack is in
contact with the jack point.

The jack point guides are located under

the rocker panel. They indicate the jack

point positions.

4

Raise the vehicle until the tire is
slightly raised off the ground.

5

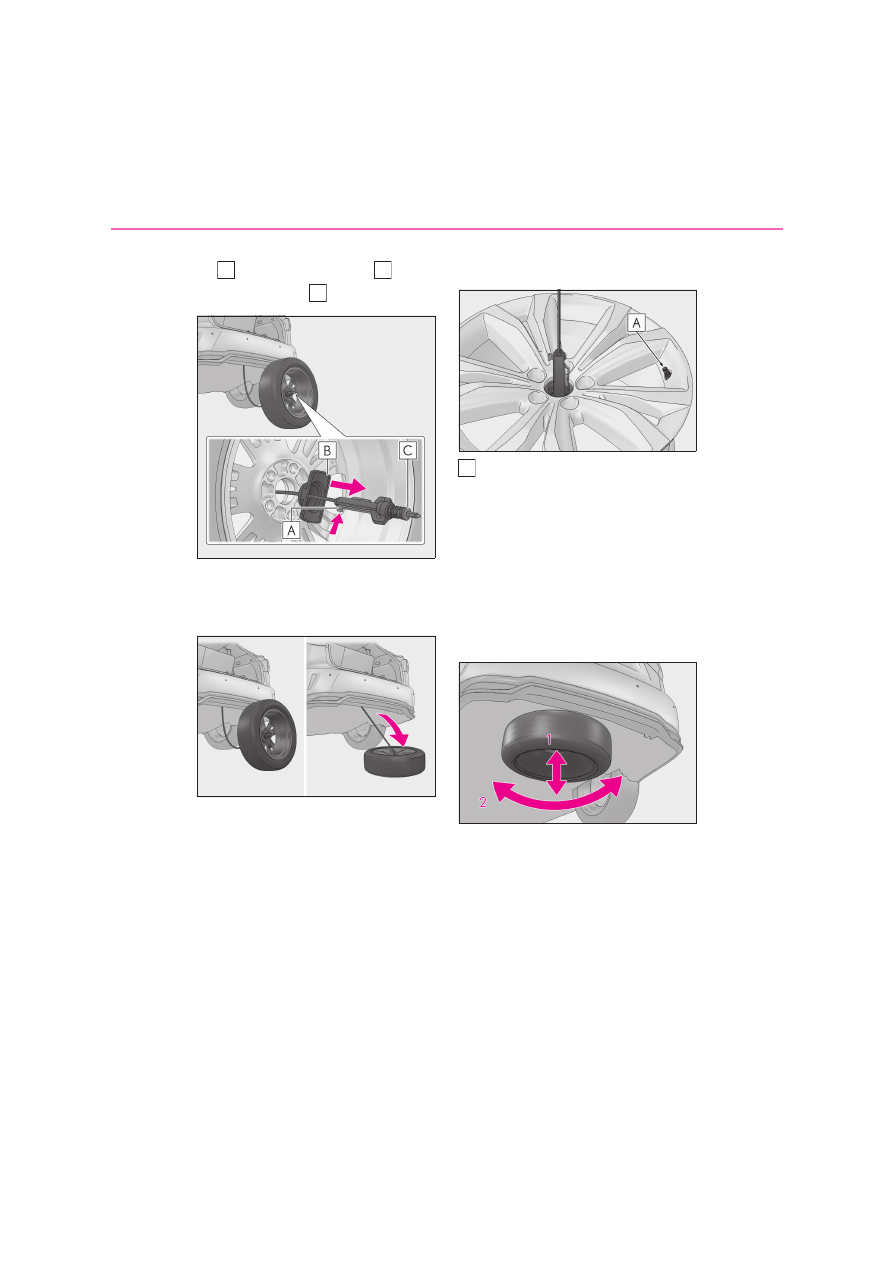

Remove all the wheel nuts and the
tire.

When resting the tire on the ground, place

the tire so that the wheel design faces up to

avoid scratching the wheel surface.

6

Type B: Remove the wheel orna-
ment by pushing from the reverse
side.

If the spare tire cannot be lowered (Type

C)

If the spare tire cannot be lowered, it may

Flat tire

Wheel chock posi-

tions

Front left-hand side

Behind the rear
right-hand side tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand side

In front of the front
right-hand side tire

Rear right-hand side

In front of the front
left-hand side tire

A

559

7

7-2. Steps to take in an emergency

When trouble

 ar

ises

not have been stowed properly. Perform the

following procedure:

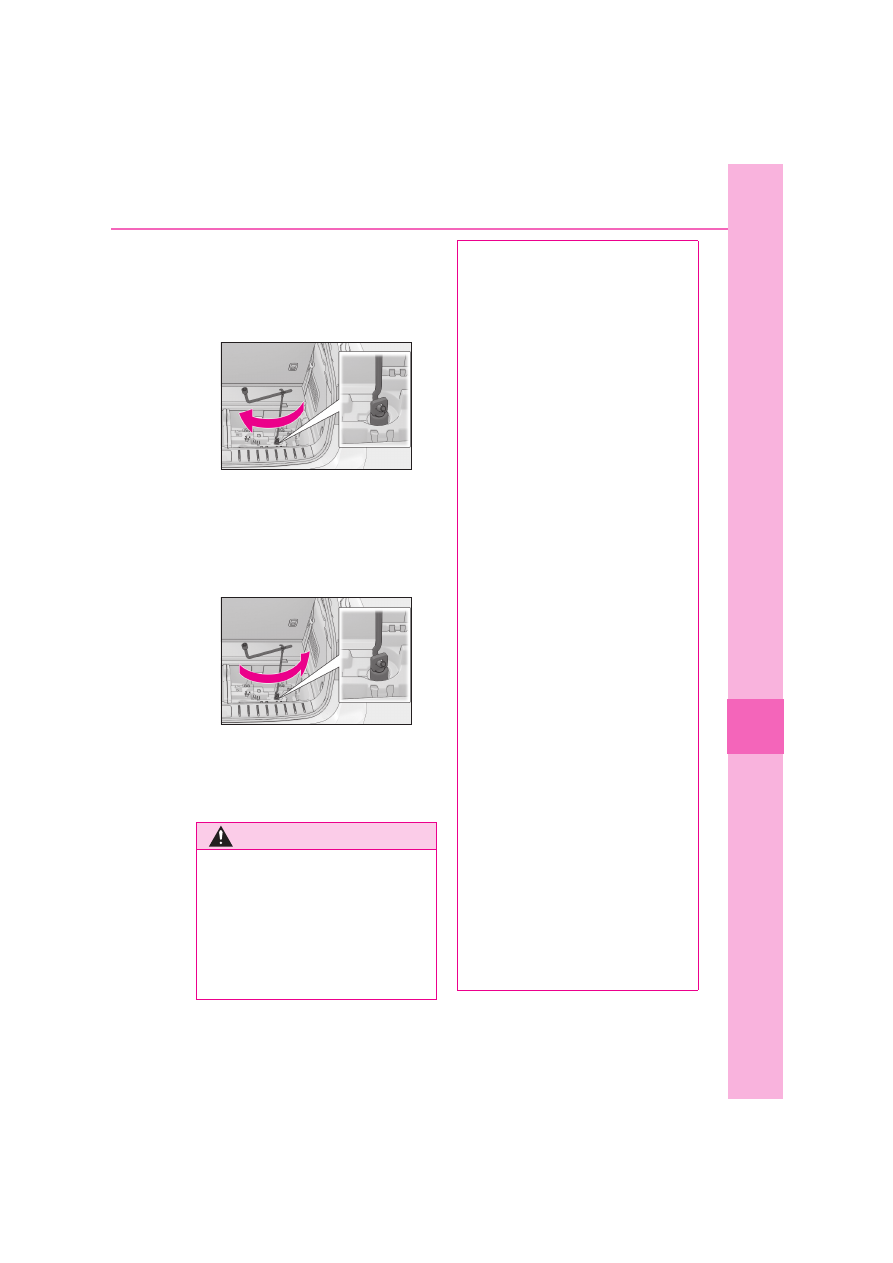

1

Fully tighten the spare tire clamp bolt by

turning the jack handle clockwise until

two clicks are heard and the jack handle

skips.

2

Turn the jack handle counterclockwise

to lower the spare tire.

If the spare tire still cannot be lowered,

attempt to fully tighten the spare tire clamp

bolt again by turning the jack handle clock-

wise. Then turn it counterclockwise at least

2 turns to lower the spare tire.

If the spare tire still cannot be lowered, the

wire cable may be severed. Have the vehi-

cle inspected by any authorized Lexus

retailer or Lexus authorized repairer, or any

reliable repairer.

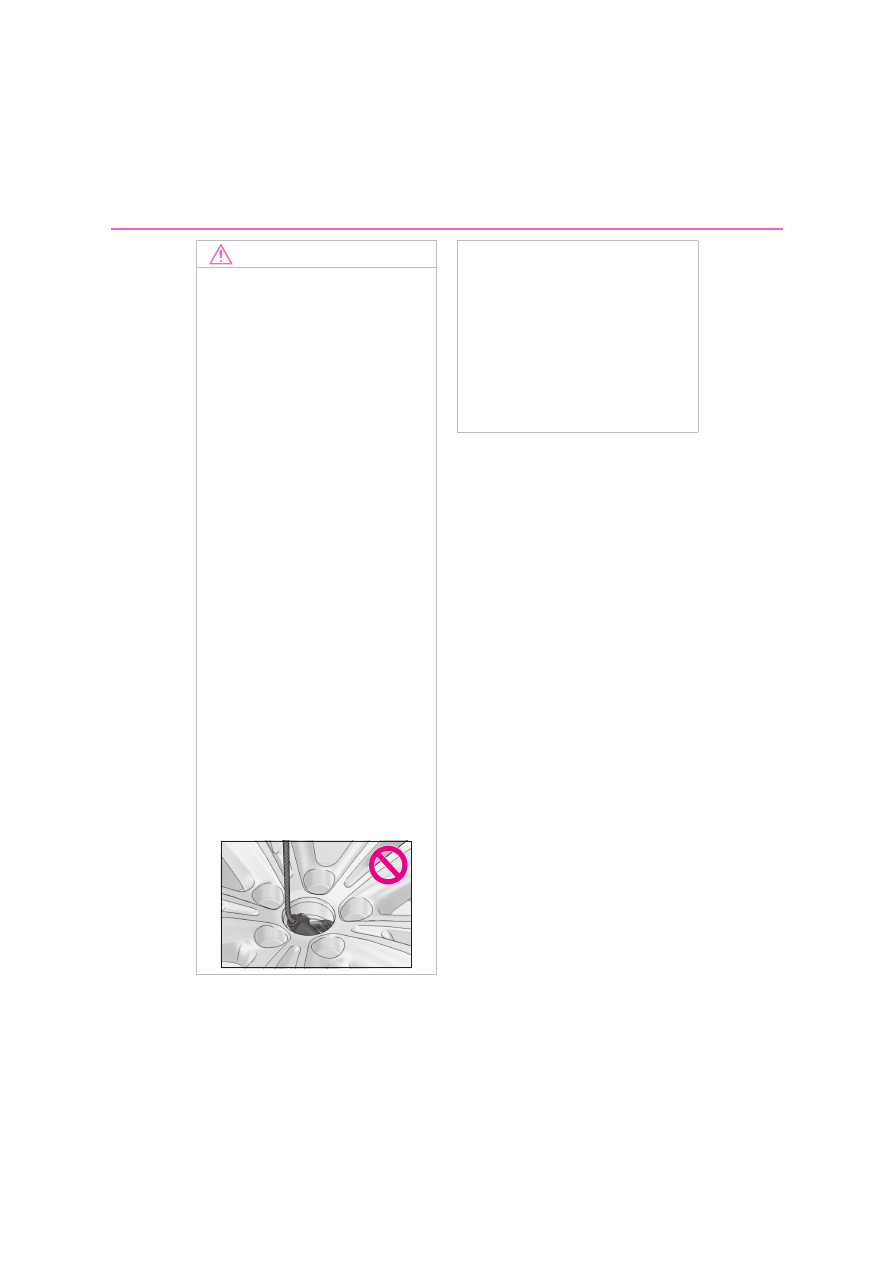

WARNING

Replacing a flat tire

Observe the following precautions.

Failure to do so may result in serious

injury:

• Do not try to remove the wheel orna-

ment by hand. Take due care in han-

dling the ornament to avoid

unexpected personal injury.

• Do not touch the disc wheels or the

area around the brakes immediately

after the vehicle has been driven.

After the vehicle has been driven the

disc wheels and the area around the

brakes will be extremely hot. Touching

these areas with hands, feet or other

body parts while changing a tire, etc.

may result in burns.

Failure to follow these precautions

could cause the wheel nuts to loosen

and the tire to fall off, resulting in death

or serious injury.

• Never use oil or grease on the wheel

bolts or wheel nuts.

Oil and grease may cause the wheel

nuts to be excessively tightened, lead-

ing to bolt or disc wheel damage. In

addition, the oil or grease can cause

the wheel nuts to loosen and the wheel

may fall off, causing an accident and

resulting in death or serious injury.

Remove any oil or grease from the

wheel bolts or wheel nuts.

• Have the wheel nuts tightened with a

torque wrench to 103 N•m (10.5

kgf•m, 76 ft•lbf) as soon as possible

after changing wheels.

• When installing a tire, only use wheel

nuts that have been specifically

designed for that wheel.

• If there are any cracks or deformations

in the bolt screws, nut threads or bolt

holes of the wheel, have the vehicle

inspected by any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer.

• Do not attach a heavily damaged

wheel ornament, as it may fly off the

wheel while the vehicle is moving.

Observe the following precautions.

(Type C)

Failure to do so may result in serious

injury:

560

7-2. Steps to take in an emergency

1

Remove any dirt or foreign matter
from the wheel contact surface.

If foreign matter is on the wheel contact

surface, the wheel nuts may loosen while

the vehicle is in motion, causing the tire to

come off.

2

Install the spare tire and loosely
tighten each wheel nut by hand by
approximately the same amount.

Vehicles with a compact spare tire

Tapered portion
Disc wheel seat

Tighten the wheel nuts until the tapered
portion comes into loose contact with the
disc wheel seat.

Vehicles with a full-size spare tire

Turn the wheel nuts until the washers come
into contact with the disc wheel.

Washer
Disc wheel

WARNING

• Do not try to remove the wheel orna-

ment by hand. Take due care in han-

dling the ornament to avoid

unexpected personal injury.

• Lower the spare tire completely to the

ground before removing it from under

the vehicle.

Replacing a flat tire for vehicles with

power back door

In cases such as when replacing tires,

make sure to canceling the power back

door system (

P.592). Failure to do so

may cause the back door to operate

unintentionally if the power back door

switch is accidentally touched, resulting

in hands and fingers being caught and

injured.

Installing the spare tire

A
B

A
B

561

7

7-2. Steps to take in an emergency

When trouble

 ar

ises

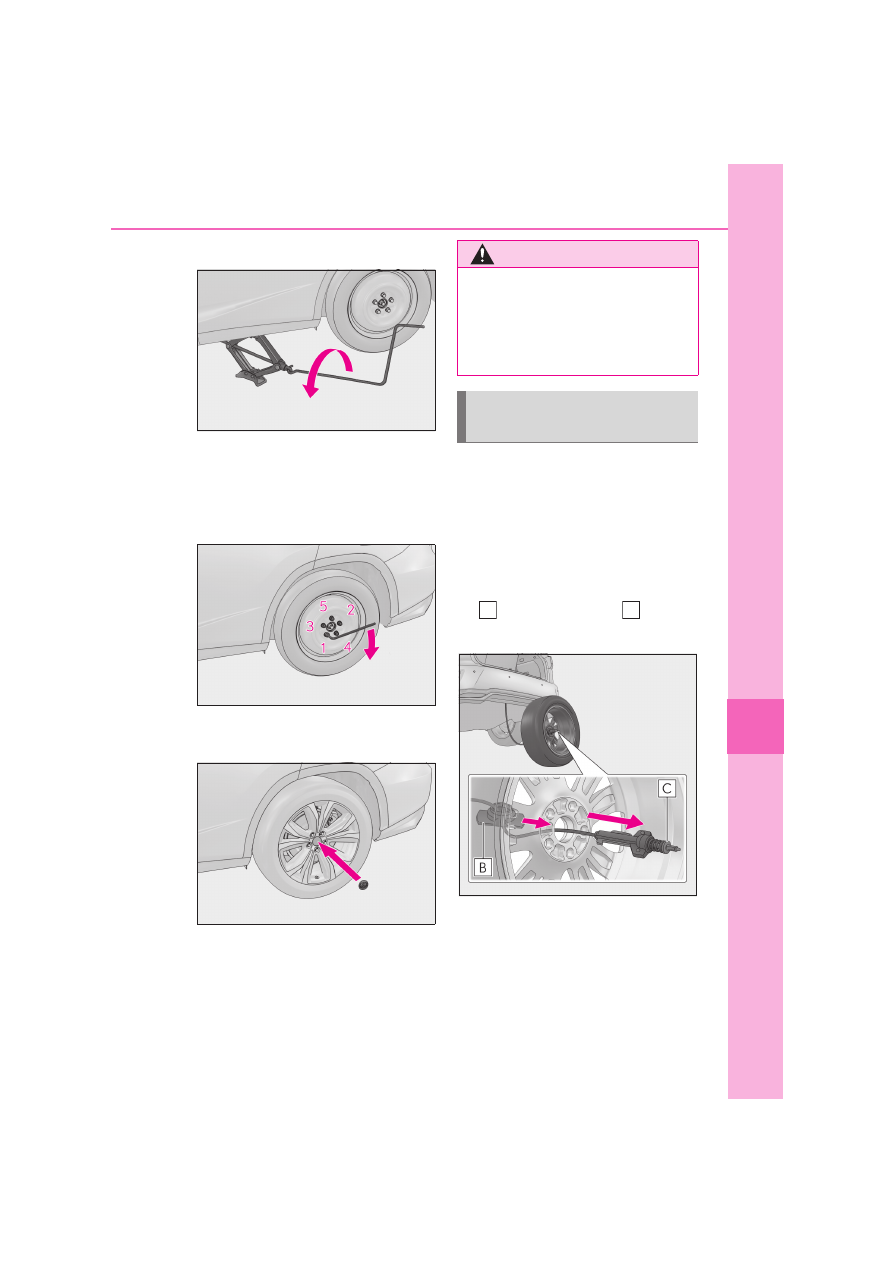

3

Lower the vehicle.

4

Firmly tighten each wheel nut two
or three times in the order shown in
the illustration.

Tightening torque:

103 N•m (10.5 kgf•m, 76 ft•lbf)

5

Type B: Reinstall the wheel orna-
ment.

6

Type A and B: Stow the flat tire, tire
jack and all tools.
Type C:

P.561

1

Remove the center wheel orna-
ment by pushing from the reverse
side.

Be careful not to lose the wheel ornament.

2

Stand the tire against the bumper
with the inner surface facing
toward you. Pass the hoist assembly

 and holding bracket   through

the wheel opening.

WARNING

Stowing the flat tire

Failure to follow steps listed under stow-

ing the tire may result in damage to the

spare tire carrier and loss of the tire,

which could result in serious injury or

death.

Stowing the flat tire, jack and all
tools (Type C)

C

B

562

7-2. Steps to take in an emergency

3

Fully depress the secondary latch

 and install the bracket   to the

hoist assembly  .

4

Lay the tire on the ground with the
outer surface (valve stem) facing
up.

5

Before raising the tire, make sure
that the hoist assembly is perpen-
dicular to the wheel opening. (Try to
place the tire directly beneath the

vehicle, near where the wire cable
is hanging from.)

Valve stem

6

Using the jack handle and adapter
socket, tighten the tire clamp bolt
by turning it clockwise until the tire
is in the correct position and two
clicks are heard as the jack handle
skips.

7

Confirm it is not loose after tighten-
ing:

1

Push and pull the tire

2

Try rotating

Visually check to ensure tire is not hung on

surrounding parts.

If looseness or misassembly exists, repeat

steps

2

 to

7

.

8

Repeat step

7

, any time the tire is

lowered or disturbed.

9

Stow the jack and all tools.

A

B

C

A

563

7

7-2. Steps to take in an emergency

When trouble

 ar

ises

The compact spare tire (vehicles with a

compact spare tire)

The compact spare tire is identified by the

label “TEMPORARY USE ONLY” on

the tire sidewall. Use the compact spare

tire temporarily, and only in an emer-

gency.

Make sure to check the tire inflation pres-

sure of the compact spare tire. (

P.589)

When using the compact spare tire

(vehicles with a compact spare tire)

As the compact spare tire is not equipped

with a tire pressure warning valve and trans-

mitter, low inflation pressure of the spare

tire will not be indicated by the tire pressure

warning system. Also, if you replace the

compact spare tire after the tire pressure

warning light comes on, the light remains

on.

When the compact spare tire is

equipped (vehicles with a compact

spare tire)

When driving with the compact spare tire

installed, the vehicle height will be different

than when driving with standard tires.

If you have a flat front tire on a road cov-

ered with snow or ice (vehicles with a

compact spare tire)

Install the compact spare tire on one of the

rear wheels of the vehicle. Perform the fol-

lowing steps and fit tire chains to the front

tires:

1

Replace a rear tire with the compact

spare tire.

2

Replace the flat front tire with the tire

removed from the rear of the vehicle.

3

Fit tire chains to the front tires.

565

7

7-2. Steps to take in an emergency

When trouble

 ar

ises

WARNING

When the compact spare tire is

attached (vehicles with a compact

spare tire)

The vehicle speed may not be correctly

detected, and the following systems may

not operate correctly:

• ABS & Brake assist

• VSC

• TRC

• Trailer Sway Control

• EPS

• VDIM (if equipped)

• Adaptive Variable Suspension System

(if equipped)

• Cruise control (if equipped)

• Dynamic radar cruise control with

full-speed range (if equipped)

• PCS (Pre-Collision System)

• LTA (Lane Tracing Assist) (if equipped)

• RSA (Road Sign Assist) (if equipped)

• Automatic High Beam (if equipped)

• AHS (Adaptive High-beam System) (if

equipped)

• Tire pressure warning system

• Lexus parking assist-sensor (if

equipped)

• PKSB (Parking Support Brake) (if

equipped)

• Lexus parking assist monitor (if

equipped)

• Panoramic view monitor (if equipped)

• BSM (Blind Spot Monitor) (if

equipped)

• Navigation system (if equipped)

Also, not only can the following system

not be utilized fully, but it may even nega-

tively affect the drive-train components:

• AWD system (AWD models)

Speed limit when using the compact

spare tire (vehicles with a compact

spare tire)

Do not drive at speeds in excess of 80

km/h (50 mph) when a compact spare

tire is installed on the vehicle.

The compact spare tire is not designed

for driving at high speeds. Failure to

observe this precaution may lead to an

accident causing death or serious injury.

After using the tools and jack

Before driving, make sure all the tools

and jack are securely in place in their

storage location to reduce the possibility

of personal injury during a collision or

sudden braking.

NOTICE

Be careful when driving over bumps

with the compact spare tire installed

on the vehicle (vehicles with a com-

pact spare tire)

The vehicle becomes lower when driving

with the compact spare tire compared to

when driving with standard tires. Be

careful when driving over uneven road

surfaces.

Driving with tire chains and the com-

pact spare tire (vehicles with a com-

pact spare tire)

Do not fit tire chains to the compact

spare tire. Tire chains may damage the

vehicle body and adversely affect driving

performance.

566

7-2. Steps to take in an emergency

NOTICE

When replacing the tires

When removing or fitting the wheels,

tires or the tire pressure warning valve

and transmitter, contact any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer as the

tire pressure warning valve and transmit-

ter may be damaged if not handled cor-

rectly.

When stowing the flat tire (Type C)

Ensure that there is no object caught

between the tire and the vehicle

underbody.

Securely tighten the spare tire clamp

bolt to hold the spare wheel carrier by

the hook.

Stow the flat tire in the spare tire loca-

tion. Failure to do so may cause dam-

age to the spare tire carrier. Proper

storage reduces the possibility of injury

in a collision or during sudden braking.

Have the flat tire repaired and the

spare tire replaced with it as soon as

possible.

Proper storage of the spare tire (Type

C)

If the hoist assembly is slanted when

stowing a tire, the hoist assembly may

become stuck in the wheel opening

and the tire may not be raised properly,

causing damage to the wheel or the

wire cable.

Do not attempt to turn the spare tire

clamp bolt without a tire on the hoist

assembly, as doing so may cause the

wire cable to slip off of the shaft inside

the unit and the wire cable may not be

able to be raised or lowered. If the

spare tire clamp bolt has been turned

without a tire on the hoist assembly

and the wire cable cannot be raised or

lowered, contact any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer.

567

7

7-2. Steps to take in an emergency

When trouble

 ar

ises

One of the following may be the cause
of the problem:

There may not be sufficient fuel in
the vehicle’s tank.
Refuel the vehicle.

The engine may be flooded.
Try to restart the engine again fol-
lowing correct starting procedures.
(

P.259)

There may be a malfunction in the
engine immobilizer system.
(

P.63)

One of the following may be the cause
of the problem:

The battery may be discharged.
(

P.572)

The battery terminal connections
may be loose or corroded.
(

P.475)

The engine starting system may be
malfunctioning due to an electrical
problem such as electronic key battery
depletion or a blown fuse. However, an
interim measure is available to start the
engine. (

P.567)

One of the following may be the cause
of the problem:

One or both of the battery terminals
may be disconnected. (

P.475)

The battery may be discharged.
(

P.572)

There may be a malfunction in the
steering lock system.

Contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable
repairer if the problem cannot be repaired,
or if repair procedures are unknown.

When the engine does not start, the
following steps can be used as an
interim measure to start the engine if
the engine switch is functioning nor-
mally.
Do not use this starting procedure
except in cases of emergency.

If the engine will not start

If the engine will not start even
though correct starting procedures
are being followed (

P.259), con-

sider each of the following points:

The engine will not start even
though the starter motor oper-
ates normally.

The starter motor turns over
slowly, the interior lights and
headlights are dim, or the horn
does not sound or sounds at a low
volume.

The starter motor does not turn
over

The starter motor does not turn
over, the interior lights and head-
lights do not turn on, or the horn
does not sound.

Starting the engine in an emer-
gency

568

7-2. Steps to take in an emergency

1

Turn the engine switch to IGNI-
TION ON mode and check that
the parking brake is set. (

P.261,

269)

2

Shift the shift lever to P.

3

Turn the engine switch to ACCES-
SORY mode.

4

Press and hold the engine switch
for about 15 seconds while
depressing the brake pedal firmly.

Even if the engine can be started using
the above steps, the system may be
malfunctioning. Have the vehicle
inspected by any authorized Lexus
retailer or Lexus authorized repairer,
or any reliable repairer.

If you lose your keys

New genuine mechanical keys can
be made by any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer
using another mechanical key and
the key number stamped on your
key number plate.

Keep the plate in a safe place such
as your wallet, not in the vehicle.

NOTICE

When an electronic key is lost

If the electronic key remains lost, the risk

of vehicle theft increases significantly.

Visit any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer immediately with all remaining

electronic keys and the card key (if

equipped) that were provided with your

vehicle.

569

7

7-2. Steps to take in an emergency

When trouble

 ar

ises

RX300/RX350

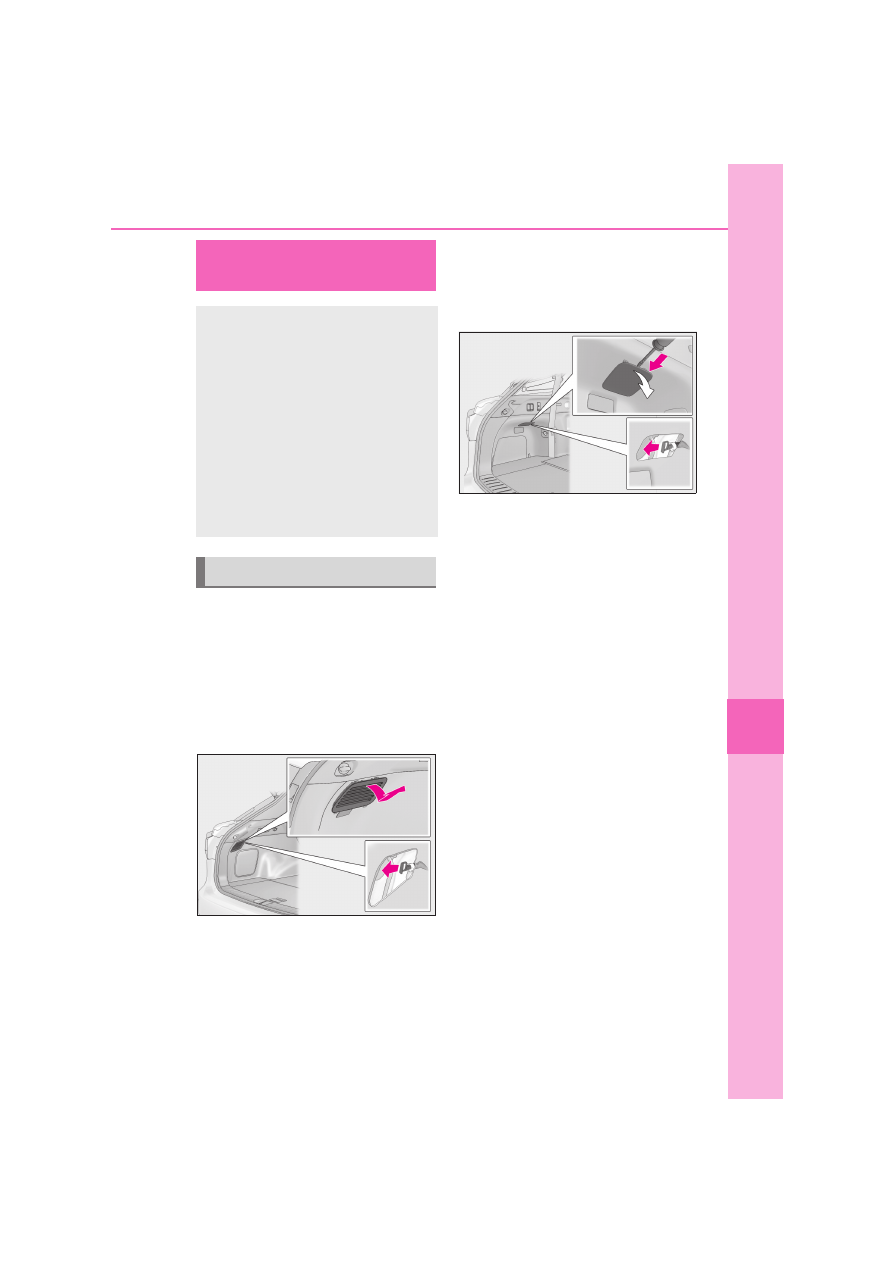

If the fuel filler door cannot be opened
by pressing the rear edge of the fuel
filler door with the doors unlocked,
remove the cover inside the luggage
compartment and pull the lever to
open the fuel filler door.

RX350L

If the fuel filler door cannot be opened
by pressing its rear edge with the doors
unlocked, remove the cover inside the
luggage compartment using a tool,

such as a flathead screwdriver, and pull
the lever to open the fuel filler door.

When using a screwdriver, make sure to
wrap its tip with tape to protect the cover.

If the fuel filler door cannot
be opened

If the fuel filler door cannot be
opened by pressing the center of
the rear edge of the fuel filler door
with the doors unlocked, contact
any authorized Lexus retailer or
Lexus authorized repairer, or any
reliable repairer to service the
vehicle. In case where refueling is
urgently necessary, the following
procedure can be used to open the
fuel filler door.

Opening the fuel filler door

570

7-2. Steps to take in an emergency

When the electronic key does not work

properly

Make sure that the smart entry & start

system has not been disabled using the

Remote Touch or at any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer. If it has been disa-

bled, re-enable it.

Check if battery-saving mode is set. If it is

set, cancel the function. (

P.133)

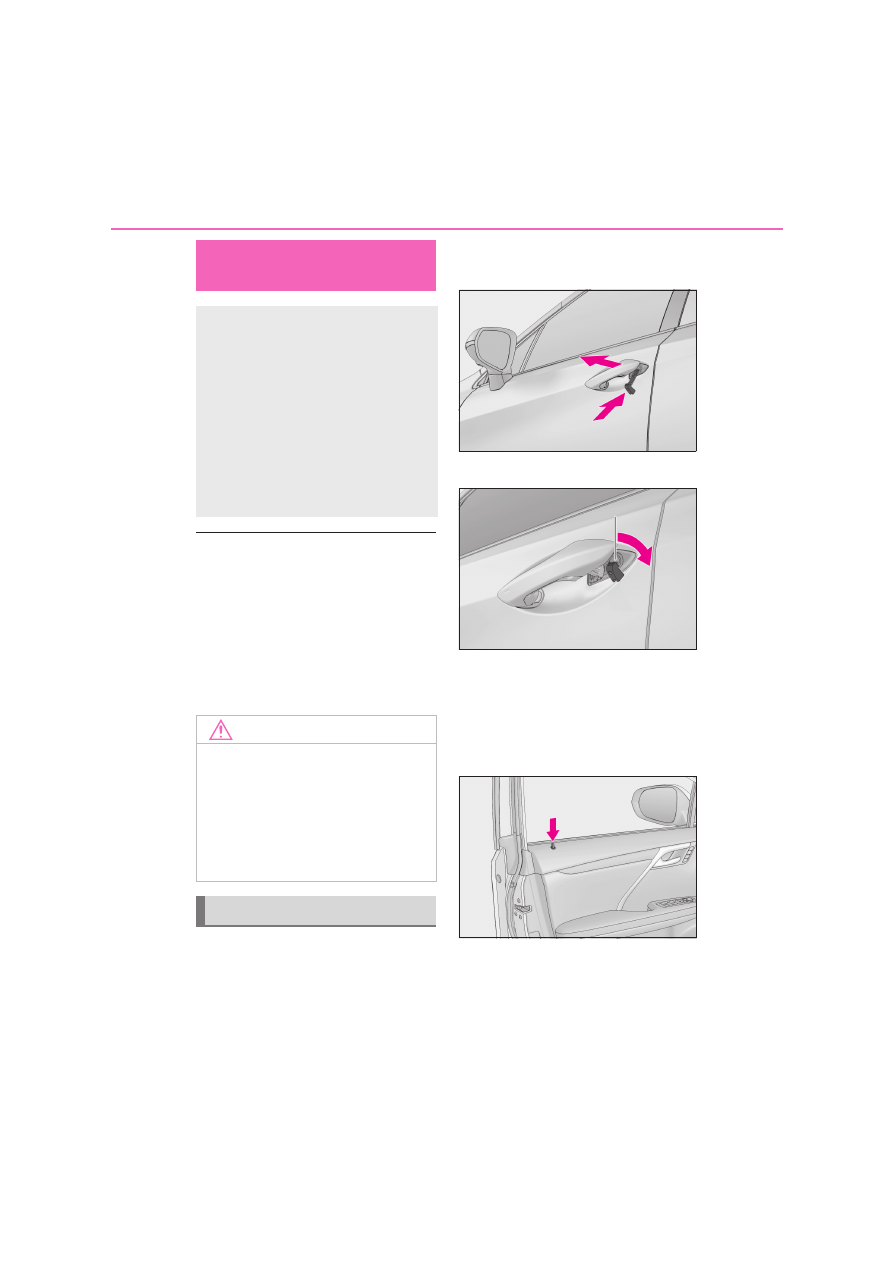

Unlocking the door

Use the mechanical key (

P.110) in

order to perform the following opera-
tions:

1

Insert the mechanical key while
pulling on the driver’s door handle.

2

Unlock the door.

3

Remove the key, return the handle,
and then pull the handle again.

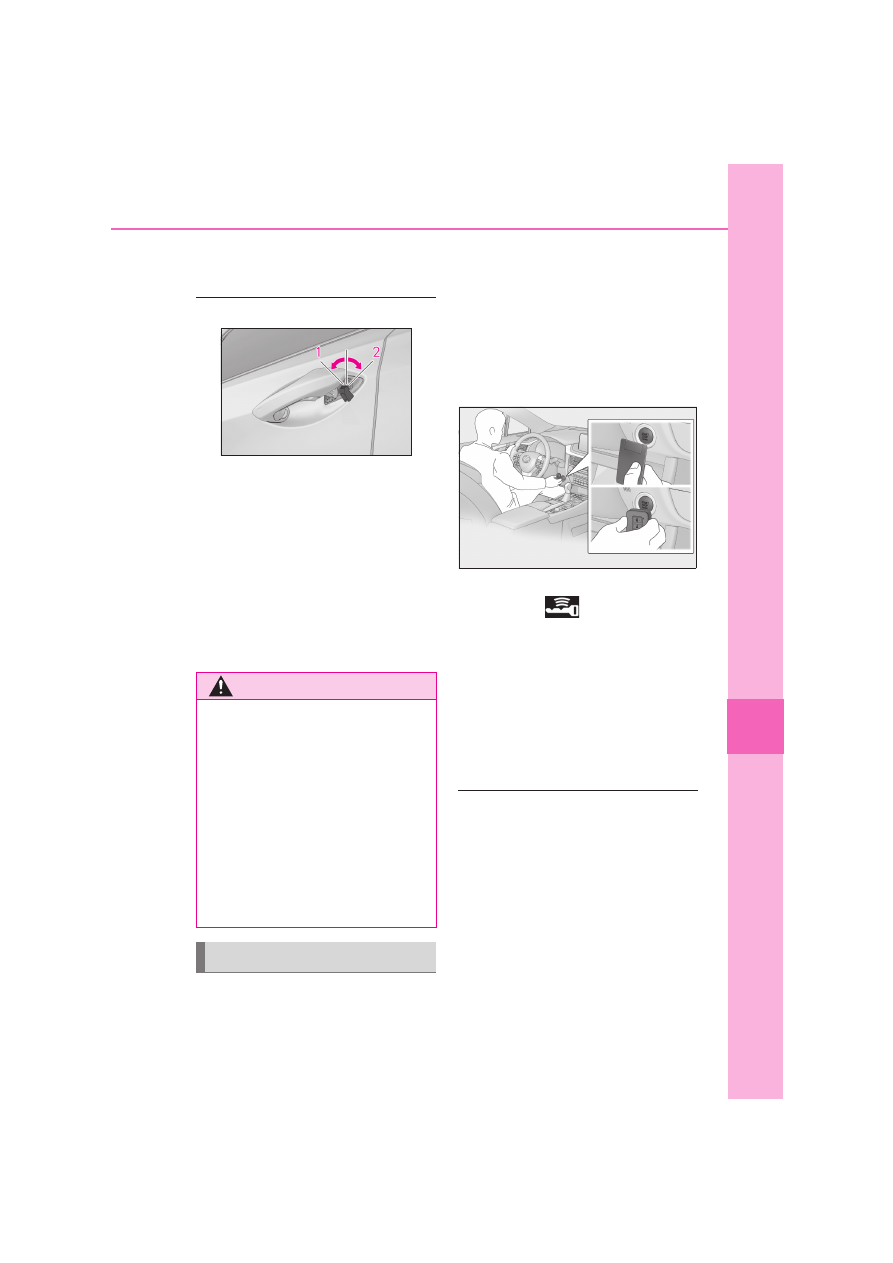

Locking the door

1

With the door open, push down the
inside lock button.

For the front doors

2

Close the door while pulling the
door handle.

If the electronic key does not
operate properly

If communication between the
electronic key and vehicle is inter-
rupted (

P.133) or the electronic

key cannot be used because the
battery is depleted, the smart entry
& start system and wireless remote
control cannot be used. In such
cases, the doors can be opened and
the engine can be started by follow-
ing the procedure below.

NOTICE

In case of a smart entry & start system

malfunction or other key-related

problems

Take your vehicle with all the electronic

keys provided with your vehicle, to any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Locking and unlocking the doors

571

7

7-2. Steps to take in an emergency

When trouble

 ar

ises

For the rear doors

2

Close the door.

Key linked functions

1

Closes the windows and the moon
roof

*

 or panoramic moon roof

*

 (turn

and hold)

2

Opens the windows and the moon
roof

*

 or panoramic moon roof

*

 (turn

and hold)

These settings must be customized at any

authorized Lexus retailer or Lexus author-

ized repairer, or any reliable repairer.

*

: If  equipped

1

Ensure that the shift lever is in P and
depress the brake pedal.

2

Touch the Lexus emblem side of the
electronic key to the engine switch.

When the electronic key is detected, a

buzzer sounds and the engine switch will

turn to IGNITION ON mode.
When the smart entry & start system is

deactivated in customization setting, the

engine switch will turn to ACCESSORY

mode.

3

Firmly depress the brake pedal and
check that

 is shown on the

multi-information display.

4

Press the engine switch shortly and
firmly.

In the event that the engine still cannot
be started, contact any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Stopping the engine

Shift the shift lever to P, set the parking

brake, and press the engine switch as you

normally do when stopping the engine.

Replacing the key battery

As the above procedure is a temporary

measure, it is recommended that the elec-

tronic key battery be replaced immediately

when the battery is depleted. (

P.504)

Alarm (if equipped)

Using the mechanical key to lock the doors

will not set the alarm system.

If a door is unlocked using the mechanical

WARNING

When using the mechanical key and

operating the power windows or the

moon roof or panoramic moon roof

Operate the power window or the moon

roof or panoramic moon roof after

checking to make sure that there is no

possibility of any passenger having any of

their body parts caught in the window or

the moon roof or panoramic moon roof.

Also, do not allow children to operate the

mechanical key. It is possible for children

and other passengers to get caught in

the power window or the moon roof or

panoramic moon roof.

Starting the engine

572

7-2. Steps to take in an emergency

key when the alarm system is set, the alarm

may be triggered. (

P.76)

Changing engine switch modes

Release the brake pedal and press the

engine switch in step

3

 above. The engine

does not start and modes will be changed

each time the switch is pressed. (

P.261)

If the vehicle battery is dis-
charged

The following procedures may be
used to start the engine if the vehi-
cle’s battery is discharged.
You can also call any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

573

7

7-2. Steps to take in an emergency

When trouble

 ar

ises

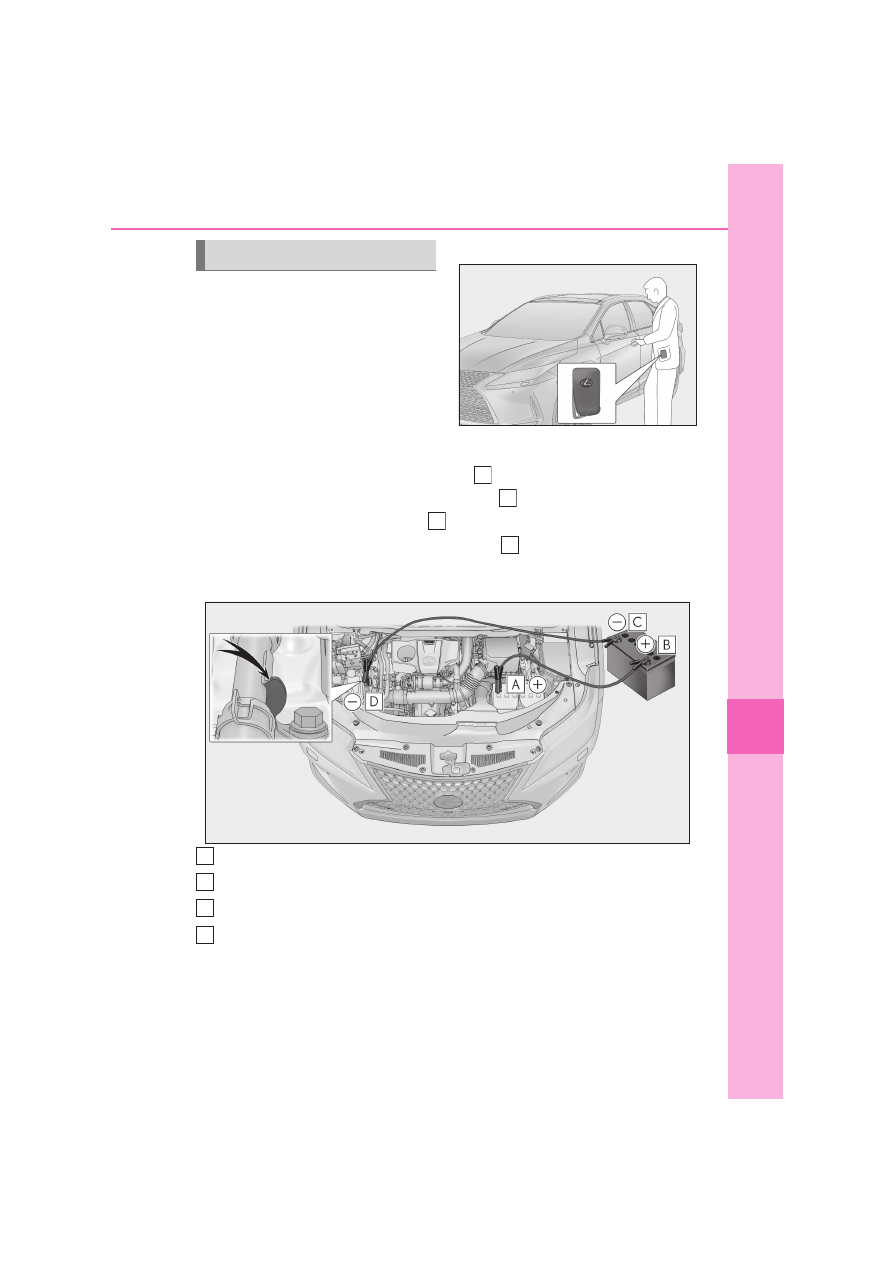

If you have a set of jumper (or booster)
cables and a second vehicle with a bat-
tery, you can jump start your vehicle by
following the steps below.

1

Confirm that the electronic key is
being carried.

Vehicles with an alarm: When connecting

the jumper (or booster) cables, depending

on the situation, the alarm may activate and

doors locked. (

P.77)

2

Open the hood. (

P.468)

3

Connect a positive jumper cable clamp to   on your vehicle and connect the
clamp on the other end of the positive cable to   on the second vehicle. Then,
connect a negative cable clamp to   on the second vehicle and connect the
clamp at the other end of the negative cable to  .

RX300

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the battery and any mov-
ing parts as shown in the illustration

Restarting the engine

A

B

C

D

A
B
C
D















Content      ..     25      26      27      28     ..
