LEXUS UX 200 (2019 year). Instruction - part 17

268

5-3. Using the air conditioning system and defogger

To turn on the “DUAL” mode, perform
any of the following procedures:
 Select “DUAL” on the sub function

menu. (

P.265)

 Select “DUAL” on the option con-

trol screen.

 Adjust the front passenger’s side

temperature setting.

The indicator comes on when the “DUAL”
mode is on.

■

Location of air outlets

The air outlets and air volume changes
according to the selected air flow
mode.

■

Adjusting the position of and open-
ing and closing the air outlets



Front

Direct air flow to the left or right, up or
down

Turn the knob to open or close the vent

Open the outlet

Close the outlet

NOTICE

●

Do not stick anything on the sensor

Adjusting the temperature for
driver and front passenger seats
separately (“DUAL” mode)

Air outlet layout and operations

269

5-3. Using the air conditioning system and defogger

Interio

r fe

atures



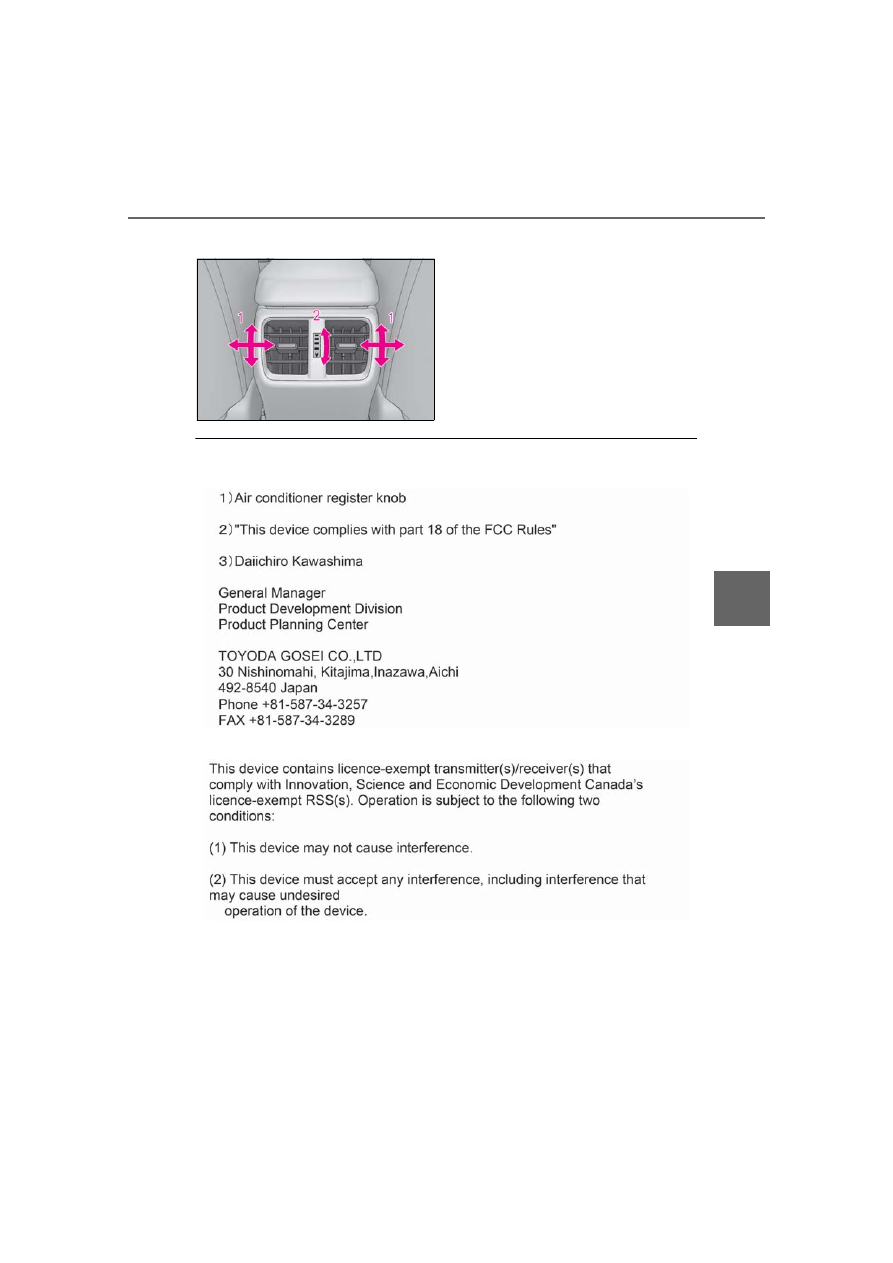

Rear

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent

■

Certification



For vehicles sold in the U.S.A.



For vehicles sold in Canada

270

5-3. Using the air conditioning system and defogger

WARNING

■

To prevent the windshield defogger

from operating improperly

Do not place anything on the instrument

panel which may cover the air outlets.

Otherwise, air flow may be obstructed,

preventing the windshield defoggers

from defogging.

271

5-3. Using the air conditioning system and defogger

rio

r f

: If equipped

Turns the heated steering wheel on/off

Each time the switch is pressed, the opera-
tion condition changes as follows.
AUTO (lit)

 Hi (2 segments lit)  Lo (1

segment lit)

 Off

The AUTO indicator

and/or level indi-

cator

illuminates during operation.

■

The heated steering wheel can be used

when

The engine switch is in ON.

■

Customization

Steering wheel heating preference in auto-

matic mode can be changed. (Customiz-

able features:

P.417)

Heated steering wheel

/seat

heaters

/seat ventilators

 Heated steering wheel
Warms up the grip of the steering
wheel

 Seat heaters
Warm up the seat upholstery

 Seat ventilators
Maintain good airflow on the seat
upholstery by sucking air into the
seats

Press the “MENU” button on the
Remote Touch and select “Climate”
to display the air conditioning con-
trol screen. Then, select

on the

sub menu (

P.265) to display the

heated steering wheel/seat heat-
ers/seat ventilators control screen.

WARNING

■

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the steering wheel or seats when the

heater is on:

●

Babies, small children, the elderly, the

sick and the physically challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

NOTICE

■

To prevent damage to the seat heat-

ers and seat ventilators

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is off.

Heated steering wheel

272

5-3. Using the air conditioning system and defogger

■

Seat heaters

Turns the seat heaters on/off

Each time the switch is pressed, the opera-
tion condition changes as follows.
AUTO (lit)

 Hi (3 segments lit)  Mid

(2 segments lit)

 Lo (1 segment lit) 

Off

The AUTO indicator

and/or level indi-

cator

illuminates during operation.

■

Seat ventilators

Turns the seat ventilators on/off

Each time the switch is pressed, the opera-
tion condition changes as follows.
AUTO (lit)

 Hi (3 segments lit)  Mid

(2 segments lit)

 Lo (1 segment lit) 

Off

The AUTO indicator

and/or level indi-

cator

illuminates during operation.

■

The seat ventilators can be used when

The engine switch is in ON.

■

Air conditioning system-linked control

mode

When the seat ventilator fan speed level is

Hi, the seat ventilator fan speed becomes

higher according to the fan speed of the air

conditioning system.

■

Customization

Settings for the seat heaters and ventilators

can be changed. (Customizable features:

P.417)

■

Main display

Using the touchpad of the Remote
Touch, select the button on the screen.

can be adjusted by perform-

ing the following operations.
Flick operation: Move the pointer to
the desired item and flick the touchpad
up or down.

The item can be adjusted by one level.

Trace operation: After selecting the
desired item, trace the pad surface.

The item can be adjusted by the amount
that you trace.
Trace operation cannot be used while driving.

Seat heaters and ventilators
(front seats)

WARNING

■

To prevent causes of overheating and

minor burn injuries

Observe the following precautions when

using the seat heaters.

●

Do not cover the seat with a blanket or

cushion when using the seat heater.

●

Do not use seat heater more than nec-

essary.

Control screen

273

5-3. Using the air conditioning system and defogger

Interio

r fe

atures

Adjust the seat ventilator fan speed
level

The seat ventilator can be adjusted in 3 lev-
els.
When the seat ventilator is operated, the
fan speed level is displayed on the screen.

Adjust the seat heater temperature
level

The seat heater can be adjusted in 3 levels.
When the seat heater is operated, the tem-
perature level is displayed on the screen.

Adjust the heated steering wheel
temperature level

The heated steering wheel can be adjusted
in 2 levels.
When the heated steering wheel is oper-
ated, the temperature level is displayed on
the screen.

Automatic mode on/off indicators

When the automatic mode is on, the indi-
cator illuminates on the screen.

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be set to automatic mode.

: Left-hand side seat heater/seat

ventilator

: Heated steering wheel

: Right-hand side seat heater/seat

ventilator

■

Side display (10.3-inch display
model)

Display the air conditioning control
screen (

P.265)

Adjust the seat heater temperature
level

Each time the switch is selected, the tem-
perature level and level indicator (orange)
change as follows:
AUTO

 Hi  Mid  Lo  Off

Adjust the seat ventilator fan speed
level

Each time the switch is selected, the fan
speed level and level indicator (blue)
change as follows:
AUTO

 Hi  Mid  Lo  Off

Adjust the heated steering wheel
temperature level

Each time the switch is selected, the tem-
perature level and level indicator change
as follows:
AUTO

 Hi  Lo  Off

274

5-4. Using the interior lights

5-4.Using the interior lights

Personal lights (

P.276)

Front interior light (

P.275)

Rear interior light (

P.275)

Footwell lights

• When the engine switch is in ON, the footwell lights will turn on.

However, if the instrument panel light control switch is turned to minimum, the footwell
lights will turn off. (

P.74, 78)

• When the shift lever is in a position other than P, the brightness of the footwell light will

reduce intensity.

Outside door handle lights

■

Personal lights automatic on/off

●

Illuminated entry system: The lights auto-

matically turn on/off according to engine

switch mode, the presence of the elec-

tronic key, whether the doors are locked/

unlocked, and whether the doors are

opened/closed.

●

If the interior lights remain on when the

engine switch is turned off, the lights will

go off automatically after 20 minutes.

■

When front interior light and personal

lights do not respond as normal

●

When water, dirt, etc., have adhered to

the lens surface

●

When operated with a wet hand

●

When wearing gloves, etc.

Interior lights list

Location of the interior lights

A
B
C
D

275

5-4. Using the interior lights

rio

r f

■

Automatic turning on of the interior

lights

If any of the SRS airbags deploy (inflate) or

in the event of a strong rear impact, the inte-

rior lights will turn on automatically. The

interior lights will turn off automatically after

approximately 20 minutes. The interior

lights can be turned off manually. However,

in order to help prevent further collisions, it

is recommended that they be left on until

safety can be ensured. (The interior lights

may not turn on automatically depending

on the force of the impact and conditions of

the collision.)

■

Customization

Setting (e.g. the time elapsed before lights

turn off) can be changed. (Customizable

features:

P.412)

■

Turning the door position on

Press the door-linked interior light
switch

The lights are turned on and off according
to whether the doors are opened/closed.

■

Turning the lights on/off



Front

Turns the lights on/off (touch the light)

When a door is opened while the door
position is on, the lights turn on.



Rear

On/off

The rear interior light turn on/off together
the front interior light.
When a door is opened while the door
position is on, the lights turn on.

NOTICE

■

Removing light lenses

Never remove the lens for the front inte-

rior light and personal lights. Otherwise,

the lights will be damaged. If the lens

need to remove, contact your Lexus

dealer.

■

To prevent battery discharge

Do not leave the lights on longer than

necessary when the engine is off.

Operating the interior lights

276

5-4. Using the interior lights

■

Turning the lights on/off

Turns the lights on/off (touch the light)

When a door is opened while the door
position is on, the lights turn on.

Operating the personal lights

277

5-5. Using the storage features

rio

r f

5-5.Using the storage features

Auxiliary tray/Wireless charger (if equipped) (

P.287)

Glove box (

P.278)

Bottle holders (

Cup holders (

Console box (

Coin holder (

List of storage features

Location of the storage features

WARNING

■

Items that should not be left in the

vehicle

Do not leave glasses, lighters or spray

cans in the storage spaces, as this may

cause the following when cabin tempera-

ture becomes high:

●

Glasses may be deformed by heat or

cracked if they come into contact with

other stored items.

●

Lighters or spray cans may explode. If

they come into contact with other

stored items, the lighter may catch fire

or the spray can may release gas,

causing a fire hazard.

278

5-5. Using the storage features

Open (press the button)

Unlock with the mechanical key

Lock with the mechanical key

■

Glove box light

The glove box light turns on when the tail

lights are on.

■

Removing the partition

The partition inside the glove box can be

removed by pulling it.

Lift the lid while pushing the button to

release the lock.
The console box can be opened from
either side.

■

Front

■

Rear

Pull down the armrest.

WARNING

■

When storage compartments are not

in use

When driving or when the glove box and

the console box are not in use, keep it

closed.

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by an open lid

or the items stored inside.

Glove box

Console box

Cup holders

279

5-5. Using the storage features

rio

r f

■

Bottle holders

●

When storing a bottle, close the cap.

●

The bottle may not be stored depending

on its size or shape.

Open the console box. (

P.278)

WARNING

■

Items unsuitable for the cup holders

Do not place anything other than cups or

aluminum cans in the cup holders.

Other items may be thrown out of the

holders in the event of an accident or

sudden braking, causing injury. If possi-

ble, cover hot drinks to prevent burns.

Bottle holders

NOTICE

■

Items that should be not stowed in the

bottle holders

Do not place open bottles or glass and

paper cups containing liquid in the bottle

holders. The contents may spill and

glasses may break.

Coin holder

NOTICE

■

Coin holder

Do not insert coins exceeding the height

of the tray. Doing so may prevent open-

ing and closing of the lid.

280

5-5. Using the storage features

Raise the hooks to use.

The cargo hooks are provided for securing
loose items.

When using the hooks, press the bot-
tom side to lift it up.

Lift the deck board and attach the
string. (

P.281) The following items

can be stowed.



Vehicles without compact spare tire

Towing eyelet

Warning reflector

Jack (if equipped)

Accessories

Wheel nut wrench (if equipped)

: The warning reflector itself is not

included as an original equipment.

Luggage compartment fea-
tures

Cargo hooks

WARNING

■

When cargo hooks are not in use

To avoid injury, always return the hooks

to their stowed positions when not in use.

Grocery bag hooks

NOTICE

■

To prevent damage to the grocery

bag hooks

Do not hang any object heavier than 9 lb.

(4 kg) on the grocery bag hooks.

Deck under tray

281

5-5. Using the storage features

Interio

r fe

atures



Vehicles with compact spare tire

Warning reflector

Jack

Towing eyelet

Wheel nut wrench

Accessories

: The warning reflector itself is not

included as an original equipment.

■

Warning reflector

Depending on the size and shape of the

warning reflector case, you may not be able

to store it.



Center

Open the back door.

Pull the lever upwards and open the
deck board.

Unhook the string on the backside
of the deck board.

A
B
C
D

Deck board

282

5-5. Using the storage features

Attach the string to the luggage
cover hook on the back door.



Side (vehicles with compact spare
tire)

Pull the strap upwards to lift the side
deck board and remove it.

■

When installing the side deck board

(vehicles with compact spare tire)

Insert the claw of the side deck board and

install it.

■

Installing the luggage cover

Take out the luggage cover from
the bag.

Slowly unfold the luggage cover.

Attach the strings to the luggage
cover hooks.

Make sure that the side the strings are

WARNING

■

If the deck boards are opened or

removed

Return them to their original positions

before driving. In the event of sudden

braking, an accident may occur due to an

occupant being struck by the deck

boards or the items stored in the deck

under tray.

NOTICE

■

To prevent damage to the deck board

When closing the back door, do not

leave the deck board string attached to

the hook.

Luggage cover

283

5-5. Using the storage features

rio

r f

sewn faces down.

■

Stowing the luggage cover

Hold the luggage cover corners of
the side with the long strings.

Fold it in half.

Turn your wrists to fold it.

Put it in the bag.

■

When removing the luggage cover

Pull the short strings toward you and

unhook them.

WARNING

■

When removing and unfolding the

luggage cover

Observe the following precautions. Fail-

ure to do so may cause the luggage

cover to suddenly unfold, resulting in

injury.

●

When taking out the luggage cover

from the bag, securely hold the edges

of the luggage cover and slowly take it

out.

Content .. 15 16 17 18 ..
