LEXUS RC F (2019 year). Instruction - part 27





430

6-3. Do-it-yourself maintenance

RC F_U

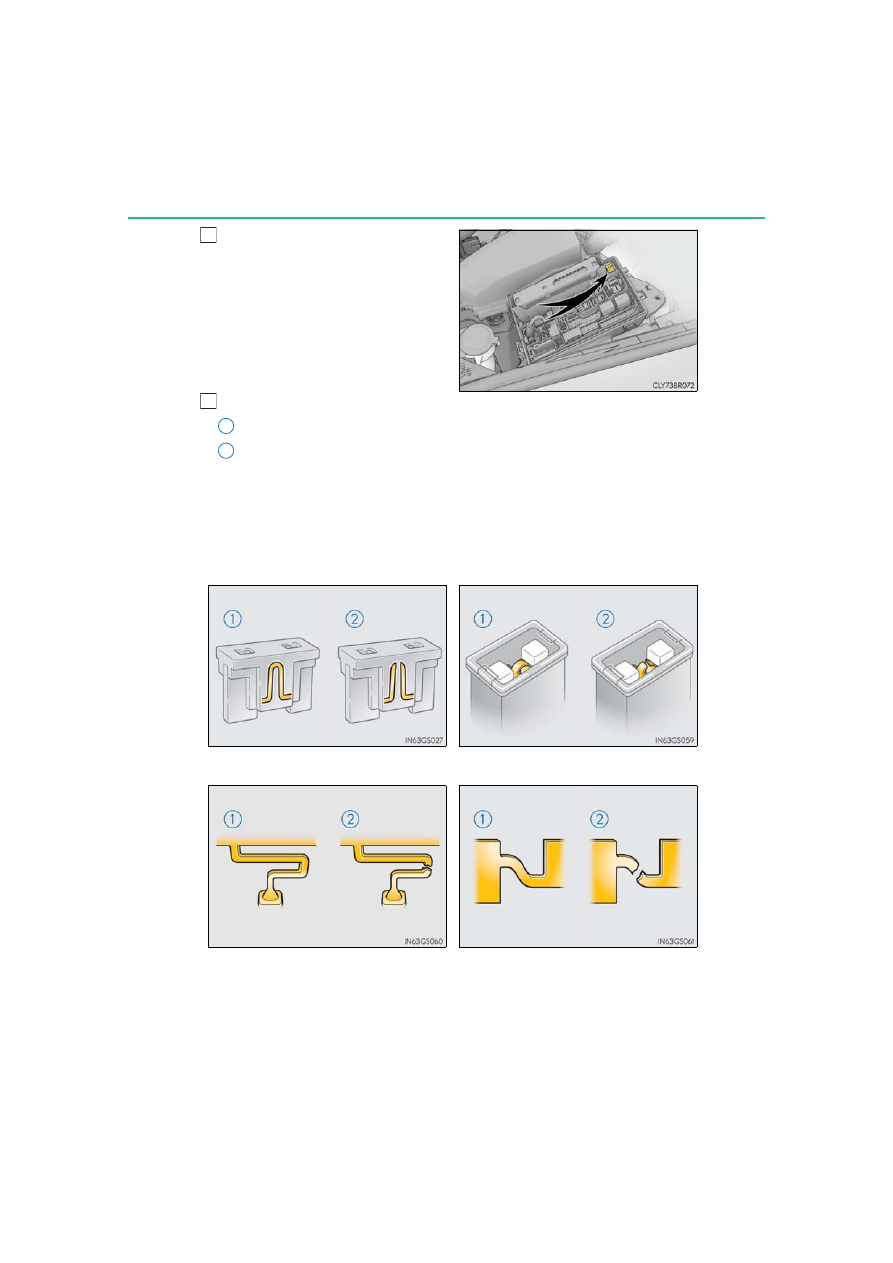

Remove the fuse with the pullout
tool.

Only type A fuses can be removed

using the pullout tool.

Check if the fuse is blown.

Normal fuse
Blown fuse

Type A and B:

Replace the blown fuse with a new fuse of an appropriate amperage rating. The

amperage rating can be found on the fuse box lid.
Type C and D:

Contact your Lexus dealer.

3

4

1

2

Type A

Type B

Type C

Type D

431

6-3. Do-it-yourself maintenance

RC F_U

6

Main

tenance an

d care

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may need

replacement. (

P. 432)

●

If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.

■

If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.

■

When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.

Because certain bulbs are connected to circuits designed to prevent overload, non-gen-

uine parts or parts not designed for this vehicle may be unusable.

WARNING

■

To prevent system breakdowns and vehicle fire
Observe the following precautions.

Failure to do so may cause damage to the vehicle, and possibly a fire or injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use any other

object in place of a fuse.

●

Always use a genuine Lexus fuse or equivalent.

Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as

soon as possible.

432

6-3. Do-it-yourself maintenance

RC F_U

Check the wattage of the light bulb to be replaced. (

P. 553)

Light bulbs

You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.

Preparing for light bulb replacement

433

6-3. Do-it-yourself maintenance

RC F_U

6

Main

tenance an

d care

■

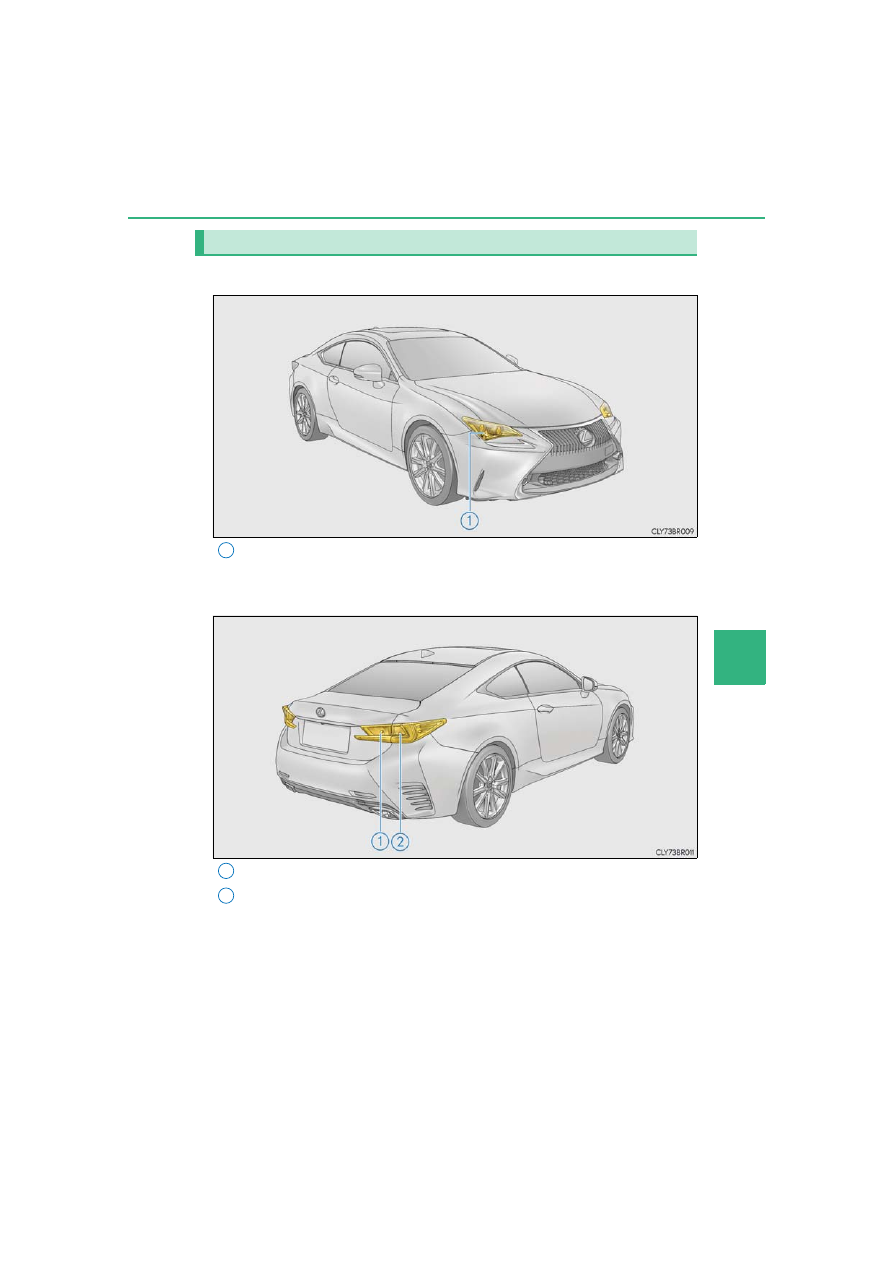

Front

■

Rear

Bulb locations

Front turn signal light (bulb type)

1

Back-up light
Rear turn signal light

1

2

434

6-3. Do-it-yourself maintenance

RC F_U

■

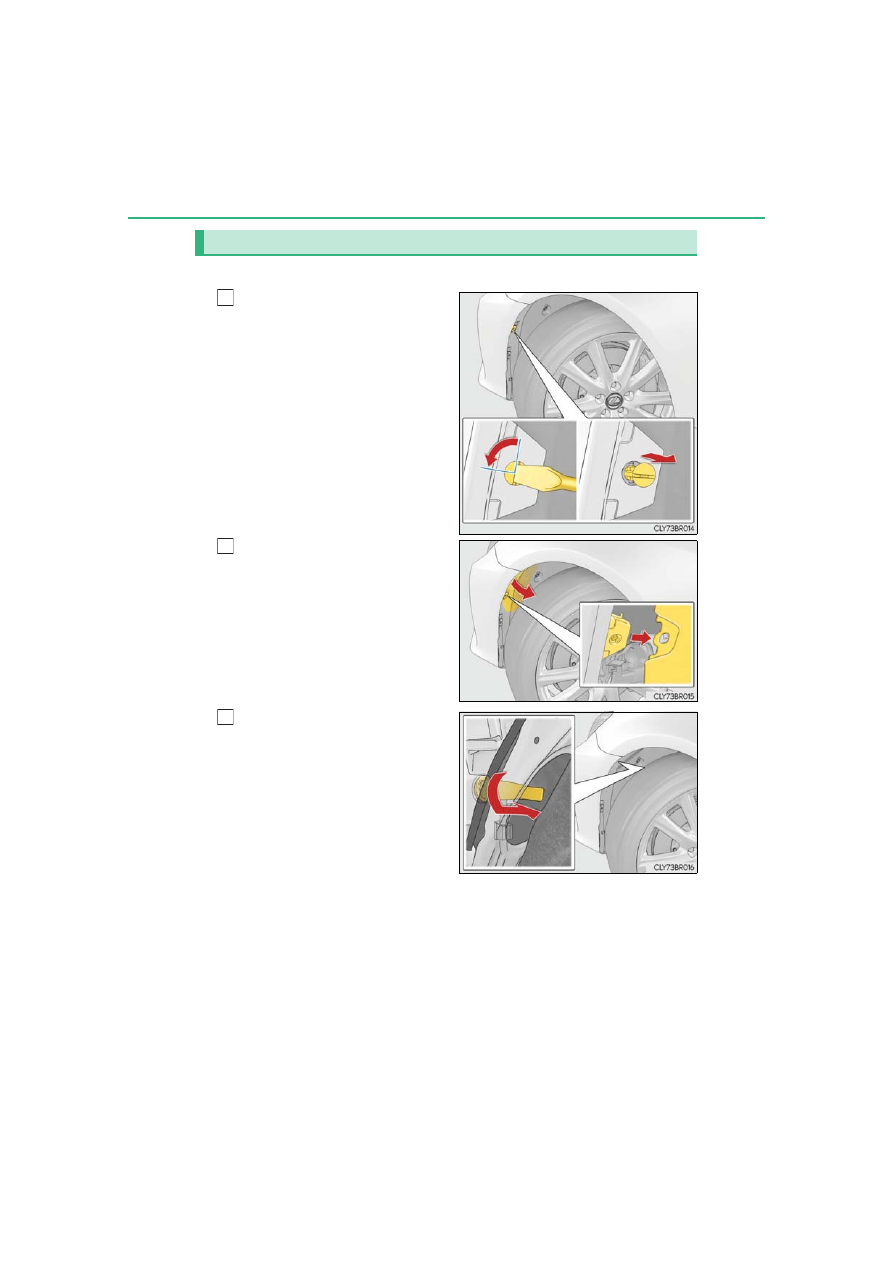

Front turn signal lights (bulb type)

To ensure enough space to per-
form work, turn the steering
wheel to move the front wheel
toward the bulb to be replaced.
Remove the fender liner clip.

To remove the clip, turn the head of

the clip to unlock it, then pull it out.

Disengage the fender liner from
the clamp then pull it back.

Turn the bulb base counterclock-
wise.

Replacing light bulbs

1

2

3

435

6-3. Do-it-yourself maintenance

RC F_U

6

Main

tenance an

d care

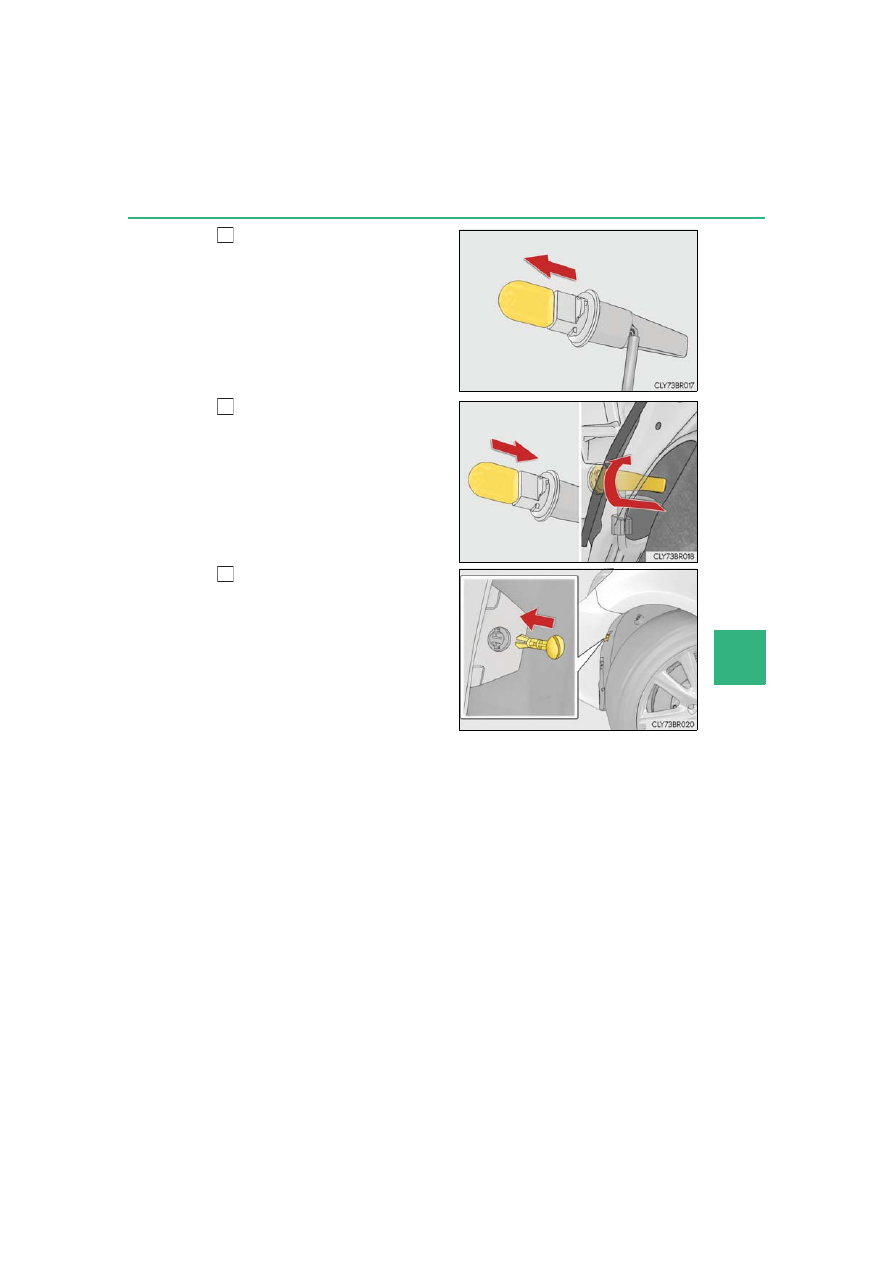

Remove the light bulb.

Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.

After installing the light bulb, turn on

the front turn signal light to visually

check that there is no light leaking

from the bulb base.

Engage the clamp to reinstall the
fender liner and install the clip.

Insert the clip with its groove aligned

vertically to install it.

4

5

6

436

6-3. Do-it-yourself maintenance

RC F_U

■

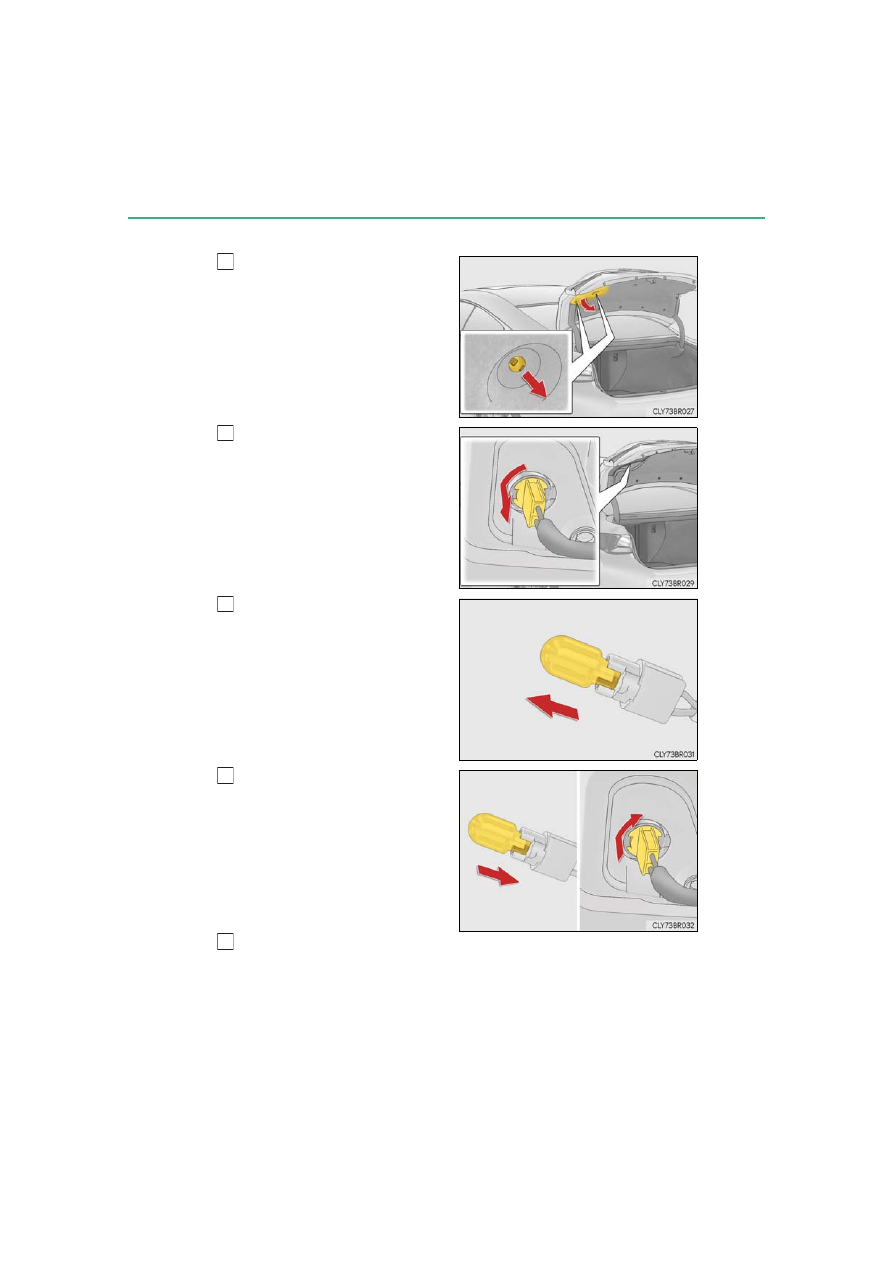

Rear turn signal lights

Open the trunk, remove the 2
covers and 2 screws and pull the
light unit toward the rear of the
vehicle to remove it.

When removing the cover, wrap the

tip of the screwdriver with tape to

protect the vehicle from damage.

Turn the bulb base counterclock-
wise.

Remove the light bulb.

Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.

After installing the light bulb, turn on

the rear turn signal light to visually

check that there is no light leaking

from the bulb base.

1

2

3

4

437

6-3. Do-it-yourself maintenance

RC F_U

6

Main

tenance an

d care

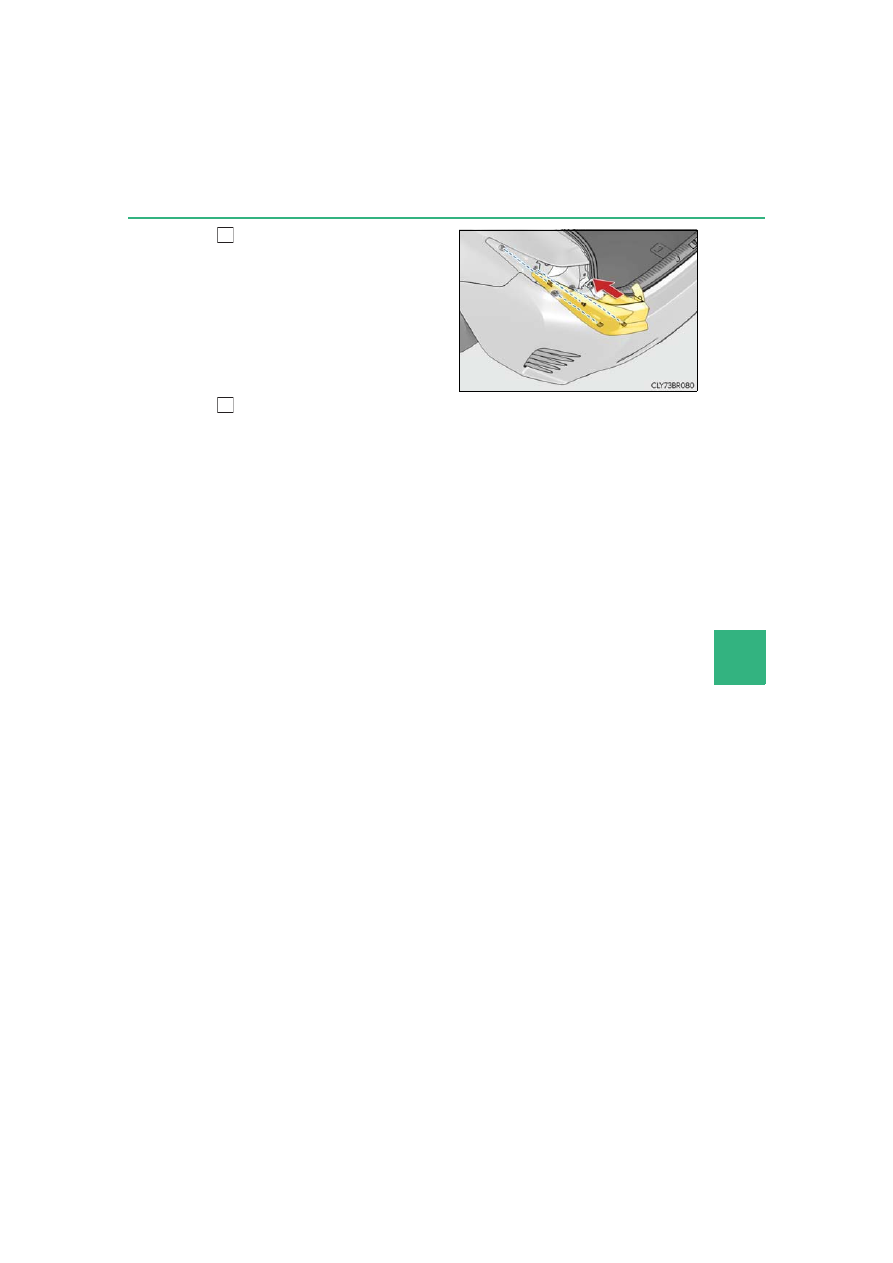

Align the tabs and push the light
unit toward the front of the vehicle
to install it.

Install the 2 screws and 2 covers.

5

6

438

6-3. Do-it-yourself maintenance

RC F_U

■

Back-up lights

Open the trunk, remove the 2
clips on the side which the bulb is
to be replaced and pull back the
trunk lid cover.

Turn the bulb base counterclock-
wise.

Remove the light bulb.

Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.

After installing the light bulb, turn on

the back-up light to visually check

that there is no light leaking from the

bulb base.

Reinstall the trunk lid cover with the 2 clips.

To install the clips, simply push them in.

1

2

3

4

5

439

6-3. Do-it-yourself maintenance

RC F_U

6

Main

tenance an

d care

■

Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.

●

Headlights

●

Parking lights and daytime running lights

●

Front turn signal lights (LED type)

●

Front fog lights (if equipped)

●

Side marker lights

●

Side turn signal lights

●

Stop/tail lights

●

Stop lights

●

High mounted stoplight

●

License plate lights

■

LED lights
The lights other than the front turn signal lights (bulb type), rear turn signal lights and

back-up lights each consist of a number of LEDs. If any of the LEDs burn out, take your

vehicle to your Lexus dealer to have the light replaced.

■

Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a

malfunction. Contact your Lexus dealer for more information in the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

■

When replacing light bulbs
P. 431

440

6-3. Do-it-yourself maintenance

RC F_U

WARNING

■

Replacing light bulbs

●

Turn off the lights. Do not attempt to replace the bulb immediately after turning off the

lights.

The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-

able to hold the glass portion, use and hold with a clean dry cloth to avoid getting

moisture and oils on the bulb.

Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so may result

in heat damage, fire, or water entering the headlight unit. This may damage the head-

lights or cause condensation to build up on the lens.

■

To prevent damage or fire

●

Make sure bulbs are fully seated and locked.

●

Check the wattage of the bulb before installing to prevent heat damage.

442

RC F_U

7-1. Essential information

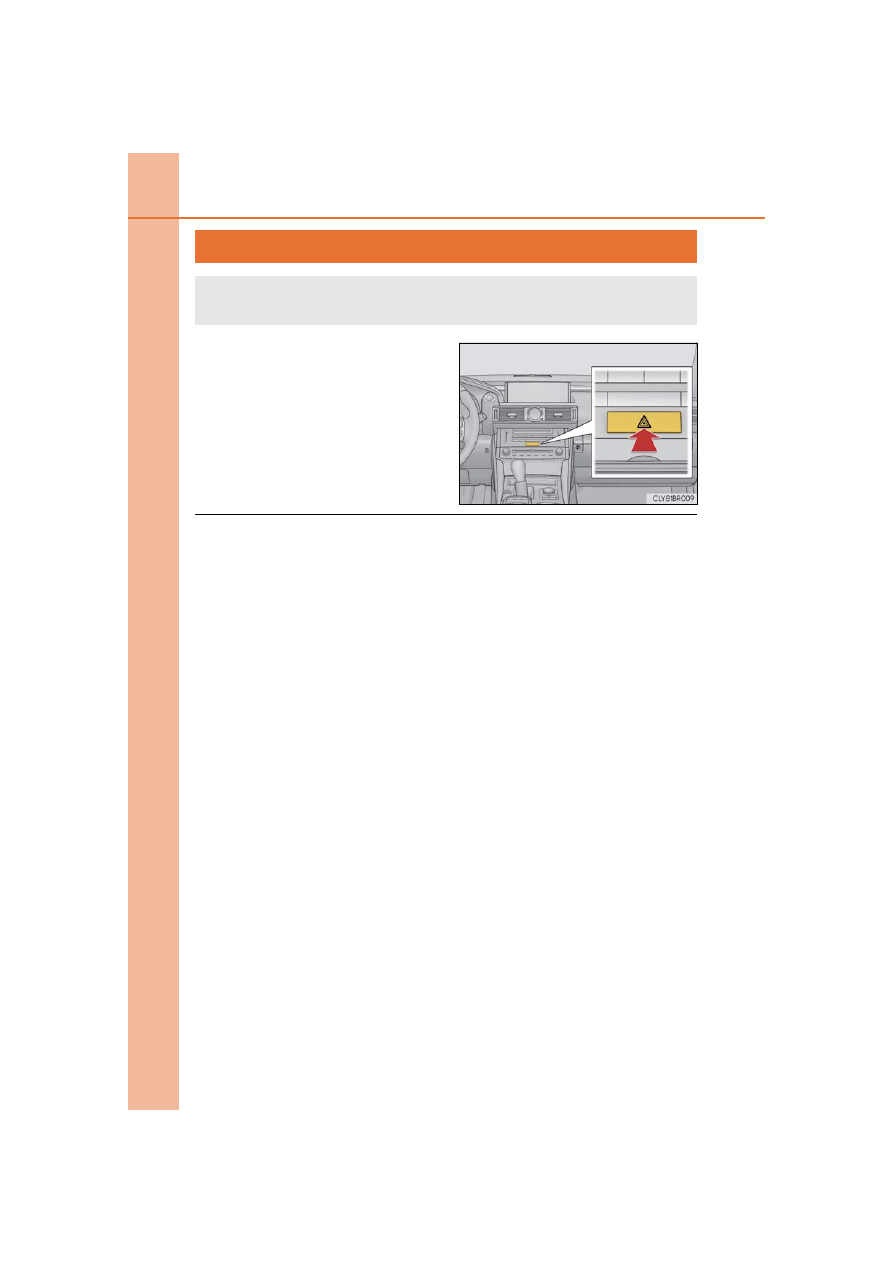

Press the switch.

All the turn signals will flash.

To turn them off, press the switch once

again.

■

Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the

battery may discharge.

Emergency flashers

The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.

443

7-1. Essential information

7

When trouble

ari

ses

RC F_U

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort required to

slow the vehicle.

Shift the shift lever to N.

If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.

If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.

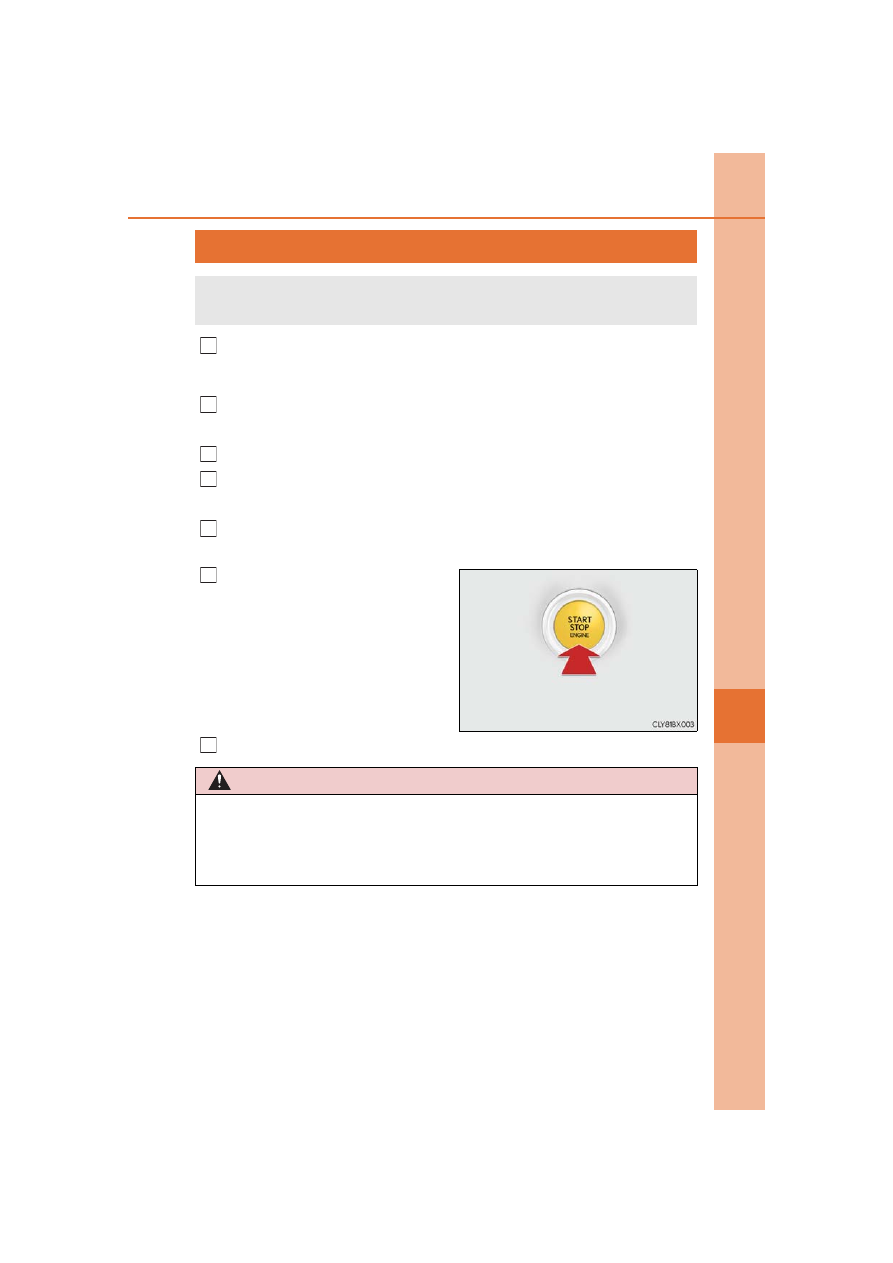

To stop the engine, press and hold
the engine switch for 2 consecutive
seconds or more, or press it briefly 3
times or more in succession.

Stop the vehicle in a safe place by the road.

If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:

1

2

3
4

3

Press and hold for 2 seconds or more
or press briefly 3 times or more

4

WARNING

■

If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal

harder to depress and the steering wheel heavier to turn. Decelerate as much as possi-

ble before turning off the engine.

5

444

RC F_U

7-2. Steps to take in an emergency

The following may indicate a problem with your transmission. Contact your
Lexus dealer or commercial towing service before towing.

●

The engine is running but the vehicle does not move.

●

The vehicle makes an abnormal sound.

If your vehicle needs to be towed

If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or commercial towing service, using a wheel-lift type truck or
flatbed truck.
Use a safety chain system for all towing, and abide by all state/provincial and
local laws.

Situations when it is necessary to contact dealers before towing

445

7-2. Steps to take in an emergency

RC F_U

7

When trouble

ari

ses

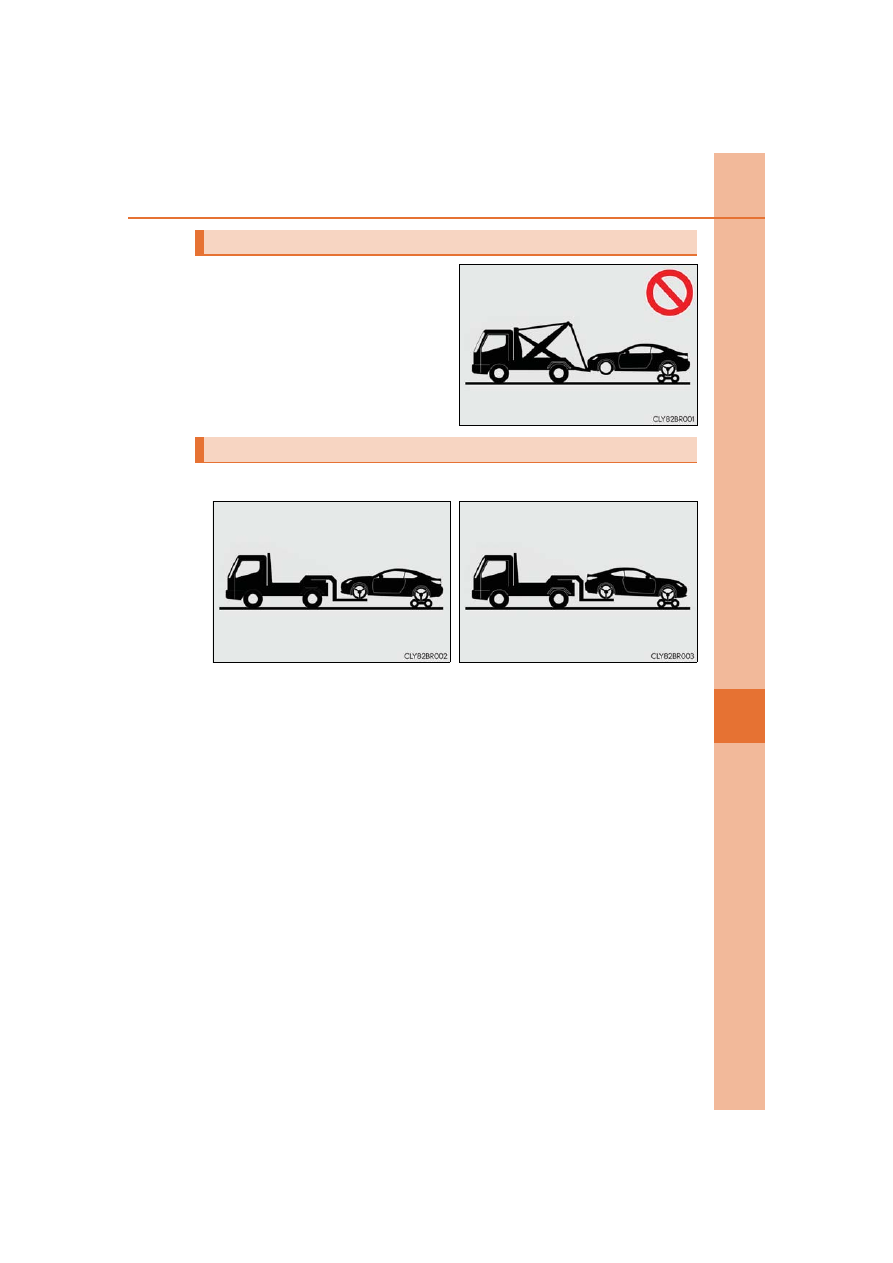

Do not tow with a sling-type truck to
prevent body damage.

Towing with a sling-type truck

Towing with a wheel-lift type truck

From the front

From the rear

Use a towing dolly under the rear
wheels.

Use a towing dolly under the front
wheels.
