LEXUS NX 300 (2019 year). Instruction - part 24

380

7-2. Steps to take in an emergency

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Stop the engine. Shift the shift lever
to P and set the parking brake.

Remove the mud, snow or sand
from around the front wheels.

Place wood, stones or some other
material under the front wheels to
help provide traction.

Restart the engine.

Shift the shift lever to D or R,
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

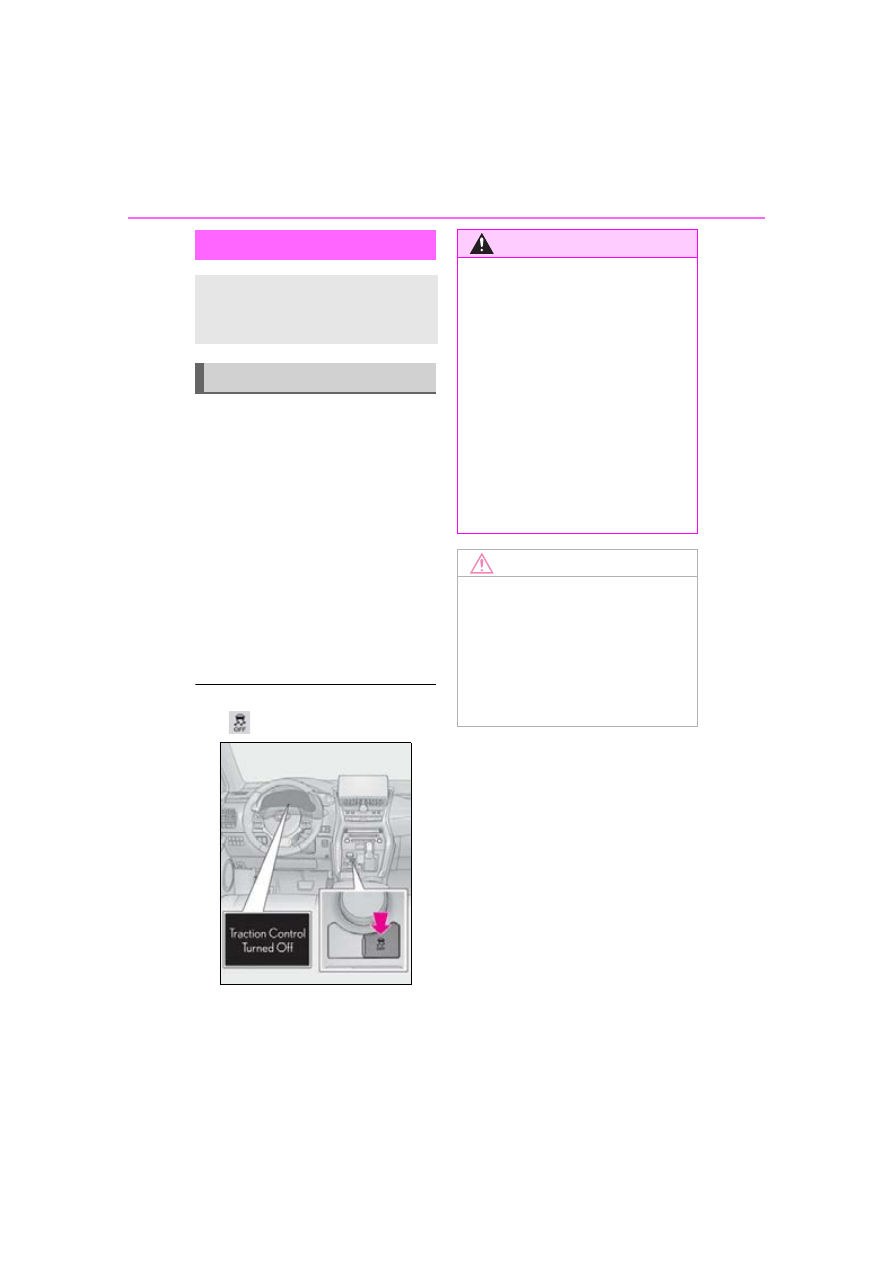

When it is difficult to free the vehicle

Press

to turn off TRAC. (

P.237)

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damage to the transmission

and other components

●

Avoid spinning the front wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

381

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Vehi

cle

spec

ifi

tions

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

382

Fuel information.........................

390

Tire information..........................

392

8-2. Customization

Customizable features.............

401

8-3. Initialization

Items to initialize ..........................

411

382

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

8-1.Specifications

: Unladen vehicle

: Vehicles with towing package

■

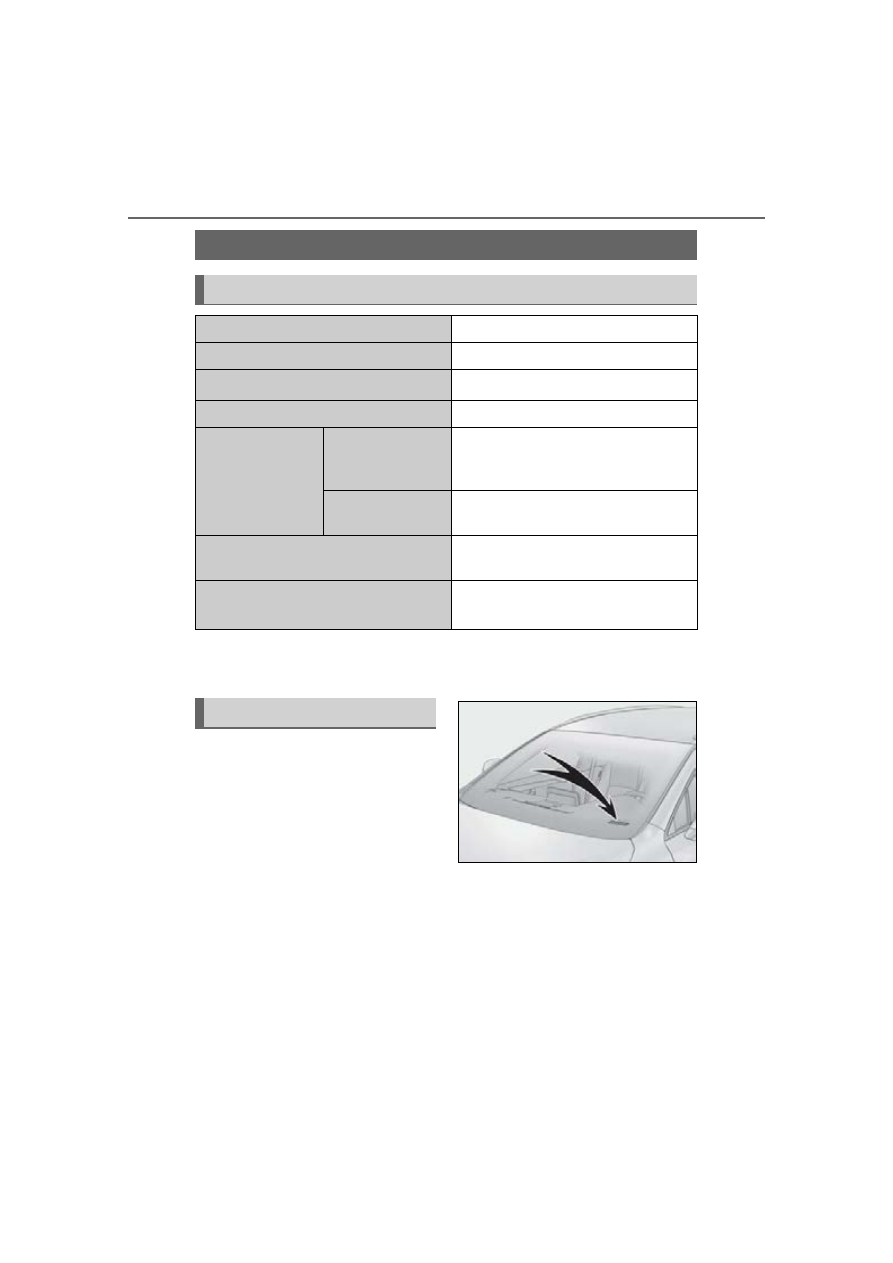

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.

This number is also on the Certification
Label.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

182.7 in. (4640 mm)

Overall width

72.6 in. (1845 mm)

Overall height

64.8 in. (1645 mm)

Wheelbase

104.7 in. (2660 mm)

Front and rear tread

Vehicles with
225/65R17 and
225/60R18 tires

62.2 in. (1580 mm)

Vehicles with
235/55R18 tires

61.8 in. (1570 mm)

Vehicle capacity weight
(Occupants + luggage)

895 lb. (405 kg)

Trailer Weight Rating

(Trailer weight + cargo weight)

2000 lb. (910 kg)

Vehicle identification

383

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Vehi

cle

spec

ifi

tions

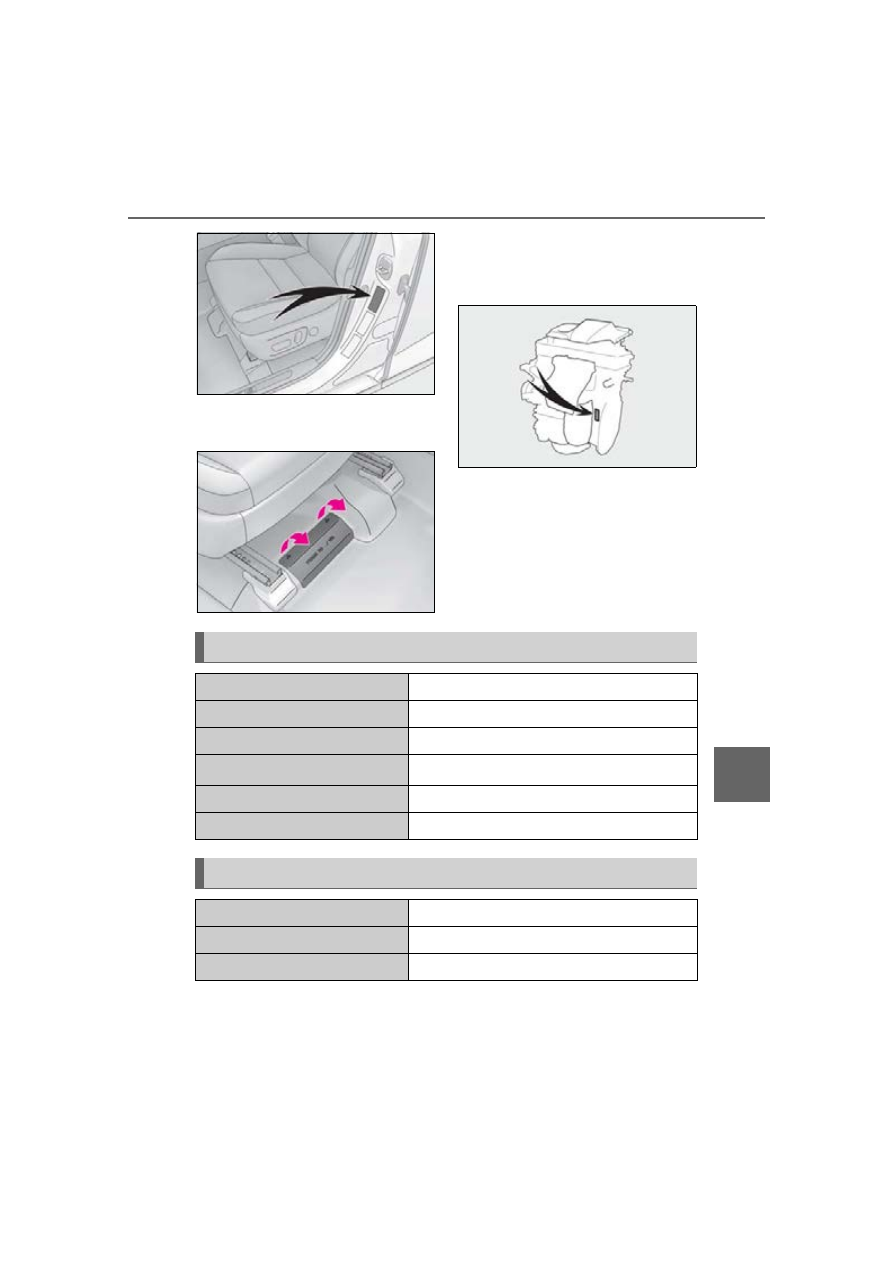

This number is also stamped under the
right-hand front seat.

■

Engine number

The engine number is stamped on the
engine block as shown.

Engine

Model

2.0 L 4-cylinder with turbocharger (8AR-FTS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.39

 3.39 in. (86.0  86.0 mm)

Displacement

121.9 cu.in. (1998 cm

)

Valve clearance (engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Premium unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or higher

Fuel tank capacity (Reference)

15.9 gal. (60 L, 13.2 Imp.gal.)

384

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

■

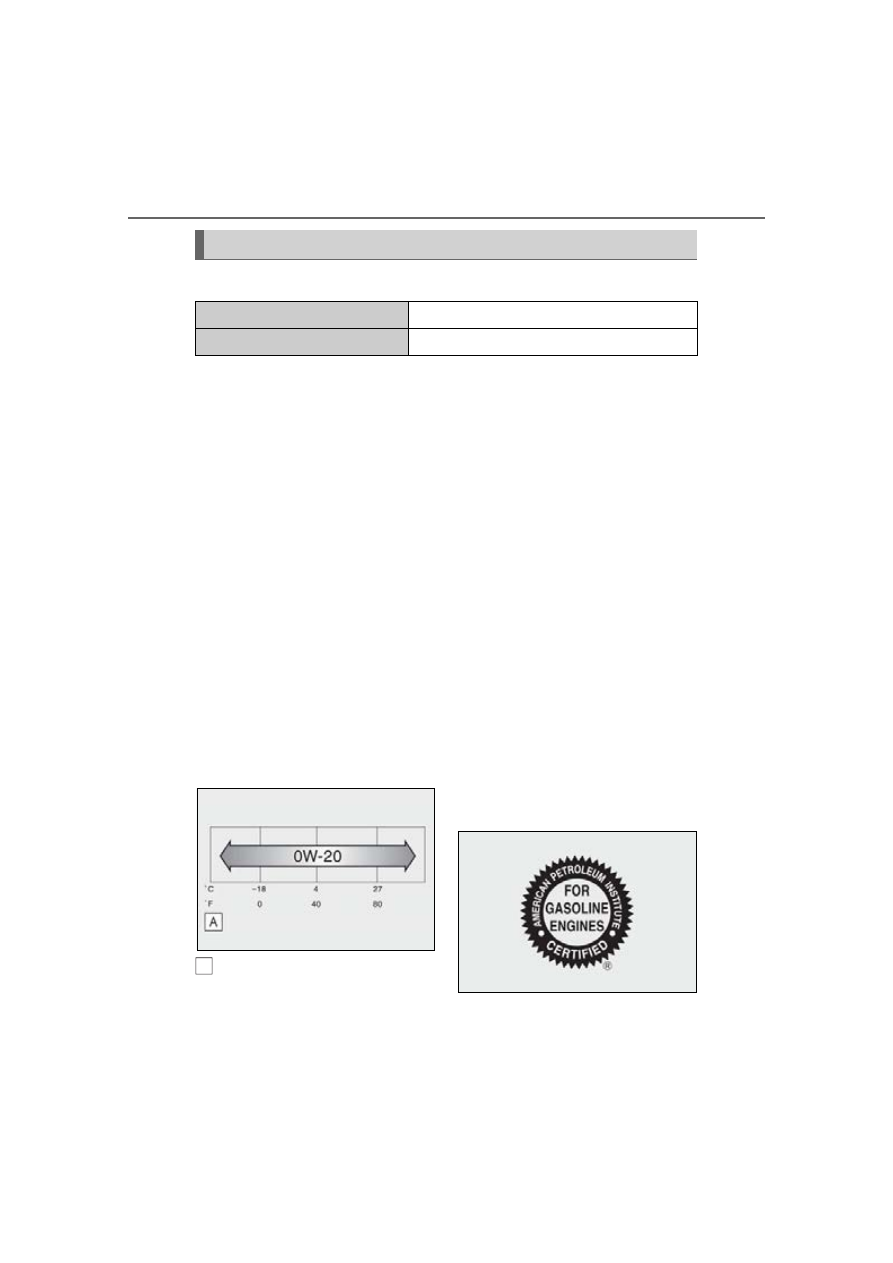

Oil capacity (Drain and refill [Reference

])

: The engine oil capacity is a reference quantity to be used when changing the engine oil.

Warm up the engine and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change.

Outside temperature

Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.

Lubrication system

With filter

5.2 qt. (4.9 L, 4.3 Imp.qt.)

Without filter

5.0 qt. (4.7 L, 4.1 Imp.qt.)

385

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Vehi

cle

spec

ifi

tions

: The coolant capacity is the quantity of reference.

If replacement is necessary, contact your Lexus dealer.

■

Spark plug

■

Battery

■

Charging rates

Cooling system

Capacity

Gasoline
engine

8.3 qt. (7.9 L, 7.0 Imp.qt.)

Intercooler

3.1 qt. (2.9 L, 2.6 Imp.qt.)

Coolant type

Use either of the following:
 “Toyota Super Long Life Coolant”

 Similar high-quality ethylene glycol-based non-

silicate, non-amine, non-nitrite, and nonborate
coolant with long-life hybrid organic acid tech-
nology

Do not use plain water alone.

Ignition system

Make

NGK DILFR7K9G

Gap

0.04 in. (0.9 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

Specific gravity reading at 68°F
(20°C):

1.25 or higher
If the specific gravity is lower than the standard
value, charge the battery.

Quick charge
Slow charge

15 A max.
5 A max.

386

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact your Lexus dealer.

Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.

Automatic transmission

Fluid capacity

7.2 qt. (6.8L, 6.0 Imp. qt)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type

Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in

shift quality, locking up of your transmission accompanied by vibration, and ultimately

damage the transmission of your vehicle.

Transfer (AWD models)

Oil capacity

0.48 qt. (0.45 L, 0.40 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

Rear differential (AWD models)

Oil capacity

0.5 qt. (0.5 L, 0.4 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

387

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Vehi

cle

spec

ifi

tions

: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50.0 kgf)

while the engine is running.



Type A

Brakes

Pedal clearance

3.94 in. (100 mm) Min.

Brake pad wear limit

0.04 in. (1.0 mm)

Pedal free play

0.04 — 0.24 in. (1.0 — 6.0 mm)

Fluid type

• FMVSS No. 116 DOT 3 or SAE J1703
• FMVSS No. 116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

225/65R17 102H

Tire inflation pressure
(Recommended cold tire inflation
pressure)

Driving under normal conditions



Front

35 psi (240 kPa, 2.4 kgf/cm

or bar)



Rear

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160 km/
h]) (in countries where such speeds are permitted
by law)

Add 1 psi (10 kPa, 0.1 kgf/cm

or bar) to the front

and rear tires. Never exceed the maximum cold tire
inflation pressure indicated on the tire sidewall.

Wheel size

 7 J

Wheel nut torque

76 ft• lbf (103 N• m, 10.5 kgf• m)

388

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en



Type B



Type C



Compact spare tire

Tire size

225/60R18 100H

Tire inflation pressure
(Recommended cold tire inflation
pressure)

Driving under normal conditions



Front

32 psi (220 kPa, 2.2 kgf/cm

or bar)



Rear

32 psi (220 kPa, 2.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160 km/
h]) (in countries where such speeds are permitted
by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front

and rear tires. Never exceed the maximum cold tire
inflation pressure indicated on the tire sidewall.

Wheel size

 7 1/2 J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/55R18 100V

Tire inflation pressure
(Recommended cold tire inflation
pressure)

Driving under normal conditions



Front

32 psi (220 kPa, 2.2 kgf/cm

or bar)



Rear

32 psi (220 kPa, 2.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160 km/
h]) (in countries where such speeds are permitted
by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front

and rear tires. Never exceed the maximum cold tire
inflation pressure indicated on the tire sidewall.

Wheel size

 7 1/2 J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

T165/80D17 104M

Spare tire inflation pressure
(Recommended cold tire inflation
pressure)

60 psi (420 kPa, 4.2 kgf/cm

or bar)

389

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Vehi

cle

spec

ifi

tions

A: Wedge base bulbs (clear)
B: Wedge base bulbs (amber)

: If equipped

Wheel size

 4 T

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Bulb No.

Type

Exterior

Front side marker lights (bulb
type)

W5W

Front turn signal lights (bulb
type)*

585

(WY21W)

Interior

Vanity lights



390

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

■

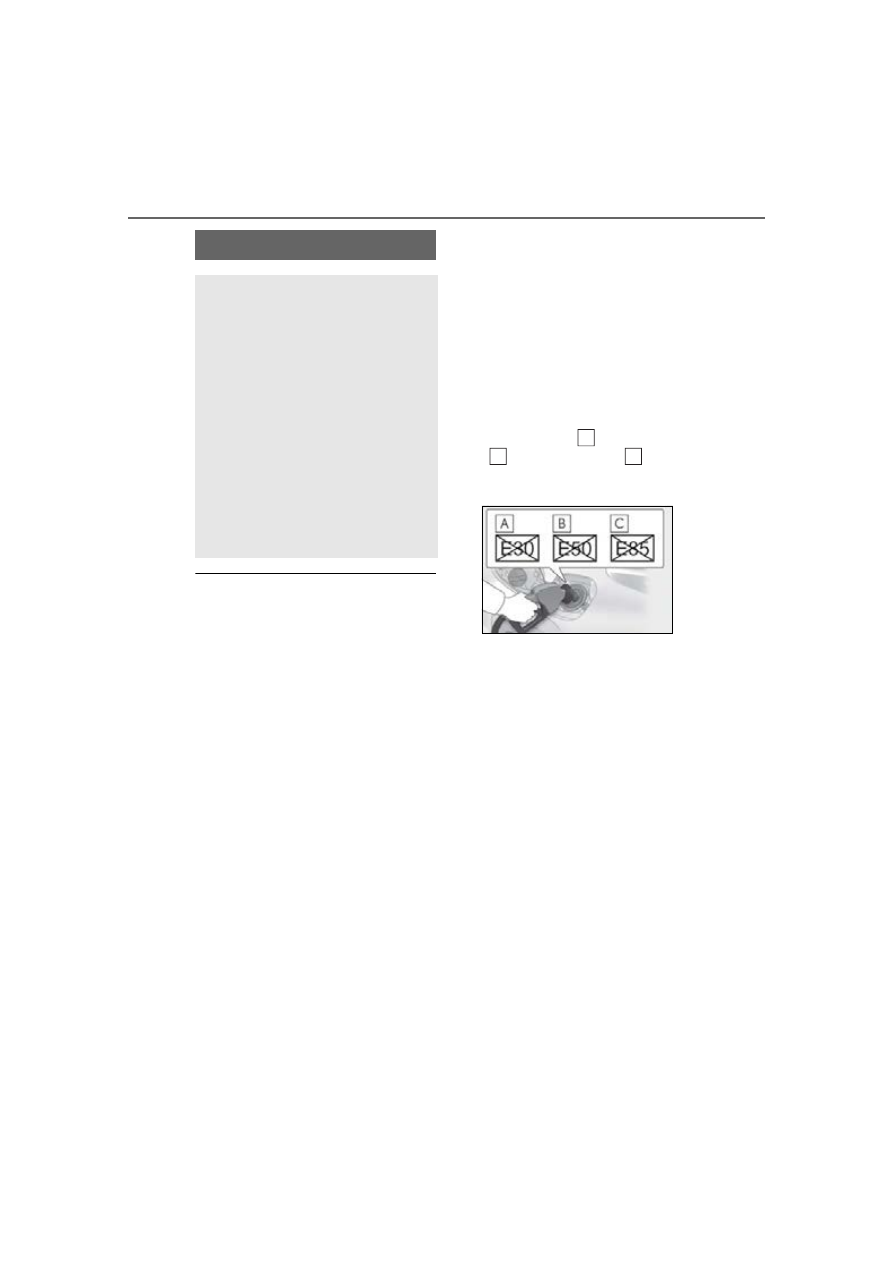

Gasoline quality

In very few cases, driveability problems may

be caused by the brand of gasoline you are

using. If driveability problems persist, try

changing the brand of gasoline. If this does

not correct the problem, consult your Lexus

dealer.

■

Recommendation of the use of gasoline

containing detergent additives

●

Lexus recommends the use of gasoline

that contains detergent additives to avoid

the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains

minimum detergent additives to clean

and/or keep clean intake systems, per

EPA’s lowest additives concentration pro-

gram.

●

Lexus strongly recommends the use of

Top Tier Detergent Gasoline. For more

information on Top Tier Detergent Gaso-

line and a list of marketers, please go to

the official website www.toptiergas.com.

■

Recommendation of the use of low

emissions gasoline

Gasolines containing oxygenates such as

ethers and ethanol, as well as reformulated

gasolines, are available in some cities.

These fuels are typically acceptable for use,

providing they meet other fuel require-

ments.
Lexus recommends these fuels, since the

formulations allow for reduced vehicle

emissions.

■

Non-recommendation of the use of

blended gasoline

●

Use only gasoline containing up to 15%

ethanol.

DO NOT use any flex-fuel or gasoline

that could contain more than 15% etha-

nol, including from any pump labeled
E30 (30% ethanol

), E50 (50% etha-

nol

), E85 (85% ethanol

) (which

are only some examples of fuel contain-

ing more than 15% ethanol).

●

If you use gasohol in your vehicle, be sure

that it has an octane rating no lower than

91.

●

Lexus does not recommend the use of

gasoline containing methanol.

■

Non-recommendation of the use of gas-

oline containing MMT

Some gasoline contains an octane enhanc-

ing additive called MMT (Methylcyclopen-

tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gas-

oline that contains MMT. If fuel containing

MMT is used, your emission control system

may be adversely affected.
The malfunction indicator lamp on the

instrument cluster may come on. If this hap-

pens, contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knock-

ing for a short time while accelerating or

driving uphill. This is normal and there is

no need for concern.

Fuel information

You must only use unleaded gaso-
line in your vehicle.
Select premium unleaded gasoline
with an octane rating of 91
(Research Octane Number 96) or
higher required for optimum
engine performance and fuel econ-
omy. If the octane rating is less than
91,damage to the engine may occur
and may void the vehicle warranty.
At minimum, the gasoline you use
should meet the specifications of
ASTM D4814 in the U.S.A.

391

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Vehi

cle

spec

ifi

tions

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

●

Do not use leaded gasoline.

Leaded gasoline can cause damage to

your vehicle’s three-way catalytic con-

verters causing the emission control sys-

tem to malfunction.

●

Do not use gasohol other than the type

previously stated.

Other gasohol may cause fuel system

damage or vehicle performance prob-

lems.

●

Using unleaded gasoline with an

octane number or rating lower than

the level previously stated will cause

persistent heavy knocking.

At worst, this will lead to engine dam-

age.

■

Fuel-related poor driveability

If poor driveability (poor hot starting,

vaporization, engine knocking, etc.) is

encountered after using a different type

of fuel, discontinue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can dam-

age your vehicle’s paint.

392

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en



Full-size tire



Compact spare tire

Tire size (

P.394)

DOT and Tire Identification Number (TIN) (

P.393)

Location of treadwear indicators (

P.320)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

Tire information

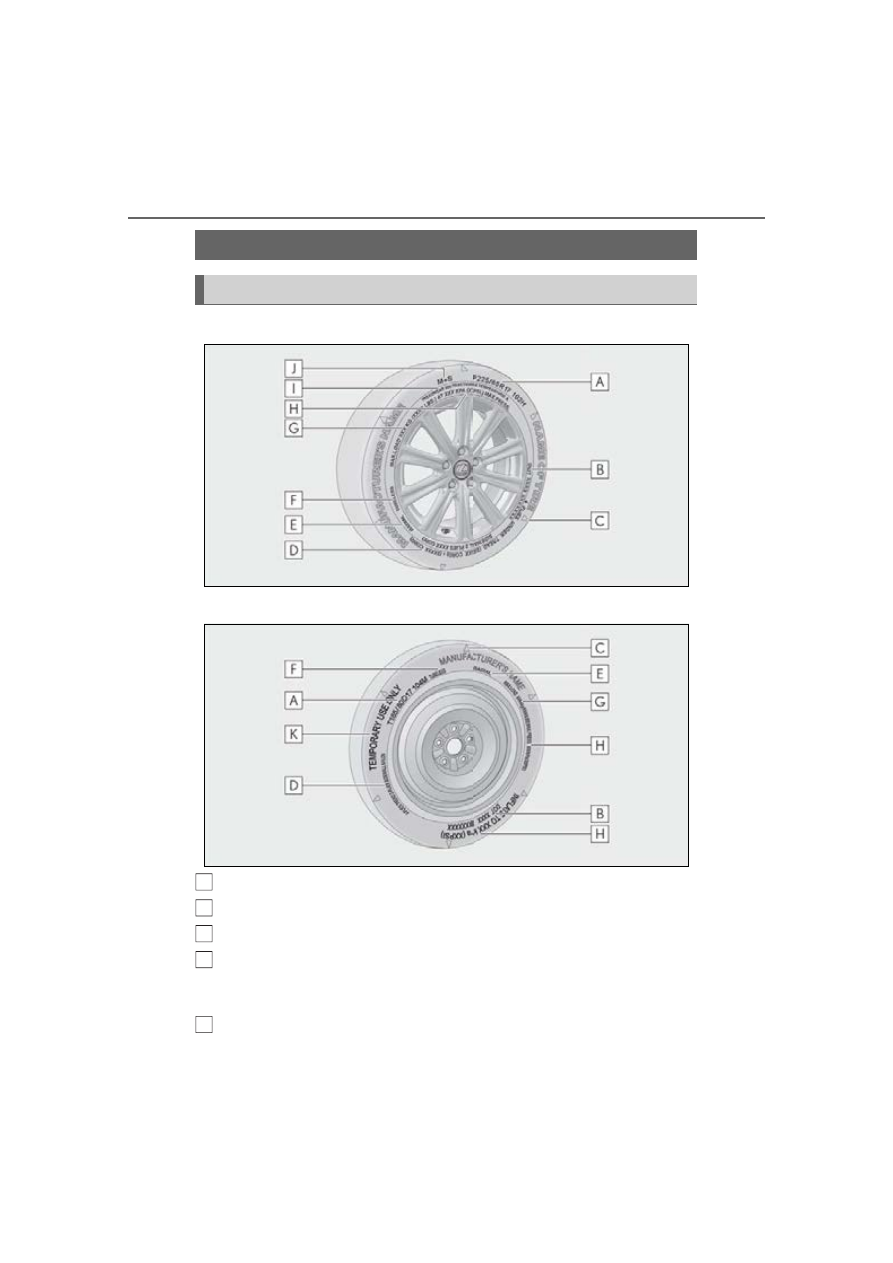

Typical tire symbols

A
B
C
D

393

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Vehi

cle

spec

ifi

tions

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (

P.320)

Maximum cold tire inflation pressure (

P.387)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (

P.320)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer tire.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY” molded on its
sidewall. This tire is designed for temporary emergency use only.



Type A

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Tire size code
Manufacturer’s optional tire type
code (3 or 4 letters)
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.



Type B

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Manufacturer’s code
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor

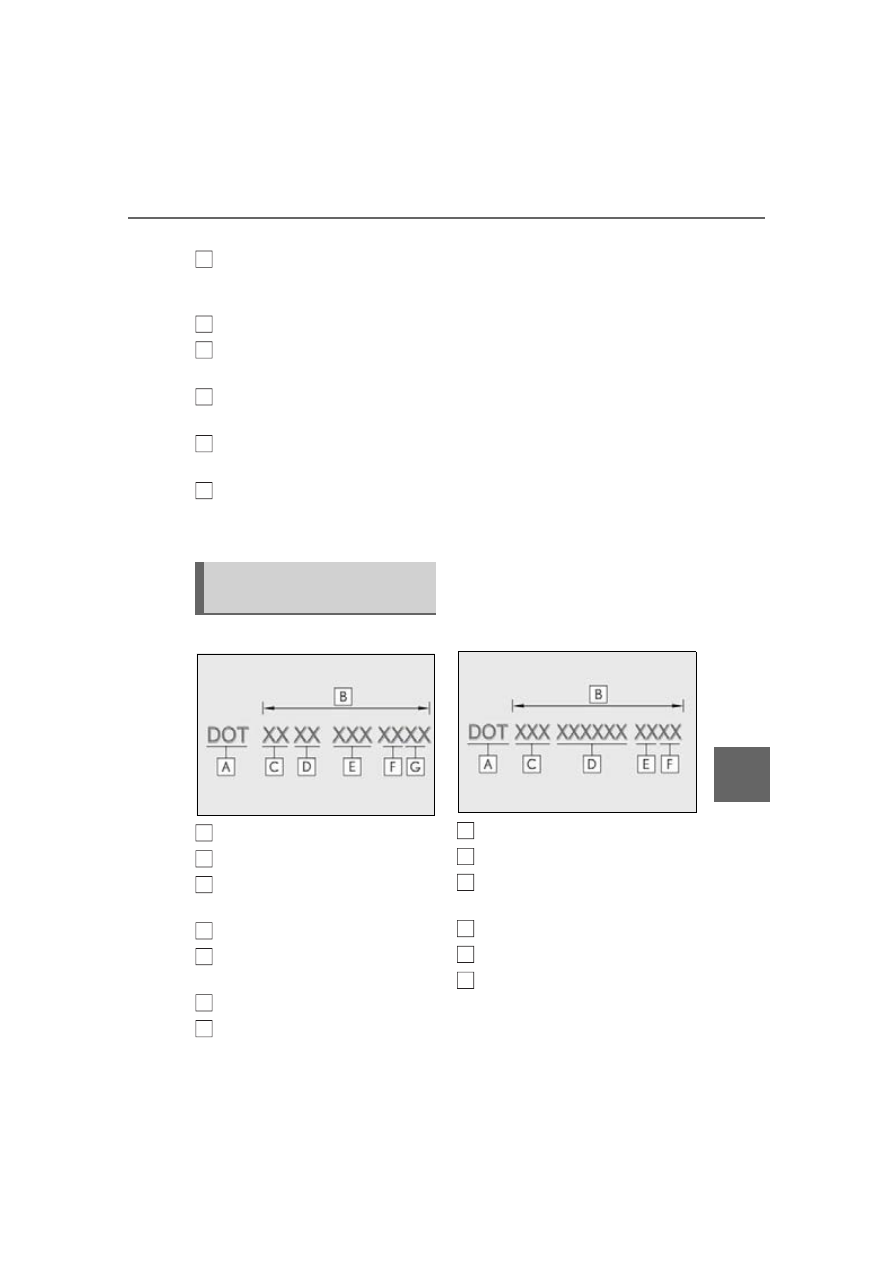

Typical DOT and Tire Identifica-
tion Number (TIN)

A
B
C

E
F

394

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Vehicle Safety Standards.

■

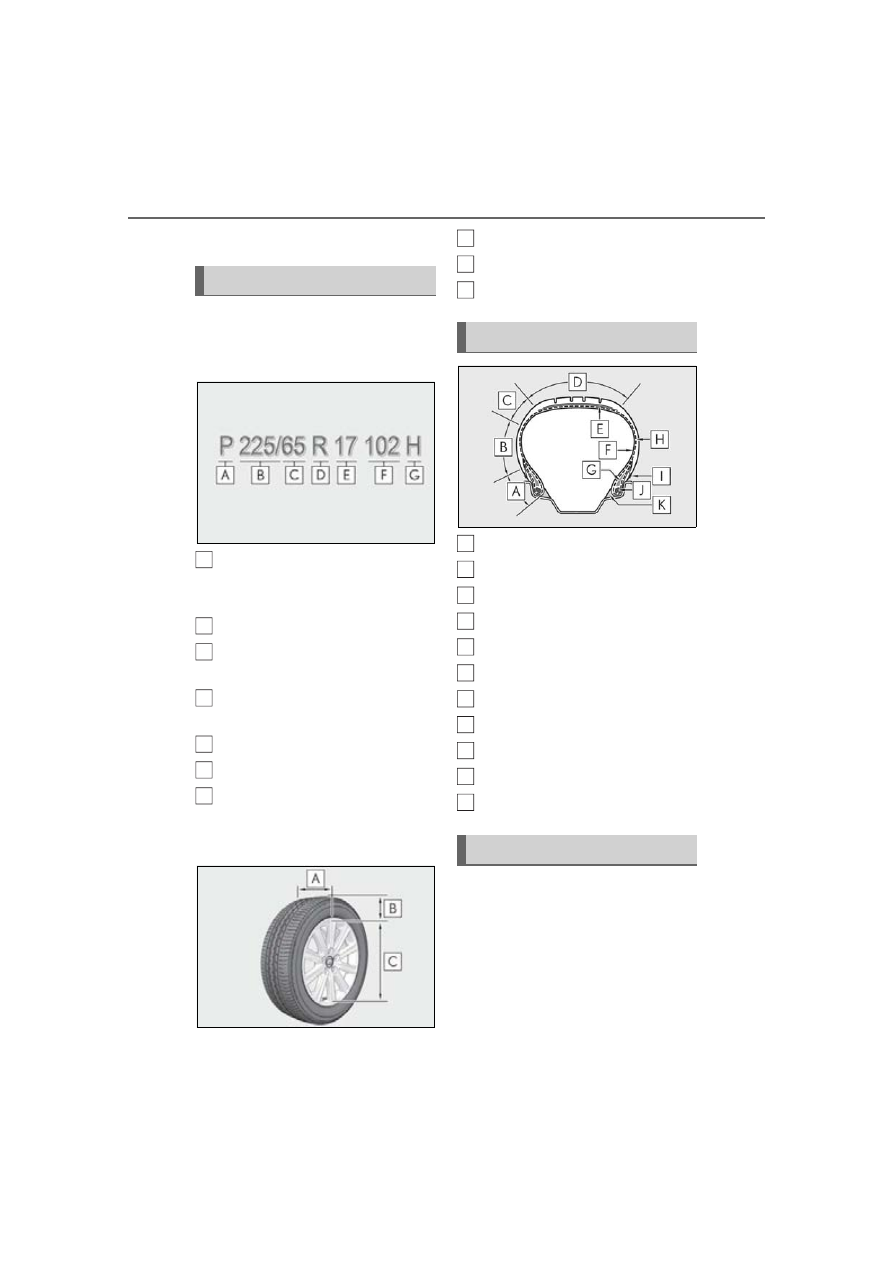

Typical tire size information

The illustration indicates typical tire
size.

Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one
letter)

■

Tire dimensions

Section width
Tire height
Wheel diameter

Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer

This information has been prepared in
accordance with regulations issued by
the National Highway Traffic Safety
Administration of the U.S. Department
of Transportation.
It provides the purchasers and/or pro-
spective purchasers of Lexus vehicles
with information on uniform tire quality

Tire size

B
C

E
F

Tire section names

Uniform Tire Quality Grading

A
B
C

A
B
C
D

E
F

395

8-1. Specifications

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Vehi

cle

spec

ifi

tions

grading.

Your Lexus dealer will help answer any
questions you may have as you read this
information.

■

DOT quality grades

All passenger vehicle tires must con-
form to Federal Safety Requirements in
addition to these grades. Quality
grades can be found where applicable
on the tire sidewall between tread
shoulder and maximum section width.

For example: Treadwear 200 Traction AA
Temperature A

■

Treadwear

The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled condi-
tions on a specified government test
course.

For example, a tire graded 150 would wear
one and a half (1 - 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from highest to
lowest, are AA, A, B and C, and they
represent the tire’s ability to stop on
wet pavement as measured under con-
trolled conditions on specified govern-
ment test surfaces of asphalt and
concrete.

A tire marked C may have poor traction
performance.

Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.

■

Temperature A, B, C

The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.

Sustained high temperature can cause the
material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure.
Grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded.
Excessive speed, underinflation, or exces-
sive loading, either separately or in combi-
nation, can cause heat buildup and
possible tire failure.

Content .. 22 23 24 25 ..
