7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

■

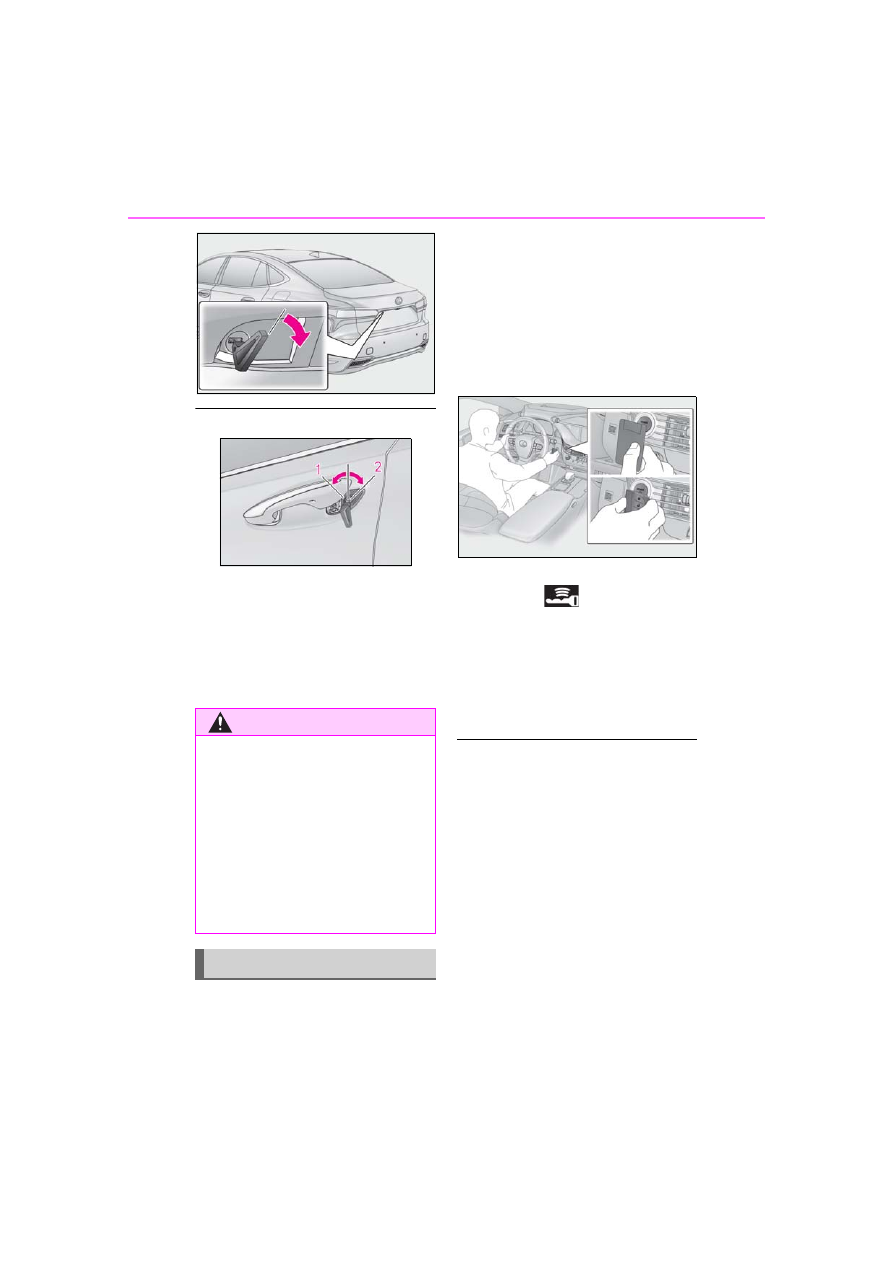

Key linked functions

Closes the windows and the moon
roof (turn and hold)

Opens the windows and the moon
roof (turn and hold)

These settings must be customized at your

Lexus dealer.

Depress the brake pedal.

Touch the Lexus emblem side of the
electronic key to the power switch.

When the electronic key is detected, a

buzzer sounds and the power switch will

turn to ON mode.
When the smart access system with

push-button start is deactivated in custom-

ization setting, the power switch will turn to

ACCESSORY mode.

Firmly depress the brake pedal and
check that

is shown on the

multi-information display.

Press the power switch.

In the event that the hybrid system still
cannot be started, contact your Lexus
dealer.

■

Stopping the hybrid system

Set the parking brake, shift the shift position

to P and press the power switch as you nor-

mally do when stopping the hybrid system.

■

Electronic key battery

As the above procedure is a temporary

measure, it is recommended that the elec-

tronic key battery be replaced immediately

when the battery is depleted. (

P.409)

■

Changing power switch modes

Release the brake pedal and press the

power switch in step

above. The hybrid

system does not start and modes will be

changed each time the switch is pressed.

(

P.172)

WARNING

■

When using the mechanical key and

operating the power windows or

moon roof

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof.

Also, do not allow children to operate the

mechanical key. It is possible for children

and other passengers to get caught in

the power window or moon roof.

Starting the hybrid system

445

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

When trouble

ari

ses

If you have a set of jumper (or booster)
cables and a second vehicle with a
12-volt battery, you can jump start your
vehicle by following the steps below.



Method connecting jumper (or
booster) cables to the 12-volt bat-
tery

Confirm that the electronic key is
being carried.

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and doors locked.

(

P.74)

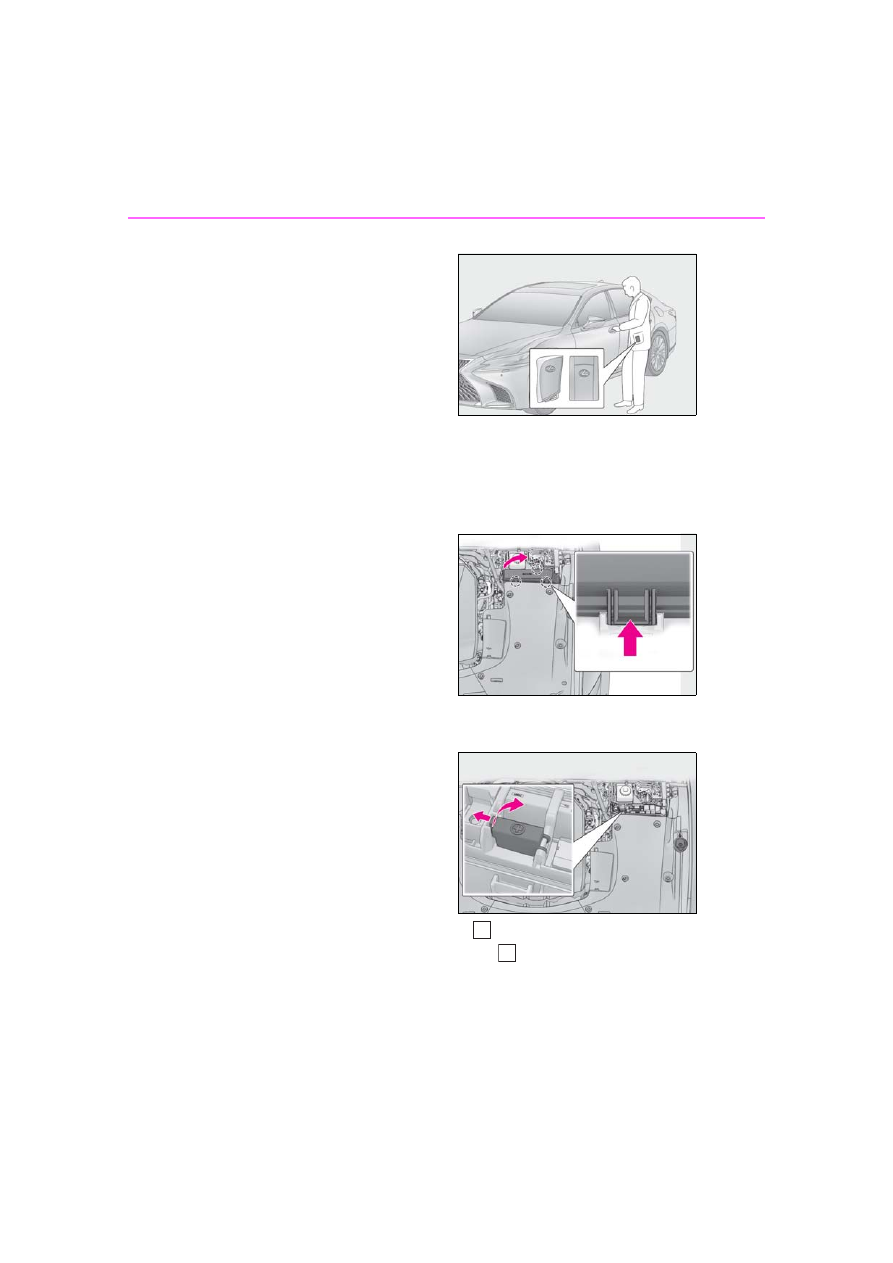

Open the trunk lid and remove the
luggage mat. (

P.350)

In the event that the trunk opener cannot

be used, use the mechanical key to open

the trunk. (

P.443)

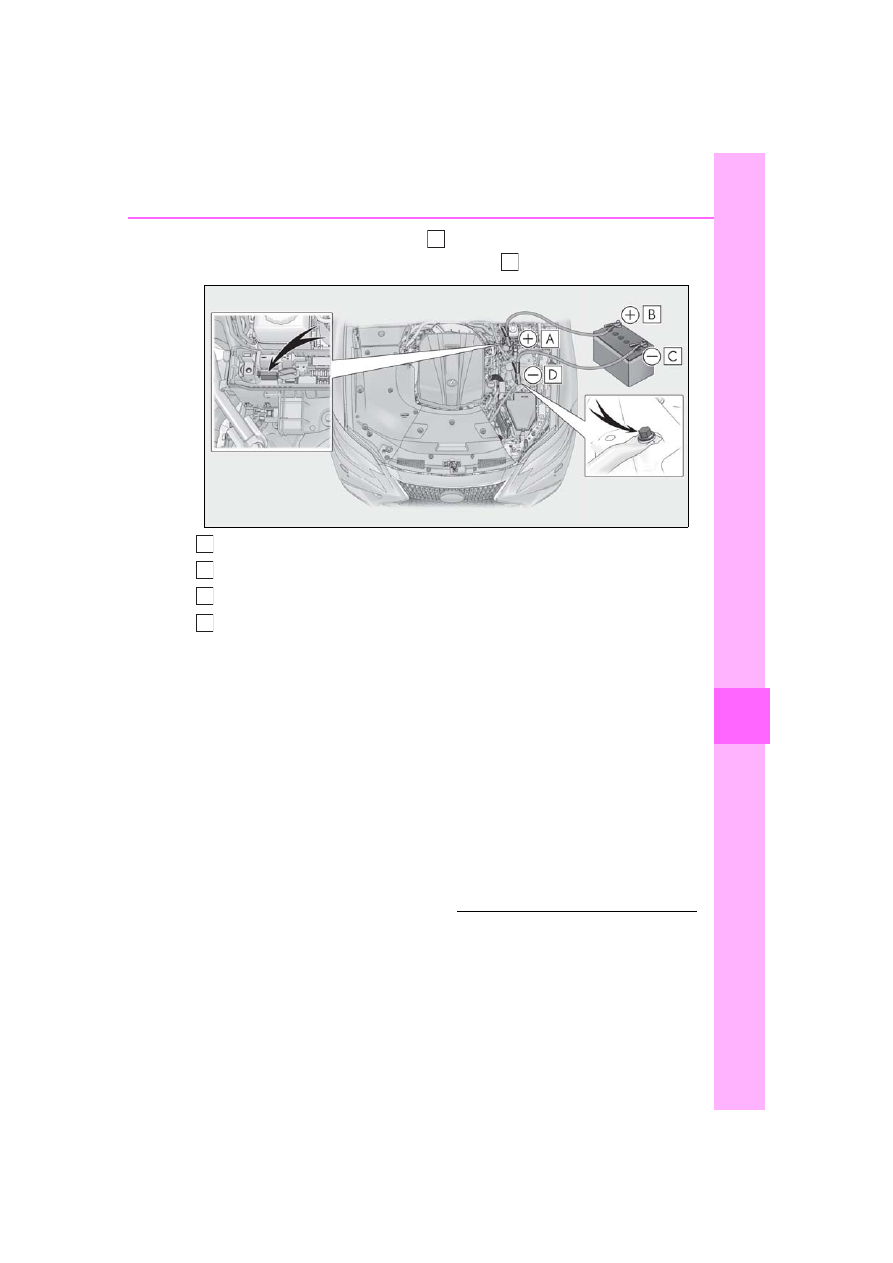

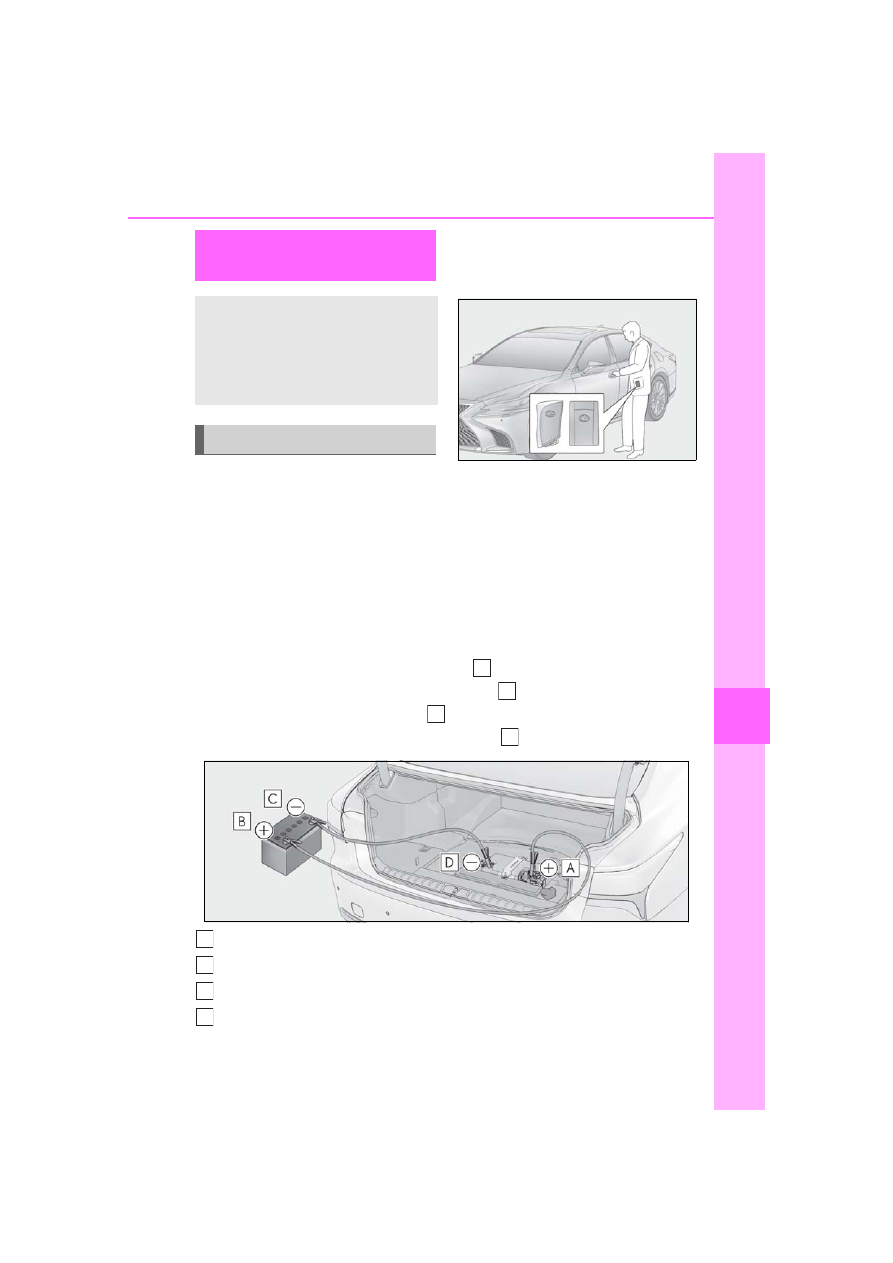

Connect a positive jumper cable clamp to   on your vehicle and connect the
clamp on the other end of the positive cable to   on the second vehicle. Then,
connect a negative cable clamp to   on the second vehicle and connect the
clamp at the other end of the negative cable to  .

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Negative (-) battery terminal (your vehicle)

If the 12-volt battery is dis-
charged

The following procedures may be
used to start the hybrid system if the
12-volt battery is discharged.
You can also call your Lexus dealer
or a qualified repair shop.

Restarting the hybrid system

A
B
C
D

446

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery of your
vehicle.

Open and close any of the doors of
your vehicle with the power switch
off.

Maintain the engine speed of the
second vehicle and start the hybrid
system of your vehicle by turning
the power switch to ON mode.

Make sure the “READY” indicator
comes on. If the indicator does not
come on, contact your Lexus
dealer.

Once the hybrid system has
started, remove the jumper cables
in the exact reverse order from
which they were connected.



Method connecting jumper (or
booster) cables to the exclusive
jump starting terminal

Confirm that the electronic key is
being carried.

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and doors locked.

(

P.74)

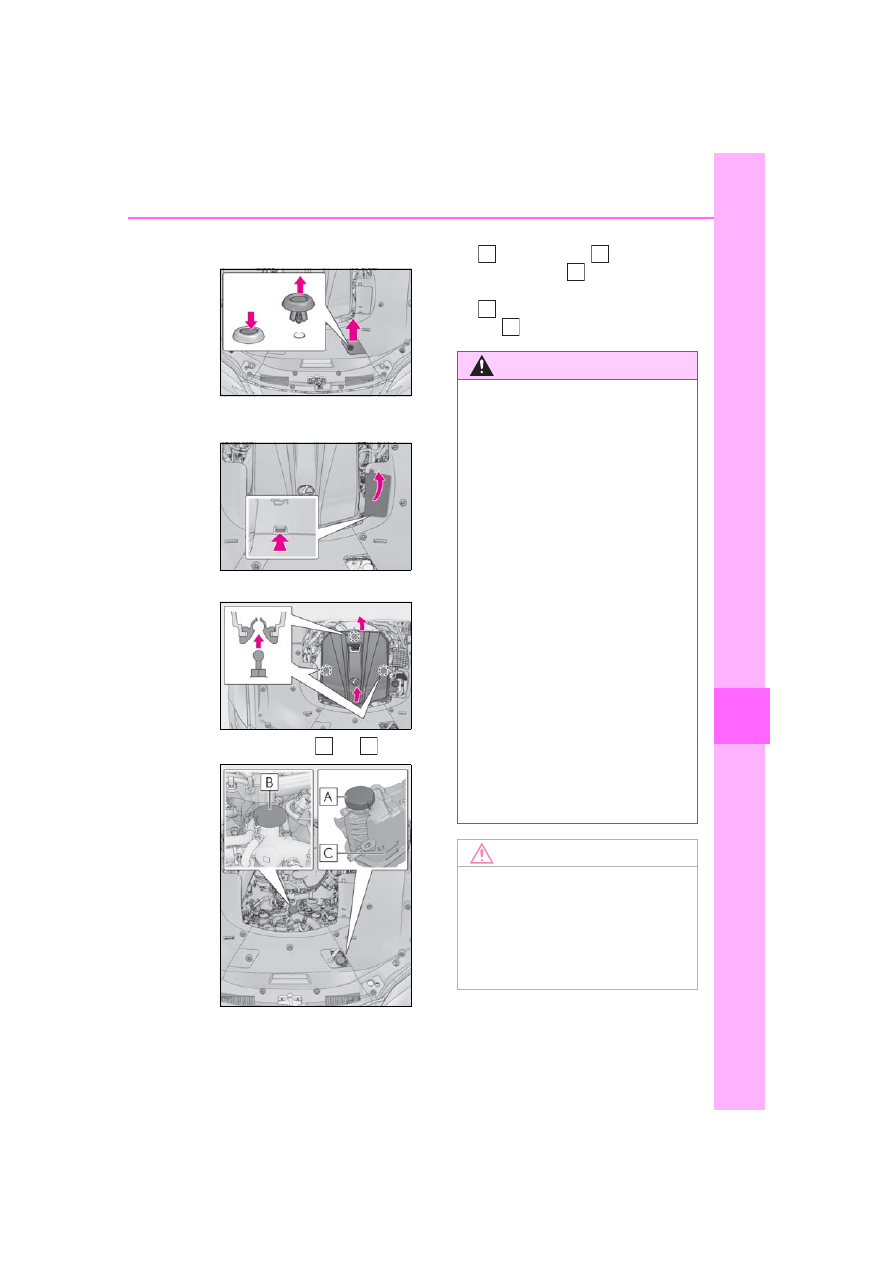

Open the hood. Remove the driver
side engine compartment cover
and fuse box cover. (

P.382,

385)

Push the tabs in and lift the lid off.

Open the exclusive jump starting
terminal cover.

Connect a positive jumper cable clamp to on your vehicle and connect the
clamp on the other end of the positive cable to on the second vehicle. Then,

447

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

When trouble

ari

ses

connect a negative cable clamp to on the second vehicle and connect the
clamp at the other end of the negative cable to .

Exclusive jump starting terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the exclusive jump starting
terminal and any moving parts as shown in the illustration

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery of your
vehicle.

Open and close any of the doors of
your vehicle with the power switch
off.

Maintain the engine speed of the
second vehicle and start the hybrid
system of your vehicle by turning
the power switch to ON mode.

Make sure the “READY” indicator
comes on. If the indicator does not
come on, contact your Lexus
dealer.

Once the hybrid system has
started, remove the jumper cables
in the exact reverse order from
which they were connected.

Close the exclusive jump starting
terminal cover and install the fuse
box cover and engine compart-
ment cover.

Once the hybrid system starts, have
the vehicle inspected at your Lexus
dealer as soon as possible.

■

Starting the hybrid system when the

12-volt battery is discharged

The hybrid system cannot be started by

push-starting.

■

To prevent 12-volt battery discharge

●

Turn off the headlights and the audio sys-

tem while the hybrid system is off.

A
B
C
D

448

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

■

When the 12-volt battery is removed or

discharged

●

Information stored in the ECU is cleared.

When the 12-volt battery is depleted,

have the vehicle inspected at your Lexus

dealer.

●

Some systems may require initialization.

(

P.494)

■

When removing the 12-volt battery ter-

minals

When the 12-volt battery terminals are

removed, the information stored in the

ECU is cleared. Before removing the

12-volt battery terminals, contact your

Lexus dealer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt battery

will discharge gradually even when the

vehicle is not in use, due to natural dis-

charge and the draining effects of certain

electrical appliances. If the vehicle is left for

a long time, the 12-volt battery may dis-

charge, and the hybrid system may be

unable to start. (The 12-volt battery

recharges automatically while the hybrid

system is operating.)

■

When recharging or replacing the

12-volt battery

●

In some cases, it may not be possible to

unlock the doors using the smart access

system with push-button start when the

12-volt battery is discharged. Use the

wireless remote control or the mechani-

cal key to lock or unlock the doors.

●

The hybrid system may not start on the

first attempt after the 12-volt battery has

recharged but will start normally after the

second attempt. This is not a malfunction.

●

The power switch mode is memorized by

the vehicle. When the 12-volt battery is

reconnected, the system will return to the

mode it was in before the 12-volt battery

was discharged. Before disconnecting

the 12-volt battery, turn the power switch

off.

If you are unsure what mode the power

switch was in before the 12-volt battery

discharged, be especially careful when

reconnecting the 12-volt battery.

■

When replacing the 12-volt battery

●

Use a Central Degassing type 12-volt

battery (European Regulations).

●

Use a 12-volt battery with the same case

size as the previous 12-volt battery and an

equivalent 20 hour rate capacity (20HR)

or greater.

• If the sizes differ, the 12-volt battery can-

not be properly secured.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, the 12-volt battery

may discharge and the hybrid system

may not be able to start.

●

Use a 12-volt battery with a handle. If a

12-volt battery without a handle is used,

removal is more difficult.

●

After replacing, firmly attach the follow-

ing items to the exhaust hole of the

12-volt battery.

• Use the exhaust hose that was attached

to the 12-volt battery before replacing

and confirm that it is firmly connected to

the hole section of the vehicle.

• Use the exhaust hole plug included with

the 12-volt battery replaced or the one

installed on the 12-volt battery prior to

the replacement. (Depending on the

12-volt battery to be replaced, the

exhaust hole may be plugged.)

449

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

When trouble

ari

ses

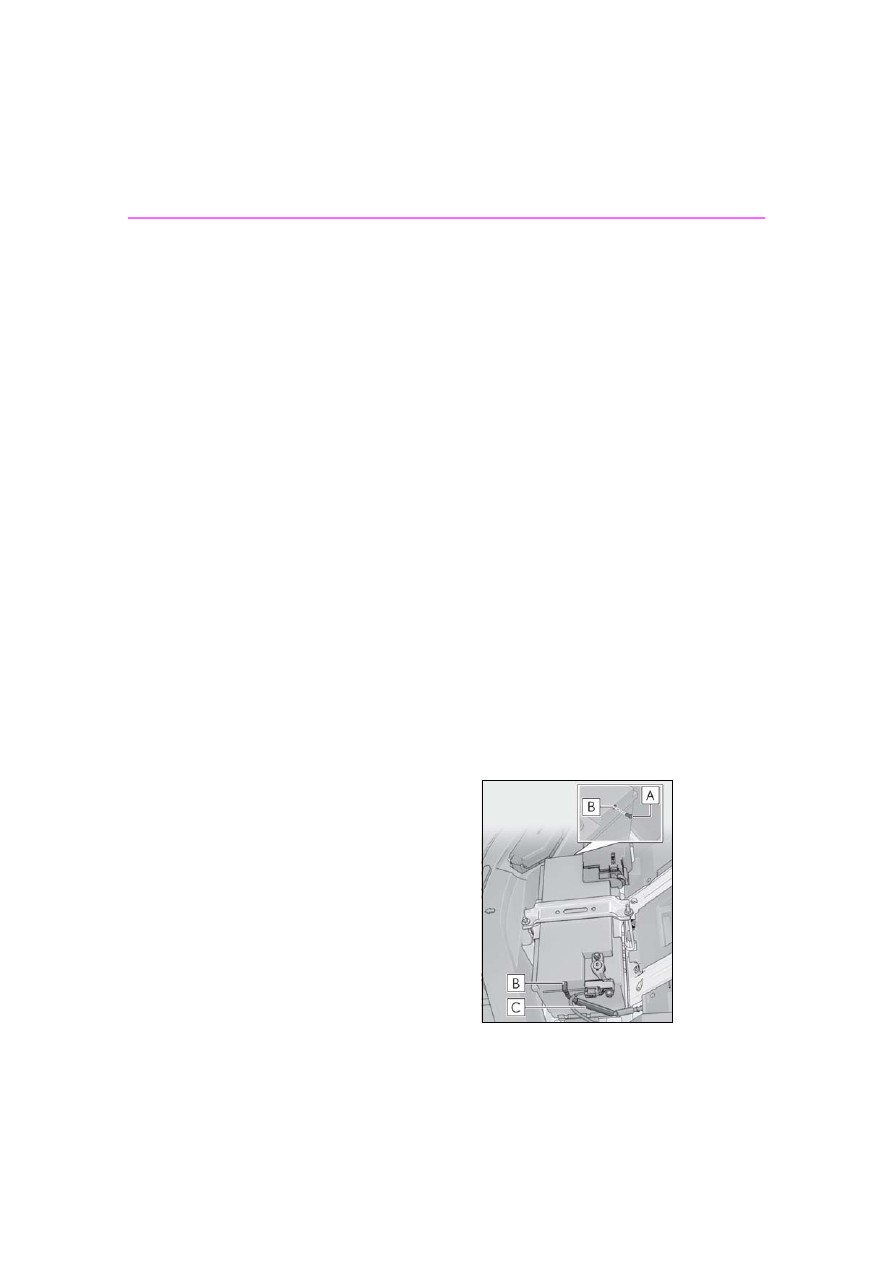

Exhaust hole plug

Exhaust hole

Exhaust hose

For details, consult your Lexus dealer.

WARNING

■

When removing the 12-volt battery

terminals

Always remove the negative (-) terminal

first. If the positive (+) terminal contacts

any metal in the surrounding area when

the positive (+) terminal is removed, a

spark may occur, leading to a fire in addi-

tion to electrical shocks and death or

serious injury.

■

Avoiding 12-volt battery fires or

explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the

12-volt battery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poisonous

and corrosive acidic electrolyte, while

related parts contain lead and lead com-

pounds. Observe the following precau-

tions when handling the 12-volt battery:

A
B
C

●

When working with the 12-volt battery,

always wear safety glasses and take

care not to allow any battery fluids

(acid) to come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt battery.

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after handling

the 12-volt battery support, terminals,

and other battery-related parts.

●

Do not allow children near the 12-volt

battery.

■

After recharging the 12-volt battery

Have the 12-volt battery inspected at

your Lexus dealer as soon as possible.

If the 12-volt battery is deteriorating, con-

tinued use may cause the 12-volt battery

to emit a malodorous gas, which may be

detrimental to the health of passengers.

■

When replacing the 12-volt battery

●

When the vent plug and indicator are

close to the hold down clamp, the bat-

tery fluid (sulfuric acid) may leak.

●

For information regarding 12-volt bat-

tery replacement, contact your Lexus

dealer.

●

After replacing, securely attach the

exhaust hose and exhaust hole plug to

the exhaust hole of the replaced

12-volt battery. If not properly installed,

gases (hydrogen) may leak into the

vehicle interior, and there is the possi-

ble danger of the gas igniting and

exploding.

450

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809



If the engine coolant temperature
gauge enters the red zone or
“Engine Coolant Temp High Stop in
a Safe Place See Owner’s Manual”
is shown on the multi-information
display

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the hybrid system.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

After the hybrid system has cooled
down sufficiently, inspect the hoses

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fan or engine drive

belt.

■

To prevent damaging the vehicle

The exclusive jump starting terminal is to

be used when charging the 12-volt bat-

tery from another vehicle in an emer-

gency. It cannot be used to jump start

another vehicle.

If your vehicle overheats

The following may indicate that
your vehicle is overheating.

 The engine coolant temperature

gauge (

P.81, 85) is in the red

zone or a loss of hybrid system
power is experienced. (For exam-
ple, the vehicle speed does not
increase.)

 “Engine Coolant Temp High Stop

in a Safe Place See Owner’s
Manual” or “Hybrid System
Overheated Output Power
Reduced” is shown on the
multi-information display.

 Steam comes out from under the

hood.

Correction procedures

451

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

When trouble

ari

ses

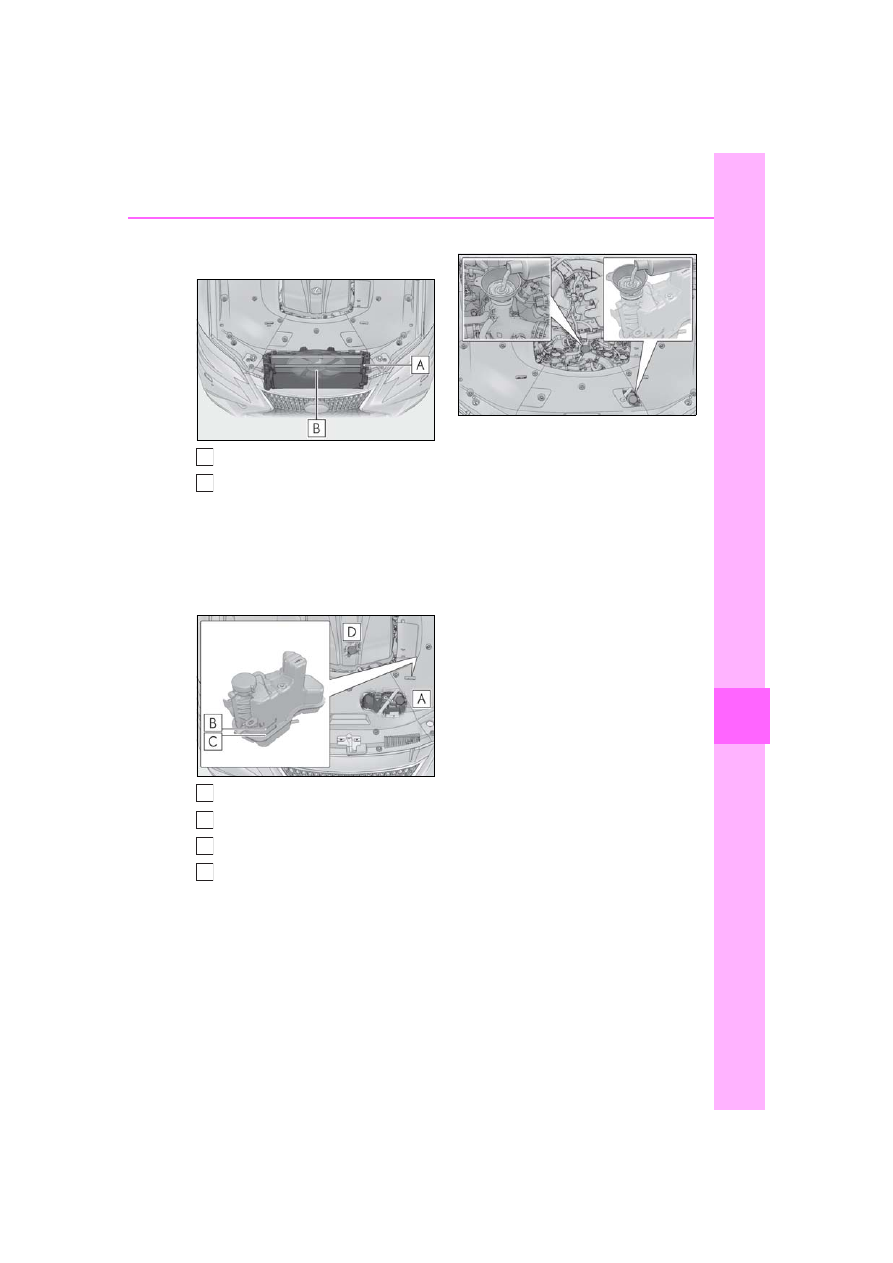

and radiator core (radiator) for any
leaks.

Radiators
Cooling fan

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir
“F” line
“L” line
Coolant inlet cap

Add coolant if necessary.
(

P.452)

Water can be used in an emergency if

coolant is unavailable.

Start the hybrid system and turn the
air conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

If the fan is not operating:
Stop the hybrid system immediately
and contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the
nearest Lexus dealer.



If “Hybrid System Overheated Out-
put Power Reduced” is shown on the
multi-information display

Stop the vehicle in a safe place.

Stop the hybrid system and care-
fully lift the hood.

A
B

A
B
C
D

452

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

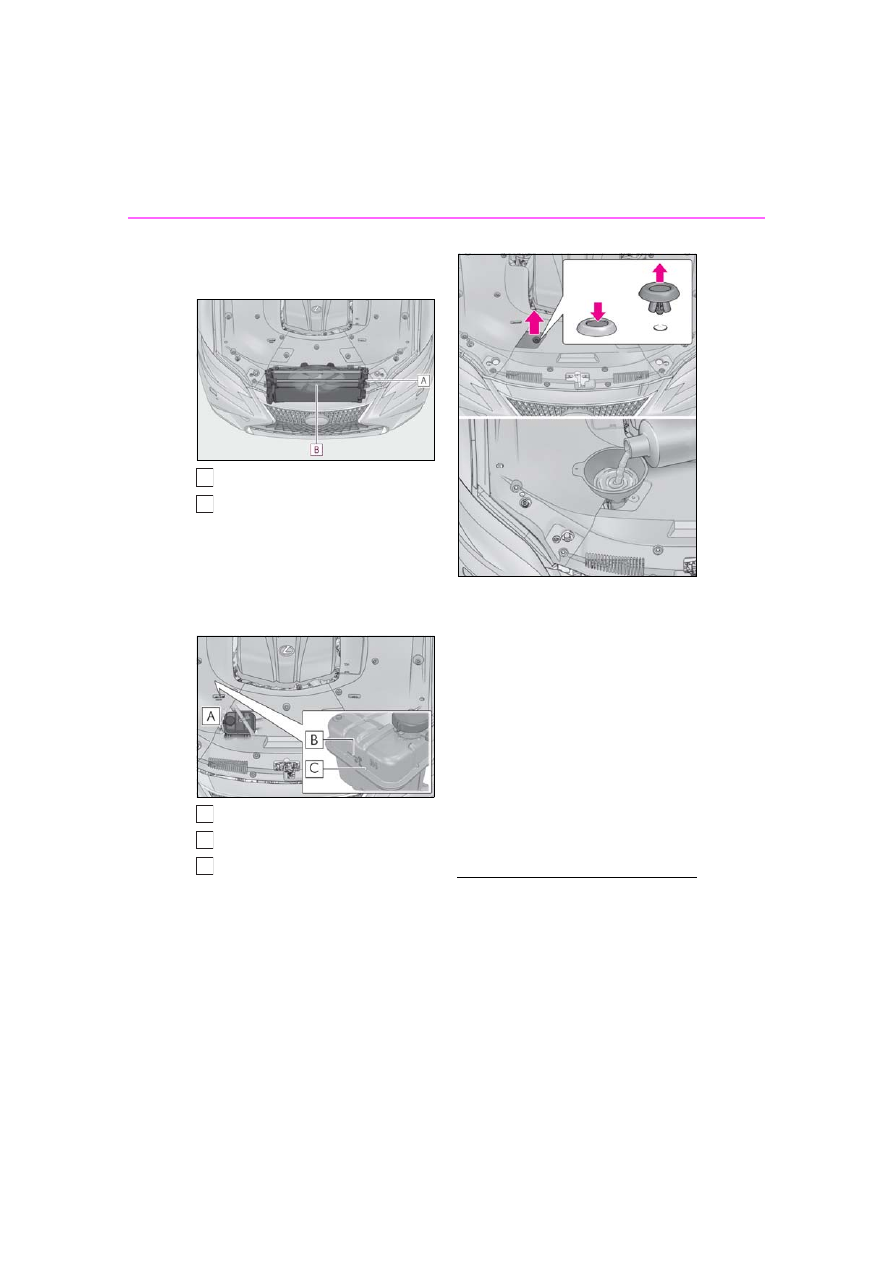

After the hybrid system has cooled
down, inspect the hoses and radia-
tor core (radiator) for any leaks.

Radiator
Cooling fan

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir
“F” line
“L” line

Remove the engine compartment
cover and add coolant if necessary.

Water can be used in an emergency if

coolant is unavailable.

After stopping the hybrid system
and waiting for 5 minutes or more,
start the hybrid system again and
check for the multi-information dis-
play.
If the message does not disappear:
Stop the hybrid system and contact
your Lexus dealer.
If the message is not displayed:
The hybrid system temperature has
dropped and the vehicle may be
driven normally.

However, if the message appears again fre-

quently, contact your Lexus dealer.

■

When adding engine coolant

Add coolant in accordance with the follow-

ing procedure.

A
B

A
B
C

453

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

When trouble

ari

ses

Remove the engine compartment

cover.

Push the tab in and open the engine

compartment cover.

Remove the engine cover.

Remove the caps

and

Add coolant through the inlet of the cap

up to the “F” line

, and then

replace the cap

Add coolant through the inlet of the cap

until it is full, and then replace the

cap .

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

After the hybrid system has been

turned off, check that the “READY”

indicator off.

When the hybrid system is operating,

the gasoline engine may automatically

start, or the cooling fan may suddenly

operate even if the gasoline engine

stops. Do not touch or approach rotat-

ing parts such as the fan, which may

lead to fingers or clothing (especially a

tie, a scarf or a muffler) getting caught,

resulting in serious injury.

●

Do not loosen the coolant inlet cap or

the coolant reservoir cap while the

hybrid system and radiator are hot.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine/power control

unit coolant

Add coolant slowly after the hybrid sys-

tem has cooled down sufficiently. Adding

cool coolant to a hot hybrid system too

quickly can cause damage to the hybrid

system.

454

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

Stop the hybrid system. Set the
parking brake and shift the shift
position to P.

Remove the mud, snow or sand
from around the rear wheels.

Place wood, stones or some other
material under the rear wheels to
help provide traction.

Restart the hybrid system.

Shift the shift position to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

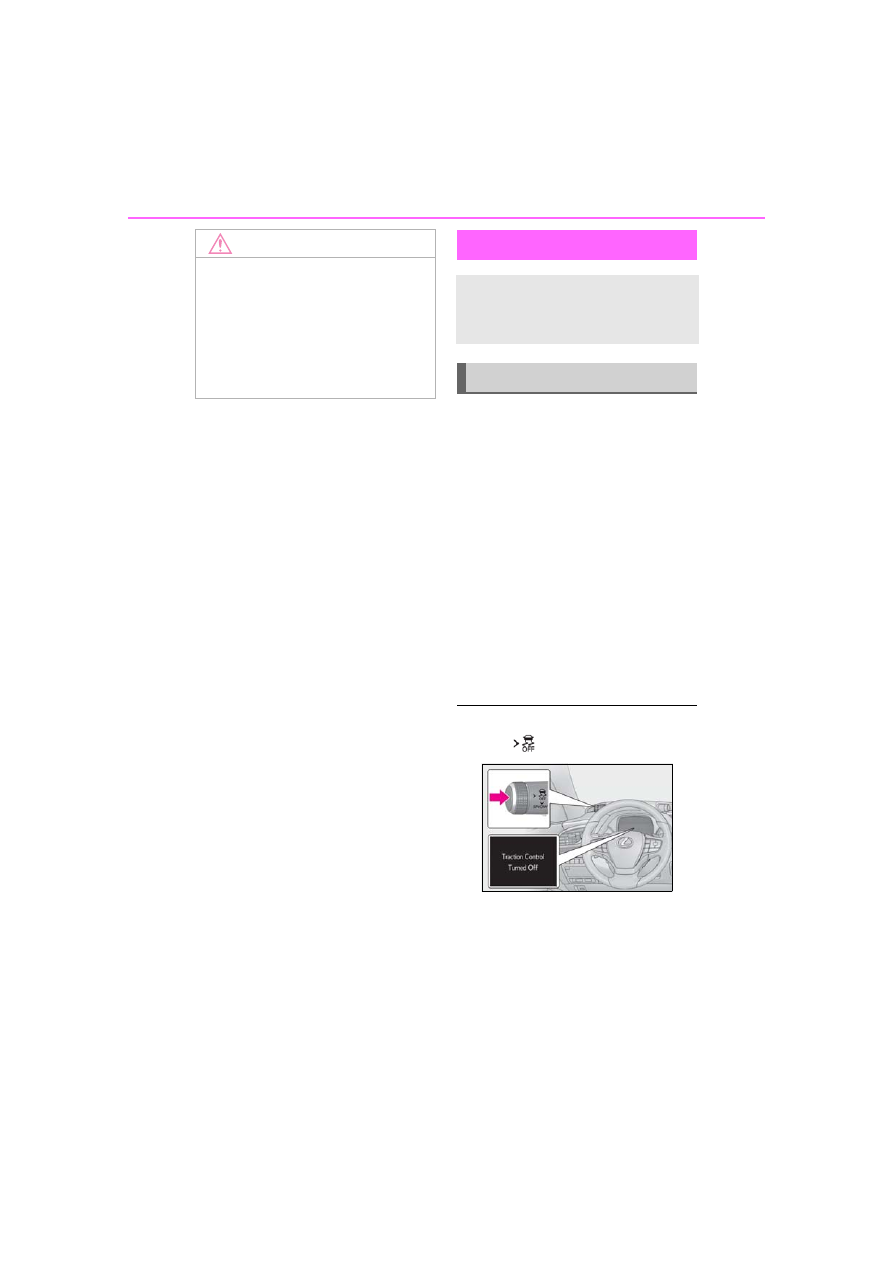

When it is difficult to free the vehicle

Press the

switch to turn off TRAC.

NOTICE

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

455

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

When trouble

ari

ses

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift position

Be careful not to shift the shift position

with the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the rear wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

456

7-2. Steps to take in an emergency

LS500h_OM_(U)_1809

457

LS500h_OM_(U)_1809

Vehi

cle

spec

ifi

tions

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

458

Fuel information.........................

468

Tire information..........................

470

8-2. Customization

Customizable features............

479

8-3. Initialization

Items to initialize ........................

494

458

8-1. Specifications

LS500h_OM_(U)_1809

8-1.Specifications

: Unladen vehicles

: Without electronically modulated air suspension

: With electronically modulated air suspension

: Except F SPORT models

: F SPORT models

■

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left

of the instrument panel.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

206.1 in. (5235 mm)

Overall width

74.8 in. (1900 mm)

Overall height

2WD models

57.5 in. (1460 mm)

57.1 in. (1450 mm)

AWD models

57.9 in. (1470 mm)

57.5 in. (1460 mm)

Wheelbase

123.0 in. (3125 mm)

Tread

Front

2WD models

64.2 in. (1630 mm)

AWD models

64.2 in. (1630 mm)

64.4 in. (1635 mm)

Rear

64.4 in. (1635 mm)

63.6 in. (1615 mm)

Vehicle capacity weight
(Occupants + luggage)

870 lb. (395 kg)

Vehicle identification

459

8-1. Specifications

LS500h_OM_(U)_1809

Vehi

cle

spec

ifi

tions

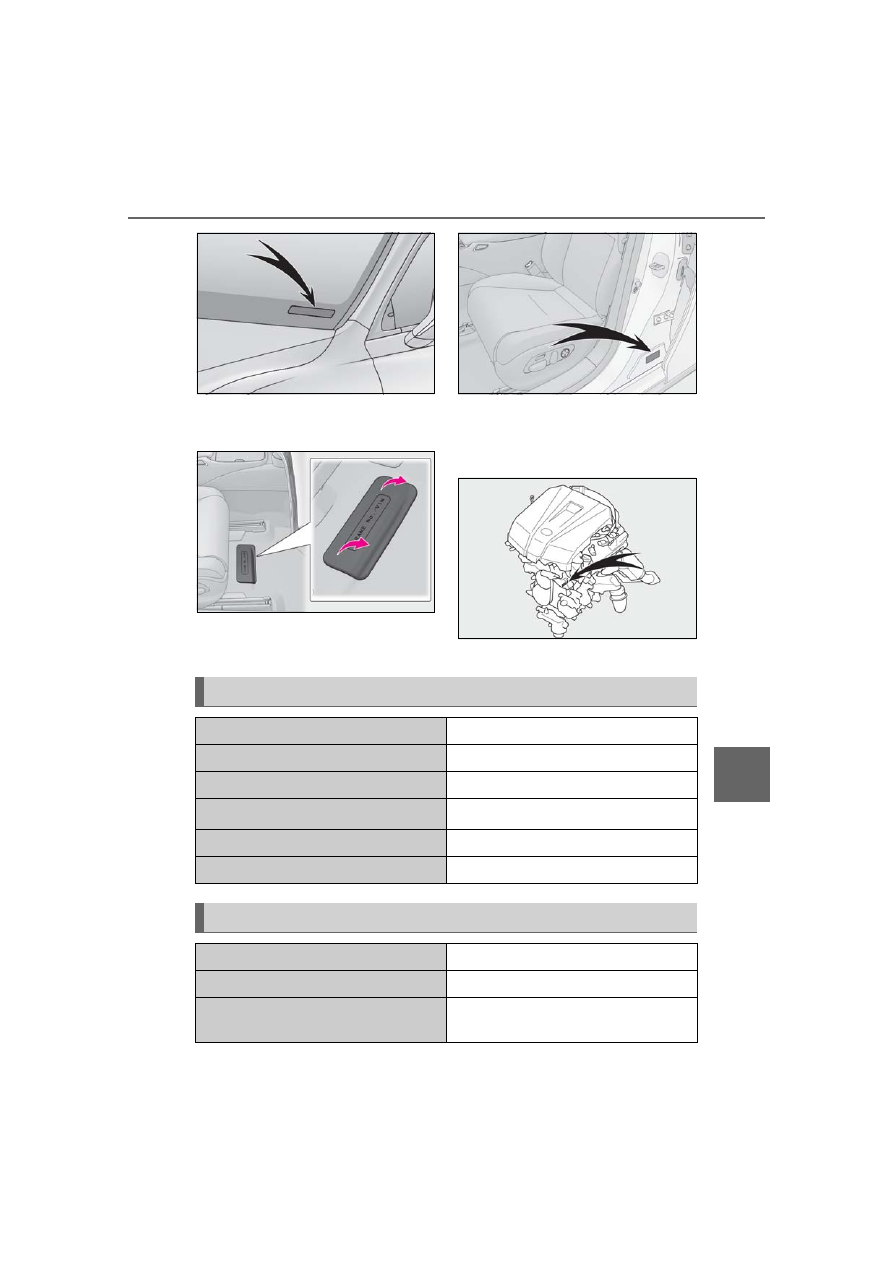

This number is also stamped under the
right-hand front seat.

This number is also on the Certification
Label.

■

Engine number

The engine number is stamped on the
engine block as shown.

Engine

Model

3.5 L 6-cylinder (8GR-FXS)

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70

 3.27 in. (94.0  83.0 mm)

Displacement

210.9 cu. in. (3456 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or higher

Fuel tank capacity
(Reference)

22.2 gal. (84.0 L, 18.5 Imp. gal.)

Content .. 26 27 28 29 ..
