264

4-5. Using the driving support systems

IS350 AWD/IS350/IS300 AWD/IS300_U

*

1

: The images may differ from that shown in the illustrations. (

P. 261)

*

2

: Multi-information display

*

3

: Audio system screen

*

4

: Lexus Display Audio screen

■

Buzzer operation and distance to an obstacle
A buzzer sounds when the sensors are operating.

●

The buzzer beeps faster as the vehicle approaches an obstacle. When the
vehicle comes within the following distance of the obstacle, the buzzer
sounds continuously:

• Front center sensors: Approximately 1.0 ft. (30 cm)

• Corner sensors: Approximately 1.0 ft. (30 cm)

• Rear center sensors: Approximately 1.1 ft. (35 cm)

●

When 2 or more obstacles are detected simultaneously, the buzzer system
responds to the nearest obstacle. If one or both come within the above dis-
tances, the beep will repeat a long tone, followed by fast beeps.

Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 1.6 ft. (50 cm)
Approximately 2.0 ft. (60 cm)

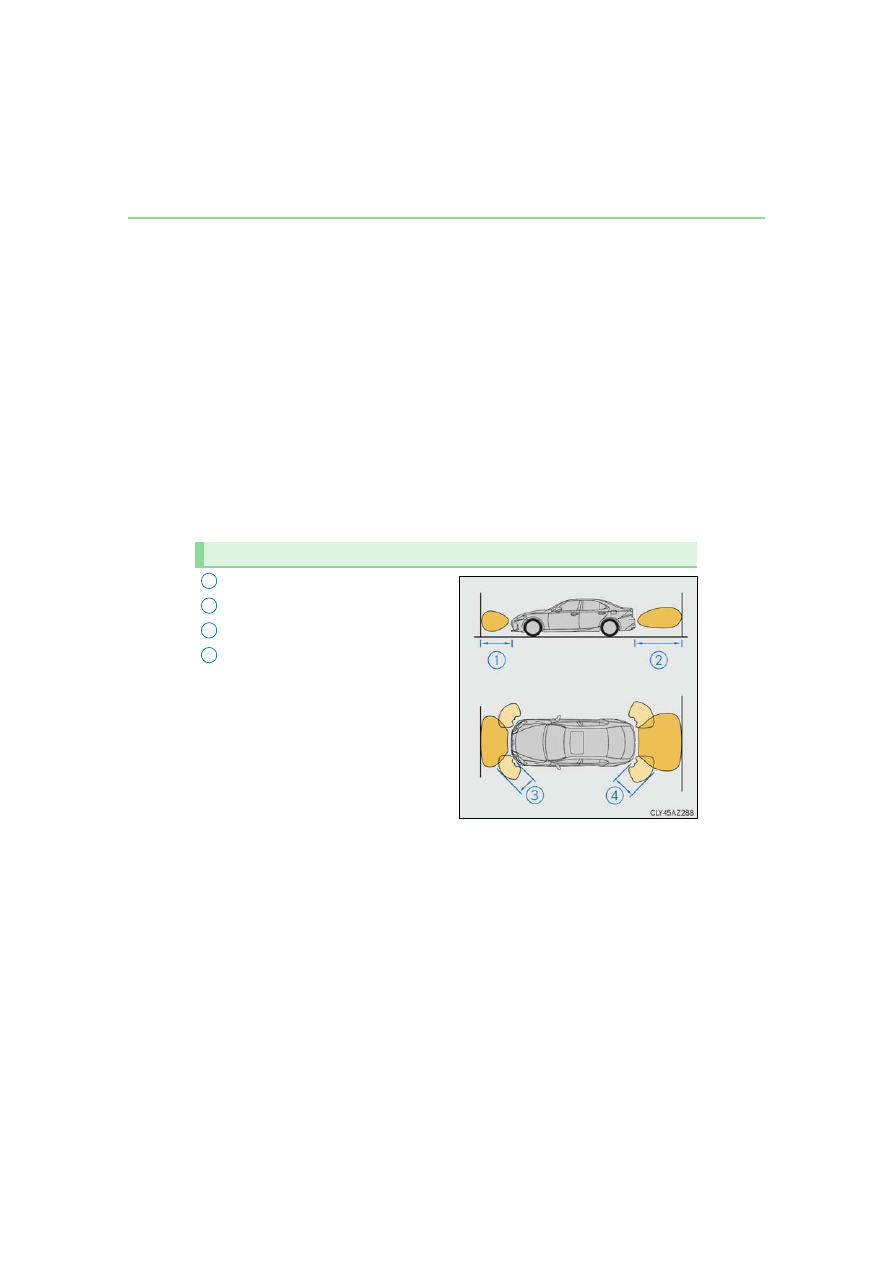

The diagram shows the detection range

of the sensors. Note that the sensors

cannot detect obstacles that are

extremely close to the vehicle.
The range of the sensors may change

depending on the shape of the object

etc.

Detection range of the sensors

1

2
3
4

265

4-5. Using the driving support systems

4

Dr

iving

IS350 AWD/IS350/IS300 AWD/IS300_U

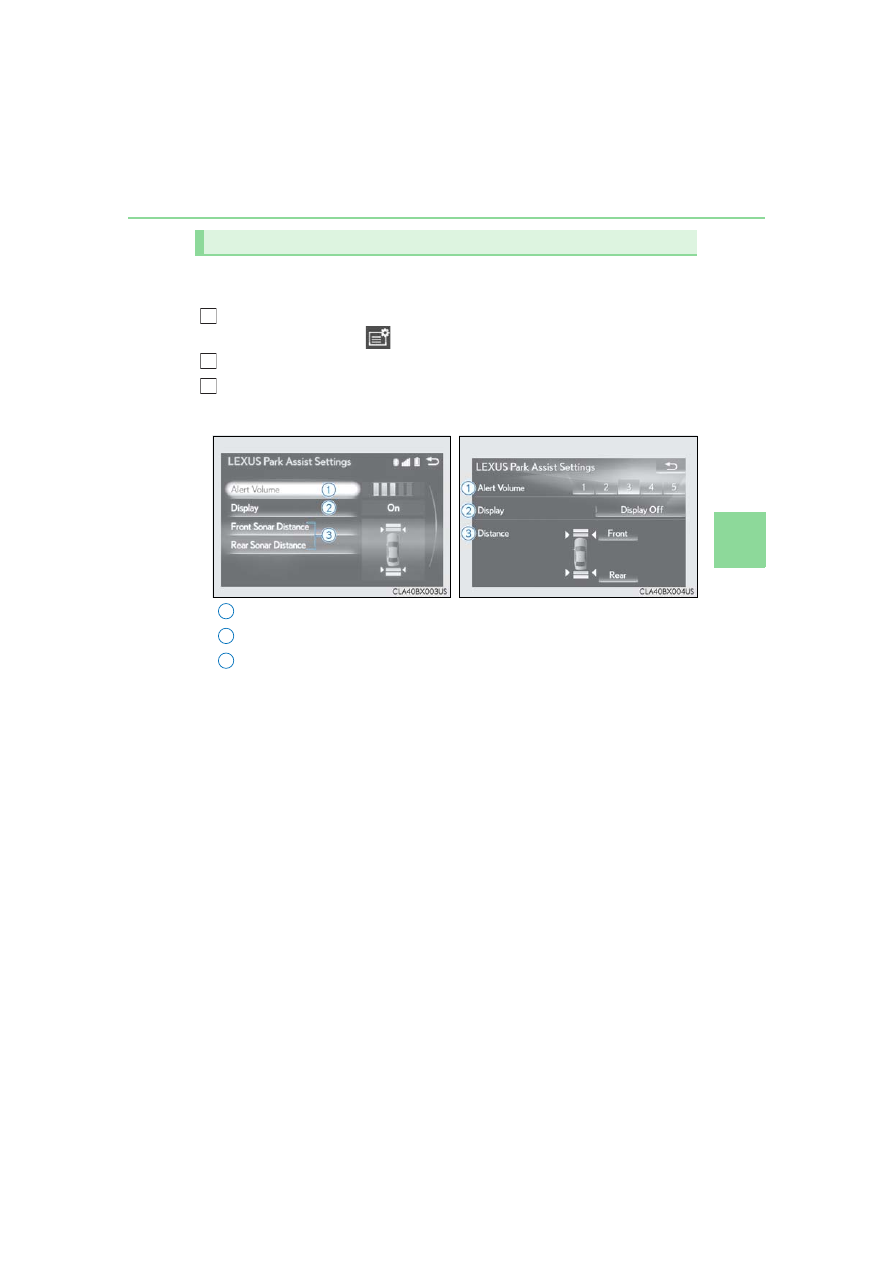

You can change the buzzer sounds volume and the screen operating conditions
when the engine switch is in IGNITION ON mode.

Press the “MENU” button on the Lexus Display Audio controller/Remote
Touch, and then select

 on the screen.

Select “Vehicle”, and then select “LEXUS Park Assist” on the screen.
Select the desired item.

The buzzer sounds volume can be adjusted.
On or off can be selected for intuitive parking assist display.
Both the front or rear center sensors display and tone indication can be set.

Setting up intuitive parking assist

1

2
3



Lexus Display Audio screen



Navigation system screen

1

2
3

266

4-5. Using the driving support systems

IS350 AWD/IS350/IS300 AWD/IS300_U

■

The intuitive parking assist can be operated when

●

Front corner sensors:
• The engine switch is in IGNITION ON mode.

• The shift lever is in other than P.

• The vehicle speed is less than about 6 mph (10 km/h).

(At any speed when the shift lever is in R)

●

Front center sensors:
• The engine switch is in IGNITION ON mode.

• The shift lever is in other than P or R.

• The vehicle speed is less than about 6 mph (10 km/h).

●

Rear corner and rear center sensors:
• The engine switch is in IGNITION ON mode.

• The shift lever is in R.

■

Intuitive parking assist display
Vehicles with a Lexus Display Audio system: When an obstacle is detected while the

Lexus parking assist monitor is in use, the warning indicator will appear in the upper part

of the screen even if the display setting has been set to off.

■

If a message is displayed on the multi-information display
P. 532

■

Certification



For vehicles sold in Canada

This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme a la norme NMB-001 du Canada.

■

Customization
Some functions can be customized. (

P. 613)

267

4-5. Using the driving support systems

4

Dr

iving

IS350 AWD/IS350/IS300 AWD/IS300_U

WARNING

■

When using the intuitive parking assist
Observe the following precautions.

Failing to do so may result in the vehicle being unable to be driven safely and possibly

cause an accident.

●

Do not use the sensor at speeds in excess of 6 mph (10 km/h).

●

The sensors’ detection areas and reaction times are limited. When moving forward or

reversing, check the areas surrounding the vehicle (especially the sides of the vehi-

cle) for safety, and drive slowly, using the brake to control the vehicle’s speed.

●

Do not install accessories within the sensors’ detection areas.

■

Sensor detection information

●

The sensor’s detection areas are limited to the areas around the vehicle’s bumper.

●

Certain vehicle conditions and surrounding environments, such as the following, may

affect the ability of the sensors to correctly detect objects. Pay particular attention in

the following situations. Failure to do so may result in the vehicle being driven

unsafely, possibly leading to an accident.
• There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this prob-

lem.)

• The sensor is frozen. (Thawing the area will resolve this problem.)

In especially cold weather, if a sensor is frozen the screen may show an abnormal

display, or obstacles may not be detected.

• The sensor is covered in any way.

• The vehicle is leaning considerably to one side.

• On an extremely bumpy road, on an incline, on gravel, or on grass.

• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air

brakes of large vehicles, or other loud noises producing ultrasonic waves.

• There is another vehicle equipped with parking assist sensors in the vicinity.

• The sensor is coated with a sheet of spray or heavy rain.

• The vehicle is equipped with a fender pole or wireless antenna.

• Towing eyelets are installed.

• The bumper or sensor receives a strong impact.

• The vehicle is approaching a tall or curved curb.

• In harsh sunlight or intense cold weather.

• The area directly under the bumpers is not detected.

• If obstacles draw too close to the sensor.

• A non-genuine Lexus suspension (lowered suspension etc.) is installed.

• People may not be detected if they are wearing certain types of clothing.

In addition to the examples above, there are instances in which, because of their

shape, signs and other objects may be judged by a sensor to be closer than they are.

268

4-5. Using the driving support systems

IS350 AWD/IS350/IS300 AWD/IS300_U

WARNING

●

The shape of the obstacle may prevent a sensor from detecting it. Pay particular

attention to the following obstacles:
• Wires, fences, ropes, etc.

• Cotton, snow and other materials that absorb sound waves

• Sharply-angled objects

• Low obstacles

• Tall obstacles with upper sections projecting outwards in the direction of your

vehicle

• People, animals and other moving objects

• People wearing certain types of clothing

●

The following situations may occur during use.
• Depending on the shape of the obstacle and other factors, the detection distance

may shorten, or detection may be impossible.

• Obstacles may not be detected if they are too close to the sensor.

• There will be a short delay between obstacle detection and display. Even at slow

speeds, there is a possibility that the obstacle will come within the sensor’s detec-

tion areas before the display is shown and the buzzer sounds.

• Thin posts or objects lower than the sensor may not be detected when

approached, even if they have been detected once.

• It might be difficult to hear beeps due to the volume of audio system or air flow

noise of the air conditioning system.

NOTICE

■

When using intuitive parking assist
In the following situations, the system may not function correctly due to a sensor mal-

function, etc. Have the vehicle checked by your Lexus dealer.

●

The intuitive parking assist operation display flashes, and a buzzer sounds when no

obstacles are detected.

●

If the area around a sensor collides with something, or is subjected to strong impact.

●

If the bumper collides with something.

●

If the display shows continuously without beeping, except when the buzzer mute

switch has been turned on.

●

If a display error occurs, first check the sensor.

If the error occurs even if there is no ice, snow or mud on the sensor, it is likely that the

sensor is malfunctioning.

■

Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

269

4-5. Using the driving support systems

4

Dr

iving

IS350 AWD/IS350/IS300 AWD/IS300_U

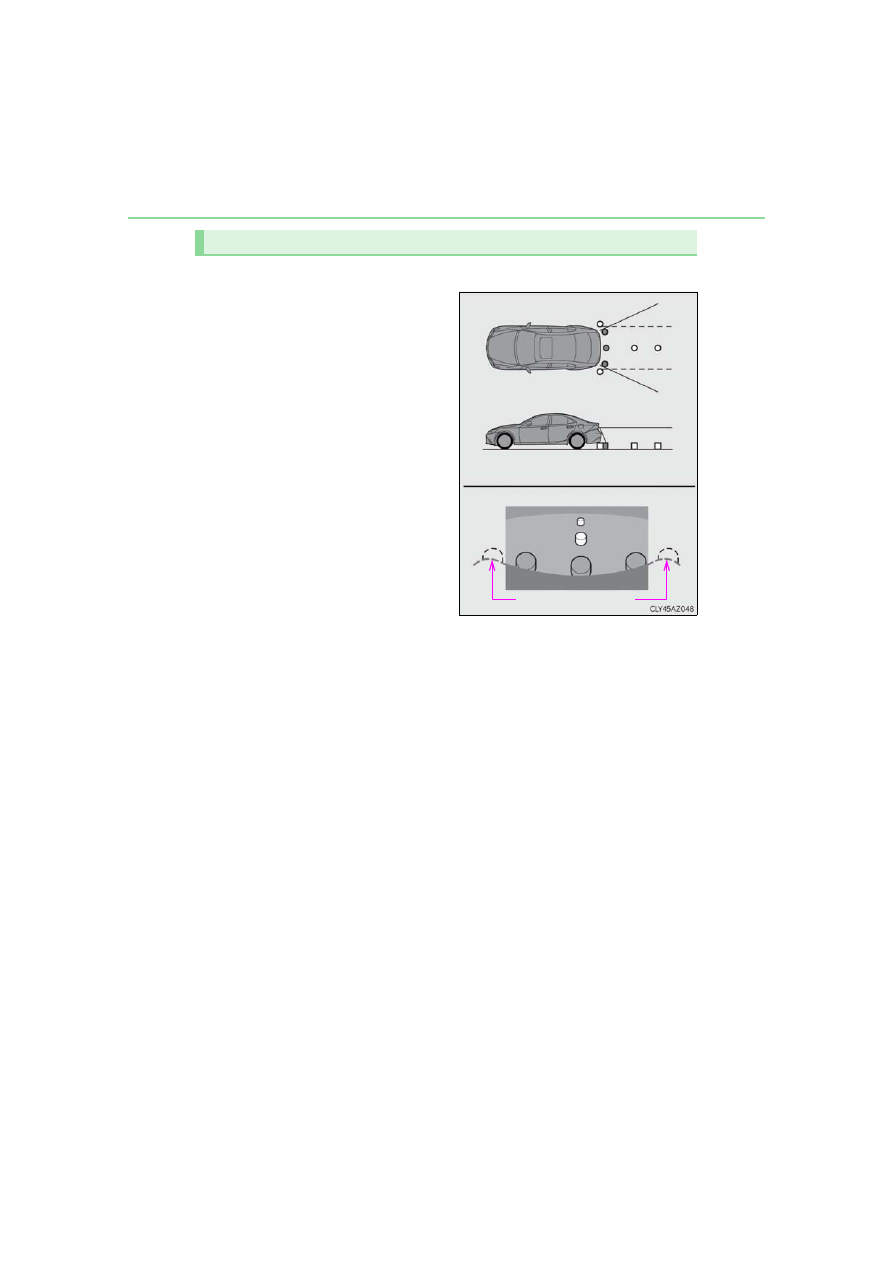

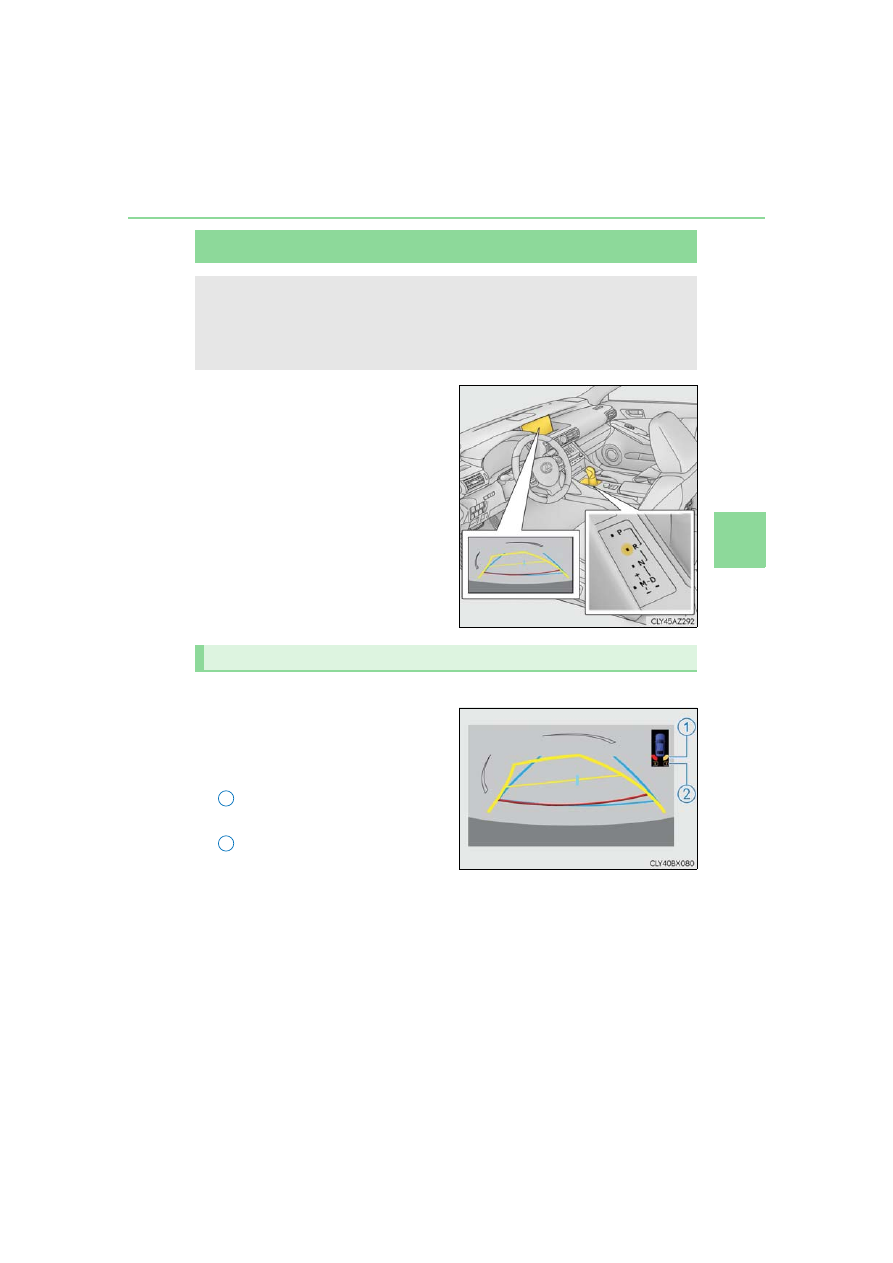

The rear view image is displayed when
the shift position is in R and the engine
switch is in IGNITION ON mode.

The parking assist monitor system will

be deactivated when the shift position is

in any position other than R.

■

Screen display
The parking assist monitor screen
will be displayed if the shift position is
shifted to R while the engine switch
is in IGNITION ON mode.

Intuitive parking assist display
(if equipped)
Rear Cross Traffic Alert
(if equipped)

A simplified image is displayed on the upper part of the screen when an obsta-

cle is detected.

Lexus parking assist monitor

The parking assist monitor assists the driver by displaying an image of the view
behind the vehicle while backing up, for example while parking.
The screen illustrations used in this text are intended as examples, and may
differ from the image that is actually displayed on the screen.

Using the Lexus parking assist monitor

1

2

270

4-5. Using the driving support systems

IS350 AWD/IS350/IS300 AWD/IS300_U

■

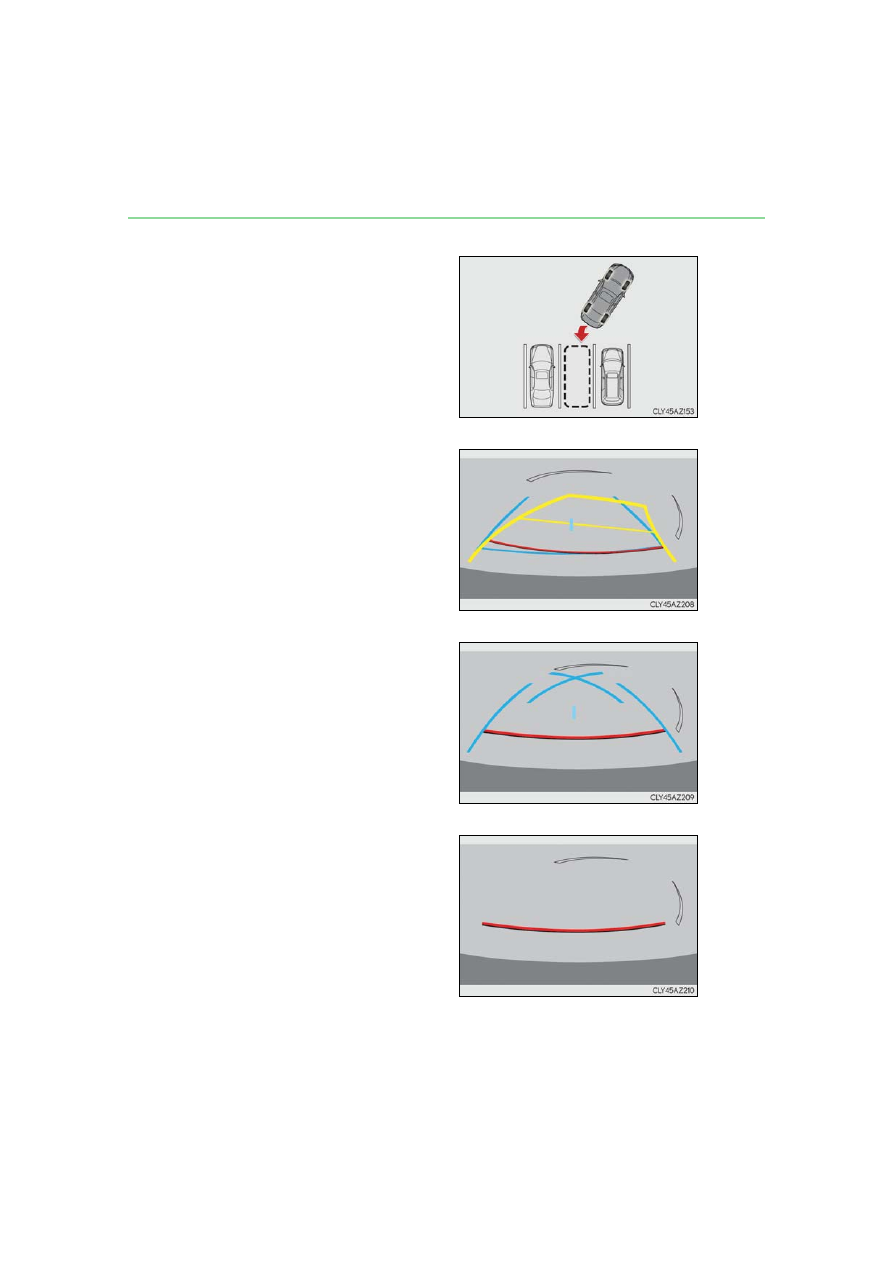

Using the system
Use any of the following modes.

●

Estimated course line display mode (

P. 272)

Estimated course lines are dis-
played which move in accor-
dance with the operation of the
steering wheel.

●

Parking assist guide line display mode (

P. 274)

The steering wheel return points
(parking assist guide lines) are
displayed.

●

Distance guide line display mode
Distance guide lines only are dis-
played.

271

4-5. Using the driving support systems

4

Dr

iving

IS350 AWD/IS350/IS300 AWD/IS300_U

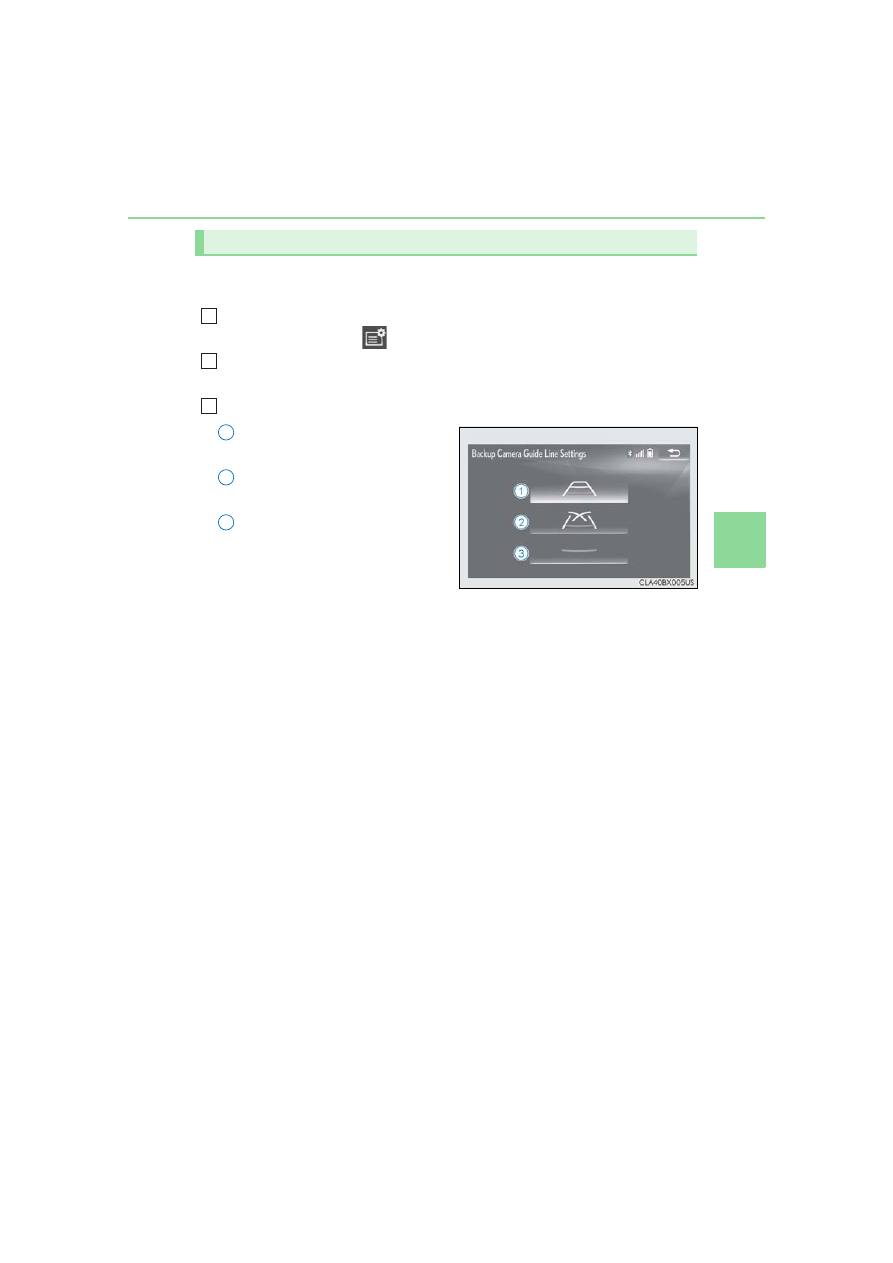

When the shift position is in any position other than R, the display mode can be
changed in the following procedure.

Press the “MENU” button on the Lexus Display Audio controller/Remote
touch, and then select

 on the screen.

Select “Vehicle”, and then select “Back Camera Guide Line Setting” on the
screen.
Select the desired display mode.

Estimated course line display
mode (

P. 272)

Parking assist guide line display
mode (

P. 274)

Distance guide line display mode
Distance guide lines only are dis-
played.

Switching the display mode

1

2

3

1

2

3

272

4-5. Using the driving support systems

IS350 AWD/IS350/IS300 AWD/IS300_U

■

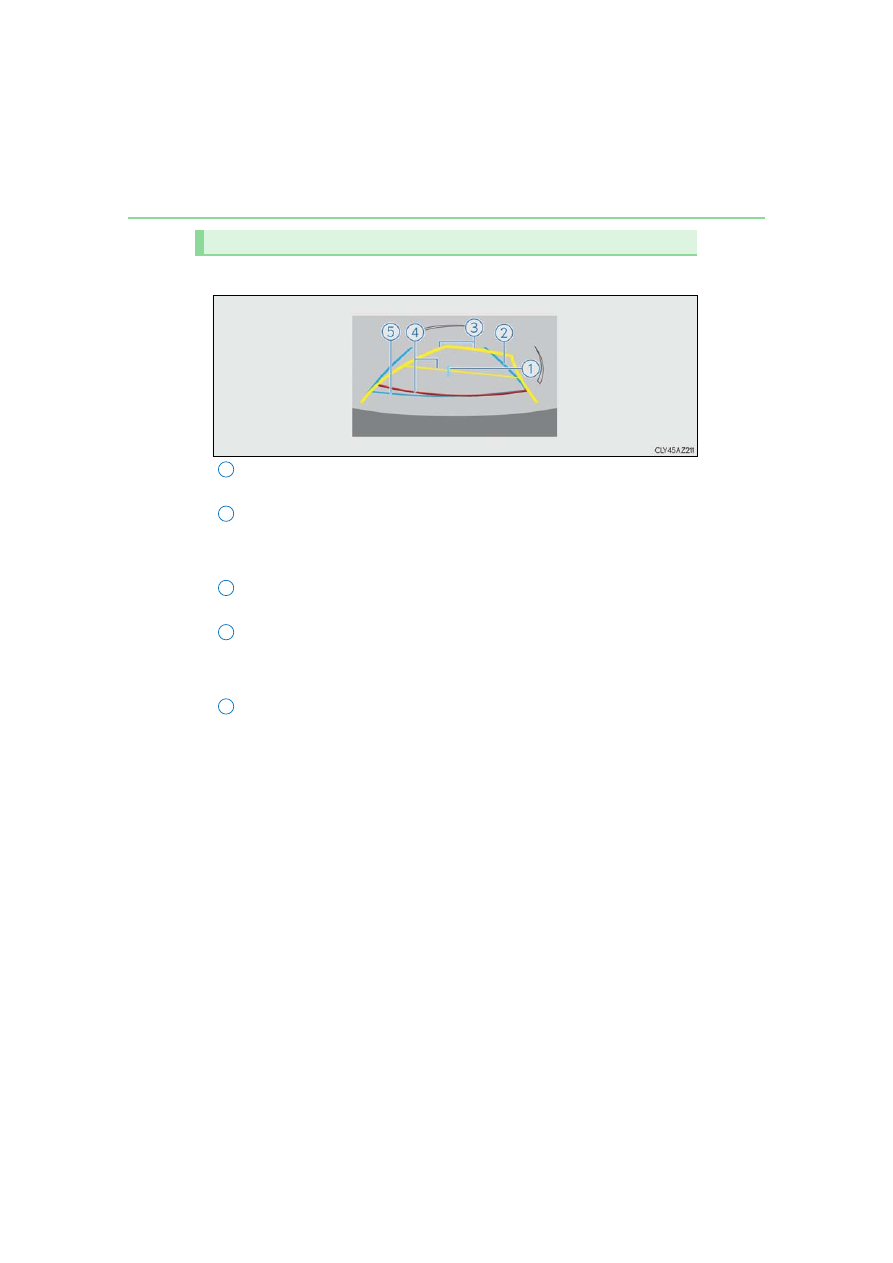

Screen description

Estimated course line display mode

Vehicle center guide line

The line indicates the estimated vehicle center on the ground.

Vehicle width guide line

The line indicates a guide path when the vehicle is being backed straight up.

The displayed width is wider than the actual vehicle width.

The line aligns with the estimated course lines when the steering wheel is straight.

Estimated course lines

The lines show an estimated course when the steering wheel is turned.

Distance guide line

The line moves, together with the estimated course lines, in sync with the steering

wheel. The line shows points approximately 1.5 ft. (0.5 m) (red) and approximately

3 ft. (1 m) (yellow) from the center of the edge of the bumper.

Distance guide line

The line shows distance behind the vehicle, a point approximately 1.5 ft. (0.5 m)

(blue) from the edge of the bumper.

1

2

3

4

5

273

4-5. Using the driving support systems

4

Dr

iving

IS350 AWD/IS350/IS300 AWD/IS300_U

■

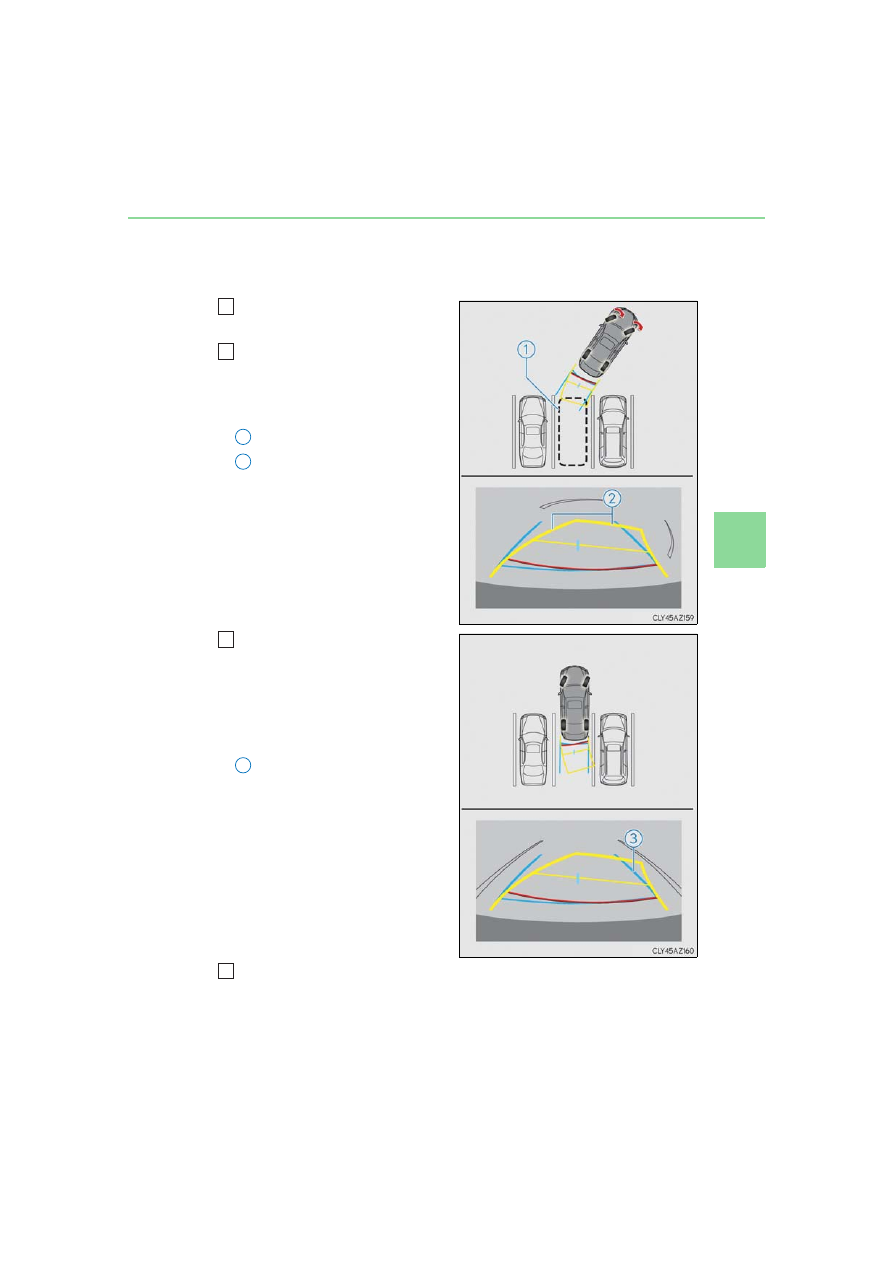

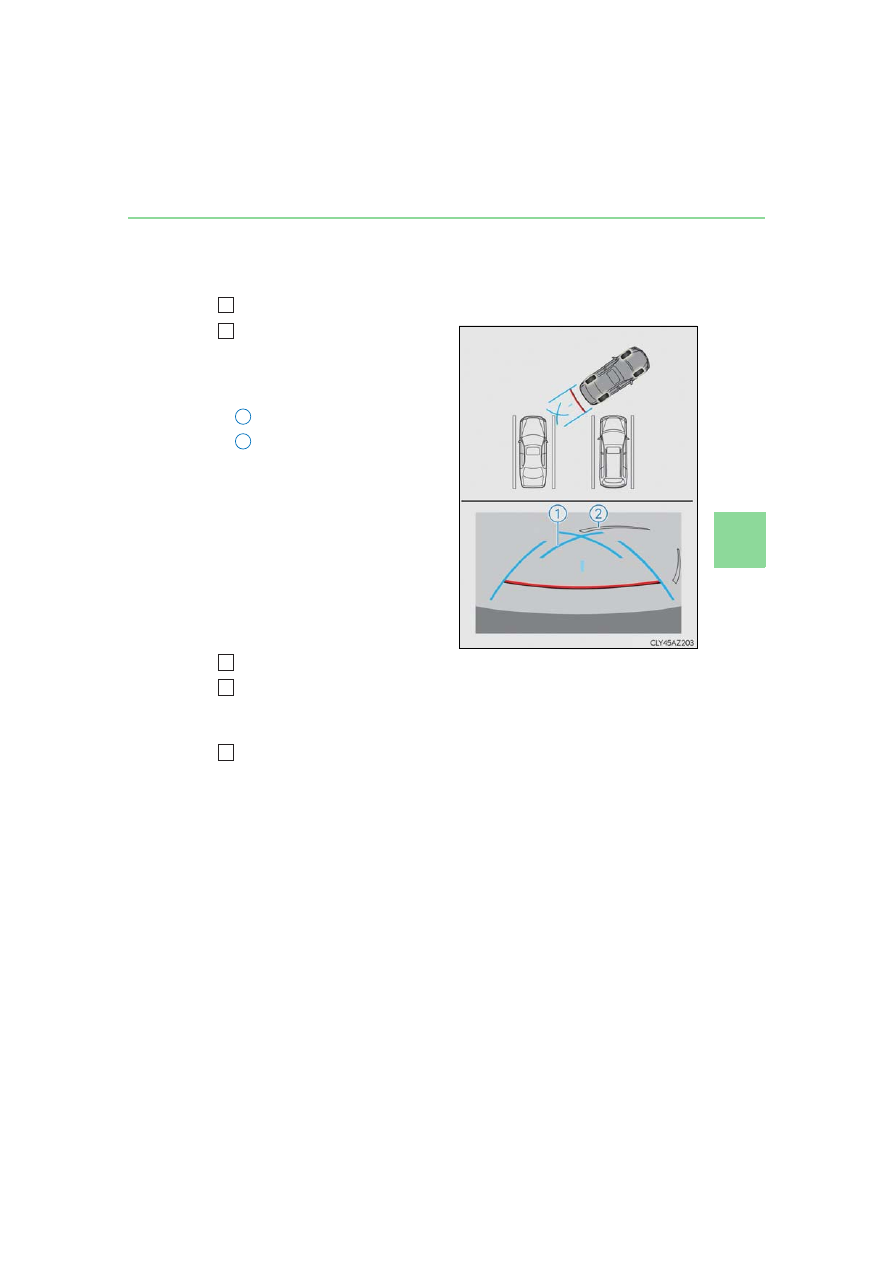

Parking operation
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.

Shift the shift position to R posi-
tion.
Turn the steering wheel so that
the estimated course lines are
within the parking space, and
back up slowly.

Parking space
Estimated course lines

When the rear position of the
vehicle has entered the parking
space, turn the steering wheel so
that the vehicle width guide lines
are within the left and right divid-
ing lines of the parking space.

Vehicle width guide line

Once the vehicle width guide lines and the parking space lines are parallel,
straighten the steering wheel and back up slowly until the vehicle has com-
pletely entered the parking space.

1

2

1

2

3

3

4

274

4-5. Using the driving support systems

IS350 AWD/IS350/IS300 AWD/IS300_U

Stop the vehicle in an appropriate place, and finish parking.

■

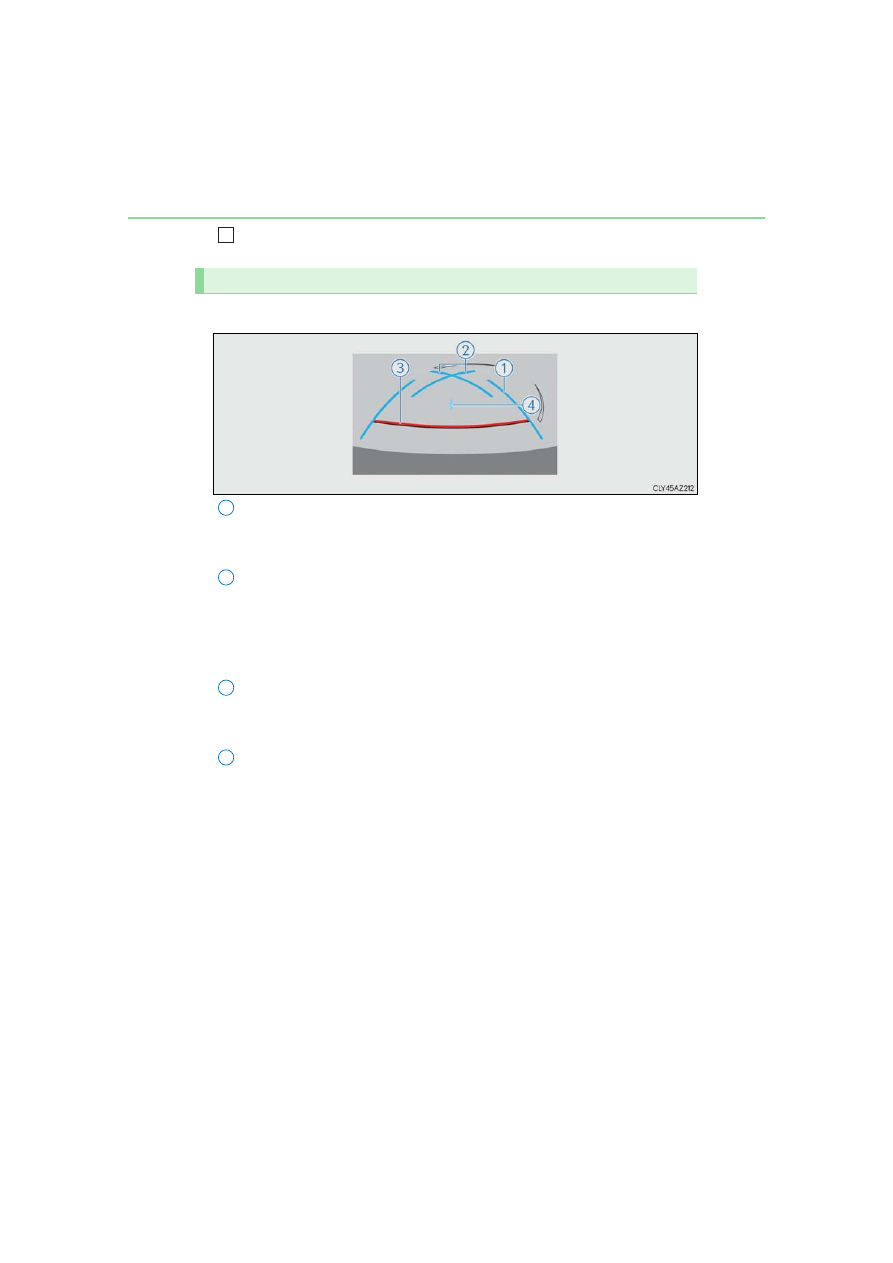

Screen description

Parking assist guide line display mode

5

Vehicle width guide lines
These lines indicate a guide path when the vehicle is being backed straight
up. The displayed width is wider than the actual vehicle width.
Parking assist guide lines
These lines indicate the path of the smallest turn possible behind the vehi-
cle.
These lines also indicate the approximate position of the steering wheel
when parking.
Distance guide line
This line (red) indicates points approximately 1.5 ft. (0.5 m) behind the rear
bumper of your vehicle.
Vehicle center guide line
The line indicates the estimated vehicle center on the ground.

1

2

3

4

275

4-5. Using the driving support systems

4

Dr

iving

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Parking operation
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.

Shift the shift position to R position.
Back up until the parking assist
guide line meets the edge of the
left-hand dividing line of the park-
ing space.

Parking assist guide line
Parking space dividing line

Turn the steering wheel all the way to the right, and back up slowly.
Once the vehicle is parallel with the parking space, straighten the steering
wheel and back up slowly until the vehicle has completely entered the
parking space.
Stop the vehicle in an appropriate place, and finish parking.

1

2

1

2

3
4

5

276

4-5. Using the driving support systems

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Area displayed on screen
The parking assist monitor displays
an image of the view from the
bumper of the rear area of the vehi-
cle.
The image on the rear view monitor
system screen can be adjusted.
(Vehicles with a Lexus Display
Audio system:

P. 329) (Vehicles

with a navigation system:

“NAVI-

GATION SYSTEM OWNER’S
MANUAL”.)

• The area displayed on the screen

may vary according to vehicle orien-

tation conditions.

• Objects which are close to either

corner of the bumper or under the

bumper cannot be seen on the

screen.

• The camera uses a special lens. The distance of the image that appears on the

screen differs from the actual distance.

Lexus parking assist monitor precautions

Corners of bumper

277

4-5. Using the driving support systems

4

Dr

iving

IS350 AWD/IS350/IS300 AWD/IS300_U

■

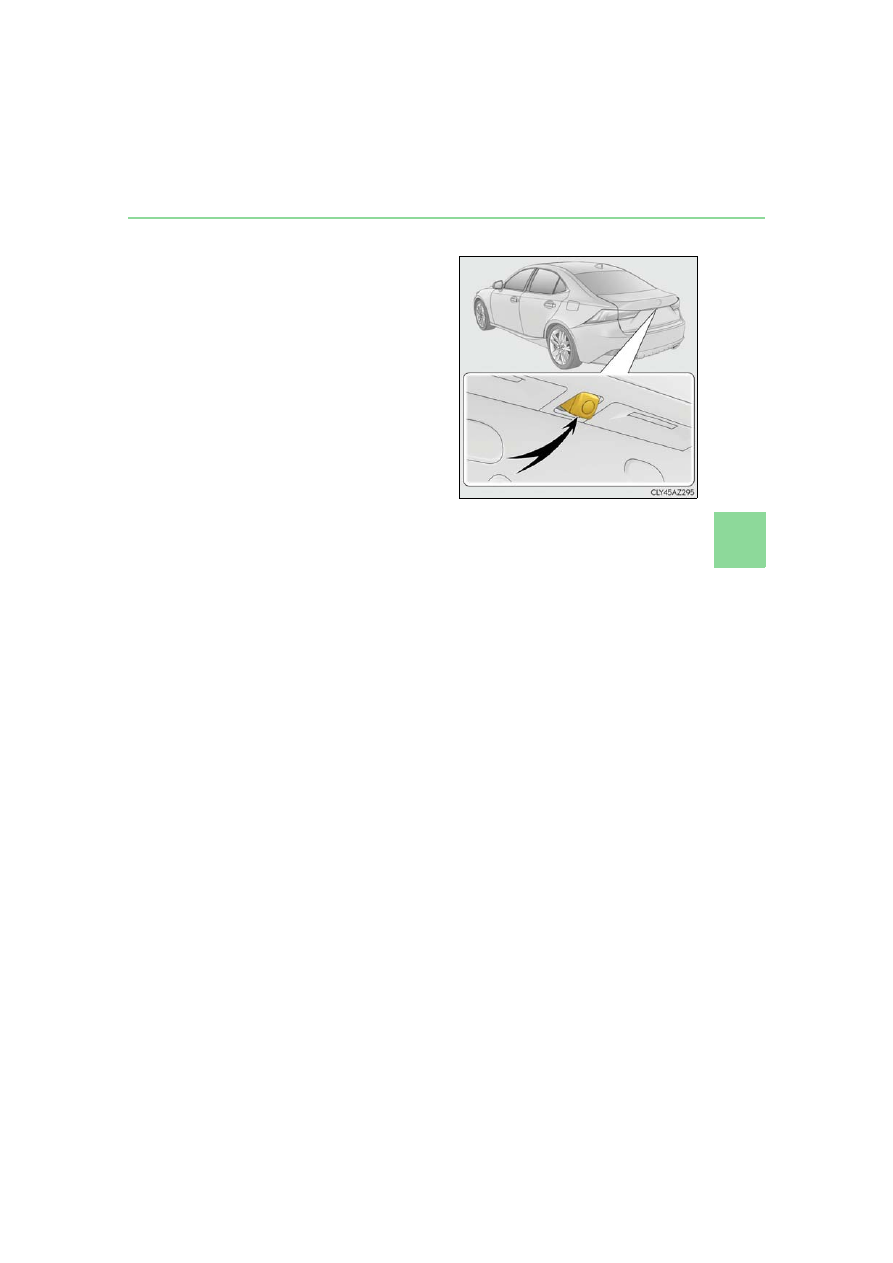

Lexus parking assist monitor camera
The camera for the parking assist
monitor is located above the license
plate.

●

Using the camera
If dirt or foreign matter (such as water droplets, snow, mud etc.) is adhering
to the camera, it cannot transmit a clear image. In this case, flush it with a
large quantity of water and wipe the camera lens clean with a soft and wet
cloth.

■

Differences between the screen and the actual road
The distance guide lines and the vehicle width guide lines may not actually be
parallel with the dividing lines of the parking space, even when they appear to
be so. Be sure to check visually.
The distances between the vehicle width guide lines and the left and right
dividing lines of the parking space may not be equal, even when they appear
to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road surfaces. In any of
the following situations, there is a margin of error between the guide lines on
the screen and the actual distance/course on the road.

278

4-5. Using the driving support systems

IS350 AWD/IS350/IS300 AWD/IS300_U

●

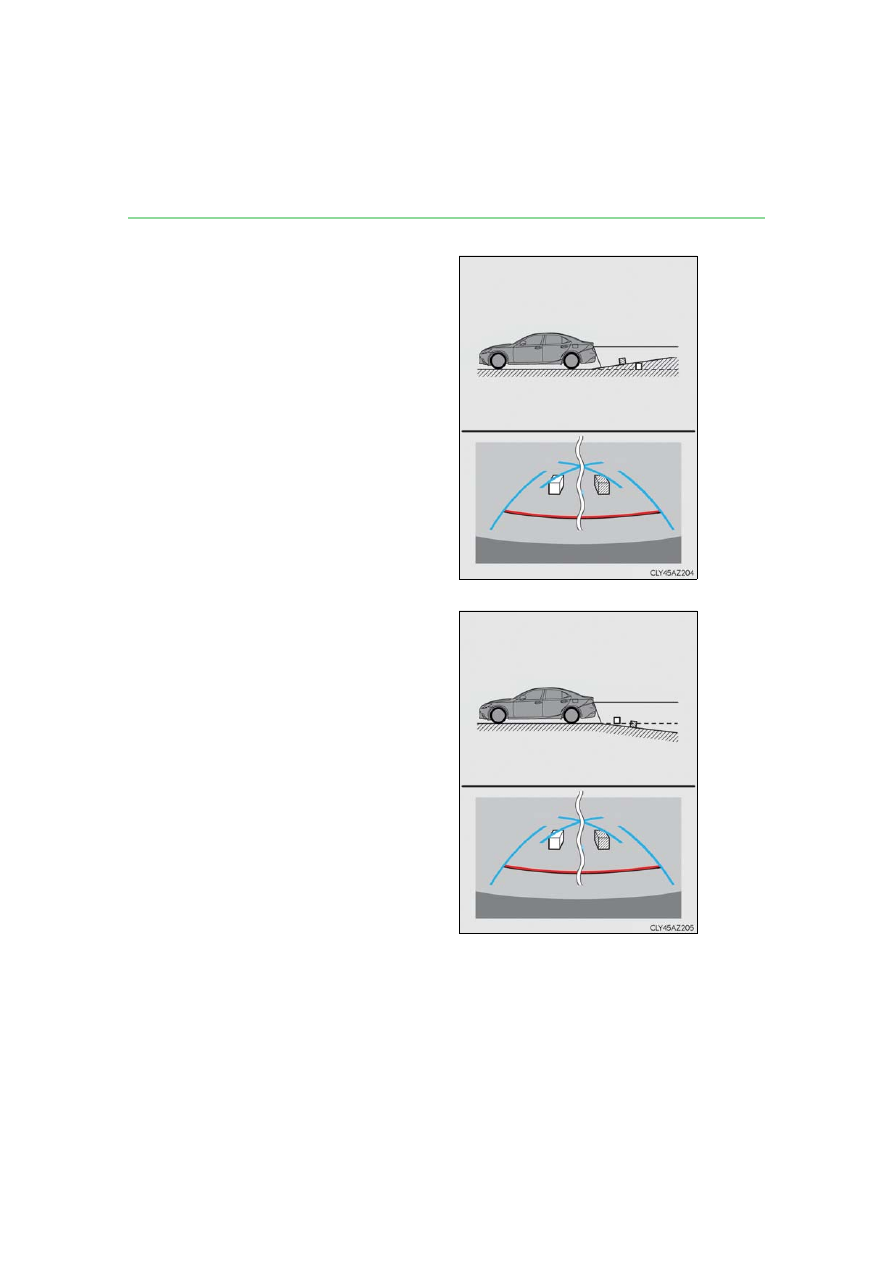

When the ground behind the vehicle slopes up sharply
The distance guide lines will
appear to be closer to the vehicle
than the actual distance. Because
of this, objects will appear to be
farther away than they actually
are. In the same way, there will be
a margin of error between the
guide lines and the actual dis-
tance/course on the road.

●

When the ground behind the vehicle slopes down sharply
The distance guide lines will
appear to be further from the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guide lines and the
actual distance/course on the
road.

279

4-5. Using the driving support systems

4

Dr

iving

IS350 AWD/IS350/IS300 AWD/IS300_U

●

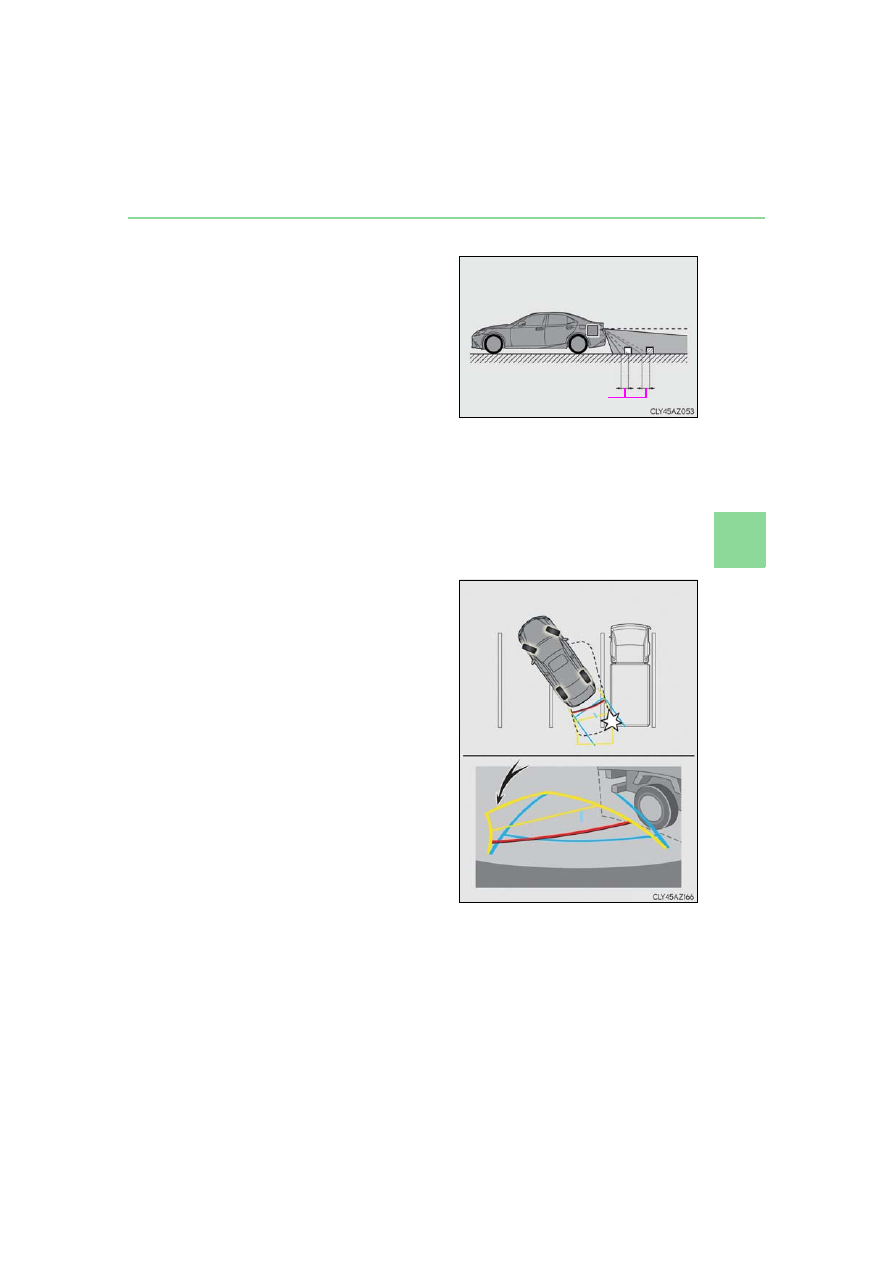

When any part of the vehicle sags
When any part of the vehicle sags
due to the number of passengers
or the distribution of the load,
there is a margin of error between
the guide lines on the screen and
the actual distance/course on the
road.

■

When approaching three-dimensional objects
The estimated course lines target a flat surfaced objects (such as the road). It
is not possible to determine the position of three-dimensional object (such as
vehicles) using the estimated course lines and distance guide lines. When
approaching a three-dimensional object that extends outward (such as the
flatbed of a truck), be careful of the following.

●

Estimated course lines
Visually check the surroundings
and the area behind the vehicle.
In the case shown in the illustra-
tion, the truck appears to be out-
side of the estimated course lines
and the vehicle does not look as if
it will hits the truck. However, the
rear body of the truck may actu-
ally cross over the estimated
course lines. In reality if you back
up as guided by the estimated
course lines, the vehicle may hit
the truck.

A margin of error
