262

5-4. Using the interior lights

5-4.Using the interior lights

Rear personal lights (

P.262)

Inside door handle lights (if equipped)

Instrument panel ornament lights (if equipped)

Shift lever light

Front personal lights (

P.262)

Interior lights (

P.262)

Clock light

Footwell lights

Engine switch light

Door trim ornament lights (if equipped)

Door courtesy lights

Outer foot lights (front/ front and rear)

Interior lights list

Location of the interior lights

A
B
C
D

E
F

G

H

I

J

K

L

263

5-4. Using the interior lights

5

Inte
rior f
ea

tures

■

Turning the door position on

Press the door-linked interior light
switch

The lights are turned on and off according
to whether the doors are opened/closed.

■

Turning the lights on/off

Turns the lights on/off (touch the light)

The rear interior light turns on/off together
with the front interior light.
When a door is opened while the door
position is on, the lights turn on.

■

Turning the lights on/off



Front

Turns the lights on/off (touch the light)

When a door is opened while the door
position is on, the lights turn on.



Rear

Turns the lights on/off

When a door is opened while the door
position is on, the lights turn on.

■

Illuminated entry system

The lights automatically turn on/off accord-

ing to the engine switch mode, the pres-

ence of the electronic key, whether the

doors are locked/unlocked, and whether

the doors are opened/closed.

■

To prevent the battery from being dis-

charged

If the interior lights remain on when the

engine switch is turned off, the lights will go

off automatically after 20 minutes.

■

When front interior light or front per-

sonal lights do not respond as normal

●

When water, dirt, etc., have adhered to

the lens surface

●

When operated with a wet hand

●

When wearing gloves, etc.

■

Automatic turning on of the interior

lights

If any of the SRS airbags deploy (inflate) or

Operating the interior lights

Operating the personal lights

264

5-4. Using the interior lights

in the event of a strong rear impact, the inte-

rior lights will turn on automatically.
The interior lights will turn off automatically

after approximately 20 minutes. The inte-

rior lights can be turned off manually. How-

ever, in order to help prevent further

collisions, it is recommended that they be

left on until safety can be ensured. (The inte-

rior lights may not turn on automatically

depending on the force of the impact and

conditions of the collision.)

■

Customization

Some functions can be customized.

(

P.400)

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer than

necessary when the engine is not run-

ning.

■

Removing light lenses

Never remove the lens for the front inte-

rior light and front personal lights. Other-

wise, the lights will be damaged. If a lens

needs to be removed, contact your Lexus

dealer.

265

5-5. Using the storage features

5

Inte
rior f
ea

tures

5-5.Using the storage features

Cup holder (

P.265)

Glove box (

P.265)

Console box (

P.265)

Auxiliary box (

P.266)

List of storage features

Location of the storage features

WARNING

■

Items that should not be left in the

vehicle

Do not leave glasses, lighters or spray

cans in the storage spaces, as this may

cause the following when cabin tempera-

ture becomes high:

●

Glasses may be deformed by heat or

cracked if they come into contact with

other stored items.

A
B
C
D

●

Lighters or spray cans may explode. If

they come into contact with other

stored items, the lighter may catch fire

or the spray can may release gas,

causing a fire hazard.

■

When storage compartments are not

in use

When driving or when the storage com-

partments are not in use, keep the lids

closed.

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by an open lid

or the items stored inside.

266

5-5. Using the storage features

1

Open (press the glove box opener)

2

Unlock with the mechanical key

3

Lock with the mechanical key

■

Glove box light

The glove box light turns on when the tail

lights are on.

■

Trunk opener main switch

P.99

Press a button to open the console box.

The console box can be opened from
either side.

■

Console box light

The console box light turns on when the tail

lights are on.



Front (type A)

To open, press down and release the
cup holder lid.



Front (type B)

Adjust the depth of the cup holder.

Shallow (press the button)

Glove box

Console box

WARNING

■

Caution while driving

Keep the console box closed.
Injuries may result in the event of an acci-

dent or sudden braking.

NOTICE

■

To prevent damage to the console

box

●

When the console box is open, do not

apply excessive force in the direction

that it was opened.

Cup holders

A

267

5-5. Using the storage features

5

Inte
rior f
ea

tures

Deepen



Rear

To open, pull down the armrest and
open the lid.

■

Front cup holder (type A)

●

After closing the USB terminal lid, close

the cup holder lid.

●

When cleaning the cup holder, the parti-

tion and another parts can be removed

according to the following procedure.

1

Remove the partition

2

Remove the plate

Press in the button.

B

WARNING

■

Items unsuitable for the cup holder

Do not place anything other than a cup,

beverage can or bottle (front [type B]) in

the cup holder. Even when the lid is

closed, items must not be stored in the

cup holder.

Other items may be thrown out of the

holder in the event of an accident or sud-

den braking, causing injury. If possible,

cover hot drinks to prevent burns.

NOTICE

■

To prevent damage to the cup holder

●

Depending on the size of the cup, bev-

erage can or bottle, do not use the cup

holder in the shallow condition.

When taking out the cup, beverage

can or bottle or in the event of sudden

braking, they may be thrown out of the

holder or the contents may spill.

●

Stow the rear cup holder before stow-

ing the armrest.

Auxiliary box

268

5-5. Using the storage features

Raise the hooks when needed.

The cargo hooks are provided for securing
loose items.

Lift the luggage mat up.

Trunk features

Cargo hooks

WARNING

■

When the cargo net hooks are not in

use

To avoid injury, always return the cargo

net hooks to their stowed positions when

not in use.

Grocery bag hooks

Luggage mat

269

5-6. Using the other interior features

5

Inte
rior f
ea

tures

5-6.Using the other interior features

1

To set the visor in the forward posi-
tion, flip it down.

2

To set the visor in the side position,
flip down, unhook, and swing it to
the side.

3

To use the side extender, place the
visor in the side position, then slide
it backward.

Slide the cover to open.

The light turns on when the cover is
opened.

The GPS clock’s time is automatically
adjusted by utilizing GPS time infor-
mation.

For details, refer to the “NAVIGATION
AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

Please use as a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).



Front

Open the lid.



Rear

Open the lid.

Other interior features

Sun visors

Vanity mirrors

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer than

necessary when the engine is off.

Clock

Power outlets

270

5-6. Using the other interior features

■

The power outlet can be used when

The engine switch is in ACCESSORY or

IGNITION ON mode.

■

When stopping the engine

Disconnect electrical devices such as

mobile battery packs.

■

Using the power outlet

The shape of the console box partition

allows power cables to be passed through

when the console box lid is partially closed.

The USB charging ports are used to
supply 2.1 A of electricity at 5 V to

external devices.
The USB charging ports are for
charging only. They are not designed
for data transfer or other purposes.
Depending on the external device, it
may not charge properly. Refer to the
manual included with the device
before using a USB charging port.

■

Using the USB charging ports

Open the lid.

■

The USB charging ports can be used

when

The engine switch is in ACCESSORY or

IGNITION ON mode.

■

Situations in which the USB charging

ports may not operate correctly

●

If a device which consumes more than 2.1

A at 5 V is connected

●

If a device designed to communicate with

a personal computer, such as a USB

memory device, is connected

●

If the connected external device is turned

off (depending on device)

●

If the temperature inside the vehicle is

high, such as after the vehicle has been

parked in the sun

■

About connected external devices

Depending on the connected external

device, charging may occasionally be sus-

pended and then start again. This is not a

malfunction.

NOTICE

■

When the power outlet is not in use

To avoid damaging the power outlet,

close the power outlet lid when the

power outlet is not in use. Foreign objects

or liquids that enter the power outlet may

cause a short circuit.

■

To prevent battery discharge

Do not use the power outlet longer than

necessary when the engine is off.

USB charging ports

271

5-6. Using the other interior features

5

Inte
rior f
ea

tures

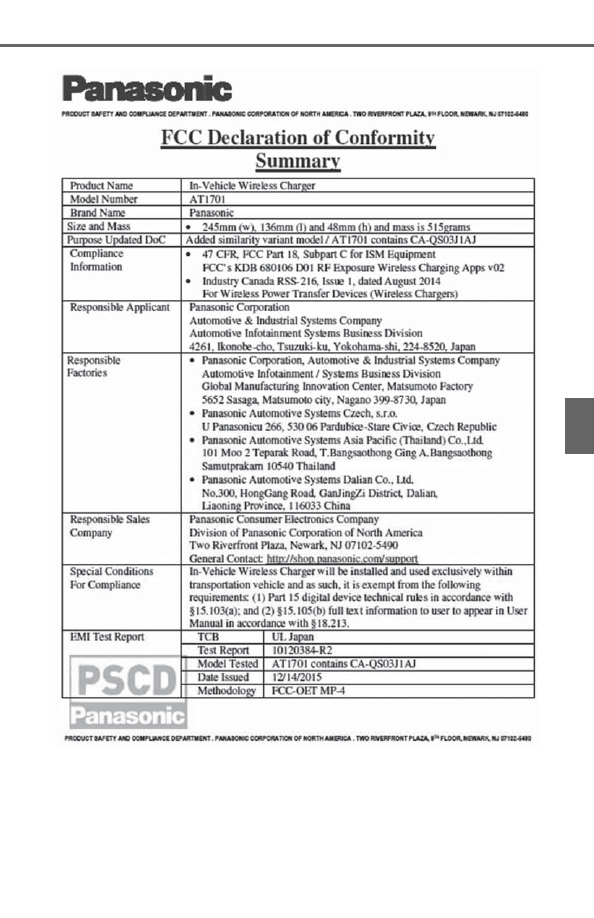

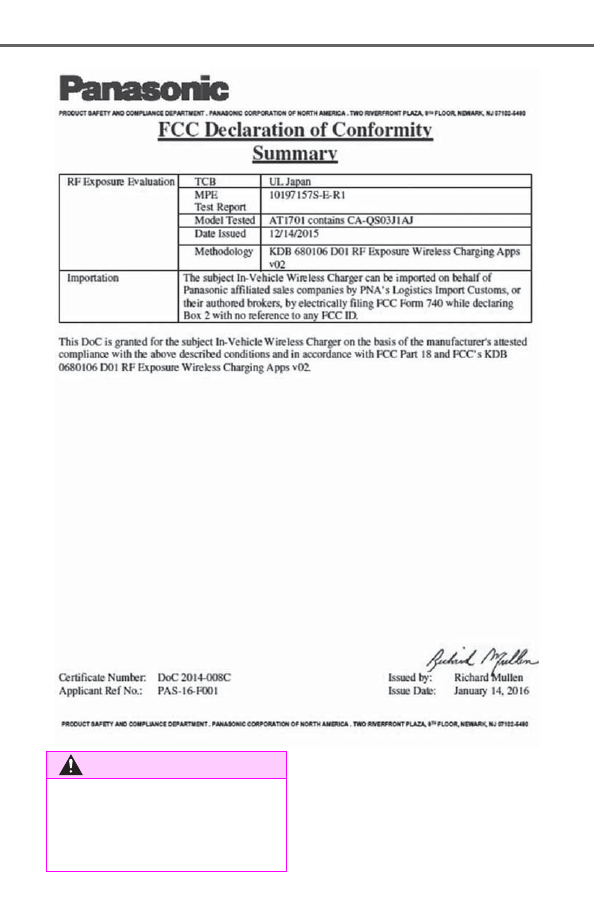

A portable device can be charged by
just placing Qi standard wireless
charge compatible portable devices
according to the Wireless Power Con-
sortium, such as smart phones and
mobile batteries, etc., on the charge
area.
This function cannot be used with por-
table devices that are larger than the

charging area. Also, depending on the
portable device, it may not operate as
normal. Please read the operation
manual for portable devices to be
used.

■

The “Qi” symbol

The “Qi” symbol is a trademark of the
Wireless Power Consortium.

■

Name for all parts

Operation indicator light

Power supply switch

Charge area

■

Using the wireless charger

1

Open the console box. (

P.265)

2

Press the power supply switch of
the wireless charger.

Switches on and off with each press of the

NOTICE

■

To prevent damage to the USB

charging ports

●

Do not insert foreign objects into the

ports.

●

Do not spill water or other liquids into

the ports.

●

When the USB charging ports are not

in use, close the lids. If a foreign object

or liquid enters a port may cause a

short circuit.

●

Do not apply excessive force to or

impact the USB charging ports.

●

Do not disassemble or modify the USB

charging ports.

■

To prevent damage to external

devices

●

Do not leave external devices in the

vehicle. The temperature inside the

vehicle may become high, resulting in

damage to an external device.

●

Do not push down on or apply unnec-

essary force to an external device or

the cable of an external device while it

is connected.

■

To prevent battery discharge

Do not use the USB charging ports for a

long period of time with the engine

stopped.

Wireless charger (if equipped)

A
B
C

272

5-6. Using the other interior features

power supply switch.

When turned on, the operation indicator

light (green) comes on.

Even with the engine off, the on/off state of

the power supply switch is memorized.

3

Place the charging side of the por-
table device down.

When charging, the operation indicator

light (orange) comes on.

If charging is not occurring, try placing the

portable device as close to the center of

the charging area as possible.

When charging is complete, the operation

indicator light (green) comes on.

■

Recharging function

• When charging is complete and

after a fixed time in the charge sus-
pension state, charging restarts.

• When the portable device is moved,

charging is stopped for a moment
and then it restarts.

273

5-6. Using the other interior features

5

Inte
rior f
ea

tures

■

Lighting conditions of operation
indicator light

*

: Depending on the portable device, there

are cases where the operation indicator
light will continue being lit up orange
even after the charging is complete.

 When the operation indicator light

flashes

When an error occurs, the operation indi-
cator light flashes an orange color. Handle
the error based on the following tables.
• Flashing repeatedly once every second

(Orange)

• Repeatedly flashes 3 times continuously

(Orange)

• Repeatedly flashes 4 times continuously

(Orange)

■

The wireless charger can be operated

when

The engine switch is in ACCESSORY or

IGNITION ON mode.

■

Usable portable devices

●

Qi standard wireless charge standard

can be used on compatible devices.

However, not all Qi standard devices and

compatibility are guaranteed.

●

Starting with mobile phones and smart

phones, it is aimed for low power electri-

cally supplied portable devices of no

more than 5W.

■

When covers and accessories are

attached to portable devices

Do not charge in situations where cover

and accessories not able to handle Qi are

attached to the portable device. Depending

on the type of cover and accessory, it may

not be possible to charge. When charging is

not performed even with the portable

device placed on the charge area, remove

the cover and accessories.

Operation

indicator

light

Conditions

Turning off

When the Wireless charger
power supply is off

Green
(comes on)

On Standby (charging pos-
sible state)

When charging is complete

*

Orange
(comes on)

When placing the portable
device on the charging area
(detecting the portable
device)

Charging

Suspected cause

Handling method

Vehicle to charger
communication fail-
ure.

Contact your Lexus
dealer.

Suspected causes

Handling method

A foreign substance
is between the por-
table device and
charge area.

Remove the foreign
substance from
between portable
device and the
charge area.

The portable device
is out of sync due to
the device being
shifted from the cen-
ter of the charge
area.

Place the portable
device near the cen-
ter of the charge
area.

Suspected cause

Handling method

Temperature rising
within the wireless
charger.

Stop charging at
once and start
charging again after
for a while.

274

5-6. Using the other interior features

■

While charging, noise enters the AM

radio

Turn off the wireless charger and confirm

that the noise has decreased. If the noise

decreases, continuously pushing the power

supply switch of the wireless charger for 2

seconds, the frequency of the charger can

be changed and the noise can be reduced.

Also, on that occasion, the operation indi-

cator light will flash orange 2 times.

■

Important points of the wireless charger

●

If the electronic key cannot be detected

within the vehicle interior, charging can-

not be done. When the door is opened

and closed, charging may be temporarily

suspended.

●

When charging, the wireless charging

device and portable device will get

warmer, however this is not a malfunction.

When a portable device gets warm while

charging, charging may stop due to the

protection function on the portable

device side. In this case, when the tem-

perature of the portable device drops

significantly, charge again.

■

Operation sounds

When the power supply is turned on, while

searching for the portable device a sound

will be produced, however this is not a mal-

function.

■

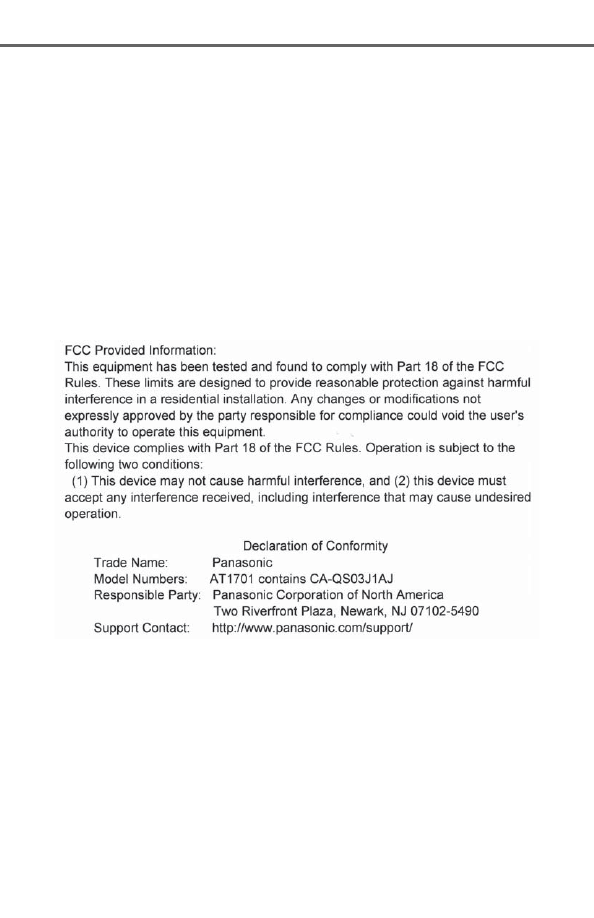

Certification for the wireless charger

275

5-6. Using the other interior features

5

Inte
rior f
ea

tures

276

5-6. Using the other interior features

WARNING

■

Caution while driving

When charging a portable device, for

safety reasons, the driver should not

operate the main the part of the portable

device while driving.

277

5-6. Using the other interior features

5

Inte
rior f
ea

tures

WARNING

■

Caution regarding interference with

electronic devices

People with implantable cardiac pace-

makers, cardiac resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators, as well as any

other electrical medical device, should

consult their physician about the usage of

the wireless charger.

The operations of the wireless charger

may have an affect on medical devices.

■

To prevent damage or burns

Observe the following precautions.

Failure to do so may result in a possibility

of equipment failure and damage, catch

fire, burns due to overheat.

●

Do not insert any metallic objects

between the charging area and the

portable device while charging

●

Do not attach stickers, metallic

objects, etc., to the charger area or

portable device

●

Do not cover with cloth, etc., and

charge

●

Do not charge portable devices other

than designated

●

Do not attempt to dismantle for disas-

sembly or modifications

●

Do not hit or apply a strong force

NOTICE

■

Conditions in which the function may

not operate correctly

In the following conditions, it may not

operate correctly

●

The portable device is fully charged

●

There is foreign matter between the

charge area and portable device

●

The temperature of the portable

device gets higher from charging

●

The charging surface of the portable

device is facing up

●

The placement of the portable device

is out of alignment with the charge

area

●

Near a TV tower, electric power plant,

gas station, radio station, large display,

airport or other facility that generates

strong radio waves or electrical noise

●

When the electronic key is in contact

with, or is covered by the following

metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have aluminum

foil inside

• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit

radio waves) are being used nearby

In addition, excluding the above-men-
tioned, when the charger does not per-
form normally or the operation indicator
light is flashing continuously, it is consid-
ered that the wireless charger is malfunc-
tioning. Contact your Lexus dealer.

■

To prevent failure or damage to data

●

Do not bring magnetic cards, such as

credit cards, or magnetic recording

media, etc., close to the charger while

charging, otherwise, data may disap-

pear under the influence of magne-

tism. Also, do not bring precision

instruments such as wrist watches, etc.,

close to the charger, as such objects

may break.

●

Do not leave portable devices in the

cabin. The temperature inside the

cabin may become high, when under

the sun, and cause damage to the

device.
