LEXUS ES 350 (2019 year). Instruction - part 11





166

4-5. Using the driving support systems

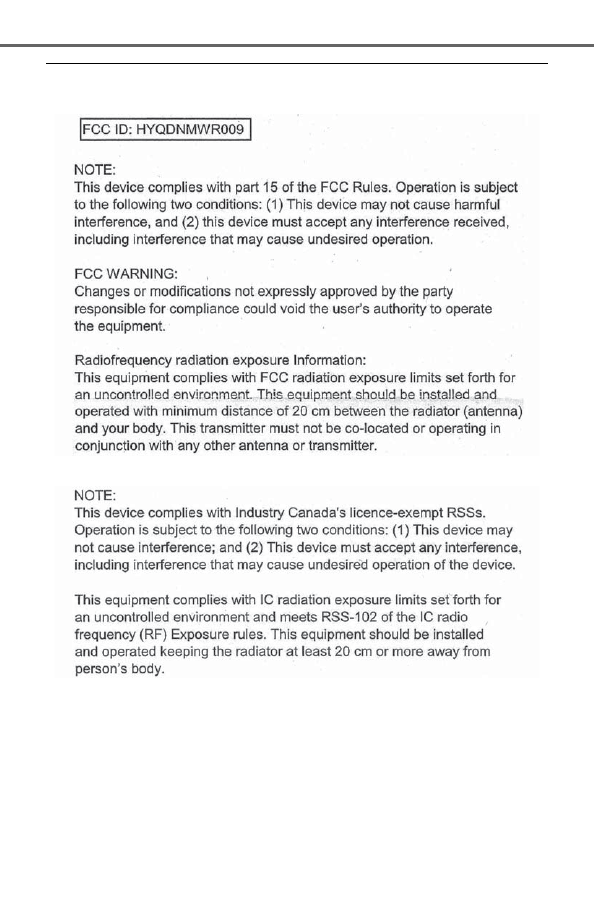

Certification

For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico

For vehicles sold in Canada

167

4-5. Using the driving support systems

4

D

riv

ing

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in the system.

In the following situations, perform the actions specified in the table. When the normal

operating conditions are detected, the message will disappear and the system will

become operational.

If the message does not disappear, contact your Lexus dealer.

Situation

Actions

When the area around a sensor is covered
with dirt, moisture (fogged up, covered with
condensation, ice, etc.), or other foreign
matter

To clean the part of the windshield in front of
the front camera, use the windshield wipers
or the windshield defogger of the air condi-
tioning system (

P.252).

When the temperature around the front
camera is outside of the operational range,
such as when the vehicle is in the sun or in an
extremely cold environment

If the front camera is hot, such as after the
vehicle had been parked in the sun, use the
air conditioning system to decrease the tem-
perature around the front camera.
If a sunshade was used when the vehicle was
parked, depending on its type, the sunlight
reflected from the surface of the sunshade
may cause the temperature of the front cam-
era to become excessively high.

If the front camera is cold, such after the
vehicle is parked in an extremely cold envi-
ronment, use the air conditioning system to
increase the temperature around the front
camera.

The area in front of the front camera is
obstructed, such as when the hood is open
or a sticker is attached to the part of the
windshield in front of the front camera.

Close the hood, remove the sticker, etc. to
clear the obstruction.

168

4-5. Using the driving support systems

In the following situations, if the situation has changed (or the vehicle has been driven for

some time) and the normal operating conditions are detected, the message will disappear

and the system will become operational.

If the message does not disappear, contact your Lexus dealer.
When the temperature around the radar sensor is outside of the operational range, such as

when the vehicle is in the sun or in an extremely cold environment
When the front camera cannot detect objects in front of the vehicle, such as when driving in

the dark, snow, or fog, or when bright lights are shining into the front camera

169

4-5. Using the driving support systems

4

D

riv

ing

The system can detect the following:
 Vehicles
 Bicyclists
 Pedestrians

Pre-collision warning

When the system determines that the
possibility of a frontal collision is high, a
buzzer will sound and a warning mes-
sage will be displayed on the multi-
information display to urge the driver

to take evasive action.

Pre-collision brake assist

When the system determines that the
possibility of a frontal collision is high,
the system applies greater braking
force in relation to how strongly the
brake pedal is depressed.

Pre-collision braking

If the system determines that the possi-
bility of a frontal collision is extremely
high, the brakes are automatically
applied to help avoid the collision or
reduce the impact of the collision.

Suspension control (if equipped)

When the system determines that the
possibility of a frontal collision is high,
the Adaptive Variable Suspension Sys-
tem (

P.236) will control the damp-

ing force of the shock absorbers to
help maintain an appropriate vehicle
posture.

PCS (Pre-Collision System)

The pre-collision system uses a
radar sensor and front camera to
detect objects (

P.169) in front o

the vehicle. When the system
determines that the possibility of a
frontal collision with an object is
high, a warning operates to urge
the driver to take evasive action
and the potential brake pressure is
increased to help the driver avoid
the collision. If the system deter-
mines that the possibility of a frontal
collision with an object is extremely
high, the brakes are automatically
applied to help avoid the collision or
help reduce the impact of the colli-
sion.

The pre-collision system can be dis-
abled/enabled and the warning tim-
ing can be changed. (

P.171)

Detectable objects

System functions

170

4-5. Using the driving support systems

WARNING

Limitations of the pre-collision system

The driver is solely responsible for safe

driving. Always drive safely, taking

care to observe your surroundings.

Do not use the pre-collision system

instead of normal braking operations

under any circumstances. This system

will not prevent collisions or lessen col-

lision damage or injury in every situa-

tion. Do not overly rely on this system.

Failure to do so may lead to an acci-

dent, resulting in death or serious

injury.

Although this system is designed to

help avoid a collision or help reduce

the impact of the collision, its effective-

ness may change according to various

conditions, therefore the system may

not always be able to achieve the same

level of performance.

Read the following conditions care-

fully. Do not overly rely on this system

and always drive carefully.

• Conditions under which the system

may operate even if there is no possi-

bility of a collision:

P.173

• Conditions under which the system

may not operate properly:

P.174

Do not attempt to test the operation of

the pre-collision system yourself.

Depending on the objects used for

testing (dummies, cardboard objects

imitating detectable objects, etc.), the

system may not operate properly, pos-

sibly leading to an accident.

Pre-collision braking

When the pre-collision braking func-

tion is operating, a large amount of

braking force will be applied.

If the vehicle is stopped by the opera-

tion of the pre-collision braking func-

tion, the pre-collision braking function

operation will be canceled after

approximately 2 seconds.

Depress the brake pedal as necessary.

The pre-collision braking function may

not operate if certain operations are

performed by the driver. If the acceler-

ator pedal is being depressed strongly

or the steering wheel is being turned,

the system may determine that the

driver is taking evasive action and pos-

sibly prevent the pre-collision braking

function from operating.

In some situations, while the pre-colli-

sion braking function is operating,

operation of the function may be can-

celed if the accelerator pedal is

depressed strongly or the steering

wheel is turned and the system deter-

mines that the driver is taking evasive

action.

If the brake pedal is being depressed,

the system may determine that the

driver is taking evasive action and pos-

sibly delay the operation timing of the

pre-collision braking function.

When to disable the pre-collision sys-

tem

In the following situations, disable the

system, as it may not operate properly,

possibly leading to an accident resulting

in death or serious injury:

When the vehicle is being towed

When your vehicle is towing another

vehicle

When transporting the vehicle via

truck, boat, train or similar means of

transportation

When the vehicle is raised on a lift with

the engine running and the tires are

allowed to rotate freely

When inspecting the vehicle using a

drum tester such as a chassis dyna-

mometer or speedometer tester, or

when using an on vehicle wheel bal-

ancer

When a strong impact is applied to the

front bumper or front grille, due to an

accident or other reasons

171

4-5. Using the driving support systems

4

D

riv

ing

Enabling/disabling the pre-colli-
sion system

The pre-collision system can be
enabled/disabled on

 (

P.72) of

the multi-information display.

The system is automatically enabled each
time the engine switch is turned to IGNI-
TION ON mode.

If the system is disabled, the PCS warn-
ing light will turn on and a message will
be displayed on the multi-information
display.

Changing the pre-collision warn-
ing timing

The pre-collision warning timing can
be changed on

 (

P.72) of the

multi-information display.

The warning timing setting is retained
when the engine switch is turned off. How-
ever, if the pre-collision system is disabled
and re-enabled, the operation timing will
return to the default setting (middle).

1

Early

2

Middle

This is the default setting.

3

Late

Operational conditions

The pre-collision system is enabled and the system determines that the possibility of a frontal

WARNING

If the vehicle cannot be driven in a sta-

ble manner, such as when the vehicle

has been in an accident or is malfunc-

tioning

When the vehicle is driven in a sporty

manner or off-road

When the tires are not properly

inflated

When the tires are very worn

When tires of a size other than speci-

fied are installed

When tire chains are installed

When a compact spare tire or an

emergency tire puncture repair kit is

used

If equipment (snow plow, etc.) that may

obstruct the radar sensor or front cam-

era is temporarily installed to the vehi-

cle

Changing settings of the pre-col-
lision system

172

4-5. Using the driving support systems

collision with a detected object is high.
Each function is operational at the following speed

Pre-collision warning

Pre-collision brake assist

Pre-collision braking

The system may not operate in the following situations:

If a battery terminal has been disconnected and reconnected and then the vehicle has not

been driven for a certain amount of time

If the shift lever is in R

When the VSC OFF indicator is illuminated (only the pre-collision warning function will

be operational)

Object detection function

The system detects objects based on their

size, profile, motion, etc. However, an object

may not be detected depending on the sur-

rounding brightness and the motion, pos-

ture, and angle of the detected object,

preventing the system from operating prop-

erly. (

P.174) The illustration shows an

image of detectable objects.

Detectable objects

Vehicle speed

Relative speed between your
vehicle and object

Vehicles

Approx. 7 to 110 mph (10 to
180 km/h)

Approx. 7 to 110 mph (10 to
180 km/h)

Bicyclists and pedestrians

Approx. 7 to 50 mph (10 to
80 km/h)

Approx. 7 to 50 mph (10 to
80 km/h)

Detectable objects

Vehicle speed

Relative speed between your
vehicle and object

Vehicles

Approx. 20 to 110 mph (30
to 180 km/h)

Approx. 20 to 110 mph (30
to 180 km/h)

Bicyclists and pedestrians

Approx. 20 to 50 mph (30
to 80 km/h)

Approx. 20 to 50 mph (30
to 80 km/h)

Detectable objects

Vehicle speed

Relative speed between your
vehicle and object

Vehicles

Approx. 7 to 110 mph (10 to
180 km/h)

Approx. 7 to 110 mph (10 to
180 km/h)

Bicyclists and pedestrians

Approx. 7 to 50 mph (10 to
80 km/h)

Approx. 7 to 50 mph (10 to
80 km/h)

173

4-5. Using the driving support systems

4

D

riv

ing

Cancelation of the pre-collision braking

If either of the following occur while the

pre-collision braking function is operating, it

will be canceled:

The accelerator pedal is depressed

strongly.

The steering wheel is turned sharply or

abruptly.

Conditions under which the system may

operate even if there is no possibility of a

collision

In some situations such as the following,

the system may determine that there is a

possibility of a frontal collision and oper-

ate.

• When passing a detectable object, etc.

• When changing lanes while overtaking a

detectable object, etc.

• When approaching a detectable object

in an adjacent lane or on the roadside,

such as when changing the course of

travel or driving on a winding road

• When rapidly closing on a detectable

object, etc.

• When approaching objects on the road-

side, such as detectable objects, guard-

rails, utility poles, trees, or walls

• When there is a detectable object or

other object by the roadside at the

entrance of a curve

• When there are patterns or paint in front

of your vehicle that may be mistaken for a

detectable object

• When the front of your vehicle is hit by

water, snow, dust, etc.

• When overtaking a detectable object

that is changing lanes or making a

right/left turn

• When passing a detectable object in an

oncoming lane that is stopped to make a

right/left turn

• When a detectable object approaches

very close and then stops before entering

the path of your vehicle

• If the front of your vehicle is raised or low-

ered, such as when on an uneven or

undulating road surface

• When driving on a road surrounded by a

structure, such as in a tunnel or on an iron

bridge

• When there is a metal object (manhole

cover, steel plate, etc.), steps, or a protru-

sion in front of your vehicle

• When passing under an object (road

sign, billboard, etc.)

• When approaching an electric toll gate

barrier, parking area barrier, or other

barrier that opens and closes

174

4-5. Using the driving support systems

• When using an automatic car wash

• When driving through or under objects

that may contact your vehicle, such as

thick grass, tree branches, or a banner

• When driving through steam or smoke

• When driving near an object that reflects

radio waves, such as a large truck or

guardrail

• When driving near a TV tower, broad-

casting station, electric power plant, or

other location where strong radio waves

or electrical noise may be present

Situations in which the system may not

operate properly

In some situations such as the following,

an object may not be detected by the

radar sensor and front camera, prevent-

ing the system from operating properly:

• When a detectable object is approaching

your vehicle

• When your vehicle or a detectable object

is wobbling

• If a detectable object makes an abrupt

maneuver (such as sudden swerving,

acceleration or deceleration)

• When your vehicle approaches a detect-

able object rapidly

• When a detectable object is not directly

in front of your vehicle

• When a detectable object is near a wall,

fence, guardrail, manhole cover, vehicle,

steel plate on the road, etc.

• When a detectable object is under a

structure

• When part of a detectable object is hid-

den by an object, such as large baggage,

an umbrella, or guardrail

• When multiple detectable objects are

close together

• If the sun or other light is shining directly

on a detectable object

• When a detectable object is a shade of

white and looks extremely bright

• When a detectable object appears to be

nearly the same color or brightness as its

surroundings

• If a detectable object cuts or suddenly

emerges in front of your vehicle

• When the front of your vehicle is hit by

water, snow, dust, etc.

• When a very bright light ahead, such as

the sun or the headlights of oncoming

traffic, shines directly into the front cam-

era

• When approaching the side or front of a

vehicle ahead

• If a vehicle ahead is a motorcycle

• If a vehicle ahead is narrow, such as a per-

sonal mobility vehicle

• If a preceding vehicle has a small rear

end, such as an unloaded truck

• If a preceding vehicle has a low rear end,

such as a low bed trailer

• If a vehicle ahead has extremely high

ground clearance

• If a vehicle ahead is carrying a load which

protrudes past its rear bumper

• If a vehicle ahead is irregularly shaped,

such as a tractor or side car

175

4-5. Using the driving support systems

4

D

riv

ing

• If a vehicle ahead is a child sized bicycle,

a bicycle that is carrying a large load, a

bicycle ridden by more than one person,

or a uniquely shaped bicycle (bicycle with

a child seat, tandem bicycle, etc.)

• If a pedestrian/or the riding height of a

bicyclist ahead is shorter than approxi-

mately 3.2 ft. (1 m) or taller than approxi-

mately 6.5 ft. (2 m)

• If a pedestrian/bicyclist is wearing over-

sized clothing (a rain coat, long skirt,

etc.), making their silhouette obscure

• If a pedestrian is bending forward or

squatting or bicyclist is bending forward

• If a pedestrian/bicyclist is moving fast

• If a pedestrian is pushing a stroller, wheel-

chair, bicycle or other vehicle

• When driving in inclement weather such

as heavy rain, fog, snow or a sandstorm

• When driving through steam or smoke

• When the surrounding area is dim, such

as at dawn or dusk, or while at night or in

a tunnel, making a detectable object

appear to be nearly the same color as its

surroundings

• When driving in a place where the sur-

rounding brightness changes suddenly,

such as at the entrance or exit of a tunnel

• After the engine has started the vehicle

has not been driven for a certain amount

of time

• While making a left/right turn and for a

few seconds after making a left/right turn

• While driving on a curve and for a few

seconds after driving on a curve

• If your vehicle is skidding

• If the front of the vehicle is raised or low-

ered

• If the wheels are misaligned

• If a wiper blade is blocking the front cam-

era

• The vehicle is being driven at extremely

high speeds.

• When driving on a hill

• If the radar sensor or front camera is mis-

aligned

In some situations such as the following,

sufficient braking force may not be

obtained, preventing the system from

performing properly:

• If the braking functions cannot operate to

their full extent, such as when the brake

parts are extremely cold, extremely hot,

or wet

• If the vehicle is not properly maintained

(brakes or tires are excessively worn,

improper tire inflation pressure, etc.)

• When the vehicle is being driven on a

gravel road or other slippery surface

If VSC is disabled

If VSC is disabled (

P.237), the pre-col-

lision brake assist and pre-collision brak-

ing functions are also disabled.

The PCS warning light will turn on and

“VSC Turned OFF Pre-Collision Brake

System Unavailable” will be displayed on

the multi-information display.

176

4-5. Using the driving support systems

LTA (Lane Tracing Assist)

When driving on highways and
freeways with white (yellow) lane
lines, this function alerts the driver
when the vehicle might depart from
its lane or course

*

 and provides

assistance by operating the steer-
ing wheel to keep the vehicle in its
lane or course

*

. Furthermore, the

system provides steering assistance
when dynamic radar cruise control
with full-speed range is operating
to keep the vehicle in its lane.
The LTA system recognizes white
(yellow) lane lines or a course

*



using the front camera. Addition-
ally, it detects preceding vehicles
using the front camera and radar.

*

: Boundary between asphalt and the

side of the road, such as grass, soil, or
a curb

WARNING

Before using LTA system

Do not rely solely upon the LTA sys-

tem. The LTA system does not auto-

matically drive the vehicle or reduce

the amount of attention that must be

paid to the area in front of the vehicle.

The driver must always assume full

responsibility for driving safely by pay-

ing careful attention to the surround-

ing conditions and operating the

steering wheel to correct the path of

the vehicle. Also, the driver must take

adequate breaks when fatigued, such

as from driving for a long period of

time.

Failure to perform appropriate driving

operations and pay careful attention

may lead to an accident, resulting in

death or serious injury.

When not using the LTA system, use

the LTA switch to turn the system off.

Situations unsuitable for LTA system

In the following situations, use the LTA

switch to turn the system off. Failure to do

so may lead to an accident, resulting in

death or serious injury.

Vehicle is driven on a road surface

which is slippery due to rainy weather,

fallen snow, freezing, etc.

Vehicle is driven on a snow-covered

road.

White (yellow) lines are difficult to see

due to rain, snow, fog, dust, etc.

Vehicle is driven in a temporary lane or

restricted lane due to construction

work.

Vehicle is driven in a construction

zone.

A spare tire, tire chains, etc. are

equipped.

When the tires have been excessively

worn, or when the tire inflation pres-

sure is low.

177

4-5. Using the driving support systems

4

D

riv

ing

WARNING

When tires of a size other than speci-

fied are installed.

Vehicle is driven in traffic lanes other

than that highways and freeways.

During emergency towing

Preventing LTA system malfunctions

and operations performed by mistake

Do not modify the headlights or place

stickers, etc. on the surface of the

lights.

Do not modify the suspension etc. If

the suspension etc. needs to be

replaced, contact your Lexus dealer.

Do not install or place anything on the

hood or grille. Also, do not install a

grille guard (bull bars, kangaroo bar,

etc.).

If your windshield needs repairs, con-

tact your Lexus dealer.

Conditions in which functions may

not operate properly

In the following situations, the functions

may not operate properly and the vehicle

may depart from its lane. Drive safely by

always paying careful attention to your

surroundings and operate the steering

wheel to correct the path of the vehicle

without relying solely on the functions.

When the follow-up cruising display is

displayed (

P.181) and the preceding

vehicle changes lanes. (Your vehicle

may follow the preceding vehicle and

also change lanes.)

When the follow-up cruising display is

displayed (

P.181) and the preceding

vehicle is swaying. (Your vehicle may

sway accordingly and depart from the

lane.)

When the follow-up cruising display is

displayed (

P.181) and the preceding

vehicle departs from its lane. (Your

vehicle may follow the preceding vehi-

cle and depart from the lane.)

When the follow-up cruising display is

displayed (

P.181) and the preceding

vehicle is being driven extremely close

to the left/right lane line. (Your vehicle

may follow the preceding vehicle and

depart from the lane.)

Vehicle is being driven around a sharp

curve.

Objects or patterns that could be mis-

taken for white (yellow) lines are pres-

ent on the side of the road (guardrails,

curbs, reflective poles, etc.).

178

4-5. Using the driving support systems

WARNING

Vehicle is driven where the road

diverges, merges, etc.

Repair marks of asphalt, white (yellow)

lines, etc. are present due to road

repair.

There are shadows on the road that

run parallel with, or cover, the white

(yellow) lines.

The vehicle is driven in an area without

white (yellow) lines, such as in front of a

tollgate or checkpoint, or at an inter-

section, etc.

The white (yellow) lines are cracked,

“Botts’ dots”, “Raised pavement

marker” or stones are present.

The white (yellow) lines cannot be

seen or are difficult to see due to sand,

etc.

The vehicle is driven on a road surface

that is wet due to rain, puddles, etc.

The traffic lines are yellow (which may

be more difficult to recognize than

lines that are white).

The white (yellow) lines cross over a

curb, etc.

The vehicle is driven on a bright sur-

face, such as concrete.

If the edge of the road is not clear or

straight.

The vehicle is driven on a surface that

is bright due to reflected light, etc.

The vehicle is driven in an area where

the brightness changes suddenly, such

as at the entrances and exits of tunnels,

etc.

Light from the headlights of an oncom-

ing vehicle, the sun, etc. enters the

camera.

The vehicle is driven on a slope.

The vehicle is driven on a road which

tilts left or right, or a winding road.

The vehicle is driven on an unpaved or

rough road.

The traffic lane is excessively narrow

or wide.

The vehicle is extremely tilted due to

carrying heavy luggage or having

improper tire pressure.

The distance to the preceding vehicle

is extremely short.

The vehicle is moving up and down a

large amount due to road conditions

during driving (poor roads or road

seams).

When driving in a tunnel or at night

with the headlights off or when a head-

light is dim due to its lens being dirty or

it being misaligned.

The vehicle is struck by a crosswind.

179

4-5. Using the driving support systems

4

D

riv

ing

Lane departure alert function

When the system determines that the
vehicle might depart from its lane or
course*, a warning is displayed on the
multi-information display, and either a
warning buzzer will sound or the steer-
ing wheel will vibrate to alert the driver.

When the warning buzzer sounds or the
steering wheel vibrates, check the area
around your vehicle and carefully operate
the steering wheel to move the vehicle
back to the center of the lane.
Vehicles with Blind Spot Monitor: When
the system determines that the vehicle
might depart from its lane and that the pos-
sibility of a collision with an overtaking
vehicle in the adjacent lane is high, the lane
departure alert will operate even if the turn
signals are operating.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

Steering assist function

When the system determines that the
vehicle might depart from its lane or
course

*

, the system provides assis-

tance as necessary by operating the
steering wheel in small amounts for a
short period of time to keep the vehicle
in its lane.

If the system detects that the steering
wheel has not been operated for a fixed
amount of time or the steering wheel is not
being firmly gripped, a warning is displayed
on the multi-information display and the
function is temporarily canceled.
Vehicles with Blind Spot Monitor: When
the system determines that the vehicle
might depart from its lane and that the pos-
sibility of a collision with an overtaking
vehicle in the adjacent lane is high, the
steering assist function will operate even if
the turn signals are operating.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

WARNING

The vehicle is affected by wind from a

vehicle driven in a nearby lane.

The vehicle has just changed lanes or

crossed an intersection.

Tires which differ by structure, manu-

facturer, brand or tread pattern are

used.

Snow tires, etc. are equipped.

The vehicle is being driven at

extremely high speeds.

Functions included in LTA system

180

4-5. Using the driving support systems

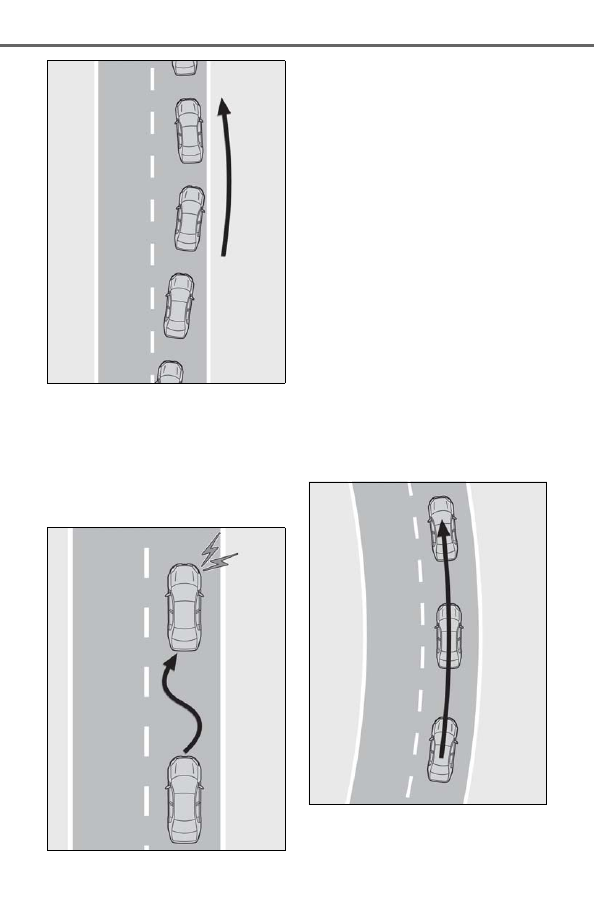

Vehicle sway warning function

When the vehicle is swaying within a
lane, the warning buzzer will sound and
a message will be displayed on the
multi-information display to alert the
driver.

Lane centering function

This function is linked with dynamic
radar cruise control with full-speed
range and provides the required assis-
tance by operating the steering wheel
to keep the vehicle in its current lane.

When dynamic radar cruise control with
full-speed range is not operating, the lane
centering function does not operate.
In situations where the white (yellow) lane
lines are difficult to see or are not visible,
such as when in a traffic jam, this function
will operate to help follow a preceding
vehicle by monitoring the position of the
preceding vehicle.
If the system detects that the steering
wheel has not been operated for a fixed
amount of time or the steering wheel is not
being firmly gripped, a warning is displayed
on the multi-information display and the
function is temporarily canceled.

181

4-5. Using the driving support systems

4

D

riv

ing

Press the LTA switch to turn the LTA
system on.

The LTA indicator illuminates and a mes-
sage is displayed on the multi-information
display.
Press the LTA switch again to turn the LTA
system off.
When the LTA system is turned on or off,
operation of the LTA system continues in
the same condition the next time the
engine is started.

LTA indicator

The illumination condition of the indicator
informs the driver of the system operation
status.
Illuminated in white:
LTA system is operating.

Illuminated in green:
Steering wheel assistance of the steering
assist function or lane centering function is
operating.
Flashing in orange:
Lane departure alert function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-information dis-
play is switched to the driving assist system
information screen
Indicates that steering wheel assistance of
the steering assist function or lane center-
ing function is operating.
Both outer sides of the lane are displayed:
Indicates that steering wheel assist of the
lane centering function is operating.
One outer side of the lane is displayed:
Indicates that steering wheel assist of the
steering assist function is operating.
Both outer sides of the lane are flashing:
Alerts the driver that their input is neces-
sary to stay in the center of the lane (lane
centering function).

Follow-up cruising display

Displayed when the multi-information dis-
play is switched to the driving assist system
information screen
Indicates that steering assist of the lane
centering function is operating by monitor-
ing the position of a preceding vehicle.
When the follow-up cruising display is dis-
played, if the preceding vehicle moves,
your vehicle may move in the same way.
Always pay careful attention to your sur-
roundings and operate the steering wheel
as necessary to correct the path of the
vehicle and ensure safety.

Lane departure alert function dis-
play

Displayed when the multi-information dis-

Turning LTA system on

Indications on multi-information
display

A

B

C

D















Content   ..  9  10  11  12   ..
