5-6. Using the other interior features

279

5-6. Using the other interior features

Interio

r fe

atures

WARNING

■

Caution while driving

When charging a portable device, for

safety reasons, the driver should not

operate the main the part of the portable

device while driving.

280

5-6. Using the other interior features

WARNING

■

Caution regarding interference with

electronic devices

People with implantable cardiac pace-

makers, cardiac resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators, as well as any

other electrical medical device, should

consult their physician about the usage of

the wireless charger.

The operations of the wireless charger

may have an affect on medical devices.

■

To prevent damage or burns

Observe the following precautions.

Failure to do so may result in a possibility

of equipment failure and damage, catch

fire, burns due to overheat.

●

Do not insert any metallic objects

between the charging area and the

portable device while charging

●

Do not attach stickers, metallic

objects, etc., to the charger area or

portable device

●

Do not cover with cloth, etc., and

charge

●

Do not charge portable devices other

than designated

●

Do not attempt to dismantle for disas-

sembly or modifications

●

Do not hit or apply a strong force

NOTICE

■

Conditions in which the function may

not operate correctly

In the following conditions, it may not

operate correctly

●

The portable device is fully charged

●

There is foreign matter between the

charge area and portable device

●

The temperature of the portable

device gets higher from charging

●

The charging surface of the portable

device is facing up

●

The placement of the portable device

is out of alignment with the charge

area

●

Near a TV tower, electric power plant,

gas station, radio station, large display,

airport or other facility that generates

strong radio waves or electrical noise

●

When the electronic key is in contact

with, or is covered by the following

metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have aluminum

foil inside

• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit

radio waves) are being used nearby

In addition, excluding the above-men-
tioned, when the charger does not per-
form normally or the operation indicator
light is flashing continuously, it is consid-
ered that the wireless charger is malfunc-
tioning. Contact your Lexus dealer.

■

To prevent failure or damage to data

●

Do not bring magnetic cards, such as

credit cards, or magnetic recording

media, etc., close to the charger while

charging, otherwise, data may disap-

pear under the influence of magne-

tism. Also, do not bring precision

instruments such as wrist watches, etc.,

close to the charger, as such objects

may break.

●

Do not leave portable devices in the

cabin. The temperature inside the

cabin may become high, when under

the sun, and cause damage to the

device.

281

5-6. Using the other interior features

Interio

r fe

atures

Fold down the armrest for use.

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.

■

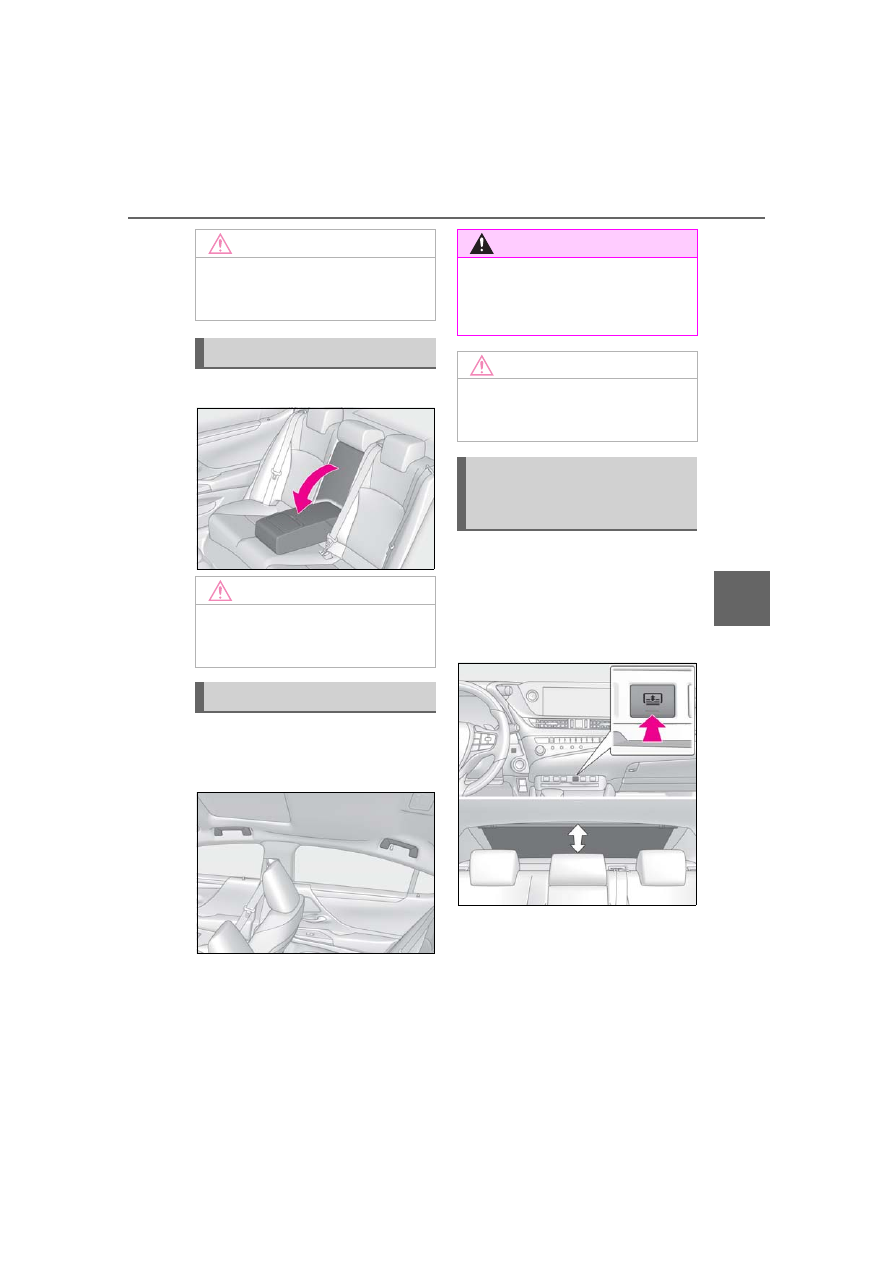

Rear sunshade

The rear sunshade can be raised and
lowered by operating the button shown
below.
Press the switch. (Raise/lower)

■

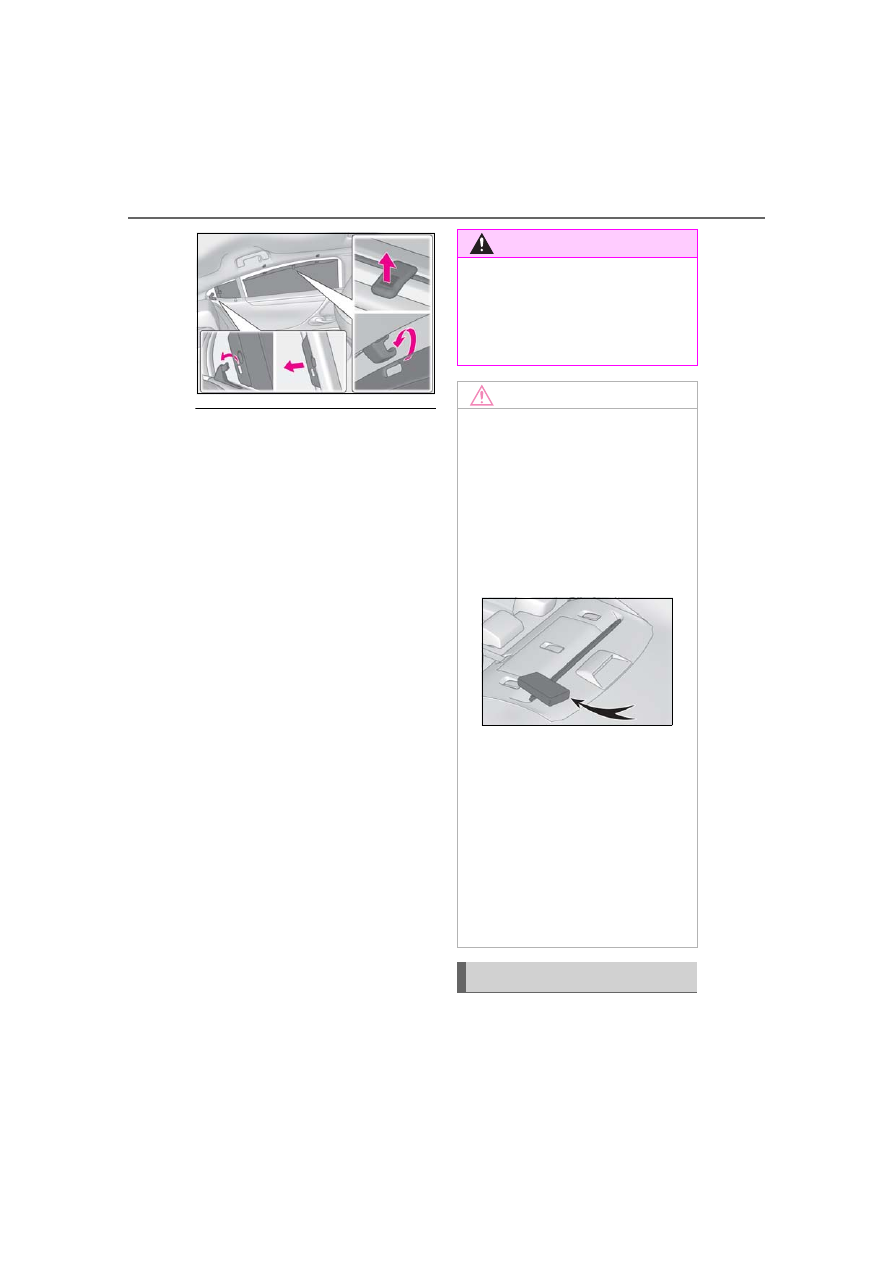

Rear door sunshades

Pull the tab of the rear door sunshade
and hook the sunshade on the anchors.

To retract the rear door sunshade, unhook
the sunshade and retract it slowly.

NOTICE

■

To prevent battery discharge

When the engine is stopped, do not use

the wireless charger for a long time.

Armrest

NOTICE

■

To prevent damage to the armrest

Do not apply too much load on the arm-

rest.

Assist grips

WARNING

■

Assist grips

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

■

To prevent damage to the assist grip

Do not hang any heavy object or put a

heavy load on the assist grip.

Rear sunshade (if
equipped)/rear door sunshades
(if equipped)

282

5-6. Using the other interior features

■

The rear sunshade can be used when

●

The power switch is in ON mode.

●

The rear sunshade can be operated for

approximately 1 minute even after the

power switch is turned to ACCESSORY

mode or turned off.

■

Reverse operation feature

To ensure adequate rear visibility, the rear

sunshade automatically lowers when the

shift lever is shifted to R.
However, the rear sunshade is raised again

if any of the following occurs:

●

The button is pressed again.*

●

Shift the shift lever to P.

●

The shift lever is shifted out of R, and the

vehicle reaches a speed of 9 mph (15

km/h).

If the hybrid system is off when the rear

sunshade has been lowered due to the

reverse operation feature, it will not be

raised even when the hybrid system is

turned on again and the vehicle reaches a

speed of 9 mph (15 km/h). To raise the

sunshade again, press the button.

: Occasionally, the reverse function may

not be carried out after the switch has
been pressed. Repeat the above opera-
tion to operate the function.

Long objects can be loaded into the
vehicle by utilizing the trunk space and

WARNING

■

When the rear sunshade is being

raised or lowered

When the rear sunshade is being oper-

ated not place fingers or other objects in

the fastener section or in the opening.

They may get caught, causing injury.

NOTICE

■

To prevent 12-volt battery discharge

Do not operate the rear sunshade when

the hybrid system is off.

■

To ensure normal operation of the

sunshades

●

Do not operate the rear sunshade

when any objects are on top of its

opening/closing part.

The rear sunshade may not operate

properly.

●

To ensure normal operation of the rear

sunshade and rear door sunshades,

observe the following precautions:

• Do not place excessive load on the

motor or other components of the rear

sunshade.

• Do not attach items to the rear sun-

shade and rear door sunshades.

• Keep the opening clean and clear of

obstructions.

• Do not operate the rear sunshade con-

tinuously for long periods of time.

Trunk storage extension

283

5-6. Using the other interior features

Interio

r fe

atures

rear seat area.

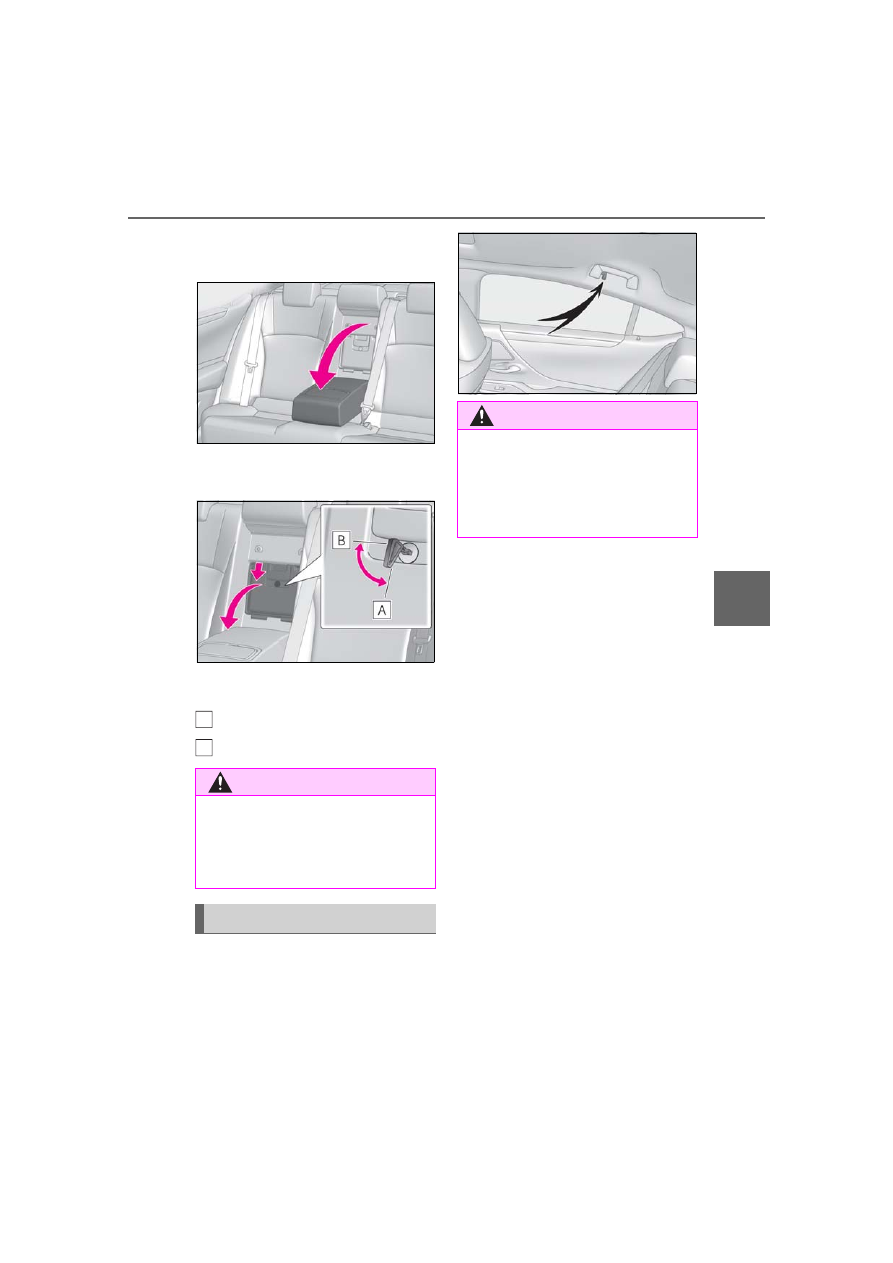

Fold down the armrest.

Fold down the handle and open the
armrest door.

The armrest door can be locked and
unlocked using the mechanical key.

Unlock

Lock

The coat hooks are provided with the
rear assist grips.

WARNING

■

When not in use

Ensure that the armrest door is closed. In

the event of sudden braking, items stored

in the trunk may be thrown forward into

the cabin, resulting in injury.

Coat hooks

A
B

WARNING

■

Items that should not be hanged

Do not hang coat hangers or other hard

or sharp objects on the hook. If the SRS

curtain shield airbags deploy, these items

may become projectiles, causing death

or serious injury.

284

5-6. Using the other interior features

The HomeLink

wireless control sys-

tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device.

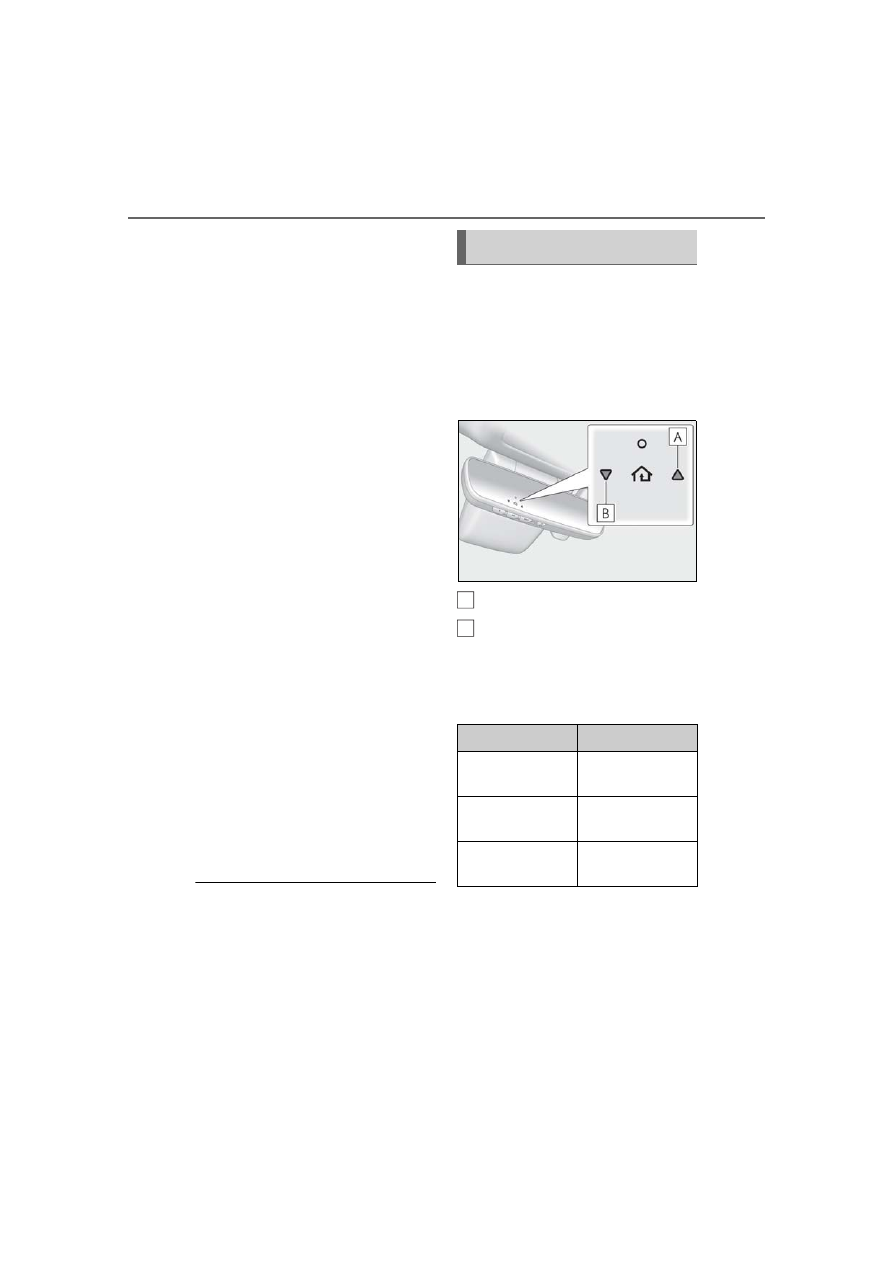

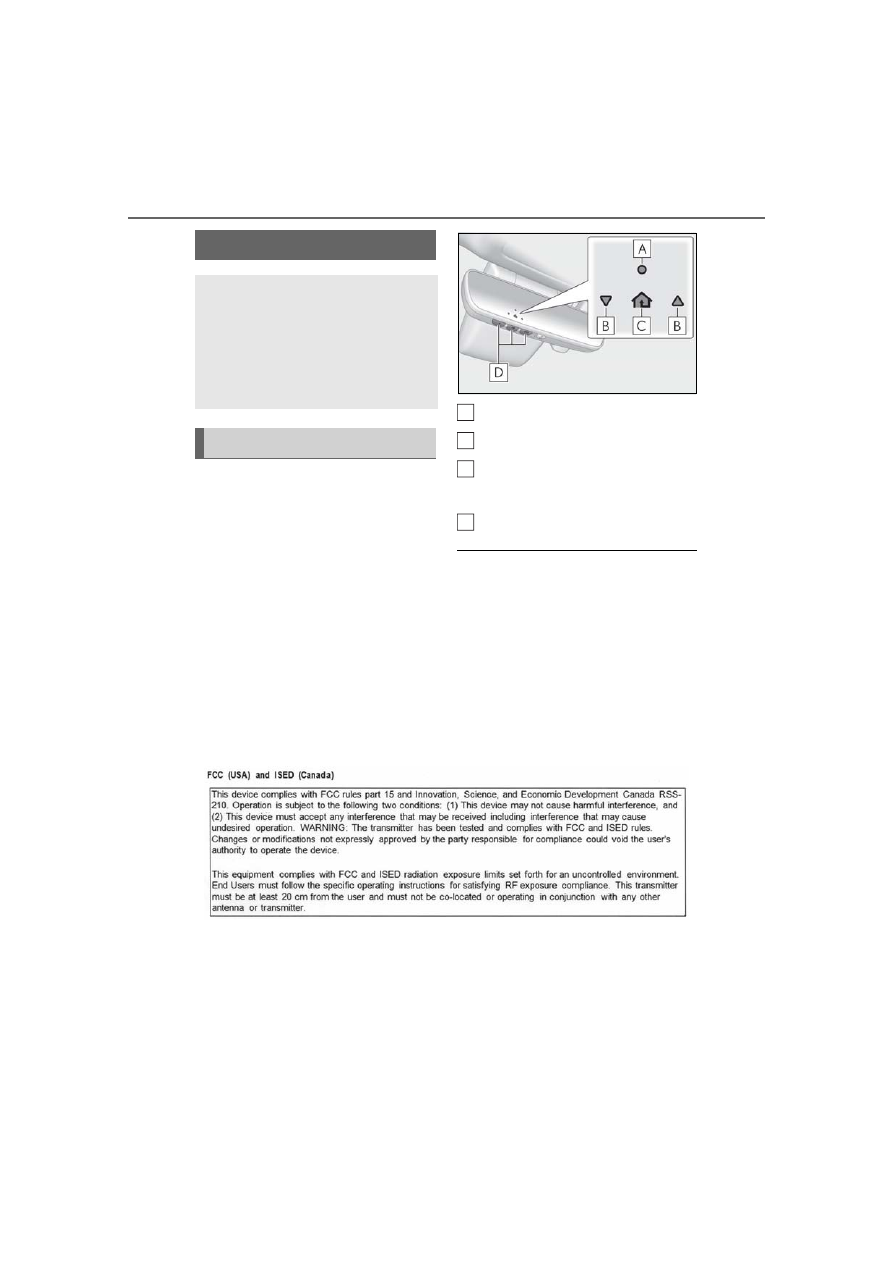

HomeLink

indicator light

Garage door operation indicators

HomeLink

icon

Illuminates while HomeLink

is operating.

Buttons

■

Codes stored in the HomeLink

mem-

ory

●

The registered codes are not erased even

if the 12-volt battery cable is discon-

nected.

●

If learning failed when registering a dif-
ferent code to a HomeLink

button that

already has a code registered to it, the

already registered code will not be

erased.

■

Certification for the garage door opener

Garage door opener

The garage door opener can be
programmed using the Home-
Link

to operate garage doors,

gates, entry doors, door locks,
home lighting systems, security sys-
tems, and other devices.

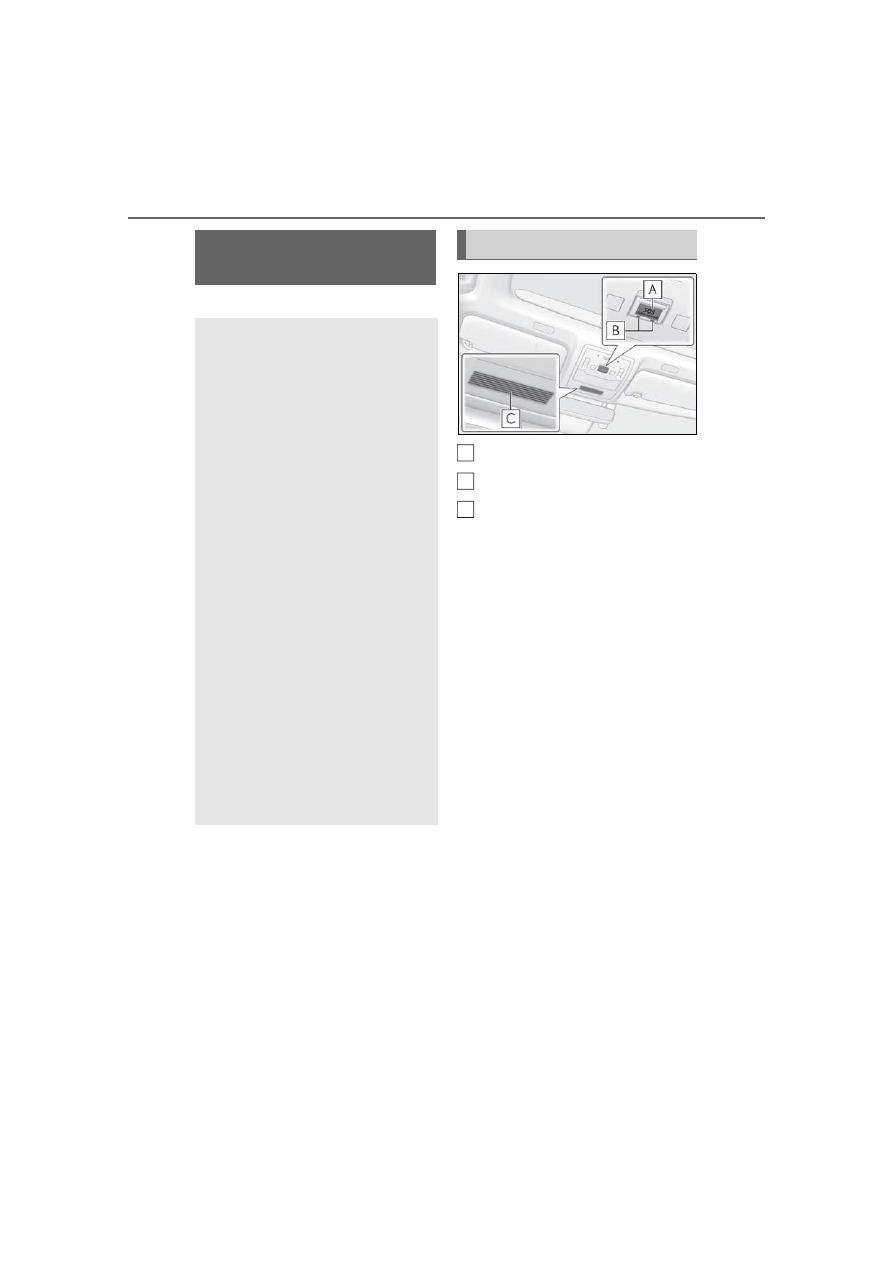

System components

A
B
C

285

5-6. Using the other interior features

Interio

r fe

atures

■

When support is necessary

Visit on the web at www.home-

link.com/lexus or call 1-800-355-3515.

■

Before programming HomeLink

 During programming, it is possible

that garage doors, gates, or other

devices may operate. For this rea-
son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.

 It is recommended that a new bat-

tery be placed in the remote control
transmitter for more accurate pro-
gramming.

 Garage door opener motors manu-

factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.

■

Programming HomeLink

Steps

through

must be performed

within 60 seconds, otherwise the indi-
cator light will stop flashing and pro-
gramming will not be able to be
completed.

Press and release the HomeLink

button you want to program and
check that the HomeLink

indica-

tor light flashes (orange).

WARNING

■

When programming a garage door or

other remote control device

The garage door or other device may

operate, so ensure people and objects

are out of danger to prevent potential

harm.

■

Conforming to federal safety stan-

dards

Do not use the HomeLink

compatible

transceiver with any garage door opener

or device that lacks safety stop and

reverse features as required by federal

safety standards.
This includes any garage door that can-

not detect an interfering object. A door

or device without these features

increases the risk of death or serious

injury.

■

When operating or programming
HomeLink

Never allow a child to operate or play
with the HomeLink

buttons.

Programming the HomeLink

286

5-6. Using the other interior features

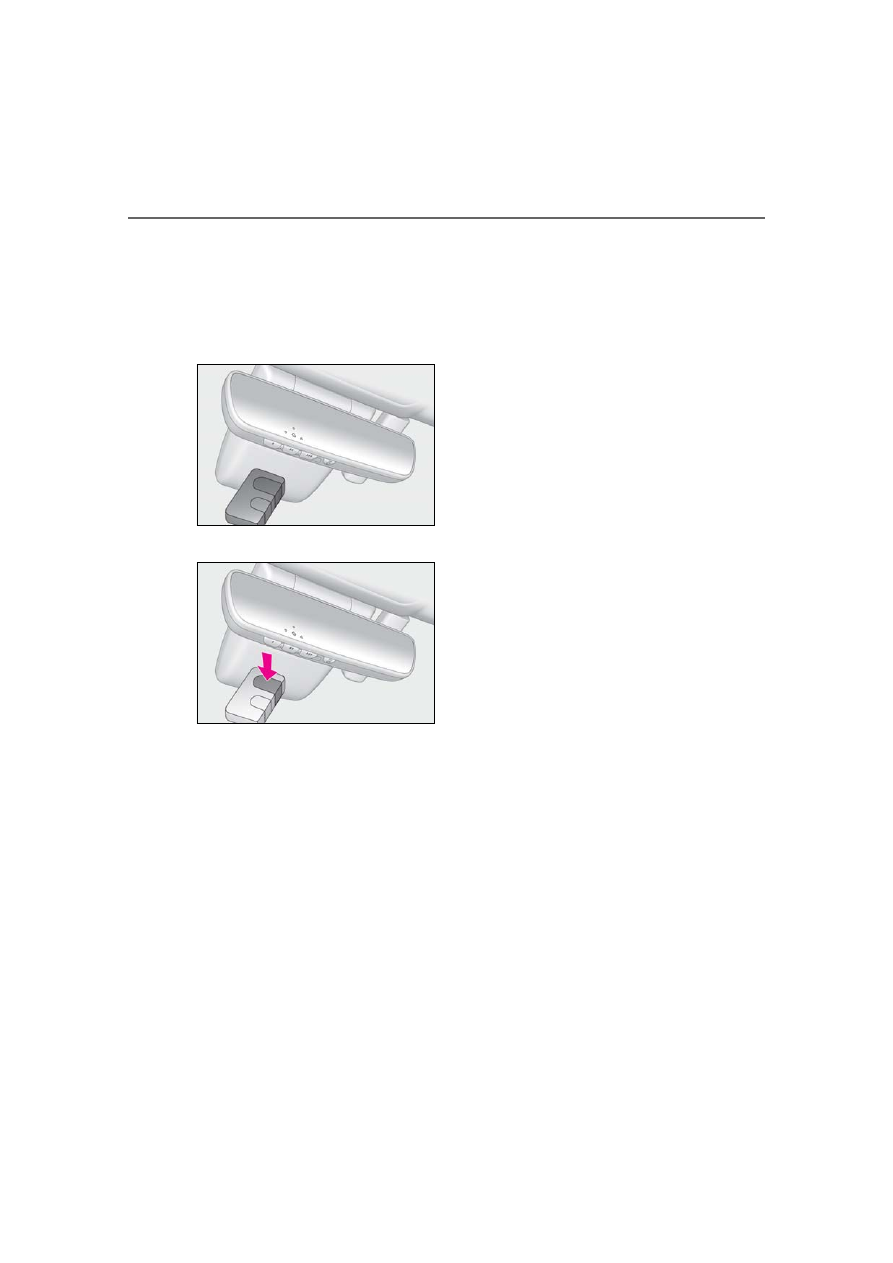

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

buttons.

Keep the HomeLink

indicator light in

view while programming.

Program a device.



Programming a device other than
an entry gate (for U.S.A. owners)

Press and hold the remote control
transmitter button until the Home-
Link

indicator light changes from

slowly flashing orange to rapidly flash-
ing green (rolling code) or continu-
ously lit green (fixed code), then
release the button.



Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market

Press and release the remote control
transmitter button at 2 second inter-

vals, repeatedly, until the HomeLink

indicator light changes from slowly
flashing (orange) to rapidly flashing
(green) (rolling code) or continuously
lit (green) (fixed code).

Test the HomeLink

operation by

pressing the newly programmed
button and observing the indicator
light:

 Indicator light illuminates: Program-

ming of a fixed code device has
completed. The garage door or
other device should operate when a
HomeLink

button is pressed and

released.

 Indicator light flashes rapidly: The

garage door opener motor or other
device is equipped with a rolling
code. To complete programming,
firmly press and hold the Home-
Link

button for 2 seconds then

release it.

 If the garage door or other device

does not operate, proceed to “Pro-
gramming a rolling code system”.

Repeat the steps above to program
another device for any of the
remaining HomeLink

buttons.

■

Programming a rolling code sys-
tem

2 or more people may be necessary to
complete rolling code programming.

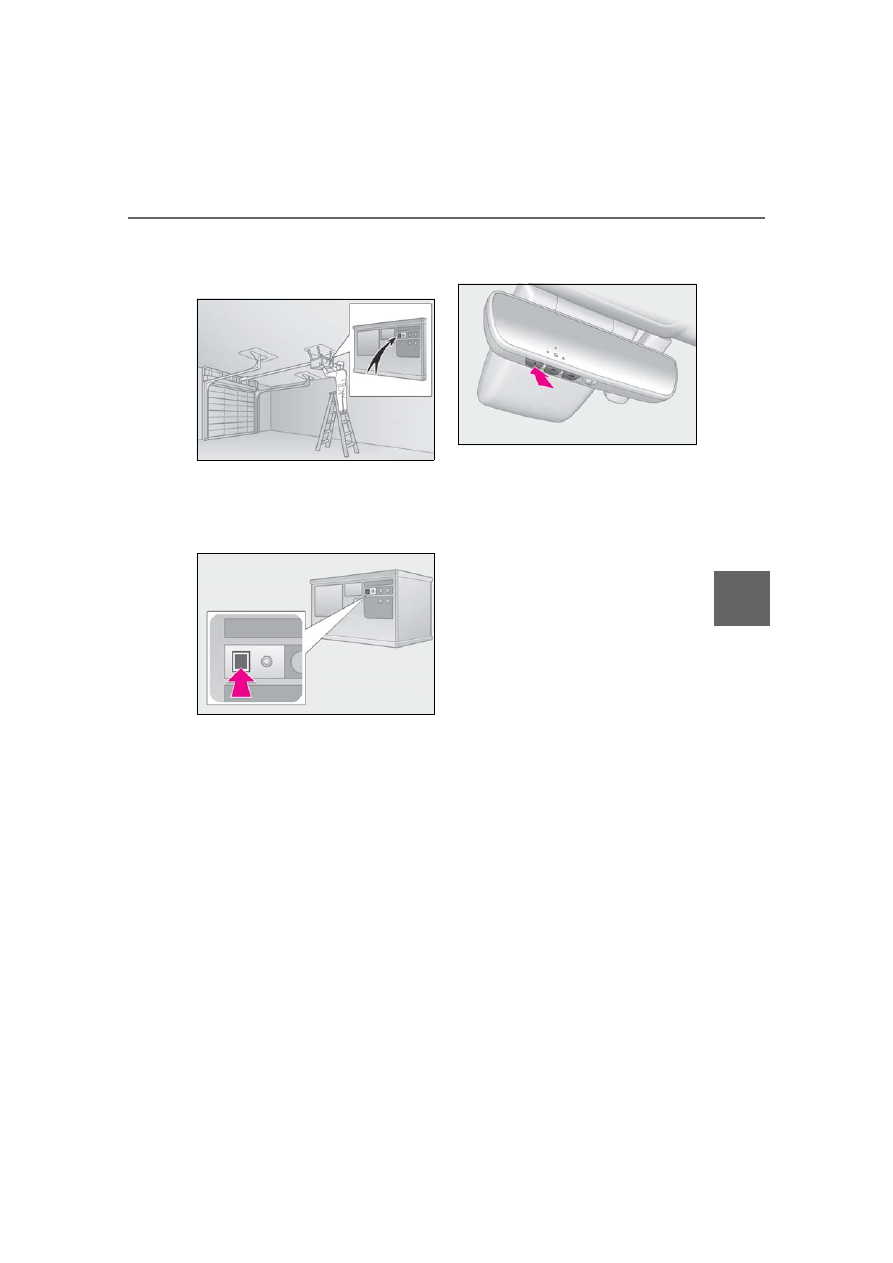

Locate the “Learn” or “Smart” but-
ton on the garage door opener
motor in the garage.

This button can usually be found where the

hanging antenna wire is attached to the

287

5-6. Using the other interior features

Interio

r fe

atures

unit. The name and color of the button may

vary by manufacturer. Refer to the owner’s

manual supplied with the garage door

opener motor for details.

Press and release the “Learn” or
“Smart” button.

Perform

within 30 seconds after per-

forming

Press and hold the desired Home-
Link

button (inside the vehicle)

for 2 seconds and release it. Repeat
this sequence (press/hold/release)
up to 3 times to complete pro-
gramming.
If the garage door opener motor
operates when the HomeLink

button is pressed, the garage door

opener motor recognizes the
HomeLink

signal.

■

Enabling 2-way communication
with a garage door (only available
for compatible devices)

When enabled, 2-way communication
allows you to check the status of the
opening and closing of a garage door
through indicators in your vehicle.
2-way communication is only available
if the garage door opener motor used
is a compatible device. (To check
device compatibility, refer to
www.homelink.com.)

Within 5 seconds after program-
ming the garage door opener has
been completed, if the garage door
opener motor is trained to Home-
Link

, both garage door operation

indicators will flash rapidly (green)
and the light on the garage door
opener motor will blink twice, indi-
cating that 2-way communication is
enabled.

If the indicators do not flash, perform

and

within the first 10 presses of the Home-

Link

button after programming has been

completed.

Press a programmed HomeLink

button to operate a garage door.

288

5-6. Using the other interior features

Within 1 minute of pressing the
HomeLink

button, after the

garage door operation has
stopped, press the “Learn” or
“Smart” button on the garage door
opener motor. Within 5 seconds of
the establishment of 2-way com-
munication with the garage door
opener, both garage door opera-
tion indicators in the vehicle will
flash rapidly (green) and the light
on the garage door opener motor
will blink twice, indicating that 2-
way communication is enabled.

■

Reprogramming a single Home-
Link

button

When the following procedure is per-
formed, buttons which already have
devices registered to them can be
overwritten:

With one hand, press and hold the
desired HomeLink

button.

When the HomeLink

indicator

starts flashing (orange), continue to
hold the HomeLink

button and

perform “Programming Home-
Link

”

(it takes 20 seconds for

the HomeLink

indicator to start

flashing).

■

Before programming

●

Install a new battery in the transmitter.

●

The battery side of the transmitter must
be pointed away from the HomeLink

Press the appropriate HomeLink

button. The HomeLink

indicator light

should turn on.
The status of the opening and closing
of a garage door is shown by the indi-
cators.

Opening

Closing

This function is only available if the garage
door opener motor used is a compatible
device. (To check device compatibility,
refer to www.homelink.com.)

The indicators can operate within
approximately 820 ft. (250 m) of the
garage door. However, if there are
obstructions between the garage door
and the vehicle, such as houses and
trees, feedback signals from the
garage door may not be received.

Operating HomeLink

Color

Status

Orange (flashing)

Currently open-

ing/closing

Green

Opening/closing

has completed

Red (flashing)

Feedback signals

cannot be received

A
B

289

5-6. Using the other interior features

Interio

r fe

atures

To recall the previous door operation
status, press and release either Home-

Link

buttons

and

simultaneously. The

last recorded status will be displayed
for 3 seconds.

Press and hold the 2 outside buttons
for 10 seconds until the HomeLink

indicator light changes from continu-
ously lit (orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to erase the
programs stored in the HomeLink

mem-

ory.

: If equipped

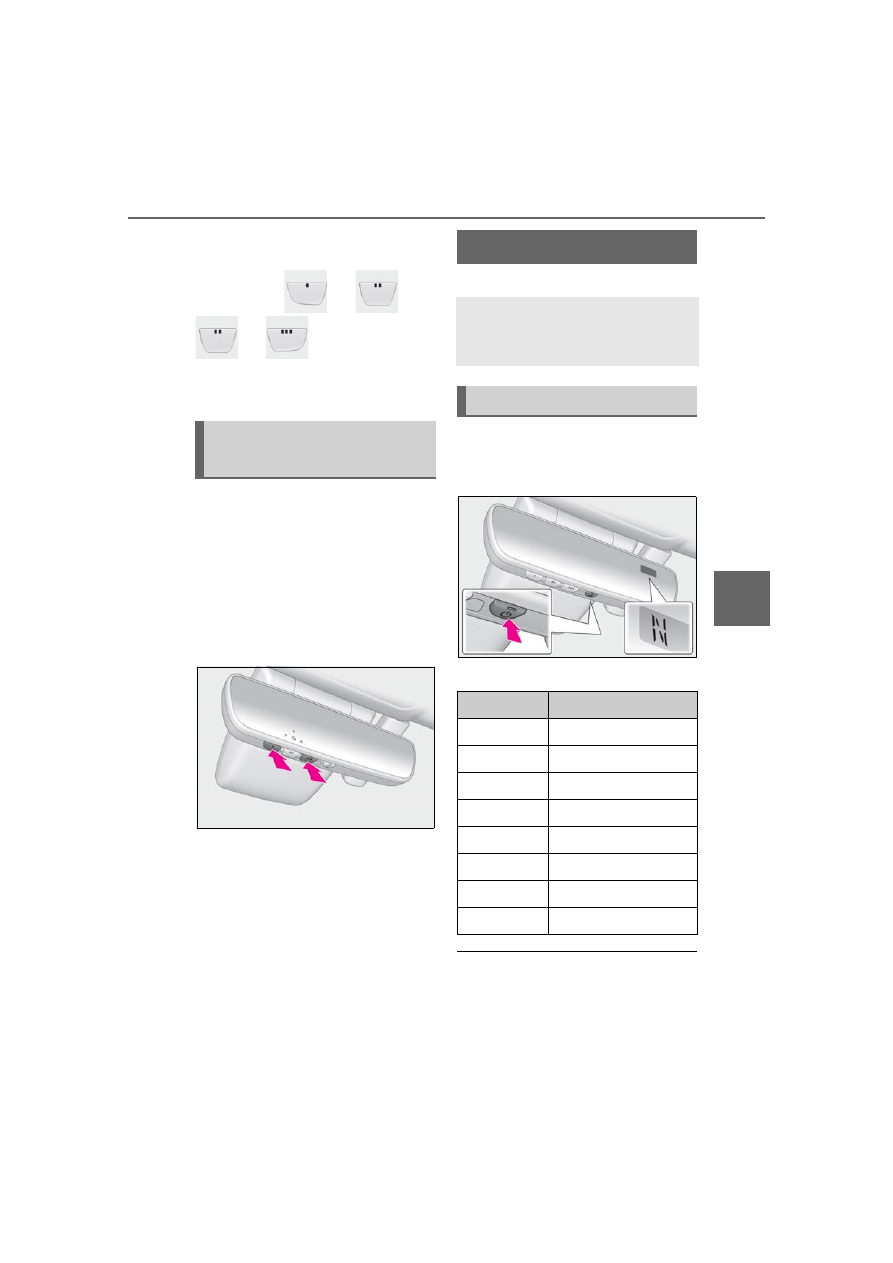

To turn the compass on or off, press
and hold the button for more than 3
seconds.

Directions are displayed as follows:

■

Conditions unfavorable to correct

operation

The compass may not show the correct

direction in the following conditions:

●

The vehicle is stopped immediately after

Erasing the entire HomeLink

memory (all three codes)

Compass

The compass on the inside rear
view mirror indicates the direction
in which the vehicle is heading.

Operation and displays

Display

Direction

“N”

North

“NE”

Northeast

“E”

East

“SE”

Southeast

“S”

South

“SW”

Southwest

“W”

West

“NW”

Northwest

290

5-6. Using the other interior features

turning.

●

The vehicle is on an inclined surface.

●

The vehicle is in a place where the earth’s

magnetic field is subject to interference

by artificial magnetic fields (under-

ground car park/parking lot, under a

steel tower, between buildings, roof car

park/parking lot, near an intersection,

near a large vehicle, etc.).

●

The vehicle has become magnetized.

(There is a magnet or metal object near

the inside rear view mirror.)

●

The battery has been disconnected.

●

A door is open.

■

Deviation

The direction display deviates from the
true direction determined by the
earth’s magnetic field. The amount of
deviation varies depending on the geo-
graphic position of the vehicle.

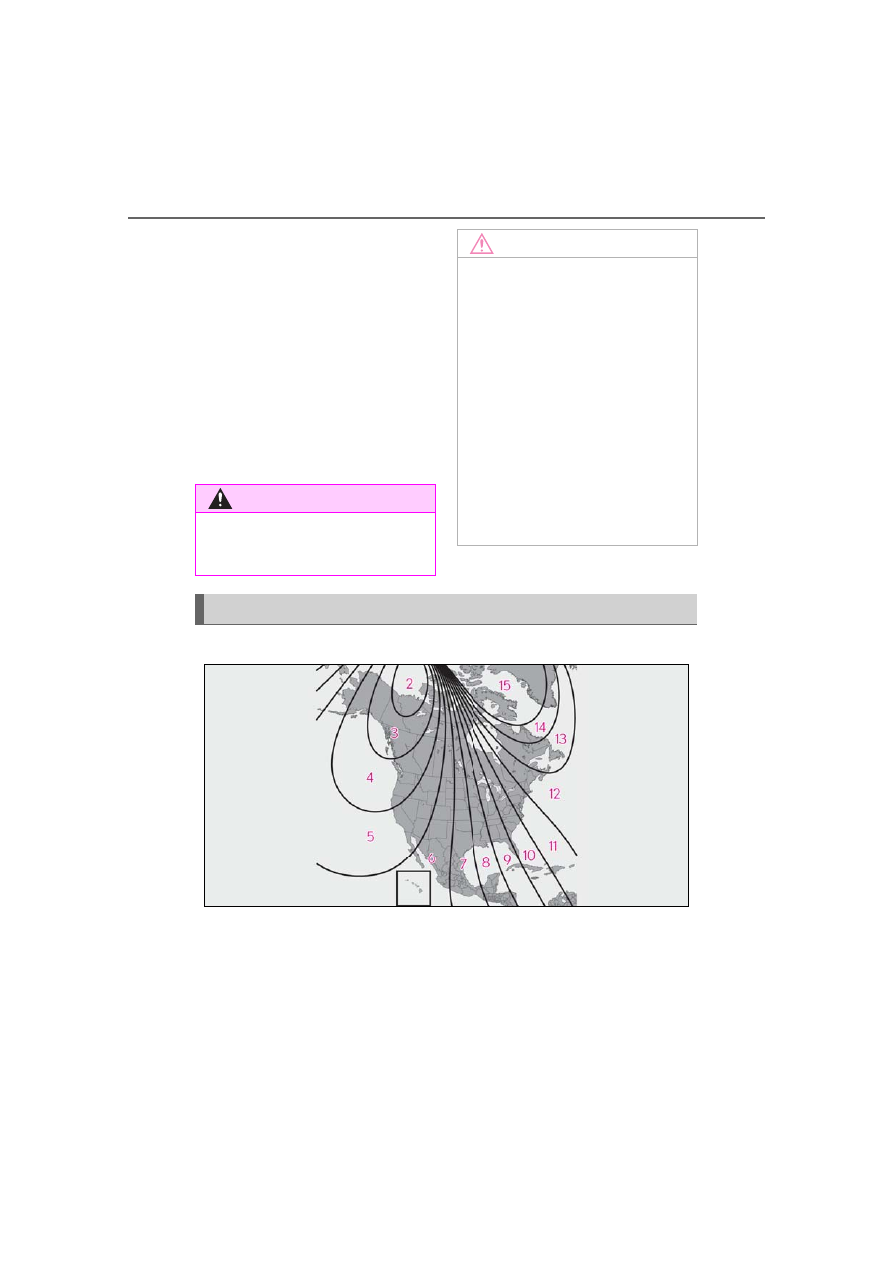

If you cross over one of the map boundar-

ies shown in illustration, the compass will
deviate.
To obtain higher precision or perfect cali-
bration, refer to “Deviation calibration”.

■

Deviation calibration

Stop the vehicle.

WARNING

■

While driving the vehicle

Do not adjust the display. Adjust the dis-

play only when the vehicle is stopped.

NOTICE

■

To avoid the compass malfunctions

Do not place magnets or any metal

objects near the inside rear view mirror.

Doing this may cause the compass sen-

sor to malfunction.

■

To ensure normal operation of the

compass

●

Do not perform a circling calibration of

the compass in a place where the

earth’s magnetic field is subject to

interference by artificial magnetic

fields.

●

During calibration, do not operate

electric systems (moon roof, power

windows, etc.) as they may interfere

with the calibration.

Calibrating the compass

291

5-6. Using the other interior features

Interio

r fe

atures

Press and hold the button for 6 sec-
onds. A number (1 to 15) appears
on the compass display.

Referring to the map above, press
the button to select the number of
the zone you are in.

If the direction is displayed several seconds

after adjustment, the calibration is com-

plete.

■

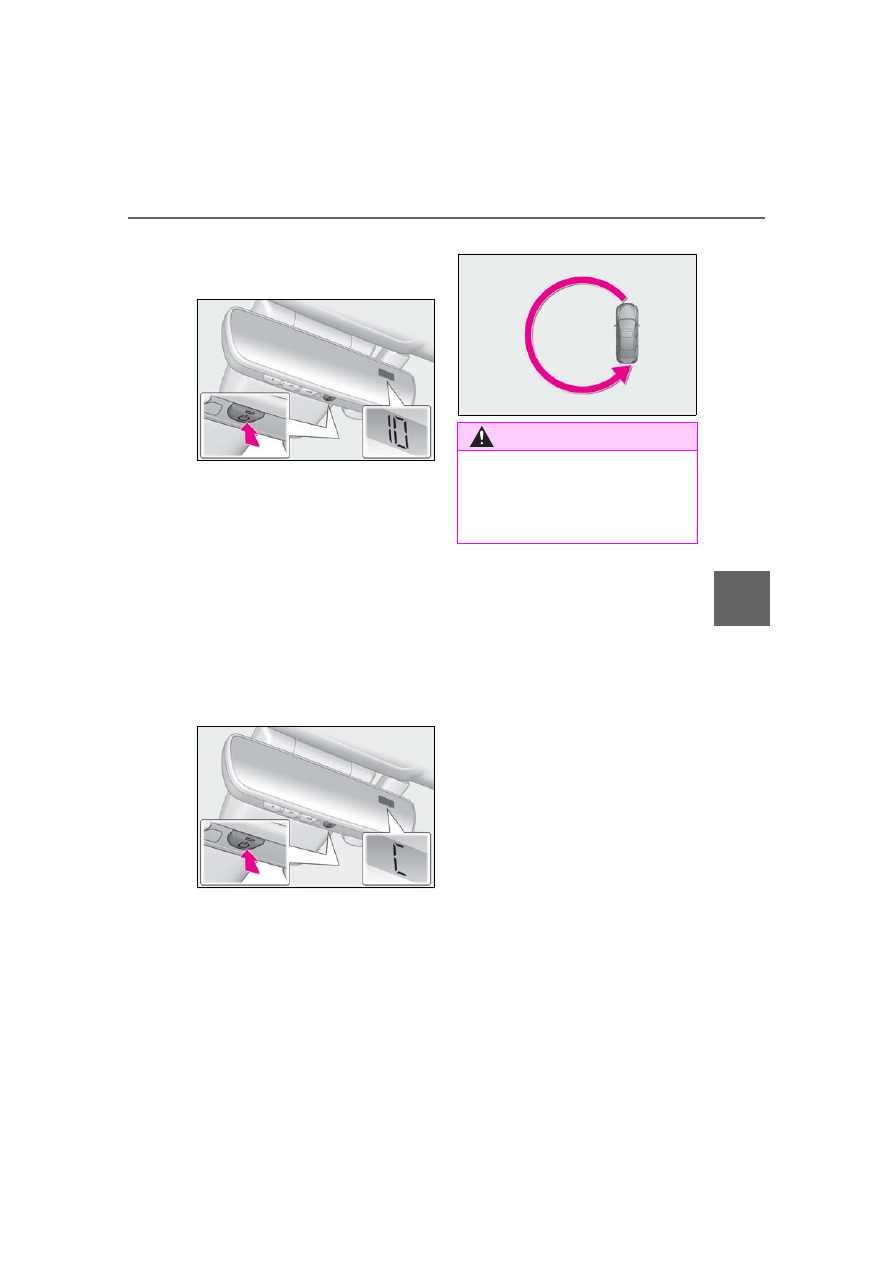

Circling calibration

Stop the vehicle in a place where it
is safe to drive in a circle.

Press and hold the button for 9 sec-
onds.

“C” appears on the compass display.

Drive the vehicle at 5 mph (8 km/
h) or less in a circle until a direction
is displayed.

If there is not enough space to drive in a

circle, drive around the block until a direc-

tion is displayed.

WARNING

■

When doing the circling calibration

Secure a wide space, and watch out for

people and vehicles in the vicinity. Do not

violate any local traffic rules while per-

forming circling calibration.

292

5-6. Using the other interior features

: If equipped

“SOS” button

LED light indicators

Microphone

Lexus Enform Safety Con-
nect

Safety Connect is a subscription-
based telematics service that uses
Global Positioning System (GPS)
data and embedded cellular tech-
nology to provide safety and secu-
rity features to subscribers. Safety
Connect is supported by Lexus’
designated response center, which
operates 24 hours per day, 7 days
per week.
Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.
By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Telematics Subscription Ser-
vice Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a cur-
rent copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Condi-
tions.

System components

A
B
C

293

5-6. Using the other interior features

Interio

r fe

atures

■

Certification for Lexus Enform

Subscribers have the following Safety
Connect services available:

 Automatic Collision Notification

Helps drivers receive necessary response
from emergency service providers.

(



P.295

)

: U.S. Patent No. 7,508,298 B2

 Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(



P.295

)

 Emergency Assistance Button

(“SOS”)

Services

Content .. 16 17 18 19 ..
