4-3. Operating the lights and wipers

4-3.Operating the lights and wipers

Turning the end of the lever turns on
the lights as follows:

U.S.A.

Canada

The side marker, parking, tail,

license plate and, instrument panel
lights, and daytime running lights
turn on.

The headlights and all the

lights listed above (except daytime
running lights) turn on.

The headlights, daytime run-

ning lights and all the lights listed

above turn on and off automatically.

(U.S.A.) Off

(Canada) The daytime running

lights turn on.

■

AUTO mode can be used when

The power switch is in ON mode.

■

Daytime running light system

●

The daytime running lights illuminate

using the same lights as the parking lights

and illuminate brighter than the parking

lights.

●

To make your vehicle more visible to

other drivers during daytime driving, the

daytime running lights turn on automati-

cally when all of the following conditions

are met. (The daytime running lights are

not designed for use at night.)

• The hybrid system is operating

• The parking brake is released
• The headlight switch is in the

(Can-

ada only),

position

: When the surroundings are bright

The daytime running lights remain on after
they illuminate, even if the parking brake is
set again.

●

For the U.S.A.: Daytime running lights

can be turned off by operating the head-
light switch to

position.

●

Compared to turning on the headlights,

the daytime running light system offers

greater durability and consumes less

electricity, so it can help improve fuel

economy.

■

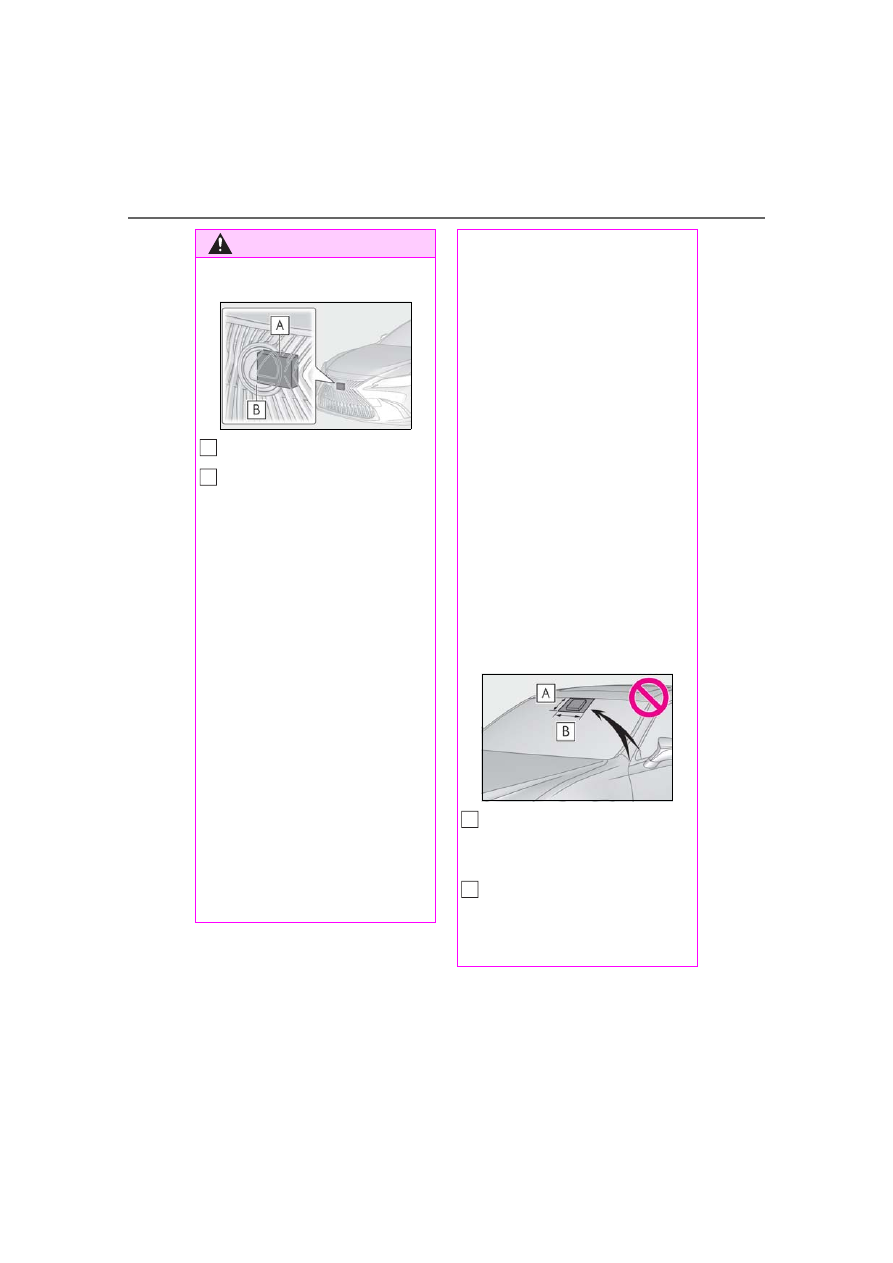

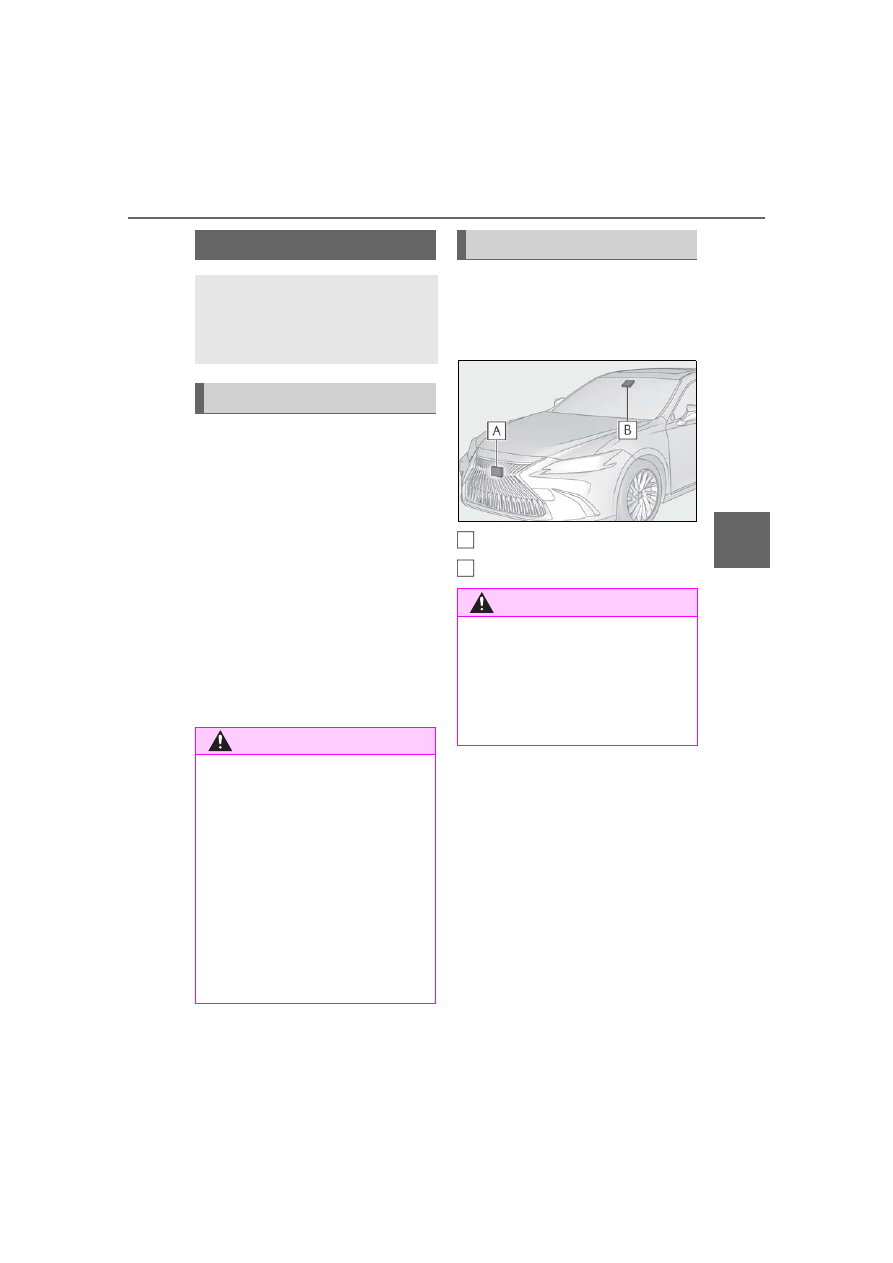

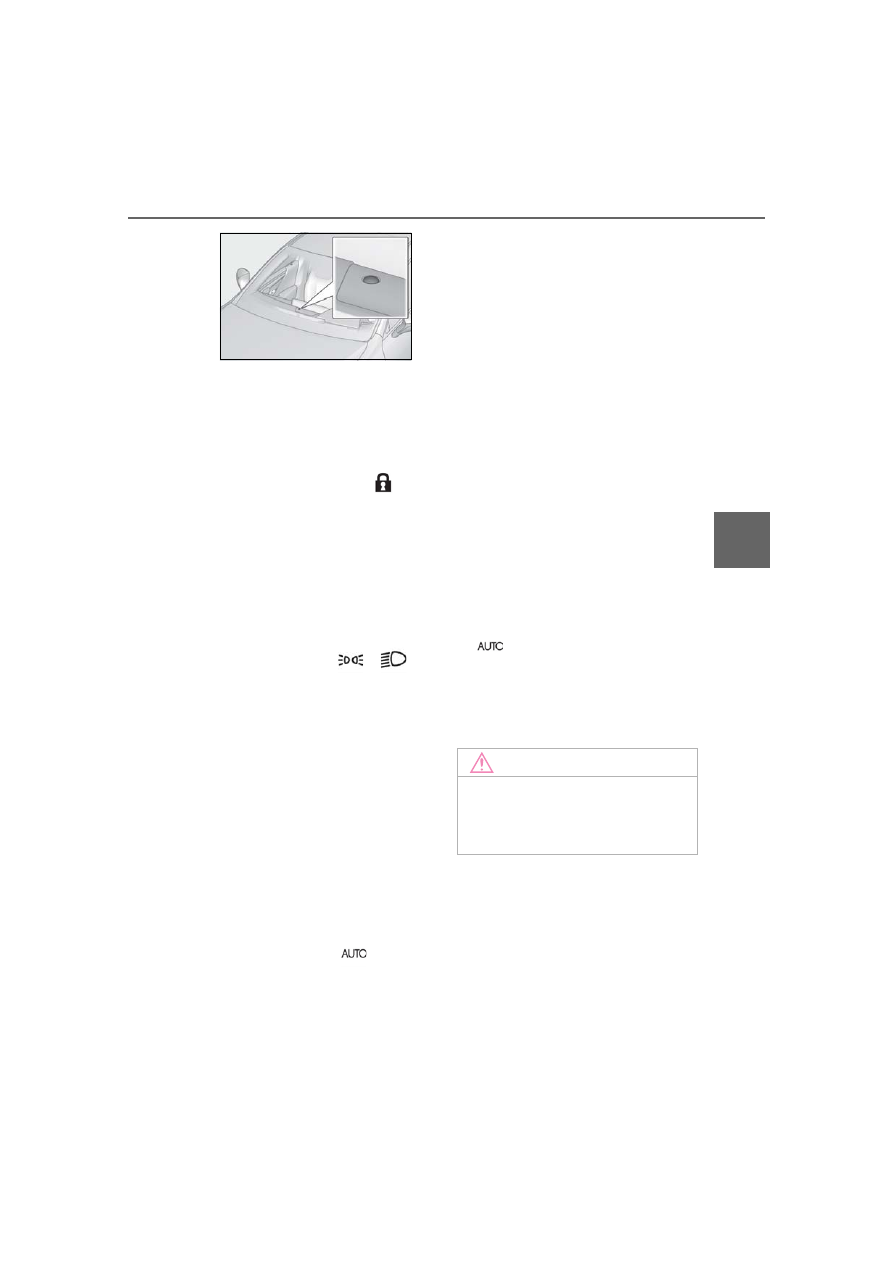

Headlight control sensor

The sensor may not function properly if an

object is placed on the sensor, or anything

that blocks the sensor is affixed to the wind-

shield.

Doing so interferes with the sensor detect-

ing the level of ambient light and may cause

the automatic headlight system to malfunc-

tion.

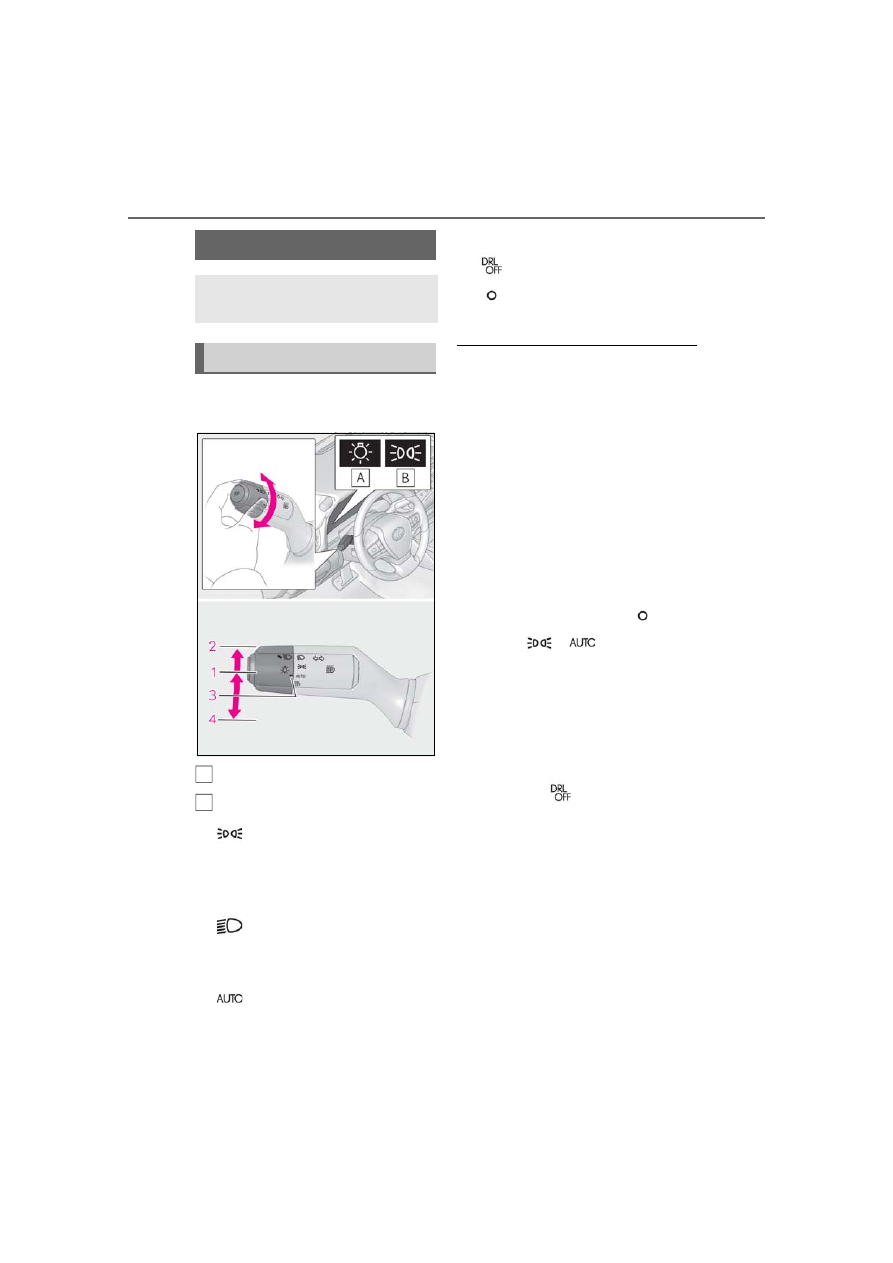

Headlight switch

The headlights can be operated
manually or automatically.

Turning on the headlights

A
B

151

4-3. Operating the lights and wipers

Driving

■

Automatic light off system

●

When the headlights come on: The head-

lights and tail lights turn off 30 seconds

after the driver’s door is opened and

closed if the power switch is turned to

ACCESSORY mode or turned off. (The
lights turn off immediately if

the key is pressed after all the doors are

locked.)

●

When only the tail lights come on: The tail

lights turn off automatically if the power

switch is turned to ACCESSORY mode

or turned off and the driver’s door is

opened.

To turn the lights on again, turn the power

switch to ON mode, or turn the light switch
off once and then back to

■

Light reminder buzzer

A buzzer sounds when the power switch is

turned off or turned to ACCESSORY

mode and the driver’s door is opened while

the lights are turned on.

■

Automatic headlight leveling system (if

equipped)

The level of the headlights is automatically

adjusted according to the number of pas-

sengers and the loading condition of the

vehicle to ensure that the headlights do not

interfere with other road users.

■

Windshield wiper linked headlight illu-

mination

When driving during daytime with the
headlight switch turned to

, if the wind-

shield wipers are used, the headlights will

turn on automatically after several seconds

to help enhance the visibility of your vehicle.

■

12-volt battery-saving function

In order to prevent the 12-volt battery of the

vehicle from discharging, if the headlights

and/or tail lights are on when the power

switch is turned off the 12-volt battery sav-

ing function will operate and automatically

turn off all the lights after approximately 20

minutes.

When the power switch is turned to ON

mode, the 12-volt battery-saving function

will be disabled.
When any of the following are performed,

the 12-volt battery-saving function is can-

celed once and then reactivated. All the

lights will turn off automatically 20 minutes

after the 12-volt battery-saving function has

been reactivated:

●

When the headlight switch is operated

●

When a door is opened or closed

■

Welcome light illumination control

The front position and tail lights automati-

cally turn on at night when the doors are

unlocked using the entry function or wire-

less remote control if the light switch is in
the

position.

■

Customization

Settings (e.g. light sensor sensitivity) can be

changed.

(Customizable features:

P.412)

NOTICE

■

To prevent 12-volt battery discharge

Do not leave the lights on longer than

necessary when the hybrid system is not

operating.

152

4-3. Operating the lights and wipers

With the headlights on, push the
lever away from you to turn on the
high beams.

Pull the lever toward you to the center
position to turn the high beams off.

Pull the lever toward you and
release it to flash the high beams
once.

You can flash the high beams with the
headlights on or off.

AFS (Adaptive Front-lighting System)
secures excellent visibility at intersec-
tions and on curves by automatically
adjusting the direction of the light axis
of the headlights according to vehicle
speed and the degree of the tire’s angle
as controlled by steering input.

AFS operates at speeds of approximately
6 mph (10 km/h) or higher.

When any of the following conditions is
met, while the headlights (low beam)
are on, the cornering lights will addi-

tionally turn on and light up the direc-
tion of movement for the vehicle. This is
to ensure excellent visibility when
either driving at intersections or park-
ing at night.
 The steering wheel is operated
 The turn signal lever is operated
 The shift position is in R (both left

and right side cornering lights)

■

Cornering light control

●

The lights illuminate when the vehicle

speed is approximately 19 mph (30

km/h) or less. However, the lights turn off

when the vehicle speed increases to

approximately 22 mph (35 km/h) or

more.

●

After the lights remain illuminated for 30

minutes, they automatically turn off.

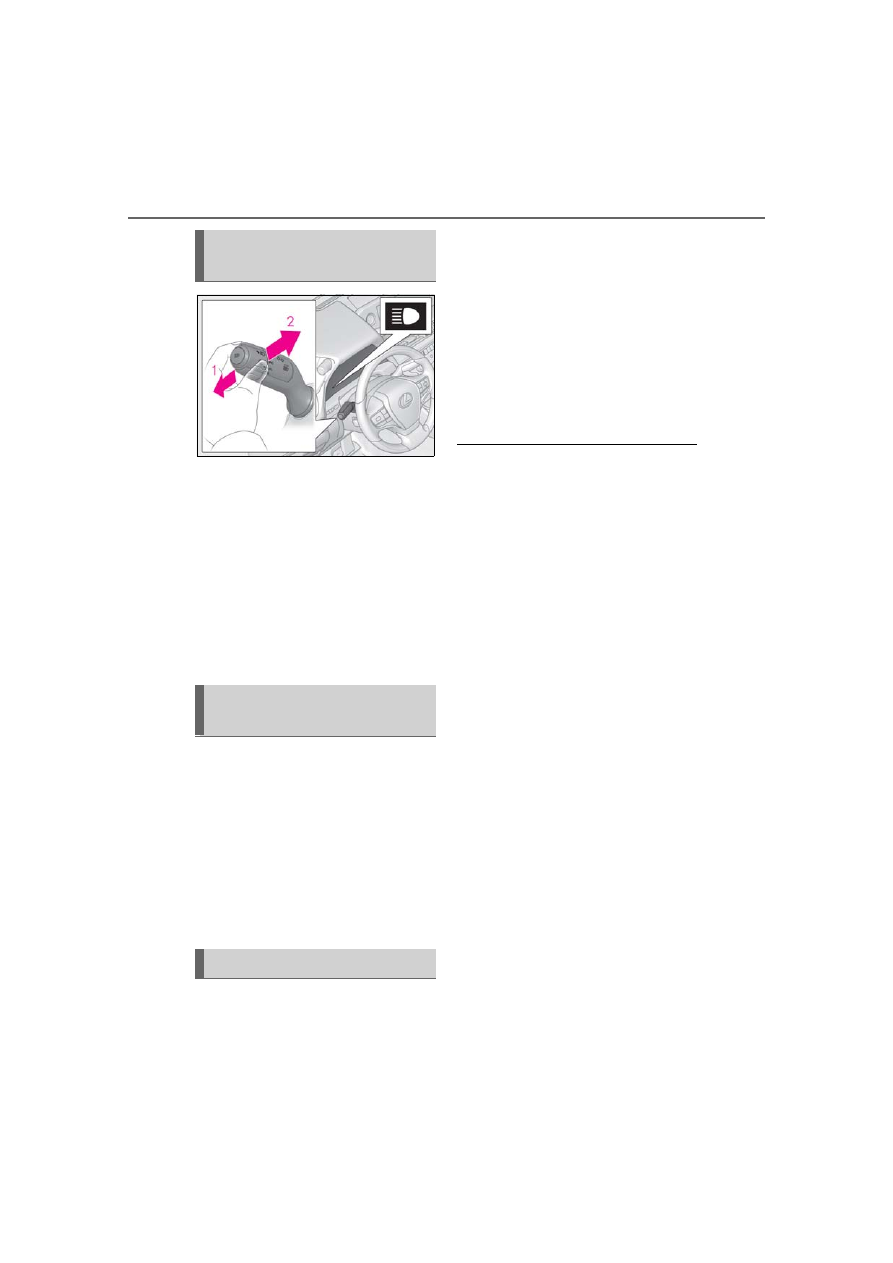

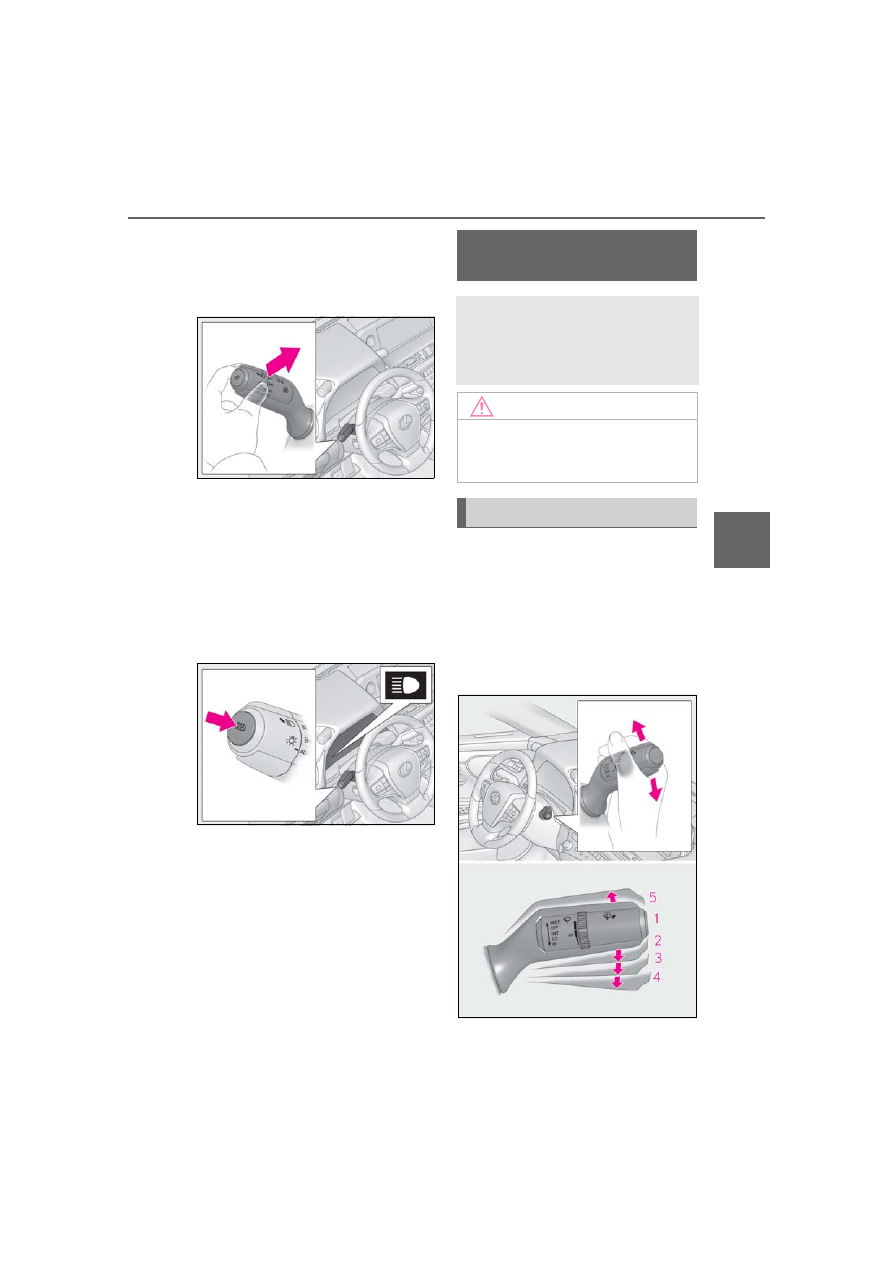

Turning on the high beam head-
lights

AFS (Adaptive Front-lighting
System) (if equipped)

Cornering lights

153

4-3. Operating the lights and wipers

Driving

Press the Automatic High Beam
switch.

Push the lever away from you with
the headlight switch in the

position.

The Automatic High Beam indicator will

come on when the headlights are turned

on automatically to indicate that the system

is active.

■

High beam automatic turning on or off

conditions

●

When all of the following conditions are

met, the high beam will be automatically

turned on (after approximately 1 second):

• Vehicle speed is above approximately 21

mph (34 km/h).

• The area ahead of the vehicle is dark.

• There are no vehicles ahead with head-

lights or tail lights turned on.

• There are few streetlights on the road

ahead.

●

If any of the following conditions are met,

the high beam will be automatically

turned off:

• Vehicle speed drops below approxi-

mately 17 mph (27 km/h).

• The area ahead of the vehicle is not dark.

• Vehicles ahead have headlights or tail

lights turned on.

• There are many streetlights on the road

ahead.

■

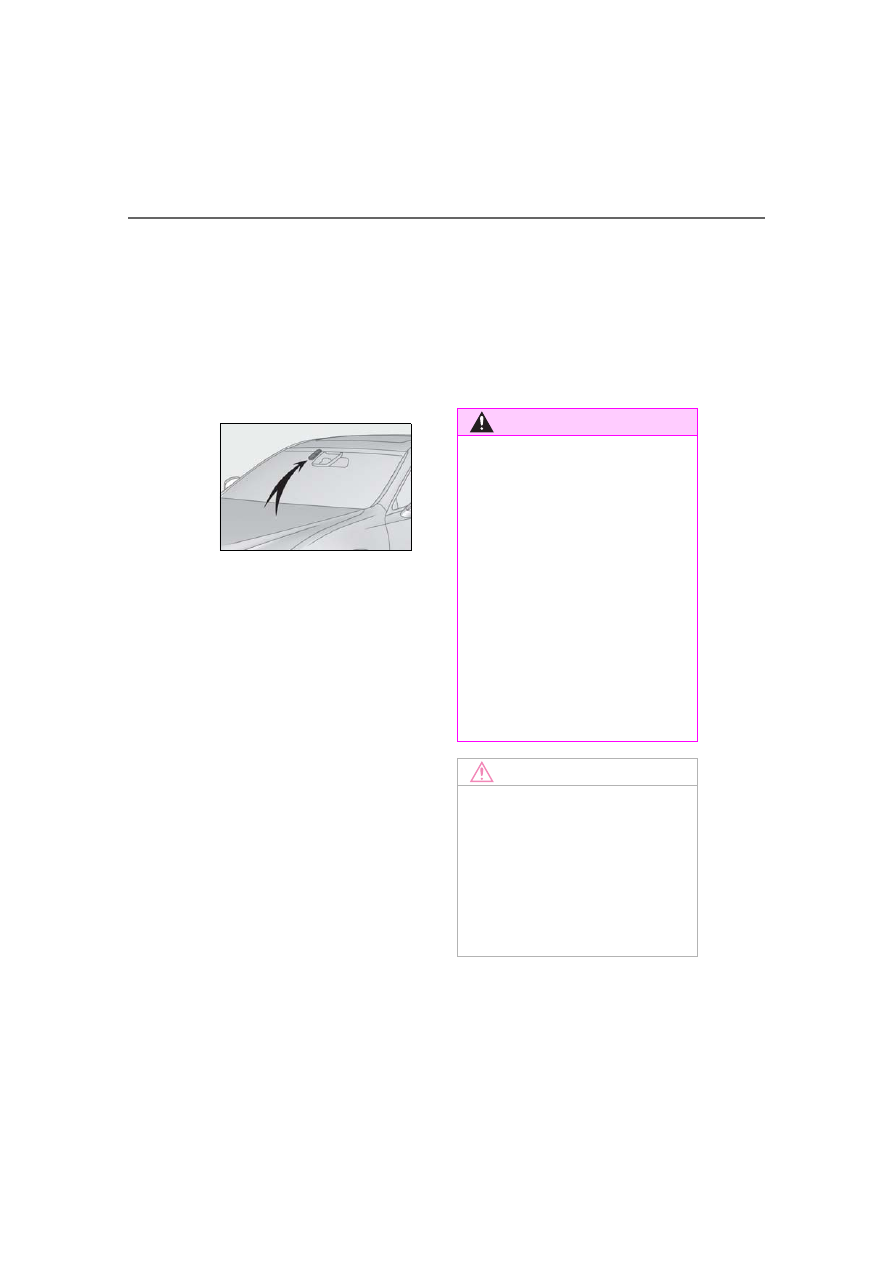

Camera sensor detection information

●

The high beam may not be automatically

turned off in the following situations:

• When oncoming vehicles suddenly

appear from a curve

• When the vehicle is cut in front of by

another vehicle

• When vehicles ahead are hidden from

sight due to repeated curves, road divid-

ers or roadside trees

• When vehicles ahead appear from the

faraway lane on wide road

• When vehicles ahead have no lights

●

The high beam may be turned off if a

vehicle ahead that is using fog lights with-

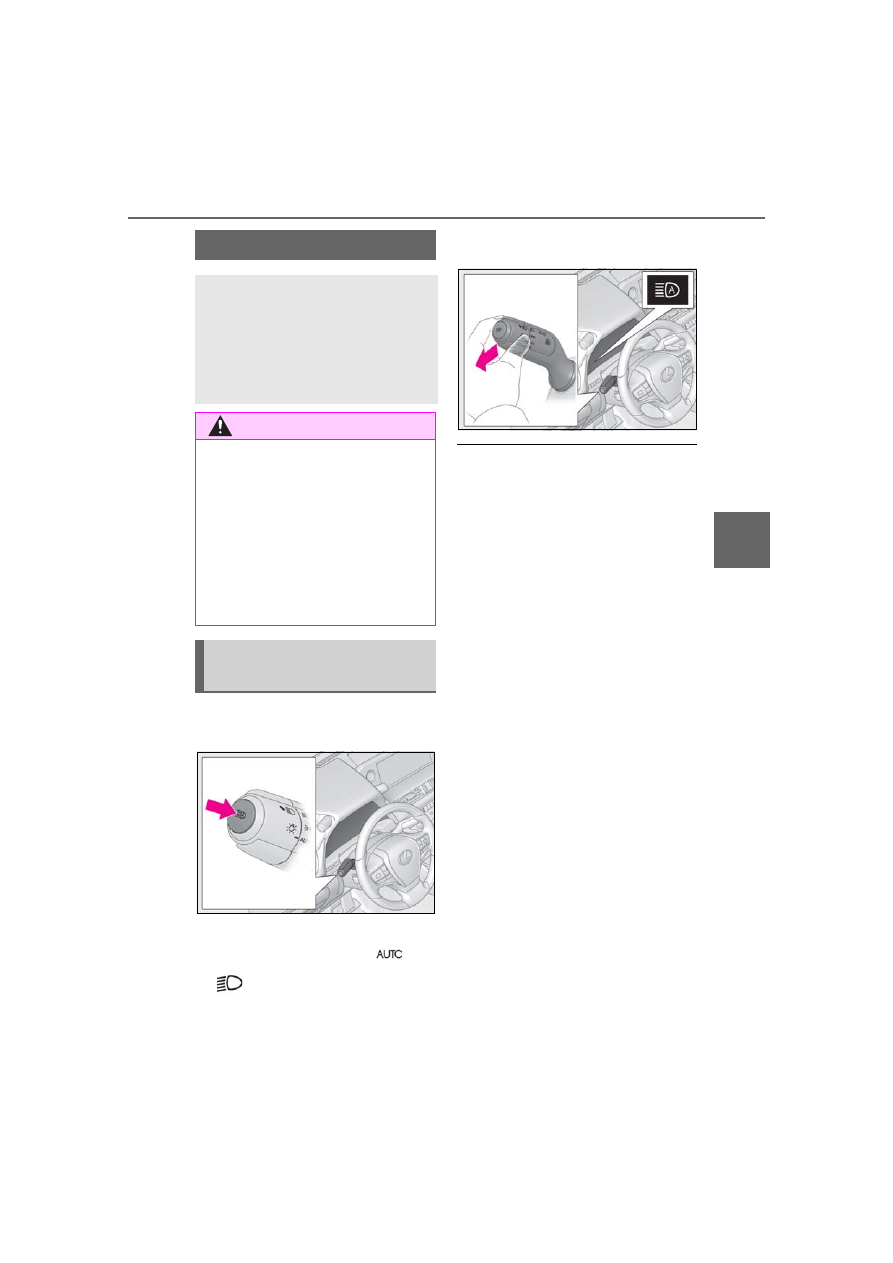

Automatic High Beam

The Automatic High Beam uses an
in-vehicle camera sensor to assess
the brightness of streetlights, the
lights of vehicle ahead, etc., and
automatically turns the high beam
on or off as necessary.

WARNING

■

Limitations of the Automatic High

Beam

Do not rely on the Automatic High

Beam. Always drive safely, taking care to

observe your surroundings and turning

the high beam on or off manually if nec-

essary.

■

To prevent incorrect operation of the

Automatic High Beam system

Do not overload the vehicle.

Activating the Automatic High
Beam system

154

4-3. Operating the lights and wipers

out using the headlights is detected.

●

House lights, street lights, traffic signals,

and illuminated billboards or signs may

cause the high beam to switch to the low

beams, or the low beams to remain on.

●

The following factors may affect the

amount of time taken to turn the high

beam on or off:

• The brightness of headlights, fog lights,

and tail lights of vehicles ahead

• The movement and direction of vehicles

ahead

• When a vehicle ahead only has opera-

tional lights on one side

• When a vehicle ahead is a two-wheeled

vehicle

• The condition of the road (gradient,

curve, condition of the road surface etc.)

• The number of passengers and amount of

luggage

●

The high beam may be turned on or off

when the driver does not expect it.

●

Bicycles or similar objects may not be

detected.

●

In the situations shown below, the system

may not be able to accurately detect sur-

rounding brightness levels. This may

cause the low beams to remain on or the

high beams to cause problems for pedes-

trians, vehicles ahead or other parties. In

these cases, manually switch between the

high and low beams.

• In bad weather (rain, snow, fog, sand-

storms etc.)

• The windshield is obscured by fog, mist,

ice, dirt etc.

• The windshield is cracked or damaged.

• The camera sensor is deformed or dirty.

• When the temperature of the camera

sensor is extremely high

• Surrounding brightness levels are equal

to those of headlights, tail lights or fog

lights.

• When headlights or tail lights of vehicles

ahead are turned off, dirty, changing

color, or not aimed properly

• When the vehicle is hit by water, snow,

dust, etc. from a preceding vehicle

• When driving through an area of inter-

mittently changing brightness and dark-

ness.

• When frequently and repeatedly driving

ascending/descending roads, or roads

with rough, bumpy or uneven surfaces

(such as stone-paved roads, gravel tracks

etc.).

• When frequently and repeatedly taking

curves or driving on a winding road.

• There is a highly reflective object ahead

of the vehicle, such as a sign or a mirror.

• The back of a vehicle ahead is highly

reflective, such as a container on a truck.

• The vehicle’s headlights are damaged or

dirty.

• The vehicle is listing or tilting, due to a flat

tire, a trailer being towed etc.

• The high beam and low beam are repeat-

edly being switched between in an

abnormal manner.

• The driver believes that the high beam

may be causing problems or distress to

other drivers or pedestrians nearby.

■

Temporarily lowering sensor sensitivity

The sensitivity of the sensor can be tempo-

rarily lowered.

Turn the power switch off while the fol-

lowing conditions are met.

• The headlight switch is in

• The headlight switch lever is in high beam

position.

• Automatic High Beam switch is on.

Turn the power switch to ON mode.

Within 30 seconds after

, repeat pull-

ing the headlight switch lever to the

original position then pushing it to the

high beam position quickly 10 times,

then leave the lever in high beam posi-

tion.

If the sensitivity is changed, the Auto-

matic High Beam indicator turns on and

off 3 times.

Automatic High Beam (headlights) may

turn on even the vehicle is stopped.

■

Switching to low beam

Pull the lever to the original position.

Turning the high beam on/off
manually

155

4-3. Operating the lights and wipers

Driving

The Automatic High Beam indicator will
turn off.
Push the lever away from you to activate
the Automatic High Beam system again.

■

Switching to high beam

Press the Automatic High Beam
switch.

The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Press the switch to activate the Automatic
High Beam system again.



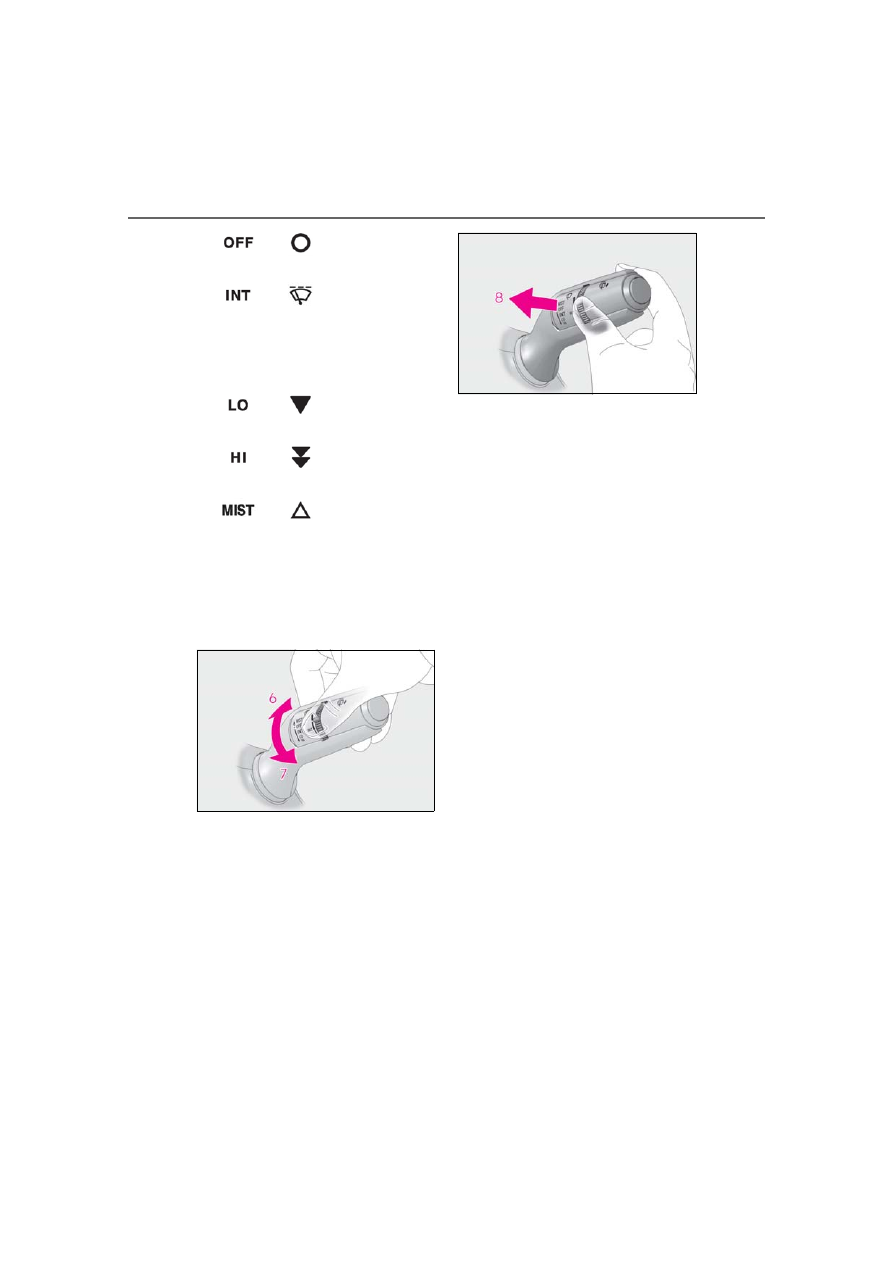

Intermittent windshield wipers with
interval adjuster

Operate the lever and switch as fol-
lows to use the wipers. When intermit-
tent windshield wiper operation is
selected, wiper interval can also be
adjusted.

Windshield wipers and
washer

Operating the lever can switch
between automatic operation and
manual operation, or can use the
washer.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they may dam-

age the windshield.

Operating the wiper lever

156

4-3. Operating the lights and wipers

Off

Intermittent operation

The intermittent windshield wiper operates
more frequently as vehicle speed becomes
higher.

Low speed operation

High speed operation

Temporary operation

: For U.S.A.

: For Canada

Wiper intervals can be adjusted when
intermittent operation is selected.

Increases the intermittent wind-
shield wiper frequency

Decreases the intermittent wind-
shield wiper frequency

Washer/wiper dual operation

The wipers will automatically operate a
couple of times after the washer squirts.
(After operating several times, the wipers
operate once more time after a short delay
to prevent dripping. However, the dripping
prevention does not operate while the
vehicle is moving.)



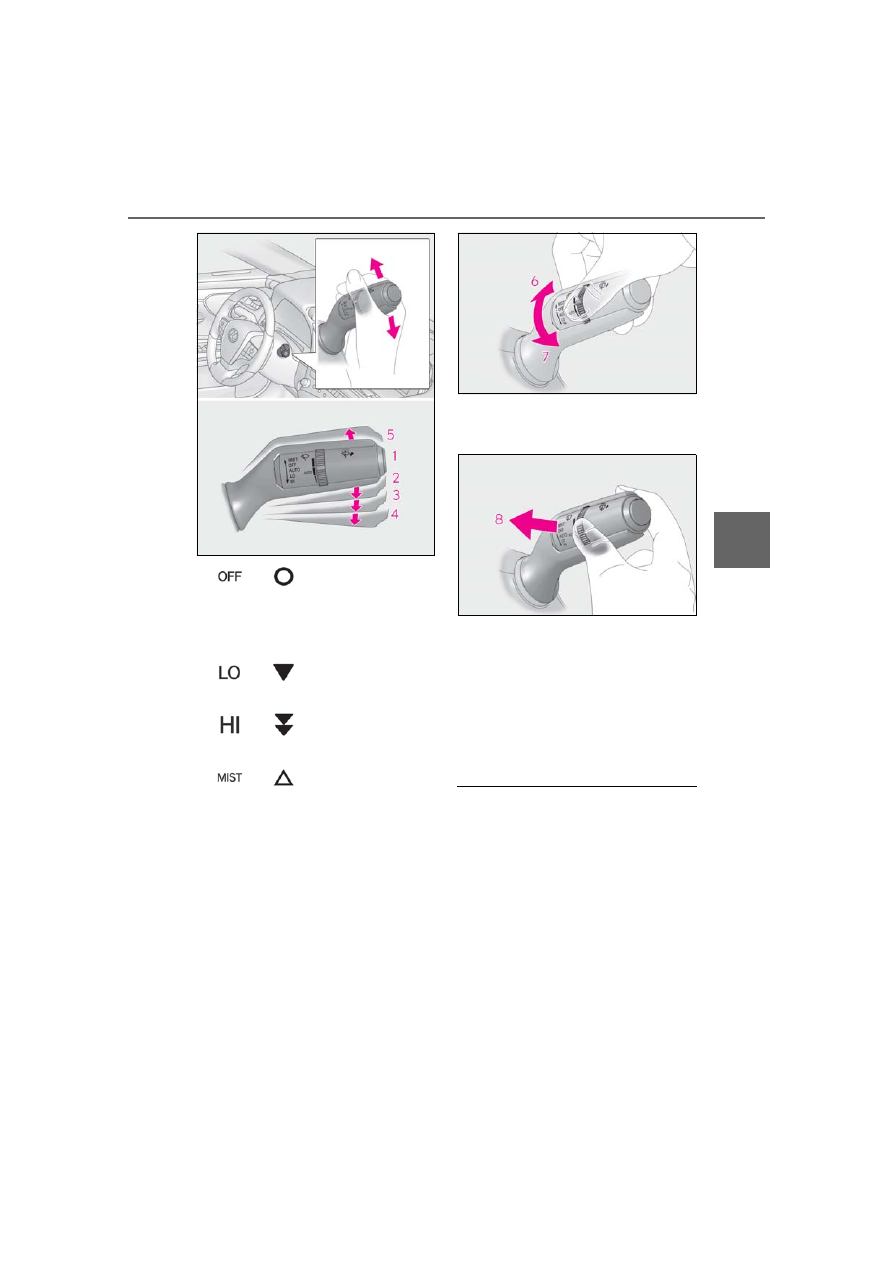

Rain-sensing windshield wipers

Operate the lever and switch as fol-
lows to use the wipers. When AUTO is
selected, the wipers will operate auto-
matically when the sensor detects fall-
ing rain. The system automatically
adjusts wiper timing in accordance
with rain volume and vehicle speed.

157

4-3. Operating the lights and wipers

Driving

Off

AUTO
Rain-sensing operation

Low speed operation

High speed operation

Temporary operation

: For U.S.A.

: For Canada

When AUTO is selected, the sensor
sensitivity can be adjusted by turning
the switch ring.

Increases the sensitivity

Decreases the sensitivity

Washer/wiper dual operation

■

The windshield wiper and washer can be

operated when

The power switch is in ON mode.

■

Effects of vehicle speed on wiper opera-

tion (vehicles with rain-sensing wind-

shield wipers)

Even when the wipers are not in AUTO

mode, vehicle speed affects the time until

the drip prevention wiper sweep occurs.
With low speed windshield wiper operation

selected, wiper operation will be switched

from low speed to intermittent wiper opera-

tion only when the vehicle is stationary.

(However, when the sensor sensitivity is

adjusted to the highest level, the mode can-

158

4-3. Operating the lights and wipers

not be switched.)

■

Raindrop sensor (vehicles with rain-

sensing windshield wipers)

●

The raindrop sensor judges the amount

of raindrops.

An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.

●

If the wiper is turned to AUTO position

while the power switch is in ON mode,

the wipers will operate once to show that

AUTO mode is activated.

●

If the temperature of the raindrop sensor

is 185°F (85°C) or higher, or -22°F (-

30°C) or lower, automatic operation

may not occur. In this case, operate the

wipers in any mode other than AUTO.

■

Front door opening linked windshield

wiper stop function (vehicles with rain-

sensing windshield wipers)

When AUTO is selected and the wind-

shield wipers are operating, if a front door is

opened while the vehicle is stopped and the

P position is selected, operation of the

windshield wipers will be stopped to pre-

vent anyone near the vehicle from being

sprayed by water from the wipers.
When the front door is closed, wiper opera-

tion will resume.

■

To protect the windshield wipers

If movement of the windshield wipers is

largely restricted by a foreign object such as

snow, the operation of the windshield wip-

ers may be stopped automatically to pro-

tect the windshield wipers. In this case, turn

the windshield wiper switch off and remove

the foreign object, and then use the wind-

shield wipers.

■

When stopping the hybrid system in an

emergency while driving

If the windshield wipers are operating when

the hybrid system is stopped, the windshield

wipers will operate in high speed operation.

After the vehicle is stopped, operation will

return to normal when the power switch is

turned to ON mode, or operation will stop

when the driver’s door is opened.

WARNING

■

Caution regarding the use of wind-

shield wipers in AUTO mode (vehi-

cles with rain-sensing windshield

wipers)

The windshield wipers may operate

unexpectedly if the sensor is touched or

the windshield is subject to vibration in

AUTO mode. Take care that your fingers

or anything else do not become caught

in the windshield wipers.

■

Caution regarding the use of washer

fluid

When it is cold, do not use the washer

fluid until the windshield becomes warm.

The fluid may freeze on the windshield

and cause low visibility. This may lead to

an accident, resulting in death or serious

injury.

NOTICE

■

When there is no washer fluid spray

from the nozzle

Damage to the washer fluid pump may

be caused if the lever is pulled toward

you and held continually.

■

When a nozzle becomes blocked

In this case, contact your Lexus dealer.

Do not try to clear it with a pin or other

object. The nozzle will be damaged.

159

4-3. Operating the lights and wipers

Driving

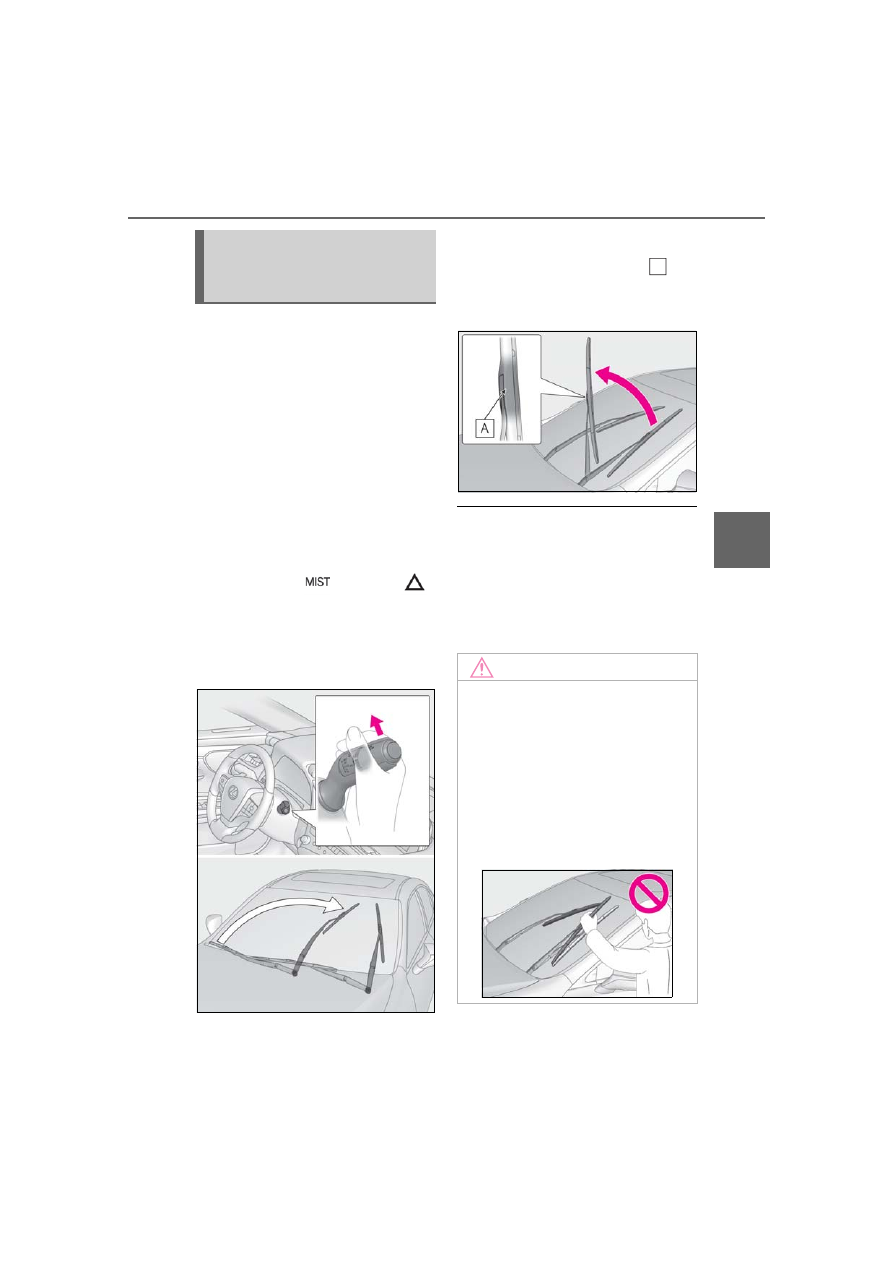

When the windshield wipers are not
being used, they retract to below the
hood. To enable the windshield wipers
to be lifted when parking in cold condi-
tions or when replacing a windshield
wiper insert, change the rest position of
the windshield wipers to the service
position using the wiper lever.

■

Raising the wipers to the service
position

Within approximately 45 seconds of
turning the power switch off, move the
wiper lever to the

(U.S.A.) or

(Canada) position and hold it for
approximately 2 seconds or more.

The wipers will move to the service posi-
tion.

■

Lifting the windshield wipers

While holding the hook portion

the wiper arm, lift the windshield wiper
from the windshield.

■

Lowering the windshield wipers to the

retracted position

With the windshield wipers placed on the

windshield, turn the power switch to ON

mode and then move the wiper lever to an

operating position. When the wiper switch

is turned off, the windshield wipers will stop

at the retracted position.

Changing the windshield wiper
rest position/Lifting the wind-
shield wipers

NOTICE

■

When lifting the windshield wipers

●

Do not lift the windshield wipers when

they are in the retracted position

below the hood. Otherwise, they may

contact the hood, possibly resulting in

damage to a windshield wiper and/or

the hood.

●

Do not lift a windshield wiper by the

wiper blade. Otherwise, the wiper

blade may be deformed.

160

4-3. Operating the lights and wipers

NOTICE

●

Do not operate the wiper lever when

the windshield wipers are lifted. Oth-

erwise, the windshield wipers may

contact the hood, possibly resulting in

damage to the windshield wipers

and/or hood.

●

Make sure that the wiper arms do not

overlap each other when returning

them. Failure to do so may cause dam-

age to the windshield wipers.

161

4-4. Refueling

Driving

4-4.Refueling

 Turn the power switch off and

ensure that all the doors and win-
dows are closed.

 Confirm the type of fuel.

■

Fuel types

P.401

■

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehi-

cle has a fuel tank opening that only accom-

modates the special nozzle on unleaded

fuel pumps.

Opening the fuel tank cap

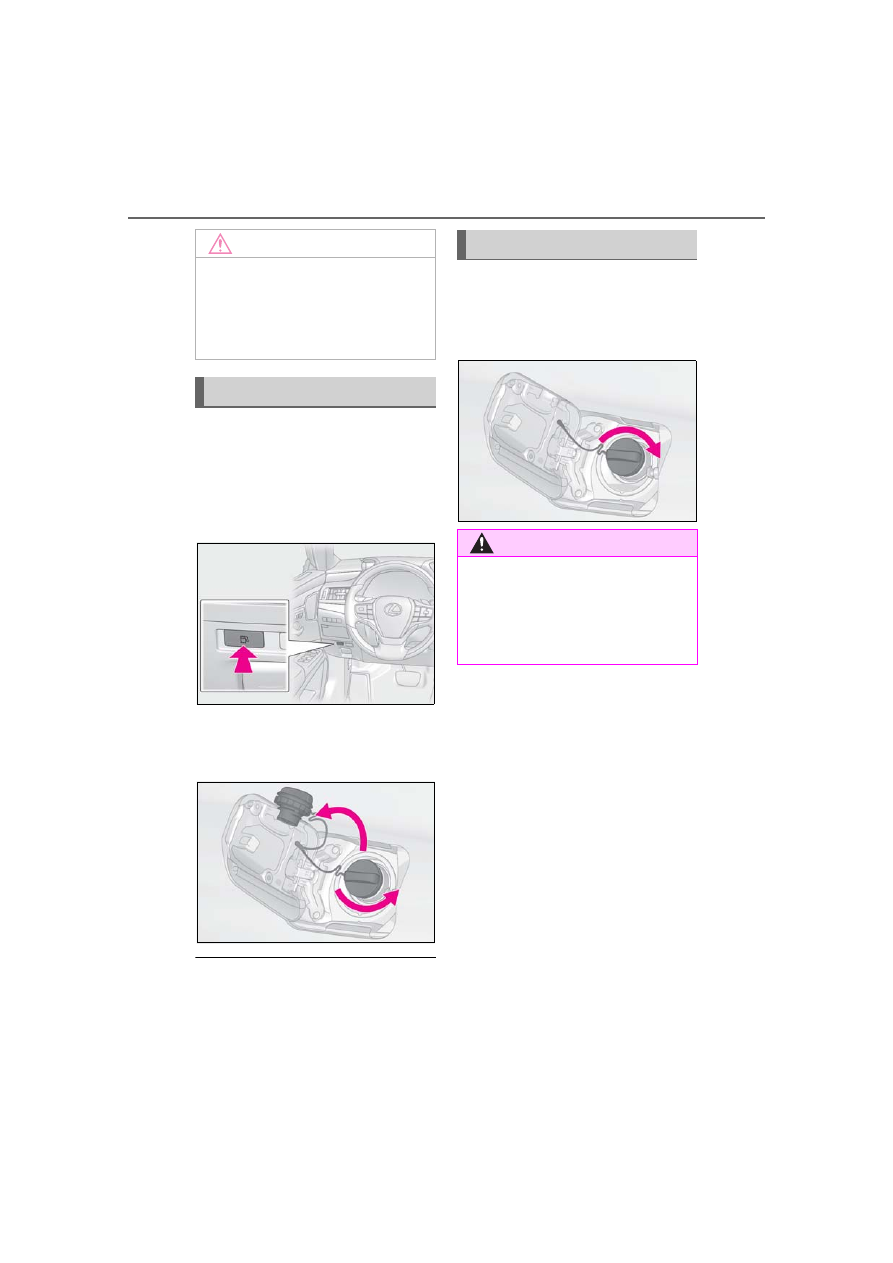

The fuel tank of your vehicle has a
special structure, which requires a
reduction in fuel tank pressure
before refueling. After the opener
switch has been pressed, it will take
several seconds until the vehicle is
ready for refueling.

Before refueling the vehicle

WARNING

■

When refueling the vehicle

Observe the following precautions while

refueling the vehicle. Failure to do so may

result in death or serious injury.

●

After exiting the vehicle and before

opening the fuel door, touch an

unpainted metal surface to discharge

any static electricity. It is important to

discharge static electricity before refu-

eling because sparks resulting from

static electricity can cause fuel vapors

to ignite while refueling.

●

Always hold the grips on the fuel tank

cap and turn it slowly to remove it.

A whooshing sound may be heard

when the fuel tank cap is loosened.

Wait until the sound cannot be heard

before fully removing the cap. In hot

weather, pressurized fuel may spray

out the filler neck and cause injury.

●

Do not allow anyone that has not dis-

charged static electricity from their

body to come close to an open fuel

tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that are

harmful if inhaled.

●

Do not smoke while refueling the vehi-

cle.

Doing so may cause the fuel to ignite

and cause a fire.

●

Do not return to the vehicle or touch

any person or object that is statically

charged.

This may cause static electricity to

build up, resulting in a possible ignition

hazard.

■

When refueling

Observe the following precautions to

prevent fuel overflowing from the fuel

tank:

●

Securely insert the fuel nozzle into the

fuel filler neck.

●

Stop filling the tank after the fuel noz-

zle automatically clicks off.

●

Do not top off the fuel tank.

NOTICE

■

Refueling

●

Finish refueling within 30 minutes. If

more than 30 minutes passes, the

internal valve closes. In this condition,

fuel may overflow during the refueling

process.

Press the fuel filler door opener switch

again.

162

4-4. Refueling

Press the opener switch.

The fuel filler door will open within about

10 seconds of the switch being pressed.

Before refueling is possible, a message will

be shown on the multi-information display

in the instrument cluster to indicate the

progress of the fuel filler door opener.

Turn the fuel tank cap slowly and
remove it, then hang it on the back
of the fuel filler door.

■

If the fuel filler door cannot be opened

P.381

After refueling, turn the fuel tank cap
until you hear a click. Once the cap is
released, it will turn slightly in the oppo-
site direction.

NOTICE

●

Do not spill fuel during refueling.

Doing so may damage the vehicle,

such as causing the emission control

system to operate abnormally or dam-

aging fuel system components or the

vehicle’s painted surface.

Opening the fuel tank cap

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank cap

Do not use anything but a genuine Lexus

fuel tank cap designed for your vehicle.

Doing so may cause a fire or other inci-

dent which may result in death or serious

injury.

163

4-5. Using the driving support systems

Driving

4-5.Using the driving support systems

■

PCS (Pre-Collision System)

P.169

■

LTA (Lane Tracing Assist)

P.176

■

Automatic High Beam

P.153

■

RSA (Road Sign Assist) (if
equipped)

P.185

■

Dynamic radar cruise control with
full-speed range

P.187

Two types of sensors, located behind
the front grille and windshield, detect
information necessary to operate the
drive assist systems.

Radar sensor

Front camera

Lexus Safety System+2.0

The Lexus Safety System+2.0 con-
sists of the following drive assist sys-
tems and contributes to a safe and
comfortable driving experience:

Driving assist system

WARNING

■

Lexus Safety System+2.0

The Lexus Safety System+2.0 is

designed to operate under the assump-

tion that the driver will drive safely, and is

designed to help reduce the impact to

the occupants and the vehicle in the case

of a collision or assist the driver in normal

driving conditions.
As there is a limit to the degree of recog-

nition accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely.

Sensors

WARNING

■

To avoid malfunction of the radar sen-

sor

Observe the following precautions.
Otherwise, the radar sensor may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

A
B

164

4-5. Using the driving support systems

WARNING

●

Keep the radar sensor and the grille

cover clean at all times.

Radar sensor

Grille cover

If the front of the radar sensor or the front
or back of the grille cover is dirty or cov-
ered with water droplets, snow, etc.,
clean it.
Clean the radar sensor and grille cover
with a soft cloth to avoid damaging them.

●

Do not attach accessories, stickers

(including transparent stickers) or

other items to the radar sensor, grille

cover or surrounding area.

●

Do not subject the radar sensor or its

surrounding area to a strong impact.

If the radar sensor, front grille, or front

bumper has been subjected to a

strong impact, have the vehicle

inspected by your Lexus dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sen-

sor or grille cover.

●

If the radar sensor, front grille, or front

bumper needs to be removed and

installed, or replaced, contact your

Lexus dealer.

■

To avoid malfunction of the front cam-

era

Observe the following precautions.
Otherwise, the front camera may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

●

Keep the windshield clean at all times.

• If the windshield is dirty or covered

with an oily film, water droplets, snow,

etc., clean the windshield.

• If a glass coating agent is applied to the

windshield, it will still be necessary to

use the windshield wipers to remove

water droplets, etc. from the area of

the windshield in front of the front

camera.

• If the inner side of the windshield

where the front camera is installed is

dirty, contact your Lexus dealer.

●

Do not attach objects, such as stickers,

transparent stickers, etc., to the outer

side of the windshield in front of the

front camera (shaded area in the illus-

tration).

From the top of the windshield to
approximately 0.4 in. (1 cm) below
the bottom of the front camera

Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. [10 cm] to the
right and left from the center of the
front camera)

165

4-5. Using the driving support systems

Driving

WARNING

●

If the part of the windshield in front of

the front camera is fogged up or cov-

ered with condensation, or ice, use the

windshield defogger to remove the

fog, condensation, or ice. (

P.254)

●

If water droplets cannot be properly

removed from the area of the wind-

shield in front of the front camera by

the windshield wipers, replace the

wiper insert or wiper blade.

If the wiper inserts or wiper blades

need to be replaced, contact your

Lexus dealer.

●

Do not attach window tint to the wind-

shield.

●

Replace the windshield if it is damaged

or cracked.

If the windshield needs to be replaced,

contact your Lexus dealer.

●

Do not allow liquids to contact the

front camera.

●

Do not allow bright lights to shine into

the front camera.

●

Do not dirty or damage the front cam-

era.

When cleaning the inside of the wind-

shield, do not allow glass cleaner to

contact the lens of the front camera.

Also, do not touch the lens.

If the lens is dirty or damaged, contact

your Lexus dealer.

●

Do not subject the front camera to a

strong impact.

●

Do not change the installation position

or direction of the front camera or

remove it.

●

Do not disassemble the front camera.

●

Do not modify any components of the

vehicle around the front camera

(inside rear view mirror, etc.) or ceiling.

●

Do not attach any accessories to the

hood, front grille or front bumper that

may obstruct the front camera. Con-

tact your Lexus dealer for details.

●

If a surfboard or other long object is to

be mounted on the roof, make sure

that it will not obstruct the front cam-

era.

●

Do not modify the headlights or other

lights.

Content .. 8 9 10 11 ..
