7-3. Do-it-yourself maintenance

7

Main

tenance an

d care

■

Rear turn signal lights

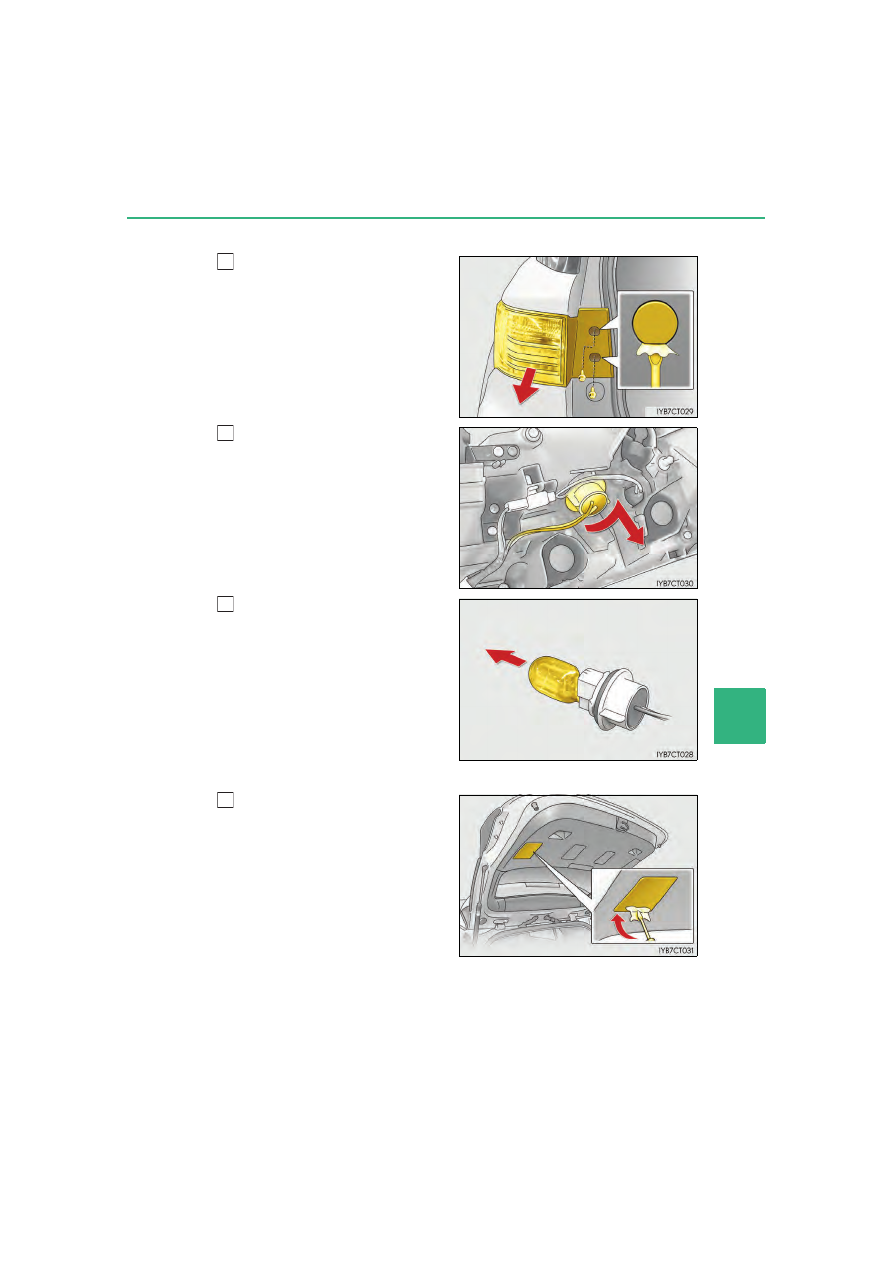

Open the back door and remove
the covers and bolts, and remove
the lamp assembly by pulling it
directly backward from the rear
of the vehicle.

Use a flathead screwdriver wrapped

in a cloth.

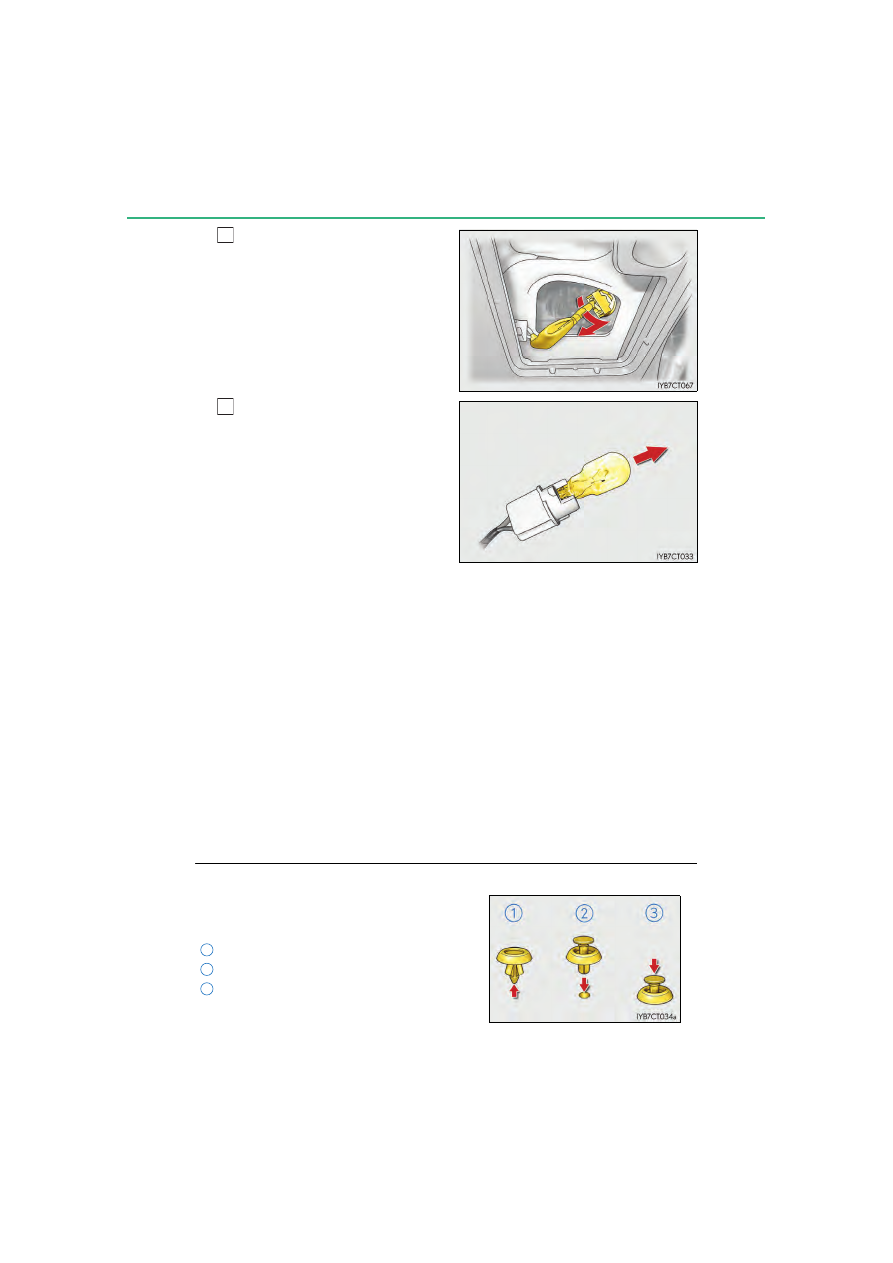

Turn the bulb base counterclock-
wise.

Remove the light bulb.

■

Back-up lights

Open the back door and remove
the cover.

Use a flathead screwdriver wrapped

in a cloth.

1

2

3

1

524

7-3. Do-it-yourself maintenance

Turn the bulb base counterclock-
wise.

Remove the light bulb.

■

Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.

●

Headlight low beams (LED type)

●

Parking lights and daytime running lights

●

LED fog lights (if equipped)

●

Front side marker lights

●

Side turn signal lights

●

Stop/tail lights

●

Rear side marker lights

●

High mounted stoplight

●

License plate lights

●

Outer foot lights

■

After replacing the bulbs

2

3

After removing the power control unit cover,

return the cover to original position with the

clips.

Push up center portion
Insert
Press

1

2
3

525

7-3. Do-it-yourself maintenance

7

Main

tenance an

d care

■

LED lights
The headlight low beams (LED type), parking lights, front side marker lights, daytime

running lights, LED fog lights (if equipped), side turn signal lights, rear side marker lights,

stop/tail lights, high mounted stoplight and license plate lights consist of a number of

LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer to have the light

replaced.

■

Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a

malfunction. Contact your Lexus dealer for more information in the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

■

When replacing light bulbs
P. 513

WARNING

■

Replacing light bulbs

●

Be sure to stop the hybrid system and turn off the lights. Do not attempt to replace the

bulb immediately after turning off the lights.

The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-

able to hold the glass portion, use and hold with a clean dry cloth to avoid getting

moisture and oils on the bulb.

Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so may result

in heat damage, fire, or water entering the headlight unit. This may damage the head-

lights or cause condensation to build up on the lens.

●

Do not attempt to repair or disassemble light bulbs, connectors, electric circuits or

component parts.

Doing so may result in death or serious injury due to electric shock.

■

To prevent damage or fire

●

Make sure bulbs are fully seated and locked.

●

Check the wattage of the bulb before installing to prevent heat damage.

526

7-3. Do-it-yourself maintenance

527

8

When trouble arises

8-1. Essential information

Emergency flashers ..................528
If your vehicle has to be

stopped in an emergency....529

8-2. Steps to take in an emergency

If your vehicle needs to

be towed.....................................530

If you think something is

wrong...........................................534

If a warning light turns on

or a warning buzzer
sounds..........................................535

If a warning message is

displayed.....................................542

If you have a flat tire...................555
If the hybrid system will not

start...............................................564

If the electronic key does not

operate properly.....................566

If the 12-volt battery is

discharged.................................568

If your vehicle overheats ......... 572
If the vehicle becomes

stuck ..............................................576

528

8-1. Essential information

Emergency flashers

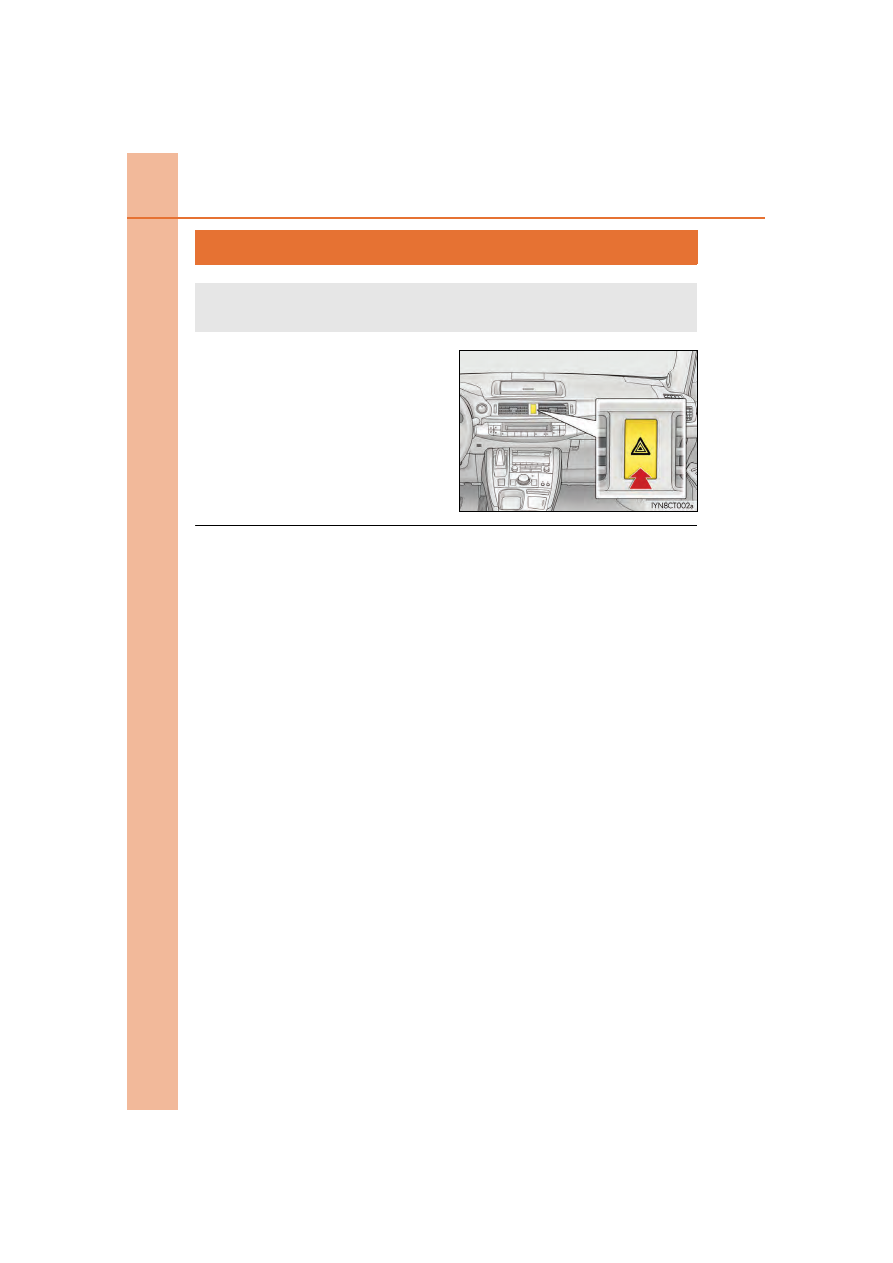

Press the switch.

All the turn signal lights will flash. To turn

them off, press the switch once again.

■

Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is not operat-

ing (while the “READY” indicator is not illuminated), the 12-volt battery may discharge.

The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.

529

8

When trouble

ari

ses

8-1. Essential information

If your vehicle has to be stopped in an emergency

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort required to

slow the vehicle.

Shift the shift position to N.



If the shift position is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.



If the shift position cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.

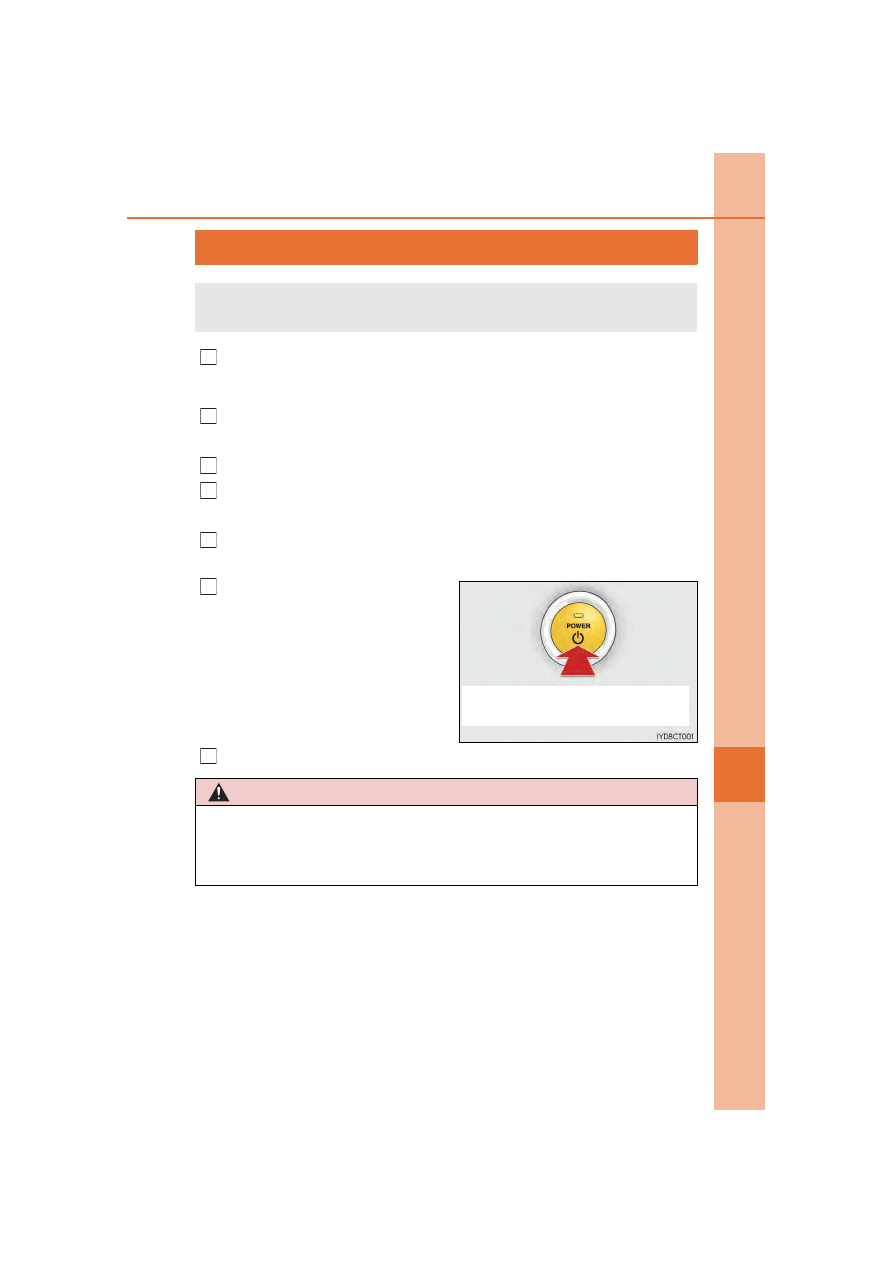

To stop the hybrid system, press and
hold the power switch for 2 consec-
utive seconds or more, or press it
briefly 3 times or more in succes-
sion.

Stop the vehicle in a safe place by the road.

Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:

1

2

3
4

3

Press and hold for 2 seconds or more,
or press briefly for 3 times or more

4

WARNING

■

If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel heavier to

turn. Decelerate as much as possible before turning off the hybrid system.

5

530

8-2. Steps to take in an emergency

If your vehicle needs to be towed

In the following situations, it is not possible to be towed by another vehicle using
cables or chains, as the front wheels may be locked due to the parking lock. Con-
tact your Lexus dealer or commercial towing service.

●

There is a malfunction in the shift control system. (

P. 545)

●

There is a malfunction in the immobilizer system. (

P. 76)

●

There is a malfunction in the smart access system with push-button start.
(

P. 566)

●

The 12-volt battery is discharged. (

P. 568)

The following may indicate a problem with your hybrid transmission. Contact
your Lexus dealer or commercial towing service before towing.

●

The hybrid system warning message shows on the multi-information display
and the vehicle does not move.

●

The vehicle makes an abnormal sound.

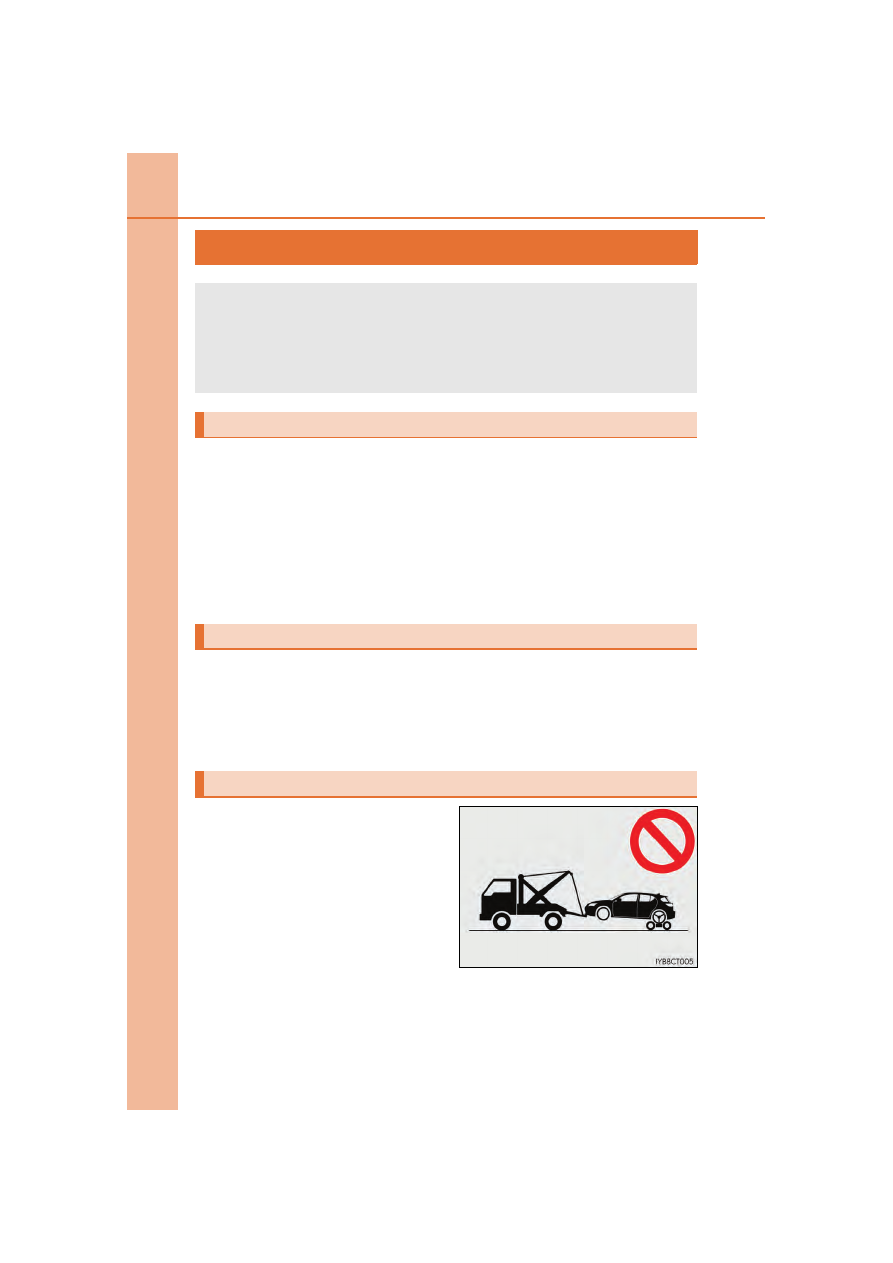

Do not tow with a sling-type truck to
prevent body damage.

If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or commercial towing service, using a wheel-lift type truck or
flatbed truck.
Use a safety chain system for all towing, and abide by all state/provincial and
local laws.

Situations when it is not possible to be towed by another vehicle

Situations when it is necessary to contact dealers before towing

Towing with a sling-type truck

531

8-2. Steps to take in an emergency

8

When trouble

ari

ses

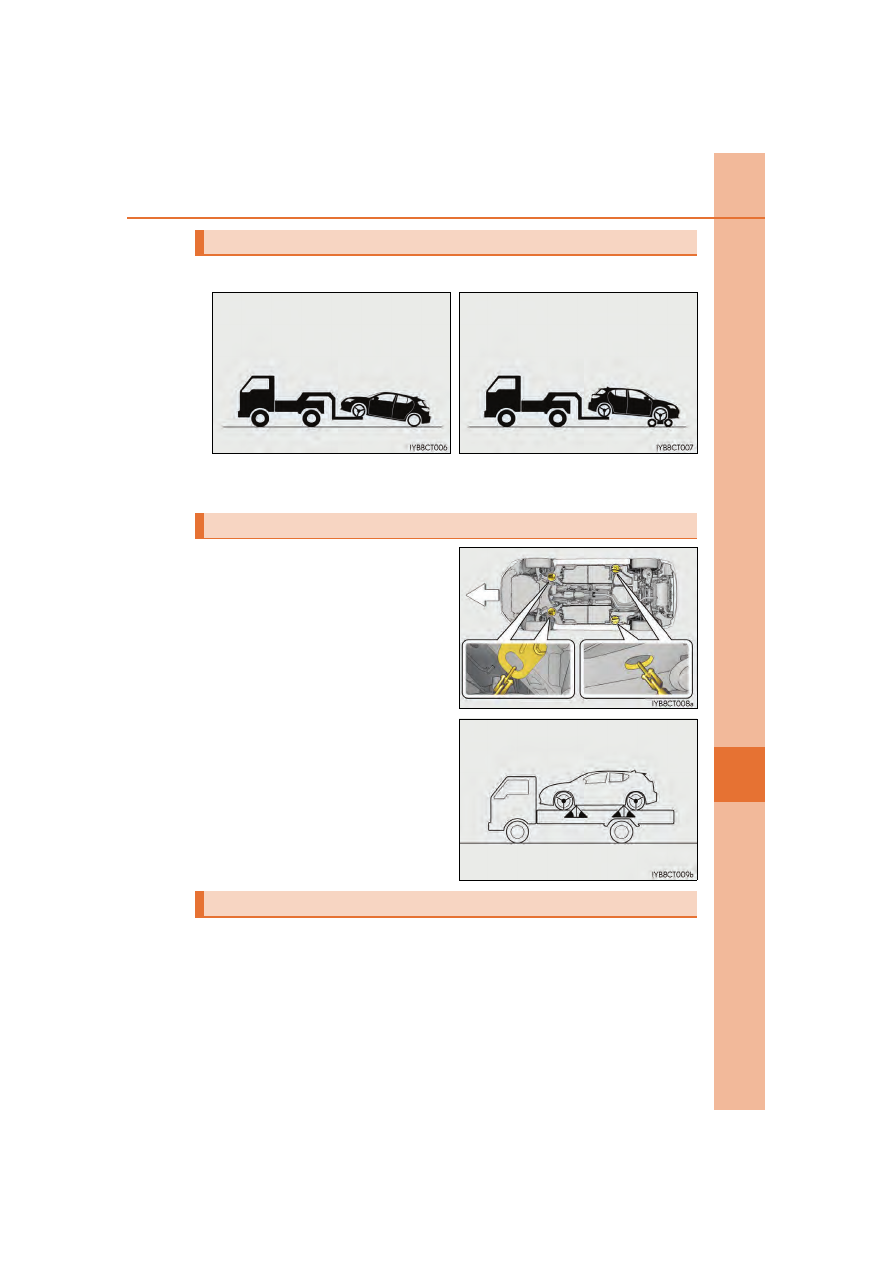

If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.

If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45

.

Do not overly tighten the tie downs or
the vehicle may be damaged.

If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using cables or chains secured to the emergency towing eyelets. This
should only be attempted on hard surfaced roads for at most short distance at
under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.

Towing with a wheel-lift type truck



From the front



From the rear

Release the parking brake.

Use a towing dolly under the front
wheels.

Using a flat bed truck

Emergency towing

532

8-2. Steps to take in an emergency

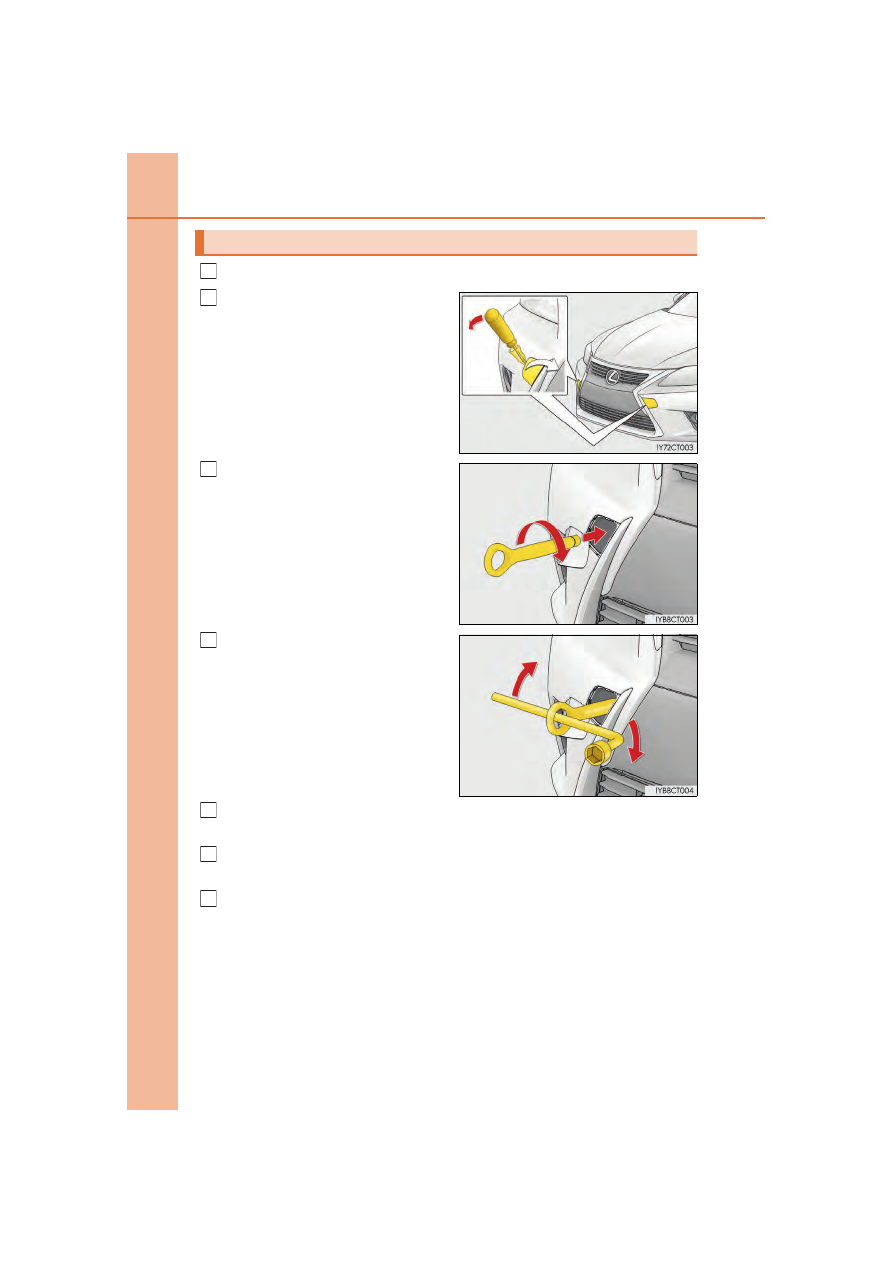

Take out the towing eyelet. (

P. 556)

Remove the eyelet cover using a flat-
head screwdriver.

To protect the bodywork, place a rag

between the screwdriver and the vehi-

cle body as shown in the illustration.

Insert the towing eyelet into the hole
and tighten partially by hand.

Tighten down the towing eyelet
securely using a wheel nut wrench
or hard metal bar.

Securely attach cables or chains to the towing eyelet.

Take care not to damage the vehicle body.

Enter the vehicle being towed and start the hybrid system.

If the hybrid system does not start, turn the power switch to ON mode.

Shift the shift position to N and release the parking brake.

Emergency towing procedure

1

2

3

4

5

6

7

533

8-2. Steps to take in an emergency

8

When trouble

ari

ses

■

While towing
If the hybrid system is off, the power assist for the brakes and steering will not function,

making steering and braking more difficult.

■

Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. (

P. 556)

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

■

When towing the vehicle

■

While towing

●

When towing using cables or chains, avoid sudden starts, etc. which place excessive

stress on the towing eyelets, cables or chains. The towing eyelets, cables or chains

may become damaged, broken debris may hit people and cause serious damage.

●

Do not turn the power switch off.

This may lead to an accident as the front wheels will be locked by the parking lock.

■

Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.

If not securely installed, towing eyelet may come loose during towing.

NOTICE

■

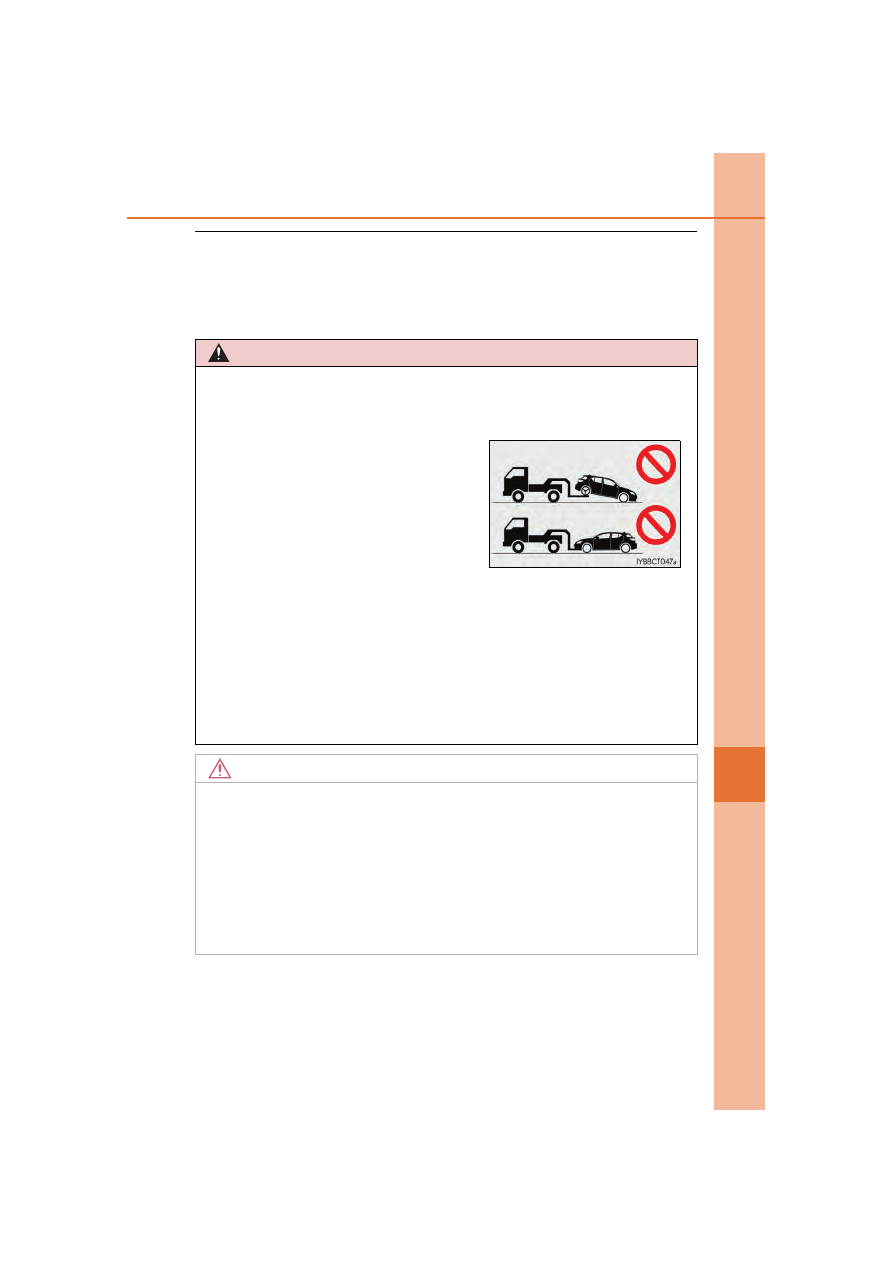

To prevent damage to the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequate ground clearance for towing at the oppo-

site end of the raised vehicle. Without adequate clearance, the vehicle could be dam-

aged while being towed.

■

To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.

■

To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.

Be sure to transport the vehicle with the front

wheels raised or with all four wheels raised off

the ground. If the vehicle is towed with the front

wheels contacting the ground, the drivetrain

and related parts may be damaged or electric-

ity generated by the operation of the motor

may cause a fire to occur depending on the

nature of the damage or malfunction.

534

8-2. Steps to take in an emergency

If you think something is wrong

●

Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)

●

Flat-looking tires or uneven tire wear

●

High coolant temperature warning light flashes or comes on

●

Changes in exhaust sound

●

Excessive tire squeal when cornering

●

Strange noises related to the suspension system

●

Pinging or other noises related to the hybrid system

●

Engine missing, stumbling or running roughly

●

Appreciable loss of power

●

Vehicle pulls heavily to one side when braking

●

Vehicle pulls heavily to one side when driving on a level road

●

Loss of brake effectiveness, spongy feeling, pedal almost touches the floor

If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

535

8

When trouble

ari

ses

8-2. Steps to take in an emergency

If a warning light turns on or a warning buzzer
sounds

Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.

Warning light and warning buzzer list

Warning light

Warning light/Details/Actions

(U.S.A.)

(Canada)

Brake system warning light and warning buzzer (red indicator)

*

1

Indicates that:

• The brake fluid level is low; or

• The brake system is malfunctioning

This light also comes on when the parking brake is not released. If

the light turns off after the parking brake is fully released, the sys-

tem is operating normally.

 Immediately stop the vehicle in a safe place and contact your

Lexus dealer. Continuing to drive the vehicle may be dangerous.

Brake system warning light (yellow indicator)

Indicates a malfunction in:

• The regenerative brake system; or

• The electronically controlled brake system

 Have the vehicle inspected by your Lexus dealer immediately.

Charging system warning light

Indicates a malfunction in the vehicle’s charging system

 Immediately stop the vehicle in a safe place and contact your

Lexus dealer.

Low engine oil pressure warning light

Indicates that the engine oil pressure is too low

 Immediately stop the vehicle in a safe place and contact your

Lexus dealer.

(U.S.A.)

(Canada)

Malfunction indicator lamp

Indicates a malfunction in:

• The hybrid system;

• The electronic engine control system; or

• The electronic throttle control system

 Have the vehicle inspected by your Lexus dealer immediately.

536

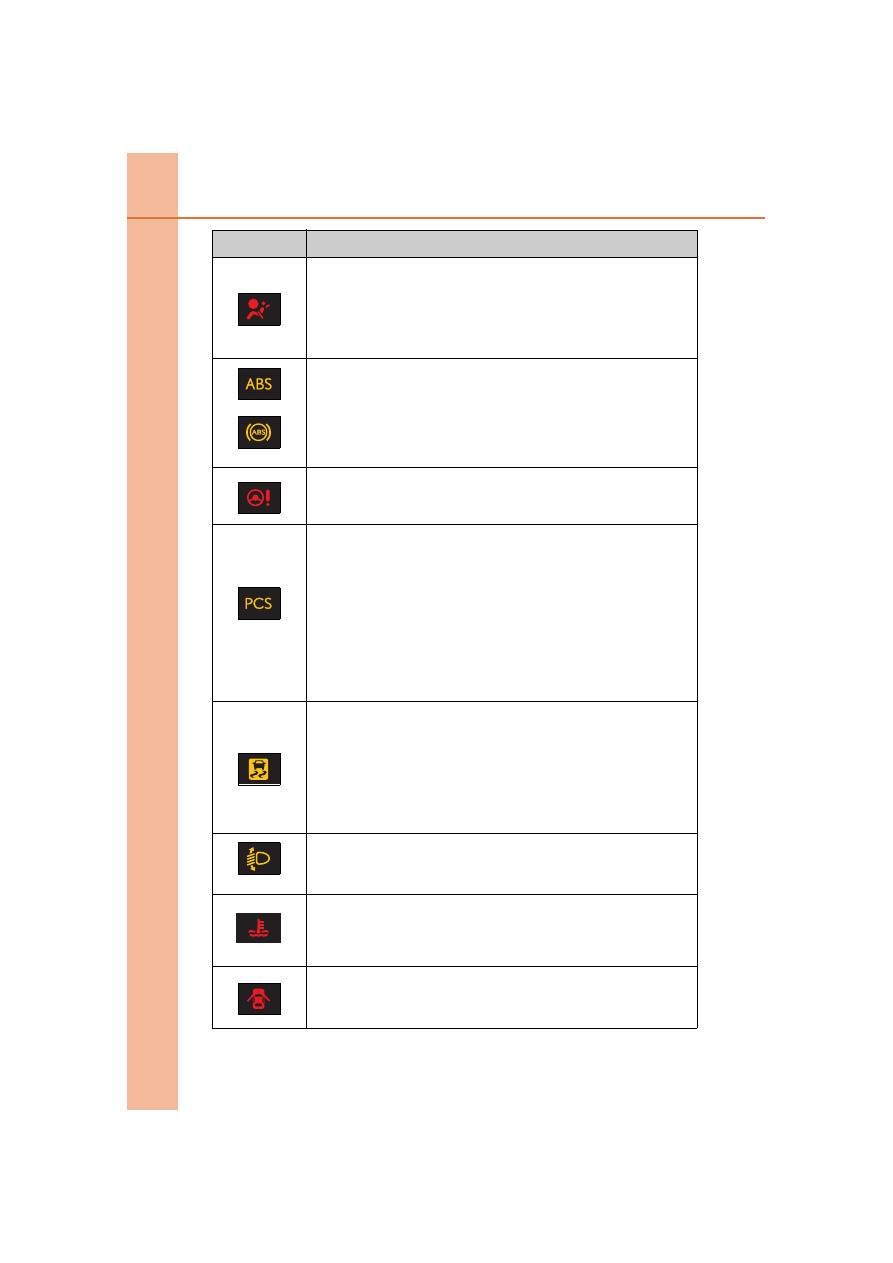

8-2. Steps to take in an emergency

SRS warning light

Indicates a malfunction in:

• The SRS airbag system;

• The front passenger occupant classification system; or

• The seat belt pretensioner system

 Have the vehicle inspected by your Lexus dealer immediately.

(U.S.A.)

(Canada)

ABS warning light

Indicates a malfunction in:

• The ABS; or

• The brake assist system

 Have the vehicle inspected by your Lexus dealer immediately.

Electric power steering system warning light (warning buzzer)

Indicates a malfunction in the EPS system

 Have the vehicle inspected by your Lexus dealer immediately.

(Flashes)

(If equipped)

“PCS” warning light

Indicates a malfunction in the pre-collision system

The warning light will operate as follows, even when the system is

not malfunctioning:

• The light will flash quickly when the system is operating.

(

P. 242)

• The light will turn on when the pre-collision braking is disabled.

(

P. 242)

• The light will turn on when the system cannot temporarily be

used. (

P. 549)

 Have the vehicle inspected by your Lexus dealer immediately.

Slip indicator light

Indicates a malfunction in:

• The VSC system;

• The  TRAC  system;  or

• The hill-start assist control system

 Have the vehicle inspected by your Lexus dealer immediately.

The light will flash when the VSC, TRAC and/or ABS systems are

operating.

(If equipped)

Automatic headlight leveling system warning light

Indicates a malfunction in the automatic headlight leveling system

 Have the vehicle inspected by your Lexus dealer immediately.

High coolant temperature warning light

Changes from a flashing to a solid light when the engine coolant

temperature increases

 Stop and check. (P. 572)

Open door warning light (warning buzzer)

*

2

Indicates that a door is not fully closed

 Check that all the doors are closed.

Warning light

Warning light/Details/Actions

537

8-2. Steps to take in an emergency

8

When trouble

ari

ses

Low fuel level warning light

Indicates that remaining fuel is approximately 1.8 gal. (6.8 L, 1.5

Imp.gal.) or less

 Refuel the vehicle.

Seat belt reminder light (warning buzzer)

*

3

Warns the driver and/or front passenger to fasten their seat belts

 Fasten the seat belt.

If the front passenger’s seat is occupied, the front passenger’s

seat belt also needs to be fastened to make the warning light

(warning buzzer) turn off.

Master warning light

A buzzer sounds and the warning light comes on and flashes to

indicate that the master warning system has detected a malfunc-

tion.

 P. 542

Tire pressure warning light

When the light comes on:

Low tire inflation pressure such as

• Natural causes (

P. 539)

• Flat  tire  (

P. 555)

 Adjust the tire inflation pressure to the specified level.

The light will turn off after a few minutes. In case the light does

not turn off even if the tire inflation pressure is adjusted, have the

system checked by your Lexus dealer.

When the light comes on after blinking for 1 minute:

Malfunction in the tire pressure warning system (

P. 539)

 Have the system checked by your Lexus dealer.

Warning light

Warning light/Details/Actions

538

8-2. Steps to take in an emergency

*

1

: Brake system warning buzzer:

When there is a possible problem that could affect braking performance, the warning
light will come on and a warning buzzer will sound.
Parking brake engaged warning buzzer:

P. 545

*

2

: Open door warning buzzer:

P. 543

*

3

: Driver’s seat belt buzzer:

The driver’s seat belt buzzer sounds to alert the driver that his or her seat belt is not

fastened. Once the power switch is turned to ON mode, the buzzer sounds for 6 sec-

onds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer sounds once. If

the seat belt is still unfastened after 30 seconds, the buzzer will sound intermittently

for 10 seconds. Then, if the seat belt is still unfastened, the buzzer will sound in a differ-

ent tone for 20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger that his or

her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed of

12 mph (20 km/h). If the seat belt is still unfastened after 30 seconds, the buzzer will

sound intermittently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer

will sound in a different tone for 20 more seconds.

■

SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors, side

impact sensors (front door), side impact sensors (front), side impact sensors (rear),

driver’s seat position sensor, driver’s seat belt buckle switch, front passenger occupant

classification system (ECU and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF”

indicator light, front passenger’s seat belt buckle switch, seat belt pretensioners, airbags,

interconnecting wiring and power sources. (

P. 40)

■

Front passenger detection sensor, seat belt reminder and warning buzzer

●

If luggage is placed on the front passenger seat, the front passenger detection sensor

may cause the warning light to flash and the warning buzzer to sound even if a passen-

ger is not sitting in the seat.

●

If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn-

ing light may not operate properly.

■

Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily drops,

the electric power steering system warning light may come on and the warning buzzer

may sound.
