LOCATION OF CONNECTORS

AT0LA–02

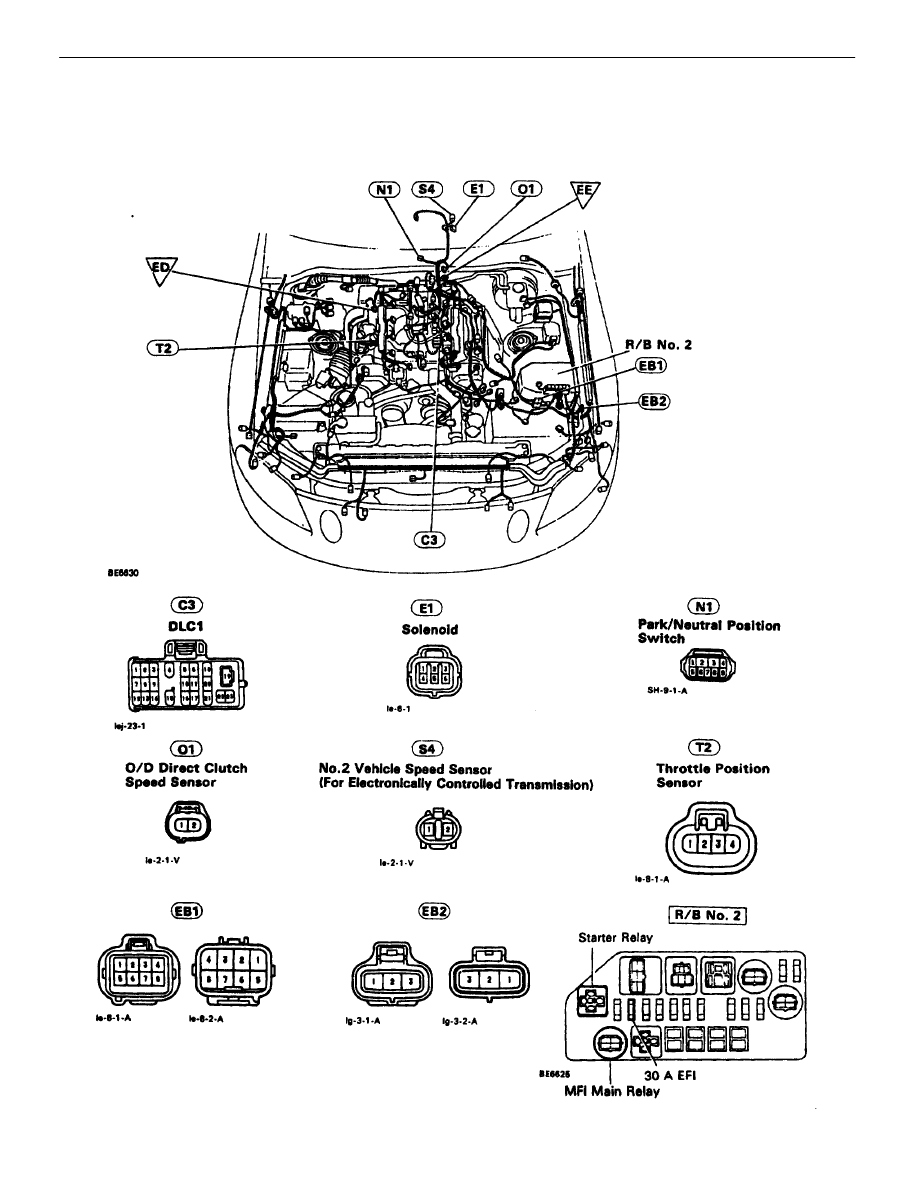

Location of Connectors in Engine Compartment

AT–72

–

A304E (1UZ–FE) AUTOMATIC TRANSMISSION

TROUBLESHOOTING

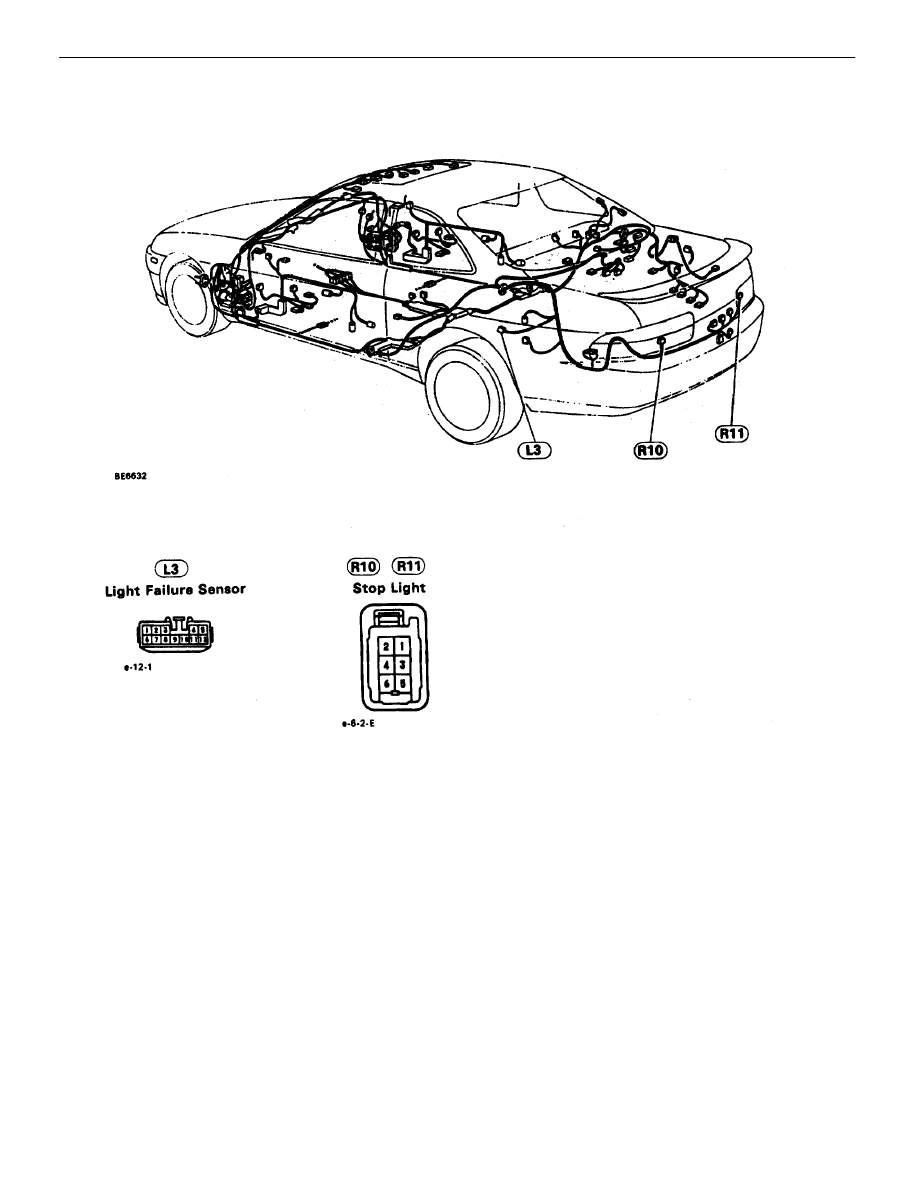

Location of Connectors in Body

–

A304E (1UZ–FE) AUTOMATIC TRANSMISSION

TROUBLESHOOTING

AT–73

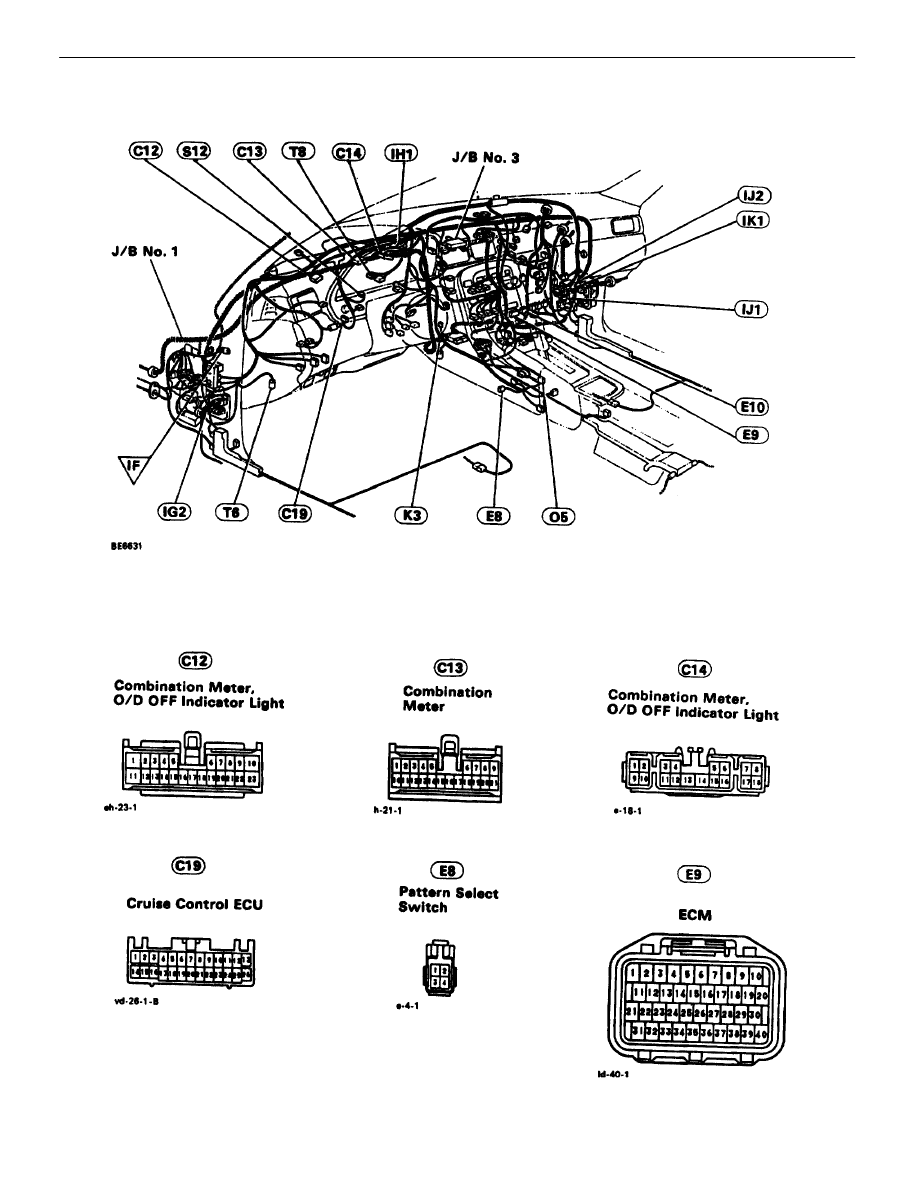

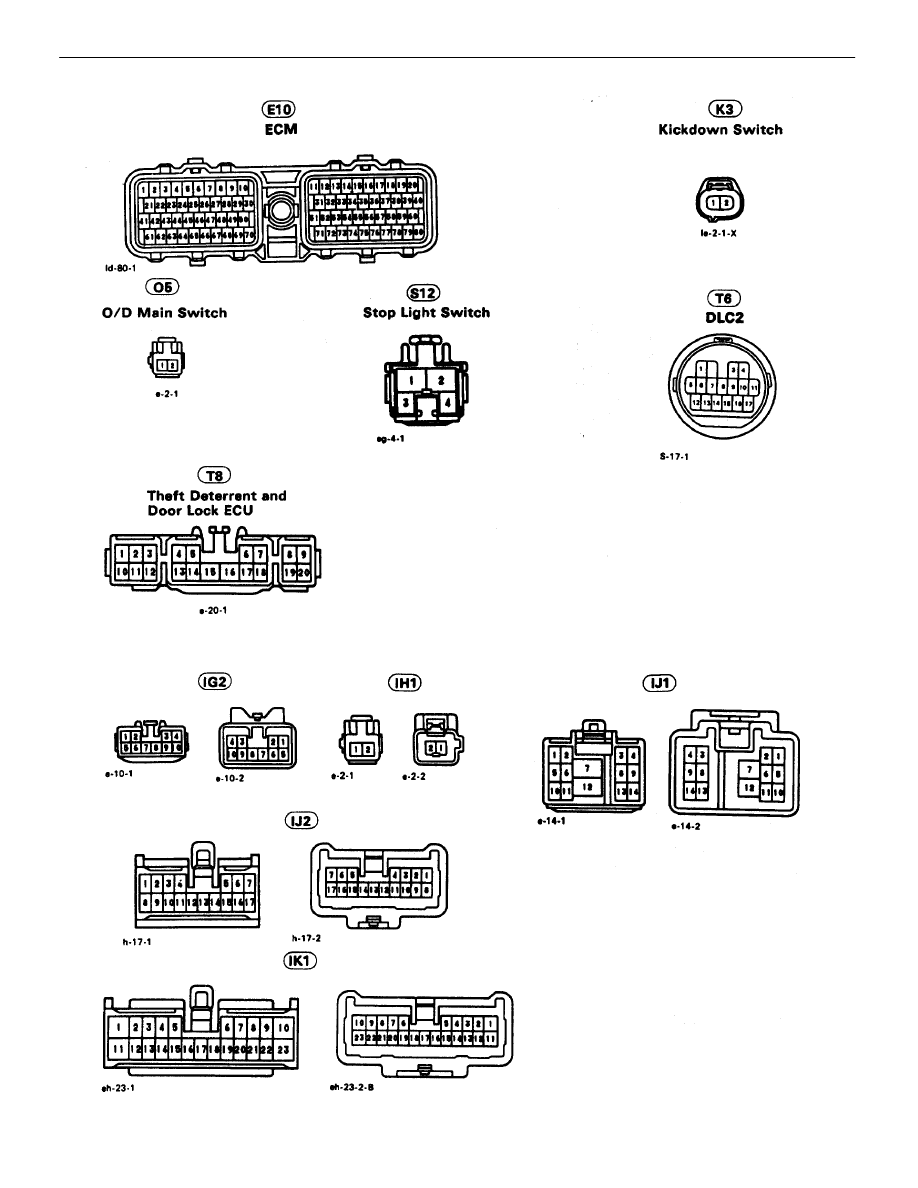

Location of Connectors in Instrument Panel

AT–74

–

A304E (1UZ–FE) AUTOMATIC TRANSMISSION

TROUBLESHOOTING

–

A304E (1UZ–FE) AUTOMATIC TRANSMISSION

TROUBLESHOOTING

AT–75
