CHASSIS AND BODY

33

REPAIR

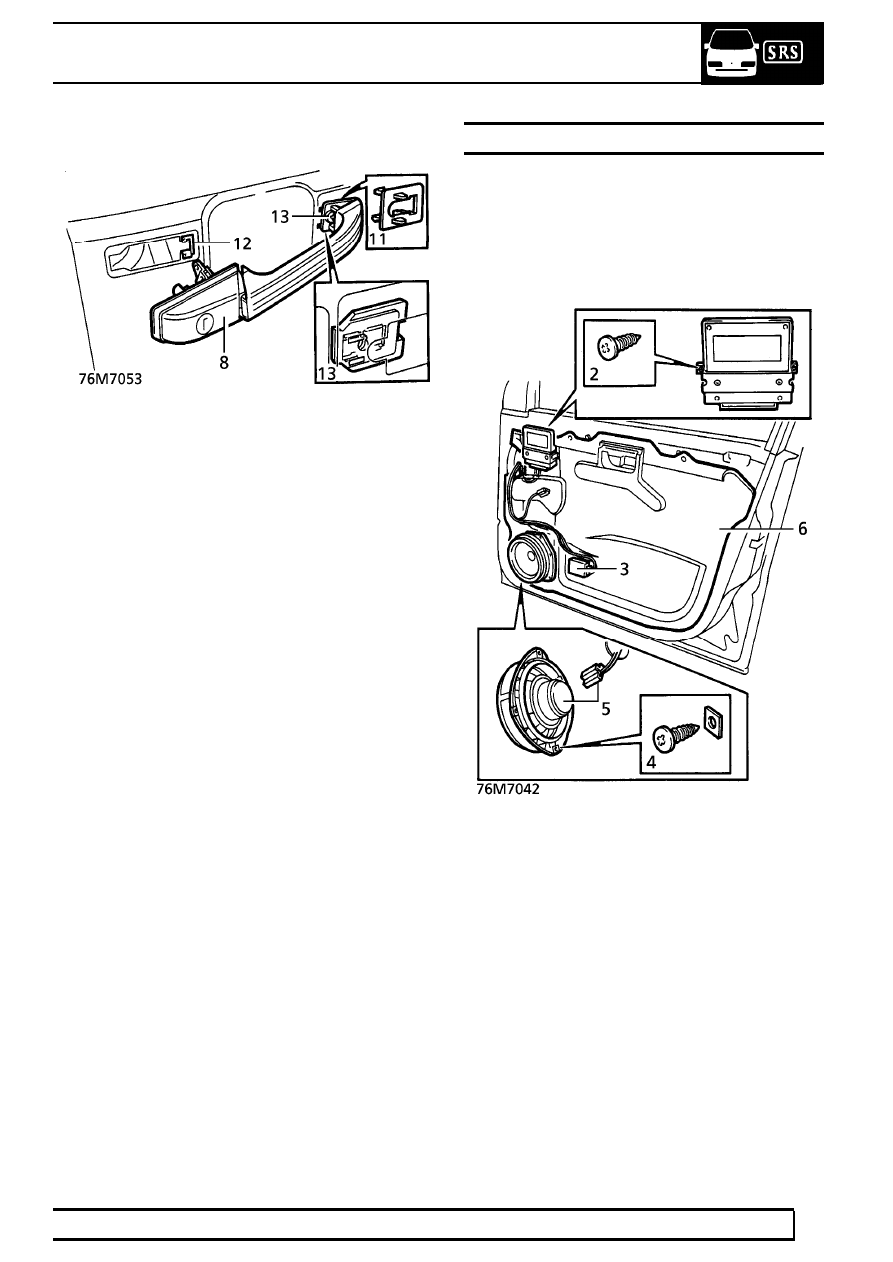

9. Remove handle from front fixing by pivotting rear

end of handle out.

10. Remove gasket from handle.
11. Remove rubber locking plate from door.
12. Remove plastic locking plate from door.
13. Remove screw securing mounting plate to door,

remove plate.

Refit

14. Clean handle and door mating faces.
15. Reverse removal procedure.

PLASTIC SHEET - FRONT DOOR

Service repair no - 76.34.26

Remove

1. Remove front door trim casing.

See this

section.

2. Remove 2 screws securing door outstation ECU.

3. Remove 2 screws securing speaker amplifier.
4. Remove 4 screws securing front door speaker.
5. Release speaker, disconnect multiplug.
6. Remove plastic sheet.

Refit

7. Reverse removal procedure.

76

CHASSIS AND BODY

NEW RANGE ROVER

34

REPAIR

PRIVATE LOCK - FRONT DOOR

Service repair no - 76.37.39

Remove

1. Remove outside handle.

See this section.

2. Fit door lock key.
3. Remove screw securing lock.
4. Remove cam and washer from lock.
5. Remove cam lock and stop from lock.
6. Remove cam return spring. Remove lock from

outside handle.

Refit

7. Apply grease to lock barrel.
8. Fit lock to outside handle.
9. Fit cam return spring, cam stop, cam lock,

washer and cam.

10. Fit screw securing lock to outside handle.
11. Remove door lock key.
12. Refit front door outside handle.

See this

section.

TRIM CASING - FRONT DOOR

Service repair no - 76.34.01

Remove

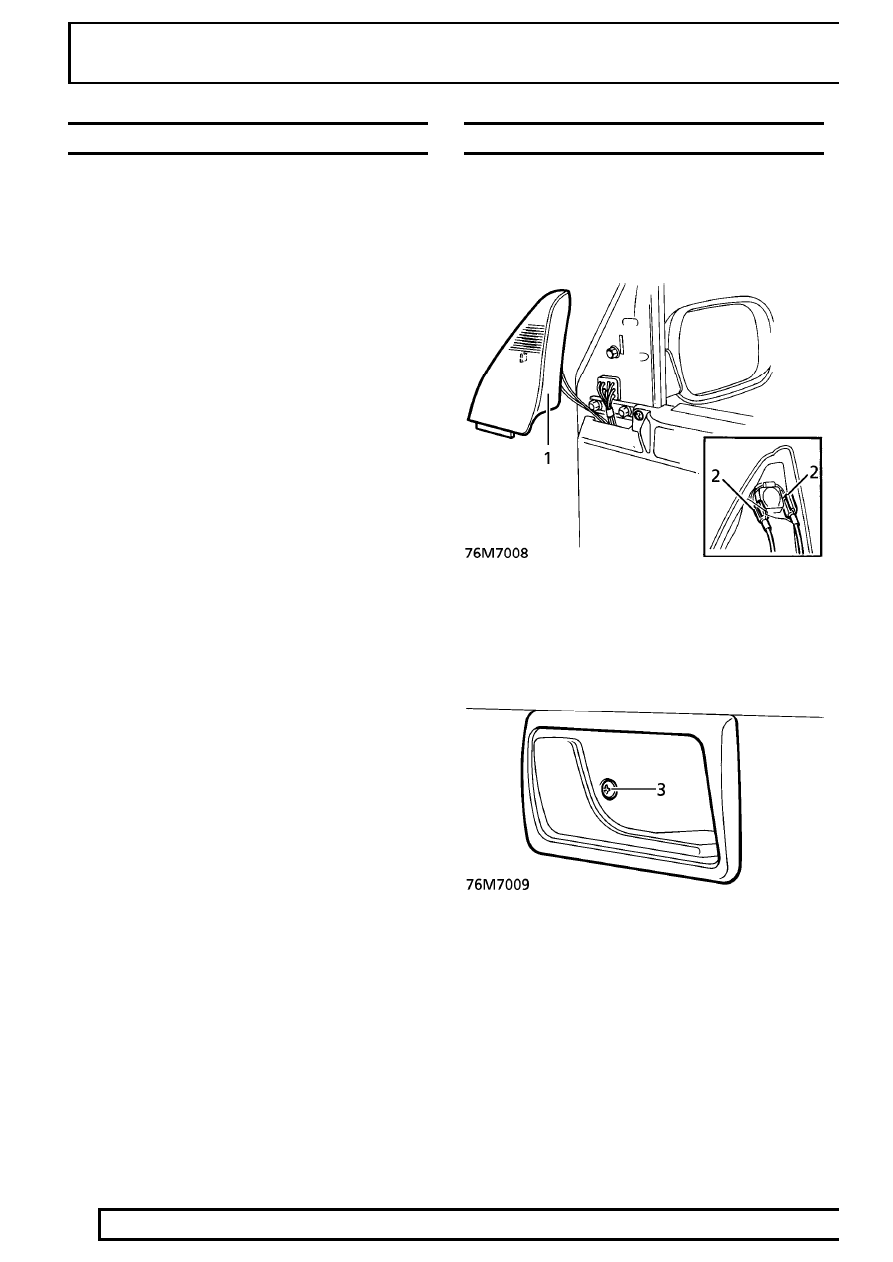

1. Release cheater panel.

2. Disconnect 2 tweeter speaker connectors,

remove cheater panel.

3. Remove screw securing remote handle

escutcheon, remove escutcheon.

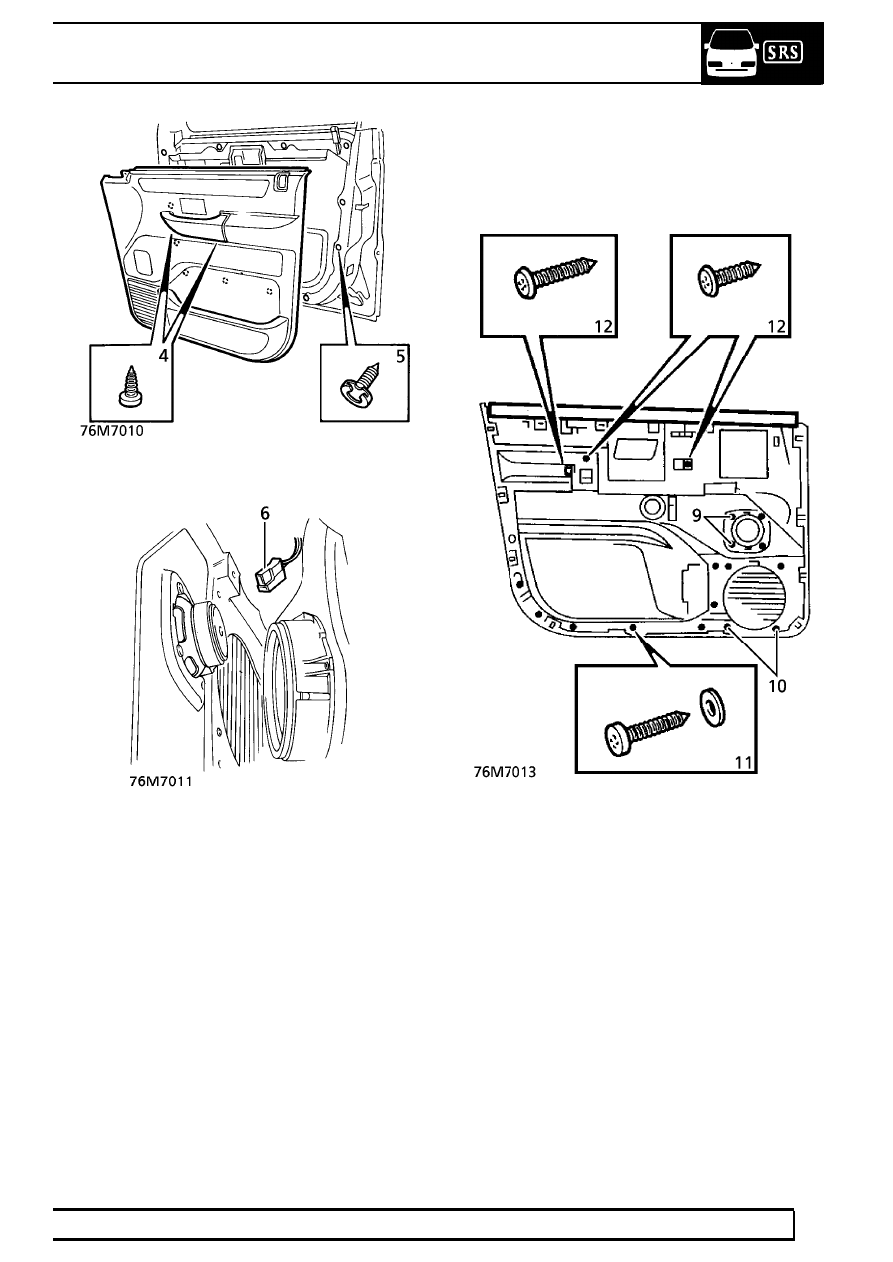

4. Remove 3 screws securing trim casing.
5. Release 12 clips retaining trim casing.

CHASSIS AND BODY

35

REPAIR

6. Disconnect speaker connector.

7. Remove door trim casing.

Disassemble

8. Remove 12 trim casing retaining clips.
9. Remove 4 screws, remove speaker.

10. Remove 4 screws, remove speaker grille.
11. Remove 7 screws, remove trim casing pocket.
12. Remove 3 screws, remove arm rest.
13. Remove retaining clamp and sill button

escutcheon.

76

CHASSIS AND BODY

NEW RANGE ROVER

36

REPAIR

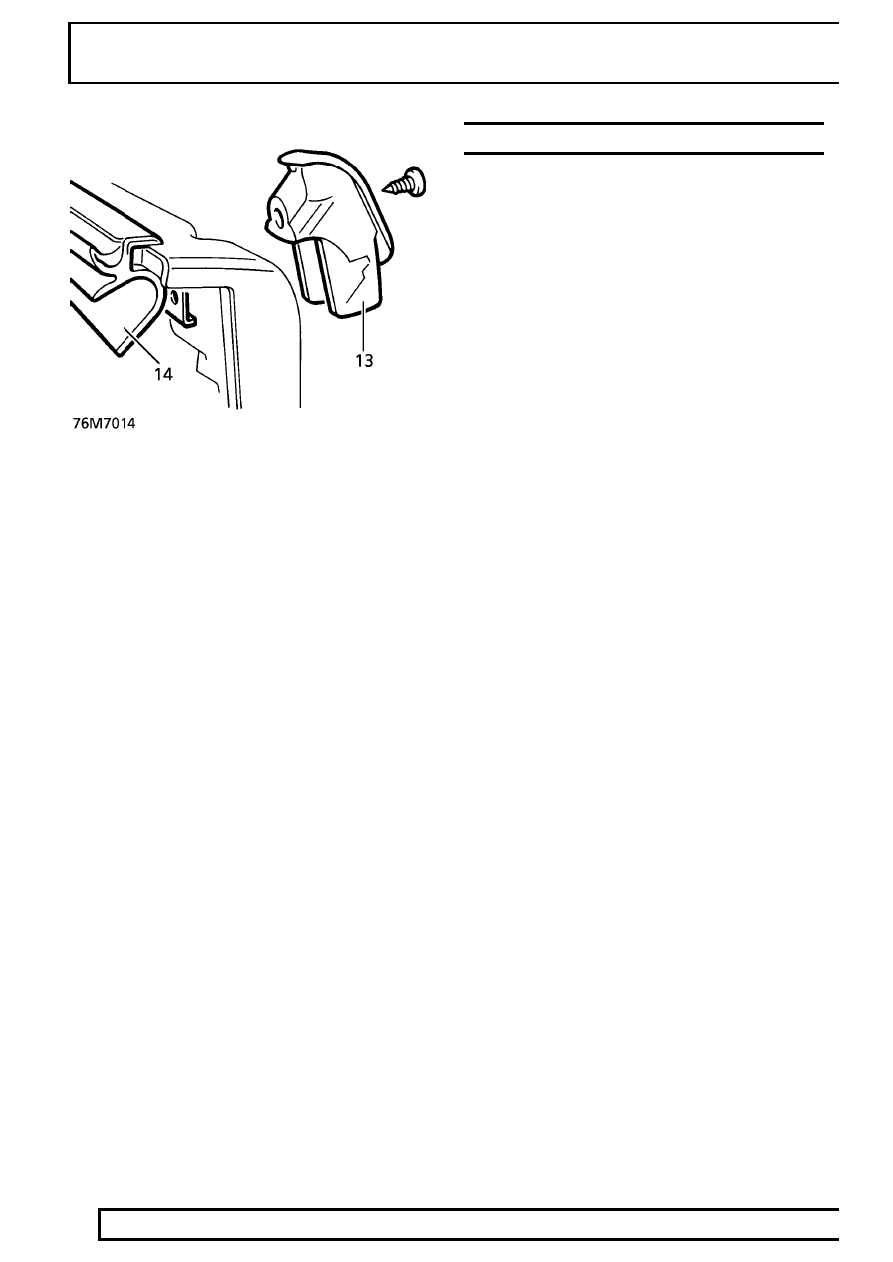

14. Remove door trim casing waist seal.

Assemble

15. Fit door trim casing waist seal.
16. Fit sill button escutcheon, position retaining

clamp, tighten screw.

17. Fit arm rest to trim casing, tighten 3 screws.
18. Fit trim casing pocket, tighten 7 screws.
19. Fit speaker grille to trim casing, tighten 4 screws.
20. Fit speaker to trim, tighten 4 screws.
21. Fit 12 retaining clips.

Refit

22. Connect trim casing speaker connector.
23. Fit trim casing, locating 12 retaining clips.
24. Fit 3 screws securing trim casing.
25. Fit remote handle escutcheon, tighten screw.
26. Position cheater panel, connect 2 tweeter

speaker connectors.

27. Secure cheater panel.

INSERT CAPPING - FRONT DOOR

Service repair no - 76.34.32

Remove

1. Fit protection to door trim casing.
2. Position a blunt flat blade between trim casing

and insert upper edge.

3. Gently raise blade to remove insert.
4. Remove retaining clips from insert.

Refit

5. Fit insert to door casing. Secure with clips.
6. Remove protection from door casing.
