CHASSIS AND BODY

13

REPAIR

7. Disconnect 3 towing harness multiplugs.
8. Remove 2 mounting bolt covers.
9. Remove 2 bolts securing bumper to chassis.

10. With assistance, release bumper ends from

brackets. Remove bumper.

Refit

11. With assistance, position bumper. Engage nylon

end supports to brackets.

12. If necessary, slacken bolts securing end support

brackets. Align bumper to body. Tighten to

29

Nm. (22 lbf.ft)

13. Fit bumper mounting bolts. Tighten to

70 Nm.

(52 lbf.ft)

14. Fit bolt covers.
15. Secure bumper end clips.
16. Connect towing harness multiplugs.
17. Position wheel arch liner extensions. Secure with

screws.

18. Position mud flaps. Secure with screws.
19. Fit road wheels. Tighten to

108 Nm. (80 lbf.ft)

20. Remove safety stands. Lower vehicle.

FASCIA ASSEMBLY

Service repair no - 76.46.23/99

WARNING: The fascia assembly houses
the heater distribution unit, blower
assemblies and air conditioning

evaporator. Assistance is essential during
removal and refit procedures.

CAUTION: When removed from the
vehicle, the fascia should be placed on a
soft covered work surface, supported on

suitable wooden blocks.

Remove

1. Vehicles with SRS only: Remove battery.

See

ELECTRICAL, Repair.

2. Vehicles without SRS: Disconnect battery

negative lead.

3. Drain cooling system.

See COOLING SYSTEM,

Repair.

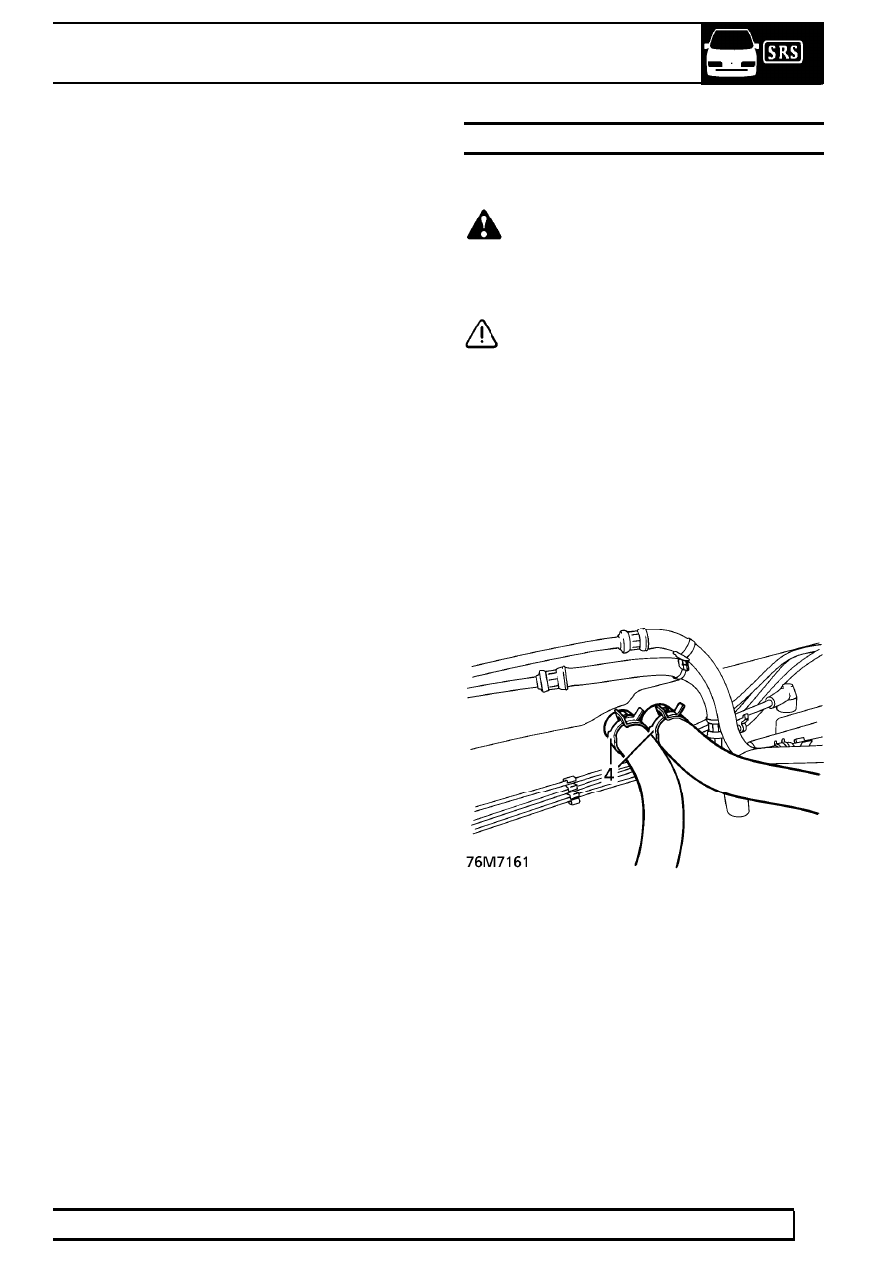

4. Loosen hose clips, disconnect hoses from

heater pipes.

5. Remove centre console.

See this section.

6. Remove steering column.

See STEERING,

Repair.

7. Remove wiper motor and linkage.

See WIPERS

AND WASHERS, Repair.

8. Disconnect passenger side heated front screen

multiplug. Release multiplug from clip.

76

CHASSIS AND BODY

NEW RANGE ROVER

14

REPAIR

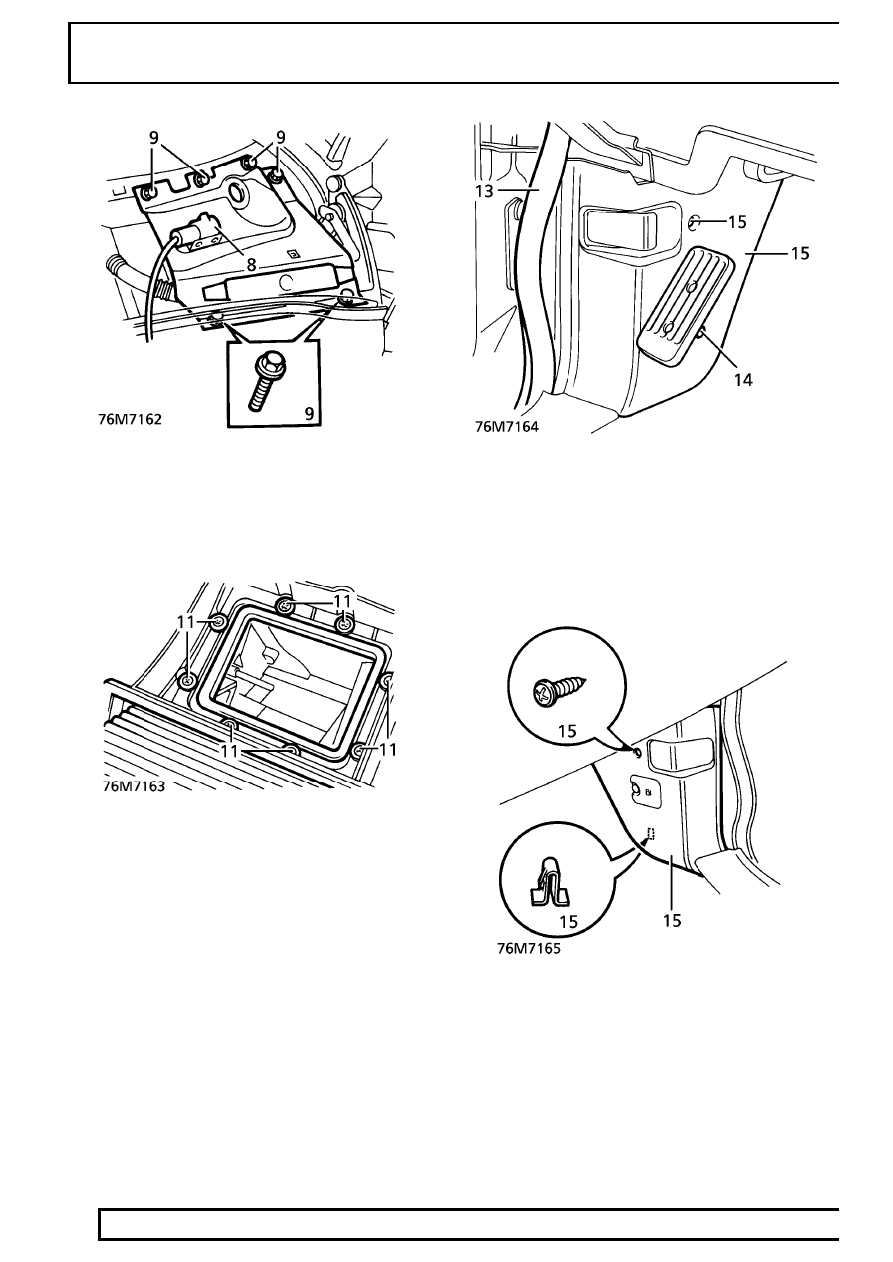

9. Remove 6 bolts, remove remaining scuttle side

panel.

10. Remove heater intake pollen filters.
11. Remove 8 screws securing each pollen filter

housing. Remove both housings.

12. Remove radio.

See ELECTRICAL, Repair.

13. Release door aperture seal adjacent to ’A’ post

lower trim panels.

14. Driver’s side - LHD automatic vehicles only:

Remove 3 bolts securing foot rest through ’A’
post lower trim, remove foot rest.

15. Remove screw securing each ’A’ post lower trim

panel, release from single sprag clip, remove
both trim panels.

CHASSIS AND BODY

15

REPAIR

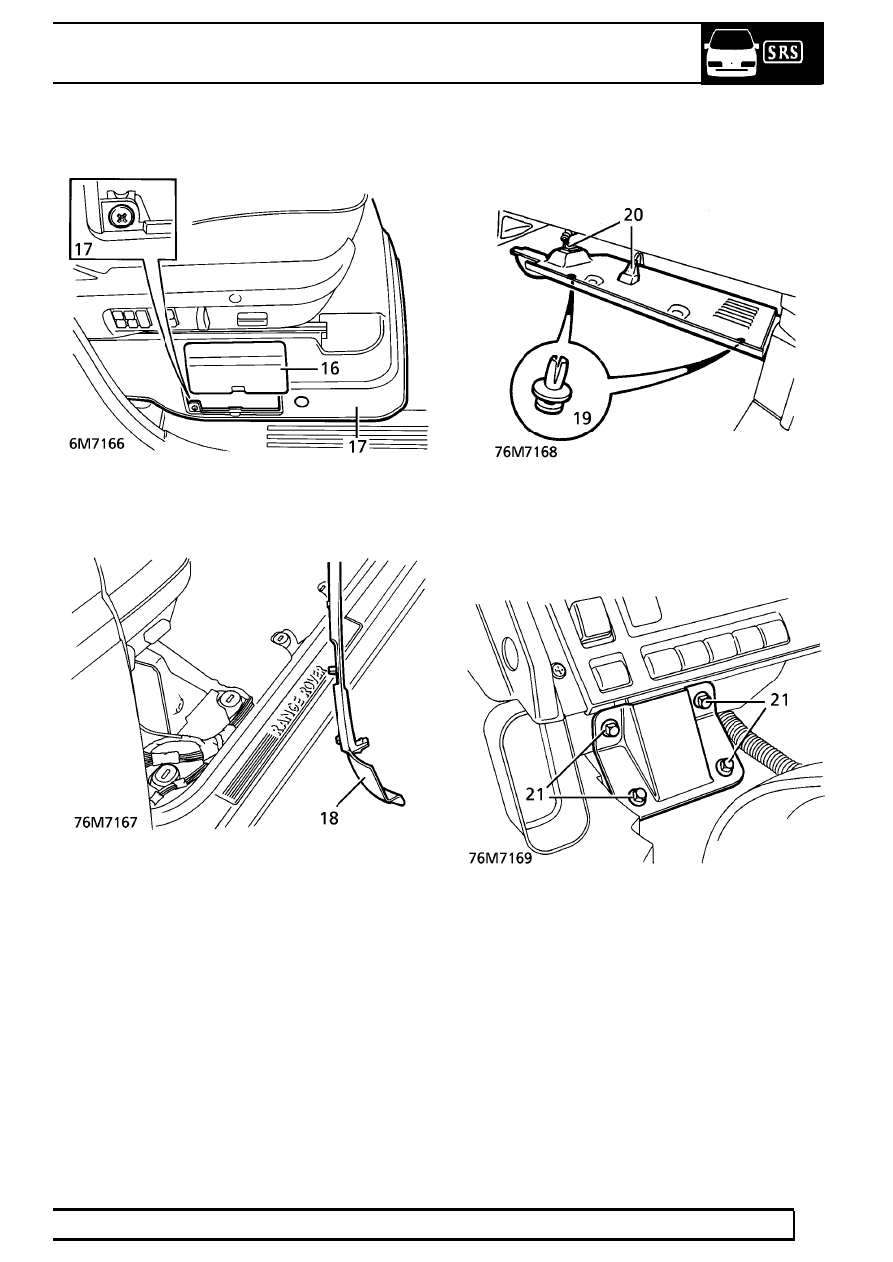

16. Remove fuse cover from driver’s seat base trim.

17. Remove screw and 2 trim studs, remove seat

base trim.

18. Release 4 sprag clips, remove driver’s side

carpet retainer.

19. Remove 2 scrivet fasteners securing lower

closing panel to passenger side of fascia.

20. Release closing panel, disconnect footwell lamp,

release diagnostic multiplug. Remove closing
panel.

21. Remove 4 bolts, remove fascia centre bracket.

76

CHASSIS AND BODY

NEW RANGE ROVER

16

REPAIR

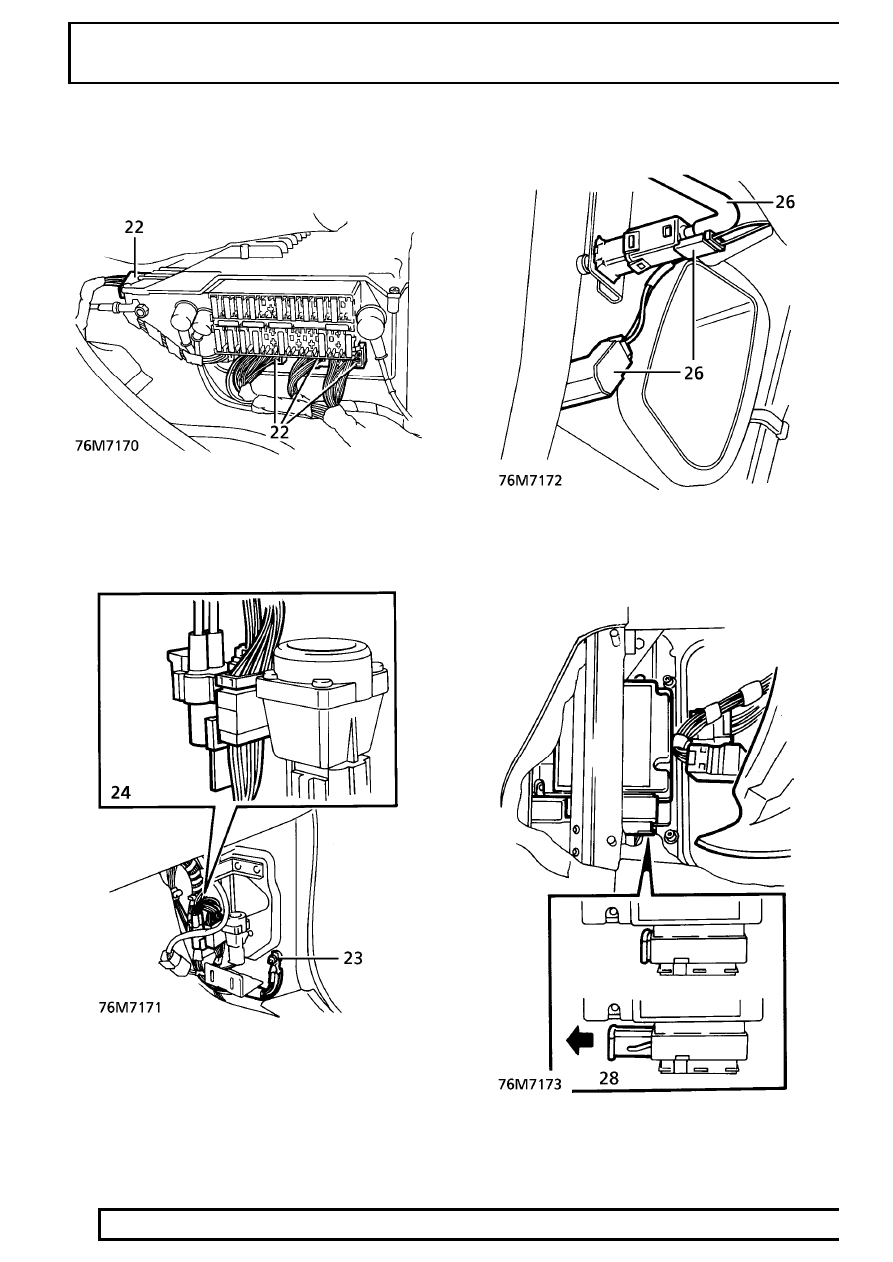

22. Disconnect 4 multiplugs from Body Electrical

Control Module (BeCM)

23. Remove captive nut, remove earth wires from

stud at base of driver’s side ’A’ post.

24. Disconnect multiplugs at base of each ’A’ post.

25. Release BeCM harness from sill, route into

fascia to prevent fouling as fascia is removed.

26. Disconnect multiplugs and release vacuum hose

from brake and clutch switches.

27. Models with SRS only: Disconnect SRS

multiplug from main harness.
