Wheels and tyres

186

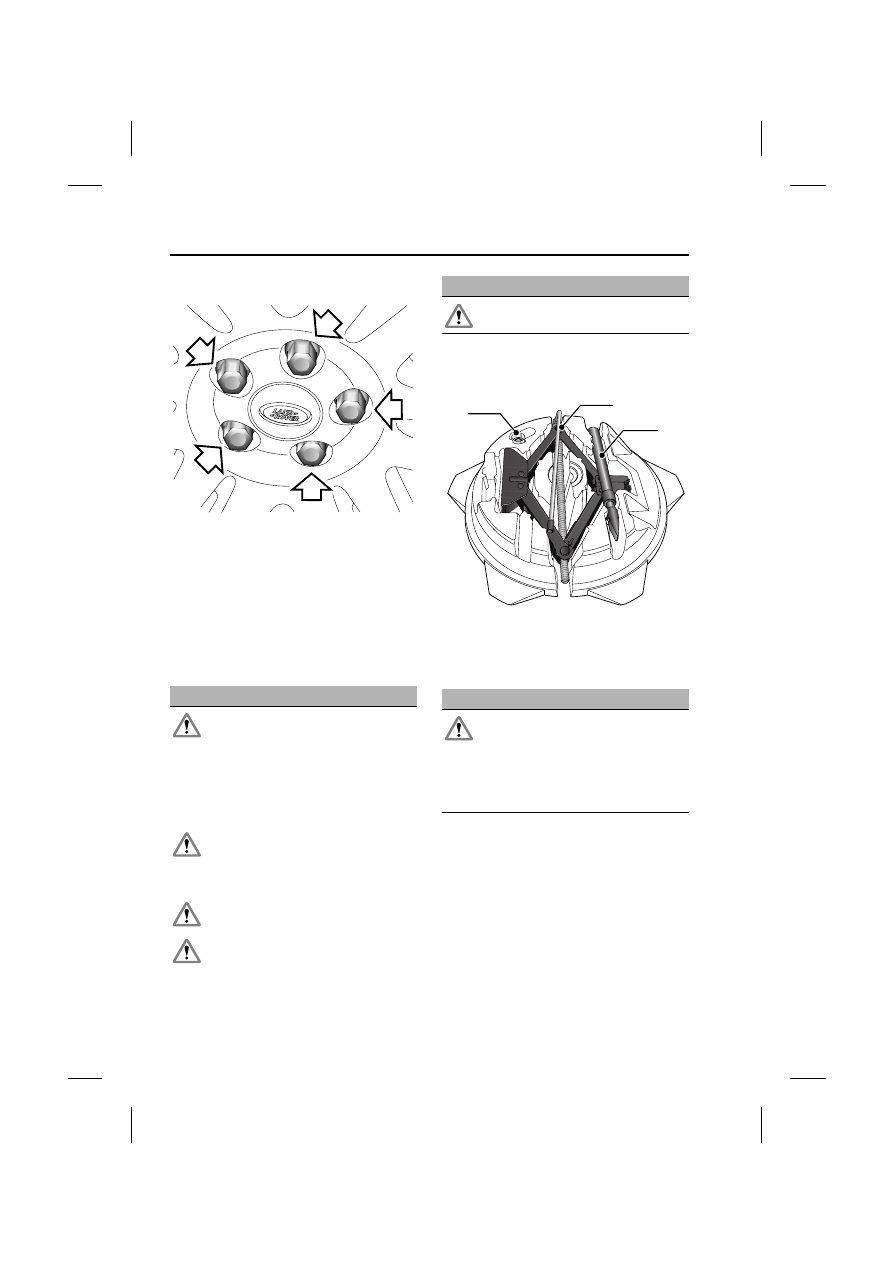

Wheel nut tightening sequence

With all wheels on the ground and the jack
removed, fully tighten the wheel nuts in the
sequence shown to 133 Nm (98 lb.ft).

Note: If it is not possible to torque the wheel
nuts when a wheel is replaced, the wheel nuts
should be set to the correct torque as soon as
possible.

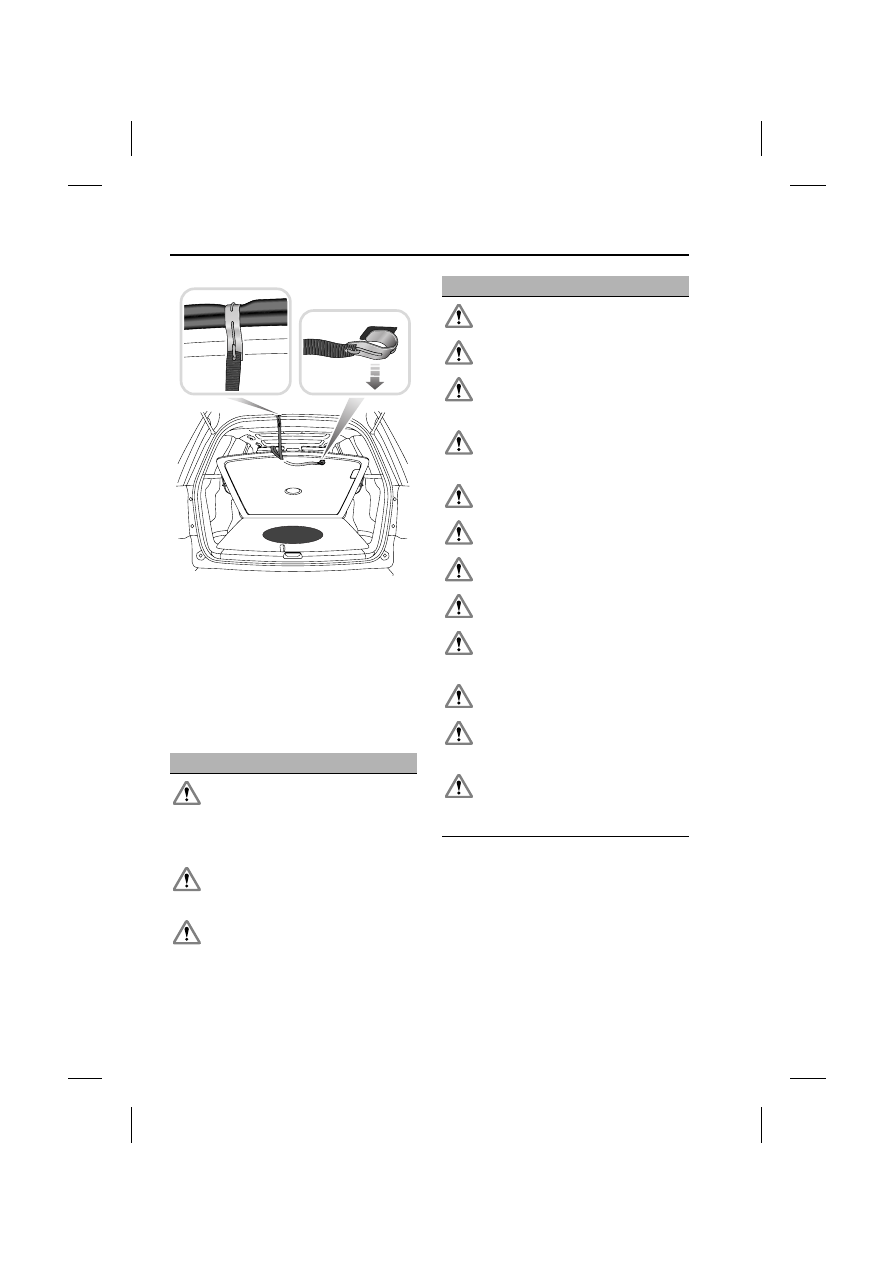

Temporary spare wheel

Tool kit

Tool kit contents

1. Jack.

2. Wheel brace.

3. Locking wheel nut adapter.

Note: The jack requires occasional
maintenance. Examine the jack for wear,
damage, or corrosion, and lubricate the
moving parts.

WARNINGS

Please note the temporary spare
warning label affixed to the wheel, and

adhere to the instructions. Failure to comply
with the instructions may result in incorrect
use of the temporary spare wheel. Which may
in turn cause vehicle instability and/or tyre
failure.

Drive with caution while the temporary
spare wheel is fitted, and ensure that an

original size wheel and tyre are fitted as soon
as possible.

Do not fit more than one temporary
spare wheel.

Do not exceed 80 km/h (50 mph) while
the temporary spare wheel is fitted.

E83968

DSC must be switched on while the
temporary spare wheel is in use.

WARNING

After use the tool kit should be returned
to the under floor storage area, and

correctly stowed. Do not leave the tool kit, or
it's components, loose in the storage area as
they can prove hazardous during an impact or
sudden manoeuvre.

WARNINGS

E80162

187

Wheels and tyres

Locking wheel nuts

Locking wheel nuts can only be removed using
the special adapter provided in the tool kit.

Note: When the vehicle is first supplied the
adapter may be stored in the glove
compartment. It should be removed and stored
in the tool kit as soon as possible.

Note: A code number is stamped onto the
underside of the adapter. This number must be
recorded on the security card supplied with the
literature pack. If a replacement adapter is
required you will be asked to quote this
number. The security card must be kept safe,
but should not be kept with the vehicle.

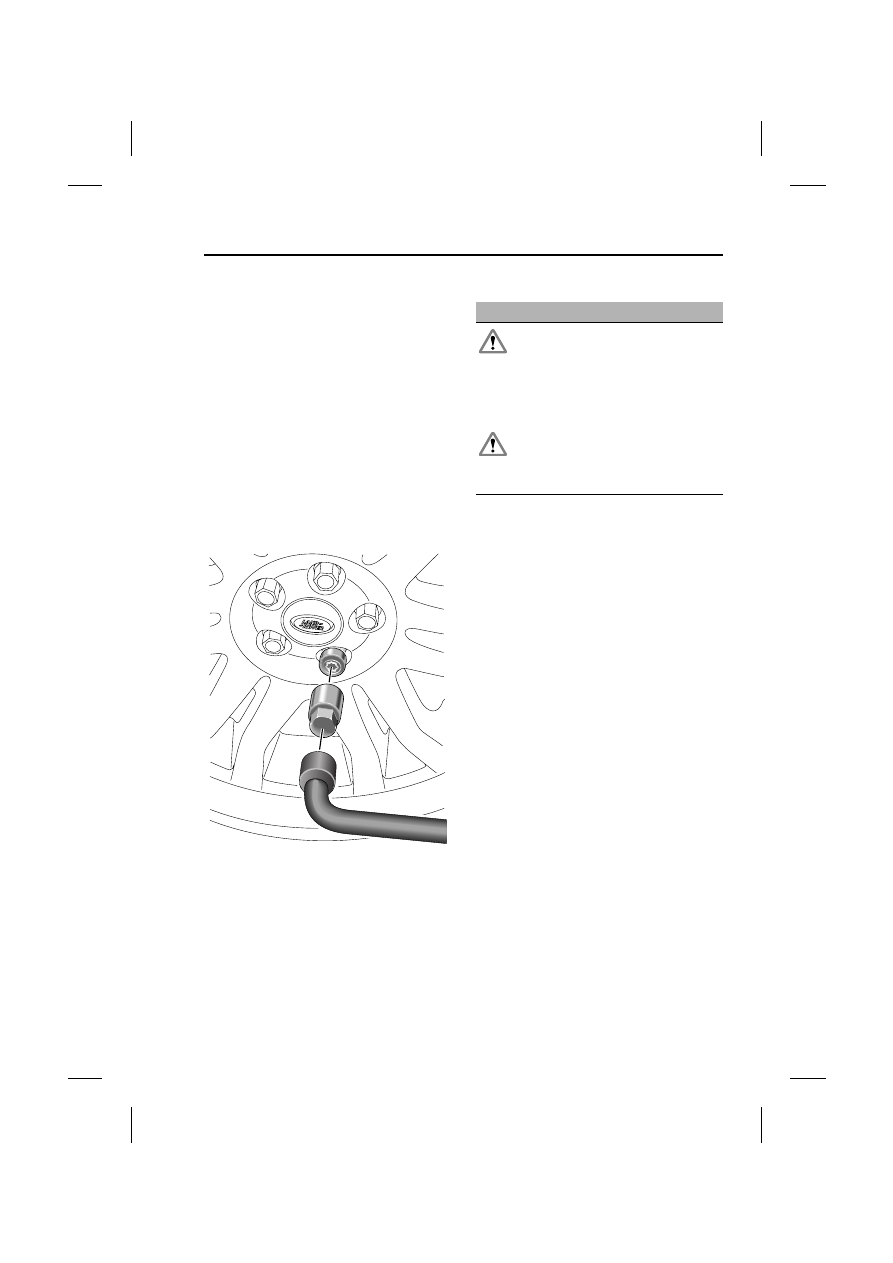

Releasing locking wheel nuts

1. Insert the wheel nut adapter into the

locking wheel nut ensuring that it is fully
engaged.

2. Using the wheel brace, unscrew the wheel

nut and adapter.

Note: After use store the wheel nut adapter
correctly in the tool kit.

TYRE REPAIR KIT

Your vehicle may not be equipped with a spare
tyre. If this is the case, in it's place you will find
a Land Rover tyre repair kit. The Land Rover
tyre repair kit can be used to repair one tyre,
and it is essential that you read the following
guide before attempting to repair a tyre.

The Land Rover tyre repair kit seals most
punctures caused by nails, or similar items,
with a maximum diameter of 6 mm (1/4 inch).

E83969

WARNINGS

To ensure vehicle safety, it is essential
that you read and understand the

following information. Failure to follow the
instructions given here may lead to serious
tyre damage, and may result in death or
serious injury.

If you are in any doubt regarding your
ability to carry out the instructions,

contact your Land Rover Dealer/Approved
repairer before attempting the repair.

Wheels and tyres

188

The tyre repair kit is located in the rear
underfloor storage compartment.

Note: The sealant used in the tyre repair kit has
a shelf life, and the expiry date is shown on the
top of the bottle. Ensure that the bottle is
replaced before the expiry date.

Land Rover tyre repair kit safety
information

WARNINGS

Some tyre damage may only be partially
sealed, or may not seal at all, depending

on the amount and type of damage. Any loss
of tyre pressure can seriously affect vehicle
safety.

Do not use the tyre repair kit if the tyre
has been damaged by driving while

under inflated.

Only use the tyre repair kit to seal
damage located within the tyre tread

area.

E79940

Do not use the tyre repair kit to seal
damage to the tyre sidewall.

Do not exceed 80 km/h (50 mph) when
a repaired tyre is fitted to the vehicle.

The maximum distance that should be
driven when a repaired tyre is fitted, is

200km (125 miles).

When a repaired tyre is fitted, drive with
caution and avoid sudden braking or

steering manoeuvres.

Only use the tyre repair kit for the
vehicle with which it was supplied.

Do not use the tyre repair kit for any
other purpose than tyre repair.

Never leave the tyre repair kit
unattended when in use.

Only use the tyre repair kit within the
-30 °C to +70 °C temperature range.

Alway keep children and animals at a
safe distance from the tyre repair kit

when in use.

Do not stand directly beside the
compressor when it is operating.

Check the tyre sidewall prior to
inflation. If any cracks, damage, or

deformities are apparent do not inflate the tyre.

Watch the tyre sidewall during inflation.
If any cracks, damage, or deformities

are apparent switch off the compressor, and
deflate the tyre.

WARNINGS

189

Wheels and tyres

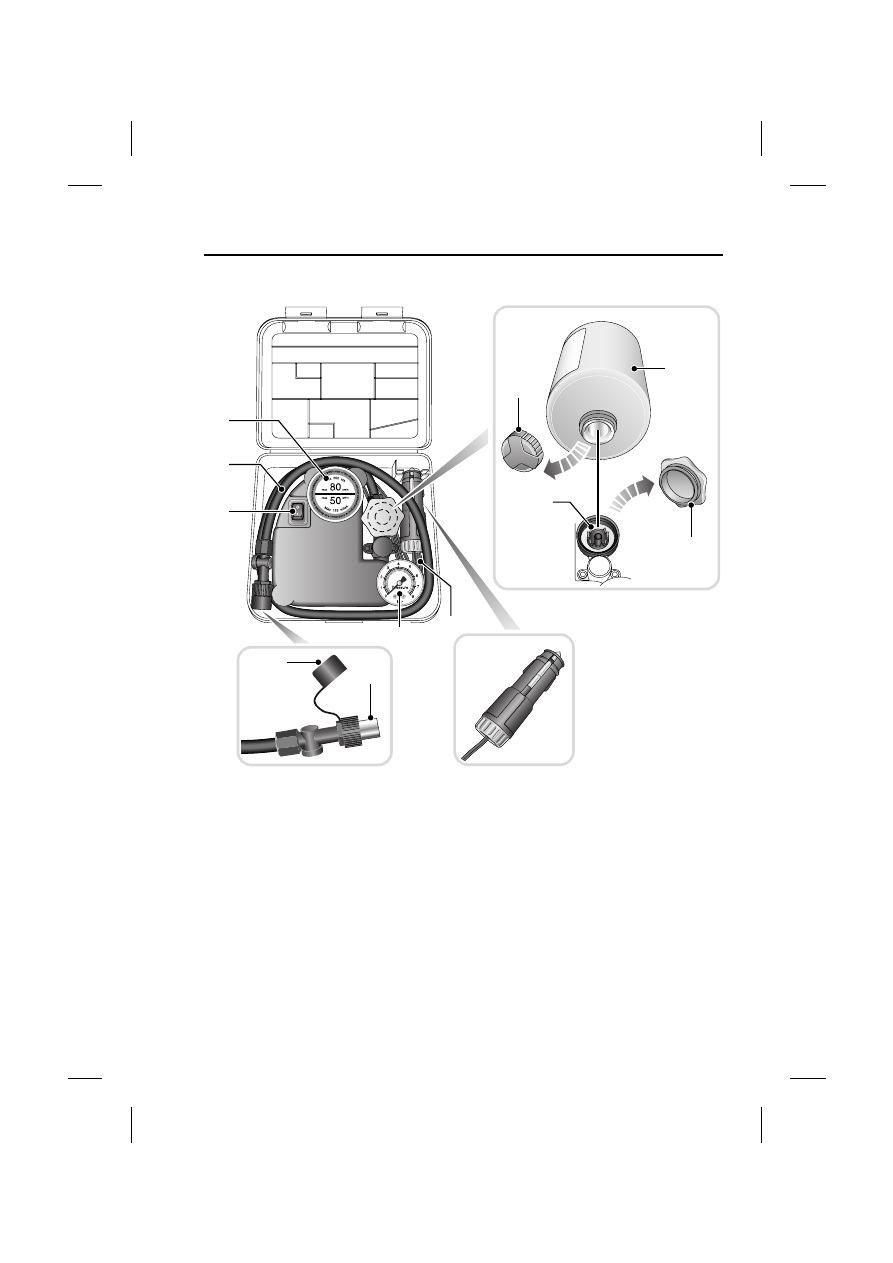

Land Rover tyre repair kit

1. Maximum speed label. 80 km/h (50 mph).

2. Tyre inflation hose.

3. Inflation hose protective cap.

4. Inflation hose connector.

5. Compressor power cable.

6. Power cable connector.

7. Sealant bottle receiver cap (orange).

8. Sealant bottle receiver.

9. Sealant bottle cap.

10. Sealant bottle.

11. Tyre pressure gauge.

12. Compressor on/off switch. (I = on. 0 = off.)

E79968
