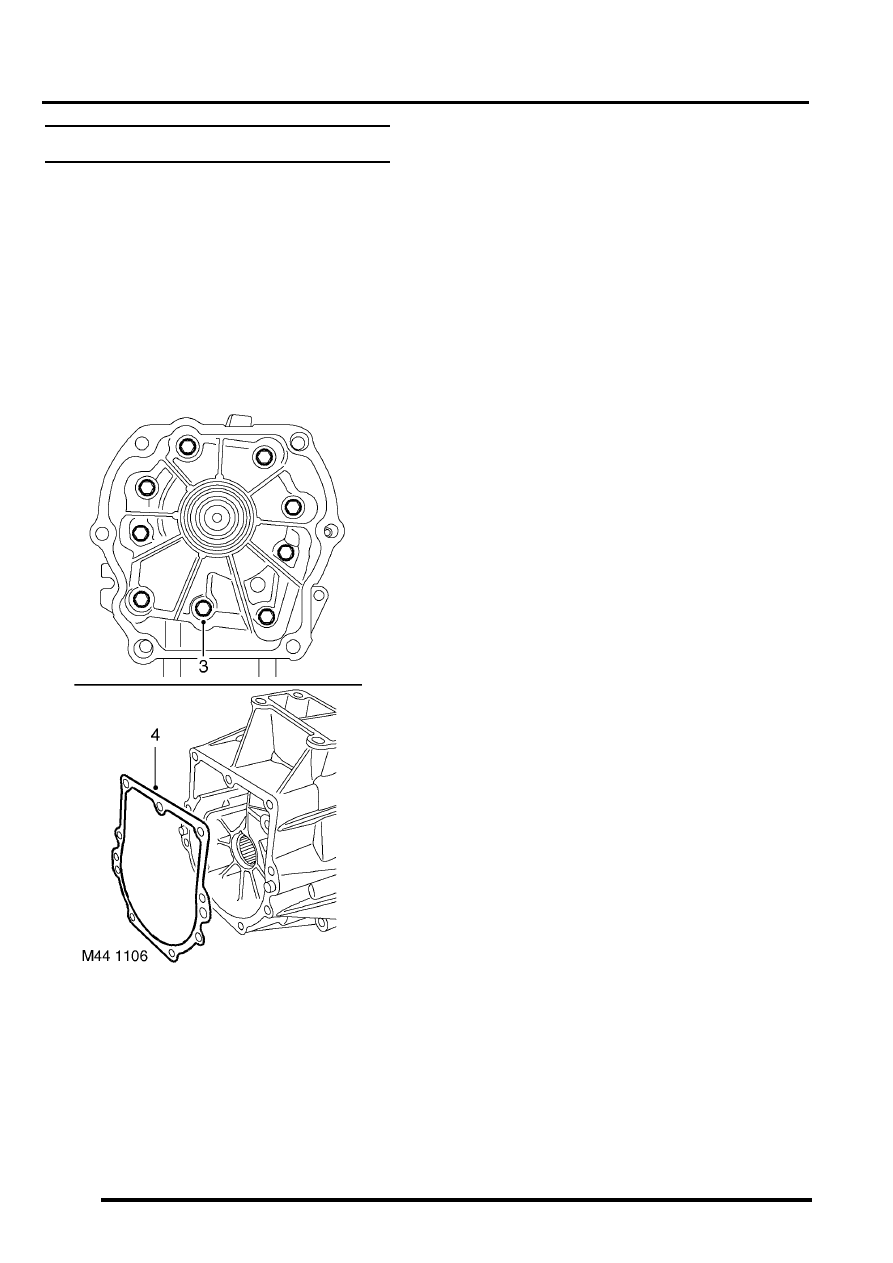

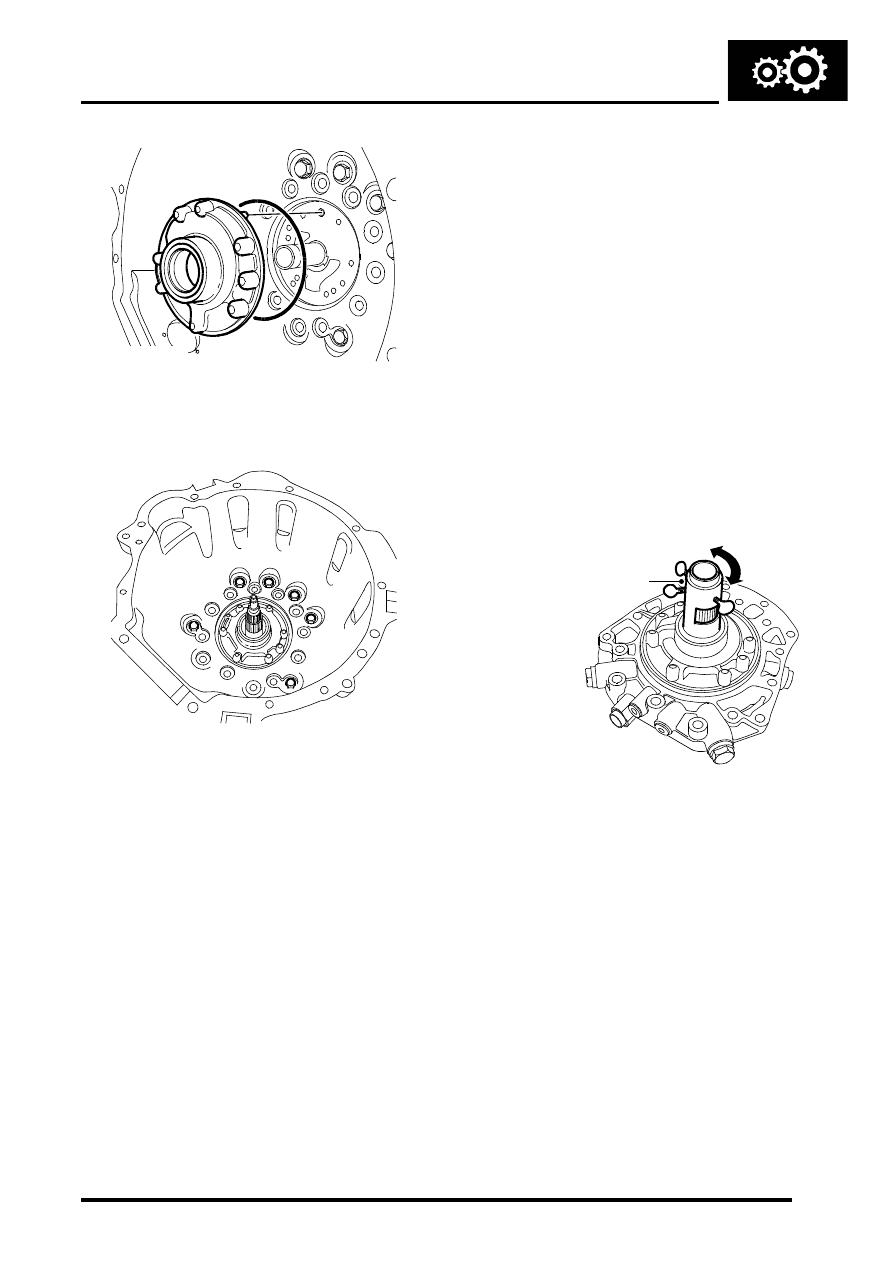

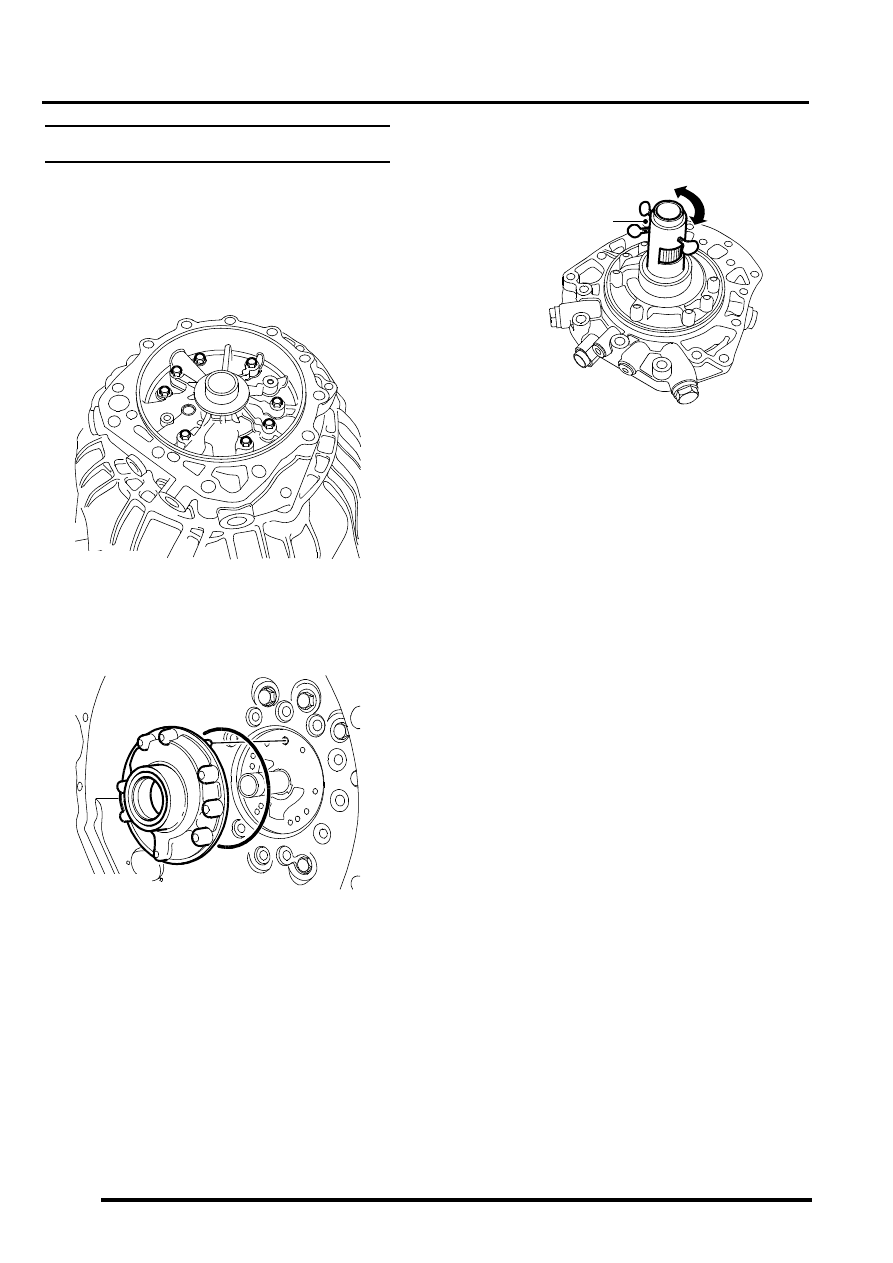

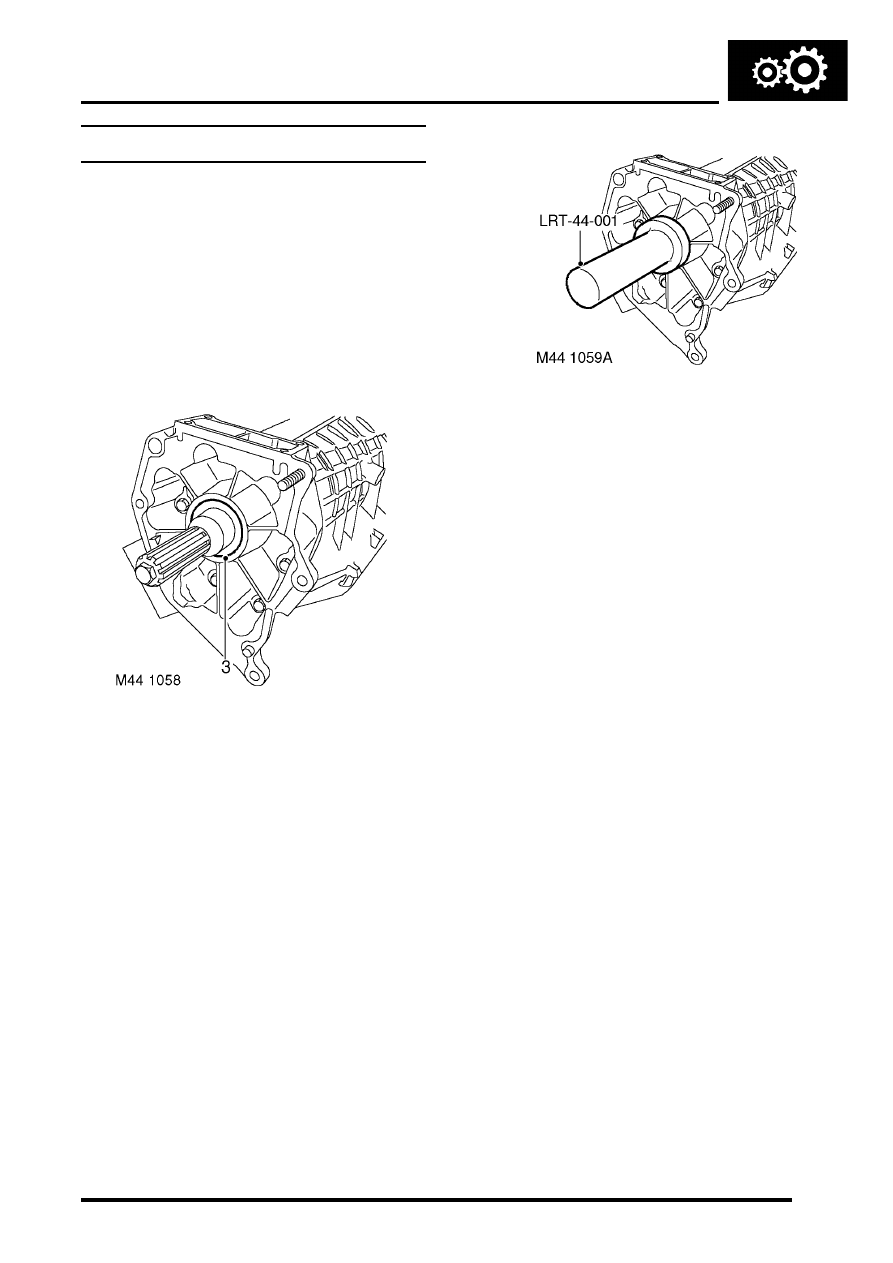

AUTOMATIC GEARBOX - ZF4HP22 - 24 REPAIRS 44-39 7. Note position and remove pump locating dowel. housing. 9. Remove 6 bolts securing converter housing to intermediate plate, and release intermediate Refit 1. Clean intermediate plate and mating faces with a lint free cloth. 2. Position intermediate plate to converter housing, fit bolts and tighten evenly to 46 Nm 3. Fit new sealing washers to M14 Allen plugs, fit plugs and tighten to 40 Nm (30 lbf.ft). 4. Fit new sealing washers to M20 plugs, fit plugs and tighten to 50 Nm (37 lbf.ft). 5. Fit oil cooler adaptors and tighten to 42 Nm (30 lbf.ft) 6. Clean pump housing and mating face on intermediate plate with lint free cloth. 7. Lubricate new 'O' ring with transmission fluid and fit to pump housing. 8. Position pump locating dowel into intermediate plate. 9. Align pump to dowel and position in intermediate plate. 10. Fit bolts and tighten in a diagonal sequence to 10 Nm (7 lbf.ft) 11. Position LRT-44-003/1 into pump and check that the pump rotors turn freely. 12. Fit intermediate plate gasket. - 24, REPAIRS, Gasket - intermediate plate. M44 1341 M44 1357 M44 1342 LRT-44-003/1 |
