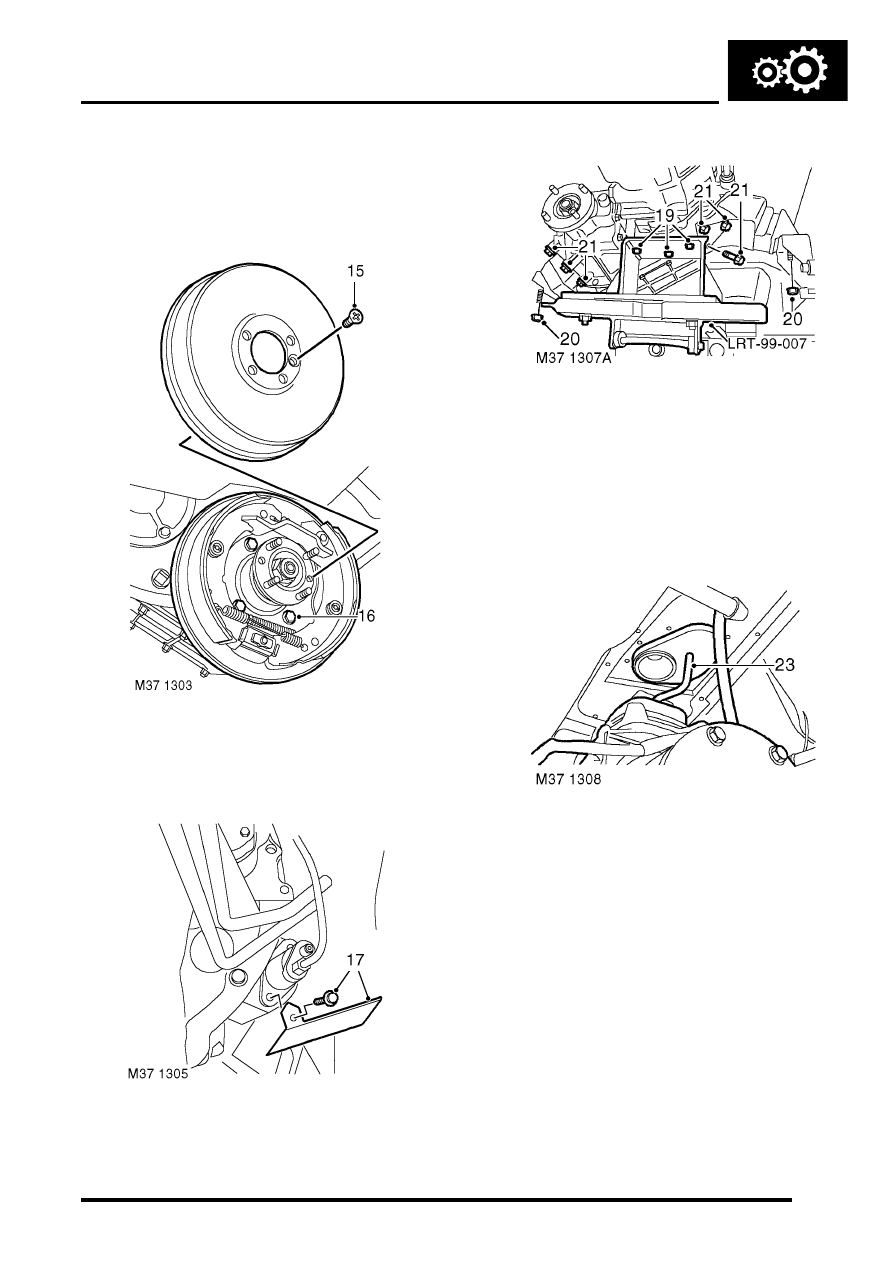

MANUAL GEARBOX - R380 REPAIRS 37-13 12. Remove 8 nuts securing front propeller shaft to transfer gearbox and differential. 13. Remove propeller shaft. shaft. 15. Remove handbrake drum retaining screw and remove handbrake drum. 16. Remove 4 bolts from handbrake back plate, release back plate and tie aside. 17. Remove 2 bolts securing clutch slave cylinder, collect heat shield, release slave cylinder and 18. Fit support plate LRT-99-007 to gearbox jack. gearbox and secure with 3 bolts. 20. Support the weight of gearbox, remove nuts securing gearbox mountings to body. 21. Remove 8 bolts securing mountings to gearbox, raise gearbox and remove both 22. Lower gearbox sufficiently to access top of gearbox. 23. Ensure gear lever is released from grommet and no wires or pipes are trapped when |
