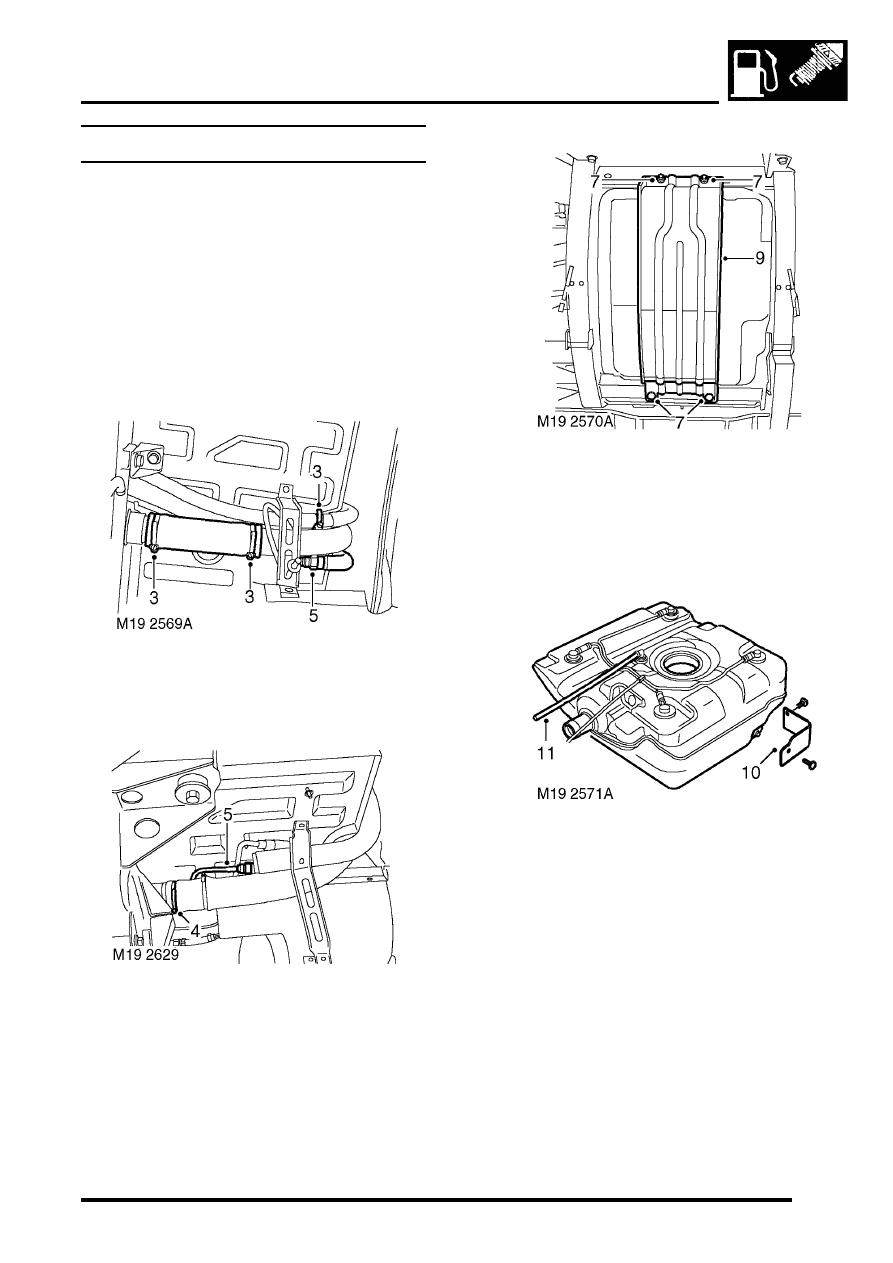

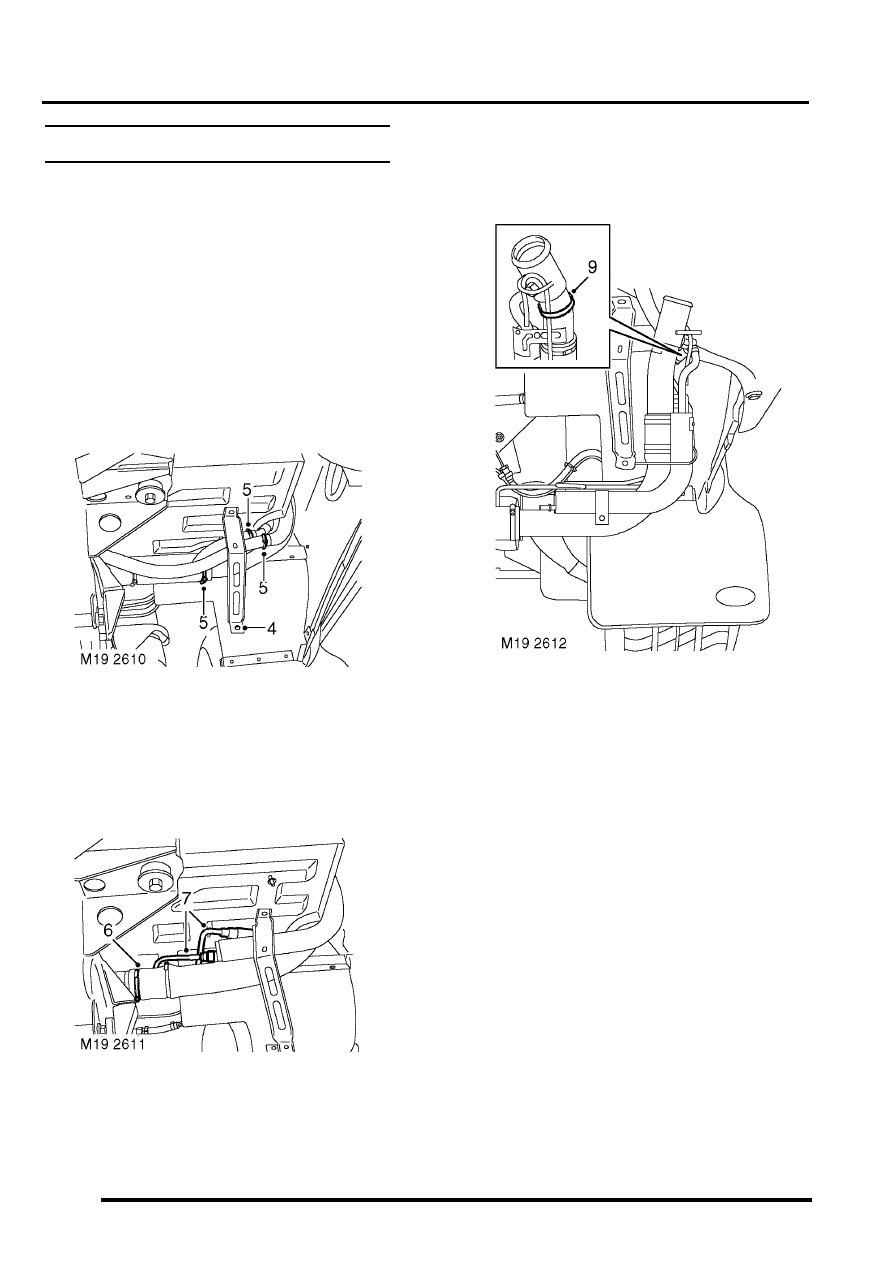

FUEL DELIVERY SYSTEM - V8 REPAIRS 19-2-15 Tank - fuel $% 19.55.01 Remove 1. Drain fuel tank. ADJUSTMENTS, Fuel tank - drain. 2. Raise rear of vehicle. WARNING: Do not work on or under a 3. All except NAS models:Release clips securing filler and breather hoses. Release 4. NAS models: Loosen securing clip and release filler tube from fuel tank. 5. Disconnect fuel tank vent pipe from filler tube. 7. Remove 2 nuts and 2 bolts securing cradle to chassis. 8. With assistance, lower LH side of fuel tank then remove fuel tank from chassis. 9. Remove cradle from fuel tank. Non NAS fuel tank 10. Remove 2 scrivets securing heat shield and remove heat shield. 11. All except NAS models: Release securing clip and remove breather hose from fuel tank. Refit 1. Fit breather hose to fuel tank and secure with clip. 2. Position heat shield and secure with scrivets. Tighten bolts to 45 Nm (33 lbf.ft) and nuts to 26 5. Connect vent hose. with clips. |
